– Premium material provides maximum support and strength.
– Easy to install and widely used.
– The overall structure of the bearing design is more stable.
– The material, workmanship, size, and accessories of the product can be customized.
– Professional packaging ensures the safe transportation of products.
– Special pricing is available for bulk orders.

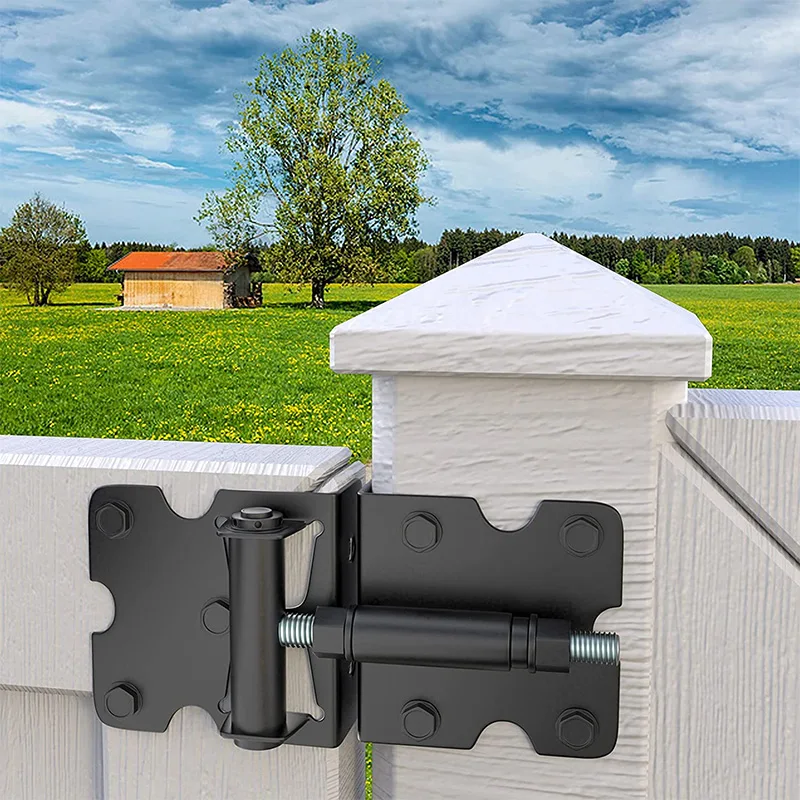

If you need to pull hard every time you open the door, or if the gate is sagging, or other problems. Choosing our adjustable self-closing gate hinges can perfectly avoid these problems. You can trust our products because FENCE DEPOT is a well-known manufacturer of gates and related accessories.
Adjustable self-closing gate hinges are very strong and allow the gate to align and close automatically. Can be used with our Garden Fence Gates, etc., to achieve better results. To ensure that every closing is completed, we designed a stable elastic buckle that can be automatically locked to ensure maximum security.
On the premise of ensuring aesthetics, we have designed more screw holes and will be equipped with strong screws. This results in a more stable connection between the product and the gate. We use high-quality stainless steel. It can withstand all weather conditions and wear and tear.
Adjustable self-closing gate hinges are suitable for a wide range of applications, including wooden gates and fences. It can be used even if the gate frame is irregular. Of course, we can customize products according to various groups or customer needs.
| Item | Material | Finish | Expand Size | |
| Large wooden gate hinge | Small wooden gate hinge | |||
| Stainless steel pin | SS 304 | String light | Φ12.5*73.2 | Φ11*53.5 |
| Spring buckle | Carbon steel | Blackened | Φ17.2*0.8 | Φ13.2*0.8 |
| Post bracket | Carbon steel | Black powder-coated | 106.5*61*52.5 | 49.5*42*41 |
| Gate bracket | Carbon steel | Black powder-coated | 106.5*56.5*35 | 69.7*45*33.5 |
| T-shaped screw | Stainless steel | Electrophoresis | 33.7*122*M12 | 28.5*104*M10 |
| Nuts | Stainless steel | String light | M12 | M10 |
| Casing | Stainless steel | Electrophoresis | Φ19.2*2*33.8 | Φ14*2*28.5 |
| Nylon rope | Nylon | / | 18*19 | 14*11.5 |
| Wood screw | Carbon steel | Blackened | M6*25 | M6*25 |

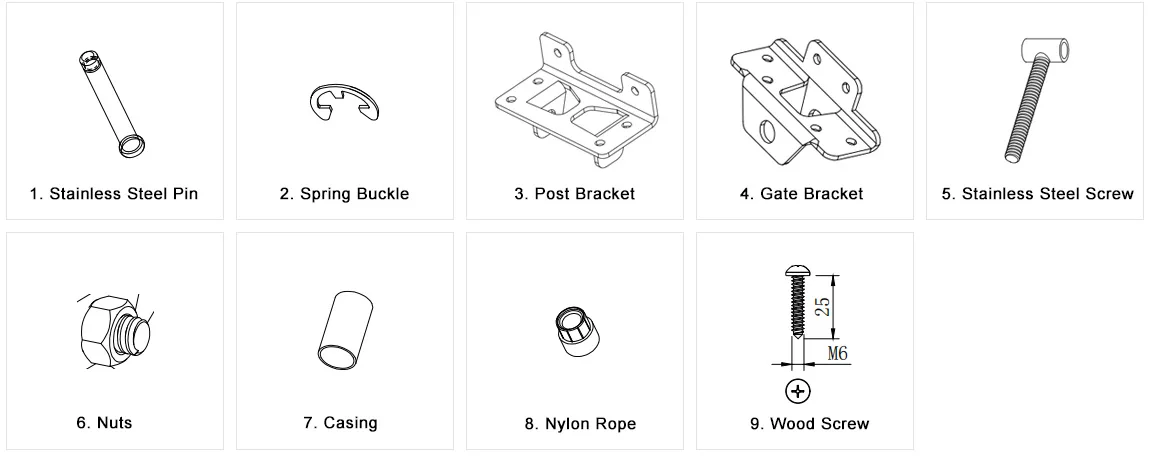

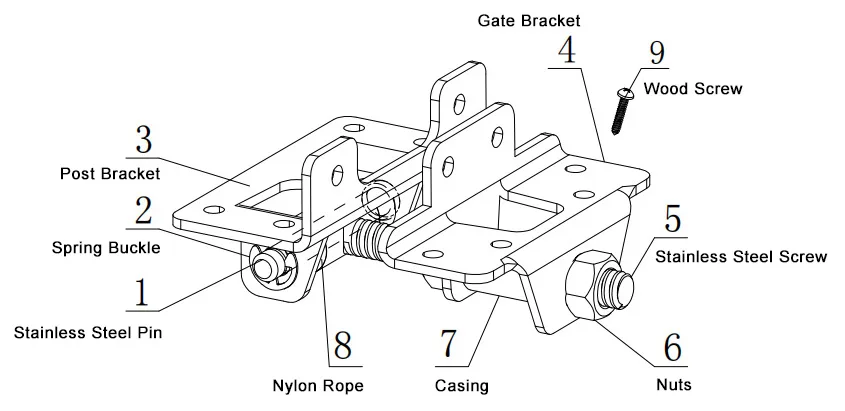

The picture above details the part structure and composition of the product. Of course, we can change the details according to needs or usage scenarios.
Use these resistance hinges to replace an old, worn-out, or squeaky farm gate closer or garden gate closer, or to install a new fence gate closer.
You can adjust the spring tension that controls how much force the gate swings closed with; adjust the position of the gate saddle to adjust the gate gap and to level an installed gate.
These hinges are for wooden fences’ heavy-duty construction due to the use of high-quality carbon steel.
Use these hinges to mount a gate for outdoor wood, vinyl, and PVC fences and gates.
In addition to the hinges, the package includes self-tapping sheet metal screws for vinyl fences and a swing adjuster tool that allows you to adjust the spring tension on the hinge.
|
 |
