– Galvanised steel is stronger and more durable.
– Easy and convenient installation using relevant accessories.
– Any area can be framed to suit various situations on the farm.
– Advanced production equipment and processes enable short delivery times.
– The material, craftsmanship, and size of the product can be customised.
– Special pricing is available for bulk orders.
Are you on the hunt for a reliable and user-friendly fencing solution for your livestock? Look no further than FENCE DEPOT’s metal cattle panels. These panels have been meticulously designed with the Australian farmer in mind, and they comply with relevant Australian standards, ensuring top-notch quality and safety for your farm.

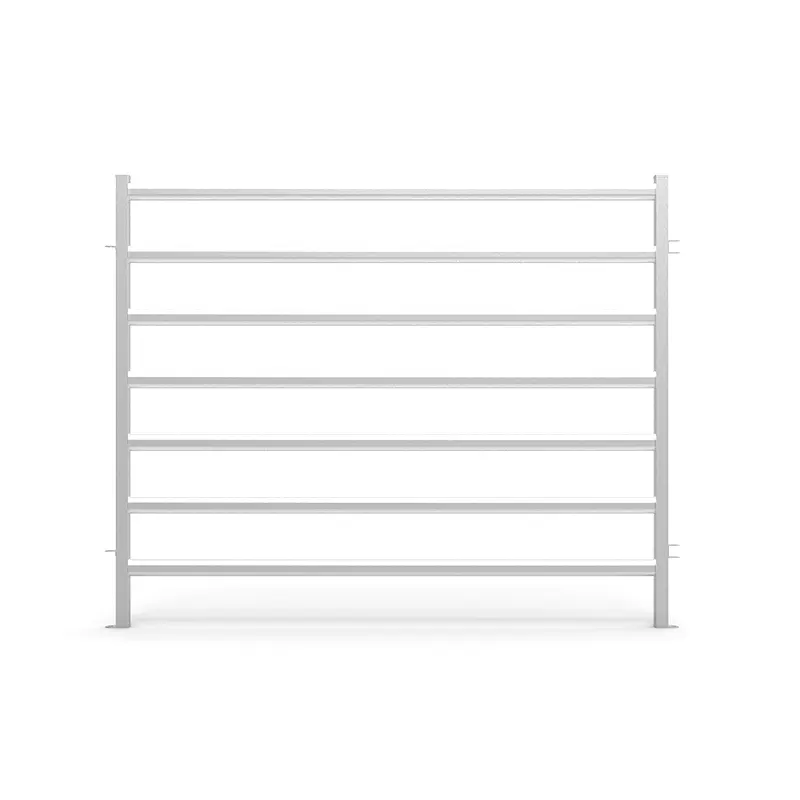

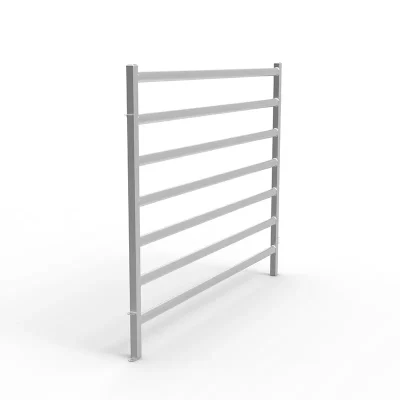

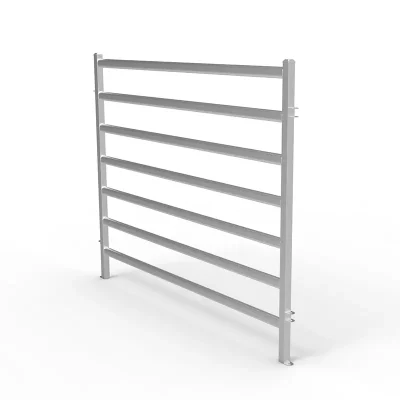

Our cattle panels are not just for cattle; they are versatile enough to be used for a variety of animals. Whether you’re managing pigs, horses, or other large stock, these panels are up to the challenge. They are crafted from heavy-duty galvanised steel, measuring 2200 mm long and 1800 mm high. This high-quality construction provides the perfect blend of strength, durability, and safety for your animals. The panels feature seven galvanised oval rail horizontal rails, which guarantee maximum strength and stability of the frame, built to withstand the harsh realities of Australian farm life.

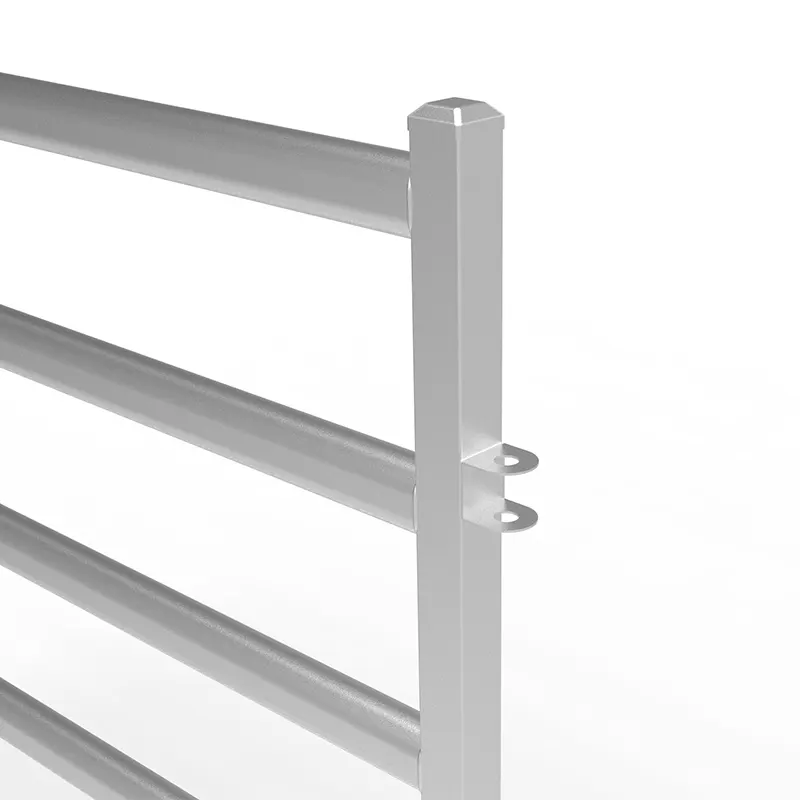

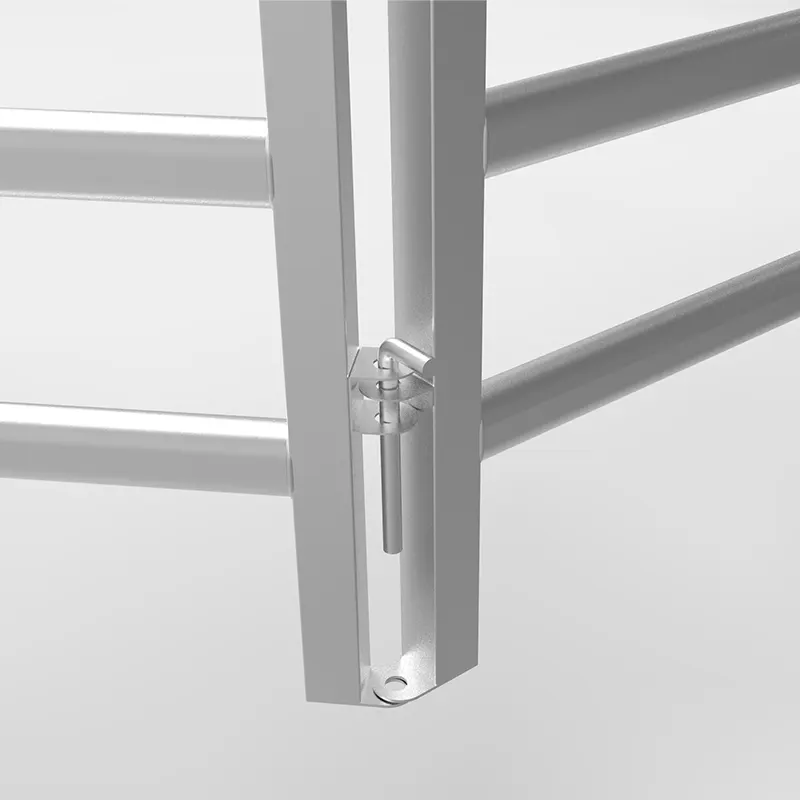

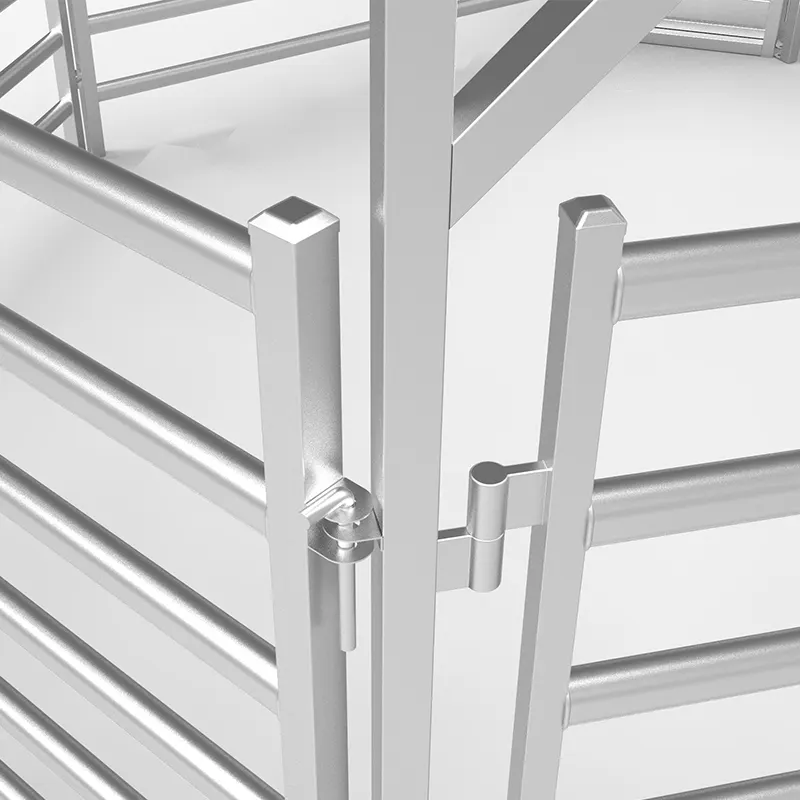

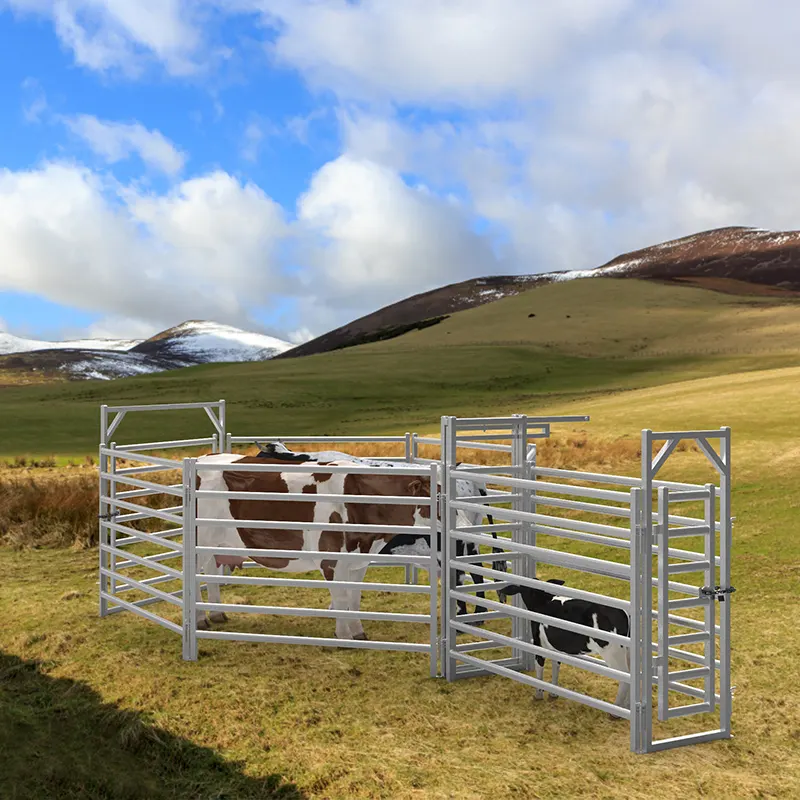

Setting up your FENCE DEPOT cattle panels is a breeze. Simply connect adjacent panels using Panel Drop Pins that slot through the U-shaped lugs. As your trusted farm fencing manufacturer, FENCE DEPOT also offers a range of farm gates that are a perfect match for our cattle panels. Use them together to create a secure and well-defined area for your livestock.
We have factory, which allows us to offer high-quality products at competitive prices. At the same time, we offer customisation services. We can tailor our cattle fencing in terms of size, colour, and more to suit your specific needs and property layout. Whether you need a small batch for a minor project or a large quantity for a big-scale farm, we can handle it all. And rest assured, we are committed to on-time delivery, so your project stays on schedule. With FENCE DEPOT, you get a fencing solution that is not only reliable but also perfectly adapted to your farm.
| Weight | 30kg |
| Dimensions | 1800mm(H) x 2200mm (W) |

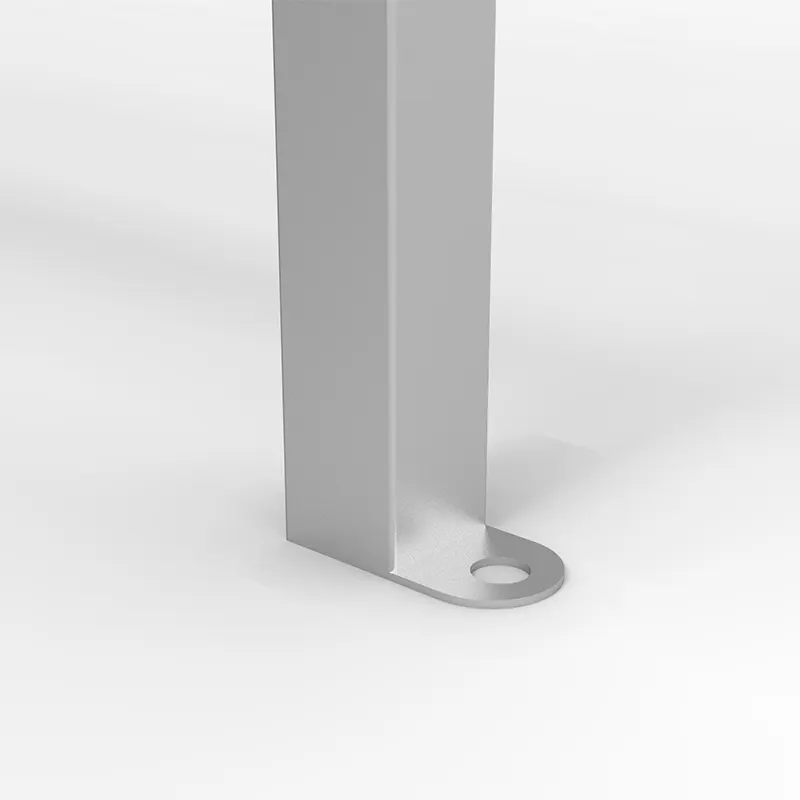

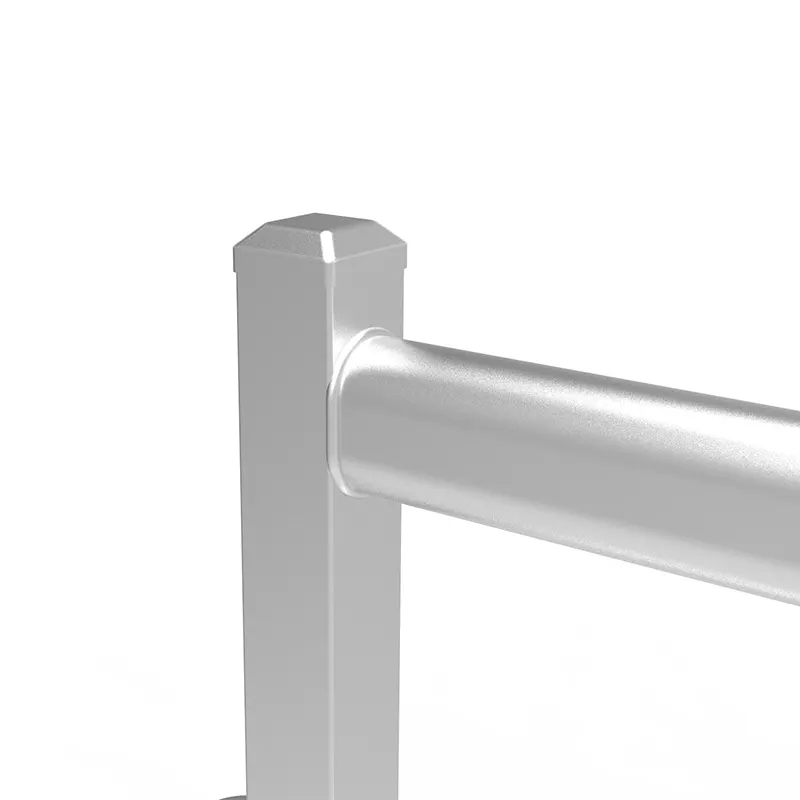

| Vertical Frame Posts | 40 x 40 x 1.6mm Galvanised RHS |
| Horizontal Rails | 30 x 70mm 6 x 1.6mm Galvanised Oval Rail |
| Finish | HDG 15-microns |
| Lock Pins | 2 x Solid cold zinc coated |
| Heavy-Duty Cattle Panel Available | 40 x 80mm and 42 x 115mm Rail |
| Heavy-Duty Cattle Gate Available | 2200mm H |
| Custom Designs Available | |
 |
 |
 |
 |
 |
 |
 |
 |
| Cleats C Brackets | Cleats L Bracket |
 |
 |
| Cattle Fence Post Caps | Cattle Fence Panel Drop Pins |
We use AS/NZS 1163 compliant steel with a minimum yield strength of 300 MPa. We meticulously check the outer diameter and wall thickness of each steel pipe to ensure it adheres precisely to the fence drawing specifications.
After unloading, each profile is cut to the exact length specified in the design. Example: Cutting tolerance is +/- 1mm, ensuring accurate panel dimensions.
Through precise mold pressure, we shape the metal material into the required shape to produce high-quality fence accessories, ensuring the stability of the overall structure.
All metal livestock fence panel pipes are galvanised before welding. We then employ sophisticated welding techniques to assemble the panel frame. This guarantees strong, durable joints that can withstand the toughest conditions.
The surface is thoroughly cleaned and roughened by spraying high-speed abrasive particles. This removes impurities like rust, oil, and scale, creating an ideal surface for subsequent treatments.
A phosphating layer is applied, providing excellent corrosion resistance and creating a strong bond for the powder coating. Our phosphating process creates a coating weight of 2-4 g/m², ensuring optimal adhesion.
Epoxy-polyester powder is electrostatically applied and cured at high temperature, creating a tough, durable, and rust-resistant finish. Powder coating thickness is typically 60-80 microns, exceeding industry standards. This ensures long-lasting protection against the elements.
We conduct a comprehensive quality inspection on every product, checking strength, wall thickness, and powder coating thickness. We perform destructive testing on a sample of panels from each batch to verify weld strength and overall structural integrity.
Our professional packaging methods ensure the safe transportation of products to your property. Panels are wrapped in protective film and secured with steel strapping to prevent damage during transit.
 |
 |
A: At FENCE DEPOT, we offer customisable options for our products. You can specify the desired dimensions, materials, and any additional features required for your specific needs. Our team will work closely with you to create the perfect solution.
A: We understand the importance of timely delivery. Our standard delivery time for products is 10~15 days, but it may vary depending on the customisation requirements and order volume. Rest assured, we strive to fulfill every order promptly and efficiently.
A: To ensure safe transportation, our products are carefully packaged using industry-standard packaging materials. Each panel is securely wrapped and protected to prevent any damage during transit. We take every precaution to ensure that your order arrives in excellent condition.
A: We work with reputable logistics partners to provide reliable transportation services. Depending on your location and order size, we offer various shipping methods, including ground, air, and sea freight. Our team will assist you in selecting the most suitable transportation option based on your specific needs.
A: While we primarily focus on manufacturing and supplying metal cattle fence panels, we can provide general guidelines and recommendations for installation. However, we recommend consulting a professional installer or contractor for precise installation instructions to ensure optimal performance and safety.
A: To place an order, please get in touch with our sales team via phone or email. They will guide you through the ordering process, discuss your requirements, and provide any necessary assistance. We strive to make the ordering experience seamless and efficient for our customers.
