– Rounded edges eliminate sharp points, protecting operators and animals.
– Mesh infill provides strength and durability.
– Hot-dip galvanised for long-lasting quality and corrosion resistance.

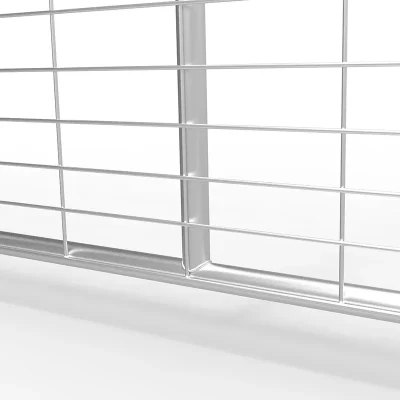

– All vertical stays are securely welded to the frame.
– Graded horizontal mesh spacing for effective containment.
– Fully welded construction.

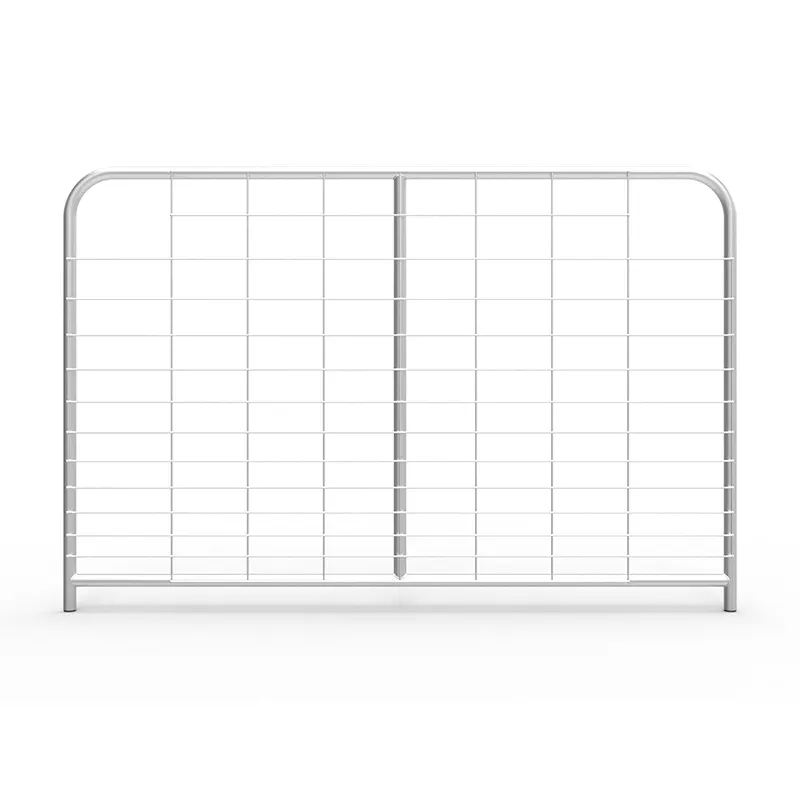

FENCE DEPOT’s 6ft mesh farm gate is engineered to provide superior protection compared with standard farm gates. Its graduated mesh design effectively restricts access from wild pests, including foxes and rodents, while safely accommodating small to medium livestock such as sheep and goats, ensuring animal welfare and site security.

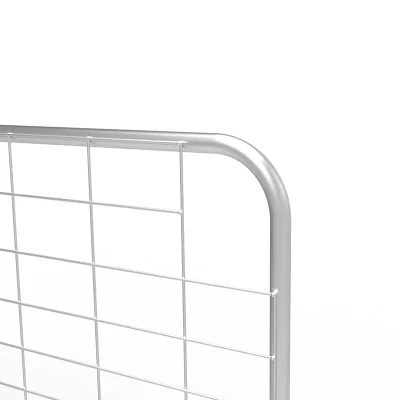

Constructed from embedded galvanised steel mesh panels, the 6ft mesh farm gate features fully welded frame joints for enhanced strength and long-term durability. Heavy-duty zinc-coated steel resists rust and corrosion, while smoothed edges and a rounded top eliminate sharp points, protecting both operators and animals. Post-production cleaning guarantees no residual metal fragments remain, ensuring safe handling and installation.
Standard dimensions: 1780mm (L) × 1170mm (H). Manufactured to comply with Australian AS/NZS 4680 standards and international quality requirements, this gate delivers reliable, long-lasting performance. Custom options are available for size, mesh density, and finish (including optional powder coating) to suit specific project or site requirements.
| Stay Type | I-Stay |
| Height | 1170mm |
| Length | 1780mm |
| Mesh Infill | 5.0mm SWRH-195B High-Carbon Steel |
| Brace | No Brace |
| Weight | 14kg（±5%） |
| Frame | 32mm OD Galvanised Tube (1.5mm Wall) |
| Finish | Galvanised & Spraying (optional) |
Rounded CNC-cut edges eliminate sharp points, exceeding Australian livestock welfare standards.
5mm graduated mesh spacing blocks:
✓ Foxes/Dingoes (100mm lower section)
✓ Lambs/Goat kids (50mm middle gradient)
✓ Poultry (32mm upper tier)
Dual corrosion protection:
• Hot-dip galvanised base layer (86μm zinc layer)
• Optional powder coating (RAL colour system)
Full perimeter welding: 8 weld points per vertical stay
Slope-compensating hinge system, adapts to ±15° terrain
Universal swing direction (RH/LH convertible without tools)
Gradient mesh infill: 200mm x 100mm / 200mm x 32mm x 5.0mm.
Weld protection: Both primer and surface-bright zinc coating cover all welds.
Functional design: The design is functional and structurally robust.
Frame strength: The frame of the farm gate is stable and strong.
Quality assurance: All panels undergo quality inspection after production to ensure they meet Australian and international standards.

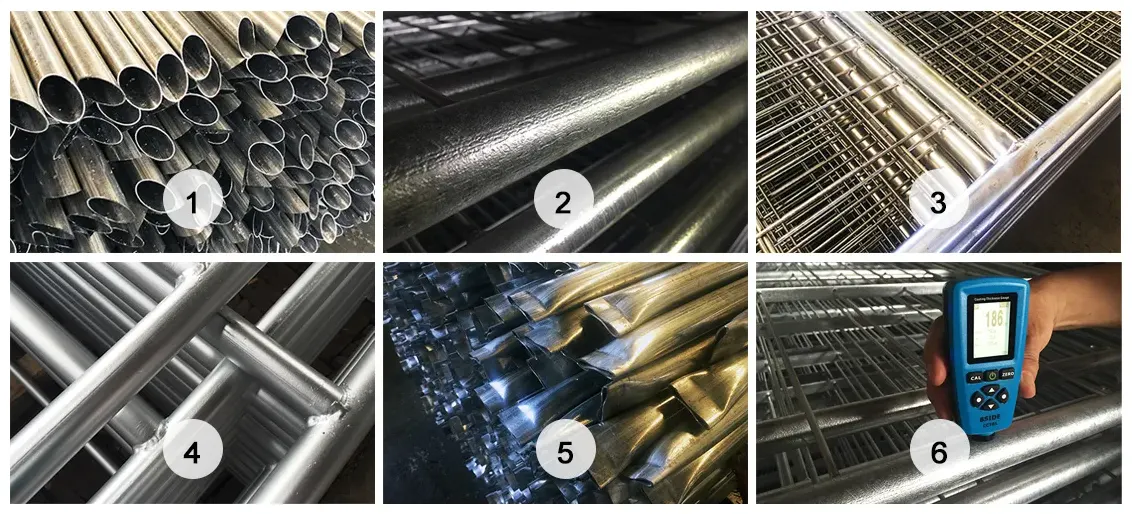

Select high-quality galvanised pipes and galvanised steel wire as the primary materials to ensure corrosion resistance and strength. Galvanised pipes and galvanised steel wire are inspected to ensure they meet production standards, including thickness, diameter, and uniformity of the galvanised coating.
Determine the length and quantity of each component according to the design drawings. Use a cutting machine to cut the galvanised pipe to the required length, ensuring a smooth cut surface and avoiding burrs.
Determine the location and angle of the pipe to be bent according to the design requirements. Use a pipe-bending machine to bend the galvanised pipe to the desired shape, ensuring accurate bend angles and no cracks.
Use a stamping machine to stamp the pipe into the desired shape for subsequent assembly and connection.
Cut the galvanised steel wire and weave it into a mesh. Use a welding machine to weld the wire mesh together, ensuring a secure and uniform connection.
Assemble the welded mesh panels to the gate frame to form the farm gate panel. Weld the panels to ensure each joint is secure and prevent loosening during use.
Clean the welded farm gate to remove any dirt and oxides from the welding process. Apply zinc to the welded areas to create a uniform zinc coating for enhanced corrosion resistance.
The finished product undergoes a thorough inspection, including dimensions, welding quality, and coating uniformity, to ensure compliance with standards.
Select appropriate packaging materials based on shipping requirements. Qualified farm gates are packaged using cable ties and pallets to ensure they are not damaged during transportation.
| Customization Area | Available Options | Lead Time |
|---|---|---|
| Dimensions | 1200-2400mm Height Range | Standard +3 days |
| Color Finish | 12 RAL Colors + Anti-Graffiti Coating | +5 working days |
| Mesh Configuration | Vertical/Horizontal Gradient Patterns | +2 days |
| Security Upgrade | Optional: | |
| – Locking System | • Padlock Brackets • Keyed Bolts | +1 day |
| – Reinforcement | Diagonal Cross Braces | +2 days |
