– The interlocking system allows quick and easy installation and removal.
– Galvanised steel construction and full welding provide enhanced strength and durability.
– Delivers long-term service with minimal maintenance at a low cost.
– Frame splicing eliminates the need for digging or other ground works, helping to protect grasslands.
– Robust packaging ensures safe transport and logistics.
– Special pricing is available for bulk orders.
FENCE DEPOT manufactures durable and portable 4ft metal sheep fence panels, specifically designed for efficient livestock management. Suitable for sheep, goats, wild boars, and other livestock, each panel is lightweight yet robust, making installation easier and reducing labour requirements compared to traditional wooden fencing.
Each panel measures 1320mm wide by 976mm high and is constructed from premium galvanised steel with a strong 7-rail design. A quick interlocking system allows the panels to be securely connected without the need for tools, creating stable sheepfold structures on various surfaces. The lightweight design also facilitates easy movement and storage.
Designed for both indoor and outdoor use, the panels are hot-dip galvanised to provide long-lasting protection against corrosion and weathering, minimising maintenance and extending their service life.
FENCE DEPOT also offers customisation options, including panel colours, sizes, and designs. In addition to panels, we provide complementary fencing components such as gates and posts, delivering comprehensive solutions from design to installation to meet your farm’s specific needs.
| Material | Galvanised Steel |

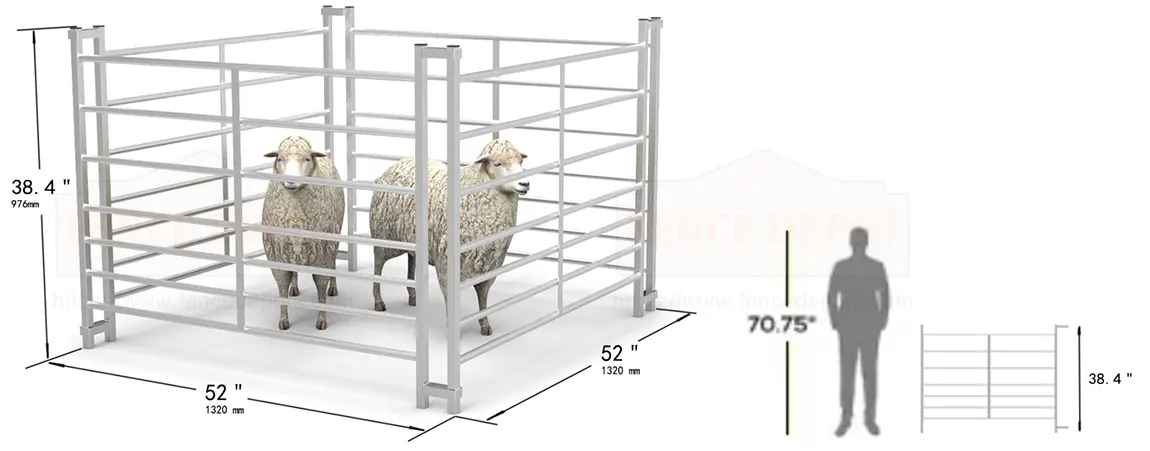

| Panel Size | 1320mm x 976mm |
| Top Horizontal Rail | OD22mm |
| Intermediate & Bottom Horizontal Rail | OD20mm |
| Internally Vented Upright | 25×25mm |
| Flat Bracing | 25×3mm Flat |
| Color | Silver, Black, Dark Green, Grey |
| Finish | Galvanised or Powder Coated |
The above are the standard sizes of our products. As a professional manufacturer, we can customise the size, craftsmanship, material, colour, and other specifications of the product according to needs or usage scenarios.
| Crossbeam and Vertical Pipe | Outer diameter, wall thickness, length |
| Overall Product | Dimensions, wall thickness, quantity, spacing |
| Accessory Requirements | Required accessories and accessory specifications |
| Surface Treatment Method | Overall hot-dip galvanising, spraying, or other |
| Product Material | Galvanised steel, aluminium, or other |
| Process Flow | Different welding processes, pre-treatment, surface treatment, etc. |
Lightweight and easy to handle, allowing for rapid setup, dismantling, and repositioning. This offers maximum flexibility for all your fencing arrangements.
Our interlocking system guarantees exceptional stability, while high-quality steel and full welding deliver impressive strength and durability. The heavy-duty construction, coupled with high zinc or PVC coating, ensures an extended service life.
Featuring welded bracket lugs and joining pins, these panels eliminate the need for digging holes or laying foundations. This approach protects your valuable grasslands and minimises environmental disturbance.
Smooth welds, free from sharp edges, are designed to prevent injuries and ensure safe interaction with your livestock.
These panels offer enduring service with minimal maintenance and a competitive upfront cost, making them a cost-effective choice for your farm.
Each panel is subjected to stringent quality inspections, including checks on wall thickness and coating. This commitment ensures stable, reliable, and durable performance year after year.
The panel structures are thoughtfully designed to prevent livestock entrapment or injury, prioritising your animals’ safety and well-being.

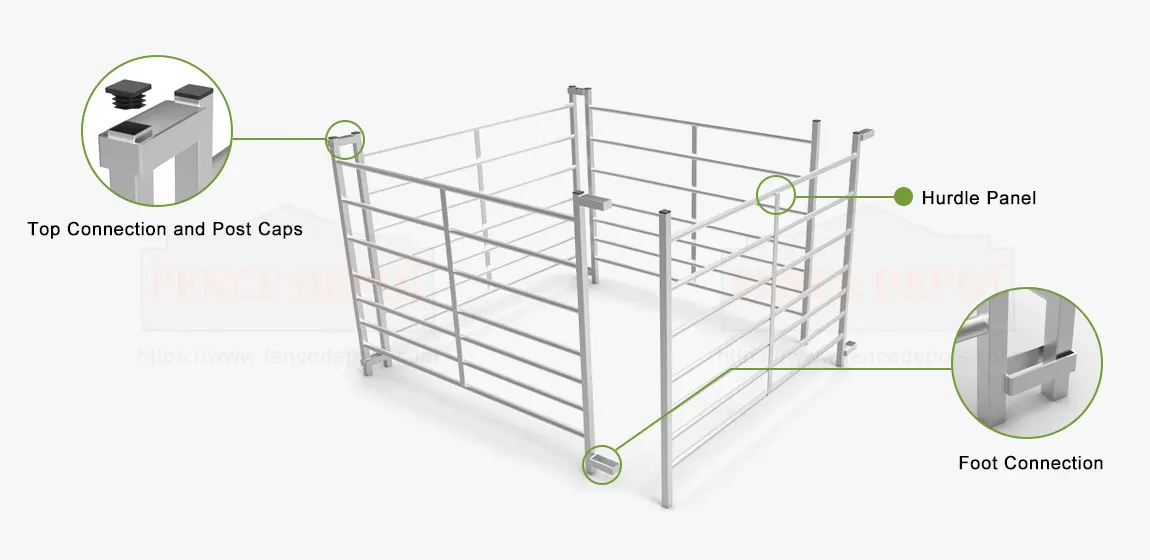

The top and bottom of each 4ft metal sheep hurdle post feature an easy-to-use interlocking system, requiring no special tools or procedures for installation.
Panels of various sizes can be combined to create flexible fencing systems tailored to different farm and livestock management needs.
Plastic post caps are provided to prevent water and debris from corroding the fence, ensuring long-term durability and structural integrity.
Check the outer diameter and wall thickness of the pipe to ensure that it meets the requirements of the fence drawing, thus ensuring quality.
product unloading, cutting the profile according to the design requirements to obtain the required length.
A manufacturing process that forms metal materials into a desired shape through die pressure.
All the metal livestock fence panel pipes will be galvanized before welding. Then, weld them into the panel frame using sophisticated welding techniques.
Cleaning and roughening the surface by spraying high-speed abrasive particles. It can remove impurities such as rust, oil, and scale.
The phosphating film itself has a certain anti-corrosion ability and can provide excellent adhesion to paint, powder coating, or other organic coatings.
Spray epoxy-polyester powder on the surface, and cure it at a high temperature. This process makes the product more rust-proof, durable, and longevity.
We will conduct a quality inspection on each product to check the strength, wall thickness, and powder coating thickness to ensure each product’s quality.
Professional transportation methods ensure the safe transportation of products.
 |
 |
|
 |
A: The dimensions of the product vary depending on the specific product. Customisation options are also available to meet your specific needs.
A: Yes, FENCE DEPOT offers customisation options for metal sheep hurdle panels, including size, colour, and design. You can discuss your specific requirements with FENCE DEPOT to get the best solution for your needs.
A: Yes, 4ft sheep fence panels are designed for quick and easy assembly and disassembly. They usually come with pin connectors or drop pins to securely join the panels together. This makes it convenient to set up, modify, or dismantle the fencing as needed.
A: While products are primarily designed for sheep and goats, they can also be used for other small to medium-sized livestock, such as pigs and calves, depending on the size and design of the panels.
A: The price of the product can vary depending on factors such as size, material, and customisation options. It is best to contact us for a specific quote based on your requirements.
A: The delivery time for the product depends on the order quantity, customisation, and production capacity. Generally, it can take anywhere from a few days to several weeks. It is recommended to discuss the delivery timeline with FENCE DEPOT when placing an order.
