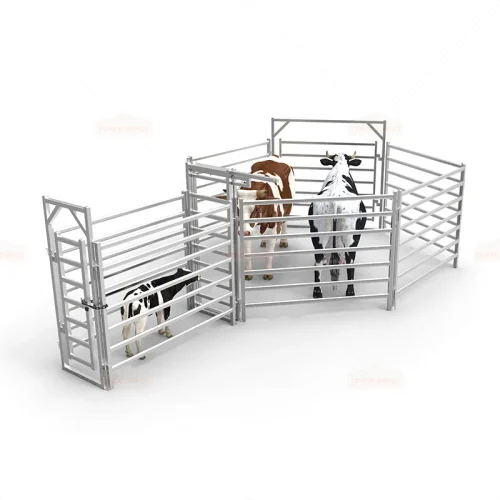

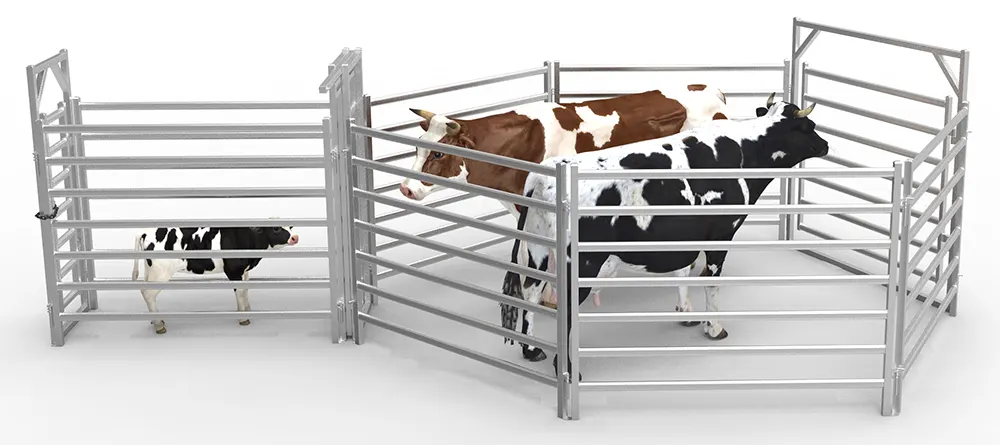

Cattle Fence, 10 Head Cattle Metal Steel Fence Panels

Metal Cattle Yard Fence can serve as a versatile fencing solution for livestock, suitable for both portable and permanent applications. Furthermore, these panels measure 2.2m x 1.8m. Using heavy-duty hot-dip galvanised tubing, suitable for Australian standards. This product is ideal for use on uneven or steep terrain.

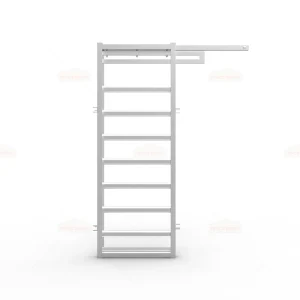

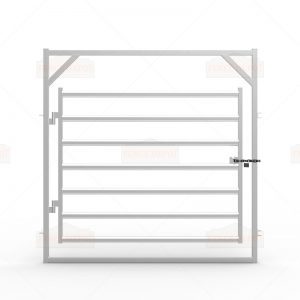

At FENCE DEPOT, we design our 10-cattle yard fencing to accommodate 10 cattle, and it includes a range of essential components. This includes 2.2 m x 1.8 m cattle panels, as well as a 2.2 m x 2.2 m cattle gate, and a 0.8 m x 2.2 m cattle sliding gate.

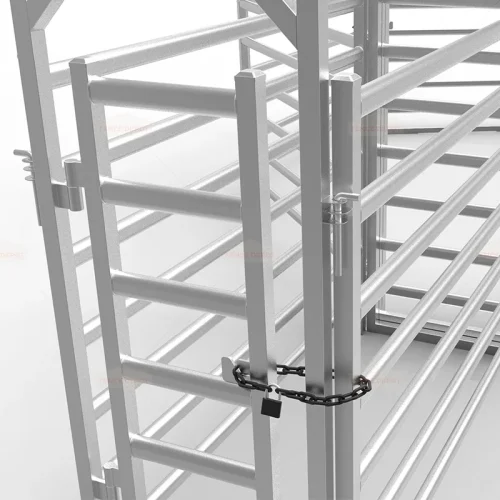

Furthermore, our cattle gates feature chain catches or slam catches. Therefore, it offers multiple installation options. You can choose to have the posts concreted into the ground. Or you can fix the heavy-duty frame to the cattle fence. We equip all cattle gate frames with corner braces and construct them with galvanised heavy-wall steel.

Our products are available in a variety of sizes to suit different farm sizes. At the same time, as a professional fence manufacturer, we can customize according to needs or usage scenarios. We also offer a wide range of accessories and products on the farm, like Rail Cattle Fence Gates, Cleats C Brackets, Panel Drop Pins, Post Caps, etc.

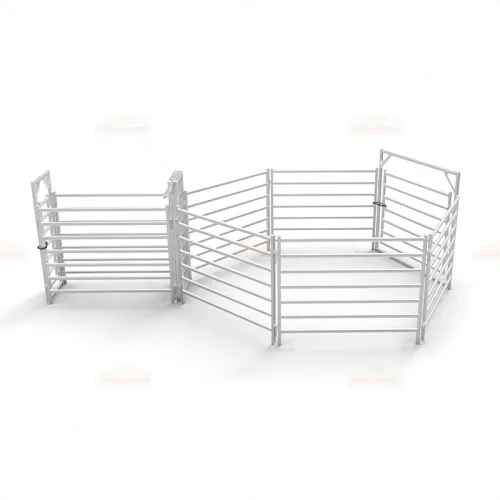

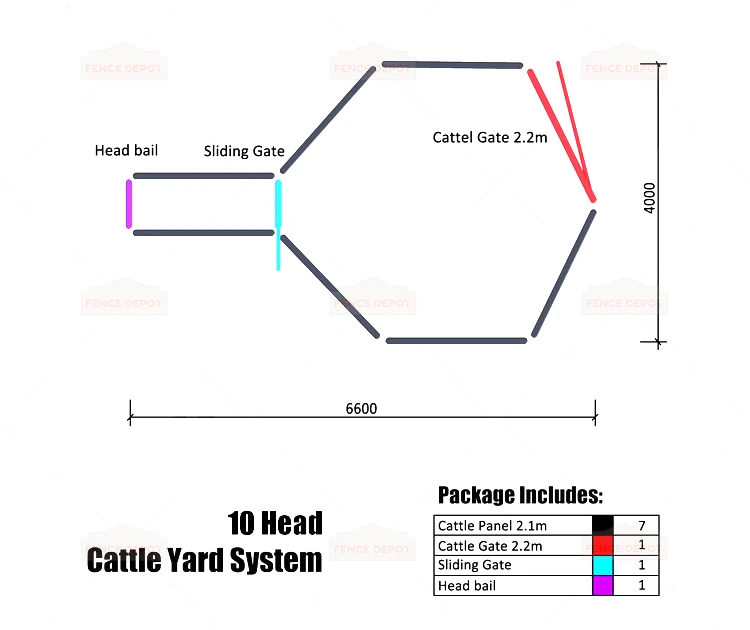

10 Head Cattle Yard Fence System:

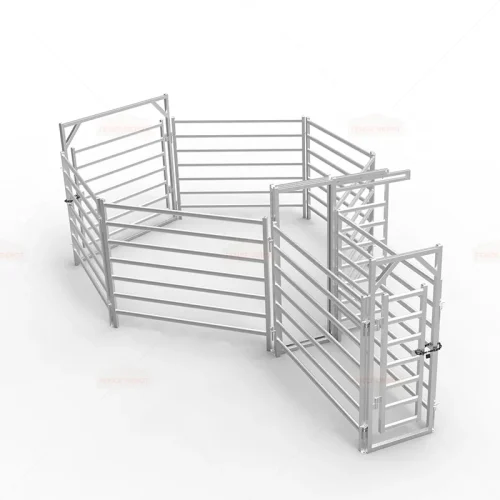

10 Head Cattle Yard System is a fencing system composed of Cattle Fence Panels, Sliding Cattle Rail Gates, Cattle Rail Manway Gates, and Rail Cattle Gates. The whole system is flexible and convenient, suitable for farms of different sizes and various types of livestock.

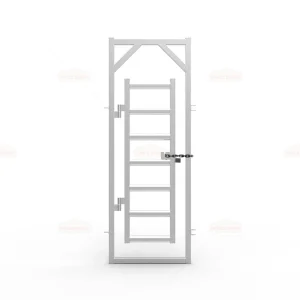

Cattle Fence Panels	Sliding Cattle Rail Gates	Cattle Rail Manway Gates	Rail Cattle Gate

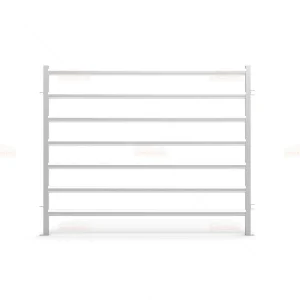

Metal Cattle Fence Panels Specification:

Size:1800 mm(H) x 2200 mm (W)
Vertical Pipe	40 mm × 40 mm stiles, 1.6 mm Thick
Horizontal Rail	30 mm × 60 mm rail, 1.6 mm thick x 6 Oval
Finish	HDG 15-microns 2200 mm H × 2200 mm L Cattle Gates
Size:2300 mm(H) x 2200 mm (W)
Vertical Pipe	40 mm × 40 mm stiles, 1.6 mm Thick
Horizontal Rail	30 mm × 60 mm rail, 1.6 mm thick × 6 mm Oval
Finish	HDG 15-micron Adjustable Cattle Loading Ramp With Winch
Height: 3200 mm, Length: 2820 mm, Width: 1420 mm
Adjustable Ramp Height	860 mm~1460 mm
Ramp Size	720 mm Width, 3230 mm Length
Vertical Frame	50*50*2 mm
Top Side Long Tube	40*40*2 mm
Side Galvanized Sheet	1.6 mm
Galvanized Footboard 2mm thick

Product Customizable List:

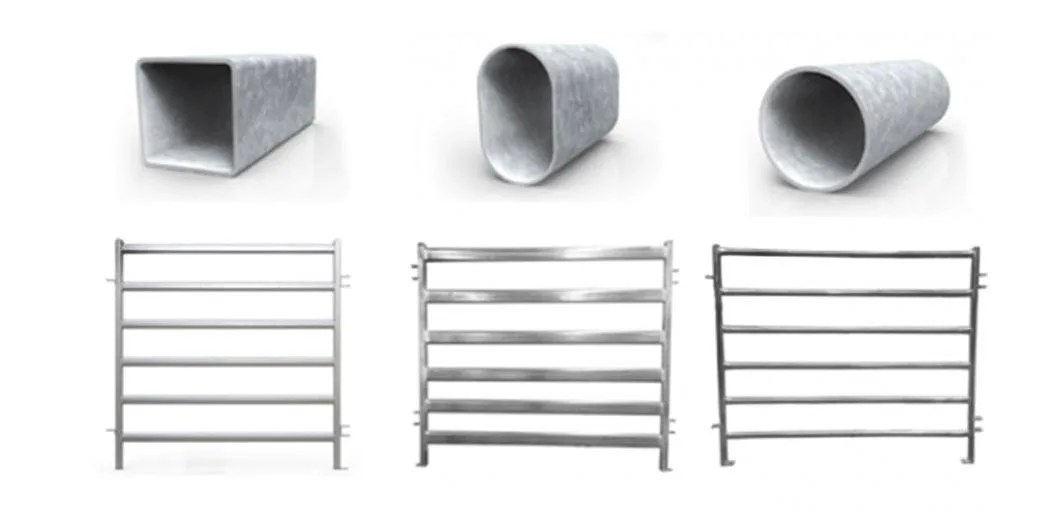

Three kinds of pipes for cattle panels: square pipe, oval pipe, and round pipe.

10 Head Cattle Yard Fence Features:

Stable & Durable

The metal steel cattle fence is made of high-quality galvanized steel, so it can resist the erosion of various environments. After installation, the overall frame is very solid and stable, so it can withstand the pressure of various livestock collisions.

Full Accessories

Comes with related accessories such as nails and column caps, so installation is more convenient and easier.

Highly Adaptable

The structure is solid, the ventilation is good, and it is convenient to observe the cattle. It has a wide range of uses and is suitable for all kinds of farms and all kinds of livestock.

Customizable

There are a variety of sizes to choose from, and as a professional manufacturer, we can customize the size, material, and craftsmanship of cattle yard fences according to needs or usage scenarios.

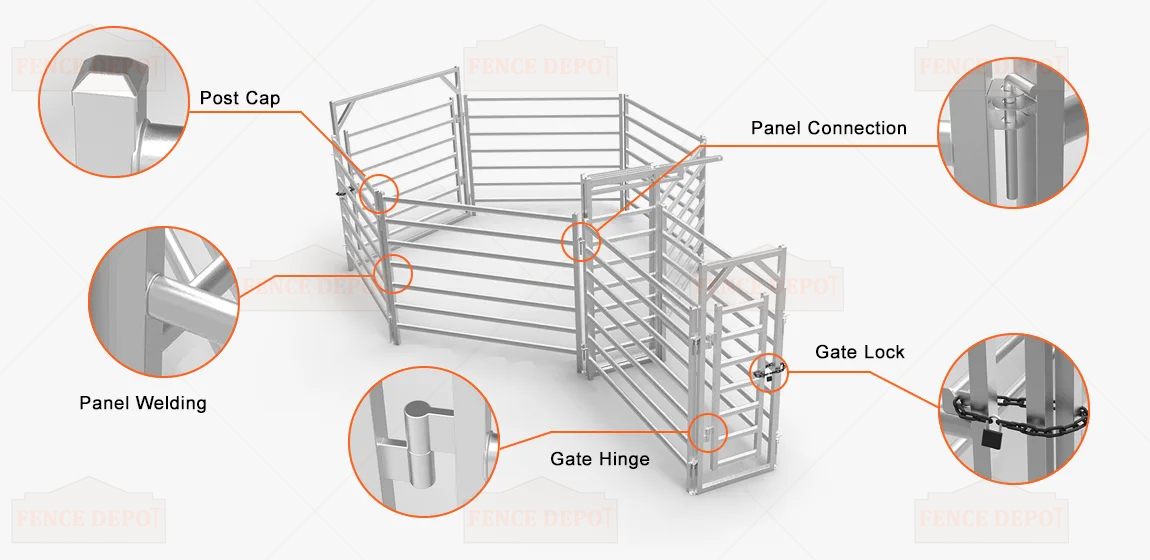

Metal Fence Panels for Livestock Details:

Our company places great emphasis on the details of our metal cattle yard fence panels and rigorously controls their quality. As a result:

• The metal fence panels for livestock is sturdy, ensuring the safety of livestock.
• Furthermore, the welding place is clean and exhibits strong anti-rust and anti-corrosion abilities.

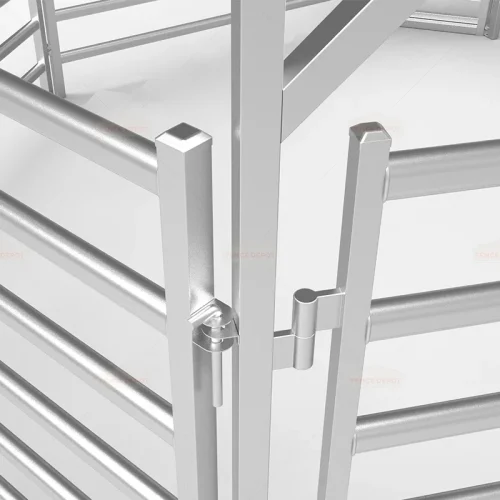

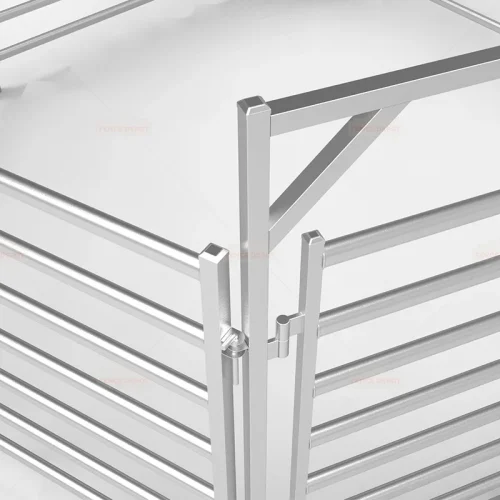

• In addition, welded lugs are included for easy connection, with the lugs being welded on all four sides for enhanced durability and safety.
• Moreover, footplates are incorporated on the panel, allowing the panels to be cemented on the ground with nails.
• Lastly, there are three types of pipes available for corral cattle fence panels: square pipe, oval pipe, and round pipe.

Metal Livestock Fence Panels Related Accessories:

Fence Panel Drop Pins	Fence Post Caps	Cleats C Brackets	Cleats L Brackets

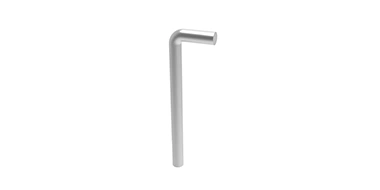

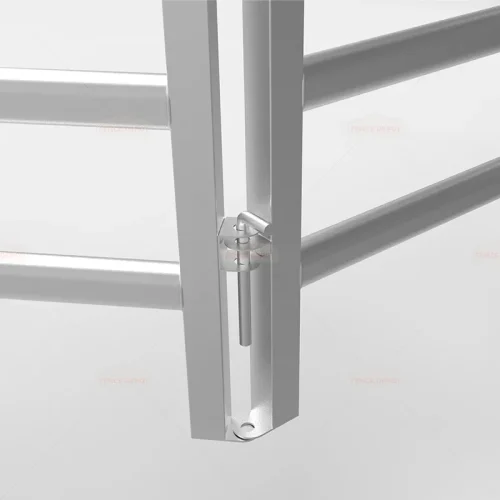

• Fence Panel Drop Pins: Use them to insert into Brackets to connect two identical panels.

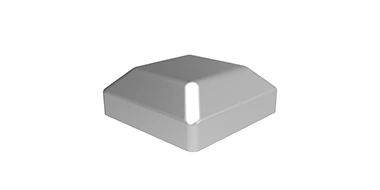

• Fence Post Caps: Install them at the top of the post to protect the cattle fence from rain and other impurities.

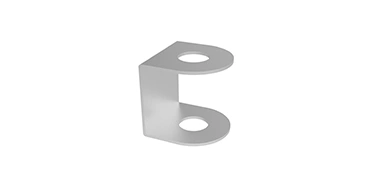

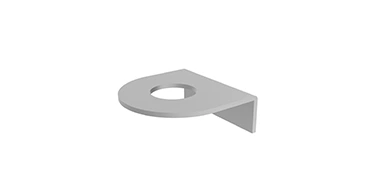

• Cleats C Brackets and Cleats L Brackets: This accessory is generally welded on both sides of the panel, making the panel connection easier and more convenient.

Metal Livestock Fencing Production Process

Material

Check the outer diameter and wall thickness of the pipe to ensure that it meets the requirements of the fence drawing, thus ensuring quality.

Cutting

product unloading, cutting the profile according to the design requirements to obtain the required length.

Accessory Stamping

A manufacturing process that forms metal materials into a desired shape through die pressure.

Welding

All the metal livestock fence panel pipes will be galvanized before welding. Then, weld them into the panel frame using sophisticated welding techniques.

Perform sandblasting

Cleaning and roughening the surface by spraying high-speed abrasive particles. It can remove impurities such as rust, oil, and scale.

Phosphating

The phosphating film itself has a certain anti-corrosion ability and can provide excellent adhesion to paint, powder coating, or other organic coatings.

Powder Coating

Spray epoxy-polyester powder on the surface, and cure it at a high temperature. This process makes the product more rust-proof, durable, and longevity.

Quality Control

We will conduct a quality inspection on each product to check the strength, wall thickness, and powder coating thickness to ensure each product’s quality.

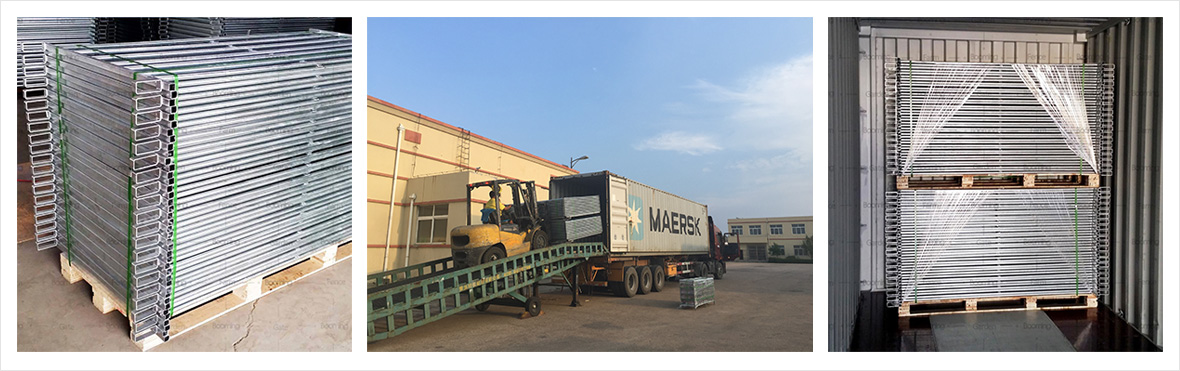

Packaging

Professional transportation methods ensure the safe transportation of products.

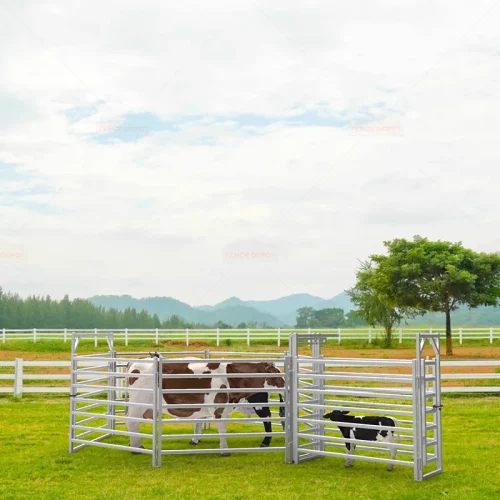

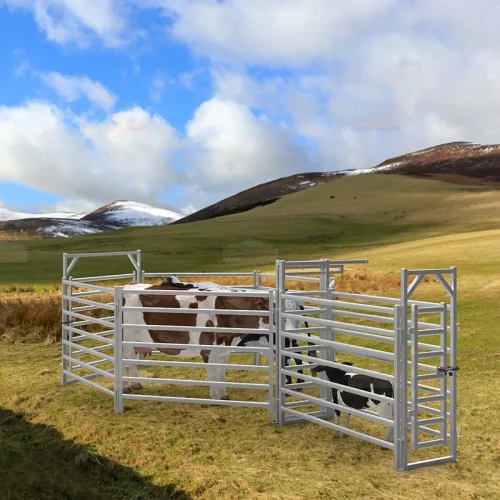

Cattle Yard Application

• Livestock Management: Control the movement of cattle and prevent them from entering unsuitable areas.
• Crop Protection: Prevent cattle from damaging crops or other plants.
• Security: Reduce the risk of cattle escaping and protect cattle from predators.
• Property Definition: Clearly define the boundaries of the farm.

Problems Encountered When Ordering Metal Cattle Fence Panels？

1. What are the dimensions of the cattle yard fence panels?

The dimensions of our products can vary depending on the specific model and configuration. We recommend that you contact us as soon as possible to obtain the exact dimensions of the product you require.

2. Are the products suitable for other types of livestock besides cattle?

While our product is primarily designed for cattle, it may also be suitable for other types of livestock, such as sheep or goats. Please consult the manufacturer for more information on compatibility with other animals.

3. Can I easily expand the cattle fencing to accommodate more animals?

The modular design of the products allows for easy expansion to accommodate additional animals. Please contact the manufacturer for guidance on expanding your fence most efficiently.

4. How do I maintain and clean my metal steel cattle fence?

Regular maintenance and cleaning are essential to ensure the longevity and functionality of your cattle fences. Inspect your fence regularly for any signs of wear or damage, and address any issues promptly. For cleaning, simply use a pressure washer or hose to remove any dirt or debris.
