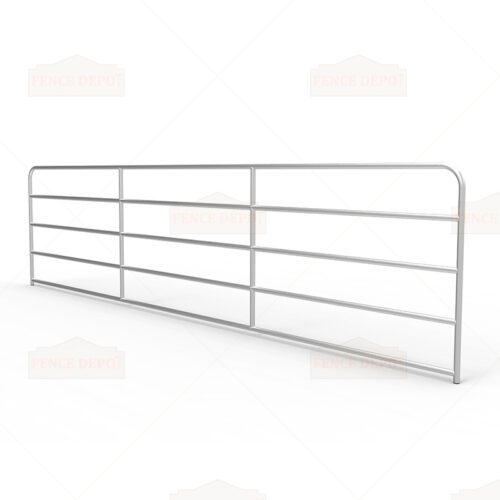

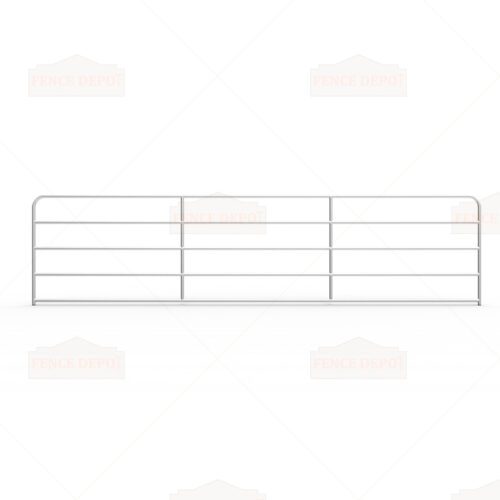

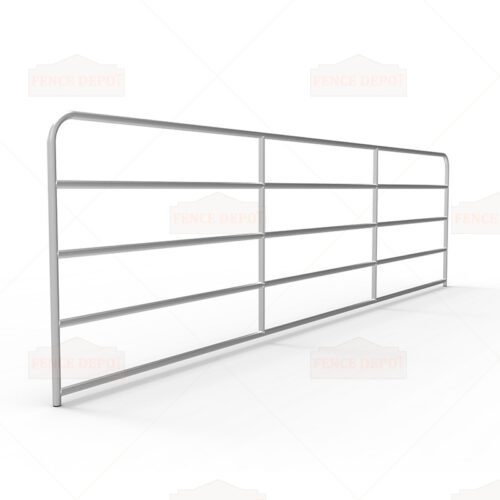

16ft 5-Bar Metal Galvanised Farm Gates 4770mm (15.6ft) x 1170mm (3.8ft)

The 16ft 5-bar farm gate safely confine your livestock, preventing them from escaping while avoiding potential threats. And using it provides a safe passage for people and livestock to enter and exit easily. Our products are versatile and can be used in gardens, construction sites, or for crowd control.

This product is designed to be easy to use and install. Thanks to the use of lightweight pipes in the structure, it is easy to operate while giving the fence an aesthetic appeal. The product has two vertical pillars, and the overall design makes the frame more stable. 5-bar metal farm gates are made from galvanized steel tubing for superior strength. At the same time, the full welding process improves its durability and stability.

The 5-bar metal farm gate fits most farm fences and the standard size of the product is 4770mm (16ft) long and 1170mm (4ft) high. At the same time, to meet the needs of more farms, the size and color of the products can be customized.

Product Specification:

Product Details:

• Our  5-bar farm gates meet high standards and are very popular in the market
• The pipe used in the 5-bar farm gates is hot-dipped, and galvanized inside and outside, providing corrosion resistance.
• Both primer and surface bright zinc paint cover all welds.
• We prepared the pipe, then put it on the welded shaping machine (the pipes are hot dipped galvanized if needed), and welded the pipe together.
• After the production, we will conduct the quality inspection. Ensure that the quality of each product meets standards.

16ft 5-Bar Farm Gate Production Process

Material

Select high-quality galvanized steel pipe as the primary material to ensure its corrosion resistance and strength. Inspect the material to ensure it meets production standards, including thickness, diameter, and uniformity of the galvanized coating.

Cutting

Determine the length and quantity of each component according to the design drawings. Use a cutting machine to cut the steel pipe to the required length, ensuring a smooth cut surface and avoiding burrs.

Round Tube Bending

Determine the locations and angles of the pipe to be bent according to the design requirements. Use a pipe bending machine to bend the steel pipe to the desired shape, ensuring accurate bend angles and no cracks.

Arc Cutting

For components requiring arcs, use specialized cutting tools for precise cutting, ensuring a smooth arc that meets design requirements.

Pipe Stamping

Determine the components and locations requiring stamping. Use a stamping machine to stamp the pipe into the desired shape for subsequent assembly and connection.

Welding

Assemble the cut and bent components, ensuring alignment. Weld the components together, ensuring the welds are strong and uniform. Allow to cool after welding.

Zinc Painting

Clean the welded farm gates to remove any dirt and oxides from welding. Apply zinc to welded joints to create a uniform zinc coating for enhanced corrosion protection.

Quality Control

Fully inspect finished products, including dimensions, weld quality, and coating uniformity, to ensure compliance with standards.

Packaging

Select appropriate packaging materials based on shipping requirements. Qualified farm gates are packaged using cable ties and pallets to ensure they are not damaged during transportation.

16ft 5-Bar Metal Farm Gates Features:

1. Market Popularity:
   Our offered 5-bar farm gates are known for their high quality standards and hence, have gained huge popularity in the market.
2. Corrosion Resistance:
   The 5-bar farm gates are fabricated from hot-dipped, galvanized pipes that offer resistance to corrosion both on the inside and outside.
3. Robust and Durable:
   We design our 5-bar farm gates using 25NB hot-dipped galvanized pipe featuring a 2mm wall thickness. This ensures that they are robust and capable of withstanding the most rigorous farming environments.
4. Quality Treatment:
   All our pipes are meticulously welded and galvanized both on the exterior and interior. So treat them with anti-rust paint immediately after welding within 4 hours. Spray brightly after the initial paint layer dries.
5. Production Process:
   The production process involves prepping the pipe, setting it on a welding shaping machine (galvanized as necessary), and welding the pipe components together.
6. Quality Assurance:
   Post-production, we conduct a thorough quality inspection to ensure that each product adheres to our stringent quality standards.
