The Black Adjustable Axis Infill Railings is a railing solution that combines safety, durability and aesthetics. This series includes two specifications: 6 ft and 8 ft. Similar to Steel Adjustable Axis Infill Railing for Stair, they all adopt a pre-welded integrated design and are equipped with pre-installed brackets. This significantly simplifies the installation process and provides excellent stability and long-term anti-corrosion performance. It is suitable for various buildings and outdoor scenarios.
It is made of high-quality galvanized steel and its core structure is composed of 3 strong vertical columns and 9 thickened horizontal bars. It features excellent stability and impact resistance.
The surface is treated with a fine black powder coating, which can effectively resist erosion and corrosion from harsh environments and extend the service life.
It is fully welded upon leaving the factory and pre-installed with installation brackets. There is no need for complex rail installation, significantly improving the construction efficiency. It can seamlessly be combined with rails, lower rails and a complete set of installation hardware accessories to provide a complete system solution.
Standard 6ft and 8ft versions are available. According to different safety and design requirements, the panel height can be flexibly specified between 34 inches and 40 inches. Custom sizes and colors are also accepted.
Adjustable Axis Infill Railing Detail
- Posts: Load-bearing support points, standing upright and fixed to the side walls, platform edges or foundation of the stairs.
- Top Rail: Horizontal handrail track, providing a grasping surface and meeting hand size requirements.
- Bottom Rail: As a filler piece, providing a lower support, enhancing stability.
- Infill Elements: Vertical steel pipes, inclined/vertical small pipes, steel wires or steel belts, etc., used to create a visual effect and safety of hollow/filled railings.

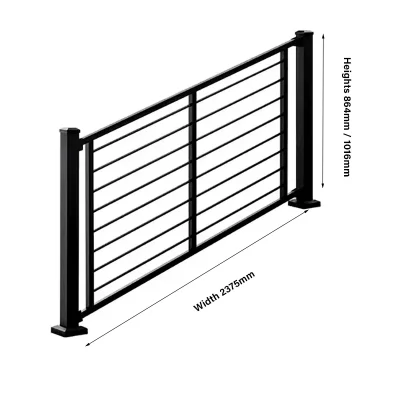

Steel Adjustable Axis Infill Railing Specification
| |
FDR414001 |
FDR414002 |
| Width |
69.5”(1829mm) |
93.5”(2375mm) |
| Height |
34”(864mm) |
40”(1016mm) |
34”(864mm) |
40”(1016mm) |
| Top Rail Width |
7/8” |
| Material |
Steel |
| Color |
Black or Customized |
| Finish |
Powder-coated |
Adjustable Axis Infill Railing Benefits
- Accessories: Both models can be used in conjunction with the upper guide rail, lower guide rail, and the complete installation hardware kit, providing a one-stop solution and reducing the difficulty of subsequent maintenance.
- Highly customizable: The height can be selected between 34 and 40 inches, and for the width, two standard sizes are provided to match different site requirements. If the environment requires it, the width can be adjusted as needed to fit the space size.
- Surface treatment: It also adopts a black powder coating, presenting a low-key and multi-scenario-friendly texture, and has good resistance to environmental erosion, ensuring both aesthetics and reliability.
Steel Adjustable Axis Infill Railings Application
- Interior stairs: Used for stair handrails in households to ensure the safety of residents. They can be flexibly adjusted according to the angle of the stairs and can be adapted to different design styles.

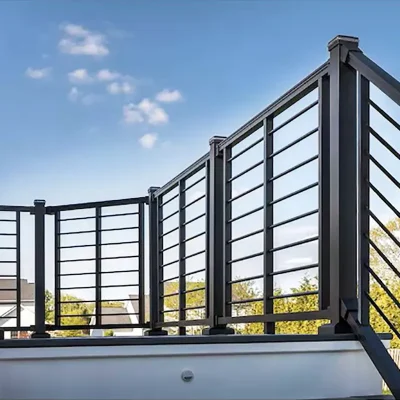

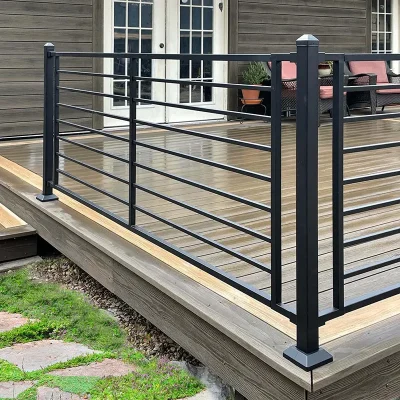

- Balconies and terraces: As guardrails for balconies or terraces to prevent falls, they also have decorative effects.
- Gardens and courtyards: Fencing or dividing areas to enhance the sense of space hierarchy.
- Office stairs and corridors: Meeting the safety standards of office environments and enhancing the modernity of the space.
- Parks and squares: Walkways, viewing platforms, bridge railings, which have both safety and landscape functions.
