– Comes with bolt and nut-related accessories.
– Many different sizes and configurations.
– Quick and easy to use and assemble fences and other structures.
– Create a stable grip and secure connection.
– Galvanized or coated surfaces improve rust and corrosion resistance.
– Special pricing is available for bulk orders.
As a leading manufacturer of fencing solutions, FENCE DEPOT specializes in heavy-duty adjustable angle hinge connectors designed for precision and durability. Our ISO-certified factory combines advanced engineering with 10+ years of industry expertise. So we can deliver connectors that outperform standard fittings.

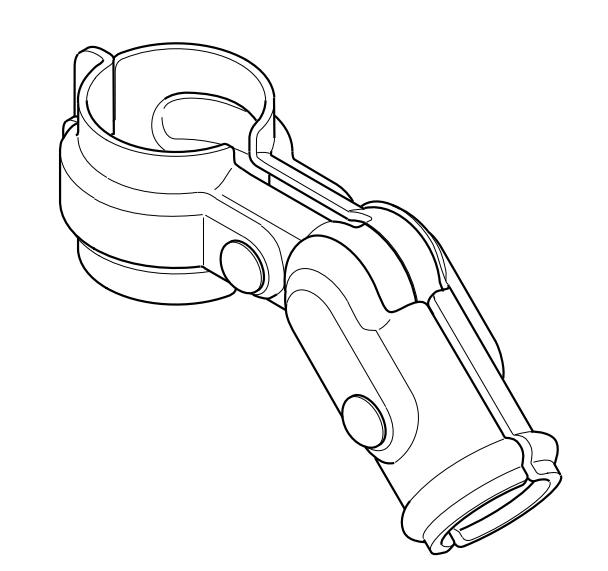

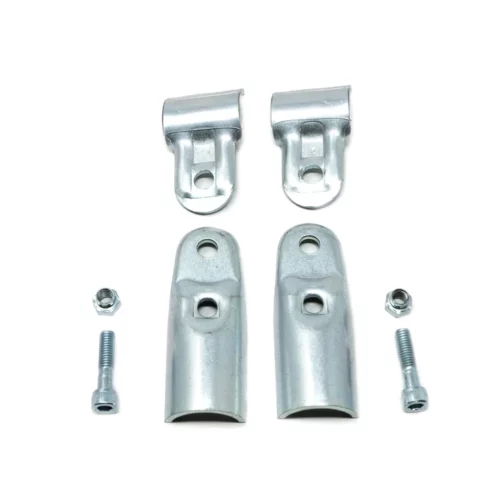

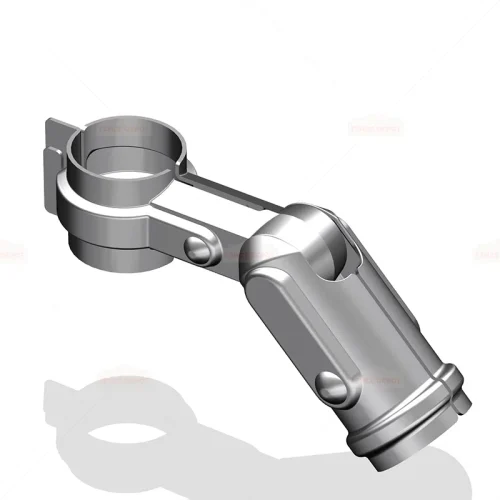

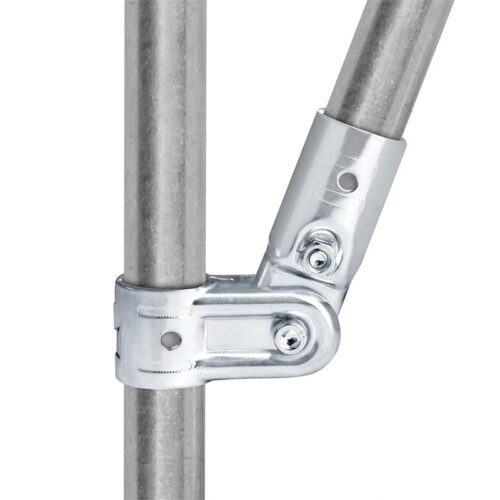

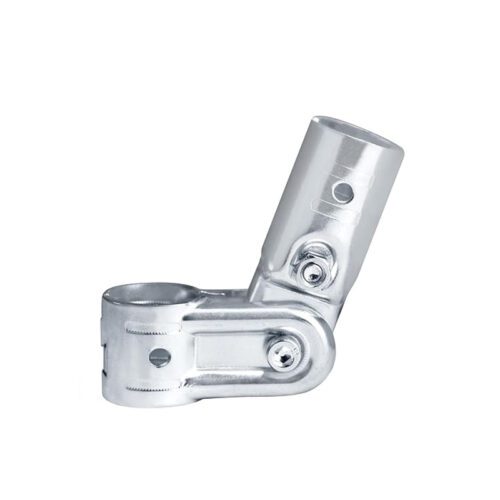

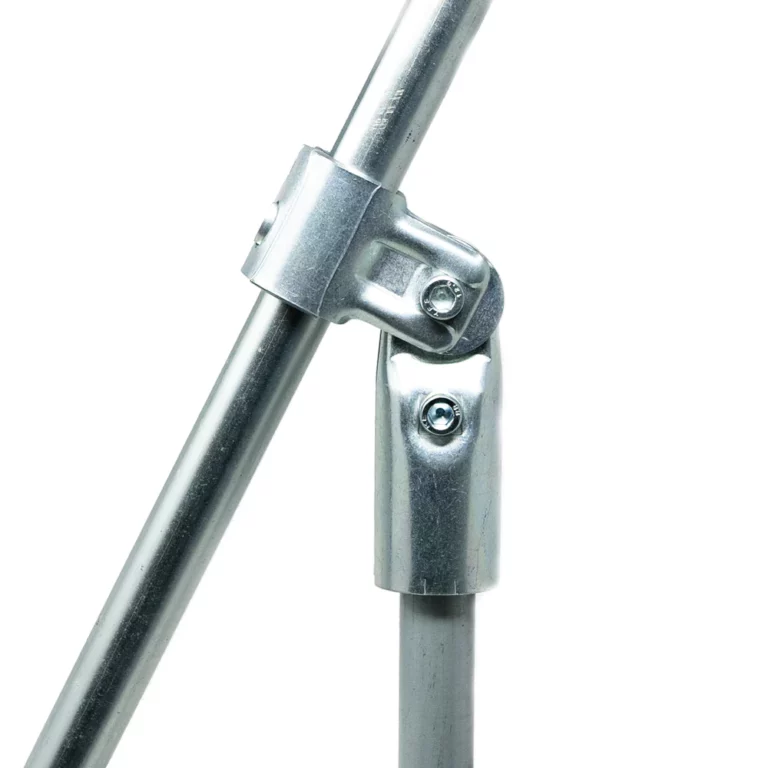

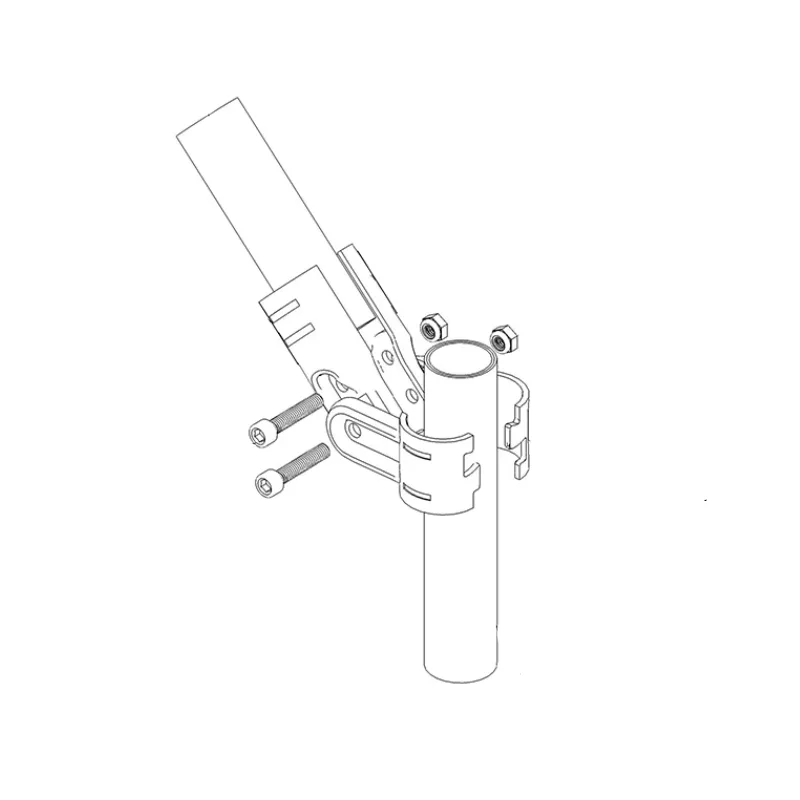

The adjustable angle hinge connector fittings consist of four parts. Two long pieces secure the end pipe and form an end clamp. Two smaller puzzle pieces of pipe form an interlocking pipe clamp structure. It only needs two bolts to fix it, so installation is very convenient and easy. It can rotate 120 degrees, and connect straight pipes and connecting pipes at any angle. The product is similar to our Fence Pipe Adjustable Angle Tee Clamp, both of them have the same function.
Our adjustable angle hinge connector adopts high-quality steel structures, which make the overall structure more stable. The process of galvanizing or powder coating makes it adaptable to various environmental influences, preventing rust and corrosion.
The pipe adjustable hinge connector comes in a variety of sizes. It can accommodate different fence pipes or other pipes. At the same time, the size, craftsmanship, or materials of our products can be customized to meet customers’ other needs.
 |
 |
 |
Typically made of high-quality steel, ensuring strength and corrosion resistance.
Two connecting bodies are used to connect to pipes, etc.
The connector is equipped with a pivot, allowing relative rotation between the two connecting bodies. Users can adjust the connection angle as needed, typically between 0° and 180°.
The connector is generally designed with multiple mounting holes for secure connection to other pipes or frames.
Adjustable angle connectors are available in a variety of sizes and specifications to suit different application scenarios.

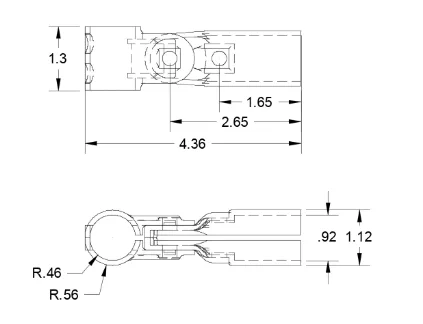

| Model No | BUTT-THRU (NB) | CTN | KG | Material | Coating Thickness | Load Capacity |
| FDCI318001 | 50 X 25 | 24 | 24 | ASTM A653 SS400 | 20μm Hot-Dip Galvanizing | 500kg Static Load |
| FDCI318002 | 50 X 32 | 24 | 24 | |||
| FDCI318003 | 50 X 40 | 24 | 24 | |||
| FDCI318004 | 80 X 25 | 10 | 18 | |||
| FDCI318005 | 80 X 32 | 10 | 19 | |||
| FDCI318006 | 80 X 40 | 10 | 19 | |||
| FDCI318007 | 100 X 25 | 10 | 20 | |||
| FDCI318008 | 100 X 32 | 10 | 20 | |||
| FDCI318009 | 100 X 40 | 10 | 20 |
Need custom-sized pipe connectors for unique projects? Our R&D team provides:
Utilizes a high-energy-density laser beam to thermally cut materials. Precisely cut metal sheets or parts into the desired shape according to the drawing.
Using specialized punches and dies, pressure is applied to the sheet material, causing it to plastically deform, achieving the desired shape and size.
Compressed air is used to spray high-speed abrasive particles onto the workpiece surface. This step cleans the surface roughness and removes impurities such as rust, oil, and scale.
Pickling thoroughly removes oxides and rust from the metal surface and activates the metal surface. The phosphate coating itself offers corrosion resistance and provides excellent adhesion for paint, powder coating, or other organic coatings.
Pre-treated steel workpieces are immersed in molten zinc to form a strong surface layer, which also provides excellent adhesion and wear resistance.
Each product is inspected for strength, wall thickness, and powder coating thickness to ensure consistent quality.
Professional shipping methods ensure the safe delivery of your products.
Our adjustable hinge pipe clamps are trusted by:
1. Q: Can your pipe adjustable angle hinge connector fittings products be customized?
A: Of course, our pipe adjustable angle hinge connector fittings can be customized according to the specific needs of your guardrail size, pipe size, or other scenarios, including size, color, material, and craftsmanship.
2. Q: We would like to get our pipe adjustable angle hinge connector fittings products faster. What do you think we should do?
A: We will develop the most effective production plan for you based on the quantity and category of products you need, and ship them to you as soon as possible after production is completed.
3. Q: What is the required sample time and cost?
A: If you need samples, we will be happy to provide them to you. It’s free, but you need to bear the shipping cost.
4. Q: What is the delivery time of our pipe adjustable angle hinge connector fittings products?
A: Our professional production team will manufacture according to your requirements quickly, while ensuring quality. And use fast logistics to ship to you as soon as possible.
