– The high-quality material has high strength, strong pulling force, and long-lasting durability.
– Economical and practical, with competitive price and excellent performance.
– The special manufacturing process makes the overall frame more stable and reliable.
– A variety of surface treatments provide resistance to corrosion in a variety of environments and have a long service life.
– Professional manufacturer with large factory specifications and short delivery time.
– Special pricing is available for bulk orders.
FENCE DEPOT’s resistance welded wire mesh is a cost-effective and versatile security solution designed for industrial, agricultural, and residential applications. Crafted through precision resistance welding, the mesh features orthogonal wires fused at their intersections to create a stable, grid-like structure. During production, line wires are guided by specialized pattern boards while cross wires are automatically aligned and welded, ensuring uniform grid patterns and a clean aesthetic. The evenly spaced horizontal and vertical wires enhance structural integrity while maintaining lightweight flexibility, allowing easy cutting and shaping with standard tools for seamless installation and adaptability to diverse environments.
Constructed from durable materials such as mild steel, stainless steel, or galvanized steel, our mesh delivers exceptional strength and impact resistance. Surface treatments, including hot-dip galvanizing, powder coating, or PVC coating, further enhance corrosion resistance and UV protection, ensuring long-term performance in outdoor conditions. The advanced resistance welding technology guarantees secure, unbreakable joints, combining reliability with a polished finish.
As a professional welded wire mesh manufacturer, FENCE DEPOT offers standardized sizes for common applications and provides customizable solutions tailored to specific project requirements, including material selection, dimensions, and surface finishes.
 |
||||||
| Height（cm） | BWG | Wire Diameter（mm） | Opening（cm） | Fixed Link | Length of mesh (2.5m) | Length (2.5m) |
| Weight (kg/set) | Weight (kg/piece) | |||||
| 60 | 10#/8# | 3.24 | 5 x 12 | 1.9 | 6.5 | 8.6 |
| 80 | 10#/8# | 3.24 | 5 x 12 | 2.3 | 7.5 | 9.9 |
| 100 | 10#/8# | 3.24 | 5 x 12 | 2.7 | 8.5 | 11.2 |
| 120 | 10#/8# | 3.24 | 5 x 12 | 3.1 | 9 | 11.9 |
| 150 | 10#/8# | 3.24 | 5 x 12 | 3.7 | 11 | 14.5 |
| 180 | 10#/8# | 3.24 | 5 x 12 | 4.3 | 12.5 | 16.5 |
| 200 | 10#/8# | 3.24 | 5 x 12 | 4.7 | 13.5 | 17.8 |

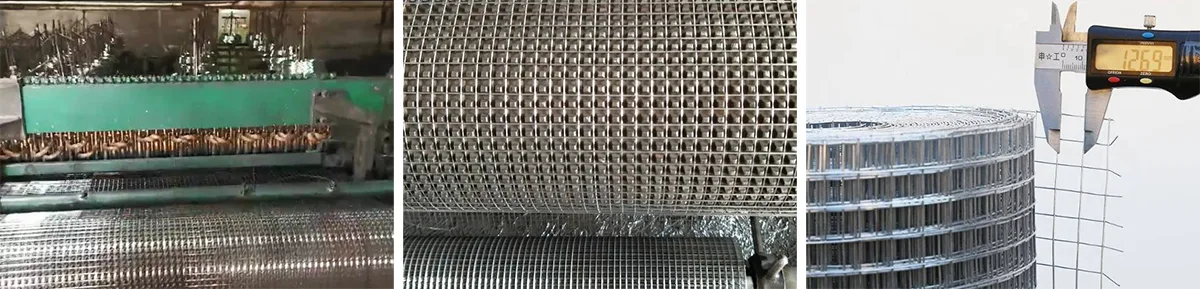

Select high-quality steel wire that meets strength, toughness, and corrosion resistance requirements, such as galvanized steel wire. Stringent quality inspections are performed on the wire diameter, surface quality, and coating thickness.
The coiled wire is passed through a straightener to remove curl and precisely cut to the desired length.
Automated welding equipment is used to place the cut wire on the welding machine’s feed rack. The machine welds the intersections of the wires, forming strong welds. Full automation ensures uniform mesh size and weld strength.
After welding, the edges and welds are ground to remove burrs, oil, slag, and other impurities, preparing for subsequent coating.
Hot-dip galvanizing or electroplating is typically used. This provides a thicker protective layer and enhanced corrosion resistance.
After galvanizing, the wire is lightly stretched to set the shape and then rolled into neat coils. These finished coils are convenient for storage, transportation, and subsequent use.
Check the mesh flatness, weld joint strength, mesh size, mesh opening size, frame integrity, and the uniformity and integrity of the surface coating.
Qualified welded wire mesh fencing will be wrapped in waterproof material such as plastic film or kraft paper and secured with packing tape.

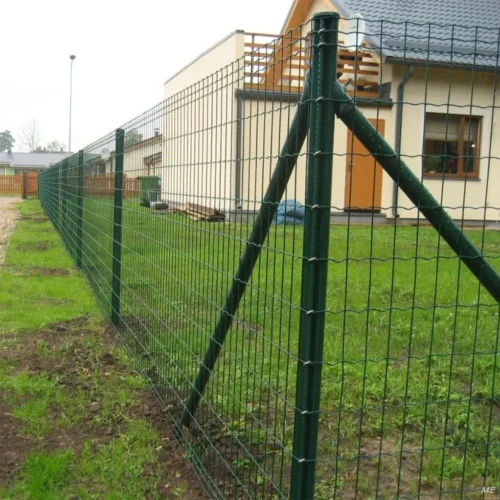

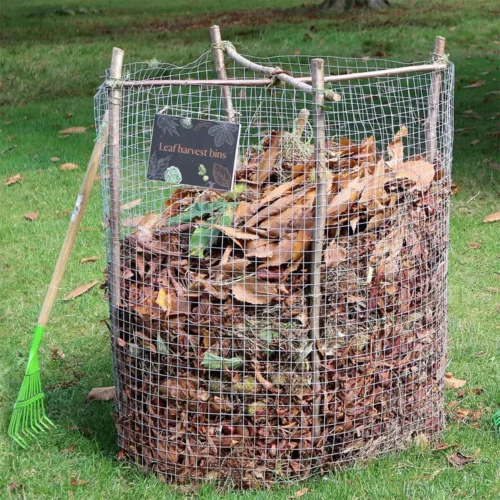

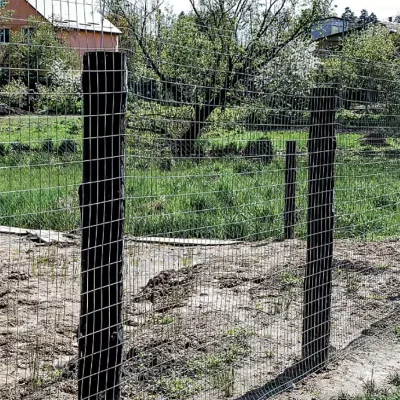

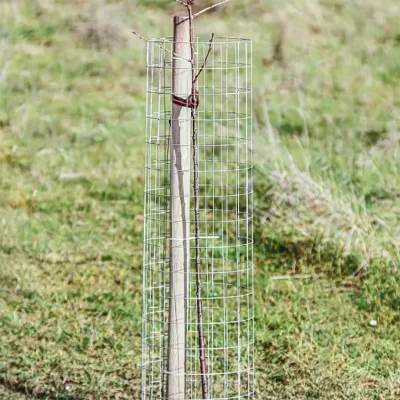

Resistance-welded wire mesh is usually used as a wire mesh fence for safety isolation, and can also be made into various turnover baskets, storage cages, breeding cages, and other products. Welded mesh is also a building material used as reinforcement for building exterior walls and bridges.
 |
 |
|
