Star Pickets, Metal Galvanised Steel Y Post Fences

Model NO:
FDF104001

– Easy and fast installation, saving manpower and material resources.

– Galvanized steel provides greater strength and durability.

– The galvanizing process provides excellent performance and requires no maintenance.

– More cost-effective compared to other fencing options.

– Professional packaging thus ensures safe transportation of the product.

– Special pricing is available for bulk orders.

Print Friendly and PDF

Star Pickets – light, standard, heavy, and extra heavy duty for Australia & NZ

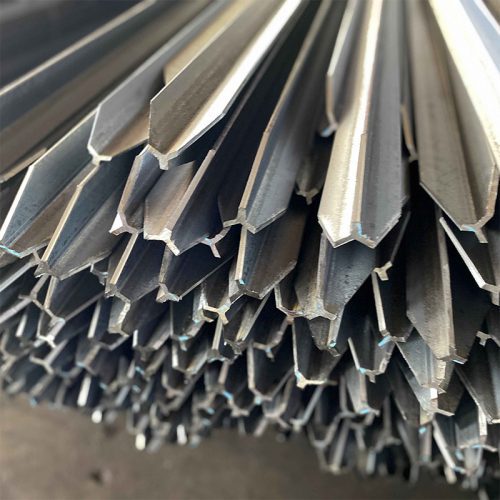

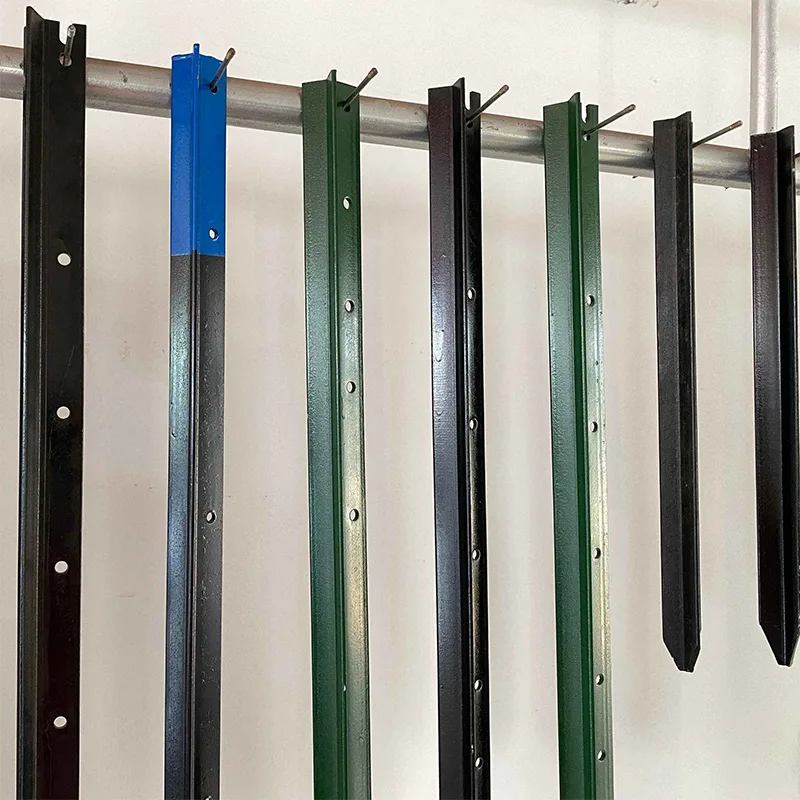

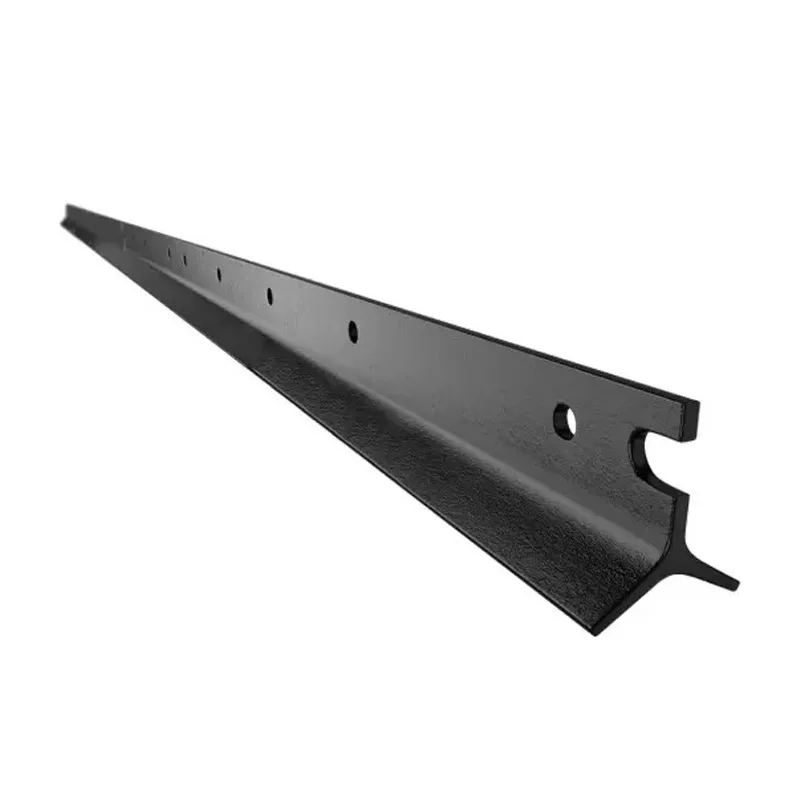

Star pickets, also known as Y posts or Y pickets, are made of low-carbon steel. These steel posts have a cross-section that forms a three-pointed star. The posts have pre-drilled holes along their length, enabling the attachment of wires to fix metal fences. Y posts find extensive use in the installation of temporary fences and field fencing products, such as cattle and sheep netting, as well as security fences.

Our products are available in different versions: light, heavy, and extra heavy. They can withstand significant impact without deformation or damage. Additionally, our products are highly resistant to corrosion when used outdoors.

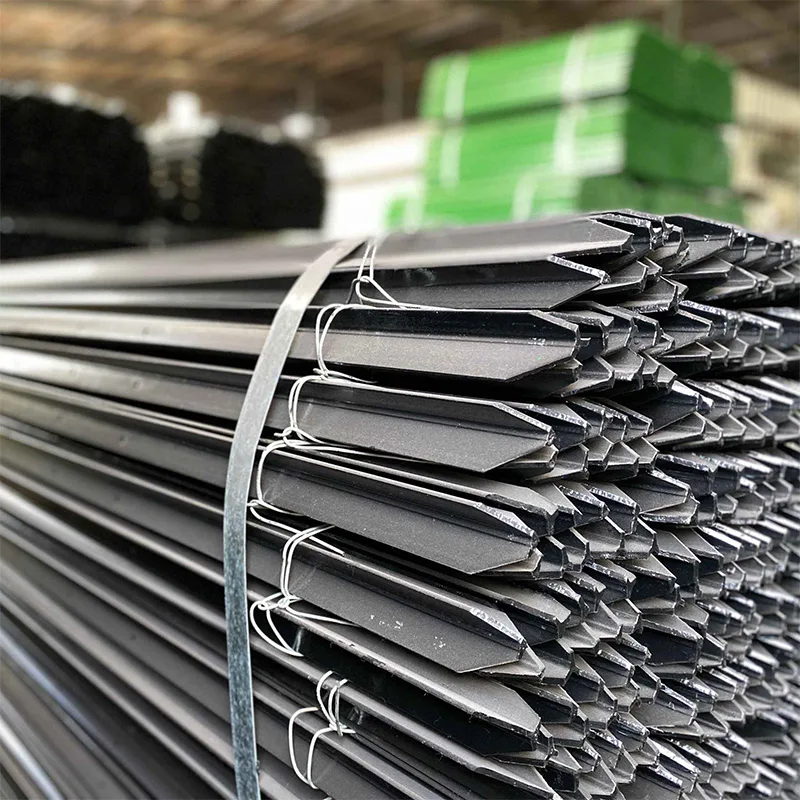

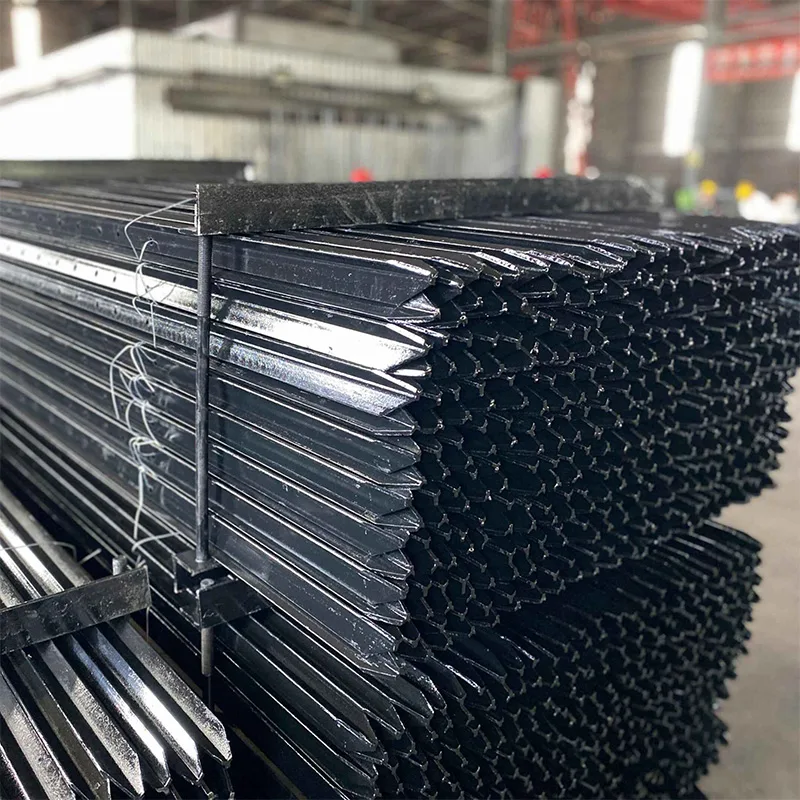

Crafted from high-grade rolled steel, these fence star pickets possess remarkable resistance against breaking, bending, and twisting, ensuring their durability and reliability. They are available in two options: hot-dipped galvanized or traditionally coated with black bitumen, ensuring excellent corrosion resistance and a long lifespan.

Each picket, with its distinctive three-pointed star design, measures approximately 10 cm in length and possesses a sharp end that allows for easy driving into the ground. The product can be combined with our Wire Mesh series products to form an integral panel.

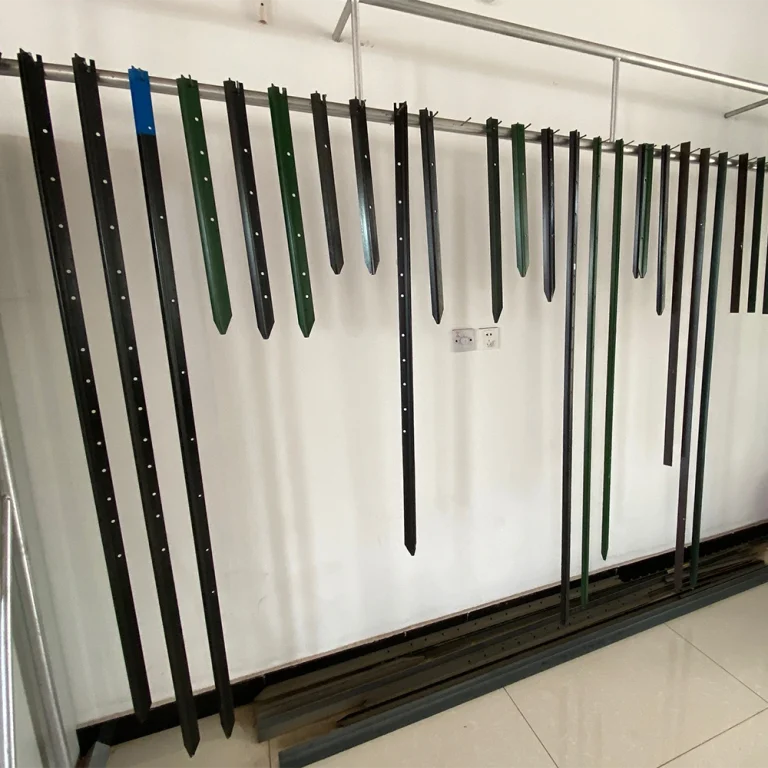

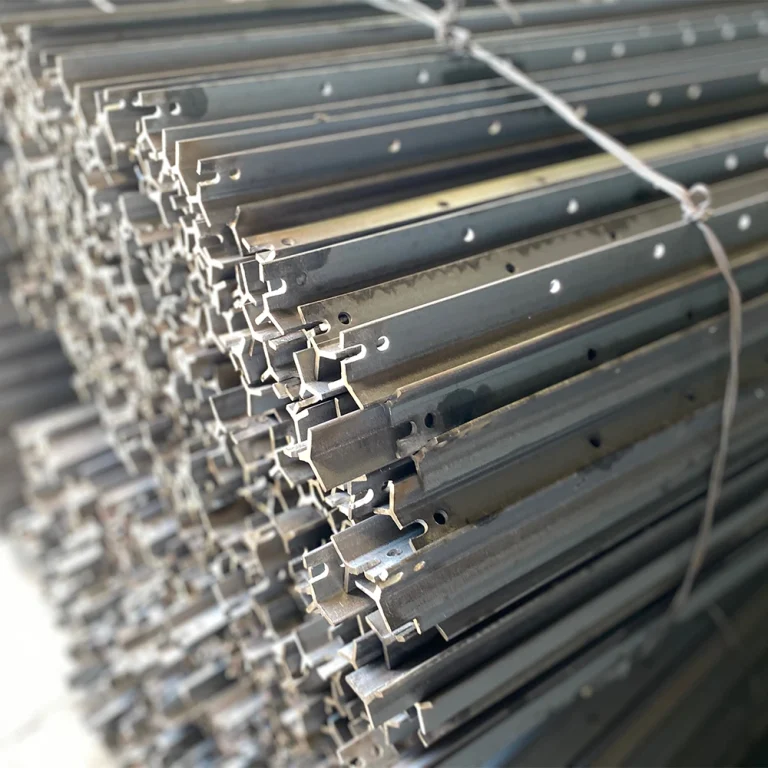

To facilitate the attachment of wires or fences, all pickets have pre-drilled holes along their entire length. We offer a wide range of sizes and weights for sale while allowing you to choose the most suitable option for your needs. Please find our available range listed below.

FENCE DEPOT is your trusted Farm Fence manufacturer. For more information on our metal steel star pickets, including stock availability, please feel free to call +86 16678596616. You can also contact us via email: [email protected]. We’re here to help.



Product Specification:

Name Kg/m Length Weight(kg) Finish
Lightweight Steel Y Post 1.44 1.8 2.59 Overall hot-dip galvanizing
1.44 2.2 3.17
1.44 2.9 4.18
Standard Steel Y Post 1.8 1.8 3.24
1.8 2.2 3.96
1.8 2.9 5.22
Heavy Steel Y Post 3.5 1.8 6.3
3.5 2.2 7.7
3.5 2.9 10.15
Heavy Zinc Steel Y Post 1.35 2.5 Overall hot-dip galvanizing
1.5 2.8
1.65 3.1
1.8 3.3
2.1 3.9
2.4 4.5
Super Heavy Zinc Steel Y Post 1.8 6.4
2.1 7.5
2.4 8.5
Heavy Black Steel Y Post 1.35 2.5 Black Asphalt Paint
1.5 2.8
1.65 3.1
1.8 3.3
2.1 3.9
2.25 4.2
2.4 4.7
Super Heavy Black Steel Y Post 2.4 8.5
Dipped Paint Thickened Steel Y Post 2.4 7.58 Black Asphalt Paint
2.1 6.64
1.83 5.78
Dipped Paint Lightweight Steel Y Post 1.58 0.45 0.71
1.58 0.6 0.95
1.58 0.9 1.42
1.58 1.35 2.13
1.58 1.5 2.37
1.58 1.65 2.61
1.58 1.8 2.84
1.58 2.4 3.79
Hot Dip Galvanizing Thickened Steel Y Post 2.4 7.58 Overall hot-dip galvanizing
2.1 6.64
1.83 5.78
Hot Dip Galvanizing Lightweight Steel Y Post 1.58 0.45 0.71
1.58 0.6 0.95
1.58 0.9 1.42
1.58 1.35 2.13
1.58 1.5 2.37
1.58 1.65 2.61
1.58 1.8 2.84
1.58 2.4 3.79

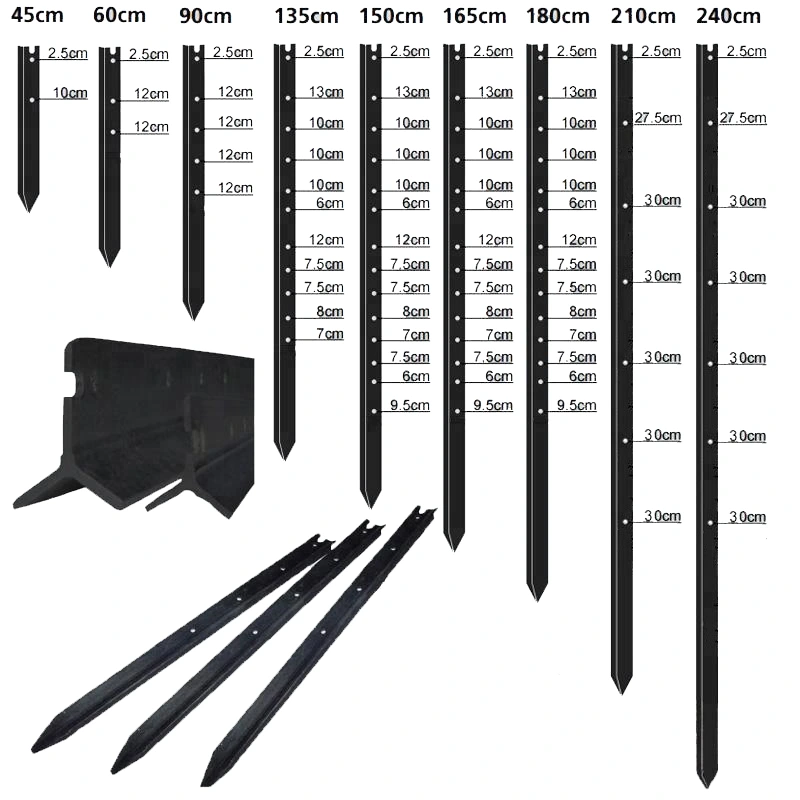

Star Pickets Specification

The above picture shows the hole details for each specification.

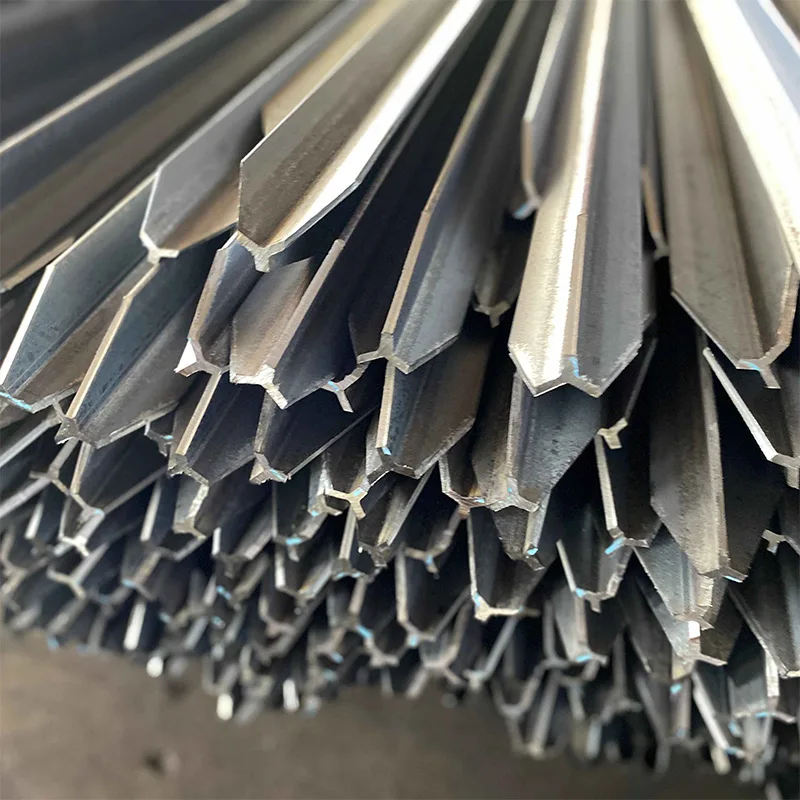

Product Details:

– Shape: The cross-section is a triangular star, with teeth or without teeth.

– Material: Low carbon steel, rail steel, or other.

– Surface Treatment: black bitumen coated, galvanized, PVC coated, baked enamel painted, etc.

– Thickness: 2 mm – 6 mm, depending on your requirements.

– Packing: 10 pieces/bundle, 50 bundles/pallet or other methods.



Why choose Metal Steel Star Pickets from FENCE DEPOT?

1. This type of fence star picket exhibits a 30% improvement in both mechanical and physical properties compared to common steel posts of the same section size.

2. We offer both hot-dipped and black bitumen-coated steel Y posts in various lengths and weight standards.

3. The black bitumen coating has been tested by SGS and contains only 0.02% lead.

4. Our products comply with the ASTM A702 and ISO 9001 standards.

5. In addition to the posts, we also provide field fences, barbed wire, post drivers, post removers, and other associated accessories for your projects.

6. Wide range of applications, suitable for various farm applications and environmental protection areas, etc.

7. As an advanced manufacturer, we can customize the specifications of star pickets according to needs or more usage scenarios.

8. Advanced production equipment and experienced staff, so higher efficiency and short delivery time.

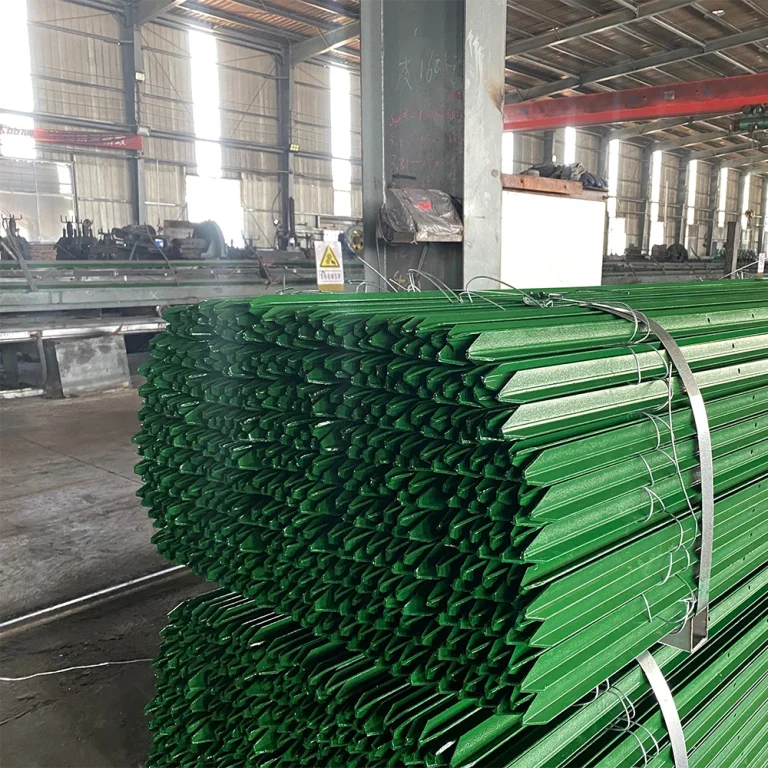

Production Process:

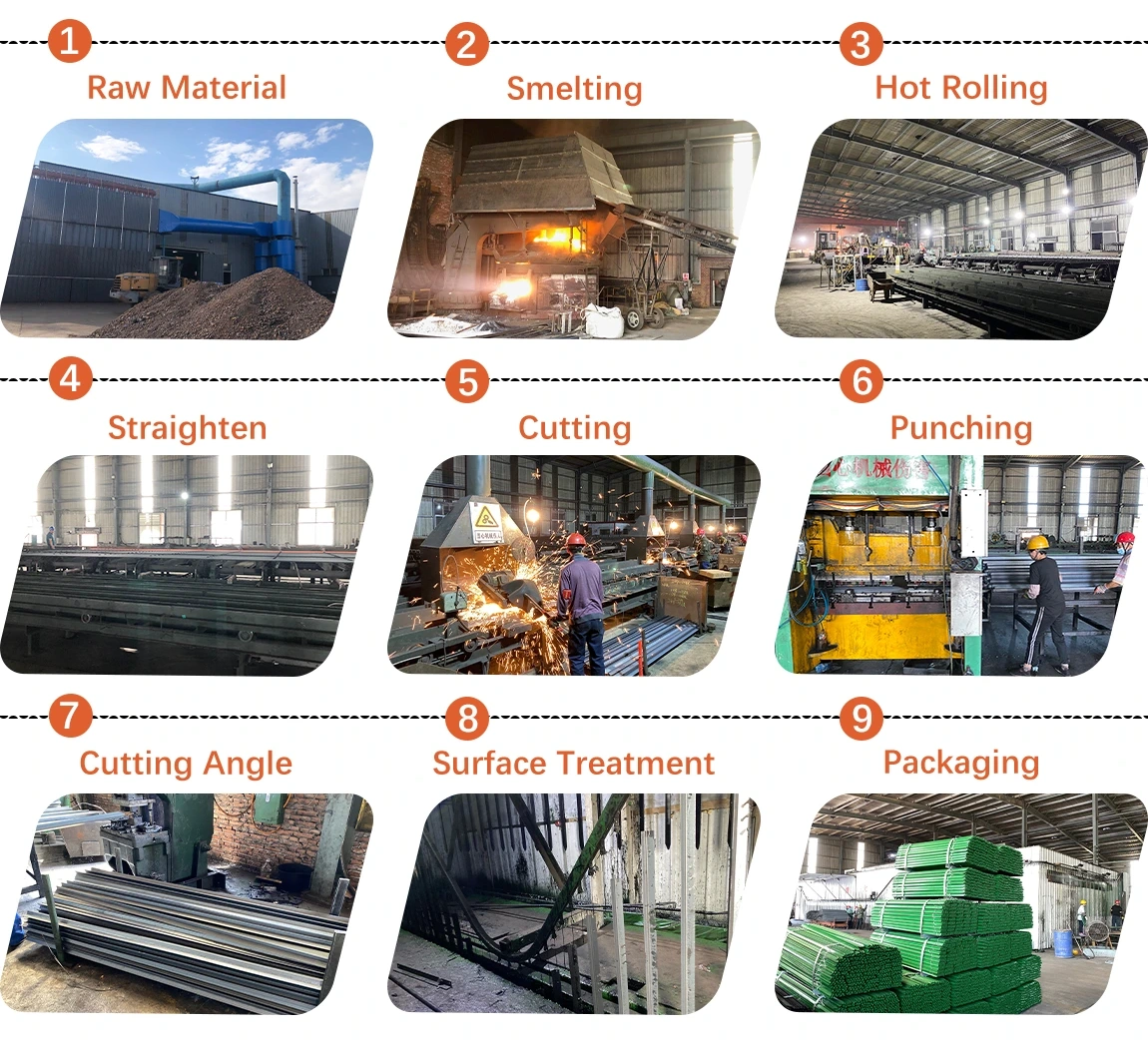

Metal Steel Star Pickets Production Process

1. Check and control the raw materials, thus preventing the quality of the product from the source.

2. Smelt the raw materials into the initial shape of steel.

3. Then hot-roll it to form the Y-shaped structure of star pickets.

4. Straighten the hot-rolled columns to maintain a vertical shape.

5. Cut it into sections and cut it into the required length.

6. Punch the product to facilitate packaging and other protection such as barbed wire installation.

7. Chamfer the product to form the star column section.

8. Surface treatment such as galvanizing or painting the surface of the product to improve its excellent performance.

9. Connect and stabilize the Y posts to ensure transportation safety.



Product Advantage:

– Consistent holds for easy attachment to fencing wires.

– High durability for not chipping, or bending.

– Anti-rust material-coated surface.

– Can withstand extreme weather such as strong winds or heavy rain.

– Easy to install, saving manpower, material resources, and costs.

– Premium materials and advanced surface treatment provide longer service life.



Applications of Star Picket

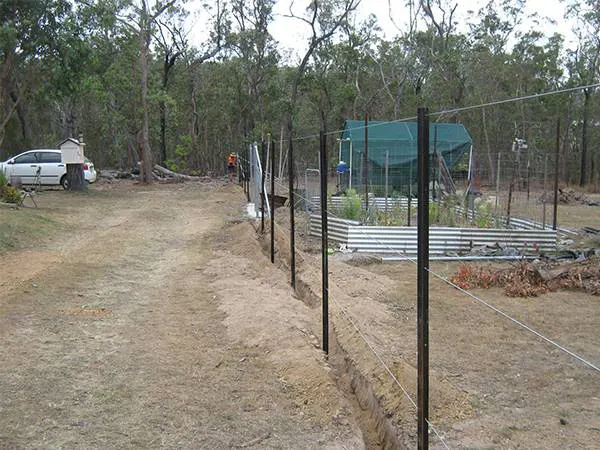

In terms of fastening steel wire lines or barbed wires, the commonly used option is star pickets with hole type, which allow for easy attachment. Moreover, star pickets with teeth type are widely preferred for securing various types of steel wire mesh fences. These fences can include welded wire mesh fence panels and cattle fences. These products effectively fasten the fences, thus providing reliable stability and security. At the same time, it also has a wide range of applications, such as various farm applications, highways, environmental protection areas, etc.

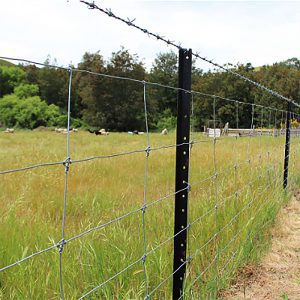

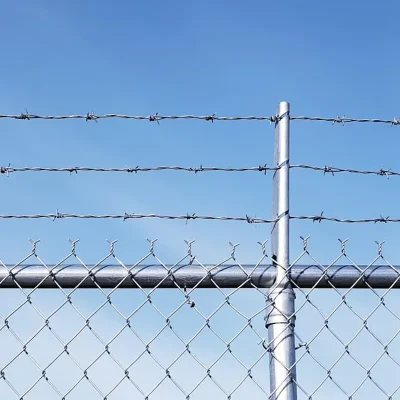

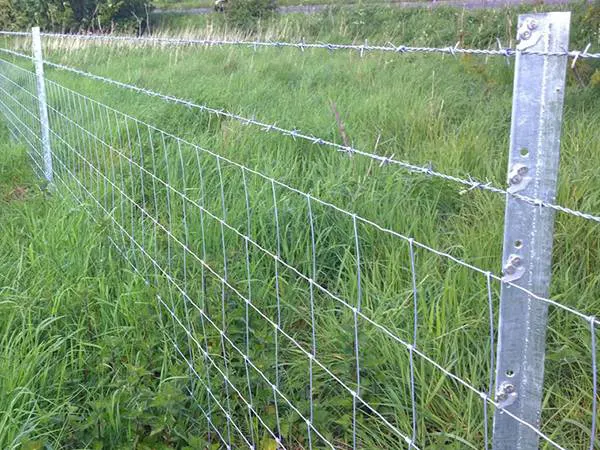

Y post for fastening barbed wire Star picket for fastening cattle fence

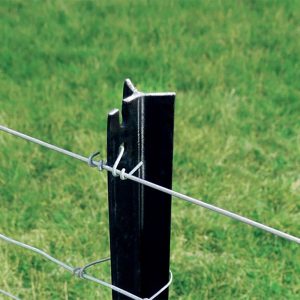

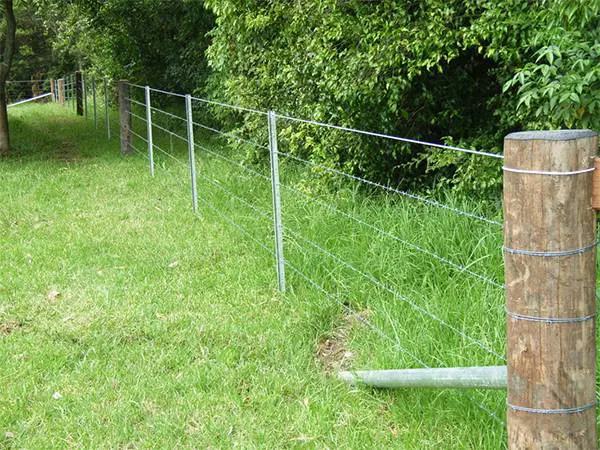

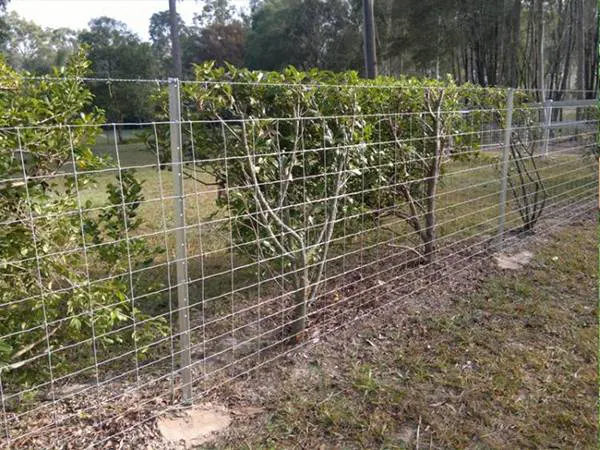

Star picket for fastening iron wire. Star picket for fastening wire mesh and barbed wire.

FAQ

1. Are steel star pickets customizable?

Yes, we can be customized according to your specific requirements. We offer various lengths, weights, and coatings to suit your needs. Please contact us with your requirements, and we will be happy to assist you.

2. How long will the product last?

Due to their galvanized coating, the products have excellent corrosion resistance and can last for several years, depending on the environmental conditions and proper maintenance. In most cases, they can provide reliable fencing support for 10-15 years or more.

3. Can the product be used for electric fences?

Yes, the products are suitable for use with electric fences. However, it is essential to use insulators specifically designed for Y-posts to prevent shorting and ensure the proper functioning of the electric fence.

4. How to remove products from the ground?

The cheapest, but certainly most complex and time-consuming, is removal by hand. Shimmy the picket in until it is loose enough to lift out of the ground. Soaking the area surrounding the Star Picket before smacking it with a mallet will help in areas with tough soil.

5. How do I order metal star pickets from your company?

To place an order for products, please visit our website or contact our sales team directly. We will be happy to provide you with a competitive quote and assist you with any inquiries you may have.

6. What is the delivery time for the star picket post?

The delivery time for the product depends on the order quantity and our current production schedule. Generally, we aim to complete and ship orders within a few weeks. However, for specific lead times, please contact our sales team, and we will provide you with an accurate estimate.

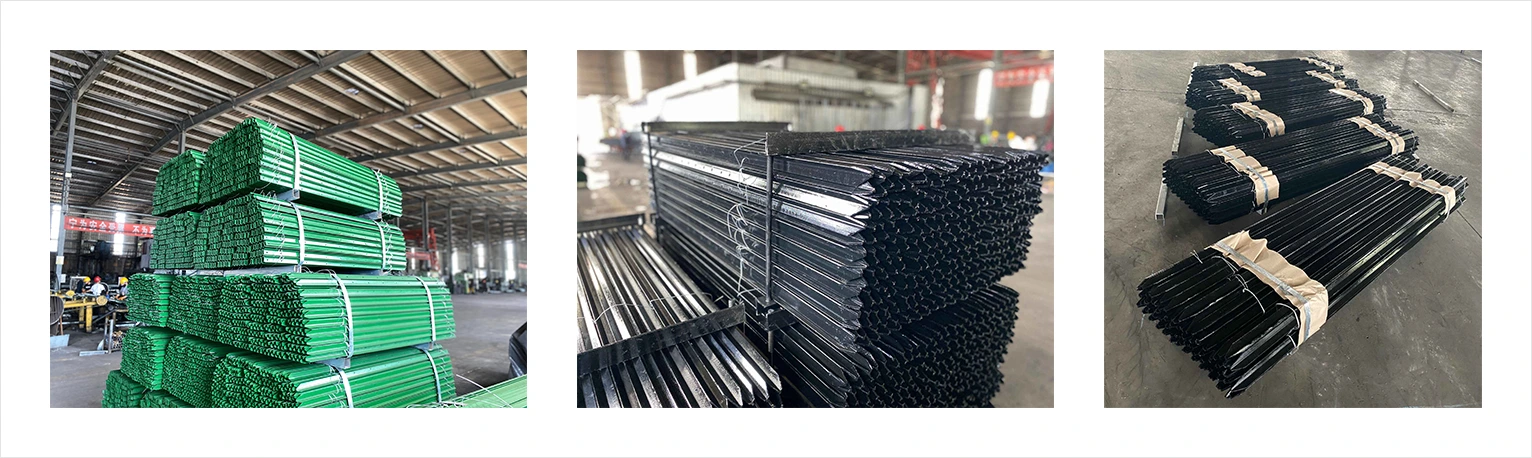

Packing and Shipping

Steel Star Pickets

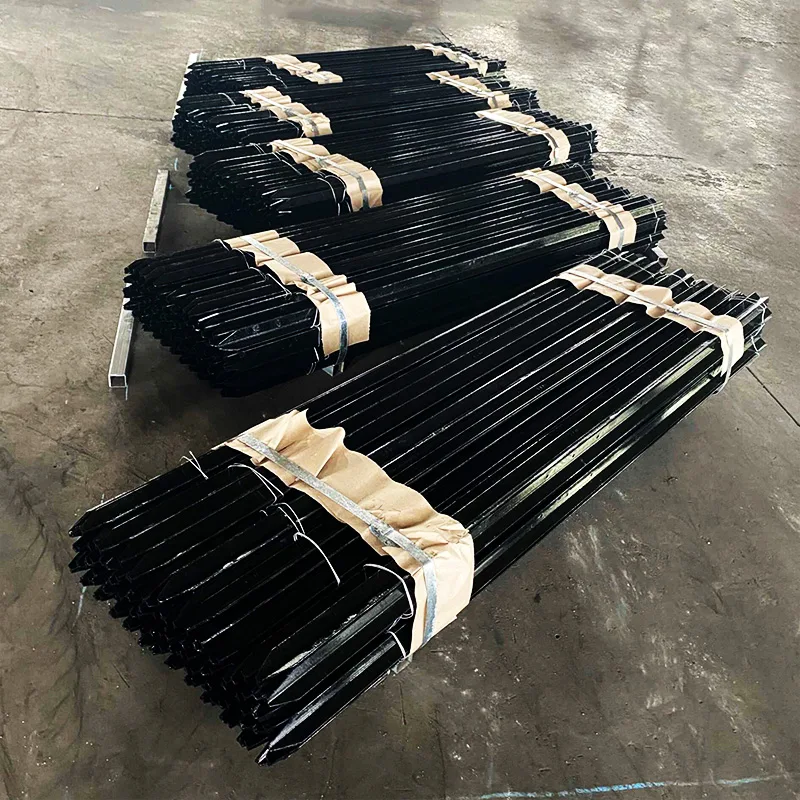

Packaging is very important for the safe transportation of steel star pickets. Normally, we will use steel bars to connect the entire set of products to prevent the product from shaking or other situations. At the same time, the overall method of strapping + cardboard + steel frame + pallet is used to protect the product to the greatest extent. If you have other needs, we will pack them strictly according to your requirements. We use sea shipping, which is convenient, fast, and stable.

Video

Product Size Range

Height (mm) No. Holes Hole Spacings from Top of Post (mm)
450 2 Top – 25 – 100
600 3 Top – 25 – 115 – 120
900 3 Top – 25 – 115 – 120
1350 7 Top – 30 – 200 – 178 – 150 – 127 – 127 – 127
1500 7 Top – 30 – 200 – 178 – 150 – 127 – 127 – 127
1650 7 Top – 30 – 200 – 178 – 150 – 127 – 127 – 127
1800 8 Top – 30 – 200 – 178 – 150 – 127 – 127 – 127 – 127
2400 10 Top – 40 – 200 – 200 – 200 – 200 – 182 – 152 – 130 – 127 – 127
3000 15 Top – 30 – 150 – 150 – 150 – 150 – 150 – 150 – 150 – 150 – 150 – 150 – 150 – 150 – 150 – 150

Hole Spacing Details Picture:

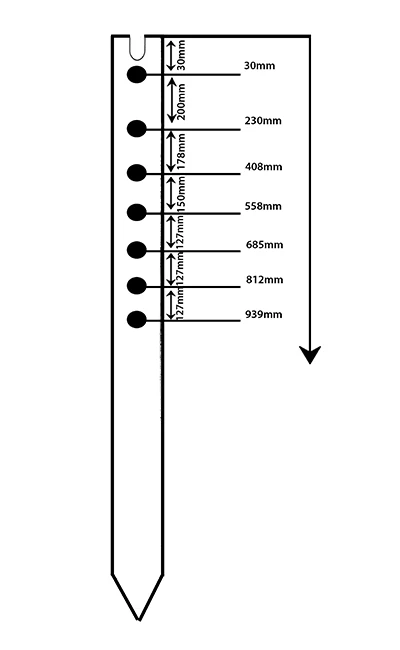

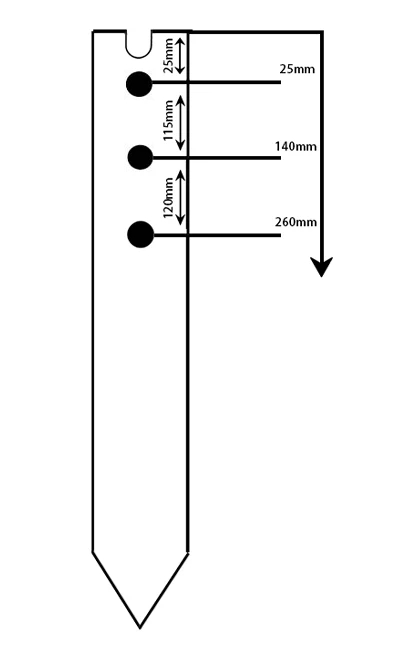

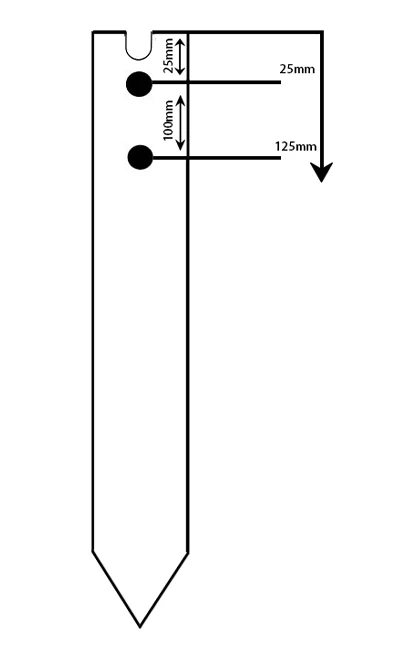

450 Star Pickets 900 Star Pickets 1350-1650 Star Pickets
Height: 450mm Height: 600mm, 900mm Height: 1350mm-1650mm

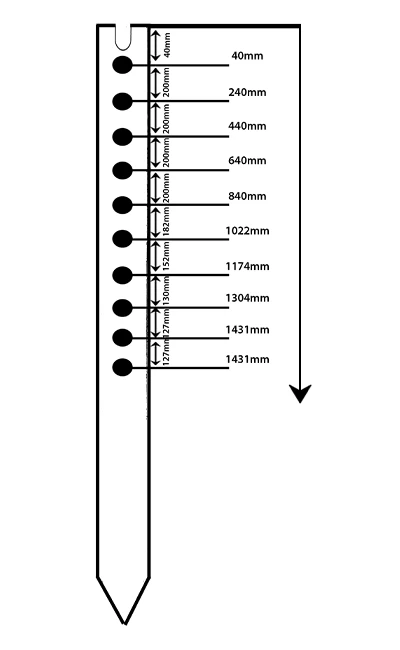

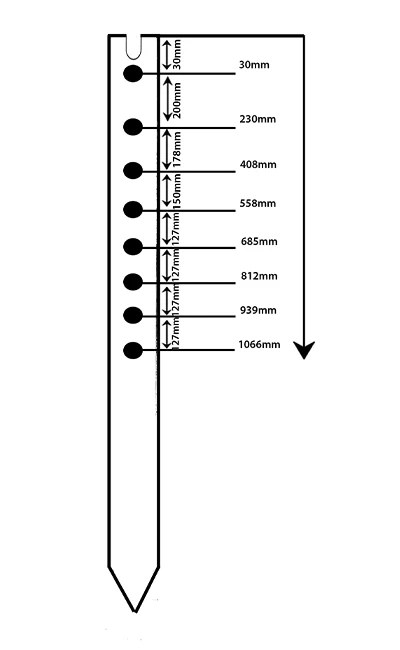

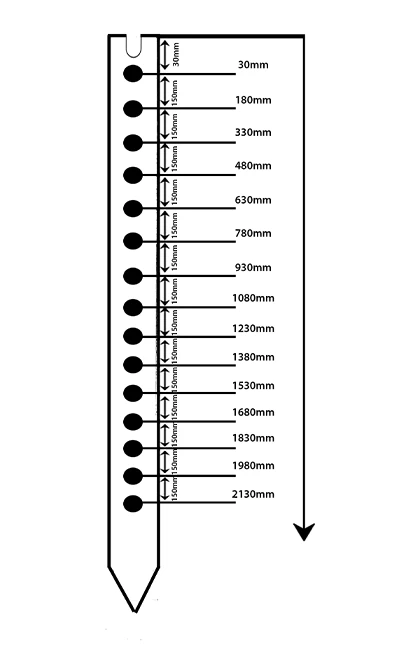

1800 Star Pickets 2400 Star Pickets 3000 Star Pickets
Height: 1800mm Height: 2400mm Height: 3000mm
