–Optimal Security and Visibility
–High-quality, impact-resistant materials.
–Corrosion-resistant coating for long-term outdoor use.
– Easy assembly.
– Products are professionally packaged to ensure safe transportation.
– Provide customized services.
– Special pricing is available for bulk orders.

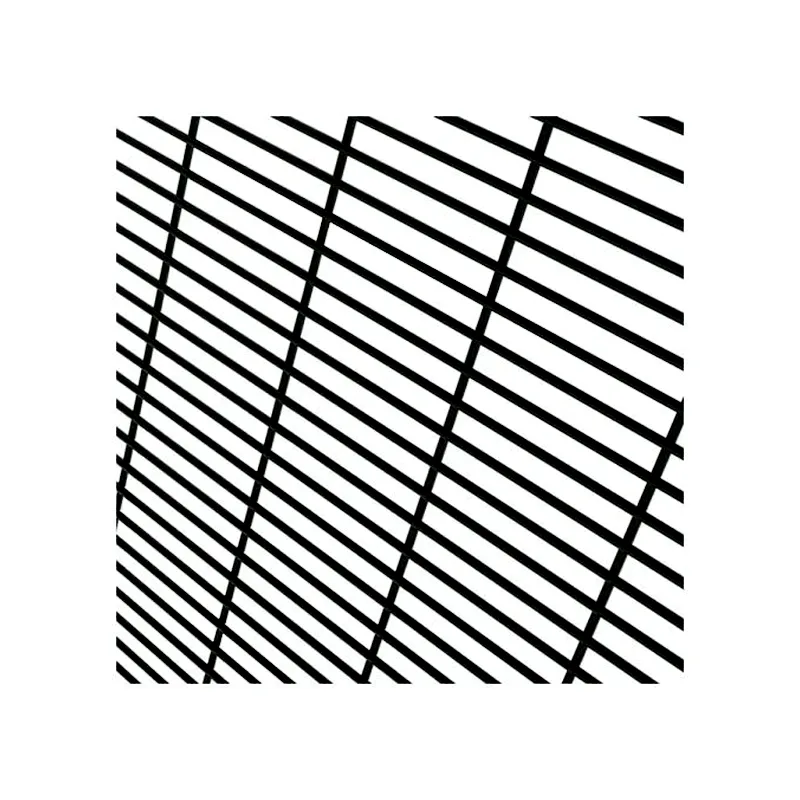

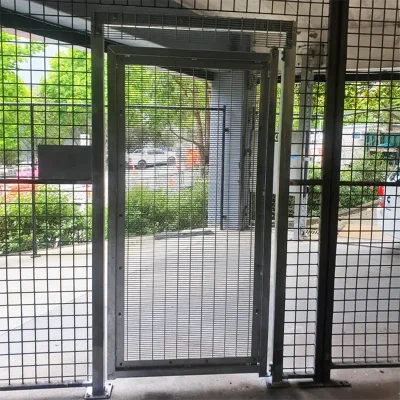

The 358 Fence Gate provides high-security vehicle access control with anti-climb features, perfect for commercial sites, airports, and high-risk perimeters in Australia. Standing at 2.4m high and with a 2.0 m single-leaf width, this gate offers a balance between visibility and robust intrusion deterrence. Its construction uses 4mm steel wire mesh with 12.7mm x 76mm gaps. Compatible with our 358 fencing systems, the gate’s durability is further enhanced by a polyester powder coating in standard colours. Such as green, black, or blue, or custom options, ensuring resistance to harsh Australian weather conditions and vandalism.
Designed for versatility, the gate swings 90° or 180°, adapting to various ground conditions. Choose between bolt-down posts for concrete foundations or dig-in posts for softer ground. The robust 100 x 100mm hinge post and 80 x 80mm catch post ensure structural stability. Integrated hardware, including fence posts, drop bolts, and sliding latch bolts, securely holds the gate open or closed without impeding forklift or pedestrian access.

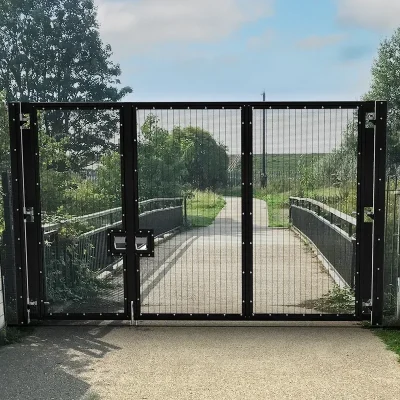

Manufactured to meet relevant Australian Standards, each component undergoes rigorous testing. The welded mesh design resists cutting and bending, while the lightweight yet strong frame simplifies installation. Whether protecting logistics hubs, industrial facilities, or sensitive infrastructure, this gate delivers long-term performance where security and operational efficiency are paramount.
 |
 |
 |
Manufactured from robust galvanised steel, ensuring long-lasting performance in Australian conditions. The welded construction provides a solid and reliable structure.
Designed for optimal visibility and airflow, enhancing security and comfort.
Finished with a high-quality powder coating for superior corrosion and rust resistance, ideal for the Australian climate.

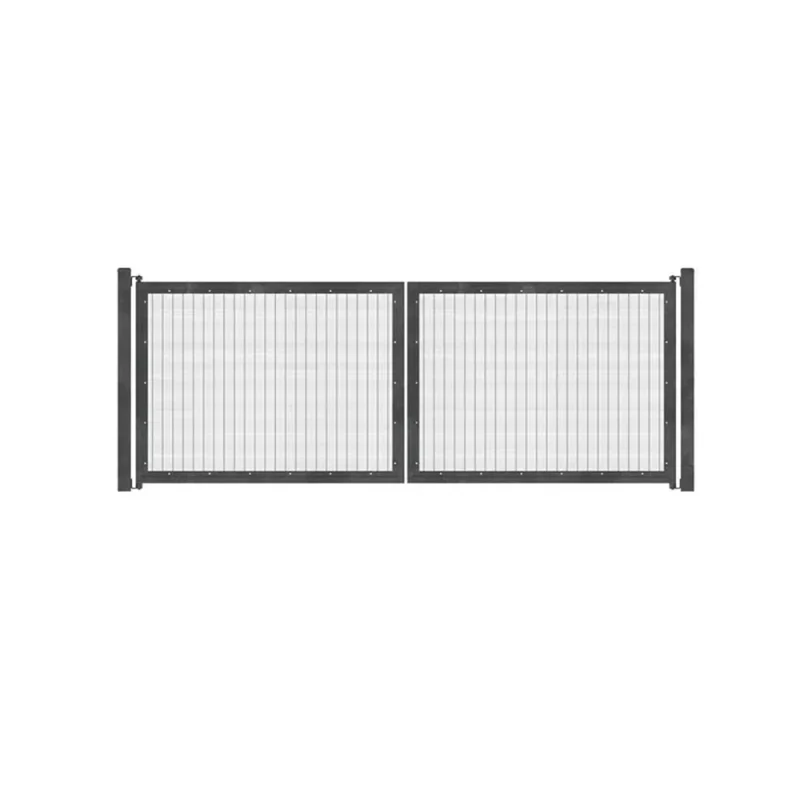

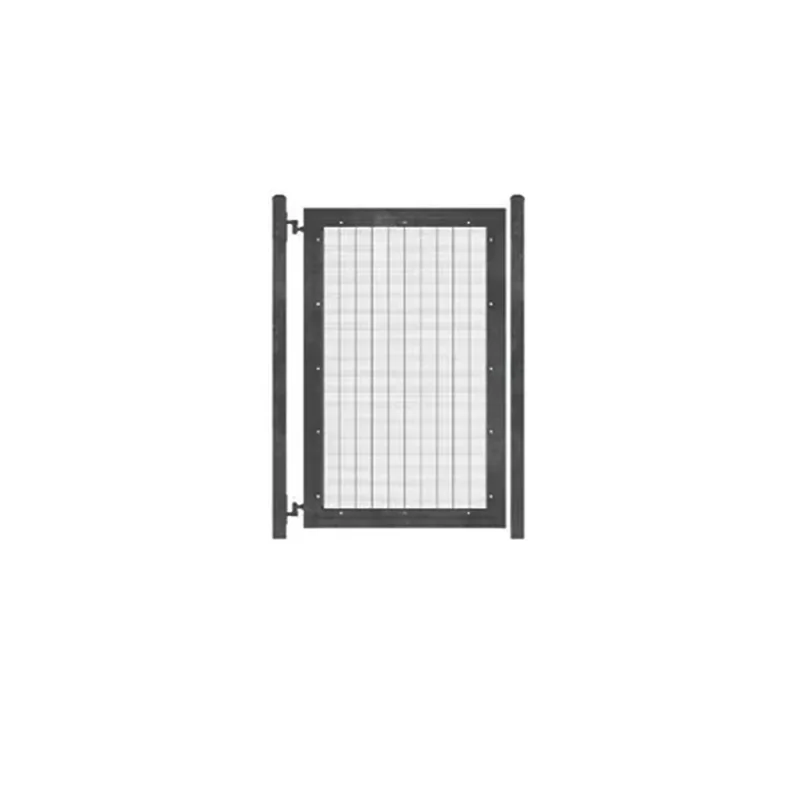

Available in a range of sizes and opening configurations, such as single or double leaf, to suit your specific site requirements.
| Gate Width | Leaf Type | 90 Degree opening | 180 Degree opening | ||
| Between Posts | Overall Posts | Between Posts | Overall Posts | ||
| 1200 mm | S/L | 1265 mm | 1425 mm | 1205 mm | 1365 mm |
| 3000 mm | D/L | 3120 mm | 3280 mm | 3000 mm | 3160 mm |
| 4000 mm | D/L | 4120 mm | 4320 mm | 4000 mm | 4200 mm |
| 5000 mm | D/L | 5120 mm | 5420 mm | 5000 mm | 5300 mm |
| 6000 mm | D/L | 6120 mm | 6420 mm | 6000 mm | 6300 mm |
| 7000 mm | D/L | 7150 mm | 7510 mm | 7020 mm | 7380 mm |
| 8000 mm | D/L | 8150 mm | 8510 mm | 8020 mm | 8380 mm |
| 9000 mm | D/L | 9150 mm | 9550 mm | 9020 mm | 9420 mm |
| 10000 mm | D/L | 10150 mm | 10550 mm | 10020 mm | 10420 mm |
| Gate Hanging Side | 100 x 100 mm Hinge Post, 80 x 80 mm Catch Post | ||||
| Thickness Of Wires | 4 mm | ||||
| Material | Steel | ||||
| Finish | Hot Dip Galvanised/Electric Galvanised/Powder Coated | ||||
| Colours | Available in Green, Black, Blue, Red, Grey, & Brown – Other custom RAL colours are also available | ||||

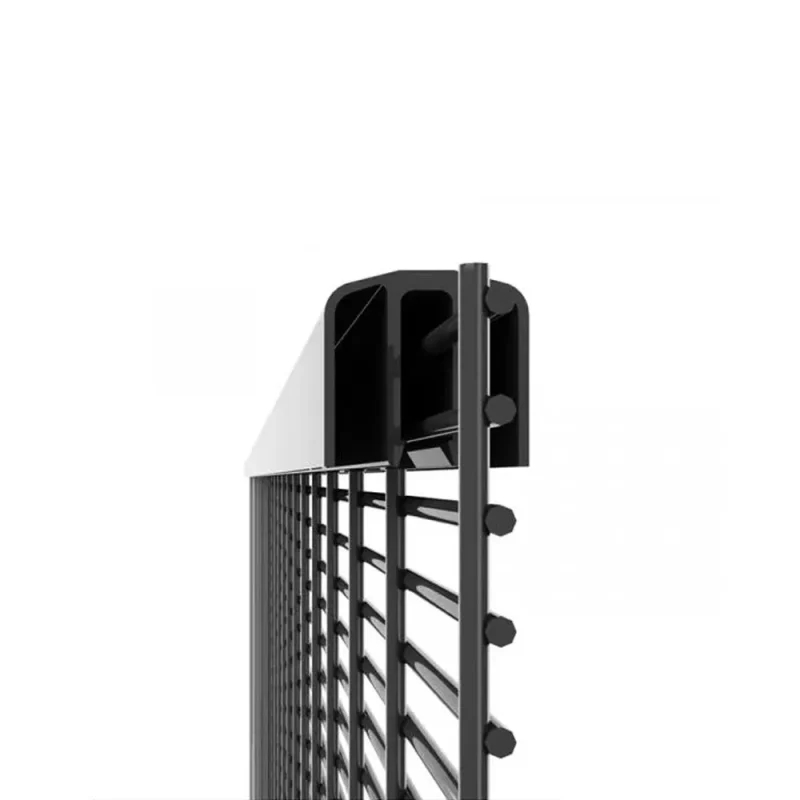

It is designed to be anti-cut and anti-climb. The strength and rigidity of the wires make the mesh tough enough to withstand vandalism and damage. It also has great stability.
The gate can adopt a smoother and more attractive finish. It is also useful for limiting damage that can be caused by general wear and the effects of weathering.
358 Fence Gates can be installed on many different ground types. Within the customisation section, you will be able to select from Bolt Down Posts, which are designed for hard ground, or Dig-In Posts, which are designed for soft ground and should be set in place by Postfix cement.
The gate is safe and long-lasting.
 |
 |
 |

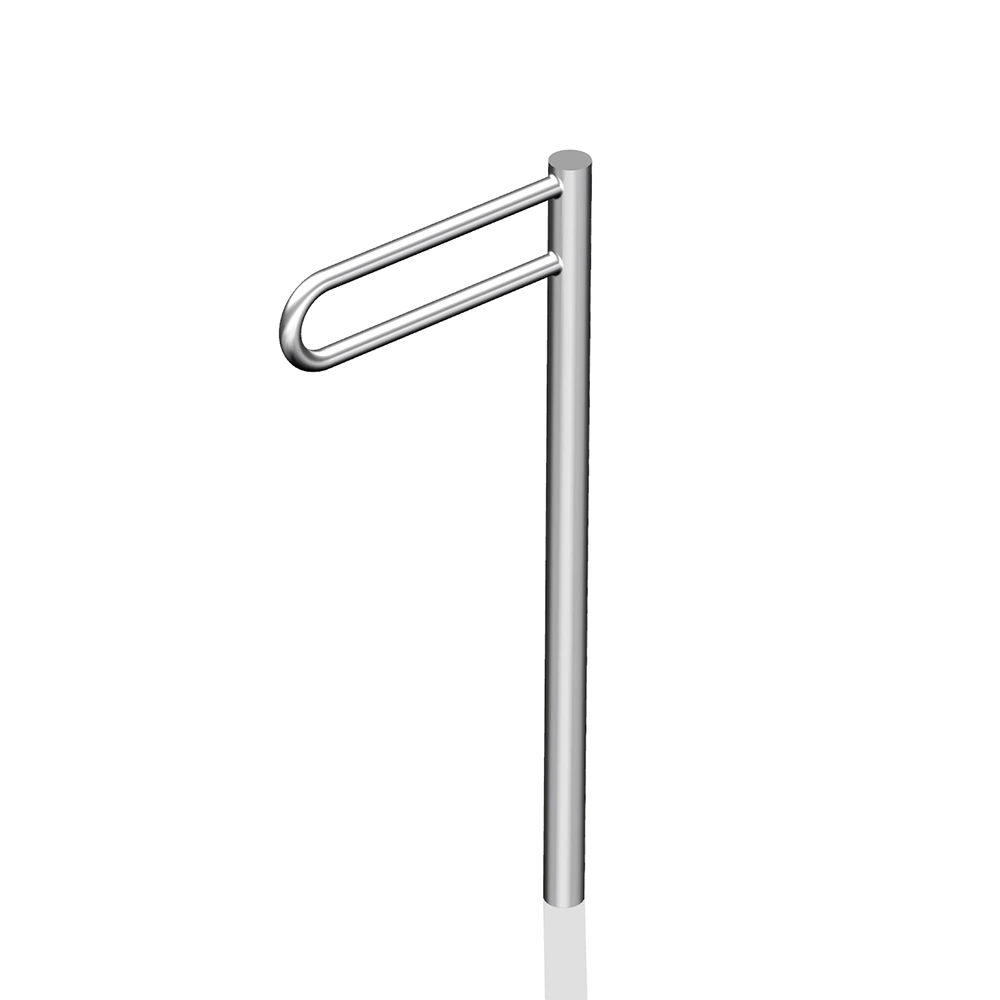

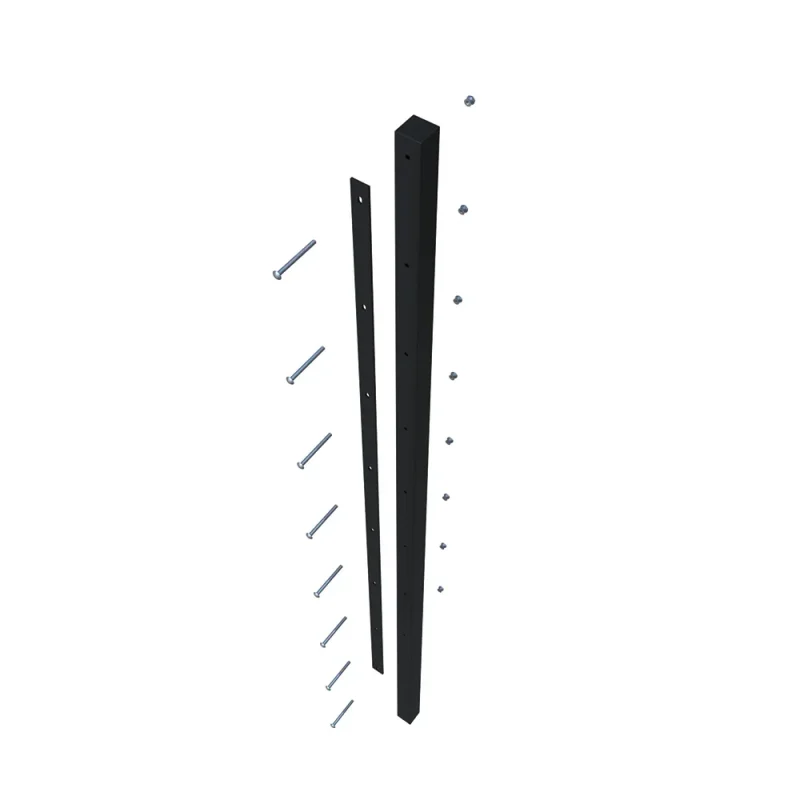

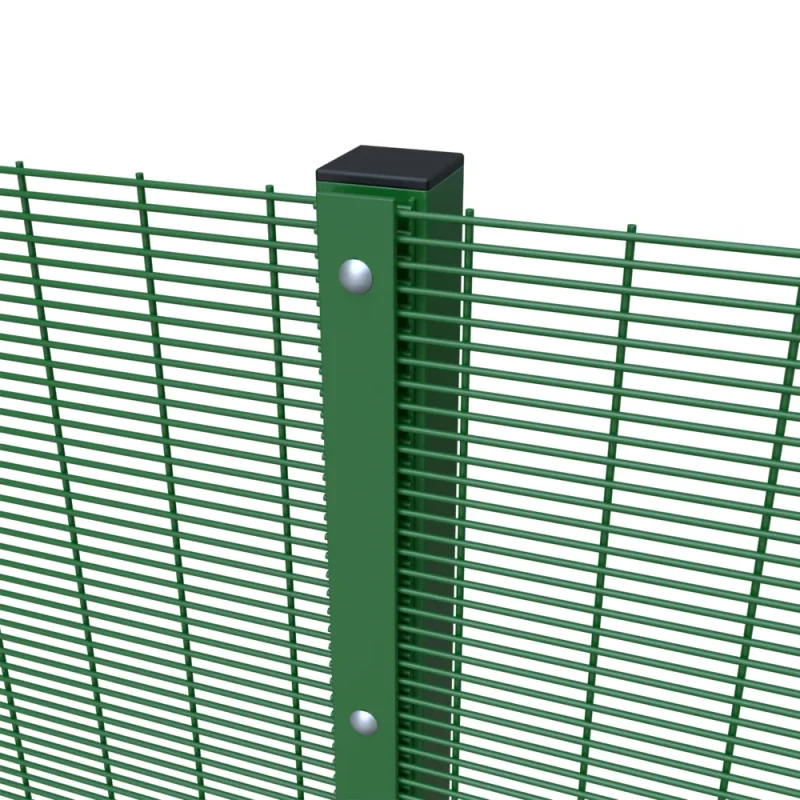

| 358 Mesh Fence Post | Drop Bolt | 358 Mesh Clips |
Use galvanised steel wire that meets the standards to ensure that the material is of high quality and meets the design requirements.
Straighten the galvanised steel wire, remove the bends and deformations, and then cut it according to size to prepare for the next step of production.
Weld the cut steel wire horizontally and vertically according to the designed grid to form a mesh structure. Ensure that the welds are firm and the mesh is flat.
Fix the prepared wire mesh to the frame of the gate and weld the side or frame to ensure that the structure is firm and beautiful.
Remove the grease, impurities during the welding process through chemical cleaning or mechanical cleaning to prepare for subsequent protective treatment.
The entire product body forms a uniform and compact zinc layer to enhance corrosion resistance.
Powder Coating provides a rich color selection for the product, while increasing the anti-corrosion and aesthetic effects.
Check the welding quality, uniformity of the galvanised layer, and coating performance to meet the quality requirements.
Use protective materials for packaging, prepare for shipment, and ensure that the product is intact during transportation.
 |
 |
 |
 |
 |
 |
