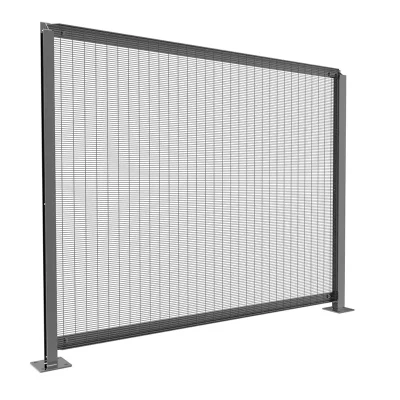

358 Fence,High Security Welded Mesh Fencing

The 358 fencing panels, also known as high-security anti-climb fencing, are a uniquely structured welded wire mesh product. It is designed to provide high-performance security protection for critical perimeters. Its name “358” reflects its precise mesh dimensions: 3 inches x 0.5 inches x 8 gauge (equivalent to 76.2mm x 12.7mm x 4mm in metric units, length x height x wire diameter). This security 358 mesh fencing uses galvanised steel wire and adheres to mechanical principles, deeply integrating functionality and safety, going beyond basic visual deterrence.

• Materials and Structure: Fabricated from 4mm low-carbon steel wire using 360-degree continuous welding technology, ensuring the panels possess excellent tensile strength and structural stability.
• Security Performance: High-strength mesh: The precise mesh design effectively prevents hand- and footholds, delivering superior anti-climb performance.
• Anti-tampering: The robust welded structure effectively resists cutting from destructive tools such as bolt cutters, significantly enhancing security.

Multiple sizes are available to meet diverse application needs. Standard 358 fence panel heights are 2100mm, 2400mm, and 3000mm, with corresponding total fence heights of 2134mm, 2438mm, and 2997mm. The standard panel width is 2515mm.

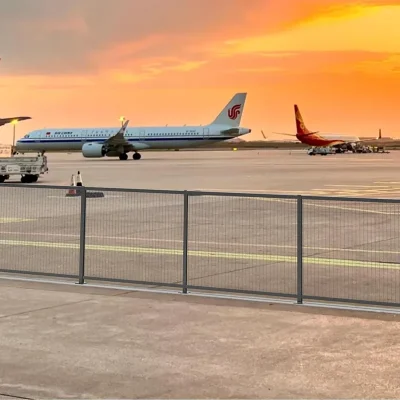

As a direct wire fence manufacturer, we provide you with transparent and competitive factory pricing, eliminating intermediaries and ensuring you get the best possible procurement costs. The 358 mesh security fence system is an ideal security fence solution for high-security locations such as airports, prisons, and military facilities. It is designed for seamless integration with auxiliary security systems such as motion sensors, creating a comprehensive security monitoring network.

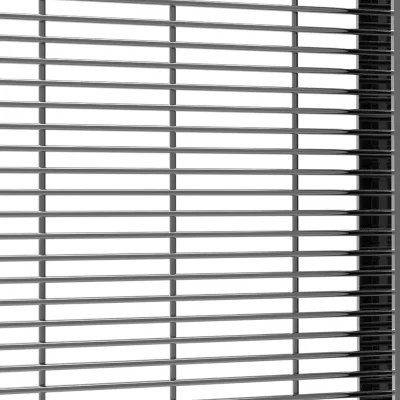

358 Fencing Panels Details

Integrated Automatic Welding, Stable Performance

Utilising advanced automated welding technology, this product features a seamlessly integrated structure. This ensures overall mechanical performance meets stringent industrial-grade stability standards.

Double Corrosion Protection, Extra-Long Lifespan

Manufactured using high-zinc-layer (≥ 280 g/㎡) galvanised steel wire as the base material, this product incorporates a dual anti-corrosion process: hot-dip galvanising and electrostatic powder coating. This synergistic combination significantly enhances corrosion resistance, particularly in harsh outdoor environments such as coastal and high-humidity areas. The result is a lifespan more than three times longer than standard products.

Modular, High-Efficiency Installation, Safe and Reliable

Equipped with specialised connectors, the modular design enables rapid assembly, significantly improving installation efficiency for a single person. All connection points utilise a mechanical interlocking design to eliminate the risk of loosening.

60% Efficiency Improvement

Modular, prefabricated units dramatically improve assembly and disassembly efficiency.

Single-Person Manual Installation

The snap-lock structure allows for easy and straightforward installation by a single person.

Adaptable to Complex Terrain

The three-dimensional adjustable design readily adapts to various complex terrains, ensuring trouble-free installation.

358 Mesh Fencing Specifications

Advantages of 358 High Security Fencing

• Uncompromising Security: The 358 fence’s tight mesh and robust welded construction provide exceptional anti-climb and anti-cut protection, effectively deterring intrusion.
  Built to Last: Constructed with high-strength steel wire and protected by galvanizing or powder coating, 358 fencing offers superior corrosion resistance and longevity, even in harsh environments.
• Customizable Solutions: We understand unique needs. Our 358 anti-climb fence offers extensive customization, including adjustable heights and specialized surface treatments, to perfectly match your site conditions.
• Cost-Effective Installation: Modular 358 fencing panels designs simplify deployment, minimizing on-site assembly time and labor costs. Its maintenance-free design further reduces lifecycle expenses compared to traditional fencing.
• Clear Visibility: The open mesh design provides security without compromising visibility, essential for effective monitoring.
• Aesthetic Appeal: The modern, minimalist design seamlessly integrates with any environment, enhancing both security and visual appeal.
• Seamless Integration & Scalability: 358 fencing integrates effortlessly with electronic detection systems (PIDS), anti-scale toppings, and other barriers. Its modular design allows for easy upgrades, ensuring your security evolves with your needs.

358 Mesh Fencing Related Accessories

358 Fence Post	358 Fence Mesh Clips	Screws

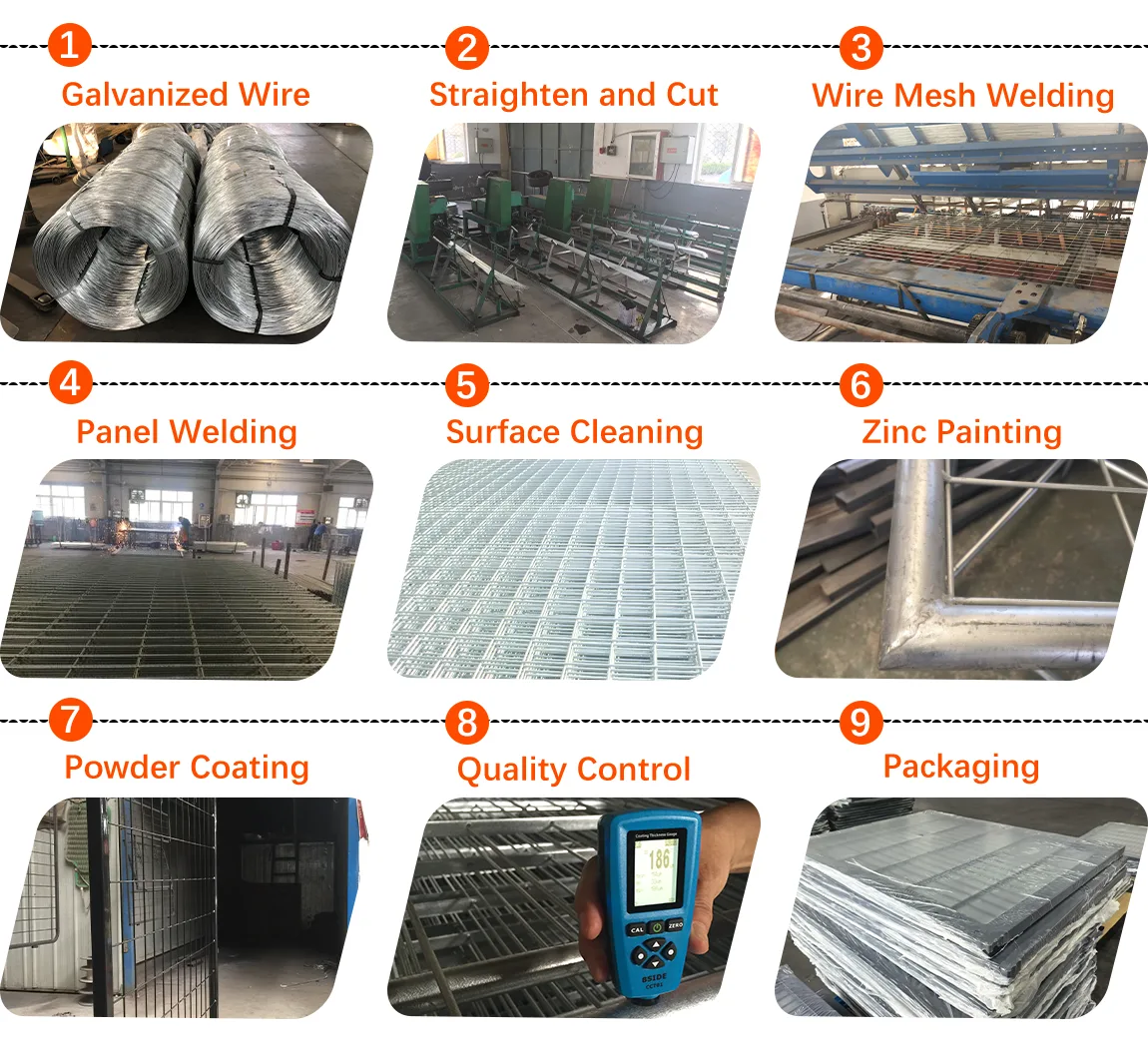

358 Mesh Fencing Production Process

• Servo motor cutting.
• 3mm Galvanised wire, 3.05m length testing.
• Straightening inverter control.
• Wire pay-off with motor brake&inverter control, Wire feeding servo motor control.
• Panasonic Servo motor.
• SMC air cylinder to fix the wire.
• Wire feeding car send the wires to welding part.
• Mesh width measuring.
• Fence bending machine.
• Machine loading.

How to Install a 358 High Security Fencing？

• Preparation and Planning: Inspect the ground conditions and the layout of any underground utility lines. Gather all necessary materials, including the 358 fence mesh panels, posts, mesh clips, bolts, nuts, metal washers, spirit levels, and other tools.
• Marking Installation Positions: Based on the width of the fence mesh panels, mark the precise ground locations where each post is to be installed.
• Post Installation: Select the appropriate post-fixing method based on the soil conditions at the site and the specific flexibility requirements of the installation.

We offer two distinct installation methods to ensure maximum adaptability across various scenarios:

Method 1: Concrete Embedment Installation

• The length of the post should exceed the height of the fence mesh panel by 500 mm to 800 mm.
• Embed the post directly into concrete, utilizing an embedment depth of 500 mm to 1000 mm to ensure secure and robust anchoring.
• Proceed with the fence installation in strict accordance with the manufacturer’s instructions and the approved construction drawings.
• Drill the post holes into undisturbed or compacted soil, adhering to all local building codes and regulations.
• Set the posts in place according to specifications, ensuring that the bottom hole alignment meets all requirements.
• Pour concrete around the posts, ensuring full compliance with local building codes.
• Complete the pouring of the concrete base tops as per the established specifications.

Method 2: Base Plate Mounting

• A steel base plate is welded to the bottom of each post.
• The post is then secured to a concrete foundation using expansion bolts (anchor bolts).
• Proceed with the fence installation in strict accordance with the manufacturer’s instructions and the approved construction drawings.
• Locate and drill the mounting holes required for the post base plates.
• Secure each individual post using four anchor bolts.

Both of the aforementioned installation methods ensure that the fence structure remains stable, secure, and reliable, making them suitable for long-term use in a wide variety of environmental conditions.

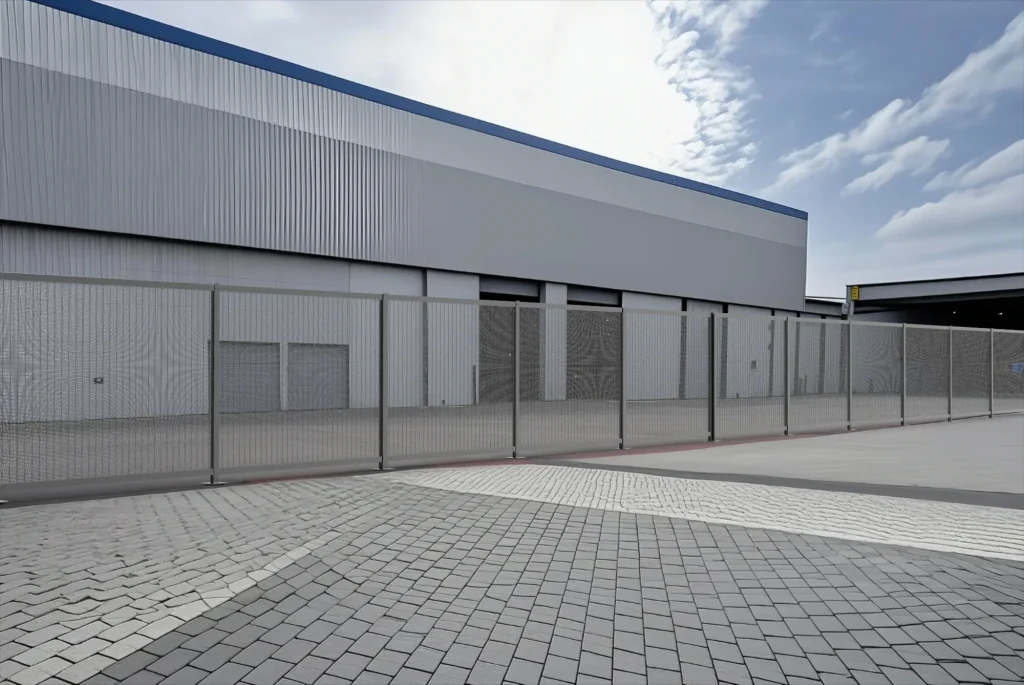

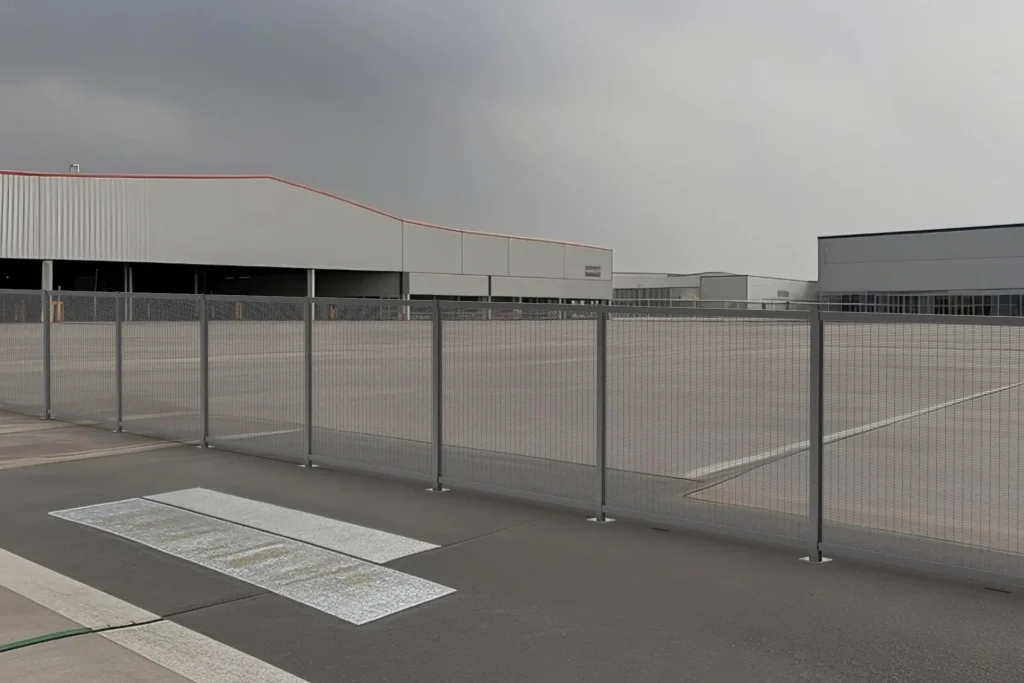

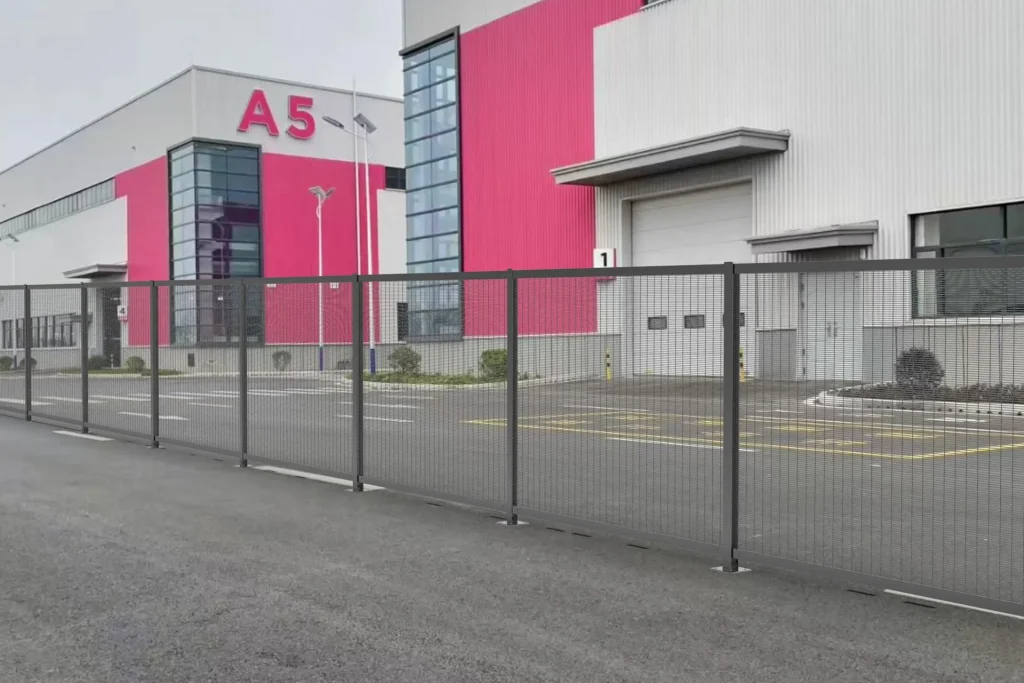

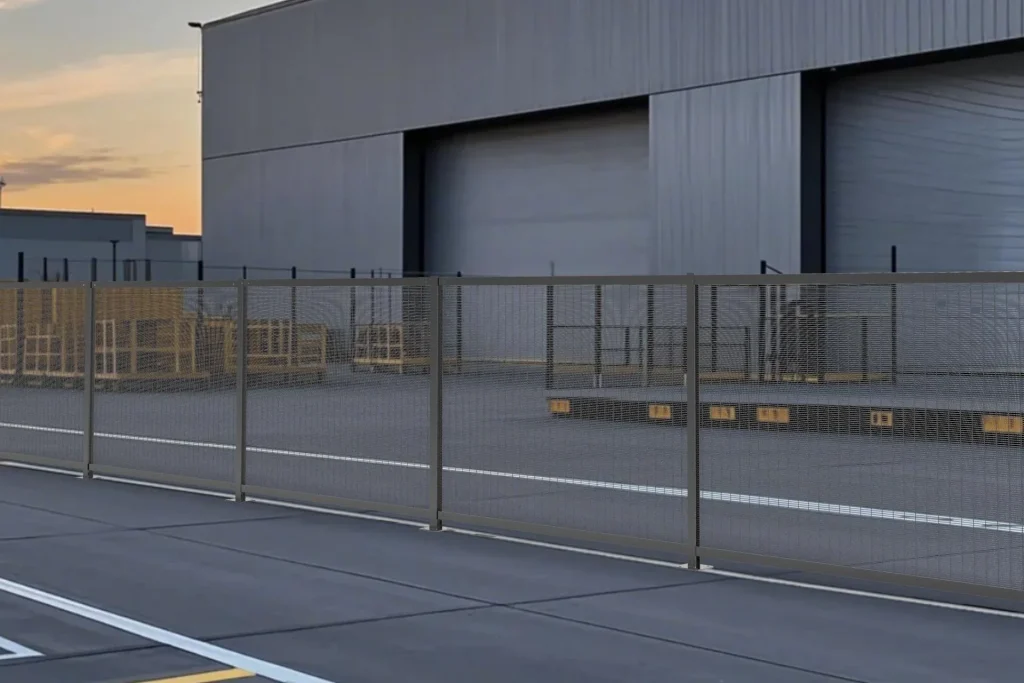

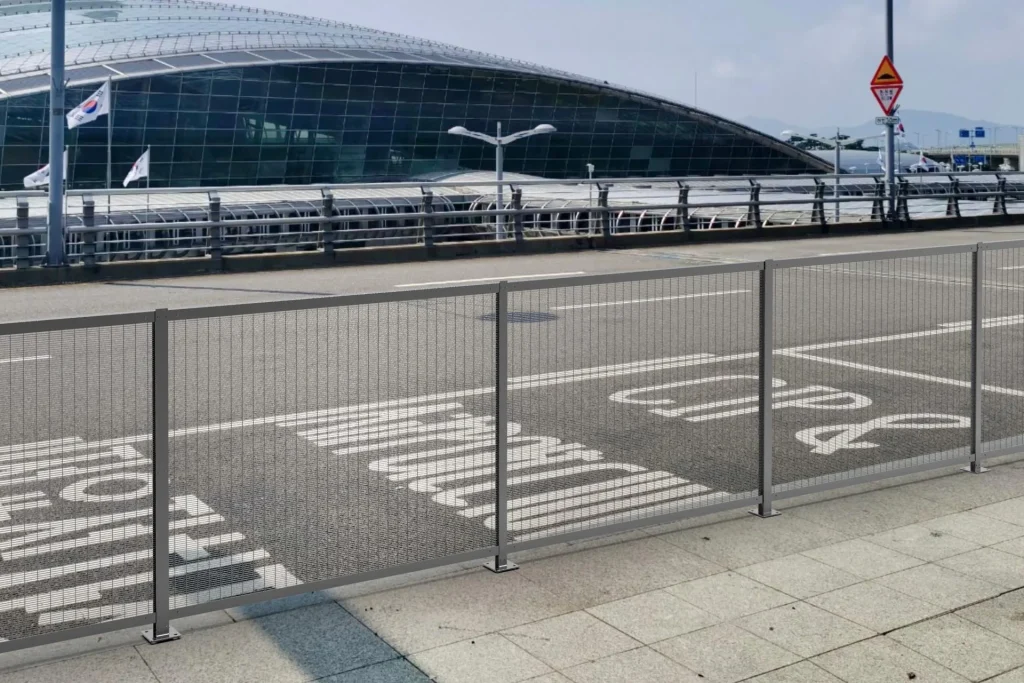

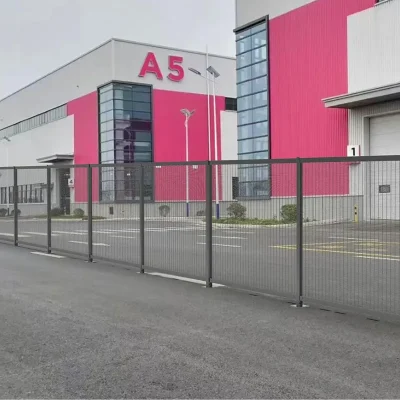

358 Security Mesh Fencing Applications

Our 358 Fence Panels protect critical infrastructure across industries:

• Prison and Correctional Facilities.
• Military Bases and Defense Installations.
• Border Security.
• High-Security Commercial and Industrial Premises.
• Sensitive Areas within Public Facilities.
• Schools, parks, leisure and entertainment venues.

358 High Security Anti-Climb Fencing FAQ

Q: What advantages does 358 Fence offer compared to traditional wire mesh?

A: Compared to traditional wire mesh, 358 Fence is more robust (resistant to bending or cutting), offers clear visibility (the mesh pattern does not obstruct the line of sight), require low maintenance. It provides a higher level of security while also offering superior aesthetics, making it well-suited for urban or commercial environments.

Q: Do your fences comply with relevant safety standards and certifications?

A: Yes, our 358 High-Security Anti-Climb Welded Mesh Fencing complies with relevant international and regional safety standards and certifications—such as ISO, ASTM, and others—ensuring its safety and reliability.

Q: What is the price of a 358 fence? What factors influence the cost?

A: The price of a 358 fence varies depending on several factors, including the material and quality of the steel wire; the height, length, and mesh size; and the surface finish (galvanised, hot-dip galvanised, or powder-coated). Bulk purchases typically qualify for more favorable pricing.

Q: Where can I purchase this 358 security fence?

A: As a direct manufacturer, we offer transparent and competitive factory-direct pricing, eliminating the need for intermediaries. Contact us to ensure you acquire high-quality products at the most cost-effective rates.

Q: Do you offer product customisation services?

A: Yes, we offer comprehensive product customisation services. Whether you have specific requirements regarding product size, material, colour, or craftsmanship, we can flexibly adjust and customise according to your project needs.

Q: What is your delivery time?

A: Delivery time mainly depends on your order quantity. With our large-scale modern factory and efficient production processes, we can guarantee fast production, strongly supporting schedule, and ensuring on-time delivery.
