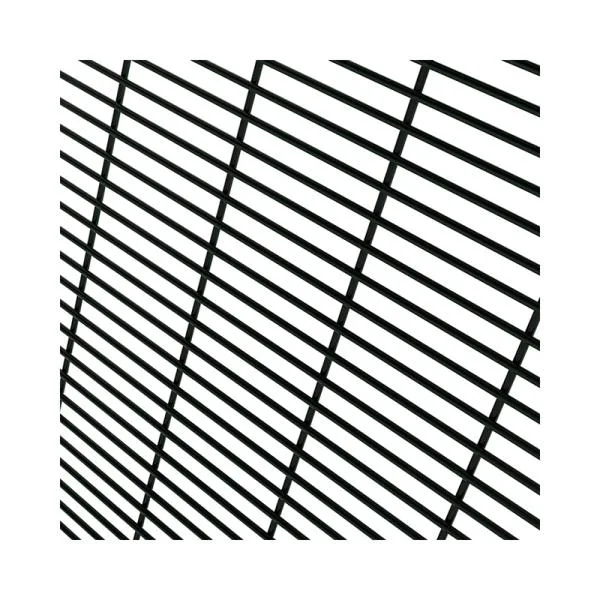

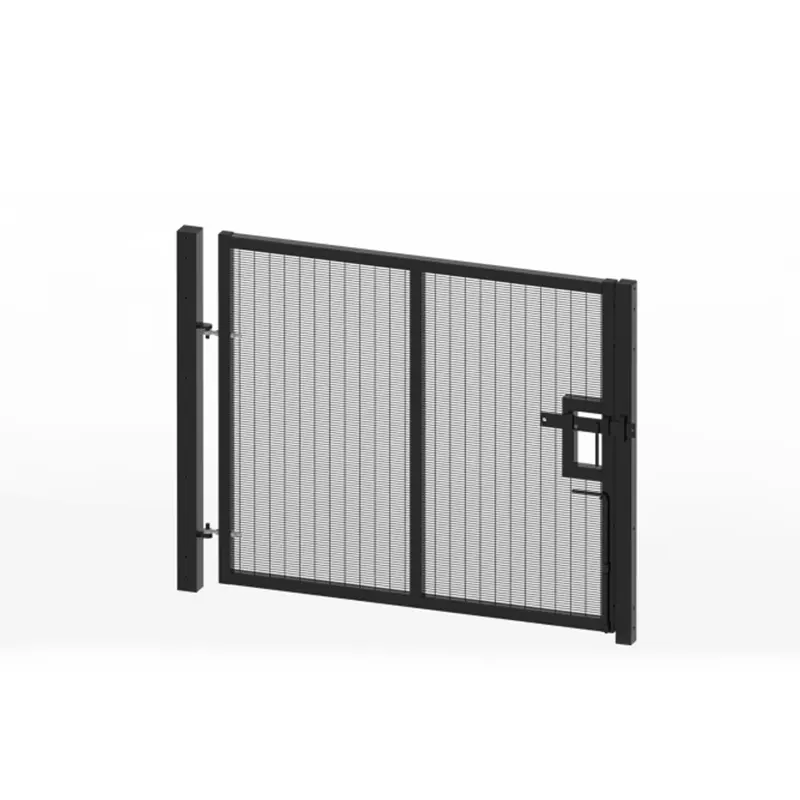

358 Fence Gate delivers high-security vehicle access control with anti-climb precision, ideal for commercial facilities, airports, and high-risk perimeters. Featuring a 2.4 m height and 2.0 m single-leaf width, this gate balances visibility and intrusion deterrence through its 4 mm steel wire mesh with 12.7 mm×76 mm gaps. Compatible with our 358 fences, our fence reinforces durability with a polyester powder coating in standard colors like green, black, or blue, or custom color options, ensuring resistance to weathering and vandalism.
Engineered for versatility, the gate supports 90° or 180° swing angles and adapts to diverse ground conditions. Choose between bolt-down posts for concrete or dig-in posts (set in Postfix cement) for softer terrain. The 100×100 mm hinge post and 80×80 mm catch post provide structural stability. Integrated hardware, such as fence posts, drop bolts, and sliding latch bolts, secures the gate in open or closed positions without compromising forklift or pedestrian access.
Backed by FENCE DEPOT’s expertise in high-security solutions, every component undergoes rigorous testing. The welded mesh design resists cutting and bending, while the lightweight yet rigid frame simplifies installation. Whether safeguarding logistics hubs, industrial plants, or sensitive infrastructures, this gate ensures long-term performance where security and operational efficiency converge.

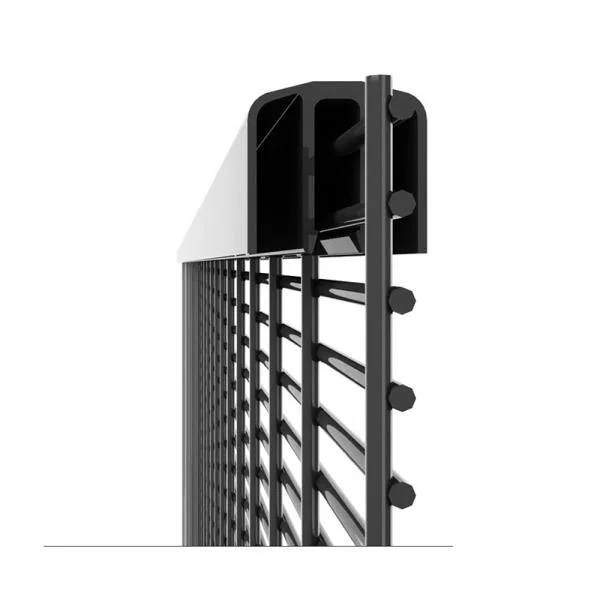

Product Detail
Made of galvanized steel, the welding process ensures a solid structure.
It has good perspective and ventilation.
The surface treatment of powder coating provides corrosion and rust resistance.

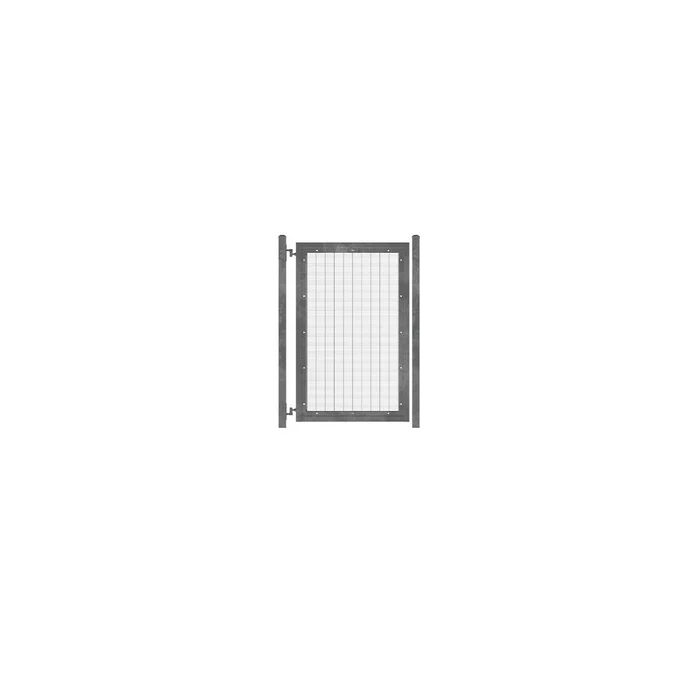

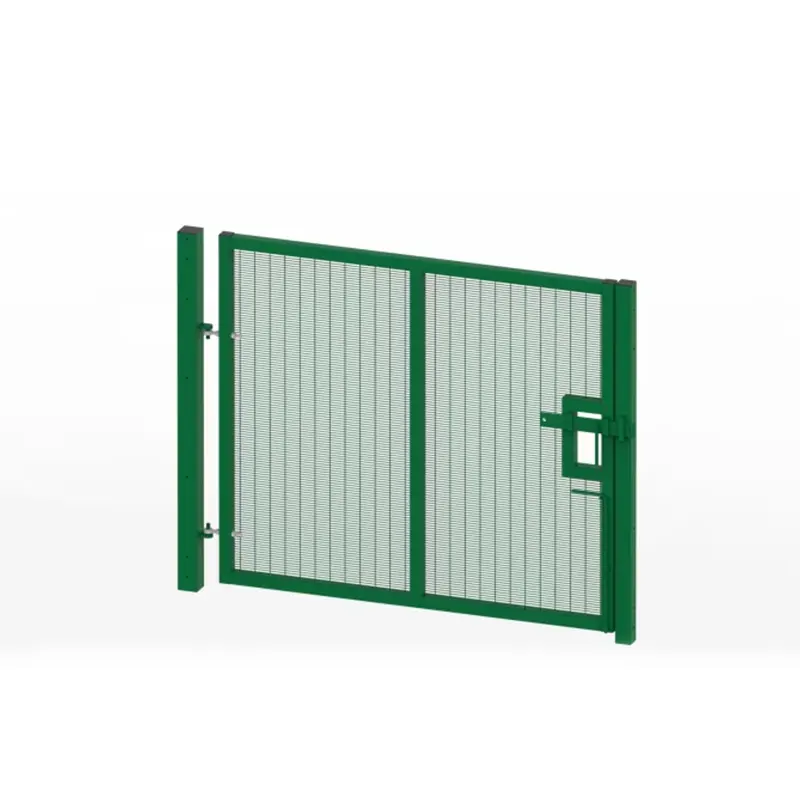

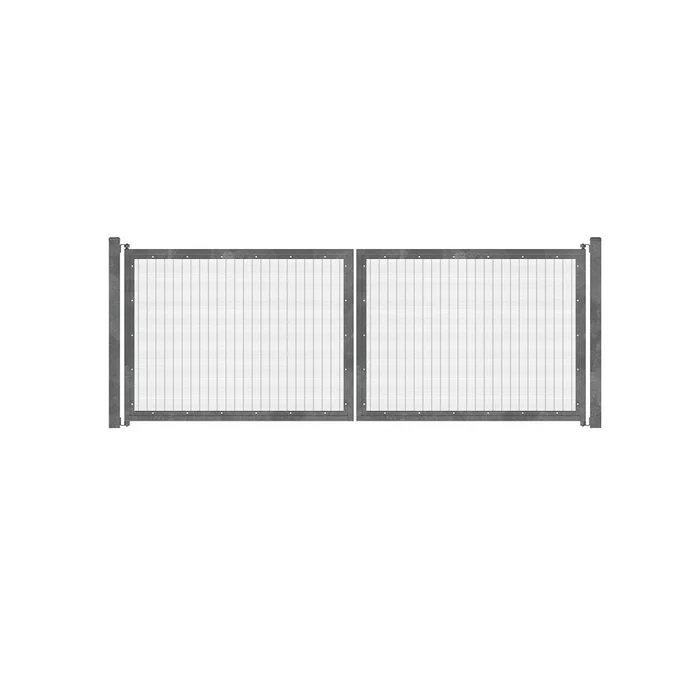

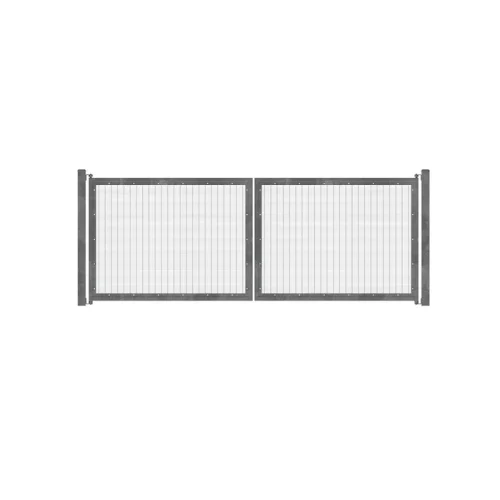

The size and opening method (single or double opening) can be customized according to the site requirements.
Product Specifications
Gate Width
Leaf Type
90 Degree opening
180 Degree opening
Between Posts
Overall Posts
Between Posts
Overall Posts
1200 mm
S/L
1265 mm
1425 mm
1205 mm
1365 mm
3000 mm
D/L
3120 mm
3280 mm
3000 mm
3160 mm
4000 mm
D/L
4120 mm
4320 mm
4000 mm
4200 mm
5000 mm
D/L
5120 mm
5420 mm
5000 mm
5300 mm
6000 mm
D/L
6120 mm
6420 mm
6000 mm
6300 mm
7000 mm
D/L
7150 mm
7510 mm
7020 mm
7380 mm
8000 mm
D/L
8150 mm
8510 mm
8020 mm
8380 mm
9000 mm
D/L
9150 mm
9550 mm
9020 mm
9420 mm
10000 mm
D/L
10150 mm
10550 mm
10020 mm
10420 mm
Gate Hanging Side
100 x 100 mm Hinge Post, 80 x 80 mm Catch Post
Thickness Of Wires
4 mm
Material
Steel
Finish
Hot Dip Galvanized/Electric galvanized/Powder Coating
Colors
Available in Green, Black, Blue, Red, Grey, & Brown – Other custom RAL colors are also available
Product Advantages
Mesh construction: It is designed to be anti-cut and anti-climb. The strength and rigidity of the wires make the mesh tough enough to withstand vandalism and damage. It also has great stability.
Polyester Powder Coating: The gate can adopt a smoother and more attractive finish. It is also useful for limiting damage which can be caused by general wear and the effects of weathering.
Ground suitability: 358 Fence Gates can be installed on many different ground types. Within the customization section, you will be able to select from Bolt Down Posts which are designed for hard ground, or Dig-In Posts, which are designed for soft ground and which should be set in place by Postfix cement.
Galvanized Wire: Use galvanized steel wire that meets the standards to ensure that the material is of high quality and meets the design requirements.
Straighten and Cut: Straighten the galvanized steel wire, remove the bends and deformations, and then cut it according to size to prepare for the next step of production.
Wire Mesh Welding: Weld the cut steel wire horizontally and vertically according to the designed grid to form a mesh structure. Ensure that the welds are firm and the mesh is flat.
Panel Welding: Fix the prepared wire mesh to the frame of the door and weld the side or frame to ensure that the structure is firm and beautiful.
Surface Cleaning: Remove the grease, impurities during the welding process through chemical cleaning or mechanical cleaning to prepare for subsequent protective treatment.
Zinc Painting: The entire product body forms a uniform and compact zinc layer to enhance corrosion resistance.
Powder Coating: Powder Coating provides a rich color selection for the product, while increasing the anti-corrosion and aesthetic effects.
Quality Control: Check the welding quality, uniformity of the galvanized layer, and coating performance to meet the quality requirements.
Packaging: Use protective materials for packaging, prepare for shipment, and ensure that the product is intact during transportation.

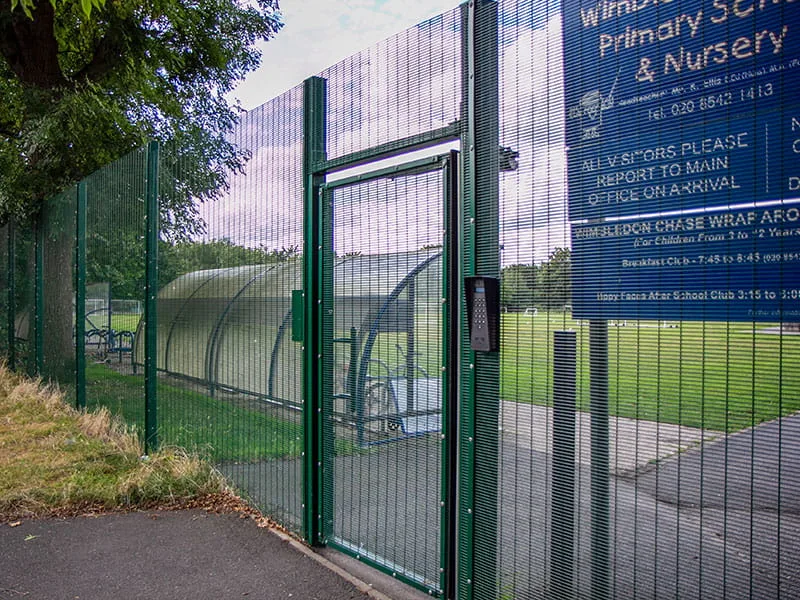

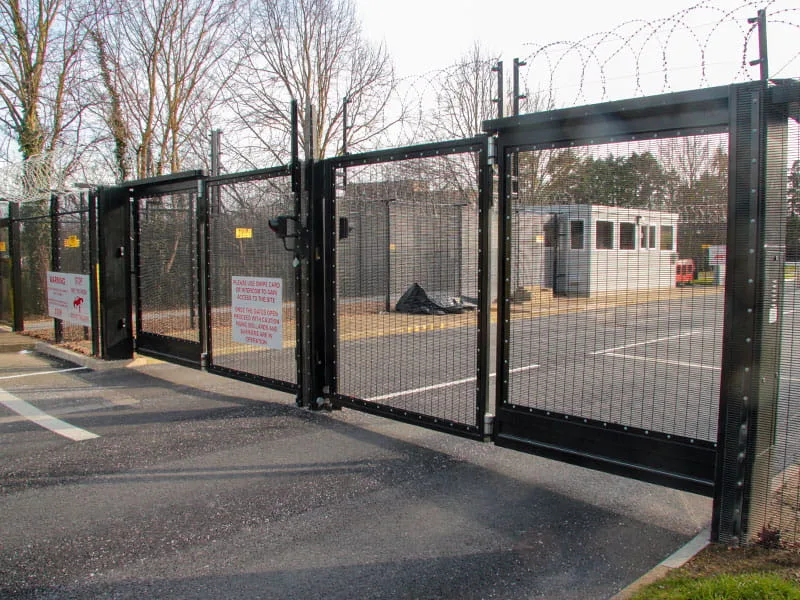

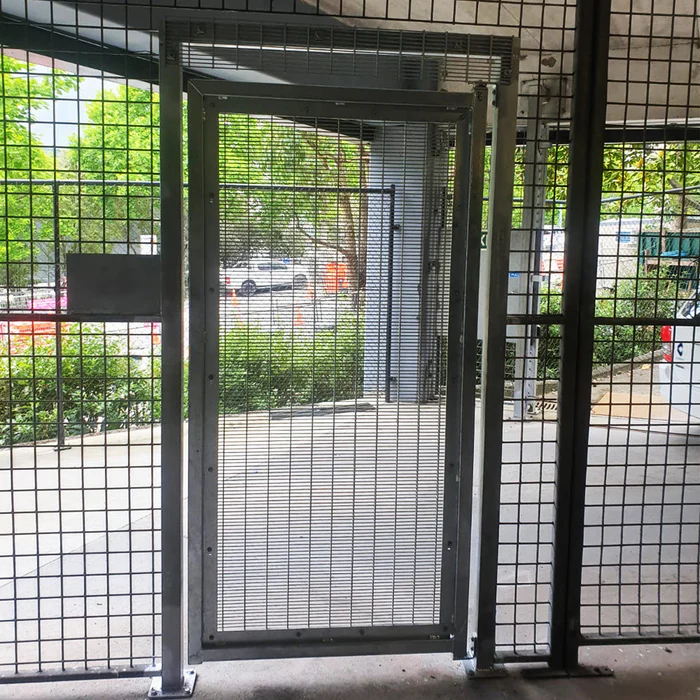

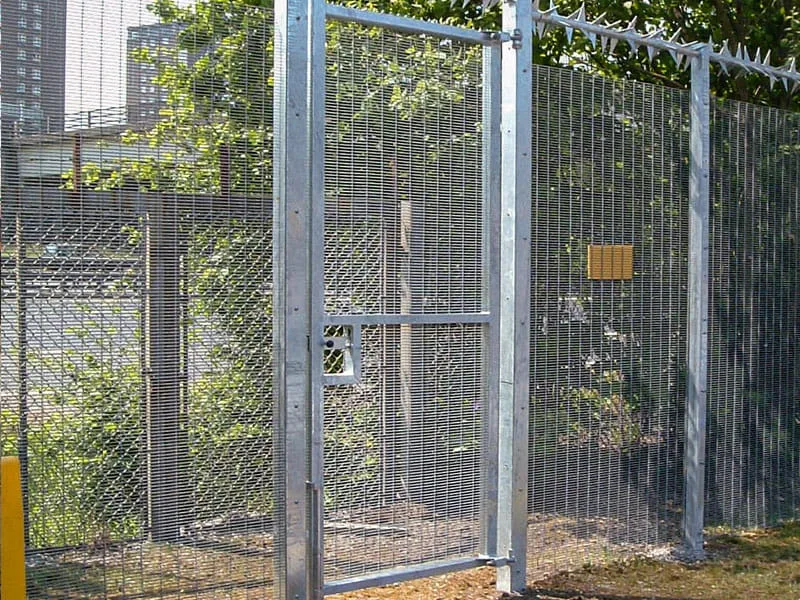

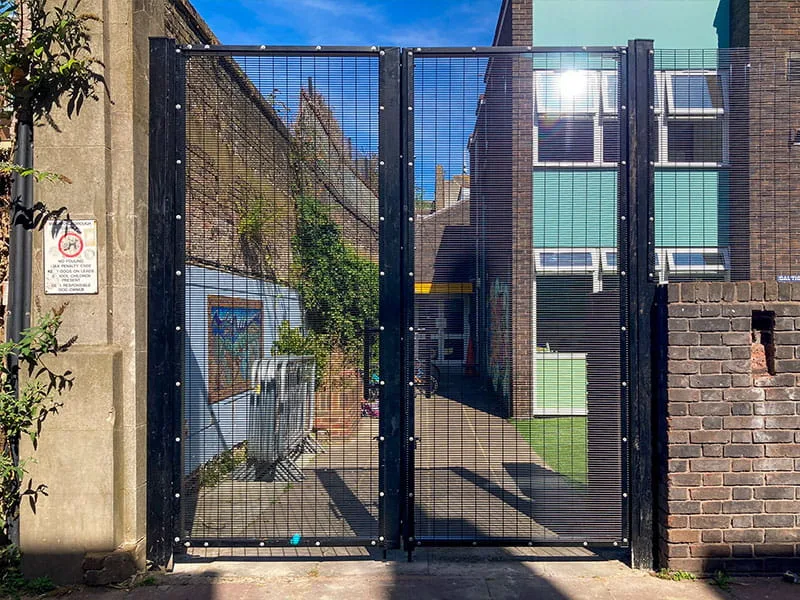

358 Mesh Gate Applications
358 Fence Gate is engineered for high-security perimeters requiring controlled vehicle access, combining anti-climb mesh design with clear visibility for surveillance. Its robust construction and adaptable installation suit diverse environments, from industrial zones to sensitive infrastructures.
Airports & Transportation Hubs: Secure vehicle entry points for restricted areas with 2.4m height deterring unauthorized access.
Prisons & Detention Facilities: Tamper-resistant mesh prevents climbing or cutting, paired with a 180° swing for emergency vehicle access.
Industrial Plants: Forklift-friendly 2.0m single-leaf gates streamline logistics in warehouses or manufacturing sites.
Data Centers & Utilities: High-visibility mesh allows camera monitoring while blocking physical intrusions.
Commercial Complexes: Custom colors blend security with architectural aesthetics in retail or office parks.
Construction Sites: Bolt-down or dig-in posts adapt to concrete or soft ground, ensuring stability in temporary setups.
Energy Facilities: Corrosion-resistant coating protects gates in harsh environments.
Our 358 fence gate is fully sealed with plastic film and transported on wooden pallets, which effectively isolates moisture and corrosive media.
Each packaging unit is fixed to the pallet with high-strength special tape, so it can ensure zero displacement risk during transportation.
Anti-collision sponge pads are installed at the bottom of the pallet, and metal edge guards (1.5 mm galvanized steel plate) at the four corners. It can withstand multiple loading and unloading impacts by forklifts.
