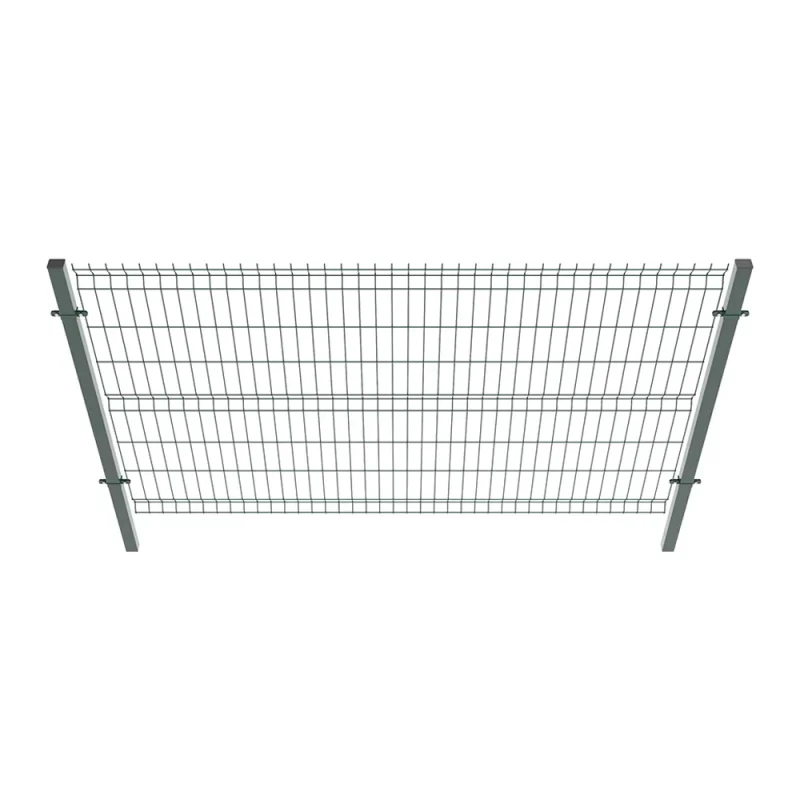

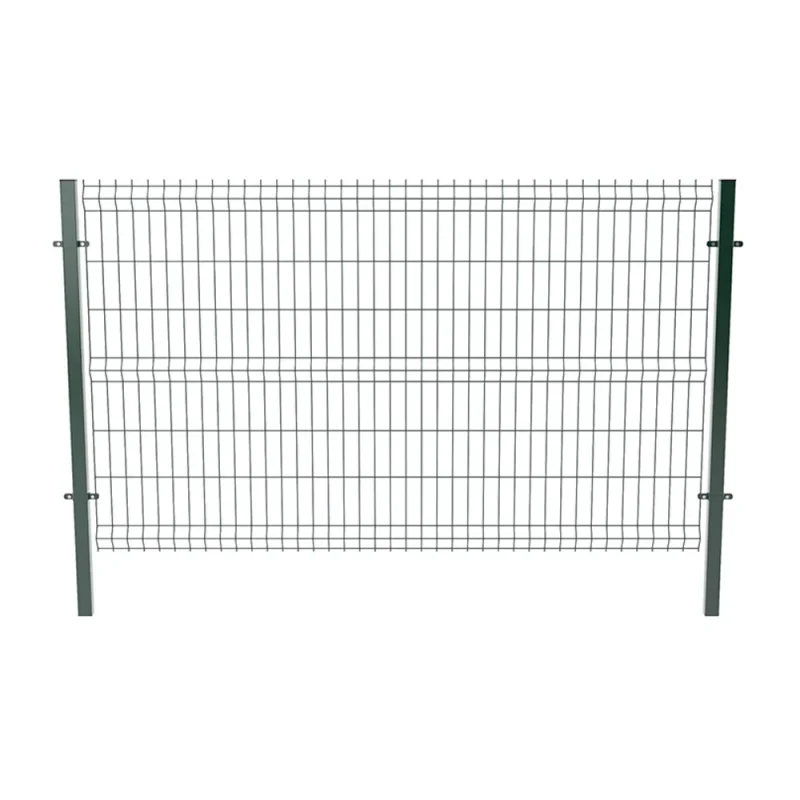

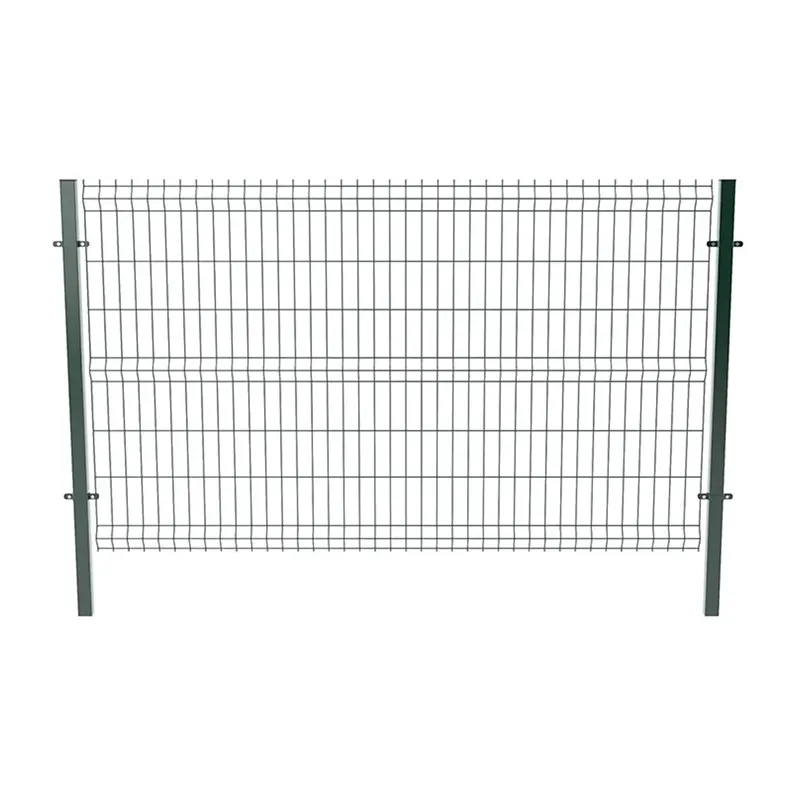

3D Fence, 3D Curved Fence Panels

Our 3D welded mesh fence panels are a contemporary fencing solution boasting unique structures and exceptional performance. While similar to our Rigid Mesh Fencing, these panels utilise a distinct bending method. Each panel is meticulously crafted through precision welding technology, forming robust mesh structures.

Key Features:

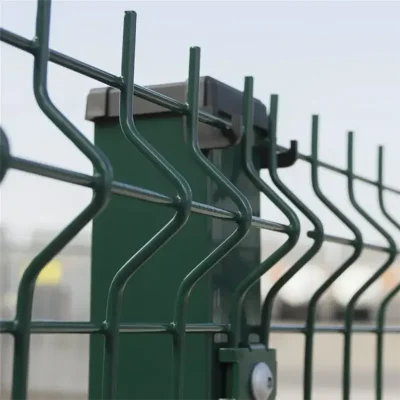

• Unique 3D V-Bending: Panels feature multiple V-shaped bends, creating a distinct 3D curvature.
• Superior Protection: Available with galvanised and powder-coated or hot-dip galvanised finishes.

These innovative horizontal curves significantly enhance rigidity, impact resistance, and overall stability. The resulting fence is durable and resistant to fading, even in challenging environmental conditions. The 3D fence offers the benefits of rapid and straightforward installation, a modern and aesthetically pleasing appearance, excellent visibility, and minimal maintenance requirements. It’s an ideal choice for a broad spectrum of applications, including residential, commercial, industrial, and public spaces.

We provide extensive customisation options, including dimensions, colours (referencing the RAL colour chart), and surface treatments. This ensures our fence panels perfectly align with your project plans and site conditions, minimising the need for on-site modifications and boosting construction efficiency.

Utilising advanced production processes and a stringent quality management system, we guarantee that every batch of products adheres to ISO certification standards. At FENCE DEPOT, you benefit from factory-direct pricing, bypassing intermediaries and effectively managing project expenditure. Furthermore, our substantial production capacity supports large-scale supply, ensuring your project timelines remain on track.

3D Curved Fence Product Details

• Wire Diameter: Steel wires of different diameters, can be selected according to needs.
• Mesh Size: A variety of mesh sizes are available to meet different safety needs.
• Surface Treatment: The thickness of the galvanised layer, the colour of the powder coating, and the thickness of the PVC coating can all be customised.

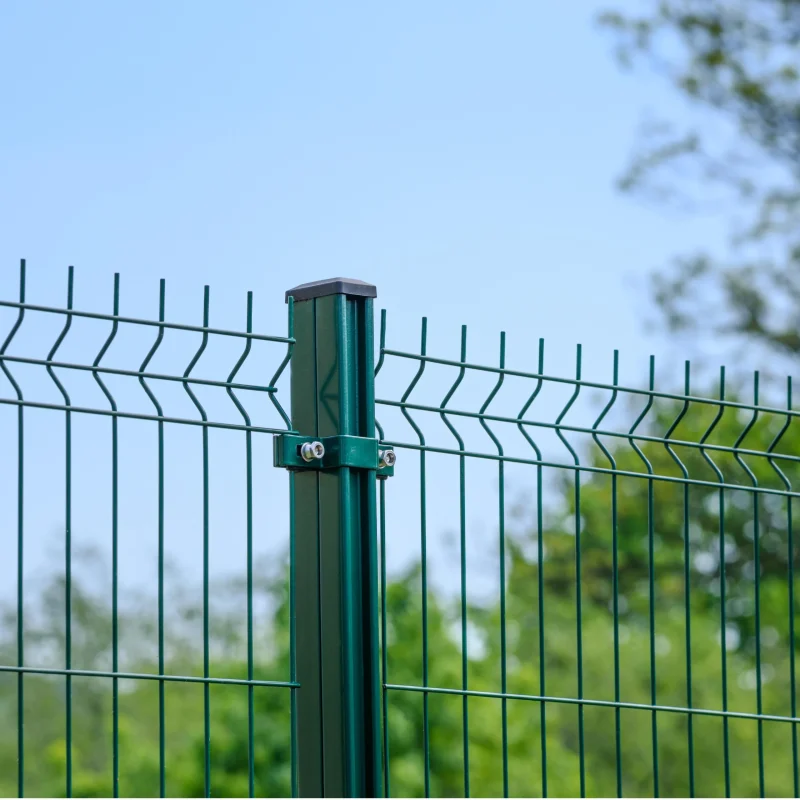

• Column: Matching special columns, using flange fixing methods.
• Connectors: Use high-strength connectors to ensure the stability of the fence.
• V-shaped Reinforcement: Increase the impact resistance of the fence.
• Welding Points: The welding points are firm, without cold welding.

3D Fence Specifications

3D Mesh Fence Panels Related Accessories

Fence Wire Clips	Metal Fence Post	Post Caps

Other Related Wire Mesh Products

3D fences, 358 fences and double wire mesh fences are all common types of high-security fences, each with its own unique features and applicable scenarios.

358 Security Fence	Double Wire Mesh Fence

• 358 Fencing: The grid size is fixed at 3 inches (75mm) × 0.5 inches (12.7mm) × 8 gauge (approximately 4mm wire diameter), hence it is called “358”. The surface has small grids to prevent climbing, and the overall structure is very strong. It uses a special connection method, such as a bolt anti-disassembly design. It is usually used in conjunction with blade netting or barbed wire, and is employed in high-security areas to further enhance safety.
• Double wire mesh fence: Composed of two layers of welded wire mesh, with certain spacing between the mesh layers. The size of the mesh holes can be selected according to requirements, usually larger than those of the 358 fence. The double-layer structure enhances impact resistance and is commonly used in industrial parks, warehouses, schools, sports venues, etc., in places with certain safety requirements.

3D Wire Mesh Fence Panels Production Process

Galvanised Wire

Select high-quality steel wire that meets strength, toughness, and corrosion resistance requirements, such as galvanised steel wire. Stringent quality inspections are performed on the wire diameter, surface quality, and coating thickness.

Straightening and Cutting

The coiled galvanised steel wire, when passed through a high-precision automatic straightening machine, effectively removes its inherent curvature, achieving a straightness error of < 1 mm/m. Subsequently, it is cut to a specific length with high precision using a CNC length-cutting device, with the cutting length tolerance typically controlled within ±1 mm.

Wire Bending

Using CNC bending equipment, galvanised steel wire is bent into the desired arc shape. The bending process requires extremely high precision from the bending machine, demanding precise control of the bending angle, radius, and material deformation. The bending angle error is controlled within ±0.5°, and the bending radius error is controlled within ±1mm, to ensure the accuracy and consistency of the arc shape.

Mesh Welding

Automated welding equipment is used to place the cut wire on the welding machine’s feed rack. The machine welds the intersections of the wires, forming strong welds. Full automation ensures uniform mesh size and weld strength.

Surface Treatment

After welding, the edges and welds are ground to remove burrs, oil, slag, and other impurities, preparing for subsequent coating.

Powder Coating

Based on hot-dip galvanising, a dense and robust powder coating with a thickness of approximately 80-120 micrometres is formed through a precise spraying process. This coating significantly enhances the fence’s corrosion resistance, UV resistance, and mechanical strength.

Quality Control

Check whether the dimensions of the fence panels meet the design requirements, including length, width, height, and bending angle. Check whether the welding points are firm and free from defects such as incomplete or missing welds. Check if the coating is uniform and smooth, and free from bubbles, scratches, or peeling.

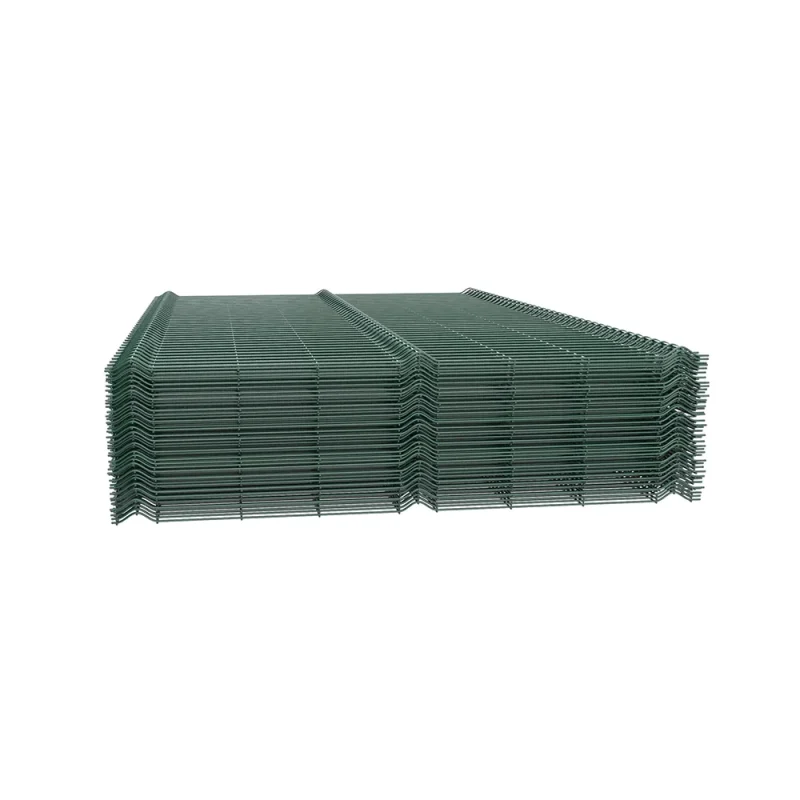

Packaging

Wrap the fence panels with plastic film or bubble wrap to prevent scratching or damage during transportation. Stack the fence panels on wooden or steel pallets and secure them with strapping for easy loading and unloading.

Advantages of 3D Fence Panels

• Strong & Stable Structure: The V-bend design significantly enhances the panel’s bending strength and overall stability.
• Excellent Anti-Corrosion Performance: High-quality galvanising and powder coating double protection, effectively resisting rust and chemical erosion.
• Strong Welding Points: Precision welding technology ensures that each connection point is tight and not easy to fall off.
• Strong Impact Resistance: The strong grid structure and enhanced rigidity enable it to withstand certain external impacts.
• Excellent Weather Resistance: Adapt to bad weather such as sun, rain, temperature changes, etc.
• High Safety: The structure is not easy to climb, providing effective safety protection.
• Standardised Production: Produced using automated equipment, the 3d fencing size is consistent, and the quality is stable.

3D Fence Product Applications

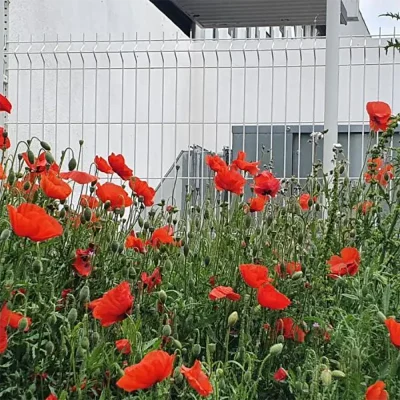

• Residential Areas & Villas.
• Commercial Areas & Office Parks.
• Schools & Playgrounds.
• Along Roads & Railways.
• Stadiums: Peripheral Fences or Site Isolation.
• Public Facilities, Airports, Ports, or other areas.

3D Wire Mesh Fence Panels FAQ

Q: What are the differences between 3D fences and 2D fences?

A: The main difference between 3D fences and 2D fences lies in their design and structure. 3D fences have wavy horizontal bars, providing additional strength and resistance to bending, while 2D fences have a straight design and have relatively lower strength.

Q: What is the price of the 3D Welded Mesh Fence?

A: The price varies depending on several factors, including mesh size, wire diameter, height, length, etc. Different surface treatments, such as hot-dip galvanising, PVC coating, powder coating, etc., also have different prices. We offer customisation, and bulk purchases can result in more favorable prices.

Q: How long is the service life of 3D wire mesh fence panels?

A: It depends on materials and surface treatment. For conventional hot-dip galvanised + electrostatic spray products, the service life can reach 15-20 years in ordinary inland environment.

Q: How long does delivery usually take?

A. It depends on the order quantity. We have large-scale production capabilities to ensure fast delivery according to project schedules.

Q: Do you have a minimum order quantity (MOQ)?

A. The standard MOQ is one full 1×20′ container to ensure safe transportation. We can also accommodate smaller quantities if needed.
