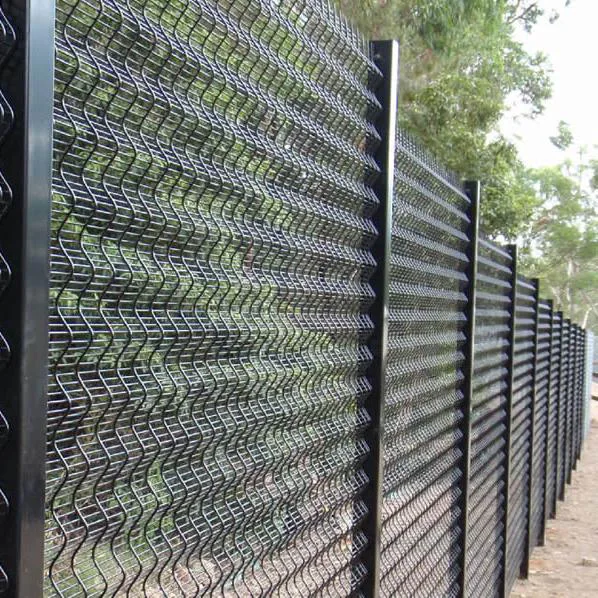

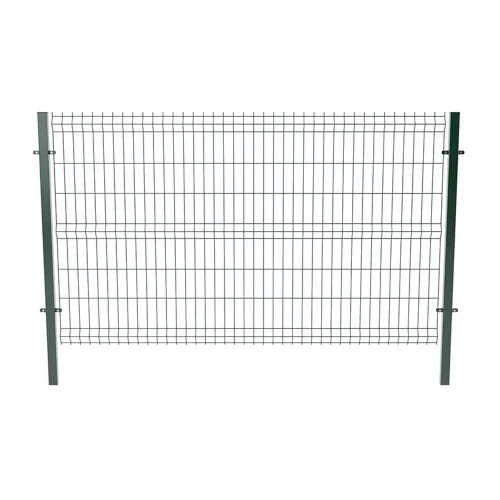

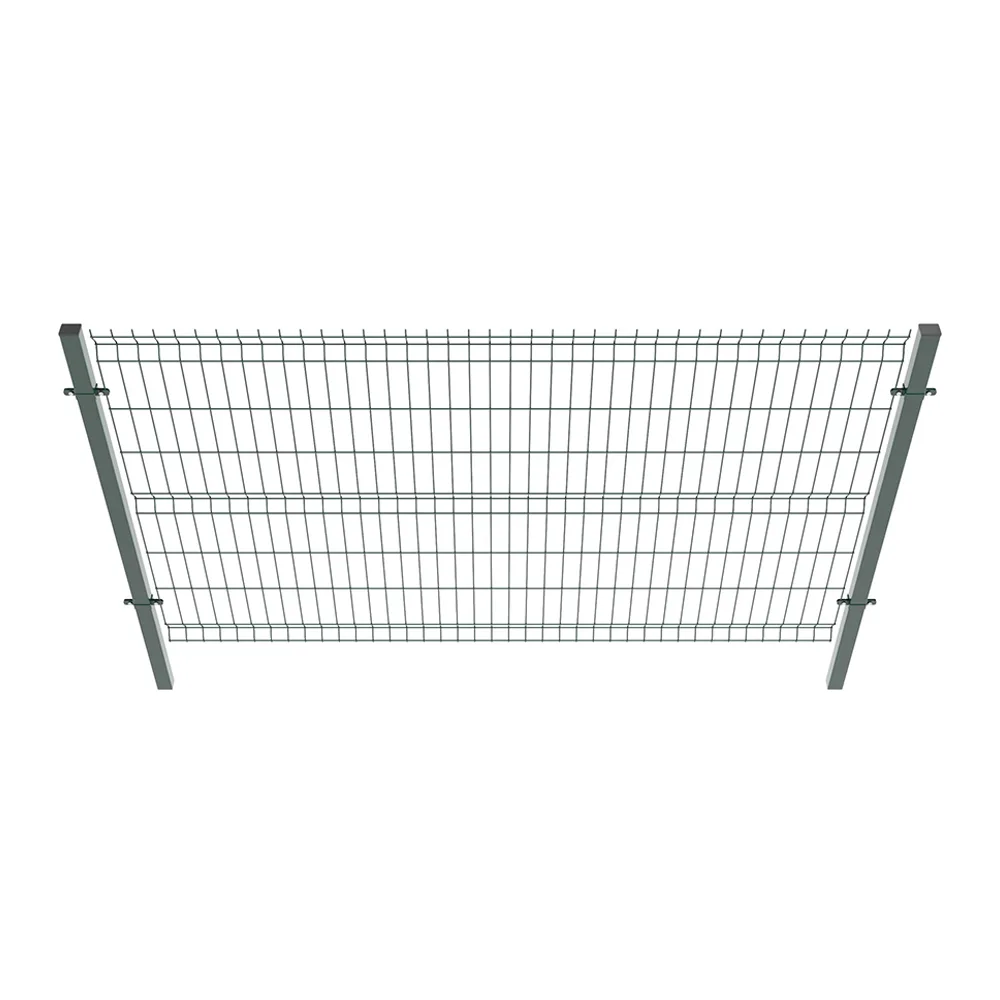

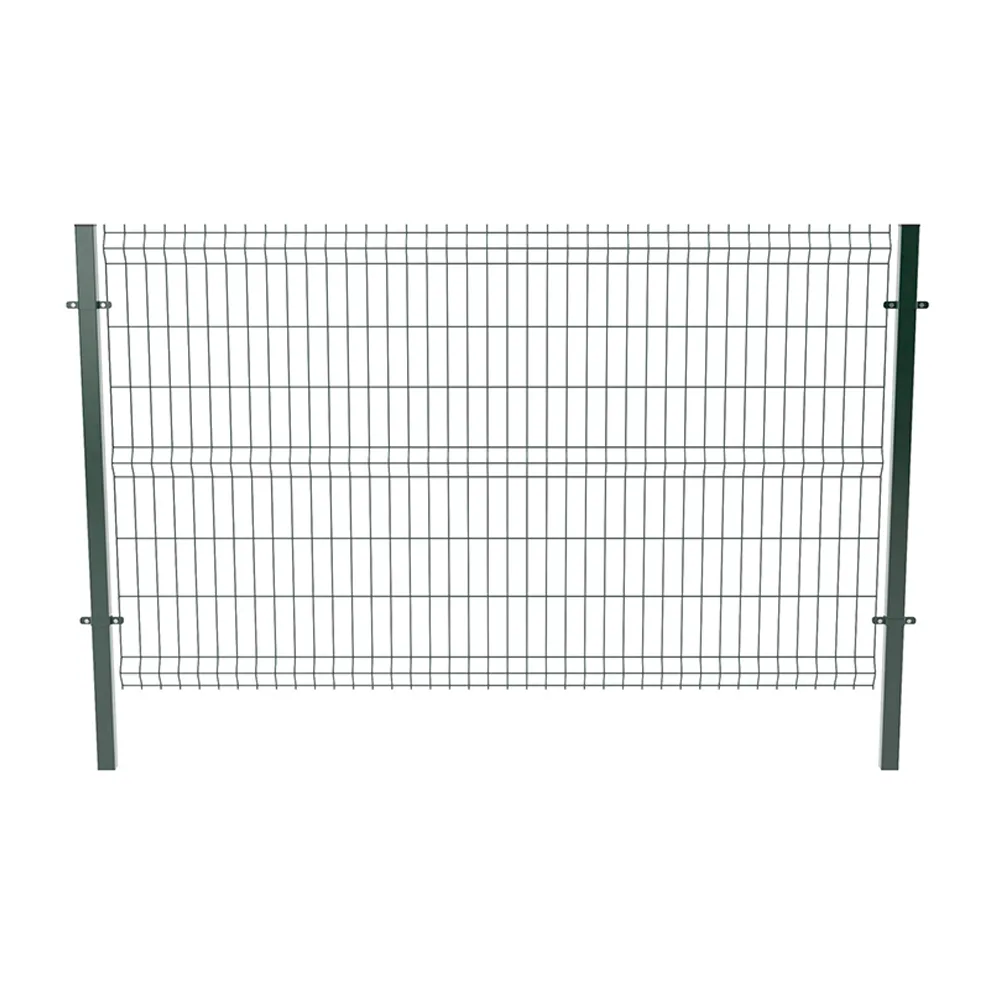

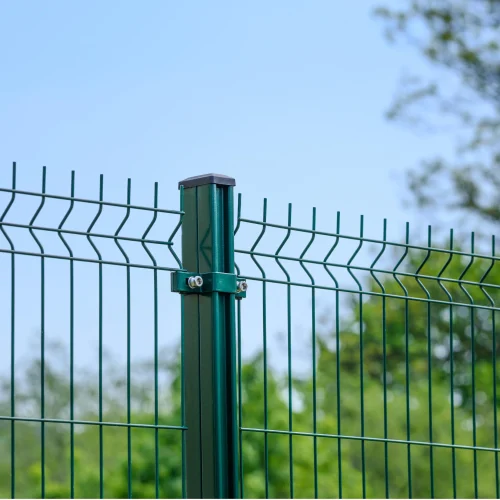

3D Fence, 3D Curved Fence Panels

3D welded mesh fence panels are modern fence products with unique structures and excellent performance. This 3D curved fence is similar to our Rigid Mesh Fencing, but it uses a different bending method. First, the 3D fencing is meticulously crafted into mesh panels through precision welding technology.

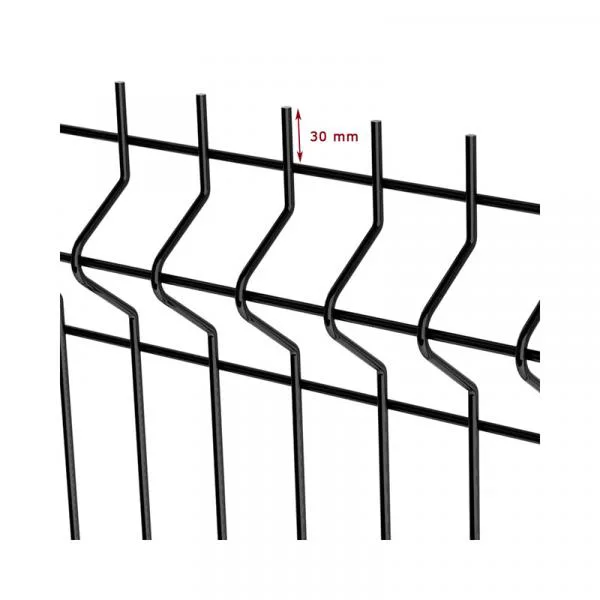

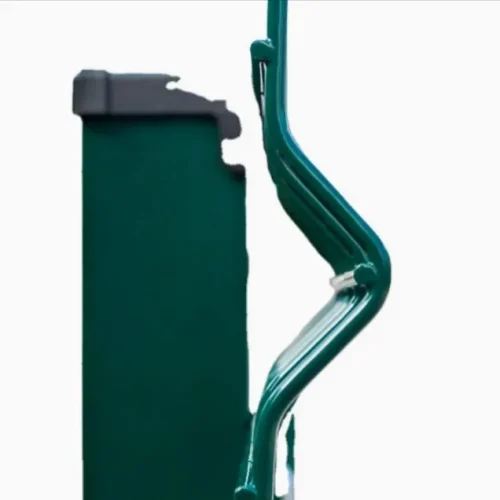

• Unique 3D V-Bending: the panels are formed with several V-shaped bends (i.e. 3D curves).
• Superior Protection: Galvanized and powder-coated/hot-dip galvanized finish.

Innovative horizontal curves significantly enhance rigidity, impact resistance, and stability. The product is durable and not easy to fade in various harsh environments. The 3D fence has the advantages of fast and convenient installation, beautiful and modern appearance, good perspective, and low maintenance cost. It is an ideal choice for a variety of applications such as residential, commercial, industrial, and public places.

We offer a wide range of customization options, including size, color (referencing the RAL color chart), and surface treatment, ensuring our fence panels perfectly match your project drawings and site environment, minimizing on-site modifications and improving construction efficiency.

We utilize advanced production processes and a strict quality management system to ensure that every batch of products meets ISO certification standards. At FENCE DEPOT, you can enjoy factory-direct pricing, eliminating intermediaries and effectively controlling project costs. Furthermore, we have a stable capacity for large-scale supply, ensuring your project schedule remains unaffected.

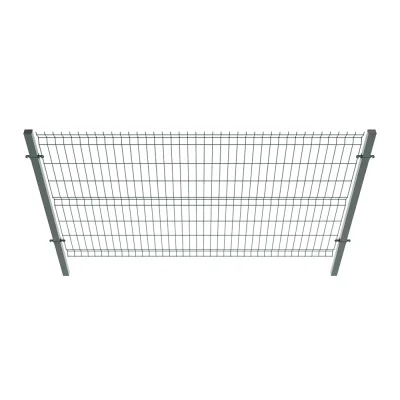

3D Curved Fence Product Details

• Wire Diameter: Steel wires of different diameters, can be selected according to needs.
• Mesh Size: A variety of mesh sizes are available to meet different safety needs.
• Surface Treatment: The thickness of the galvanized layer, the color of the powder coating, and the thickness of the PVC coating can all be customized.

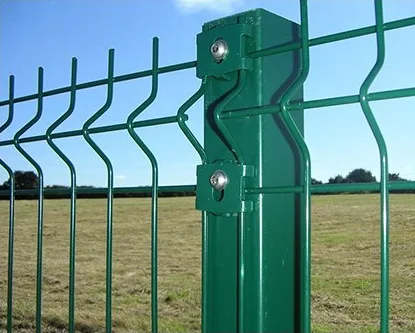

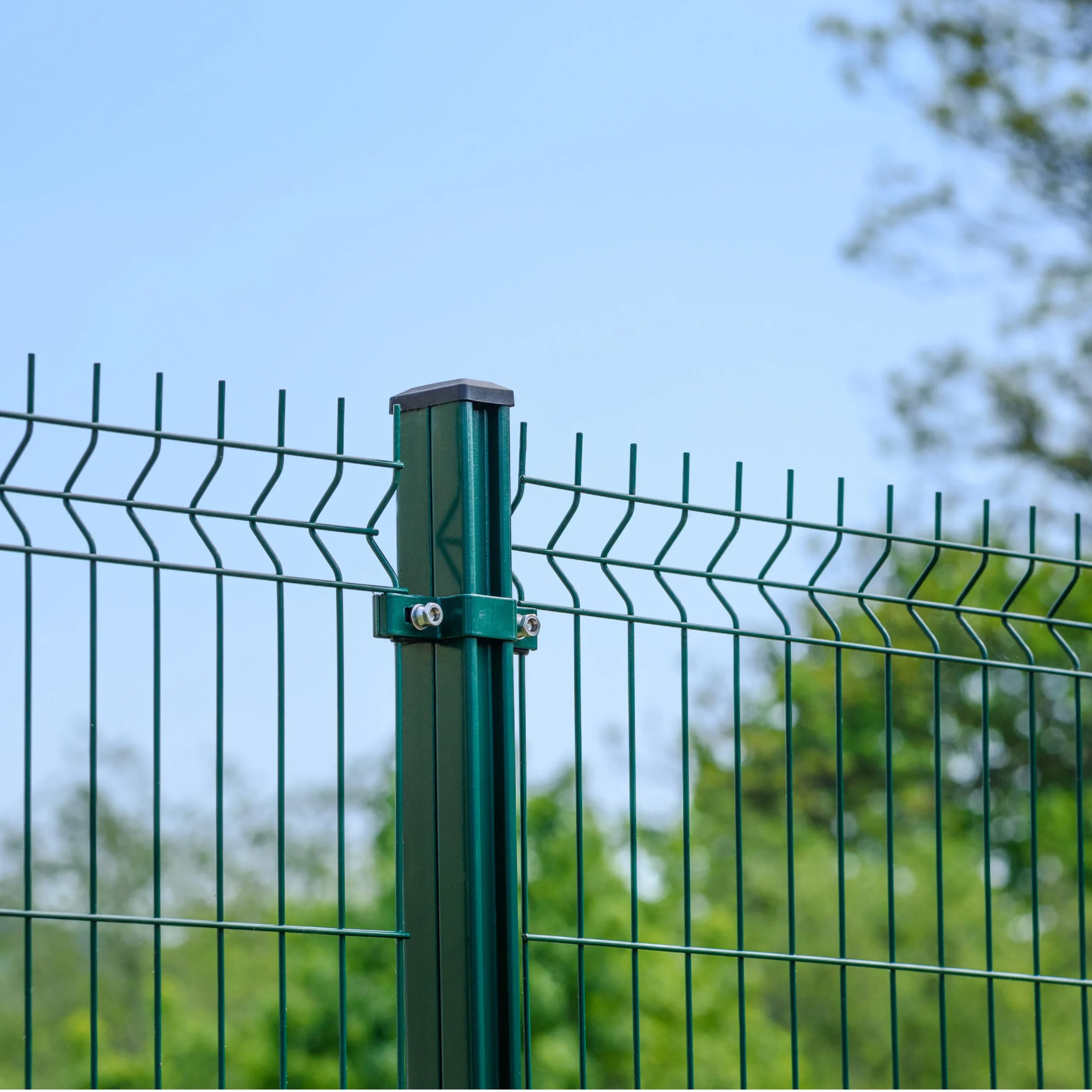

• Column: Matching special columns, using flange fixing methods.
• Connectors: Use high-strength connectors to ensure the stability of the fence.

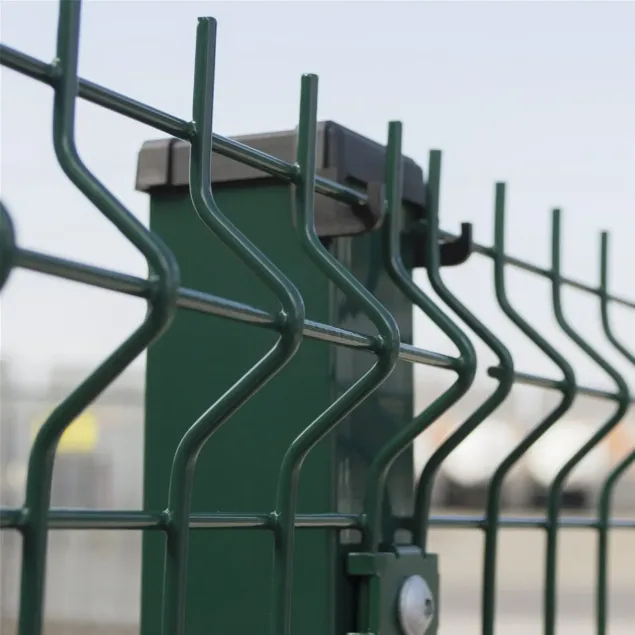

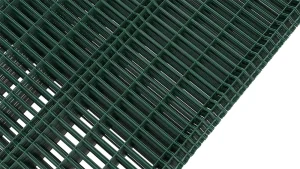

• V-shaped Reinforcement: Increase the impact resistance of the fence.
• Welding Points: The welding points are firm, without cold welding.

3D Fence Specifications

3D Mesh Fence Panels Related Accessories

Fence Wire Clips	Metal Fence Post	Post Caps

Other Related Wire Mesh Products

3D fences, 358 fences and double wire mesh fences are all common types of high-security fences, each with its own unique features and applicable scenarios.

358 Security Fence	Double Wire Mesh Fence

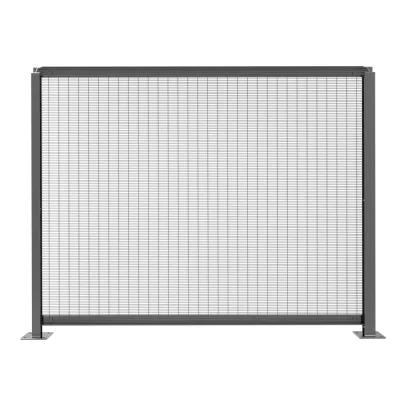

• 358 Fencing: The grid size is fixed at 3 inches (75mm) × 0.5 inches (12.7mm) × 8 gauge (approximately 4mm wire diameter), hence it is called “358”. The surface has small grids to prevent climbing, and the overall structure is very strong. It uses a special connection method, such as a bolt anti-disassembly design. It is usually used in conjunction with blade netting or barbed wire, and is employed in high-security areas to further enhance safety.
• Double wire mesh fence: Composed of two layers of welded wire mesh, with certain spacing between the mesh layers. The size of the mesh holes can be selected according to requirements, usually larger than those of the 358 fence. The double-layer structure enhances impact resistance and is commonly used in industrial parks, warehouses, schools, sports venues, etc., in places with certain safety requirements.

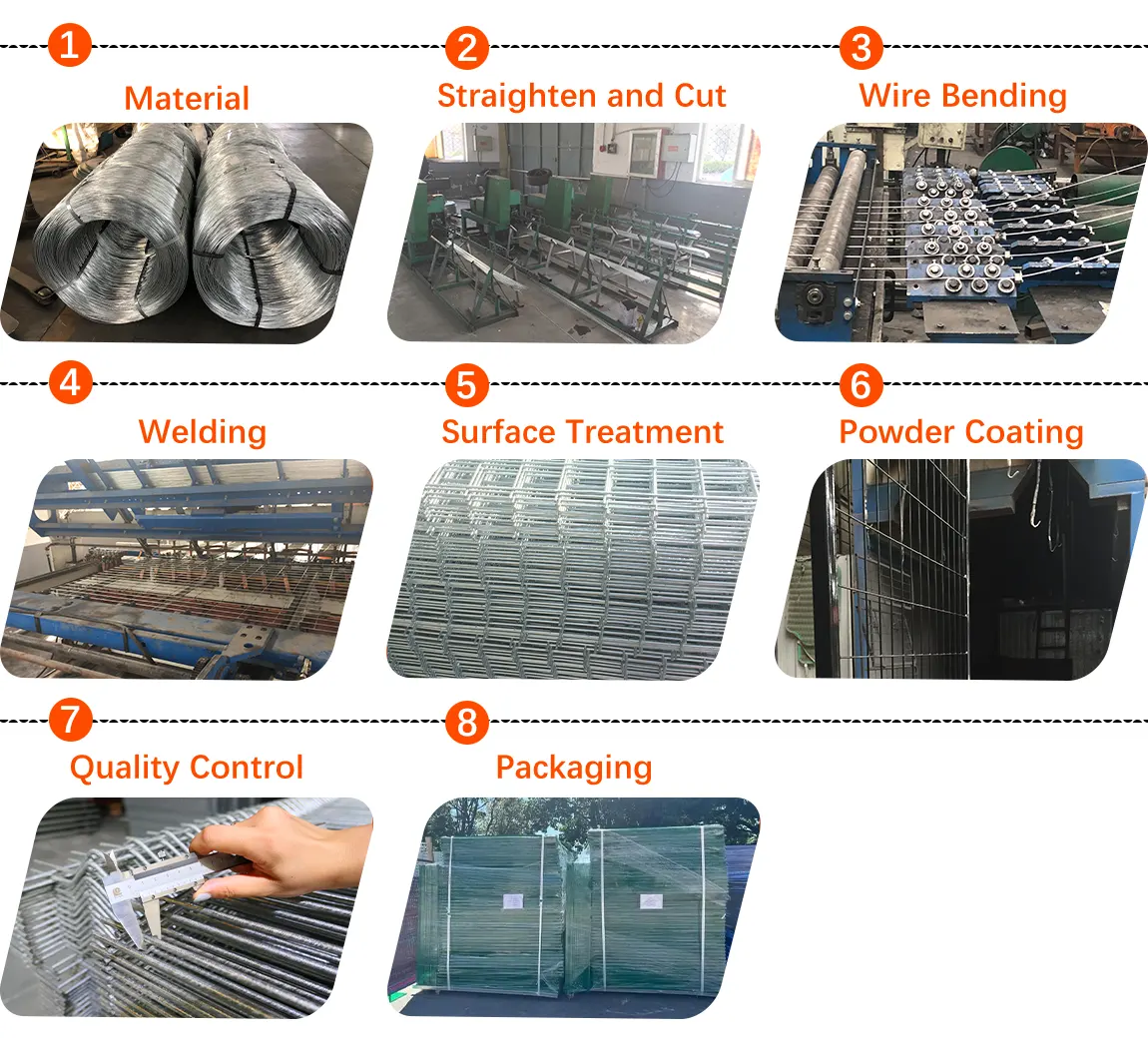

3D Wire Mesh Fence Panels Production Process

Galvanized Wire

Select high-quality steel wire that meets strength, toughness, and corrosion resistance requirements, such as galvanized steel wire. Stringent quality inspections are performed on the wire diameter, surface quality, and coating thickness.

Straightening and Cutting

The coiled galvanized steel wire, when passed through a high-precision automatic straightening machine, effectively removes its inherent curvature, achieving a straightness error of < 1 mm/m. Subsequently, it is cut to a specific length with high precision using a CNC length-cutting device, with the cutting length tolerance typically controlled within ±1 mm.

Wire Bending

Using CNC bending equipment, galvanized steel wire is bent into the desired arc shape. The bending process requires extremely high precision from the bending machine, demanding precise control of the bending angle, radius, and material deformation. The bending angle error is controlled within ±0.5°, and the bending radius error is controlled within ±1mm, to ensure the accuracy and consistency of the arc shape.

Mesh Welding

Automated welding equipment is used to place the cut wire on the welding machine’s feed rack. The machine welds the intersections of the wires, forming strong welds. Full automation ensures uniform mesh size and weld strength.

Surface Treatment

After welding, the edges and welds are ground to remove burrs, oil, slag, and other impurities, preparing for subsequent coating.

Powder Coating

Based on hot-dip galvanizing, a dense and robust powder coating with a thickness of approximately 80-120 micrometers is formed through a precise spraying process. This coating significantly enhances the fence’s corrosion resistance, UV resistance, and mechanical strength.

Quality Control

Check whether the dimensions of the fence panels meet the design requirements, including length, width, height, and bending angle. Check whether the welding points are firm and free from defects such as incomplete or missing welds. Check if the coating is uniform and smooth, and free from bubbles, scratches, or peeling.

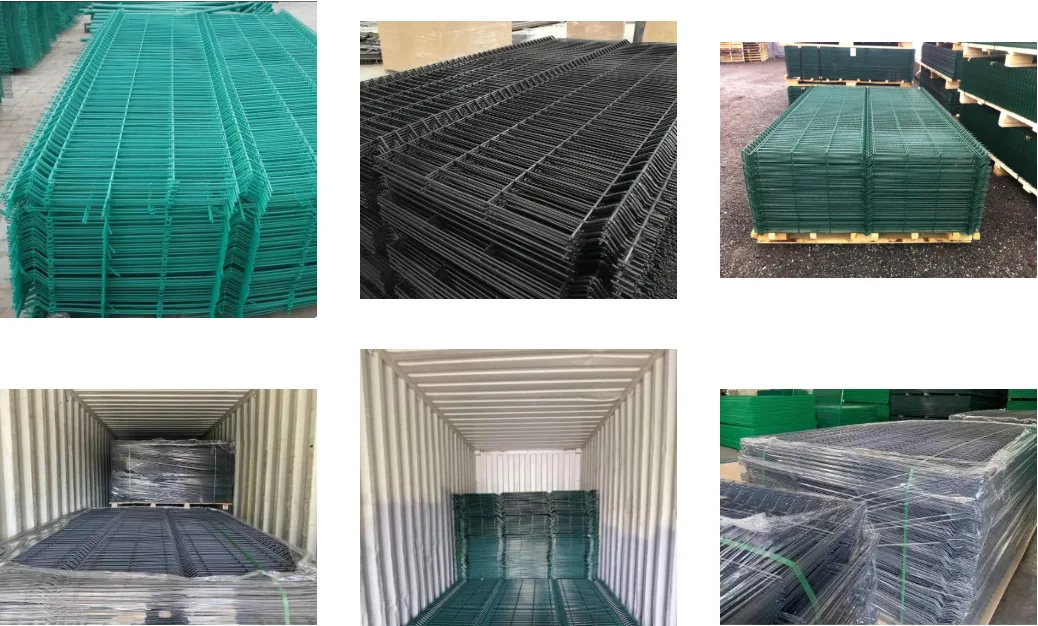

Packaging

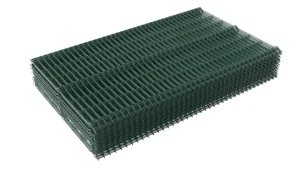

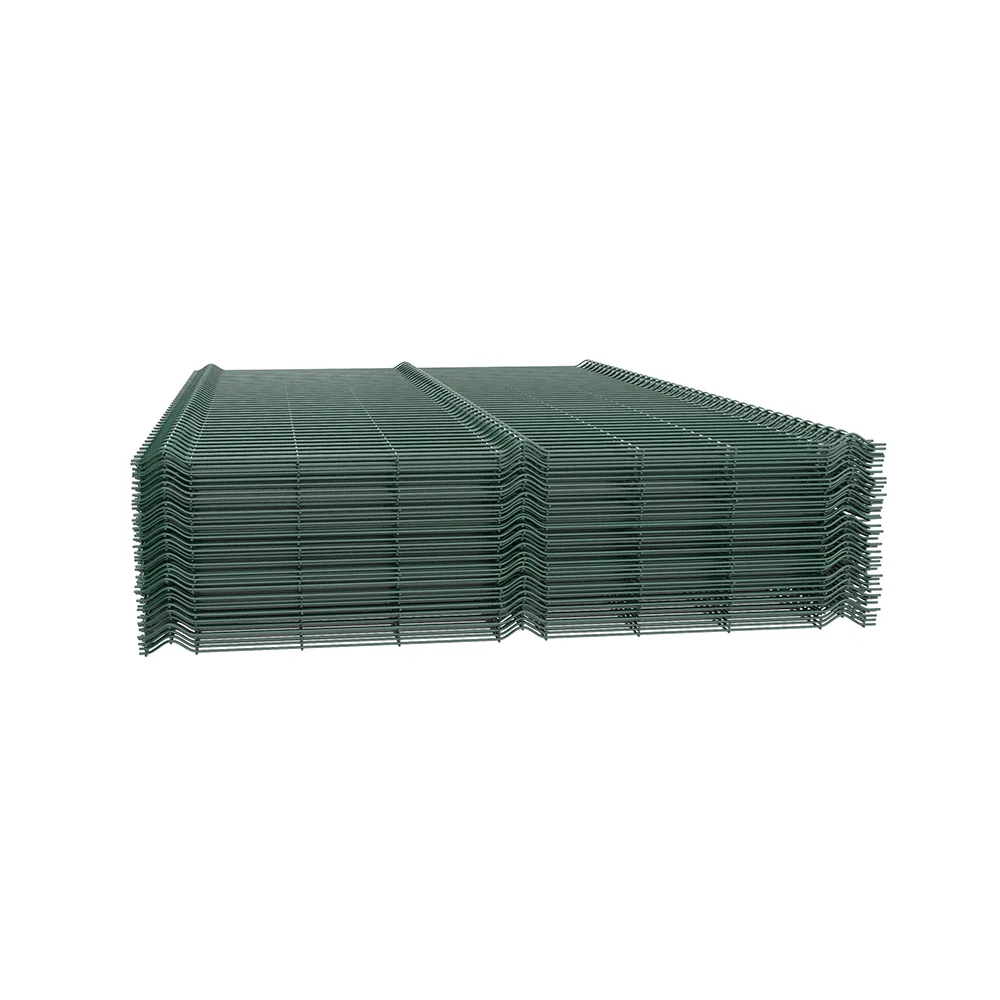

Wrap the fence panels with plastic film or bubble wrap to prevent scratching or damage during transportation. Stack the fence panels on wooden or steel pallets and secure them with strapping for easy loading and unloading.

Advantages of 3D Fence Panels

• Strong & Stable Structure: The V-bend design significantly enhances the panel’s bending strength and overall stability.
• Excellent Anti-Corrosion Performance: High-quality galvanizing and powder coating double protection, effectively resisting rust and chemical erosion.
• Strong Welding Points: Precision welding technology ensures that each connection point is tight and not easy to fall off.
• Strong Impact Resistance: The strong grid structure and enhanced rigidity enable it to withstand certain external impacts.
• Excellent Weather Resistance: Adapt to bad weather such as sun, rain, temperature changes, etc.
• High Safety: The structure is not easy to climb, providing effective safety protection.
• Standardized Production: Produced using automated equipment, the 3d fencing size is consistent and the quality is stable.

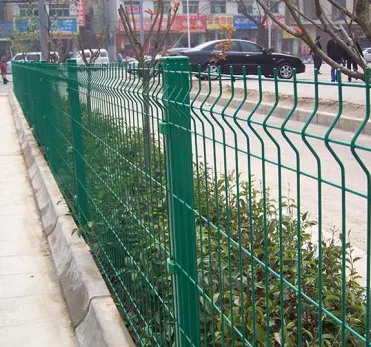

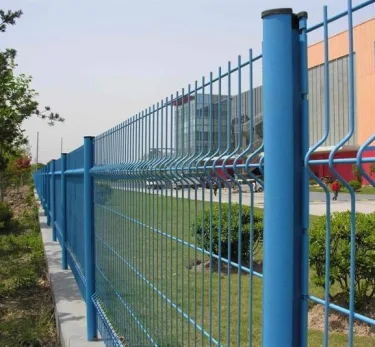

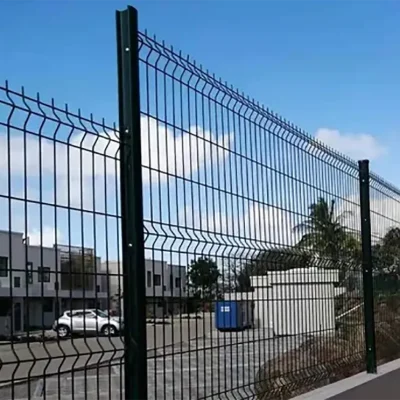

3D Fence Product Applications

• Residential Areas & Villas.
• Commercial Areas & Office Parks.
• Schools & Playgrounds.
• Along Roads & Railways.
• Stadiums: Peripheral Fences or Site Isolation.
• Public Facilities, Airports, Ports, or other areas.

3D Wire Mesh Fence Panels FAQ

Q: What are the differences between 3D fences and 2D fences?

A: The main difference between 3D fences and 2D fences lies in their design and structure. 3D fences have wavy horizontal bars, providing additional strength and resistance to bending, while 2D fences have a straight design and have relatively lower strength.

Q: What is the price of the 3D Welded Mesh Fence?

A: The price varies depending on several factors, including mesh size, wire diameter, height, length, etc. Different surface treatments, such as hot-dip galvanizing, PVC coating, powder coating, etc., also have different prices. We offer customization, and bulk purchases can result in more favorable prices.

Q: How long is the service life of 3D wire mesh fence panels?

A: It depends on materials and surface treatment. For conventional hot-dip galvanized + electrostatic spray products, the service life can reach 15-20 years in ordinary inland environment.

Q: How long does delivery usually take?

A. It depends on the order quantity. We have large-scale production capabilities to ensure fast delivery according to project schedules.

Q: Do you have a minimum order quantity (MOQ)?

A. The standard MOQ is one full 1×20′ container to ensure safe transportation. We can also accommodate smaller quantities if needed.
