– Galvanised steel material provides high strength and durability.
– Powder-coated finish resists corrosion in various environments.
– The frame structure is easy to install.
– Various sizes and specifications of products can be customised according to needs or applications.
– Advanced production equipment ensures fast production and short lead times.
– Special pricing is available for bulk orders.

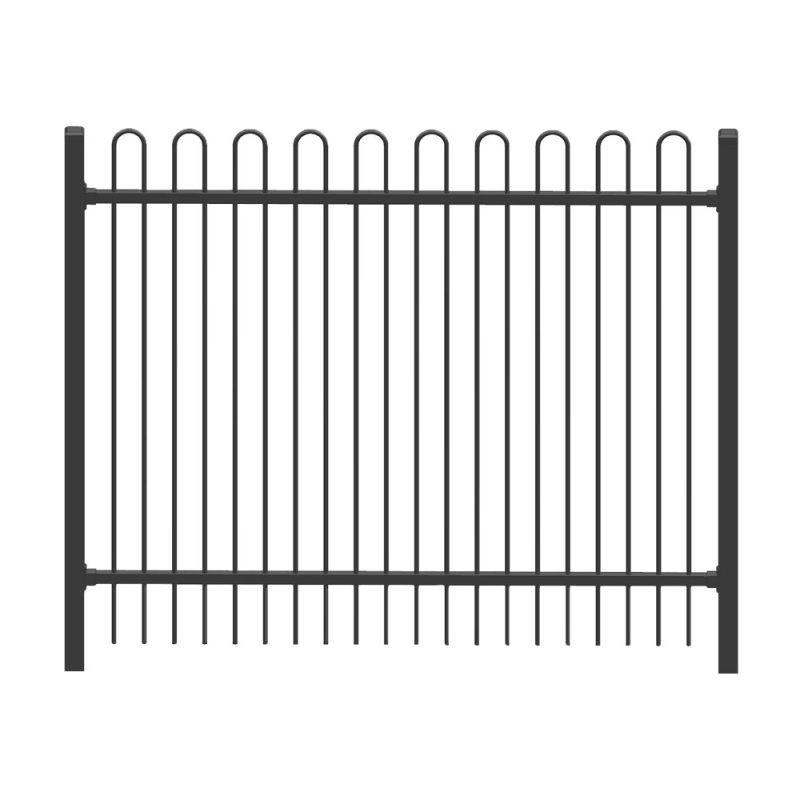

FENCE DEPOT manufactures steel loop top fencing, which is ideal for keeping your premises secure while maintaining an elegant and attractive appearance. All our loop top fences feature galvanised steel that undergoes professional powder coating. The fence panels consist of punched tubular rails with loop tops, comprising three main components: horizontal tubes, vertical tubes, and columns. Additionally, our steel loop top fences can be fitted with swing gates. These fences are designed to offer durability and aesthetic appeal, making them an ideal choice for your needs.
As part of our Steel Fencing series, this fence boasts unique characteristics. Our steel loop top fences are available in dimensions of 2100 mm in height and 2400 mm in width. The rail size is 40 x 40 x 2.0 mm, with tubes measuring 19 x 2.0 mm placed at 90 mm intervals. These panels fully comply with the latest Australian Standards AS1926.1. You can rest assured that our fences meet the highest quality and safety standards, providing peace of mind for your project.
FENCE DEPOT is your reliable manufacturer of fences. We also offer customised aluminium loop top fence panels to suit your specific requirements. Our designers will work closely with you, utilising your provided drawings or specifications, to meticulously design and manufacture fences according to your desired size and colour preferences. This exceptional attention to detail guarantees a seamless and highly personalised experience.
| Part Name | Size(mm) | Weight(kg) | Finish |
| Fence | 2400×2100 | 47.28 | Spraying |
| Post | 75x75x3.0x2900 | 19.66 | Spraying |
| Part Details | |||
| Name | Size | Wall Thickness | Quantity |
| Horizontal Rail | 40*40（mm) | 2.0（mm） | 2 pieces |
| Vertical Rail | ∅19 | 2.0（mm） | 10 pieces |
| Vertical Picket | 75*75（mm） | 3.0（mm） | |
 |
 |
 |
| Inground Post | Post Cap | Fence Brackets |

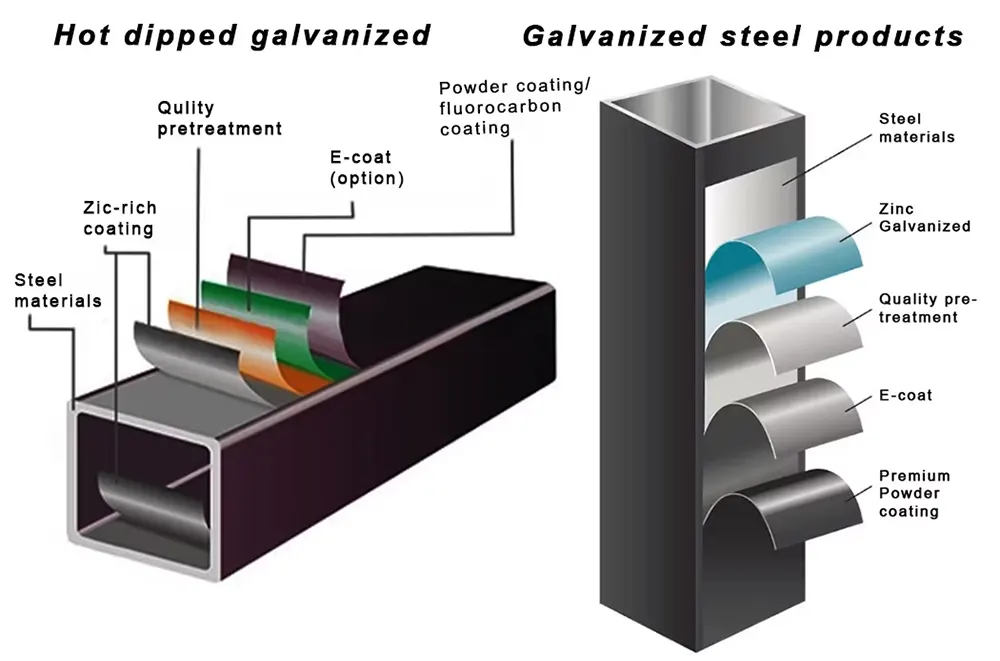

In addition to its exceptional strength, high-strength galvanised steel offers unparalleled durability for long-lasting use.
Moreover, we ensure structural integrity and provide the utmost strength by assembling our fences in the factory using top-grade stainless-steel fasteners that you can rely on.
Moreover, our fence panels feature 100% welded connections and joints, meticulously crafted to withstand the demanding conditions of everyday use.
In addition, to cater to your unique preferences, we provide comprehensive customisation options for our fence panel. This lets you fully personalise the design, size, and colour according to your needs and requirements.
All incoming pipes are sampled piece by piece to check outer diameter and wall thickness. We control the outer diameter tolerance within ±0.2mm and wall thickness deviation within ±5% of the design value to ensure all parameters fully comply with the requirements of the fence construction drawing, and control quality from the source.
After raw material unloading and preparation, profiles are cut by a CNC cutting machine according to design requirements, with cutting length error controlled within ±1mm, to obtain pipe blanks of the required specified size.
Punching is processed on cut pipes with customised positioning jigs. We control aperture tolerance within ±0.1mm and hole position deviation within 0.5mm to meet the accuracy requirements of subsequent assembly.
We assemble and weld the pipe structure into a cohesive unit. Automated welding ensures a uniform weld depth of 1.2-1.5mm, and all welds achieve a 99.8% non-destructive testing pass rate, guaranteeing overall structural stability.
Remove welding slag and spatter to ensure a smooth surface for the following treatments.
Carry out phosphating and water rinsing processes to enhance the adhesion of the powder coating.
Apply epoxy-polyester powder coating through electrostatic spraying, providing excellent durability, corrosion resistance, and adaptability to different environments.
Inspect all finished loop top fencing panels to ensure they meet quality standards before packaging and delivery.
Select appropriate packaging materials based on shipping requirements. Qualified farm gates are packaged using cable ties and pallets to ensure they are not damaged during transportation.
 |
 |
 |
 |
 |
 |
A: Thicker steel offers superior impact resistance and bending strength, making it better suited for locations requiring a high level of security. We will recommend the appropriate steel thickness based on your specific project requirements—such as anticipated impact forces, wind loads, etc.—and provide relevant technical specifications for your reference.
A: We possess advanced production equipment and an experienced production team, giving us a robust production capacity. The lead time for bulk orders depends on the order quantity, product complexity, and our current production schedule.
A: This fencing is constructed from high-strength galvanised steel and features a hot-dip galvanised surface treatment. It offers a corrosion-resistant service life of over 20 years, making it highly suitable for use in humid outdoor environments.
A: Efficient delivery to ensure your project stays on schedule. Our modern factory boasts a strong production capacity and can flexibly adjust production plans based on your order volume to ensure timely delivery.
A: We recommend a full container (1×20′) as the standard minimum order quantity to maximise shipping efficiency and ensure product safety. If you have specific needs, you are also welcome to inquire about the possibility of smaller orders.
