– The wide range of applications can suit various usage scenarios.
– With a full range of welding processes, the entire frame structure is very solid and stable.
– Professional powder coating process delivers excellent performance.
– Advanced production equipment, rich experience, and short delivery time.
– Styles, sizes, and craftsmanship can be customised according to needs.
– Special pricing is available for bulk orders.

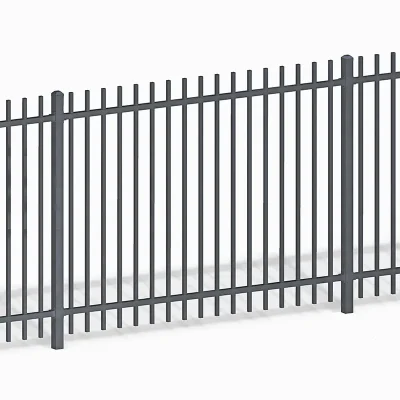

Our rod top steel fencing isn’t just about keeping your property safe – it’s a stylish addition too. These sturdy steel rod fence panels are constructed with vertical pickets slotted into two or three horizontal guide rails, creating a robust and visually pleasing barrier. They offer reliable security without compromising on aesthetics.
Crafted from high-quality galvanised steel with a reinforced frame, our rod top fence panels are built for stability, strength, and longevity. A premium multi-layer powder coating process significantly boosts their resistance to rust and corrosion, extending the product’s lifespan and minimising ongoing maintenance costs.

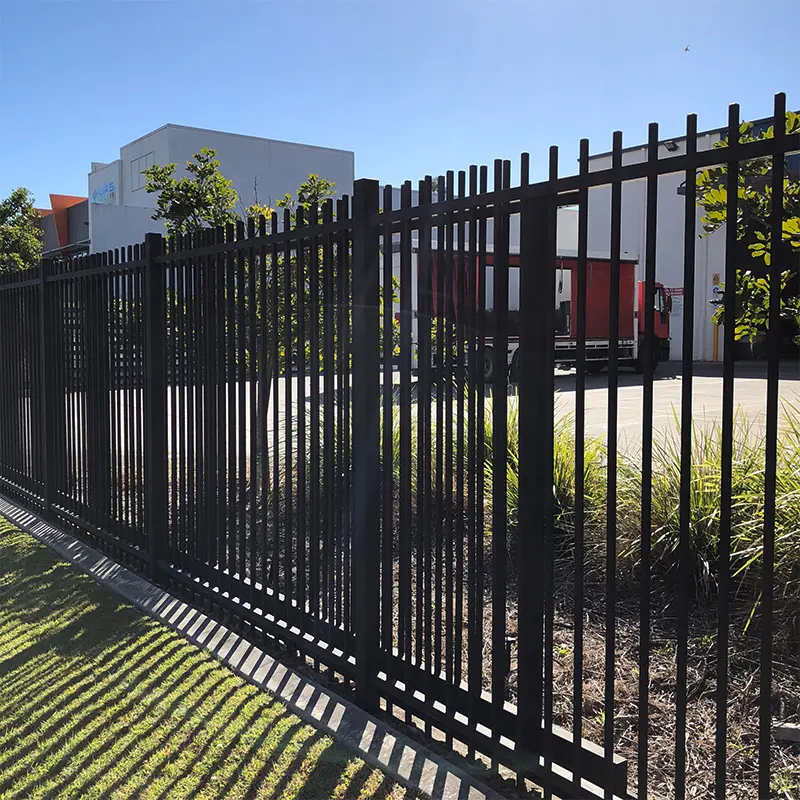

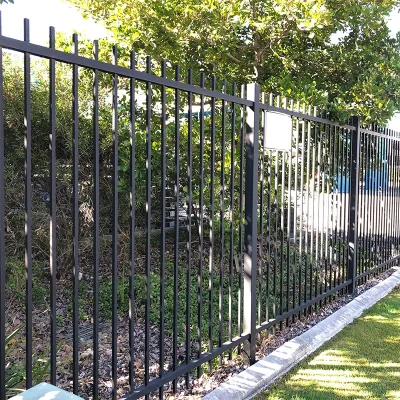

Combining practicality with a modern aesthetic, our rod top fencing is incredibly versatile. Similar to our spear top fencing, garrison fencing, and other fencing products, this product is ideal for residential and commercial properties, as well as high-security areas like factories, hospitals, schools, courtyards, and gardens.
As a professional steel fence supplier, we offer standard rod top steel fence panels in heights of 1.8m, 2.1m, and 2.4m, with a width of 2.4m. Each panel comes complete with fence brackets and fence posts for secure installation and an elegant finish. Need something specific? We can also custom-make panels to meet your unique requirements and local regulations.
 |
 |
 |
|
Model NO |
FDCI110001 | FDCI110002 | FDCI110003 |
| Panel Size (mm) | 2400W*1800H | 2400W*2100H | 2400W*2400H |
| Rail (mm) | 40*40*1.6 | 40*40*1.6 | 40*40*1.6 |
| Picket (mm) | 25*25*1.2 | 25*25*1.2 | 25*25*1.2 |
| Material | Galvanized Steel | ||
| Horizontal rail wall thickness | 0.05″–0.08″ | ||
| Vertical picket wall thickness | 0.03″–0.48″ | ||
| Yield strength | 350Mpa. | ||
| Finish |
Hot Dipped Galvanised, Pre-galvanised, E-Coating, Powder Coating |
||
| Material, size, and colour can be customised as needed. | |||
 |
 |
 |
 |
| Fence Brackets | Fence Post | Post Caps | Screws |
The horizontal rails, with evenly punched holes, and upright pailings are fully welded in a 360° manner, ensuring strong welding points and minimal split welds even after extended use.
The rod top design acts as a deterrent for any unauthorised entry. Additionally, the narrow spacing between horizontal rails prevents the creation of footholds for climbing over.
We offer different aesthetic options for our rod top steel fence panel, including 2-rail, 3-rail, and 4-rail steel fences, catering to your specific preferences.
Our rod top steel fence panel steel tubes undergo full hot-dipped galvanization, with a G90 or G60 galvanisd coating applied both inside and outside. This comprehensive anticorrosive protection ensures a service life of over 25 years.
All incoming pipes are sampled piece by piece to check outer diameter and wall thickness. We control the outer diameter tolerance within ±0.2mm and wall thickness deviation within ±5% of the design value to ensure all parameters fully comply with the requirements of the fence construction drawing, and control quality from the source.
After raw material unloading and preparation, profiles are cut by a CNC cutting machine according to design requirements, with cutting length error controlled within ±1mm, to obtain pipe blanks of the required specified size.
Punching is processed on cut pipes with customized positioning jigs. We control aperture tolerance within ±0.1mm and hole position deviation within 0.5mm to meet the accuracy requirements of subsequent assembly.
Pre-galvanised steel pipes are precision-welded into the panel frame structure using advanced techniques such as MIG (Metal Inert Gas) or TIG (Tungsten Inert Gas) welding.
After sandblasting, phosphating treatment is performed to form a uniform phosphating film on the workpiece surface, with film thickness controlled at 1-3μm. The phosphating film itself has certain anti-corrosion capability, and can provide excellent adhesion for paint, powder coating, and other organic coatings, effectively extending the service life of the final coating.
The workpiece goes through rinsing with water to remove residual phosphating solution, floating dust, and other surface impurities, controlling surface impurity residue within 10mg/㎡ to obtain a clean, smooth base for subsequent coating.
Electrostatically spray epoxy-polyester hybrid powder on the pretreated workpiece surface, then transfer it to a curing oven and cure at 180-200℃ for 15-20 minutes. This process endows the finished product with outstanding rust resistance and corrosion resistance, and delivers a uniform, aesthetic coating.
We carry out inspection for each finished product, testing pipe wall thickness, structural connection strength, and powder coating thickness. The coating thickness is controlled within 60-120μm to ensure all products meet delivery standards, and unqualified products are blocked before leaving the factory.
We adopt a professional packaging scheme (custom pearl cotton + winding stretch film + reinforced wooden pallets) to avoid coating scratches and collision deformation during transportation, ensuring products arrive at customer sites intact.
 |
 |
 |
 |
A: The rod top design offers a more decorative look, enhancing the overall appearance of your property. The rounded top minimizes sharp edges, reducing the risk of injury.
A: Yes, Rod Top Steel Fences are versatile and suitable for both residential and commercial applications, providing security and aesthetic value in various settings.
A: We operate a large-scale, in-house manufacturing facility and maintain an inventory of standard sizes and styles, enabling us to offer rapid shipping. The lead time for custom orders may be slightly longer; please contact us directly for specific details.
A: If you need samples, we will be happy to provide them for you. It will be free. But you need to bear the shipping cost.
A: For standard specifications, we have standard products in stock, which means we have them in stock. If you need such a product, it can be shipped to you as soon as possible.
