5ft Tall White 5 Top Vinyl Picket Privacy Fence PVC Fence Panels

This 5 top vinyl picket privacy fence, similar to our 5ft Tall White Closed Vinyl Picket Privacy Fence PVC Fence Panels, is designed to create a safe, private, and beautiful outdoor space. Its enclosed design effectively blocks the view, protecting your privacy while enhancing the overall aesthetics of your yard. Easy to install and maintain, this fence is ideal for homes, gardens, and commercial spaces.

It boasts excellent weather resistance, corrosion resistance, and UV resistance, ensuring long-lasting color and resistance to deformation, guaranteeing a long service life for the fence. Scientific 3 rails structure-Top Rail: 50.8 × 88.9 × 2388mm (wall thickness 2.8mm); Bottom & Middle Rail: 50.8 × 152.4 × 2388mm (wall thickness 2.8mm); Precision Panels: each set includes 8 panels (287 x 22.3 x 925mm, wall thickness 1.3mm), employing an interlocking groove design and mortise and tenon joints to ensure tight installation and overall structural stability.

The bottom rail is reinforced with aluminum alloy, significantly improving the overall strength and stability of the fence. The panels are manufactured using an extrusion molding process, ensuring high dimensional accuracy, a smooth surface, and superior quality. Exquisite Top Decoration: symmetrically distributed 38.1 x 38.1 x 320mm (wall thickness 2mm) pickets, with a simple and elegant design, enhancing the overall aesthetics.

As a professional fence manufacturer, we not only offer standard products. We also provide customization services (including size, color, and installation options) to meet your specific site length, panel height, or color requirements.

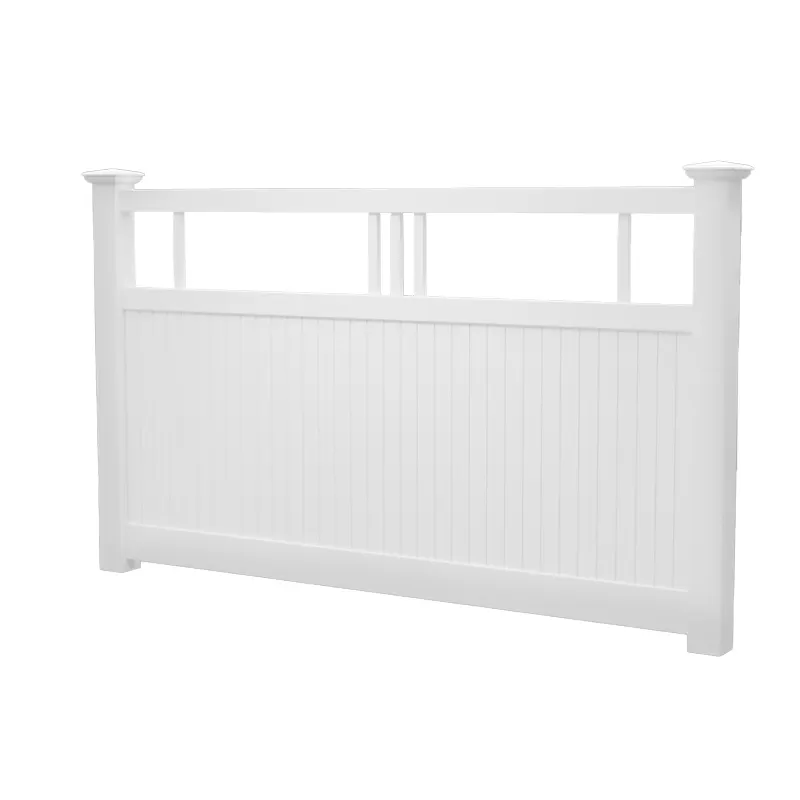

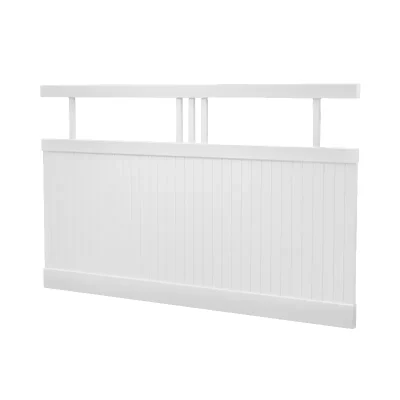

5ft Tall White 5 Top Vinyl Picket Privacy Fence Detail

• Pre-punched, with included accessories for easy assembly.
• White UV-resistant PVC material with added titanium dioxide protectant.
• The panel features a stylish overlapping groove design with a mortise and tenon structure for a perfect fit.
• Top Rail: 50.8 × 88.9 × 2388mm; thickness 2.8mm
• Bottom and middle rails: 50.8 × 152.4 × 2388mm; thickness 2.8mm
• The bottom rail includes an aluminum insert for enhanced rigidity.
• Panel: 287 x 22.3 x 925mm, eight panels per set; thickness 1.3mm
• Pickets: 38.1×38.1×320mm, 5 pickets per panel; thickness 2mm

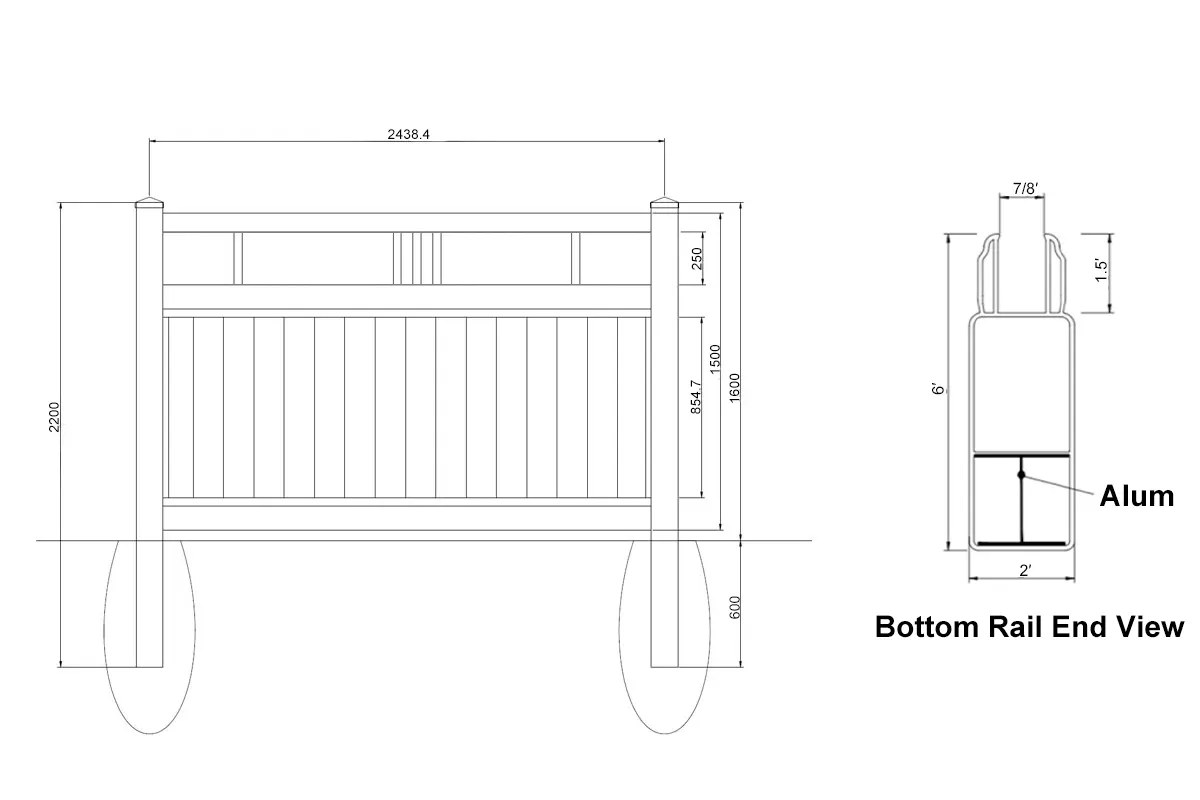

5ft White 5 Top PVC Picket Privacy Fence Specification

5 Top Vinyl Picket Privacy Fence Color Options

5ft PVC Picket Fence Post Cap Options

Arbor Caps	External Flat Cap	Flat Cap
Gothic Cap	Sharp Point Cap	New England Cap

5 Top Vinyl Picket Privacy Fence Production Process

Raw Material Mixing

PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.

Extrusion

The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.

Cutting

Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.

Milling

According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.

Surface Treatment

Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.

Assembly

Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.

Quality Control

Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.

Packaging

Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.

5ft White 5 Top Picket PVC Fence Advantages

• Quick Installation: The fence panels come in a variety of styles and are lightweight, allowing ordinary households to quickly install them without professional skills.
• Low-Cost Maintenance: Durable materials and low maintenance costs mean minimal daily upkeep, saving time and effort, and ensuring long-term durability.
• Privacy and Aesthetics: Combining privacy and aesthetics, it enhances property value and creates an ideal living space.
• Personalized Customization: Sizes and colors can be customized to your needs, creating a unique fence landscape.

5ft Tall White 5 Top Vinyl Picket Privacy Fence Application

• Residential areas: Separate backyards, front yards, gardens, terraces, and patios, providing high privacy and security while maintaining a clean and aesthetically pleasing appearance.
• Swimming pool/wet environment areas: Excellent weather resistance and low maintenance, suitable for areas around pools, outdoor walkways, etc.
