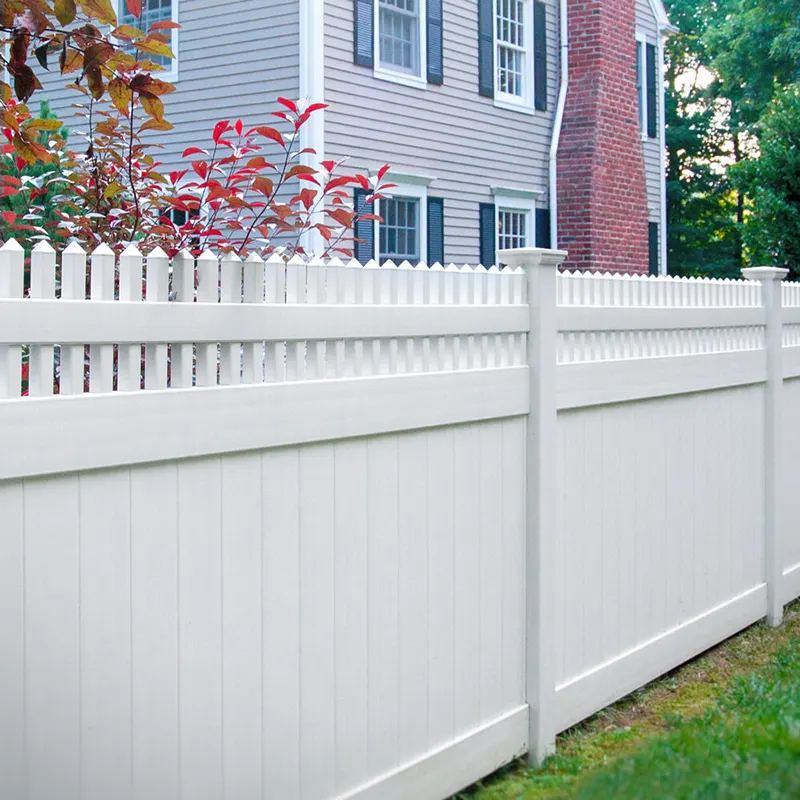

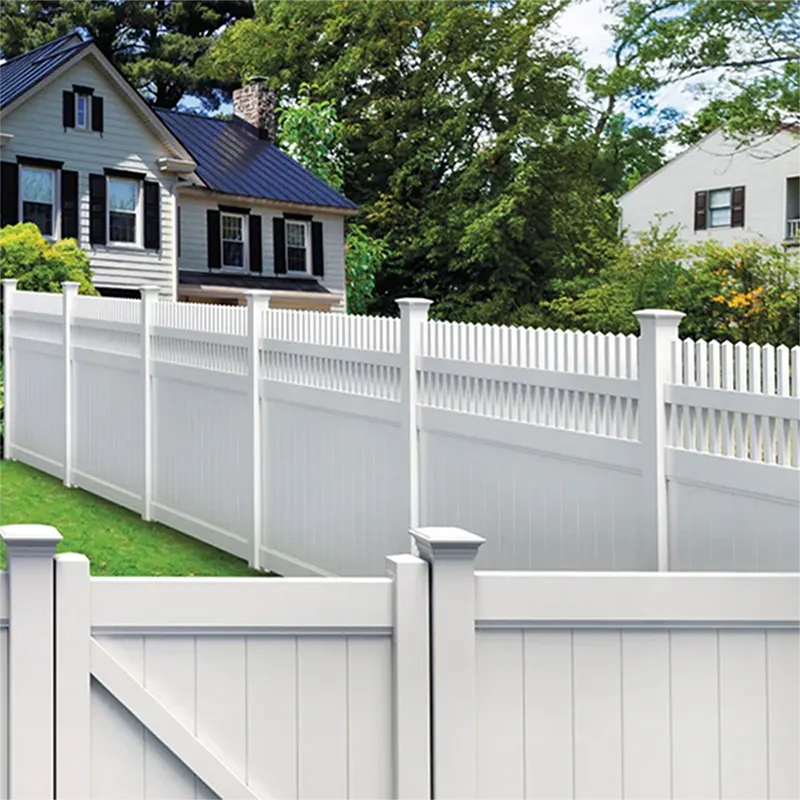

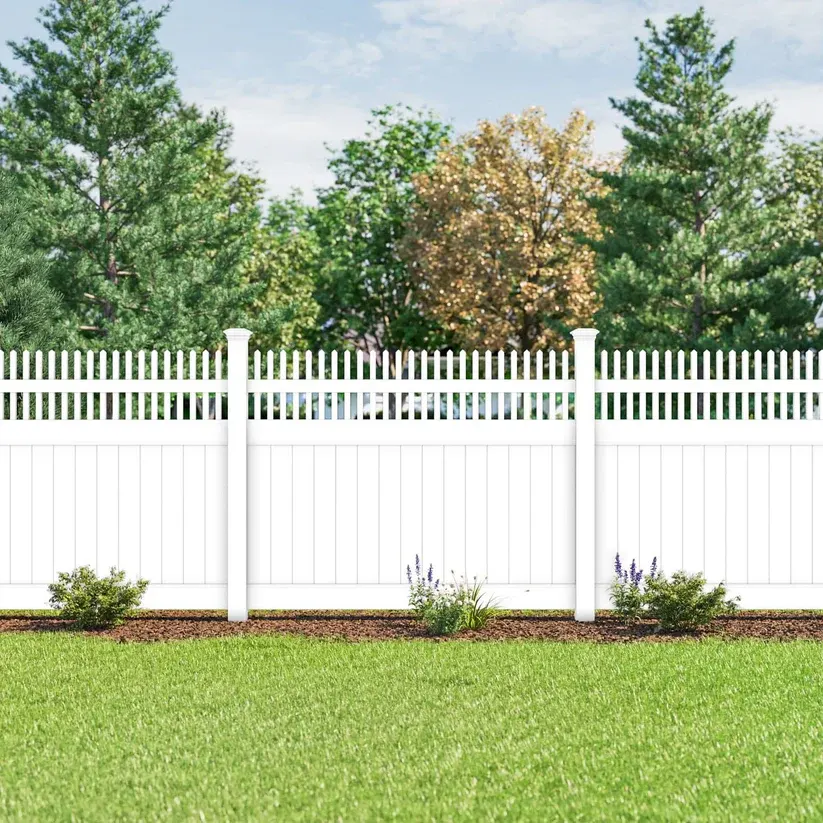

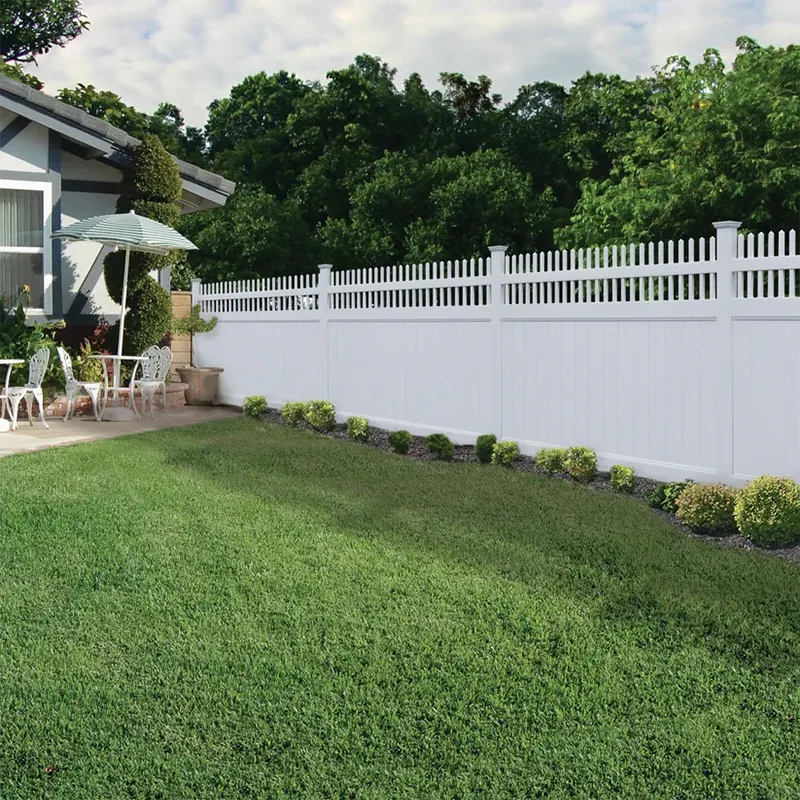

Want a safe, private, and aesthetically pleasing outdoor space? This 5ft Tall White Vinyl Privacy Fence Panel with Straight Picket Top, similar to our 5ft Tall White Closed Vinyl Picket Privacy Fence PVC Fence Panels, is designed to create a safe, private, and aesthetically pleasing outdoor space. This fence is easy to install and maintain, making it ideal for residential, garden, and commercial spaces.

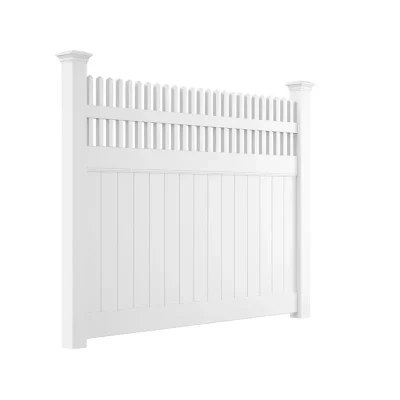

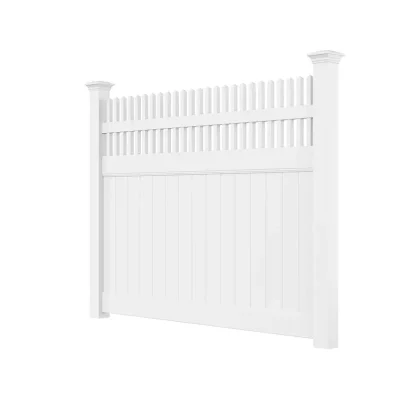

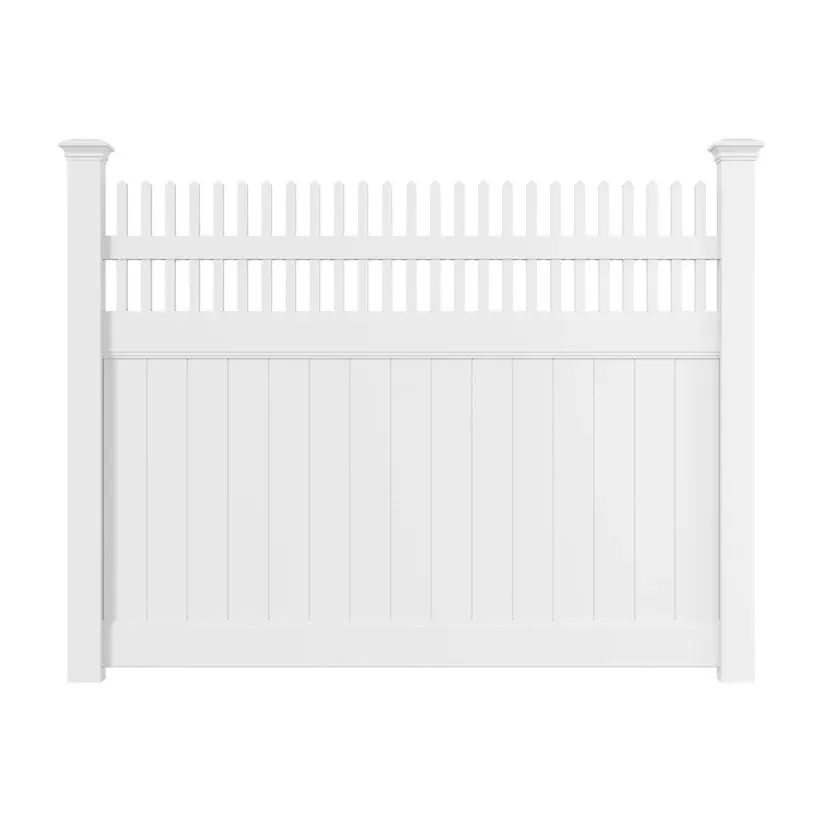

The picket top details are elegant and sophisticated, while the solid bottom panel effectively blocks the view, creating a private space. Made of high-quality PVC material, it boasts excellent weather resistance, corrosion resistance, and UV resistance, resisting fading and deformation, ensuring durability. The three-bar design, with the bottom bar reinforced with aluminum alloy, ensures the overall strength and stability of the fence, resisting various weather conditions.
The product is designed for easy installation and simple daily maintenance. The fence panel features a stylish overlapping groove design and mortise and tenon structure, perfectly fitting and enhancing overall stability. The bottom crossbeams are reinforced with aluminum alloy, enhancing the overall strength and stability of the fence. The PVC profiles are manufactured using an extrusion molding process, ensuring precise dimensions and a smooth surface. The fence panels feature a stylish overlapping groove design and mortise and tenon structure, providing a perfect fit and enhancing overall stability.

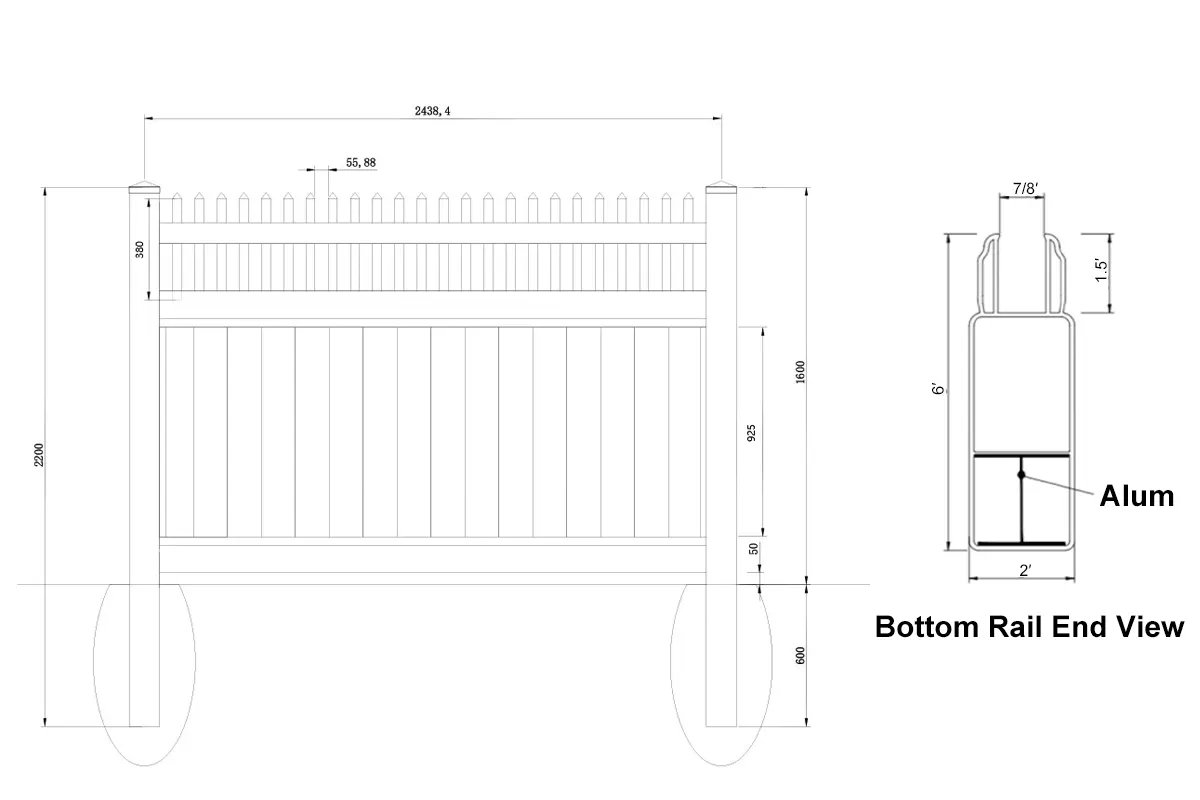

It features a 3 rail design; the top rail measures 50.8 × 88.9 × 2388 mm with a wall thickness of 2.8 mm; the bottom and middle rails measure 50.8 × 152.4 × 2388 mm with a wall thickness of 2.8 mm. The fence panel measures 287 x 22.3 x 925 mm, and each set contains 8 panels with a wall thickness of 1.3 mm. The top picket measures 38.1 x 38.1 x 320 mm with a wall thickness of 2 mm. 24 pickets are evenly distributed between the top crossbeams, featuring a simple and aesthetically pleasing design.
As a professional fence manufacturer, we not only offer standard products but also provide customization services (including size, color, and installation method) to meet your specific needs for site length, panel height, or color.
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×38.1×380 | 2 | 24 |
| U-Channel | 854 | 1.2 | 2 |
| Panel | 287×22.3×925 | 1.3 | 8 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.
The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.
Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.
According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.
Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.
Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.
Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.
Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.
 |
 |
 |
 |
