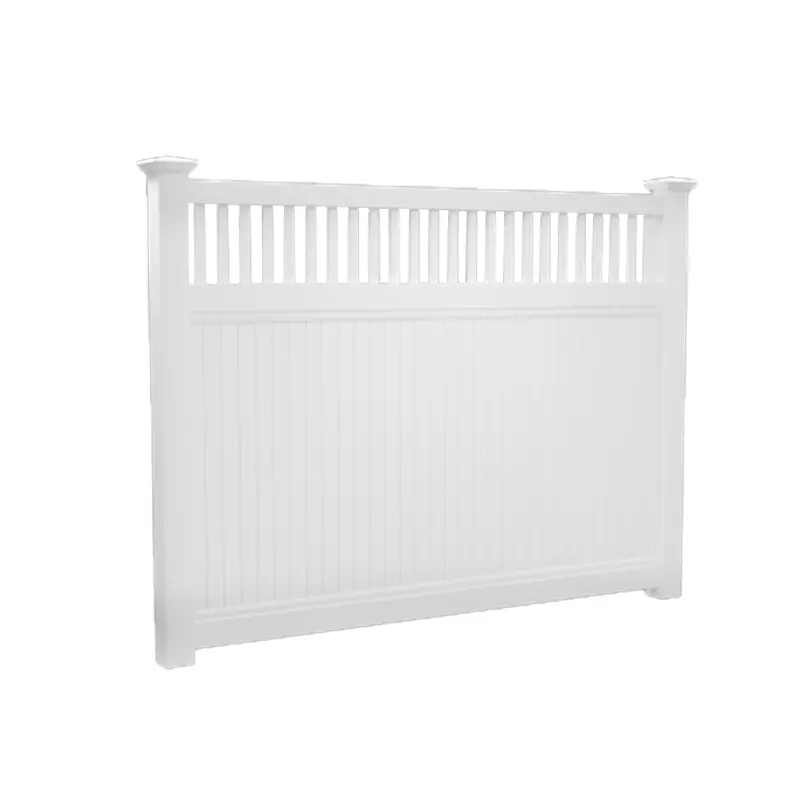

6ft Tall White Closed Vinyl Picket Privacy Fence PVC Fence Panels

This 6ft Tall White Closed Vinyl Picket Privacy Fence, similar to our 5ft Tall White Closed Vinyl Picket Privacy Fence PVC Fence Panels, is designed to create a safe, private, and beautiful outdoor space. Its enclosed design effectively blocks the view, protecting your privacy while enhancing the overall aesthetics of your yard. Easy to install and maintain, this fence is ideal for residential, gardens, and commercial spaces.

Crafted primarily from high-quality PVC, this fence boasts an array of outstanding features. It is weather-resistant, corrosion-resistant, and UV-resistant, ensuring long-lasting colorfastness and resistance to deformation.

The fence showcases a 3 rails design. The top rail has dimensions of 50.8 × 88.9 × 2388mm and a wall thickness of 2.8mm. The bottom and middle rail measure 50.8 × 152.4 × 2388mm, also with a 2.8mm wall thickness. Each set includes eight fence panels, sized at 287 x 22.3 x 1175mm with a 1.3mm wall thickness. The top pickets, sized 38.1 x 38.1 x 370mm and having a 2mm wall thickness, are composed of 24 evenly-arranged elements between the top rails, resulting in a simple yet aesthetically appealing design.

To enhance the overall strength and stability, the bottom rail is reinforced with aluminum alloy. The PVC profiles are produced through an extrusion molding process, which guarantees precise dimensions and a smooth surface. The fence panels are designed with a fashionable overlapping groove and a mortise and tenon joint structure, enabling a perfect fit and further enhancing the overall stability of the fence.

As a professional fence manufacturer, we not only offer standard products. We also provide customization services (including size, color, and installation options) to meet your specific site length, panel height, or color requirements.

6ft Tall White Closed Vinyl Picket Privacy Fence Detail

• Pre-punched, with included accessories for easy assembly.
• White UV-resistant PVC material with added titanium dioxide protectant.
• The panel features a stylish overlapping groove design with a mortise and tenon structure for a perfect fit.
• Top Rail: 50.8 × 88.9 × 2388mm; wall thickness 2.8mm.
• Bottom and middle rails: 50.8 × 152.4 × 2388mm; wall thickness 2.8mm.
• The bottom rail includes an aluminum insert for enhanced rigidity.
• Panel: 287 x 22.3 x 1175mm, eight panels per set; wall thickness 1.3mm.
• Pickets: 38.1 x 38.1 x 370mm; wall thickness 2mm, 24 pickets in total.

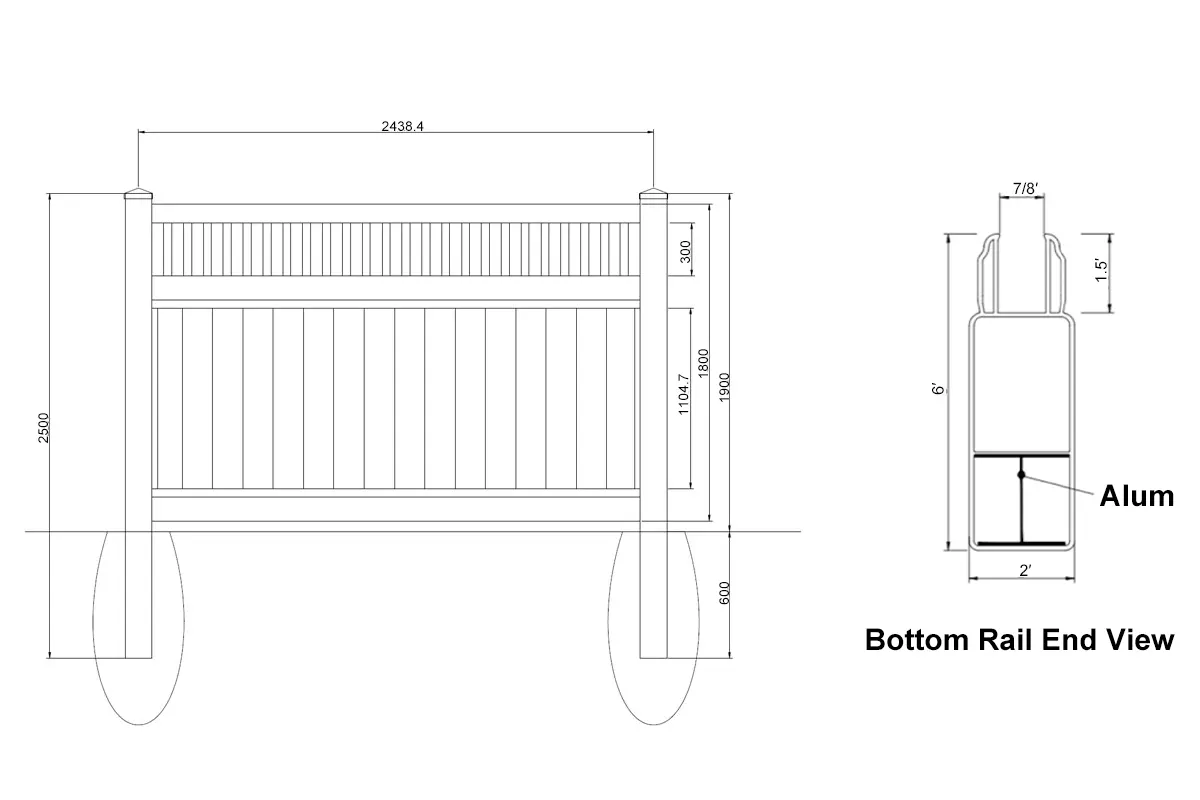

6ft Vinyl Picket Privacy Fence Specification

6ft Vinyl Picket Privacy Fence Color Options

6ft PVC Picket Fence Post Cap Options

Arbor Caps	External Flat Cap	Flat Cap
Gothic Cap	Sharp Point Cap	New England Cap

6ft PVC Picket Fence Panel Production Process

Raw Material Mixing

PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.

Extrusion

The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.

Cutting

Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.

Milling

According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.

Surface Treatment

Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.

Assembly

Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.

Quality Control

Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.

Packaging

Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.

Picket PVC Privacy Fence Advantages

• Enhanced Privacy: Creates a secluded and secure outdoor space.
• Durable & Long-Lasting: Made from high-quality PVC, resistant to weather, rot, and pests.
• Low Maintenance: No painting, staining, or sealing required. Simply wash with soap and water.
• Classic Picket Style: Adds timeless charm and curb appeal to your property.
• Easy Installation: Lightweight and designed for straightforward installation.
• Cost-Effective: A durable and long-lasting solution that saves you money in the long run.

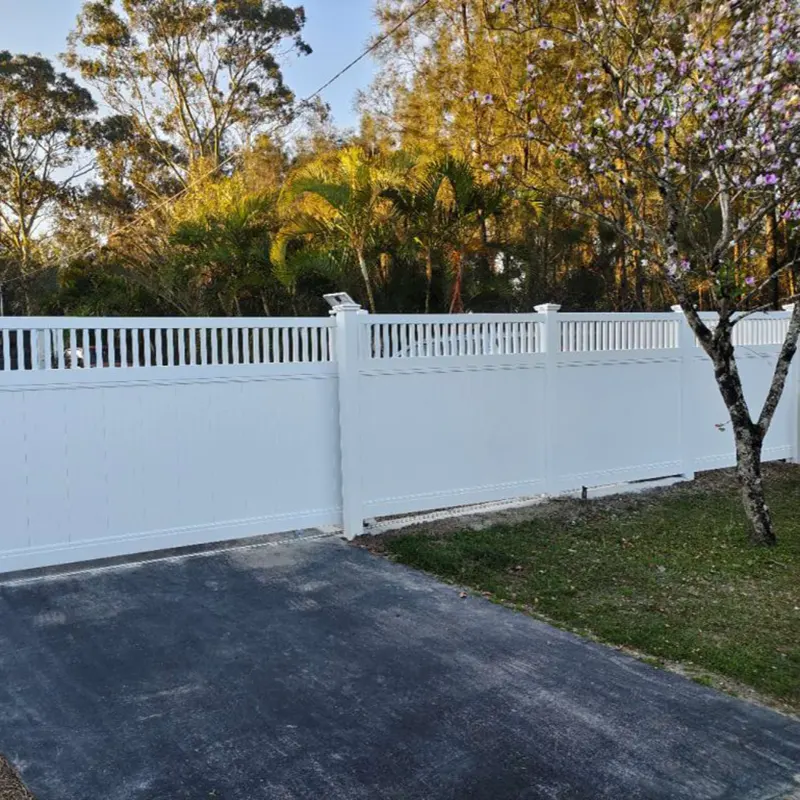

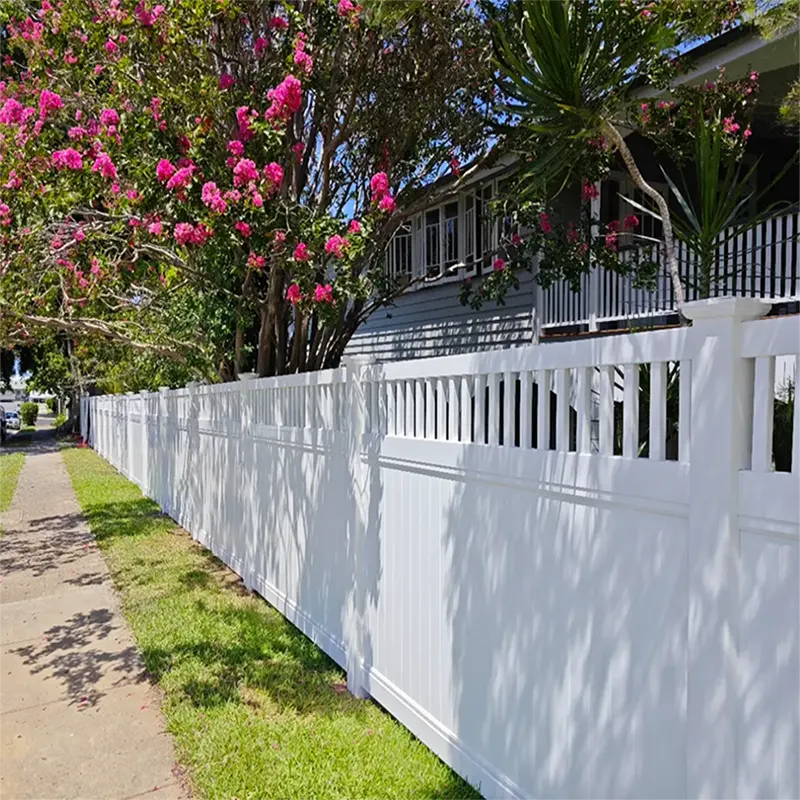

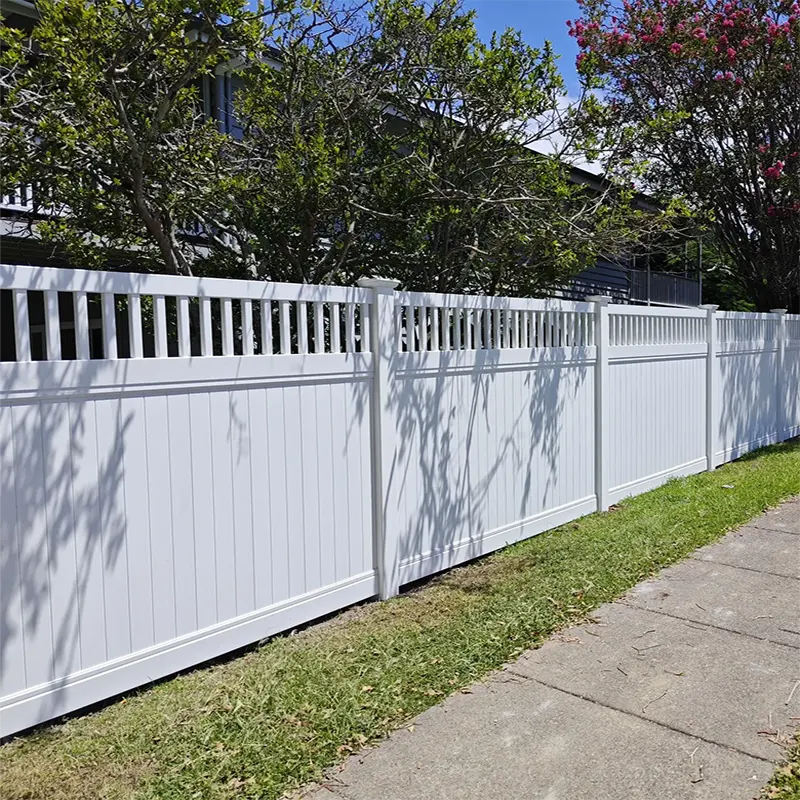

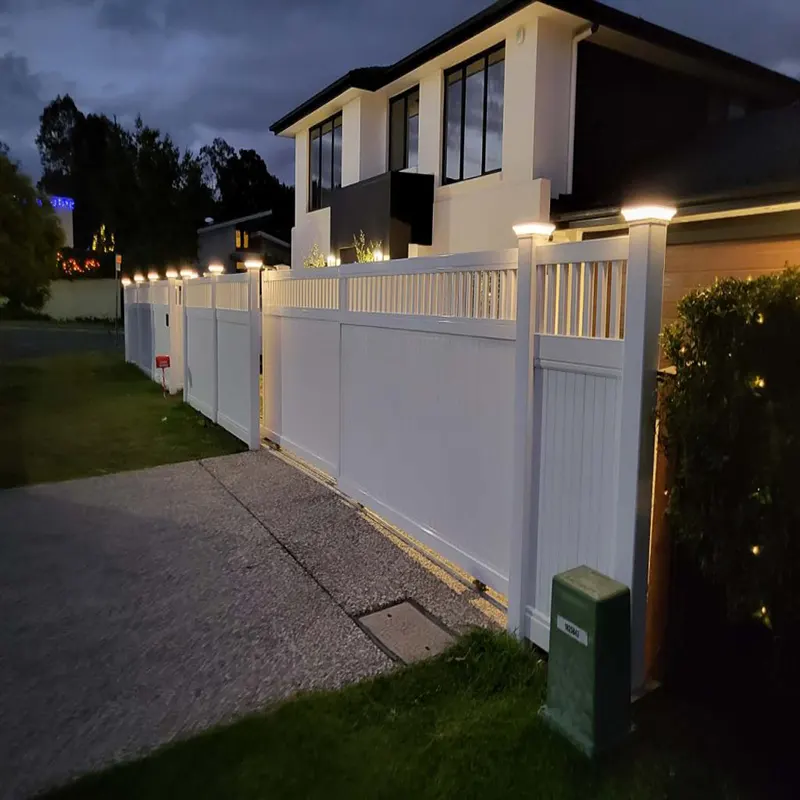

6ft PVC Picket Fence Panel Application

• Property boundary and curb appeal: Defines the edge of driveways, yards, and gardens with a classic look and low maintenance.
• Pool and spa enclosures: Many jurisdictions allow 6 ft fences for pools.
• Security and kid/pet containment: Tall pickets help deter climbing and keep children and pets within the yard.
• Garden and landscape borders: Creates clean borders around flower beds, pathways, and patios while allowing visibility.
• Commercial and public spaces: Parks, campuses, business storefronts, and other low-maintenance fencing needs.
