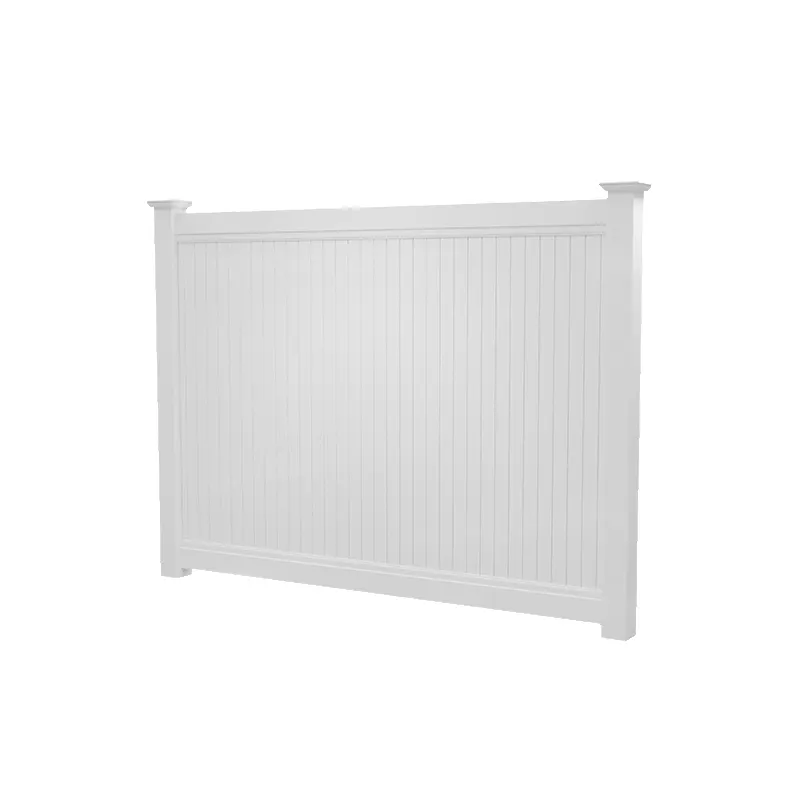

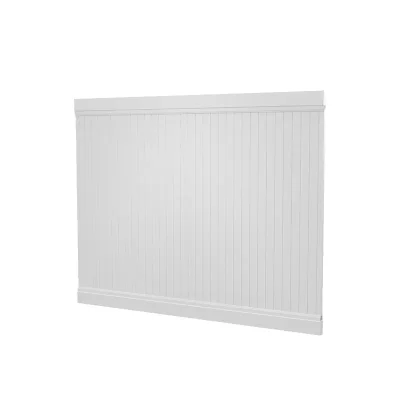

The 6ft Tall White Full Privacy PVC Fence is a comprehensive privacy PVC fencing solution that combines aesthetics, privacy, and security. Made from premium vinyl material through a scientifically formulated extrusion molding process, our fences offer excellent weather resistance, impact resistance, and corrosion resistance, providing long-lasting and reliable protection.
Similar to the 5ft Tall White Full Privacy PVC Fence, each panel of our 6ft full privacy PVC fence measures 287 × 22.3 × 1565 mm, with a set containing 8 panels. The top and bottom crossbars measure 50.8 × 152.4 × 2388 mm. Moreover, these panels require no special maintenance; occasional water washing is all it takes to keep them looking new, saving you significant time and effort.

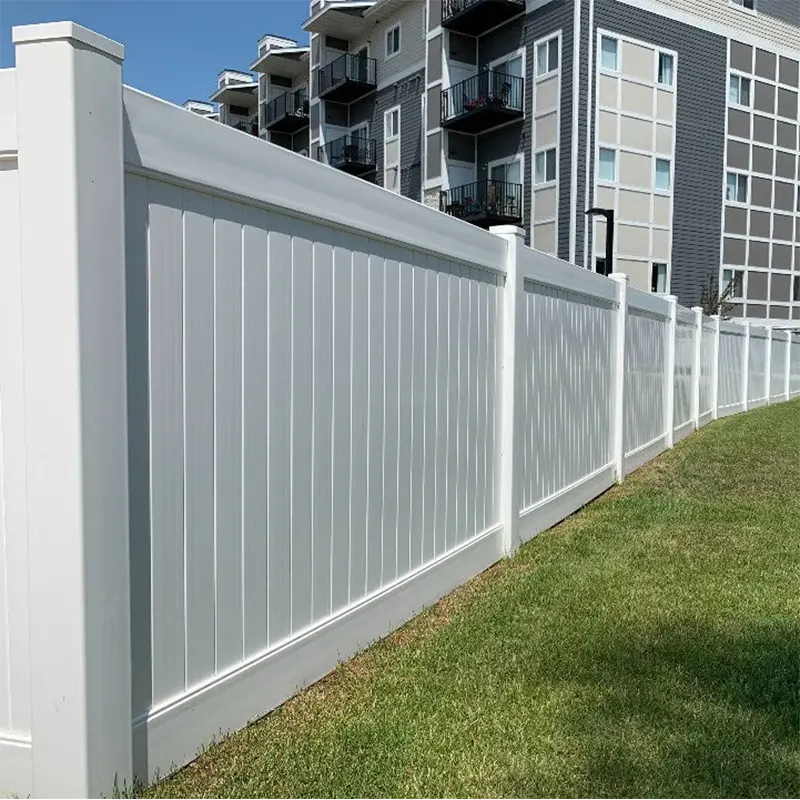

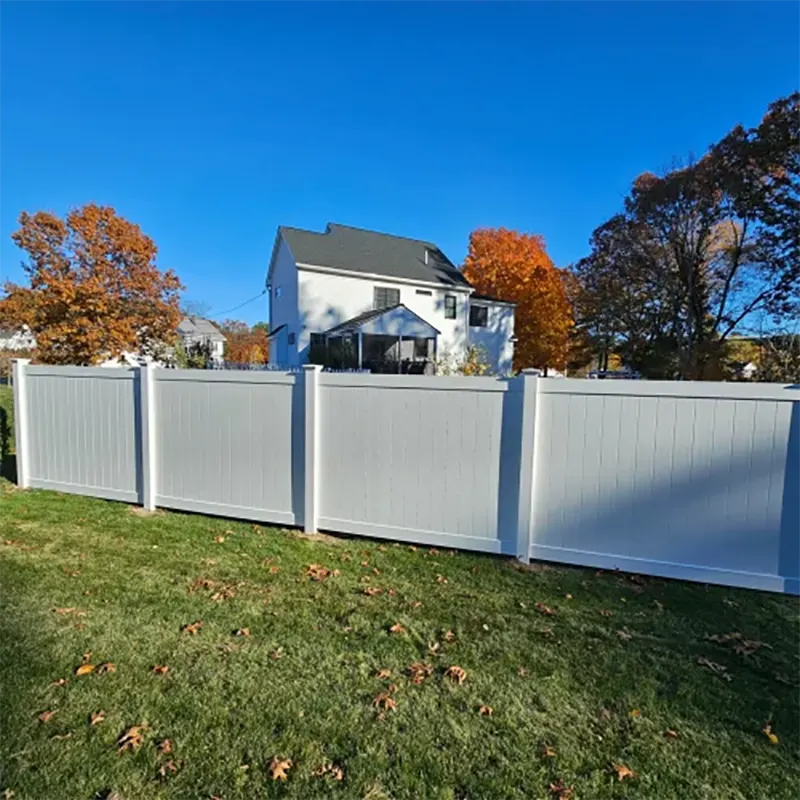

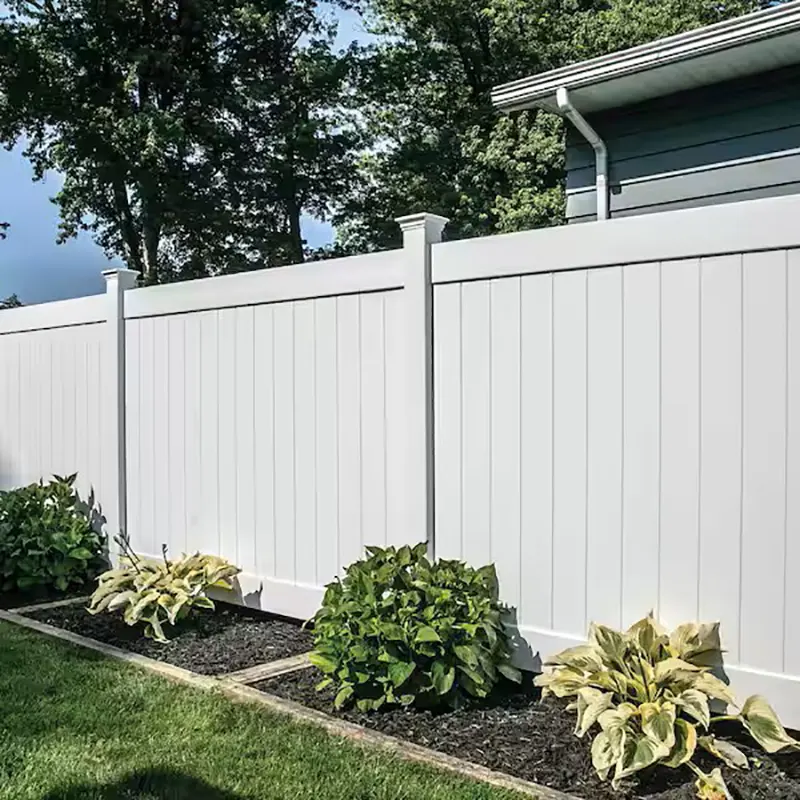

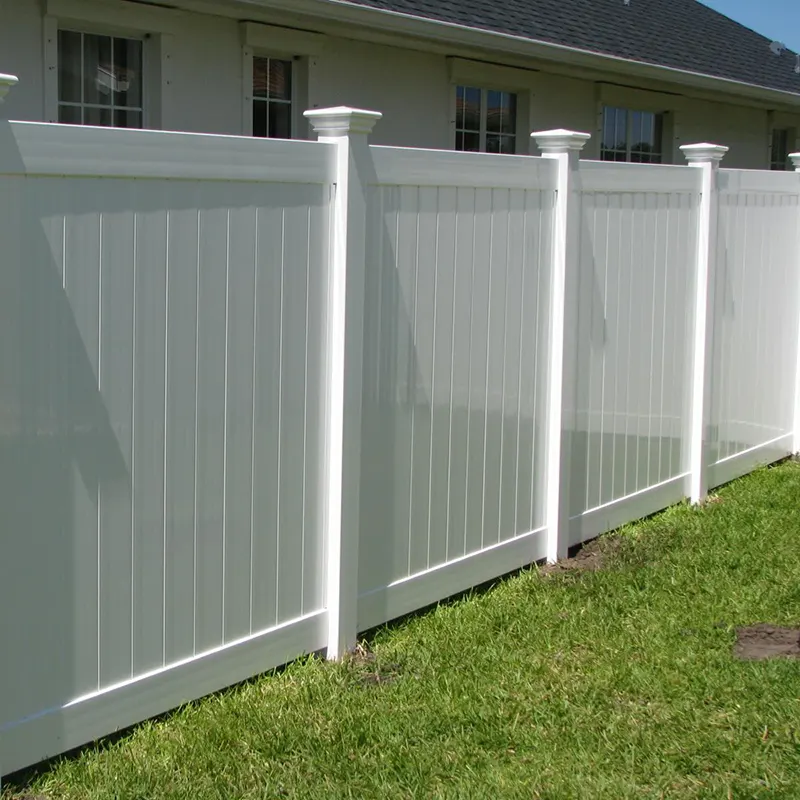

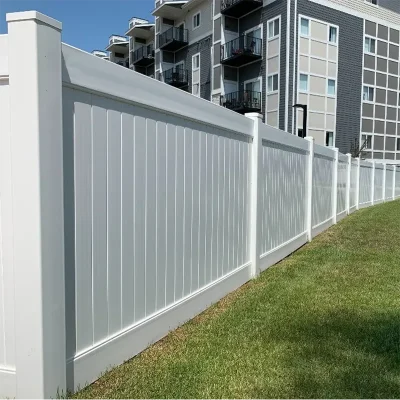

This PVC privacy fence features a simple and elegant design with pure colors, perfectly complementing various architectural styles. Our 6ft full privacy PVC fence panels pair beautifully with vinyl gates and are widely used in residential and commercial settings.
As a professional fencing supplier, we offer a wide variety of privacy panels and related accessories. In addition to standard sizes, our fencing panels come in different heights, widths, and styles, allowing you to easily choose the perfect fit for your needs. Furthermore, besides white panels, we also offer custom color services to make your fencing unique and reflect your individual personality.

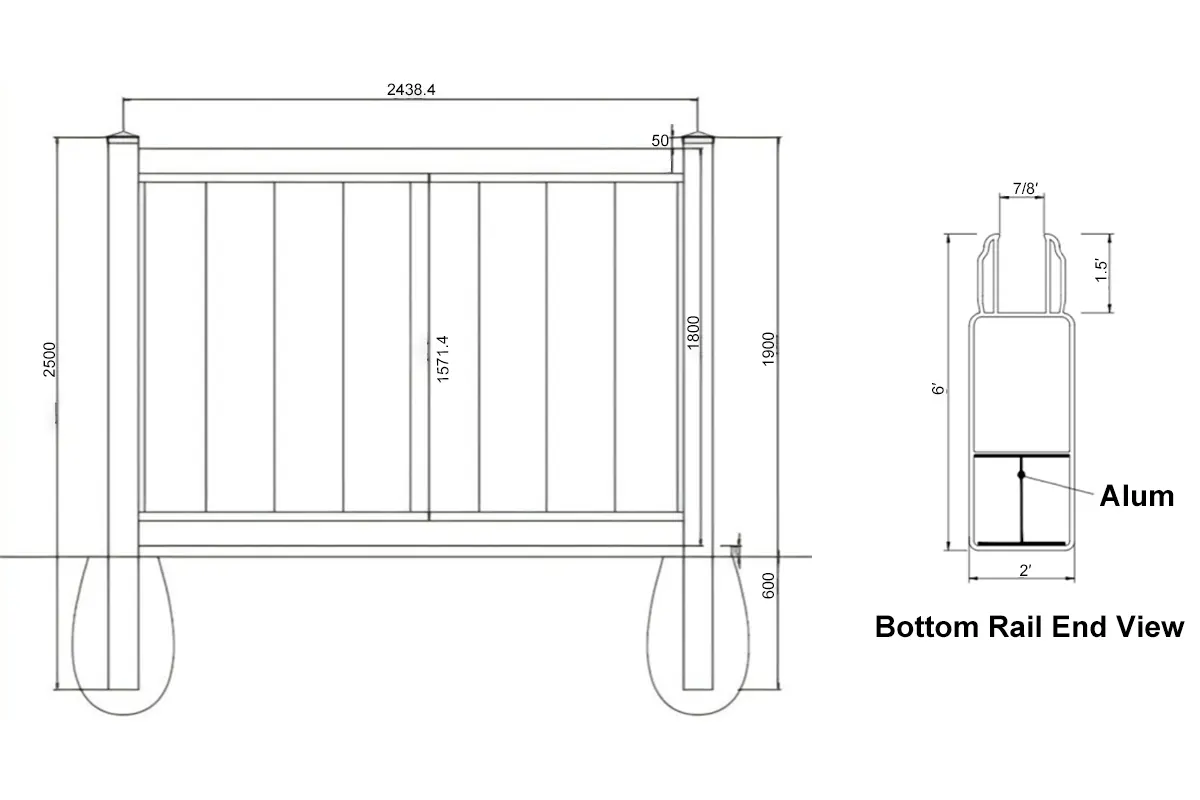

| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| U-Channel | 1495 | 1.2 | 2 |
| Panel | 287×22.3×1565 | 1.3 | 8 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.
The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.
Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.
According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.
Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.
Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.
Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.
Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.
 |
 |
 |
 |
