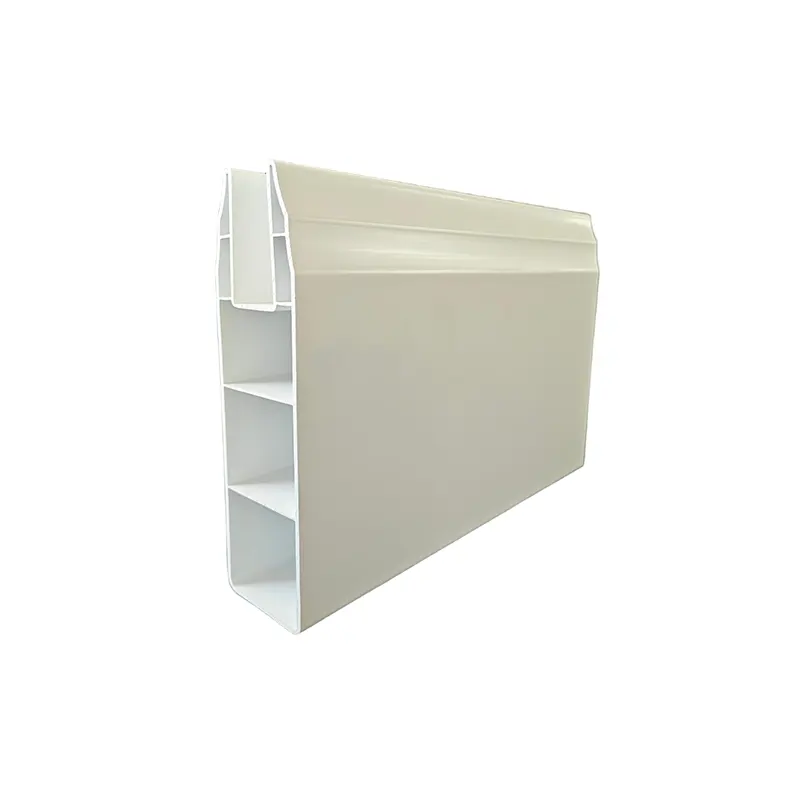

7″ x 2″ White Vinyl Fence Slotted Rail

Our 7″ x 2″ White Vinyl Fence Slotted Rail is specifically designed to complement our PVC privacy fence series. Similar to our 6″ x 2″ White Vinyl Double Slot Rail and 6″ x 2″ White Vinyl Fence Slotted Rail, it features a unique single-groove design and distinctive dimensions. Perfect for residential areas or tranquil gardens, it adds both security and aesthetic appeal to your space.

It features a U-shaped connector design, ensuring a secure and reliable connection between rails. With a cross-section length of 177 mm, a width of 50.8 mm, and a wall thickness of 2.2 mm, this rail is robust and durable. Furthermore, two reinforcing ribs, each 1.4 mm thick, are integrated into the rail’s interior, further enhancing its stability and load-bearing capacity.

We use high-quality vinyl material to manufacture this fence rail. This material offers excellent weather resistance, requires no painting, staining, or sanding, and is effectively resistant to insects and corrosion, achieving a perfect balance of aesthetics and practicality.

Installation is simple and convenient. Simply slide the fence panels or pickets into the rail’s groove and align them; no additional fasteners are required. This clever design also prevents the rail from sliding out of the fence post after installation, making your fence more stable.

We understand your individual needs, and this rail can be precisely cut to your specifications, allowing for easy customization. It is also available in various sizes and colors, enabling you to create a unique fence design.

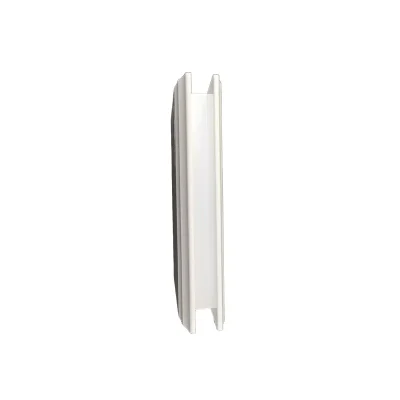

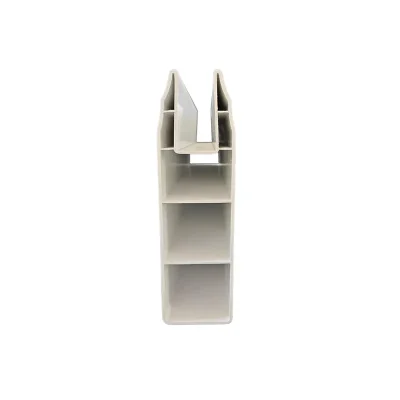

Vinyl Fence Slotted Rail Detail

Vinyl Fence Slotted Rail Specification

Vinyl Fence Slotted Rail Related Accessories

3 Pieces White Vinyl Fence Panels	Rectangle White Vinyl Fence PVC Picket	External Flat Post Caps	White Gothic Vinyl Fence Post Caps

Vinyl Slotted Rail Production Process

Raw Material Mixing

PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.

Extrusion

The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.

Cutting

Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.

Surface Treatment

Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.

Quality Control

Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.

Packaging

Pack the qualified PVC post components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.

Vinyl Fence Slotted Rail Advantages

• Structural Design: U-shaped connector design ensures a secure and reliable connection, preventing the crossbeam from sliding out of the fence post after installation.
• Dimensions and Strength: Cross-section length of 177 mm, width of 50.8 mm, and wall thickness of 2.2 mm; features two internal reinforcing ribs with a thickness of 1.4 mm for added strength and durability.
• Customization Capabilities: Can be cut to your specifications, offering a variety of sizes and colors for personalized customization.
• Material and Weather Resistance: Made from high-quality vinyl material with excellent weather resistance, capable of withstanding various harsh weather conditions and maintaining its aesthetic appeal over time.
• Easy Installation: Simply slide the fence panels or slats directly into the crossbeam groove for alignment; no additional fasteners are required. The design also effectively prevents the crossbeam from sliding out of the post after installation.

Vinyl Fence Slotted Rail Application

• Privacy Fencing: Channel beams can be combined with vinyl fence panels to create a sturdy privacy fence, protecting homes from outside views and providing a safe and private space.
• Semi-Privacy Fencing: By adjusting the spacing between the fence panels, a semi-privacy fence can be created, offering a degree of privacy while maintaining airflow and visibility.
• Decorative Fencing: White vinyl fencing is aesthetically pleasing on its own and can be used as decorative fencing to beautify yards, gardens, or pool areas.
