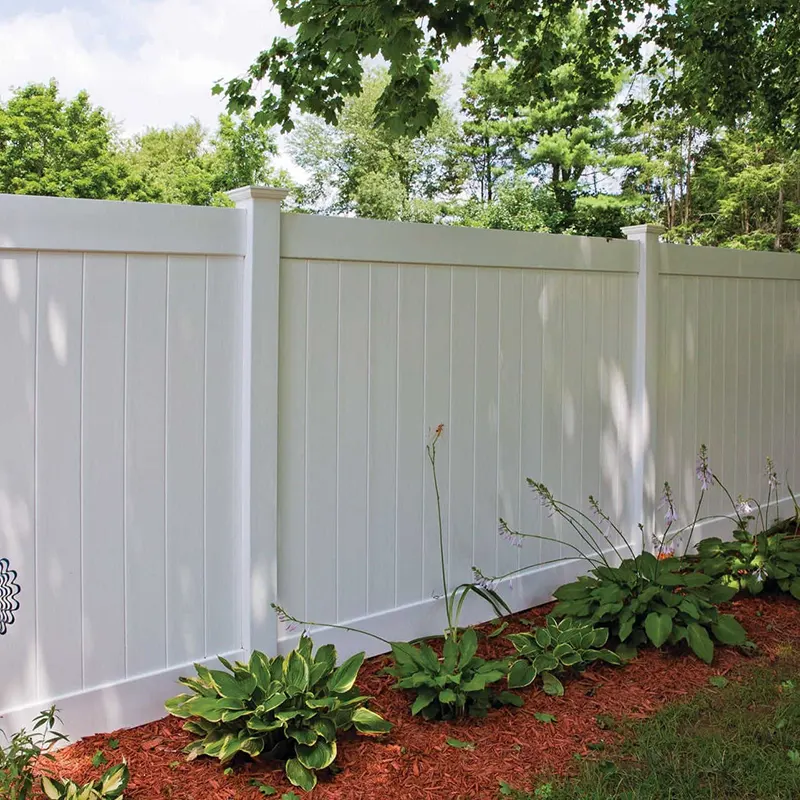

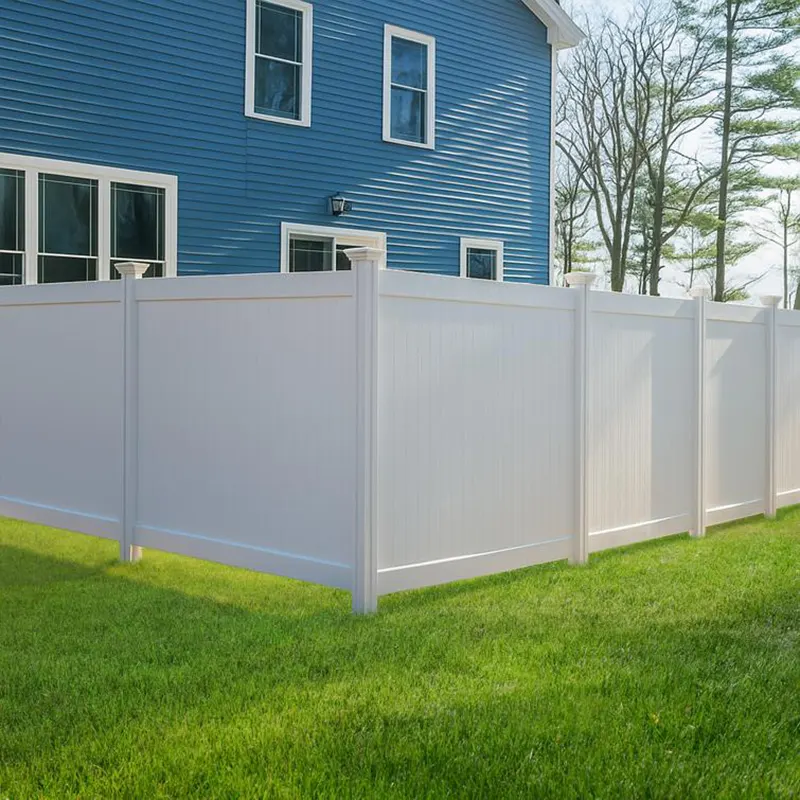

If you’re looking for a privacy fence that’s both beautiful and functional, our 7-foot high double-track white vinyl privacy fence panels are an excellent choice.
Our fence is made of high-quality vinyl. Vinyl is a high-performance polymer with excellent stability and durability. Compared to traditional wooden or iron fences, vinyl will not rust, rot, or be infested by insects, meaning you don’t need to worry about natural elements or pest infestations, significantly saving on later maintenance costs and effort.

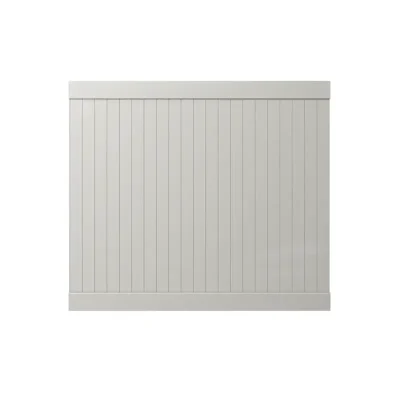

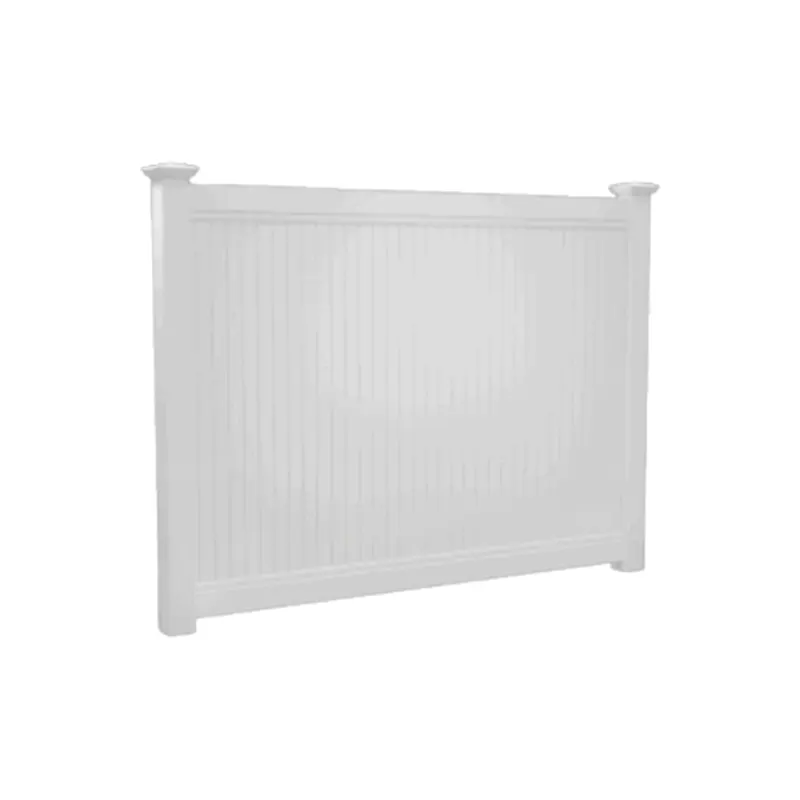

Our fence utilizes advanced extrusion molding technology. This ensures dimensional accuracy and surface flatness, and also results in a dense and uniform internal structure, enhancing its overall strength and stability. Similar to the 5ft Tall White Full Privacy PVC Fence, each panel of our 7ft full privacy PVC fence measures 287 × 22.3 × 1765 mm, with a set containing 8 panels. The top rail, middle rail, and bottom rail measure 50.8 × 152.4 × 2388 mm. The 7ft height provides excellent privacy and effectively blocks outside views. The 2 Rails design further enhances the fence’s robustness and stability.

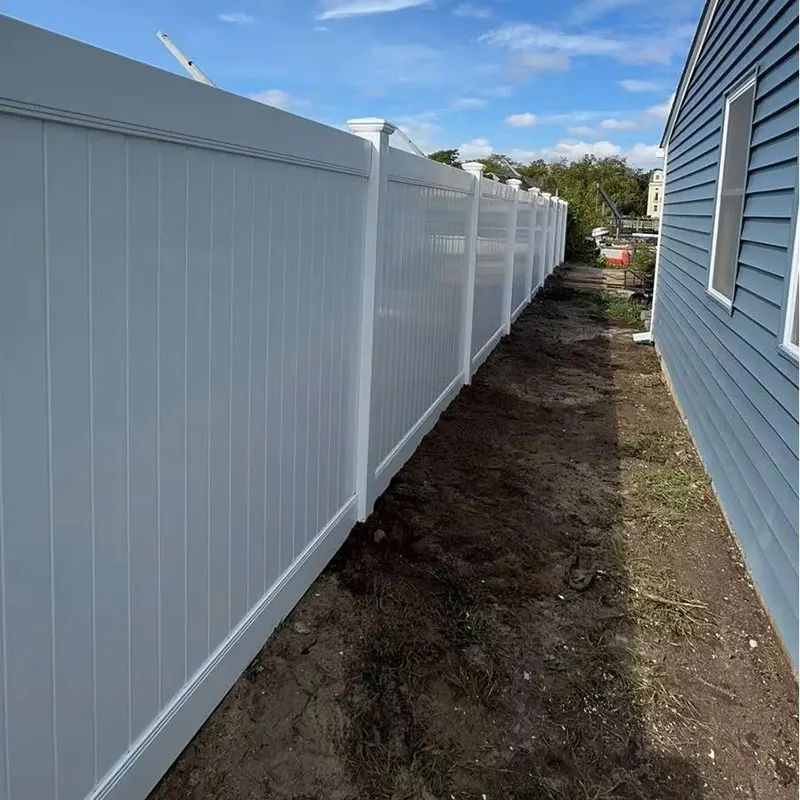

The white exterior is simple and elegant, blending seamlessly with various architectural and landscape styles. Its excellent weather resistance, impact resistance, and corrosion resistance allow the fence to be used for a long time in various harsh climatic conditions, providing you with durable and reliable protection. Our 7ft full privacy PVC fence panels pair beautifully with vinyl gates and are widely used in residential and commercial settings.
As a professional fencing supplier, we offer a wide variety of privacy panels and related accessories. In addition to standard sizes, our fencing panels come in different heights, widths, and styles, allowing you to easily choose the perfect fit for your needs. Furthermore, besides white panels, we also offer custom color services to make your fencing unique and reflect your individual personality.

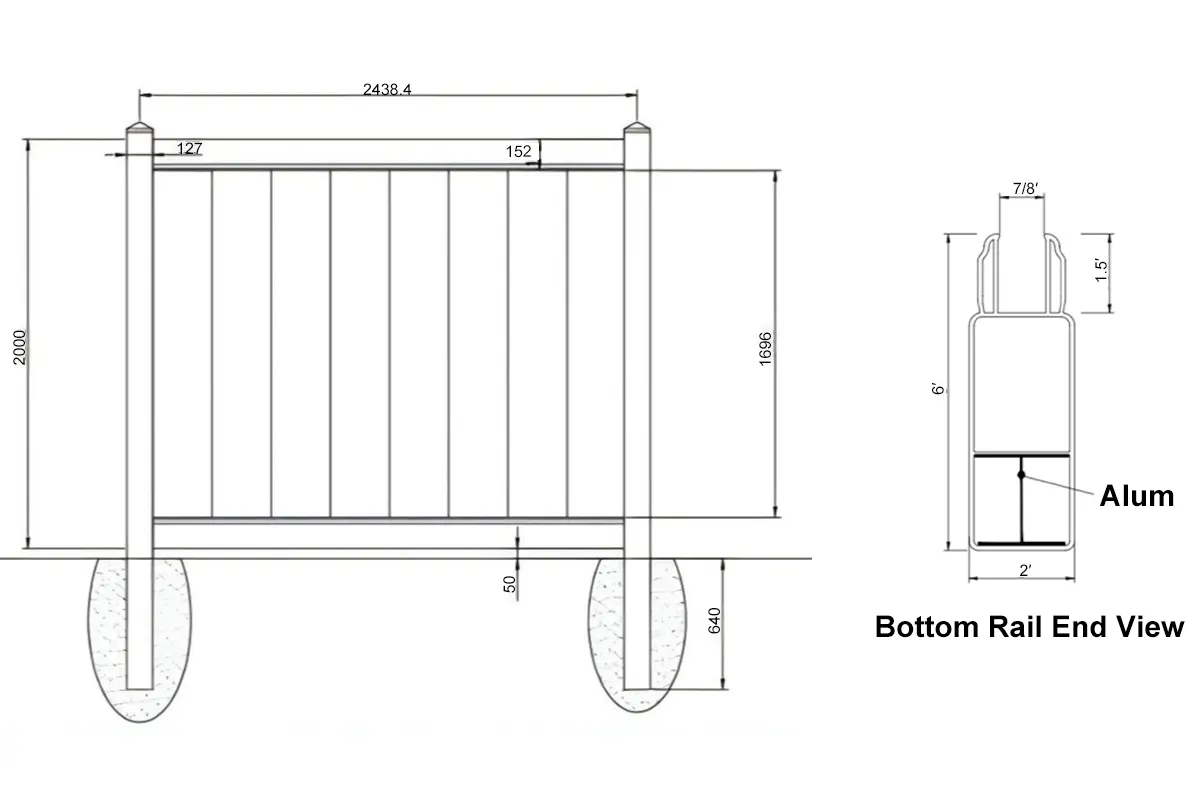

| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| U-Channel | 1695 | 1.2 | 2 |
| Panel | 287×22.3×1765 | 1.3 | 8 |
| Alum | 2388 | 1 | |
| Post | 127×127×2740 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.
The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.
Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.
According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.
Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.
Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.
Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.
Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.
 |
 |
 |
 |

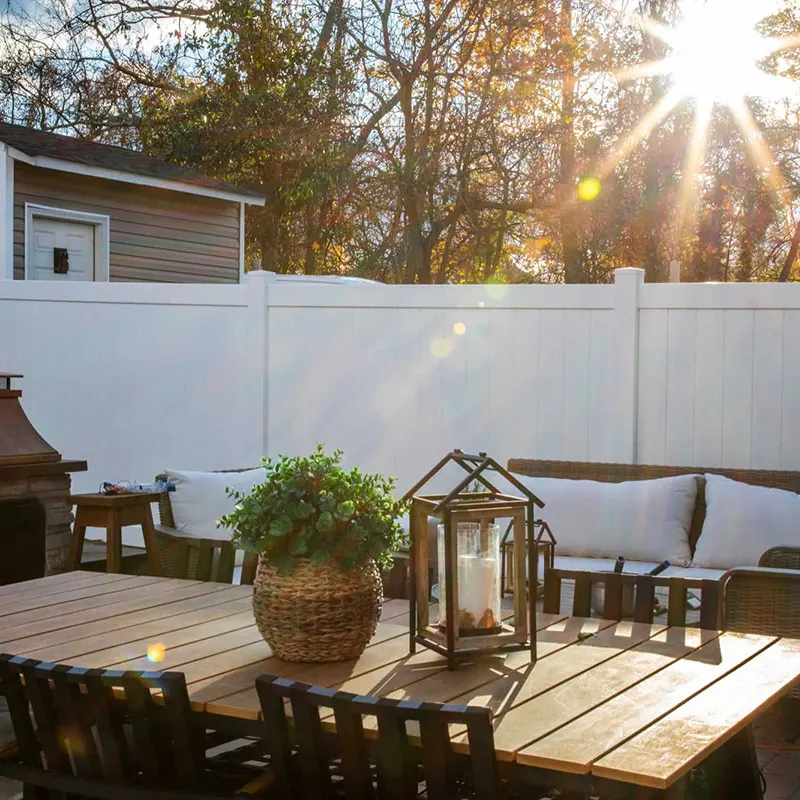

Privacy Assurance: Standing at 7 ft tall, our full-privacy fence is the perfect solution for safeguarding your backyard privacy. It effectively blocks the prying eyes of neighbors, enabling you to unwind freely in your personal space.
Area Definition: This fence clearly demarcates different zones in your outdoor area, such as the garden, vegetable patch, pet play area, and the main yard, bringing order and organization to your property.
Aesthetic Appeal: With a classic white finish or the option for custom colors, it adds a touch of elegance to your yard, significantly enhancing the overall curb appeal of your home.
Security Enhancement: It serves as a reliable safety measure, preventing children and pets from wandering off, ensuring a secure environment for your family and furry friends.
