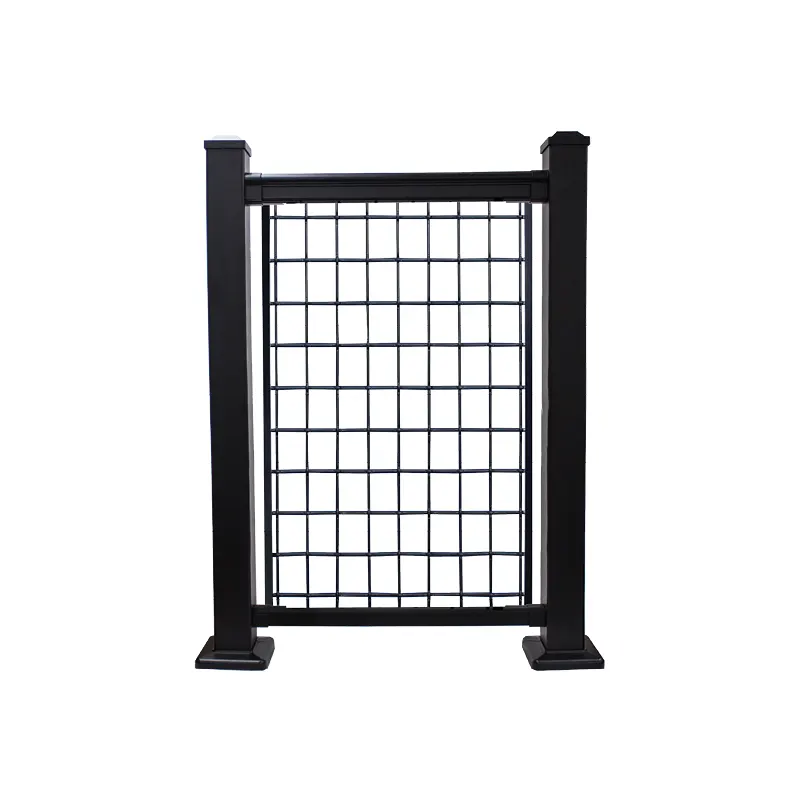

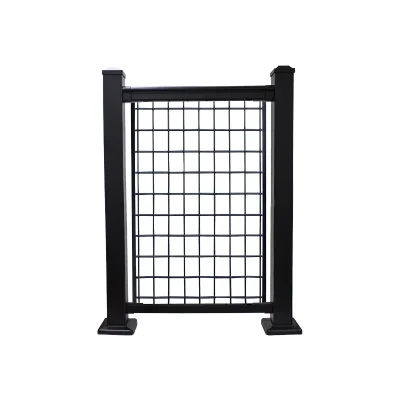

Combining robust protection, high installation efficiency, and sleek modern design, the Aluminum Flat Top Infill Railing with Mesh Panel is a premium safety railing solution for both residential and commercial applications. It is ideal for balconies, terraces, courtyards, outdoor walkways, and pool enclosures.
Built with high-grade aluminum alloy, the main frame offers exceptional structural strength while remaining lightweight. The infill features heavy-duty welded steel wire mesh, finished with a premium powder coating for superior weather and corrosion resistance.
The core mesh panels are factory pre-assembled, significantly reducing job-site labor costs and accelerating project timelines. Featuring sleek black square aluminum posts, the clean, minimalist lines complement any contemporary architectural style.
Top and bottom rails connect to the mesh panel via high-strength compression connectors, delivering uncompromised stability for daily use. This modular design also allows for effortless disassembly, component replacement, and system re-configuration.

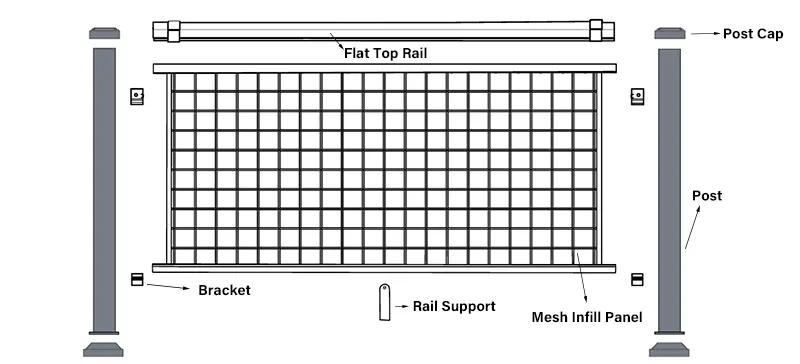

Flat Top Infill Railing with Mesh Panel Detail

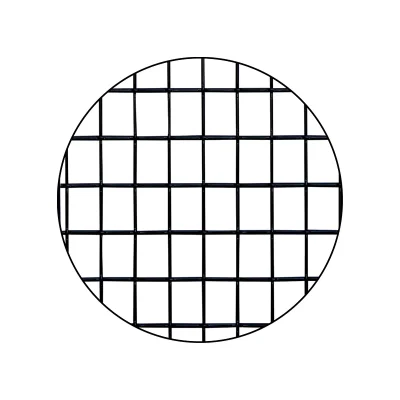

Welded Construction: Features a robust welded panel with an embedded design for enhanced durability.
Pre-assembled: The mesh panel is fully assembled prior to leaving the factory, ensuring quality and consistency.
Connection Strength: Top and bottom rails are securely attached to the mesh panel using sturdy brackets.
Aesthetic Appeal: Designed with sleek black square posts and clean lines for a modern look.
Rail Support: Includes rail support for added stability.
Aluminum Infill Railing with Mesh Panel Specification
FDR407001
FDR407002
FDR407003
Length
4′
6′
8′
Height
36”
42”
Top Rail Width
2-3/4”
Top Rail Height
2”
Bottom Rail Width
1-7/16”
Bottom Rail Height
1”
Material
Aluminum
Color
Black
Finish
Powder-coated
Flat Top Infill Railing with Mesh Panel Benefits
Weather and Corrosion Resistance: High resistance to weather and corrosion ensures long-lasting performance with minimal maintenance costs.
Sturdy Structure: Built to withstand high foot traffic and meet stringent safety requirements, making it ideal for various environments.
Modular Design: Simplifies installation and future maintenance, resulting in time and cost savings.
Modern Aesthetic: The combination of beauty and functionality enhances the overall quality of any space.
Versatile Applications: Adaptable to a wide range of scenarios, catering to diverse customer needs.

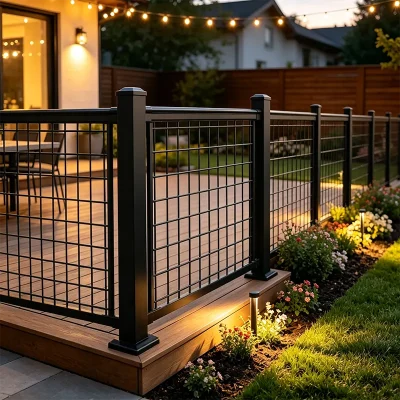

Aluminum Flat Top with Mesh Panel Infill Railing Application
Residential Decks and Patios: Provides safety and support for outdoor areas while maintaining unobstructed views; mesh infill enhances visibility and airflow.

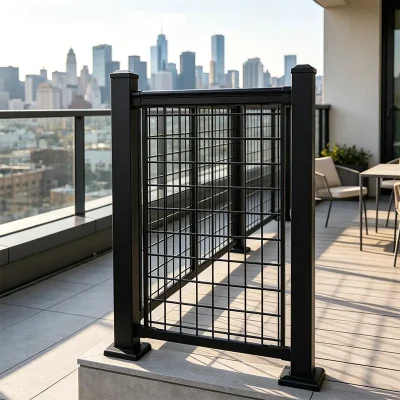

Balconies: Commonly used in multi-story buildings, offering safety without obstructing views.
Staircases: Ideal for staircases, providing secure handholds and safety barriers while maintaining an open feel.
Commercial Buildings: Enhances the aesthetic and safety of outdoor spaces in office buildings, shopping centers, and restaurants.
Pool Areas: Mesh infill creates a safe barrier around pools, allowing for clear visibility.
Walkways and Pathways: Installed in parks, gardens, and public spaces to guide pedestrians and improve safety.
Each aluminum railing is wrapped with medium-thickness stretch film to protect the surface from scratches and abrasions during handling.
The packaging team secures each wrapped railing onto a heavy-duty iron pallet to ensure stability during transportation.
Cardboard corner protectors are placed at all four corners to absorb impact and reduce damage risks during loading and shipping.
Heavy-duty packing tape reinforces the entire package, keeping all components tightly secured throughout transit.
For bulk shipments, each product is individually packed in reinforced cardboard boxes to prevent surface damage and maintain finish quality.
We work with established sea freight carriers to ensure stable and timely international delivery, reducing transit risks and shipment delays.
