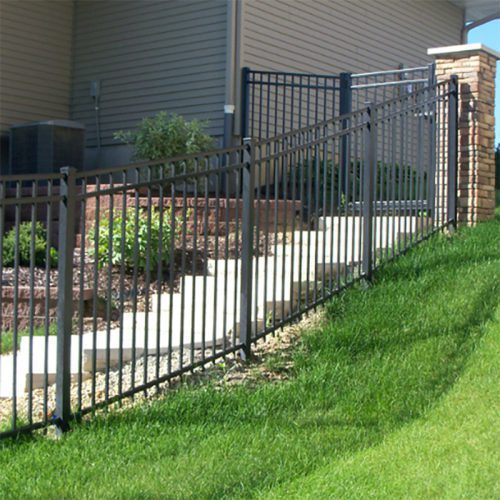

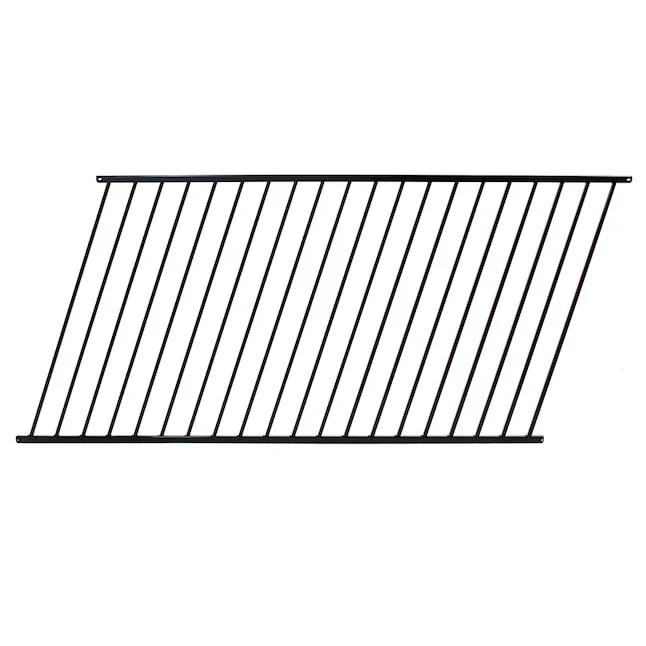

– The rackable design allows the fence to follow the natural curve of the landscape.
– Special powder-coated surface resists corrosion and rust.

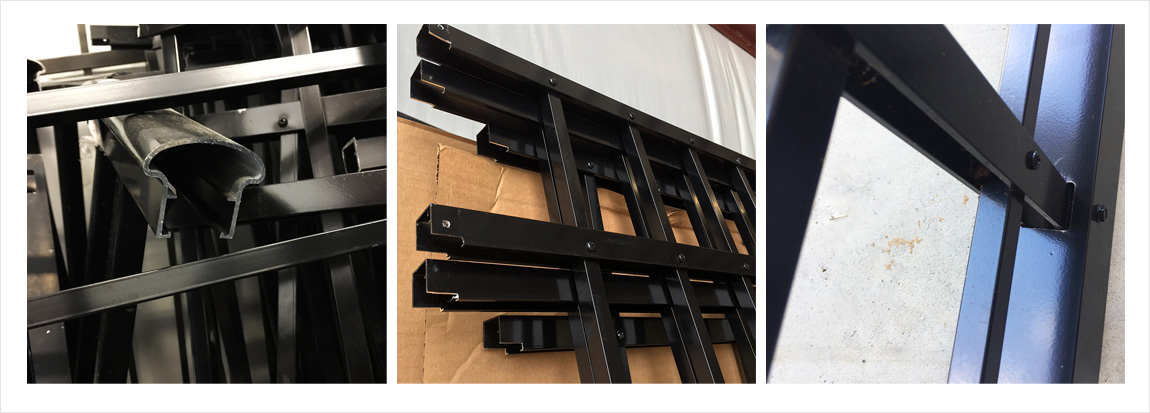

– Hidden fastener system improves surface appearance by hiding panel screws.
– Pre-assembled structures are easy to install.
– Can be customized to meet individual needs and local regulations.
Aluminum flat top fence is a cost-effective solution to the classic look of residential fences that easily complements any home or landscape. Our 2 rail aluminum fence and 3 rail flat top aluminum fence designs feature clean, simple lines with a modern and stylish design that adds to residential and yard beauty.
As one of our many aluminum fencing products, the flat top aluminum fence is very similar to our Flat Top Metal Ornamental Iron Fence Panel. However, they differ in details. You can define boundaries, create security barriers, and enhance your property with the classic style of our aluminum flat top fence. We manufacture using quality craftsmanship and materials, combining the weather resistance, strength, and low maintenance of aluminum. This makes our fences stronger and more durable, so they require little to no maintenance.
This product can be used with our flat top fence gates or other gate products to enhance overall security. It is ideal for any residential environment and is available in a range of sizes. It can also be customized to meet your individual design needs and local codes.
| Panel Size (mm) | 1842.55W x 914.4H | 1842.55W x 1219.2H | 1842.55W x 1371.6H | 1842.55W x 1524H |
| Horizontal Rail Size (mm) | 25.4 x 25.4 x 1.52 （U-Channels opening size 16.51mm） | |||
| Rail | 2 | 3 | ||
| Vertical Picket Size (mm) | 15.88 x 15.88 x 1.2 | |||
| Number of Vertical Pickets | 16 | |||
| Weight | 4.54 | 5.51 | 6.8 | 7.29 |
| Finish | Spraying | |||
 |
 |
 |
 |
| Fence Brackets | Fence Post | Post Caps | Screws |
Our aluminum flat top fence is built to last. The product design is resistant to rot and termite damage and twists and warps caused by harsh weather conditions.
With our easy-to-install non-weld assembly, you can enjoy the benefits of a sturdy, modern 2 rail vs 3 rail aluminum fence without the hassle of traditional welding.
Powder-coated and finished to withstand the harshest weather conditions. Ensuring long-lasting durability and protection.
Our product is designed with low maintenance in mind, so you can enjoy the beauty of your fence without the hassle of constant upkeep.
We use durable materials and workmanship to ensure long-lasting protection and beautiful designs.
With a sleek and modern design, our aluminum flat top fence is the perfect addition to any contemporary home or business.
Our aluminum flat top fences are built to withstand pressure and weathering. Ensuring they will not warp, crack, or splinter over time.
For every batch of incoming aluminum raw materials, we conduct standardized dimension checks. The tolerance of outer diameter and wall thickness is strictly controlled within ±0.02mm, and qualified materials match the specifications marked on product drawings, locking in quality from the source.
Automated cutting equipment is used to cut aluminum pipes to the exact required length per drawings, with cutting length accuracy controlled within ±0.5mm and a cutting pass rate of over 99.5%.
High-precision punching is performed on pre-cut pipes to reserve positions for subsequent welding and assembly. Hole position deviation is controlled within 0.1mm, fully meeting the tolerance requirements of follow-up processes.
We assemble and weld the pipe structure of three-rail flat-top aluminum fencing into a cohesive unit. Automated welding ensures a uniform weld depth of 1.2-1.5mm, and all welds achieve a 99.8% non-destructive testing pass rate, guaranteeing overall structural stability.
An eco-friendly chromium-free passivation process is applied to form a uniform dense oxide film (0.1-0.3μm thick) on the aluminum surface. This increases the adhesion of subsequent powder coating by more than 30% compared with untreated surfaces.
We use high-quality epoxy-polyester hybrid powder for coating, cured at a constant high temperature of 180-200℃ to form a uniform 60-120μm thick coating. The finished product can pass over 1000 hours of neutral salt spray testing, delivering significantly improved rust and corrosion resistance.
Every finished aluminum fence goes through full-factor inspection, covering structural strength, material wall thickness, and powder coating thickness, with all unqualified products eliminated offline.

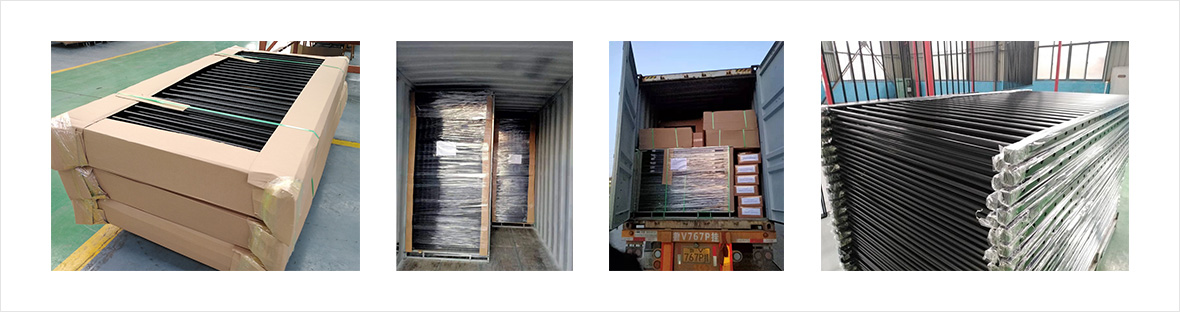

We use a combined packaging solution of stretch film, reinforced square cardboard corner protection and strapping tape to secure the product.
 |
 |
 |
 |
A: The 2 rail style is typically suitable for lower-level fencing requirements, offering basic security and aesthetic appeal; the 3 rail style, on the other hand, provides enhanced security and structural strength, making it suitable for locations requiring greater protection.

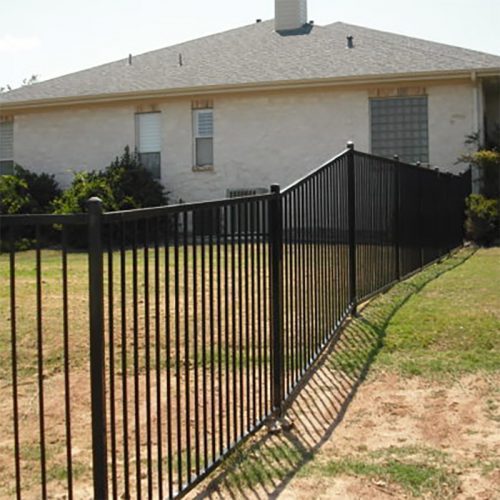

A: Yes, our flat-bottom aluminum fences are designed to “rack,” meaning they can follow the contours of a sloped yard to a certain degree. The amount of racking varies by product line. For very steep slopes, “stepping” the fence (creating sections at different heights) may be necessary. Consult with our sales team to determine the best solution for your specific terrain.
A: The initial cost of an aluminum fence is often higher than wood, but comparable to or slightly higher than vinyl. However, when considering the long-term costs, aluminum can be more cost-effective due to its low maintenance requirements and long lifespan. Wood requires regular staining or painting, and vinyl can become brittle over time.
A: Fast response, free samples! We can prepare samples for you within 7-10 business days. You only need to pay for the shipping costs.
A: Efficient delivery to ensure your project stays on schedule. Our modern factory has strong production capacity and can flexibly adjust production plans based on your order volume to guarantee timely delivery.
A: We recommend a full container (1×20′) as the standard minimum order quantity to maximize shipping efficiency and ensure product safety. If you have specific needs, you are also welcome to inquire about the possibility of smaller orders.
