– High-quality galvanized steel, more durable.
– Steel press point design, improves safety performance.
– E-Coating, Powder-Coating surface treatment process, excellent performance.
– Advanced production technology and equipment, short delivery time.
– Available in a variety of sizes, and can be customized according to customer requirements size, material, and process.
– Bulk orders can enjoy special prices.

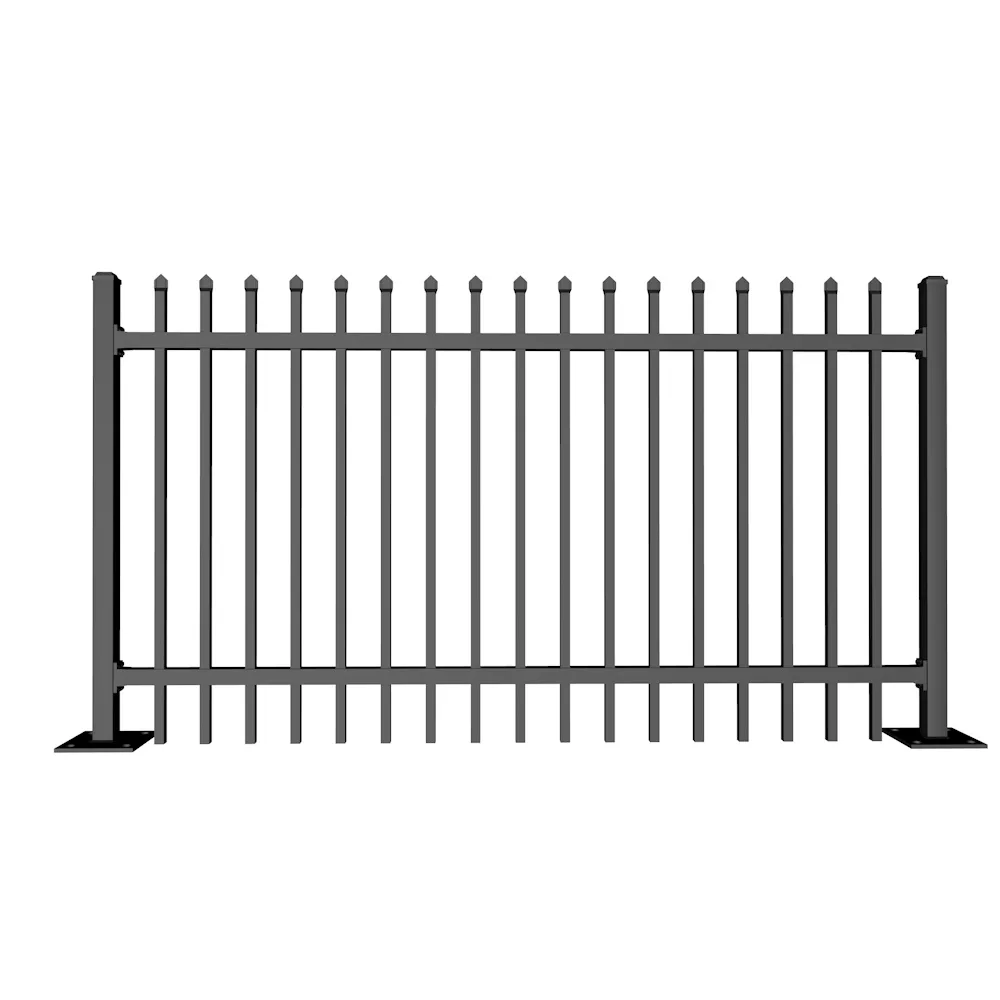

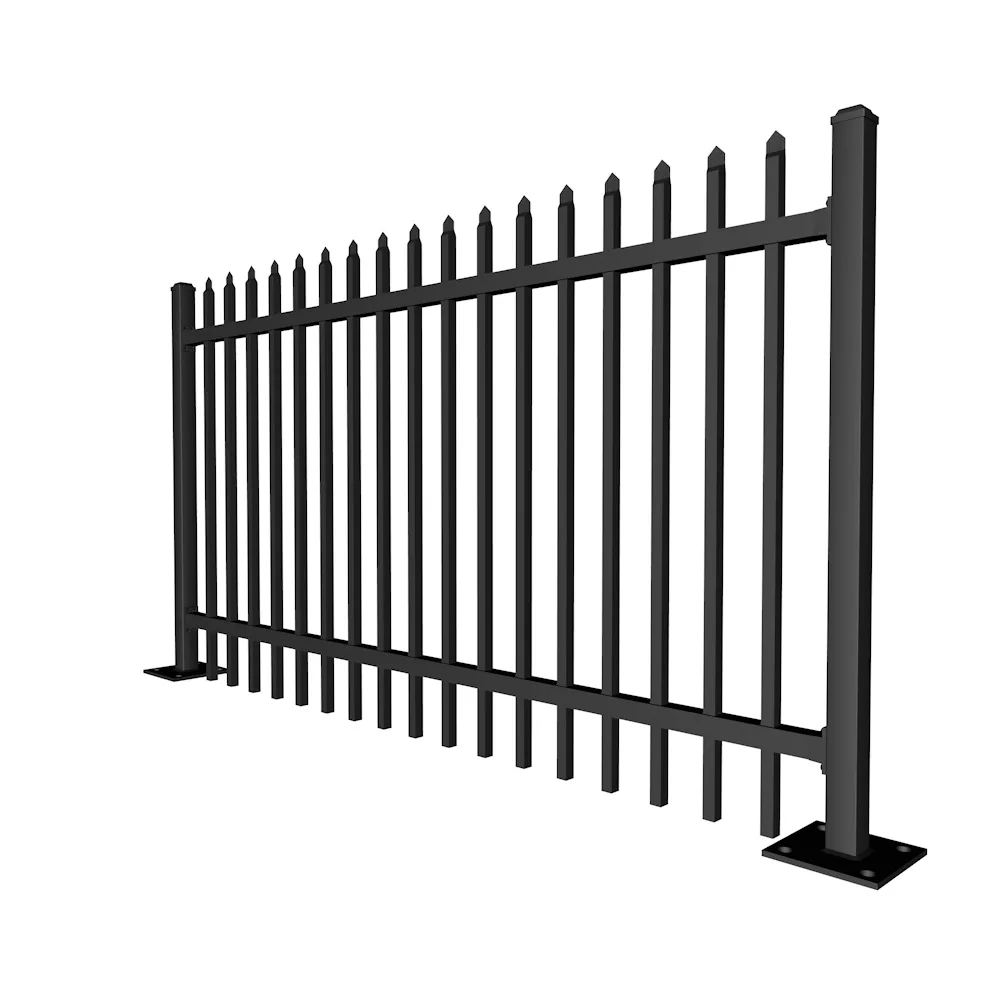

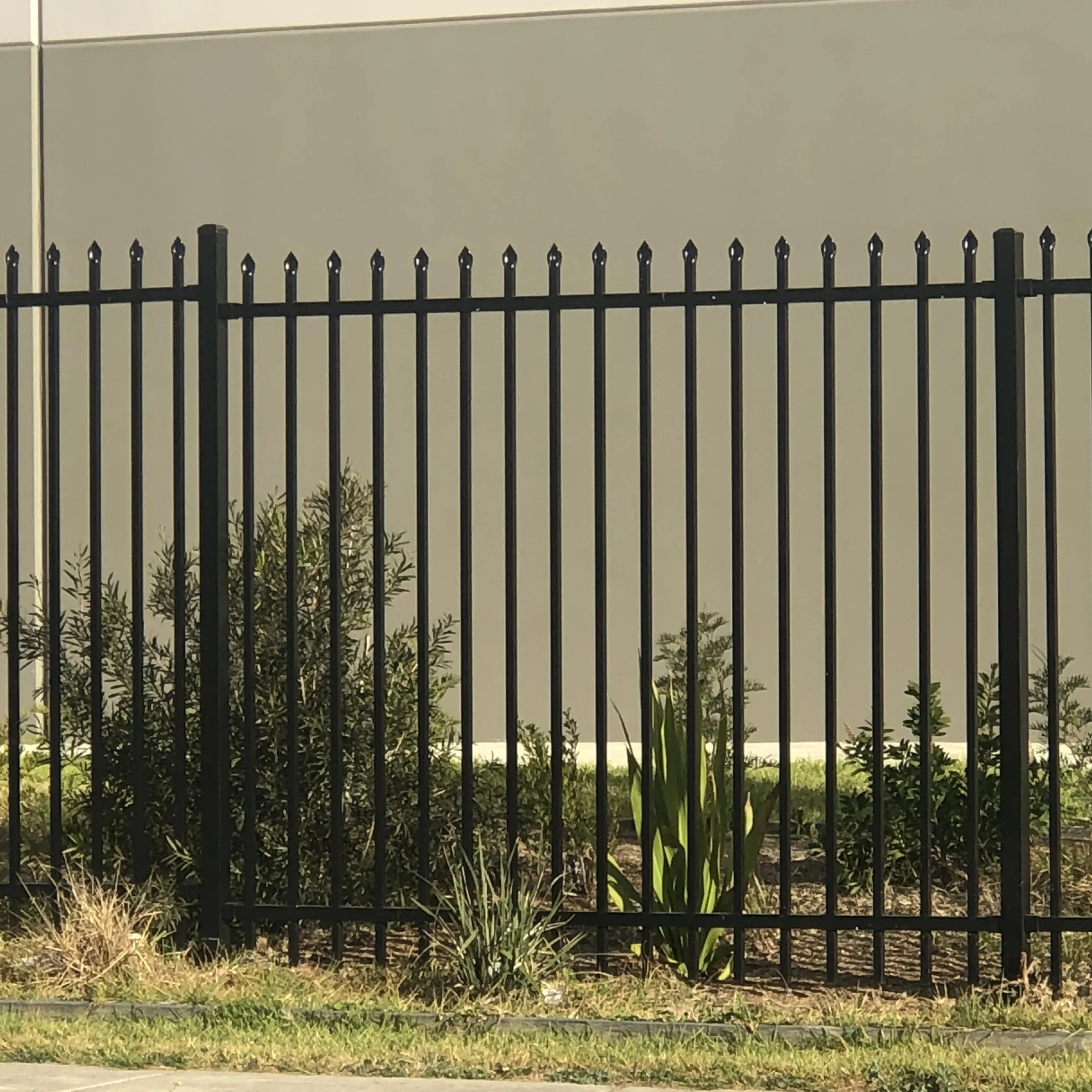

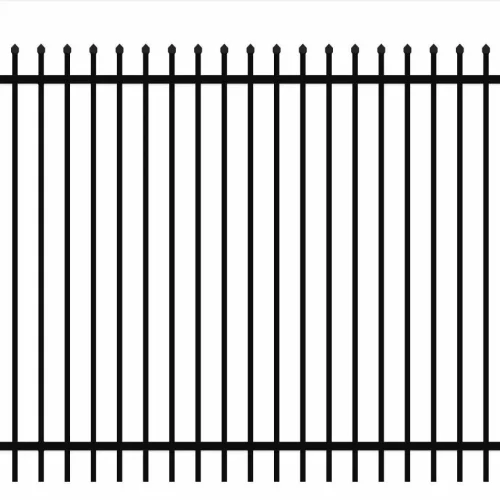

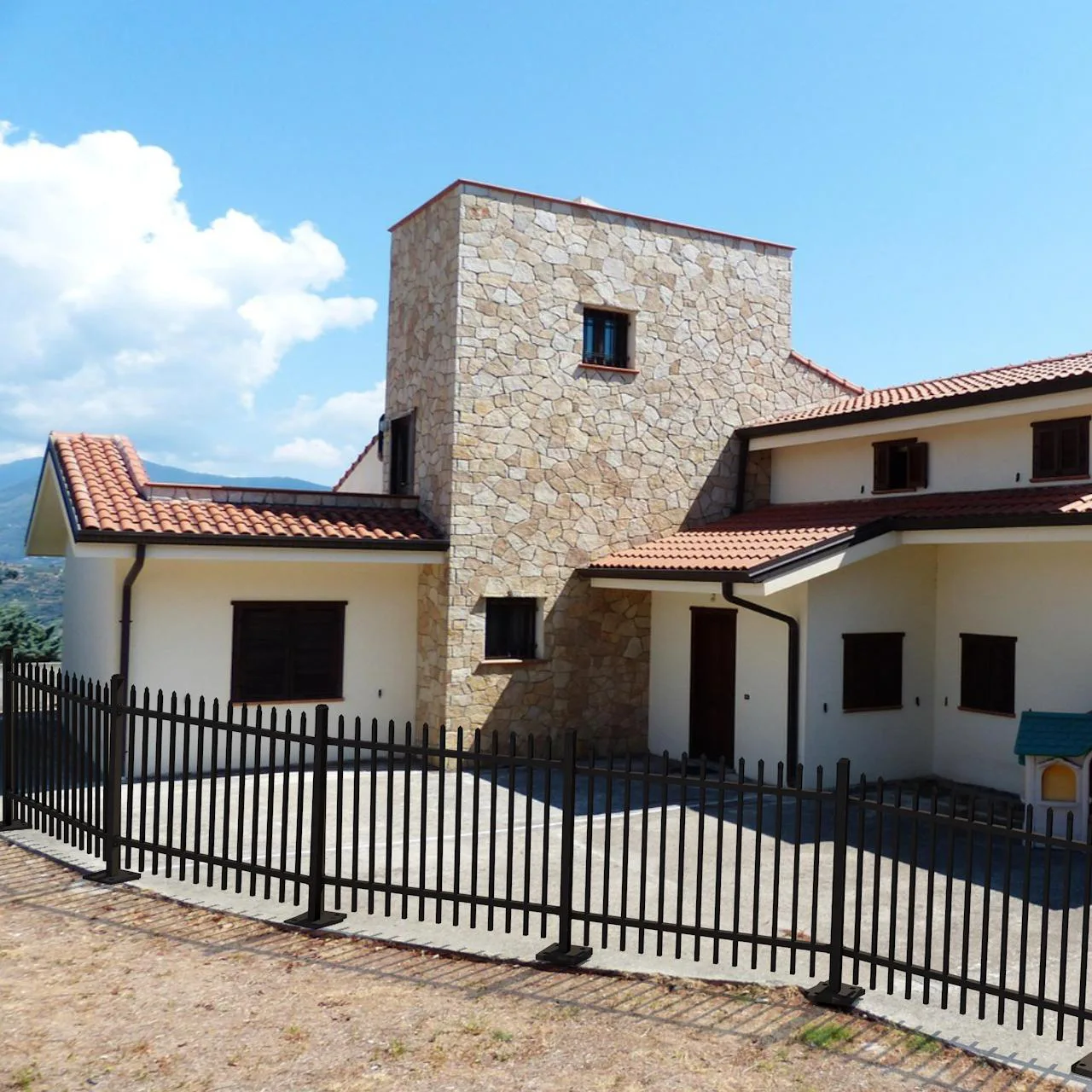

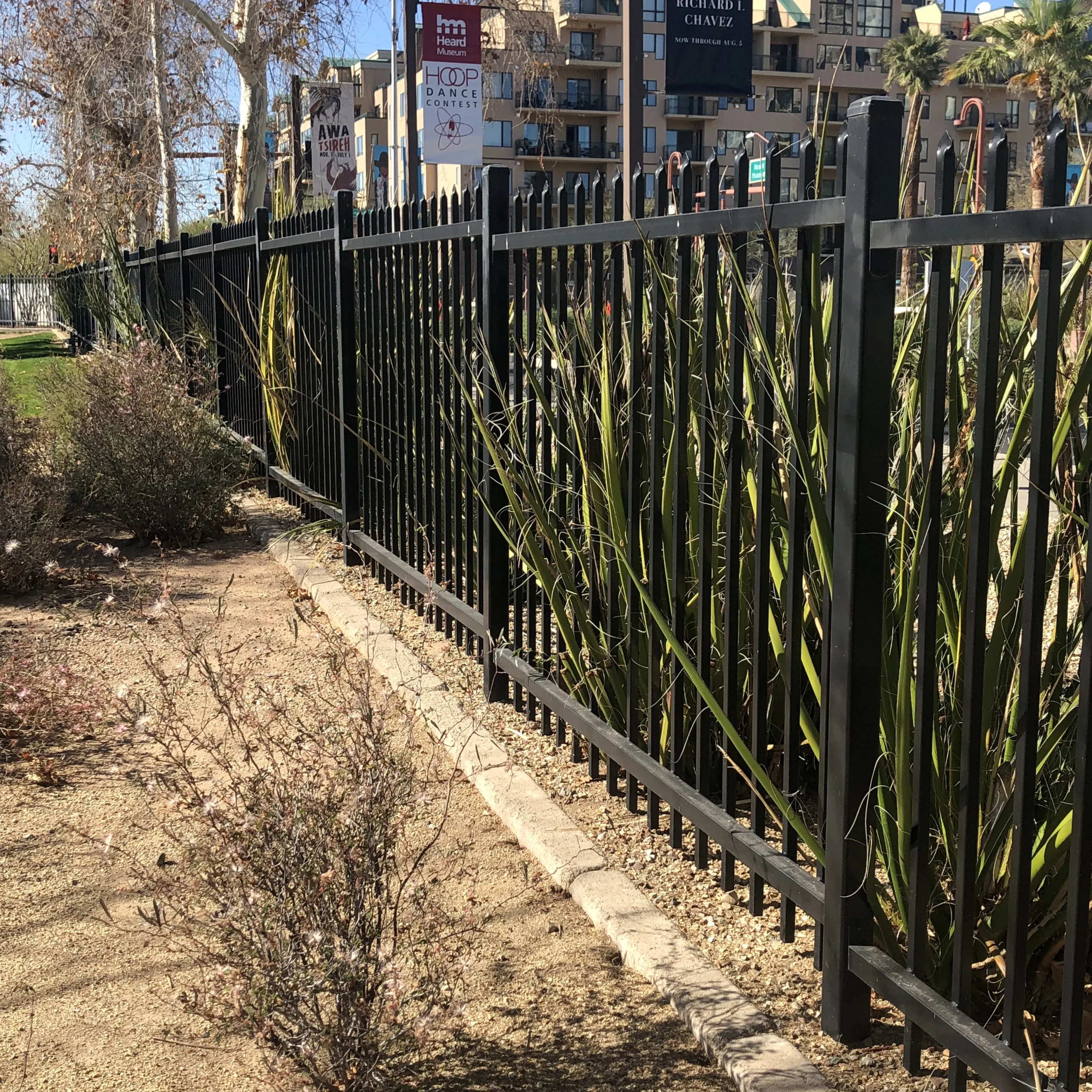

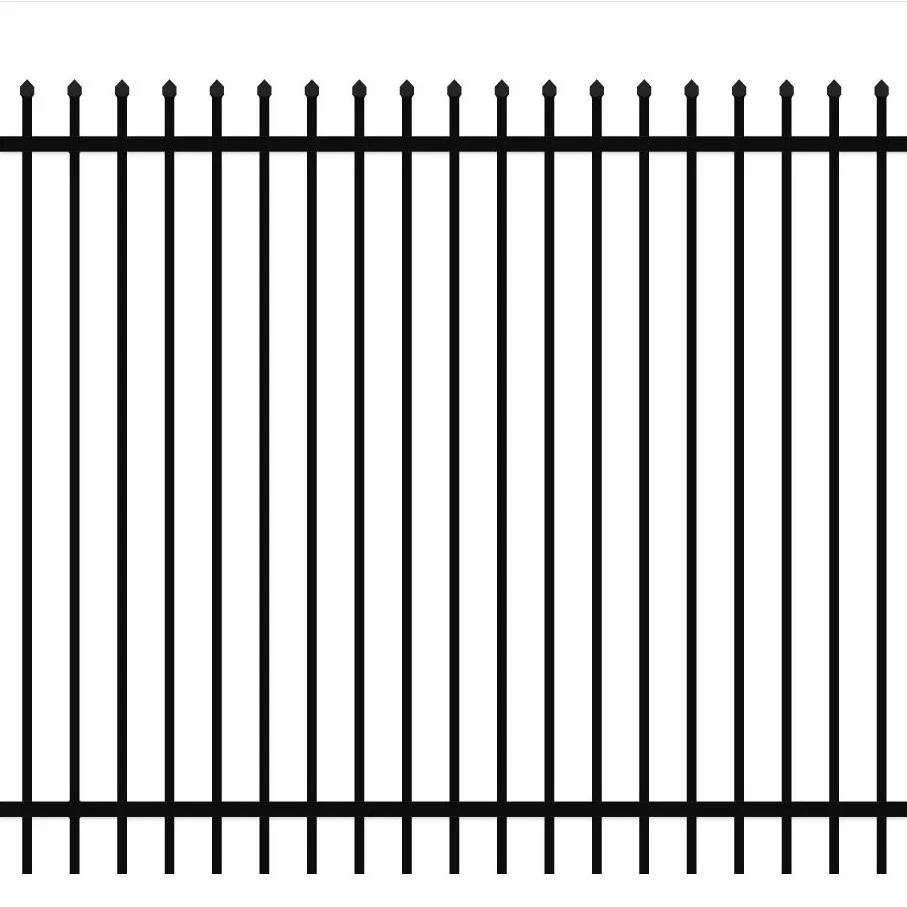

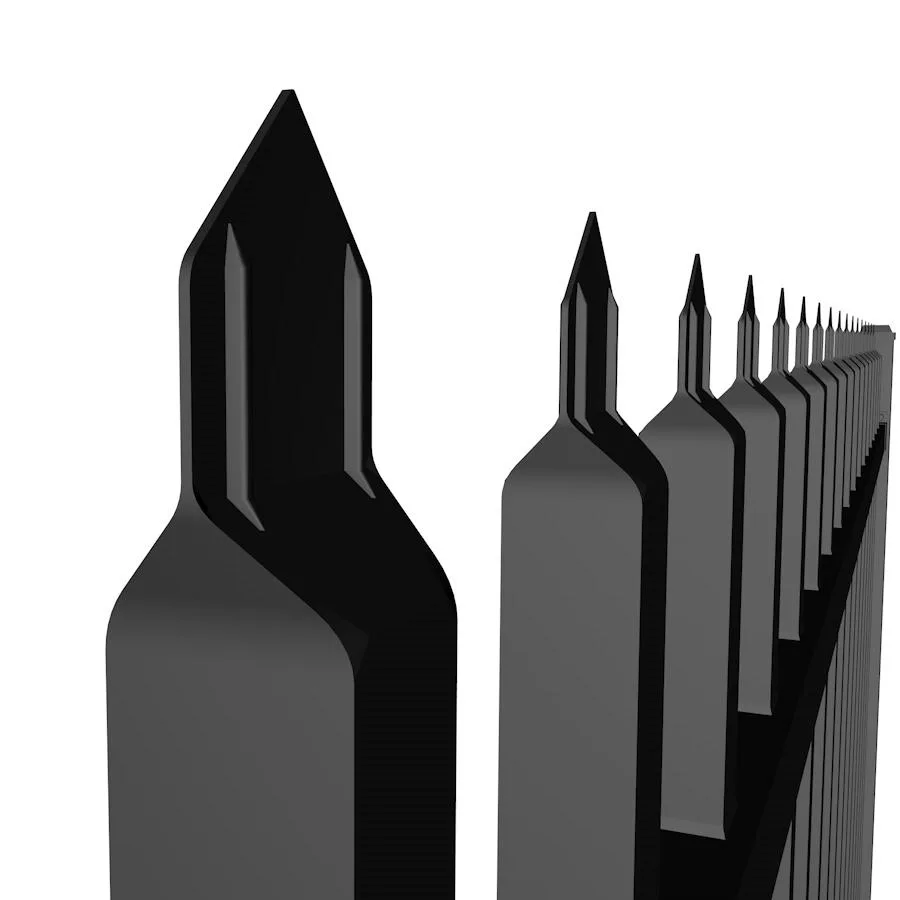

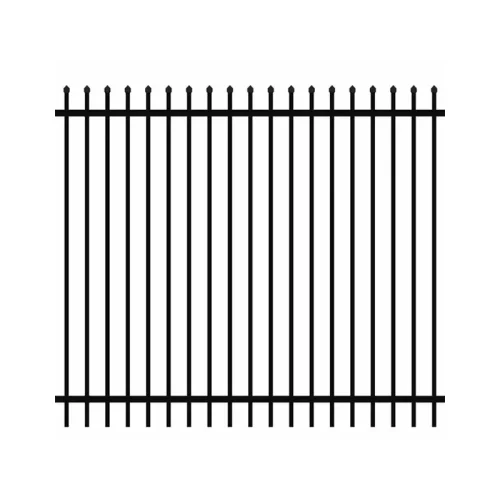

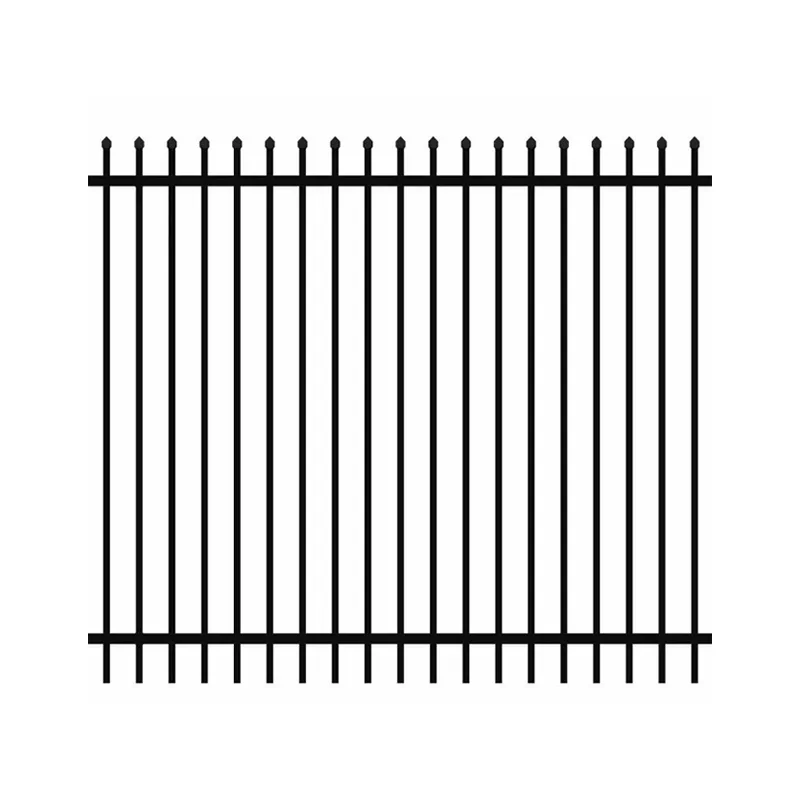

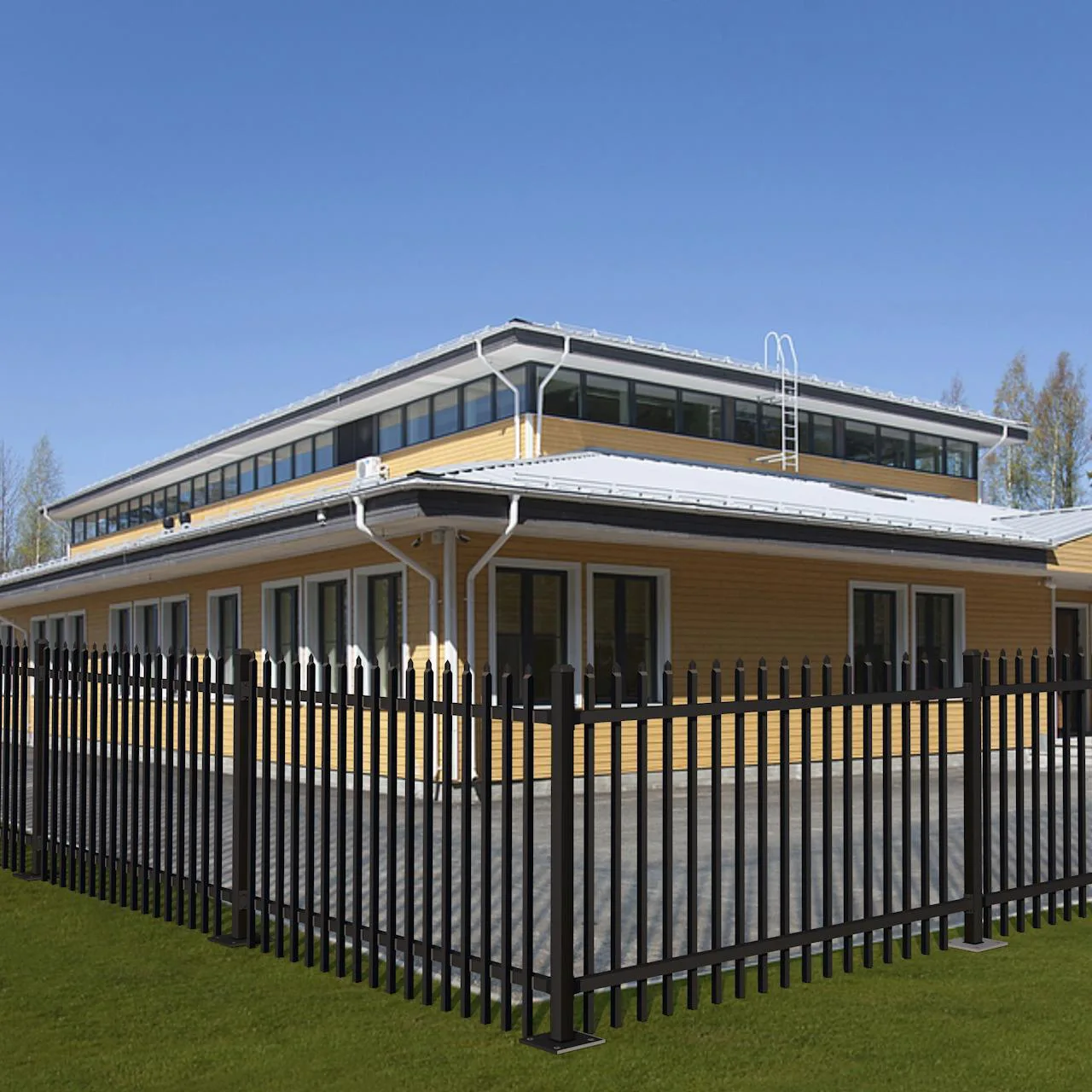

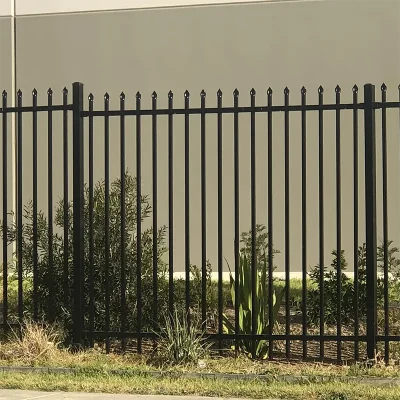

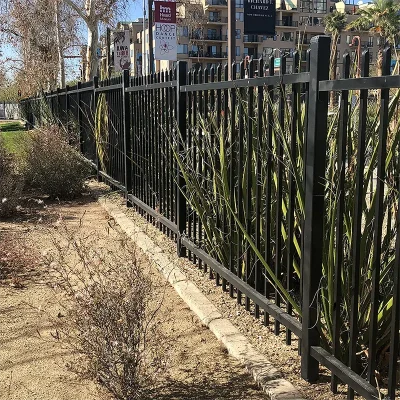

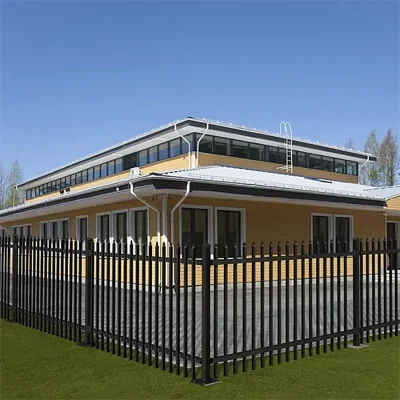

The 2 Rail Steel Press Point Fence is a product within our steel fencing series. The top of the fence adopts a Press Point design. This spear-like shape plays a good deterrent role and is widely used in residential, gardens, pools, schools, and commercial fields.

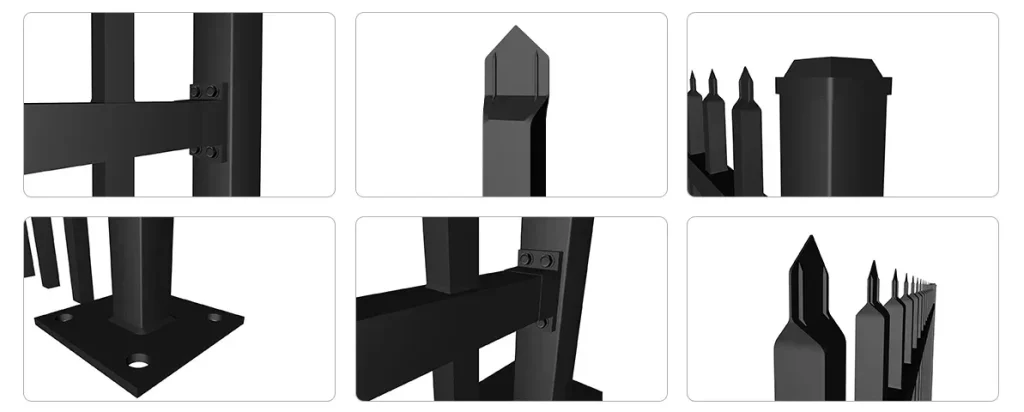

Our Steel Press Point Fence is made of high-strength galvanized steel, which has excellent durability and service life. In addition, we use E-Coating and Powder-Coating surface treatment methods, which have excellent anti-corrosion and anti-rust capabilities. It can ensure low maintenance performance even in harsh weather conditions. The security fence is connected by full welding. With our fence posts, fence brackets, and Steel Press Point Gate, the overall defense performance is greatly improved.
To meet diverse needs across bulk distribution and different project types, we cater to both wholesaler inventory demands and custom project requirements. We maintain stable long-term inventory of three popular standard heights: 46”, 58”, and 70”, with a 94” standard panel width, supporting consistent bulk order quality and quick shipment for fast inventory replenishment and urgent on-site construction needs.
We support full flexible customization, including adjustments to size, color, and surface finish requirements of wholesalers and distributors. This flexibility allows you to perfectly tailor the fence to any end project’s security, aesthetic and regulatory requirements, helping you win more project bids and satisfy your end customers. We also offer volume-based preferential pricing and dedicated account management for long-term B-end partners, wholesalers and suppliers, to support your stable business growth.
 |
 |
| Rail | 2 | ||
| Material | Steel | ||
| Width | 94” | ||
| Height | 46” | 58” | 70” |
| Finish | E-Coating, Powder-Coating | ||
| Color | Black, or Custom Colors | ||
 |
 |
 |
 |
| Fence Brackets | Fence Post | Post Caps | Screws |
In addition to this Press Point Fence, we also have other spear top fence products. These products differ from each other in terms of appearance, material, and size:
 |
 |
 |
| Spear Top Rackable Fence | Spear Top Gate | Aluminum Flat Top with Spear Fence |
All incoming pre-galvanized steel pipes are inspected for outer diameter and wall thickness before production. We control outer diameter tolerance within ±0.2mm, to ensure all parameters fully comply with fence drawing requirements and guarantee quality from the source.
Auto-CNC pipe cutting machine is adopted for blanking. Profiles are cut per design requirements to obtain the target length, with cutting length tolerance controlled within ±1mm, ensuring burr-free and non-deforming cut ends.
Punching is processed on cut pipes with customized positioning jigs. We control aperture tolerance within ±0.1mm and hole position deviation within 0.5mm to meet the accuracy requirements of subsequent assembly.

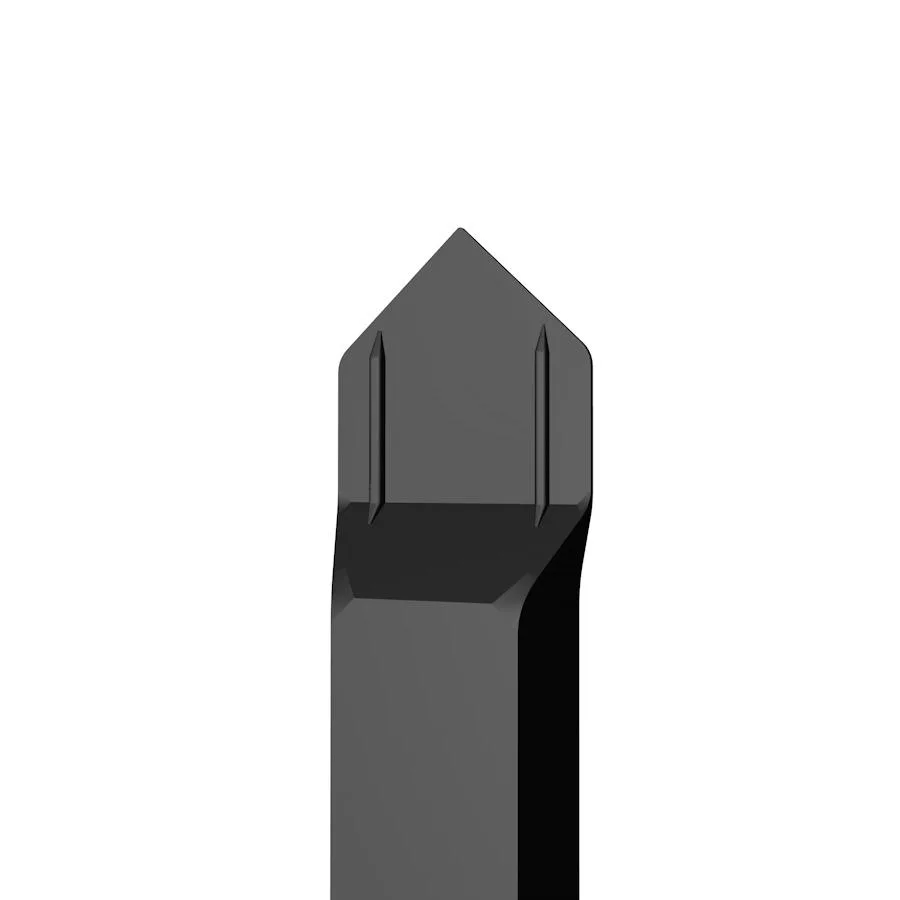

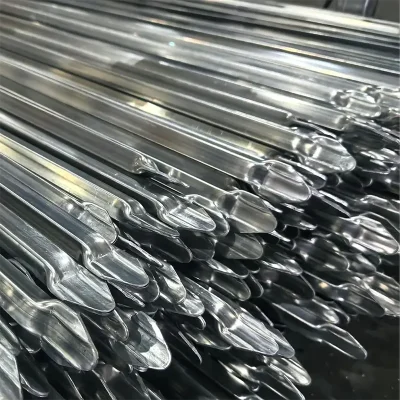

Customized special flattening die and hydraulic equipment are used to flatten the top end of vertical pipes. The flatness tolerance after flattening is controlled within 0.3mm to ensure matching accuracy for subsequent assembly.
We use automated gas shielded welding technology to assemble pre-galvanized steel pipes into fence panel frames. Weld leg size is controlled between 3-5mm, with no weak welding, missing welding or slag inclusion; weld tensile strength reaches no less than 300MPa to ensure solid structural strength of the frame.
We use spray particles at a high speed of 60-80m/s to clean and roughen the workpiece surface. This process completely removes impurities, including rust, oil, and welding oxide scale, laying a good foundation for subsequent coating.
After sandblasting, phosphating treatment is performed to form a uniform phosphating film on the workpiece surface, with film thickness controlled at 1-3μm. The phosphating film itself has certain anti-corrosion capability, and can provide excellent adhesion for paint, powder coating, and other organic coatings, effectively extending the service life of the final coating.
Electrostatically spray epoxy-polyester hybrid powder on the pretreated workpiece surface, then transfer it to a curing oven and cure at 180-200℃ for 15-20 minutes. This process endows the finished product with outstanding rust resistance and corrosion resistance, and delivers a uniform, aesthetic coating.
We carry out full inspection for each finished product, testing pipe wall thickness, structural connection strength, and powder coating thickness. The coating thickness is controlled within 60-120μm to ensure all products meet delivery standards, and unqualified products are blocked before leaving the factory.
 |
 |
 |
 |
A: The main differences between galvanized steel and aluminum press point fences lie in their material properties, which affect their cost, weight, corrosion resistance, strength, and aesthetics. If you live in a coastal area with high salt exposure, aluminum is generally the better choice due to its superior corrosion resistance. If you need a fence to withstand heavy impacts or security concerns are paramount, galvanized steel might be preferable.
A: The pre-welded panels arrive ready-to-install, eliminating the need for complex welding or custom fabrication at the job site. This modular approach allows for quick alignment and securing with basic tools, minimizing errors and enabling faster completion even for crews with varying experience levels.
A: We offer a variety of finishes to enhance the appearance and durability of your fencing, including powder coating, galvanization, and painting. We can match specific colors and provide finishes that are resistant to corrosion and weathering.
A: Typically, we require a full 1*20′ container to ensure safe transport of the products. However, we are flexible and can accommodate smaller orders based on your requirements.
A: We operate a large-scale, in-house manufacturing facility and maintain an inventory of standard sizes and styles, enabling us to offer rapid shipping. The lead time for custom orders may be slightly longer; please contact us directly for specific details.
