– No sharp edges ensuring operator and livestock safety.
– Exquisite welding process ensures strength and durability.
– Hot dip galvanized to maintain quality and ensure corrosion resistance.
– Years of supply experience to serve all types of customers.
– Size, workmanship, material, and style can be customized.
– Special pricing is available for bulk orders.

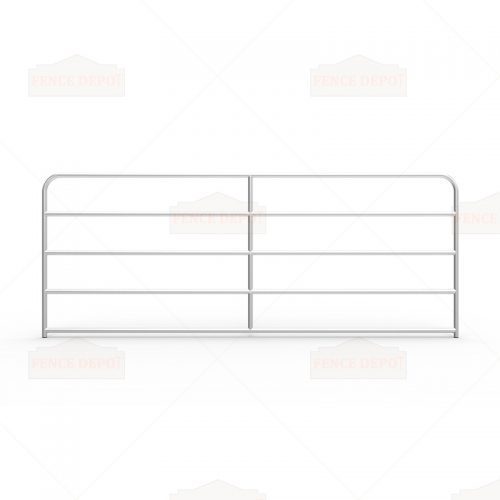

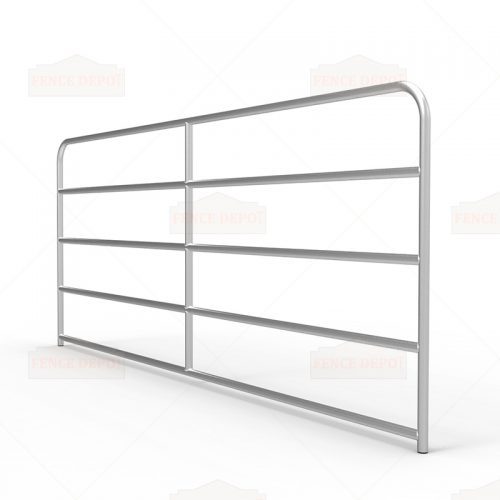

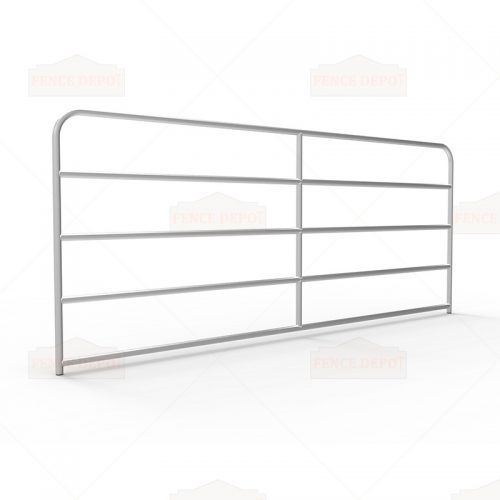

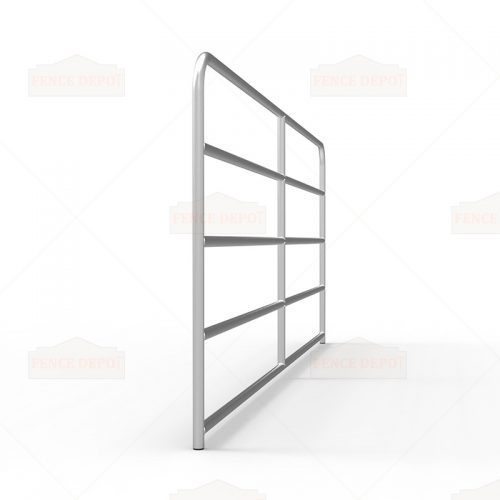

FENCE DEPOT’s 10ft 5-bar metal farm gate is an excellent solution for demarcating areas and protecting your farm. May provide livestock management and ensure human and farm safety.
Farm gates feature a uniform, high-quality pipe construction that provides a durable and strong barrier against unauthorized access to the farm. Made from top-grade galvanized pipe, carefully welded to the adjacent frame using a fully welded process to increase its durability.
The design of the product combines five horizontal columns with one vertical column. The overall frame structure is reasonably designed to increase its stability. The material used in the farm gate is lightweight and durable, making it easier to install and use, and also brings beauty to the farm.
The dimensions of the 10ft 5-bar metal farm gate are 2970mm (9.7ft) long x 1170mm (3.8ft) high. To accommodate different farm sizes, so we have a variety of specifications to choose from. At the same time, the size and craftsmanship of the product can also be customized.
| Stay Type | 5-Bar |
| Height | 1170mm (3.8ft) |
| Length | 2970mm (9.7ft) |
| Mesh Infill | N/A |
| Brace | – |
| Weight | 27 kg |
| Finish | Hot Dip Galvanised & Spraying (optional) |
1. Our 2970mm (9.7ft) x 1170mm (3.8ft) 5-bar farm gates meet high standards and are very popular in the market
2. The pipe used in the gate frame and stay is hot-dipped. It is galvanized inside and outside, so it provides corrosion resistance.
3. Both primer and surface bright zinc paint cover all welds.
4. The 10ft 5-bar farm gate surface is smooth and free of impurities.
5. We prepared the pipe. Then put it on the welded shaping machine (the pipes are hot dipped galvanized if needed), and welded the pipe together.
6. After the production, we will conduct the quality inspection. Ensure that the quality of each product meets standards.
Select high-quality galvanized steel pipe as the primary material to ensure its corrosion resistance and strength. Inspect the material to ensure it meets production standards, including thickness, diameter, and uniformity of the galvanized coating.
Determine the length and quantity of each component according to the design drawings. Use a cutting machine to cut the steel pipe to the required length, ensuring a smooth cut surface and avoiding burrs.
Determine the locations and angles of the pipe to be bent according to the design requirements. Use a pipe bending machine to bend the steel pipe to the desired shape, ensuring accurate bend angles and no cracks.
For components requiring arcs, use specialized cutting tools for precise cutting, ensuring a smooth arc that meets design requirements.
Determine the components and locations requiring stamping. Use a stamping machine to stamp the pipe into the desired shape for subsequent assembly and connection.
Assemble the cut and bent components, ensuring alignment. Weld the components together, ensuring the welds are strong and uniform. Allow to cool after welding.
Clean the welded farm gates to remove any dirt and oxides from welding. Apply zinc to welded joints to create a uniform zinc coating for enhanced corrosion protection.
Fully inspect finished products, including dimensions, weld quality, and coating uniformity, to ensure compliance with standards.
Select appropriate packaging materials based on shipping requirements. Qualified farm gates are packaged using cable ties and pallets to ensure they are not damaged during transportation.
1. Market Popularity:
Our offered 5-bar farm gate has gained huge popularity in the market for its low price and high quality.
2. Corrosion Resistance:
The gate’s frame and stay are fabricated from hot-dipped. Galvanized pipes that offer resistance to corrosion both on the inside and outside.
3. Robust and Durable:
We design our 10ft 5-bar farm gate using 25NB hot-dipped galvanized pipe featuring a 2mm wall thickness, so this ensures that they are robust and capable of withstanding the most rigorous farming environments.
4. Production Process:
The production process involves prepping the pipe, so setting it on a welding shaping machine (galvanized as necessary), and welding the pipe components together.
5. Quality Assurance:
Post-production, we conduct a thorough quality inspection to ensure that each product adheres to our stringent quality standards.
6. Fast delivery:
We use advanced production equipment and technology and are experienced so our production efficiency is higher and our delivery time is shorter.
7. Professional packaging:
The products are packing with steel frame + strapping tape + cardboard to ensure the safe transportation of the products to the greatest extent.
These are the key product features that make our 5-bar farm gate stand out in the market.
