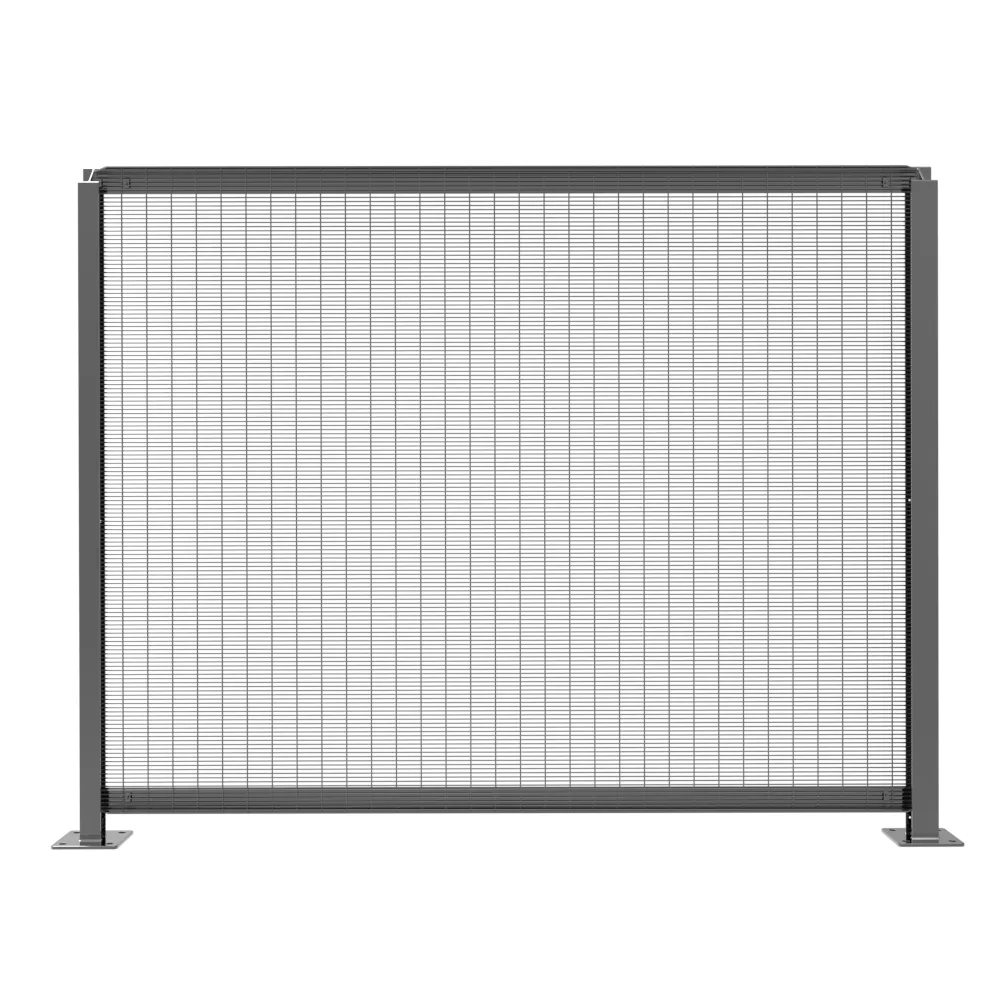

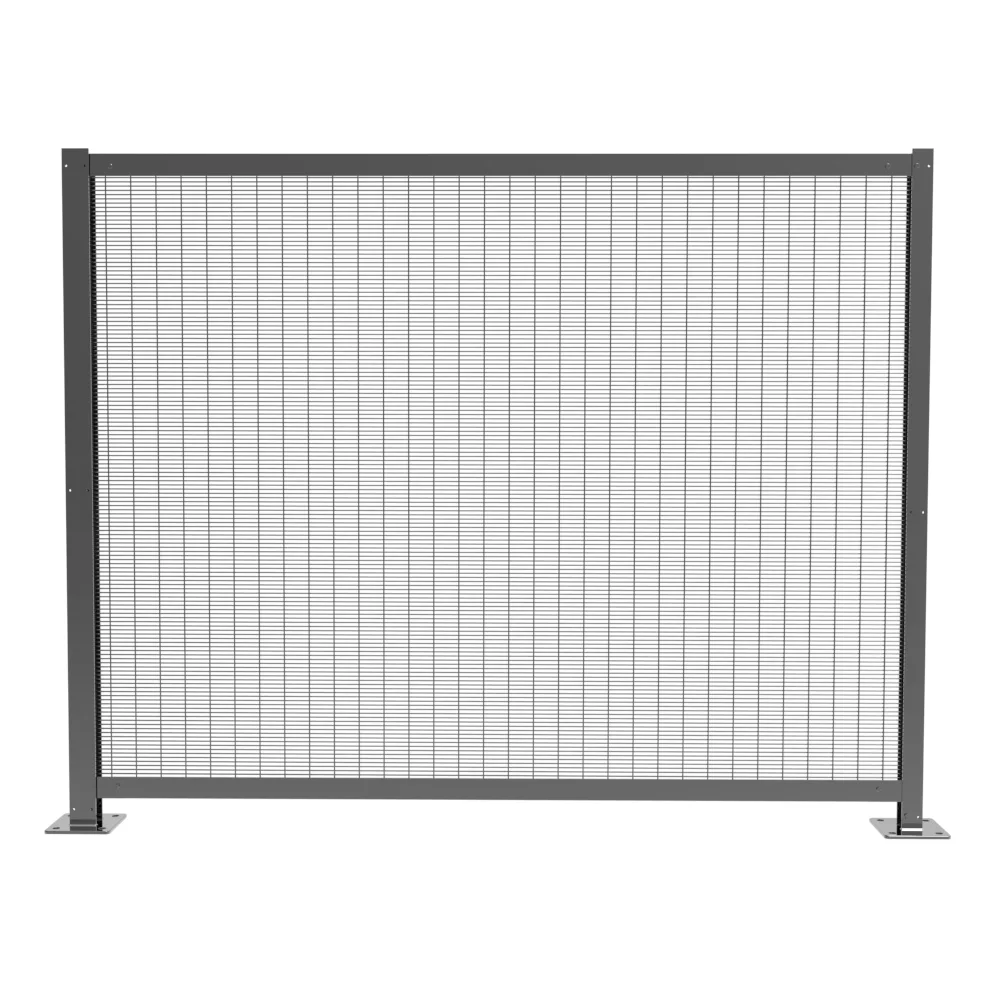

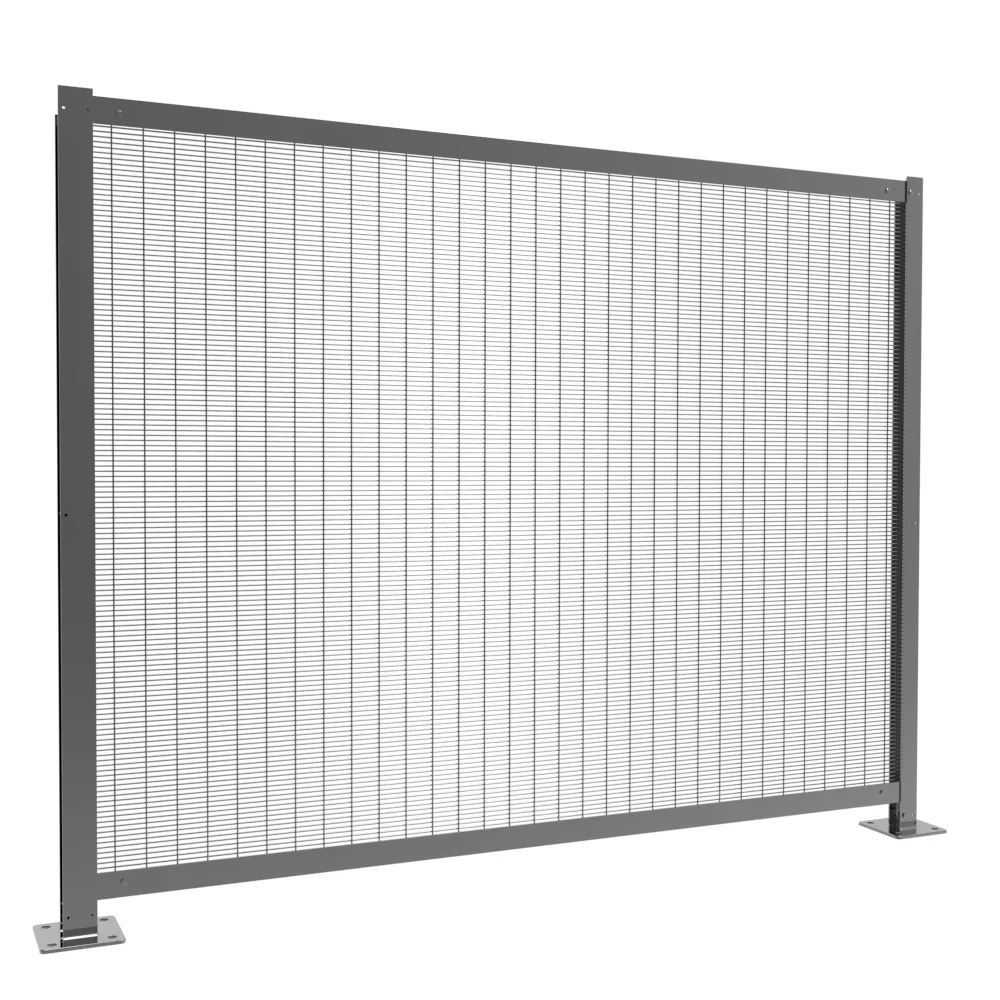

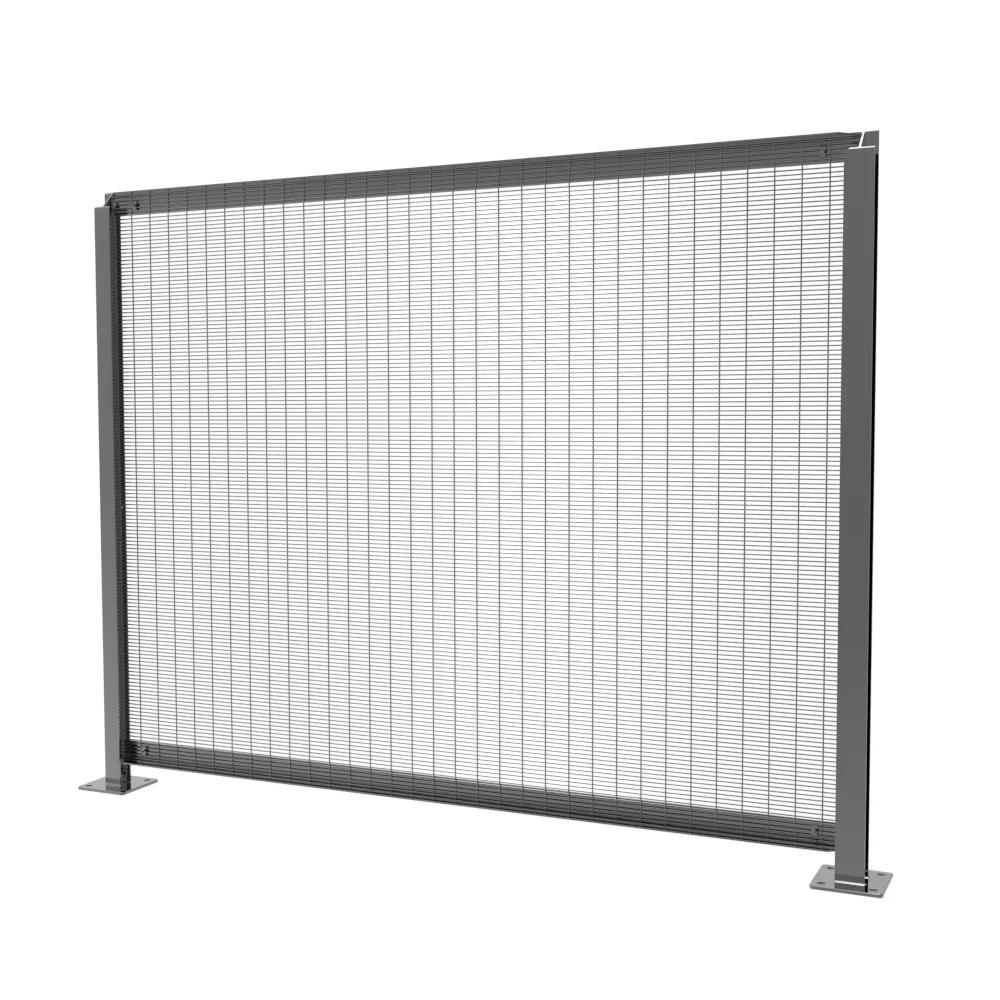

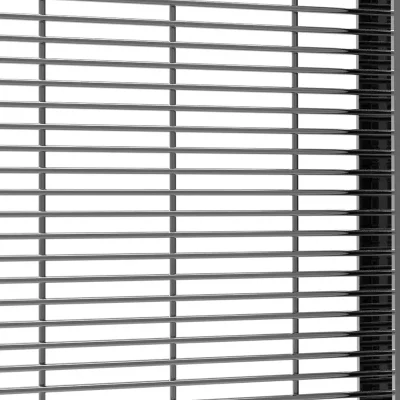

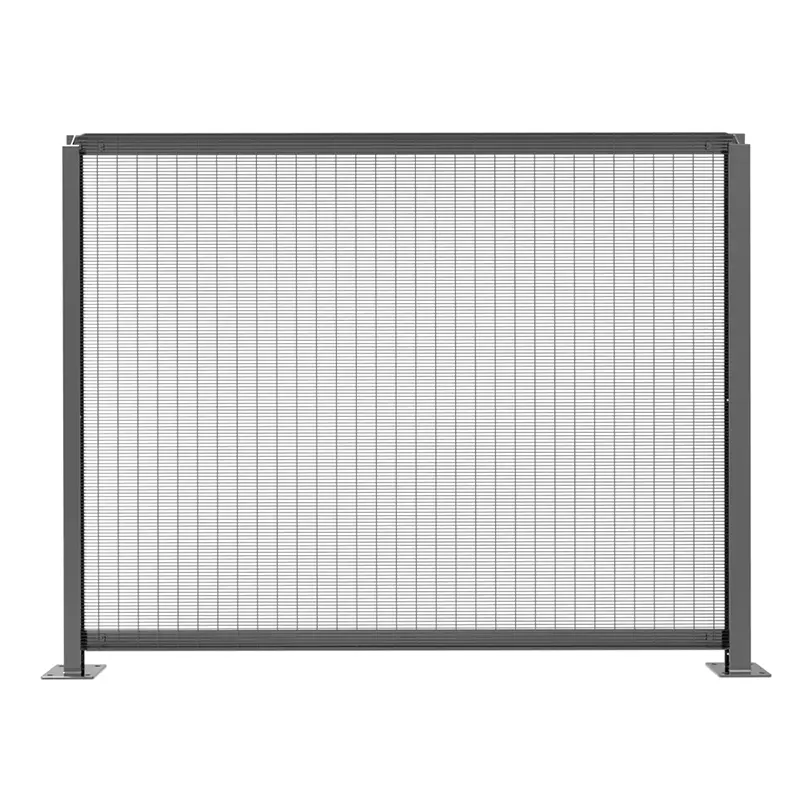

The 358 fence panels, also known as high-security anti-climb fencing, are uniquely structured welded wire mesh product. It is designed to provide high-performance security protection for critical perimeters. Its name “358” reflects its precise mesh dimensions: 3 inches x 0.5 inches x 8 gauge (equivalent to 76.2mm x 12.7mm x 4mm in metric units, length x height x wire diameter). This security 358 mesh fencing uses galvanized steel wire and adheres to mechanical principles, deeply integrating functionality and safety, going beyond basic visual deterrence.
Materials and Structure: Made from 4mm low-carbon steel wire, using 360-degree continuous welding technology, ensuring the panels have excellent tensile strength and structural stability.
Security Performance: High-strength mesh: The precise mesh design effectively prevents climbing, providing superior anti-climb capabilities.
Anti-tampering: The robust welded structure effectively resists cutting by destructive tools such as bolt cutters, significantly enhancing security.
Multiple sizes are available to meet different application needs. Standard 358 fence panel heights are 2100mm, 2400mm, and 3000mm, with corresponding total fence heights of 2134mm, 2438mm, and 2997mm. The standard panel width is 2515mm.

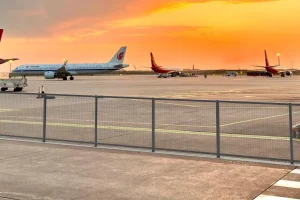

As a direct wire fence manufacturer, we provide you with transparent and competitive factory pricing, eliminating intermediaries and ensuring you get the best possible procurement costs. The 358 mesh security fence system is an ideal security fence solution for high-security locations such as airports, prisons, and military facilities. It is designed for seamless integration with auxiliary security systems such as motion sensors, creating a comprehensive security monitoring network.
Double Corrosion Protection, Extra-Long Lifespan: Selected high-zinc-layer (≥ 280 g/㎡) galvanized steel wire is used as the base material, and innovatively combined with a double anti-corrosion process of hot-dip galvanizing and electrostatic powder coating. This synergistic effect significantly improves the product’s corrosion resistance in harsh outdoor environments such as coastal and high-humidity areas, resulting in a lifespan more than 3 times longer than ordinary products.

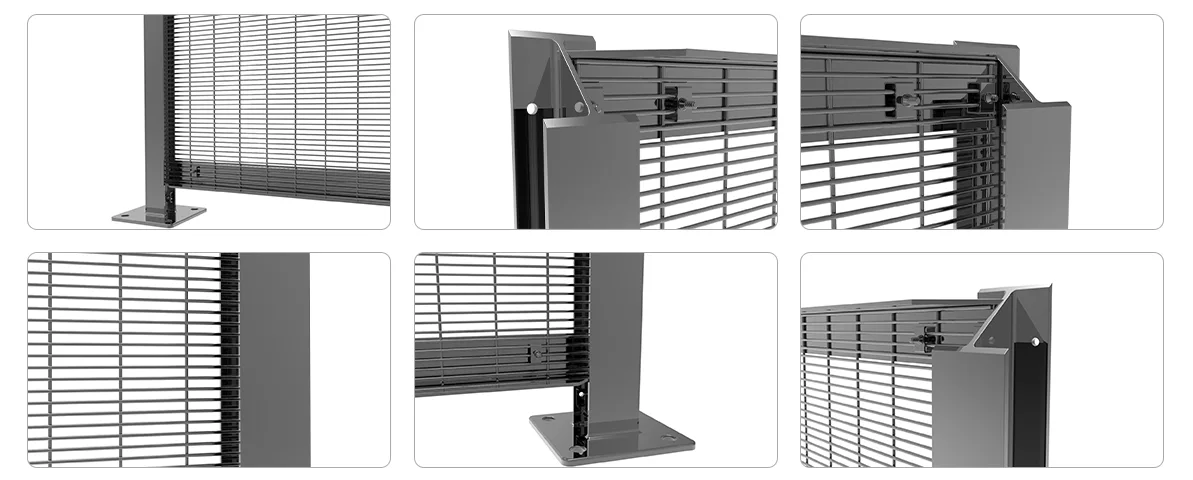

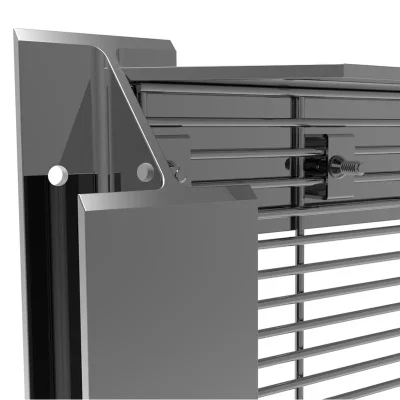

Modular High-Efficiency Installation, Safe and Reliable: Equipped with special connectors, it enables rapid modular assembly, greatly improving single-person installation efficiency. All connection points use a mechanical interlocking design to eliminate the risk of loosening.
60% Efficiency Improvement: Modular prefabricated units greatly improve assembly and disassembly efficiency.
Single-Person Manual Installation: The snap-lock structure allows for easy installation by a single person.
Adaptable to Complex Terrain: The three-dimensional adjustable design perfectly adapts to various complex terrains, ensuring worry-free installation.

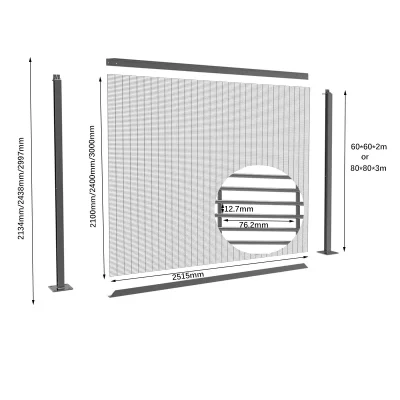

358 Mesh Fencing Specifications
Panel height
2100mm
2400mm
3000mm
Fence height
2134mm
2438mm
2997mm
Panel width
2515mm
2515mm
2515mm
Hole size
12.7mmx76.2mm
12.7mmx76.2mm
12.7mmx76.2mm
Horizontal wire
4mm
4mm
4mm
Vertical wire
4mm
4mm
4mm
Panel weight
50kg
57kg
70kg
Post
60x60x2mm
60x60x2mm
80x80x3mm
Post length
2.8m
3.1m
3.1m
Clamp bar
40x6m slotted
40x6m slotted
40x6m slotted
As a professional 358 fence manufacturer, we can customize various specifications of products according to needs or usage scenarios.
Advantages of 358 High Security Fencing
Uncompromising Security: The 358 fence’s tight mesh and robust welded construction provide exceptional anti-climb and anti-cut protection, effectively deterring intrusion. Built to Last: Constructed with high-strength steel wire and protected by galvanizing or powder coating, 358 fencing offers superior corrosion resistance and longevity, even in harsh environments.
Customizable Solutions: We understand unique needs. Our 358 anti-climb fence offers extensive customization, including adjustable heights and specialized surface treatments, to perfectly match your site conditions.
Cost-Effective Installation: Modular panel designs simplify deployment, minimizing on-site assembly time and labor costs. Its maintenance-free design further reduces lifecycle expenses compared to traditional fencing.
Clear Visibility: The open mesh design provides security without compromising visibility, essential for effective monitoring.
Aesthetic Appeal: The modern, minimalist design seamlessly integrates with any environment, enhancing both security and visual appeal.
Seamless Integration & Scalability: 358 fencing integrates effortlessly with electronic detection systems (PIDS), anti-scale toppings, and other barriers. Its modular design allows for easy upgrades, ensuring your security evolves with your needs.

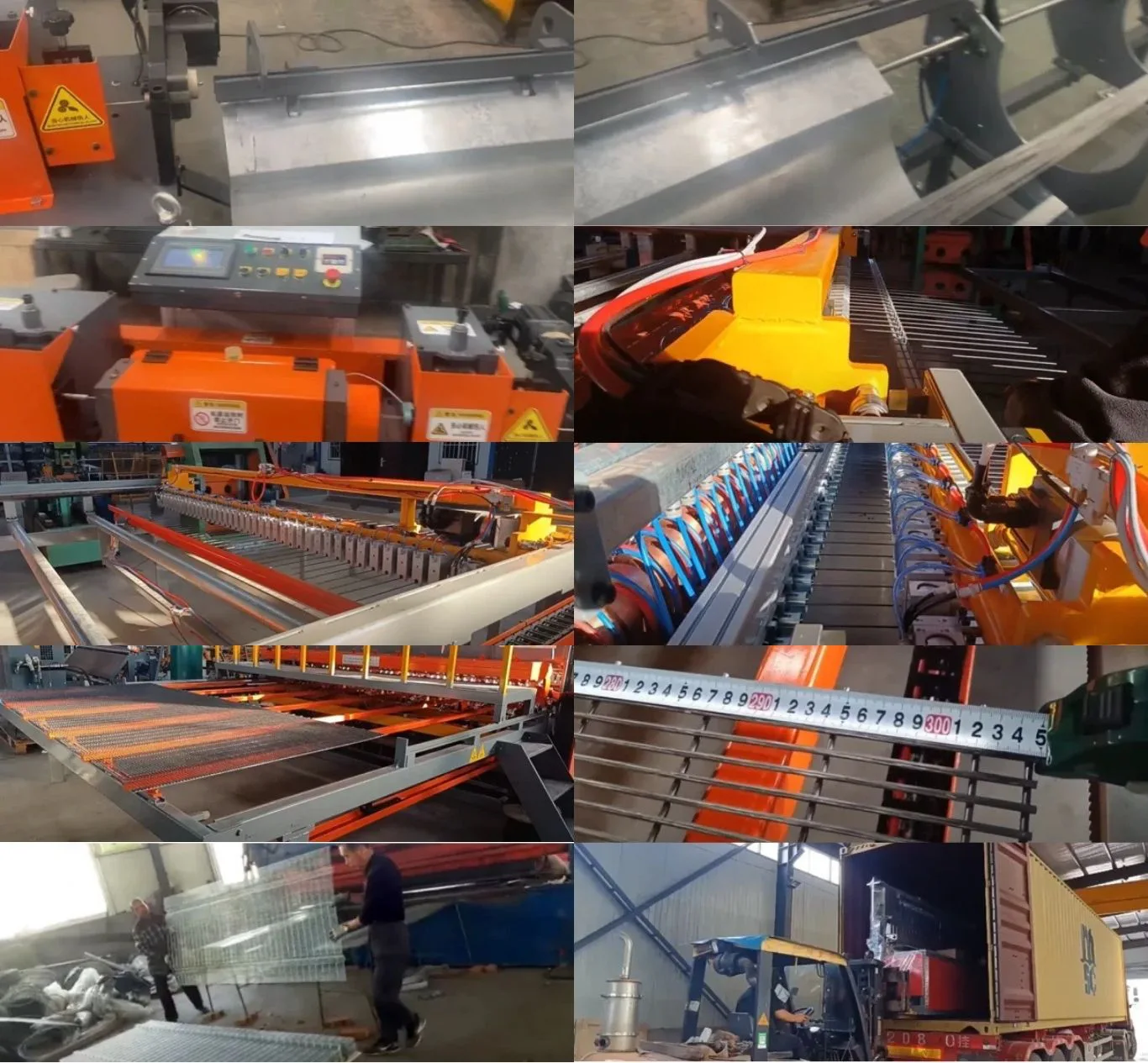

Wire pay-off with motor brake&inverter control, Wire feeding servo motor control.
Panasonic Servo motor.
SMC air cylinder to fix the wire.
Wire feeding car send the wires to welding part.
Mesh width measuring.
Fence bending machine.
Machine loading.
How to Install a 358 High Security Fence？
Preparation and Planning: Inspect the ground conditions and the layout of any underground utility lines. Gather all necessary materials, including the 358 fence mesh panels, posts, clamping bars (or “spider clips”), bolts, nuts, metal washers, spirit levels, and other tools.
Marking Installation Positions: Based on the width of the fence mesh panels, mark the precise ground locations where each post is to be installed.
Post Installation: Select the appropriate post-fixing method based on the soil conditions at the site and the specific flexibility requirements of the installation.
We offer two distinct installation methods to ensure maximum adaptability across various scenarios:
Method 1: Concrete Embedment Installation
The length of the post should exceed the height of the fence mesh panel by 500 mm to 800 mm.
Embed the post directly into concrete, utilizing an embedment depth of 500 mm to 1000 mm to ensure secure and robust anchoring.
Proceed with the fence installation in strict accordance with the manufacturer’s instructions and the approved construction drawings.
Drill the post holes into undisturbed or compacted soil, adhering to all local building codes and regulations.
Set the posts in place according to specifications, ensuring that the bottom hole alignment meets all requirements.
Pour concrete around the posts, ensuring full compliance with local building codes.
Complete the pouring of the concrete base tops as per the established specifications.

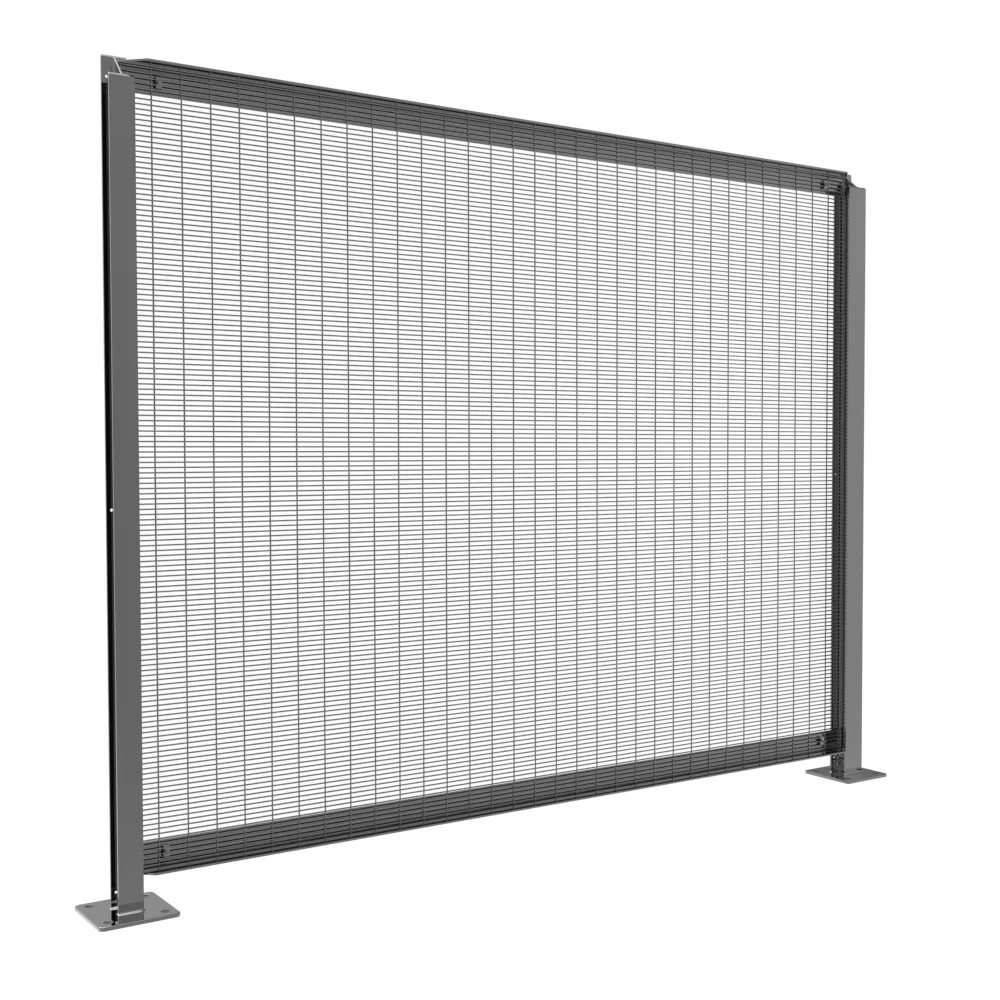

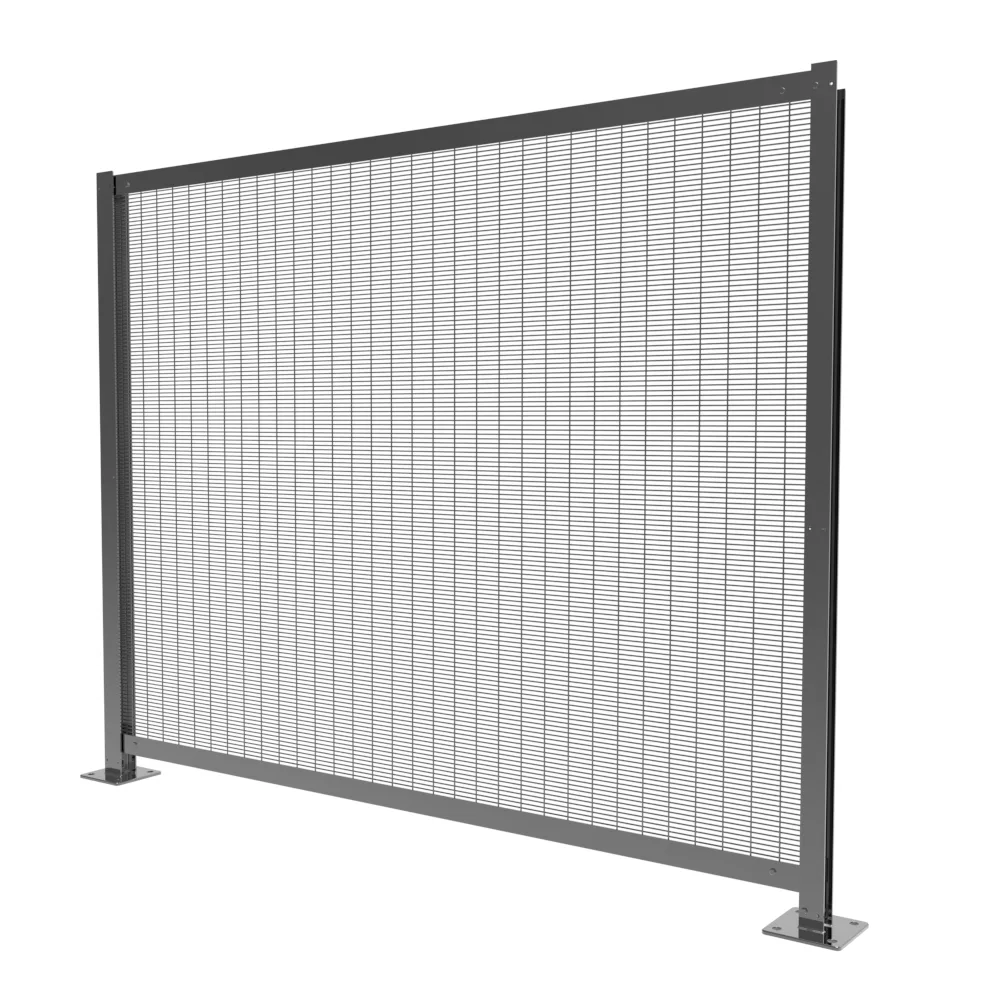

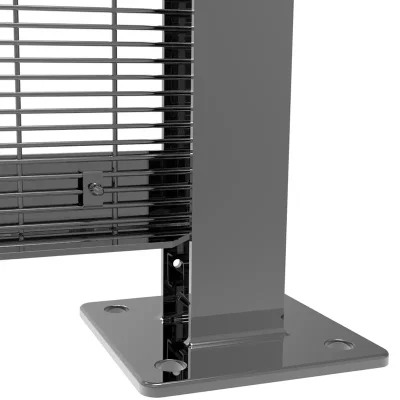

Method 2: Base Plate Mounting
A steel base plate is welded to the bottom of each post.
The post is then secured to a concrete foundation using expansion bolts (anchor bolts).
Proceed with the fence installation in strict accordance with the manufacturer’s instructions and the approved construction drawings.
Locate and drill the mounting holes required for the post base plates.
Secure each individual post using four anchor bolts.
Both of the aforementioned installation methods ensure that the fence structure remains stable, secure, and reliable, making them suitable for long-term use in a wide variety of environmental conditions.

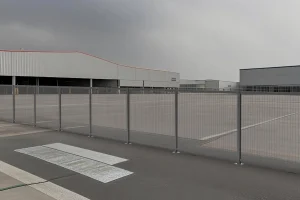

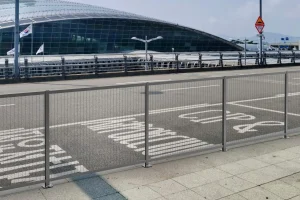

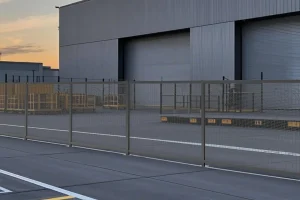

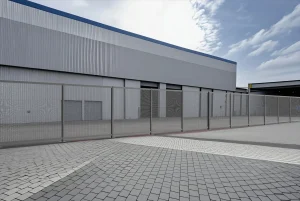

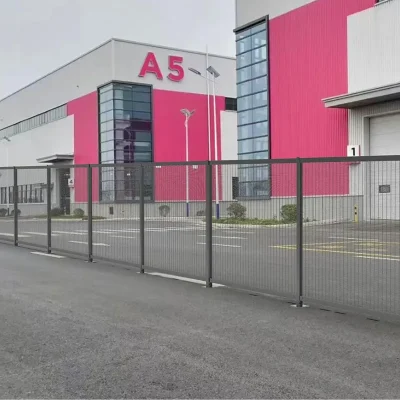

358 Security Mesh Fencing Applications

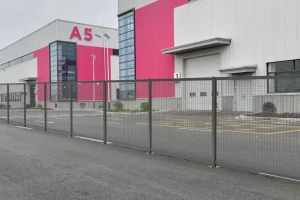

Our 358 Fence Panels protect critical infrastructure across industries:
Prison and Correctional Facilities.
Military Bases and Defense Installations.
Border Security.
High-Security Commercial and Industrial Premises.
Sensitive Areas within Public Facilities.
Schools, parks, leisure and entertainment venues.
358 High Security Anti-Climb Fencing FAQ
Q: What advantages does 358 Fence offer compared to traditional wire mesh?
A: Compared to traditional wire mesh, 358 Fence is more robust (resistant to bending or cutting), offers clear visibility (the mesh pattern does not obstruct the line of sight), requires low maintenance, and complies with the BS EN 10223-3 standard. It provides a higher level of security while also offering superior aesthetics, making it well-suited for urban or commercial environments.
Q: Do your fences comply with relevant safety standards and certifications?
A: Yes, our 358 High-Security Anti-Climb Welded Mesh Fencing complies with relevant international and regional safety standards and certifications—such as ISO, ASTM, and others—ensuring its safety and reliability.
Q: What is the price of a 358 fence? What factors influence the cost?
A: The price of a 358 fence varies depending on several factors, including the material and quality of the steel wire; the height, length, and mesh size; and the surface finish (galvanized, hot-dip galvanized, or powder-coated). Bulk purchases typically qualify for more favorable pricing.
Q: Where can I purchase this 358 security fence?
A: As a direct manufacturer, we offer transparent and competitive factory-direct pricing, eliminating the need for intermediaries. Contact us to ensure you acquire high-quality products at the most cost-effective rates.
Q: Do you offer product customization services?
A: Yes, we offer comprehensive product customization services. Whether you have specific requirements regarding product size, material, color, or craftsmanship, we can flexibly adjust and customize according to your project needs.
Q: What is your delivery time?
A: Delivery time mainly depends on your order quantity. With our large-scale modern factory and efficient production processes, we can guarantee fast production, strongly supporting schedule, and ensuring on-time delivery.

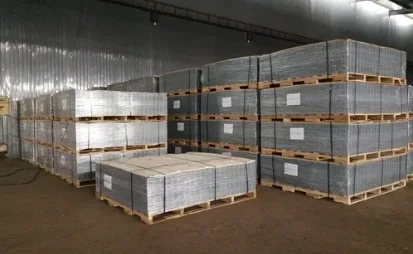

Our 358 high-security fence is fully sealed with plastic film and transported on wooden pallets, which effectively isolates moisture and corrosive media.
Each packaging unit is fixed to the pallet with high-strength special tape, so it can ensure zero displacement risk during transportation.
Anti-collision sponge pads are installed at the bottom of the pallet, and metal edge guards (1.5mm galvanized steel plate) at the four corners can withstand multiple loading and unloading impacts by forklifts.
