– Stainless steel is very durable and stable, and requires almost no maintenance.
– It has a wide range of usage scenarios and is suitable for various manufacturing industries, agriculture, or various protective areas.
– Advanced production technology is more efficient, and the quality is more stable.
– A variety of mesh sizes and wire diameters are available and can be customized.
– The experienced team can provide customers with personalized services.
– Special pricing is available for bulk orders.

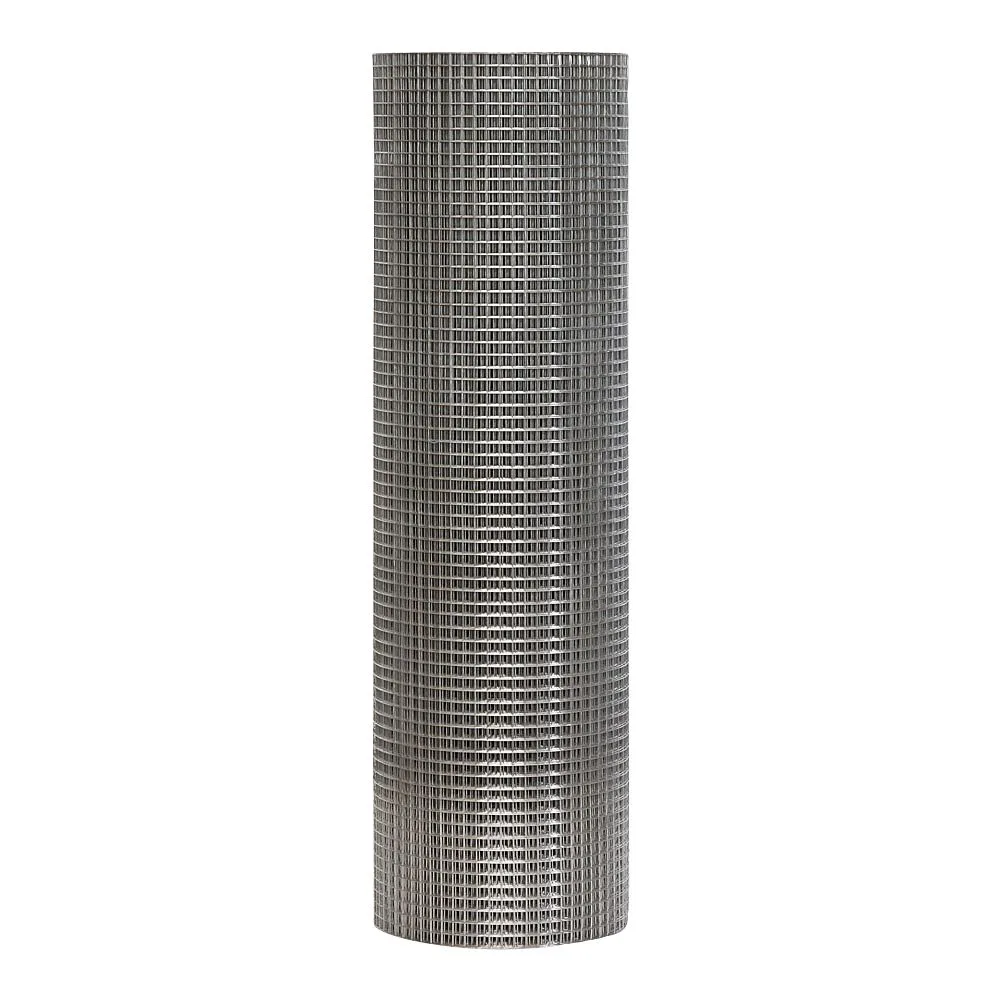

The AISI 304 stainless steel welded wire mesh FENCE DEPOT provides is a special material wire mesh product. This product is one of the most durable fencing solutions available, so it requires almost no maintenance. The products are not only suitable for agriculture, breeding farms, and animal protection, but are also suitable for manufacturing and craft use, so they have a wide range of uses. The product has the same manufacturing process as our Welded Wire Mesh Fence, but the materials are different.
AISI 304 stainless steel welded mesh, as its name suggests, is made of excellent stainless steel, so it is very rust-proof, oxidation-resistant, and corrosion-resistant. In terms of technology, fully automatic machines perform the welding, so the overall strength is higher. Advanced manufacturing processes greatly improve production efficiency, so we have short delivery times.
We have a variety of different mesh sizes and wire diameters to choose from to suit different usage needs. At the same time, as a professional manufacturer, we can customize various specifications of products according to needs or more usage scenarios.
| Model No | Light | C Wire | Rolls |
| 001 | 6 × 6mm | 0.70mm | 1×25m |
| 002 | 9.5 × 9.5mm | 1.00mm | 1×25m |
| 003 | 11.7 × 11.7mm | 1.00mm | 1×25m |
| 004 | 16 × 16mm | 1.00mm | 1×25m |
| 005 | 16 ×16mm | 1.00mm | 1.20×25m |
| 006 | 19×19mm | 1.40mm | 1×25m |
| 007 | 25×25mm | 1.50mm | 1×25m |
| 008 | 50×50mm | 2.00mm | 1×25m |
| AISI/SAE steel grades | Cr | Ni | C | Mn | Si | P | S | N | Mo |
| Chromium | Nickel | Carbon | Manganese | Silicon | Phosphorous | Sulfur | Nitrogen | Molybdenum | |
| 304 | 18-20 | 8-10.5 | <0.08 | <2 | <0.75 | <0.045 | <0.03 | <0.1 | |
| 316 | 16-18 | 10-14 | <0.08 | <2 | <0.75 | <0.045 | <0.03 | <0.1 | 2-3 |
| 316L | 16-18 | 10-14 | <0.03 | <2 | <0.75 | <0.045 | <0.03 | <0.1 | 2-3 |
| Euronorm (EN) number | AISI/SAE steel grades | UNS | JIS | Also known as |
| 1.4301 | 304 | S30400 | SUS304 | SS304 | T-304 | A2 stainless steel | 18/8 stainless steel (18% chromium, 8% nickel) |
| 1.4401 | 316 | S31600 | SUS316 | SS316 | T-316 | marine grade stainless steel |
| 1.4404 | 316L | S31603 | SUS316L | SS316L | T-316L | A4 stainless steel | marine grade stainless steel |
 |
 |
 |
| Plain Weave | Oblong Weave | Twill Weave |
 |
 |
|
| 5-Heddle Weave | 3-Heddle Weave |
| Mesh Type | Square, rectangular, or other. |
| Material | Galvanised or stainless steel, aluminium, bronze, carbon steel, copper, etc. |
| Surface Finish | Vinyl coating, powder coating, or other. |
| Weave/Decoration Type | Plain weave, lock crimp, inter crimp, etc. |
| Opening Size | Opening size is the clearance between wires, measured from the inside of one wire to the inside of the adjacent wire. |
| Mesh Size | Mesh size is measured from the center of one wire to the center of the adjacent wire. |
| Wire Diameter | Wire diameter thickness. |
| Special Requirements | Specify any requirements such as manufacturing, edge treatment, finishing, non-standard tolerances, etc. |
| Accessories | Angles, edge frames, mounting accessories, etc. |
High-quality AISI 304 stainless steel offers exceptional performance, boasting high strength, rust resistance, and corrosion resistance.
Utilising AISI 304 stainless steel welded wire mesh panels optimises manpower and material resources, requiring minimal maintenance.
These panels are suitable for a wide range of applications, including industrial, agricultural, and environmental protection scenarios.
The fully automated welding process ensures a stronger overall structure and improved production efficiency.
A variety of mesh sizes and wire diameters are available, catering to diverse usage requirements.
AISI 304 stainless steel welded wire mesh panels are packaged securely to guarantee safe transportation.
Advanced production technology combined with skilled workers enables rapid production speeds and short delivery times.
Stainless steel welded wire has excellent corrosion resistance and oxidation resistance, and is the most widely used stainless steel in the wire mesh industry. It is widely used in fences, decorations, and mechanical protection materials in agriculture, construction, transportation, mining, sports fields, lawns, and various industrial fields.
