– Advanced welding technology makes the overall connection very reliable and stable.
– High-quality powder coating is more rust and corrosion-resistant.
– Galvanised steel material is more durable.
– It has a wide range of usage scenarios and can be used in various areas.
– Special styles, sizes, and materials can be customized according to needs or usage requirements.
– Special pricing is available for bulk orders.

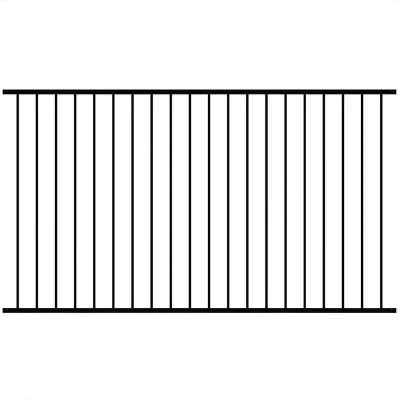

The flat-top metal steel fence panels feature a structure of vertical pickets that terminate at the rails. This type of ornamental fencing requires minimal maintenance and does not need frequent repainting like traditional wrought iron fencing. Despite this, it remains visually appealing and is strong enough to secure your property. Compared to aluminium fences, steel fences offer greater longevity and do not sag under weight or stress. They are available in various configurations, including 2-rail, 3-rail, and 4-rail flat-top steel fences.

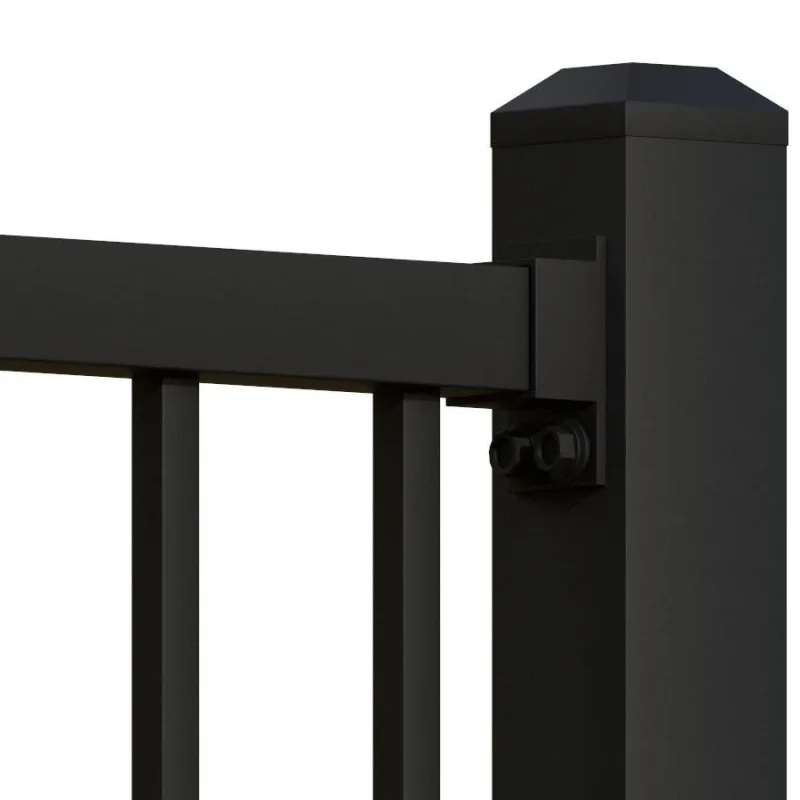

Additionally, our flat-top steel fences are designed to complement our fence posts, fence brackets, and flat-top gates, enhancing both the aesthetic and structural integrity of the entire fencing system. Our fences are hot-dip galvanised and powder-coated to provide superior durability and protection.

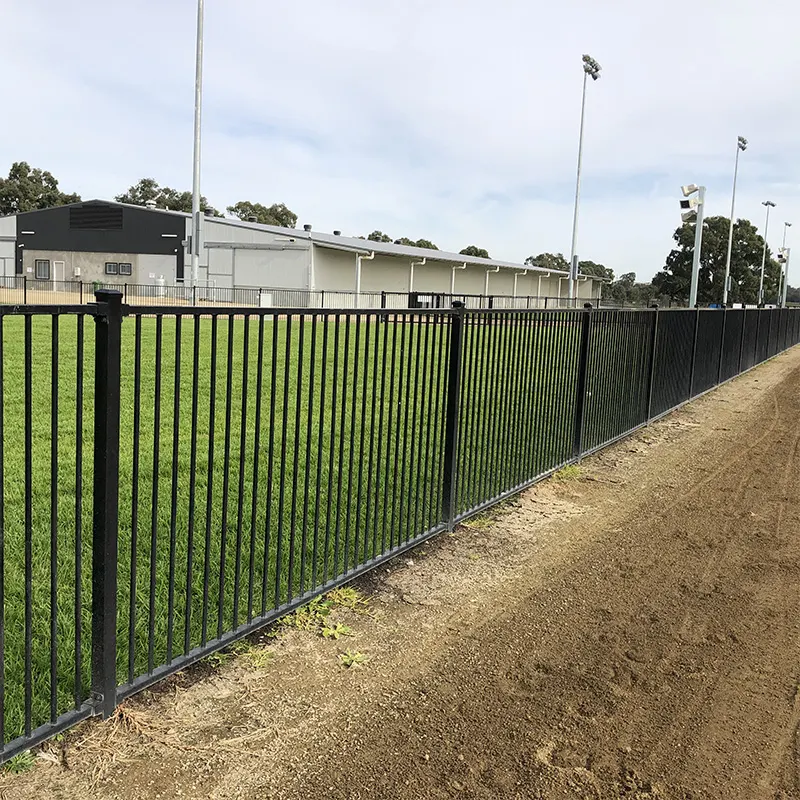

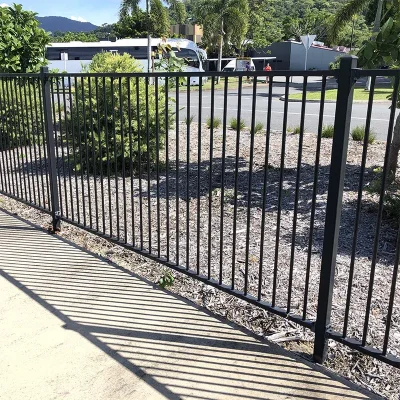

As experienced manufacturers of fence panels, we prioritise 360° manual welding over automated processes. This approach ensures there are no welding leaks and guarantees the necessary strength. We are equipped to produce both standard and custom styles and sizes of steel fences suitable for courtyards, pool areas, roadways, airports, stations, factories, schools, estates, gardens, lawns, and other locations requiring security protection.
| Product Name | Panel Size(mm) | Horizontal Rail Size and Quantity | Vertical Picket Size and Quantity | Weight(kg) |
| 40″H x 94″ L Standard square tube | 1016 * 2387.6 | 38*38*1.3*2387.6*2 | 16*16*1.02*940*20 | 16.6 |
| 48″H x 94″ L Standard square tube | 1219.2 * 2387.6 | 38*38*1.3*2387.6*2 | 16*16*1.02*1143.2*20 | 18.6 |
| 62″H x 94″ L Standard square tube | 1574.8 * 2387.6 | 38*38*1.3*2387.6*2 | 16*16*1.02*1498.8*20 | 22 |
| 68″H x 94″ L Standard square tube | 1727.2 * 2387.6 | 38*38*1.3*2387.6*2 | 16*16*1.02*1651.2*20 | 23.5 |
| 40″H x 94″ L Flattened square tube | 1016 * 2387.6 | 38*38*1.3*2387.6*2 | 16*16*1.02*940*20 | 16.6 |
| 48″H x 94″ L Flattened square tube | 1219.2 * 2387.6 | 38*38*1.3*2387.6*2 | 16*16*1.02*1143.2*20 | 18.6 |
| 62″H x 94″ L Flattened square tube | 1574.8 * 2387.6 | 38*38*1.3*2387.6*2 | 16*16*1.02*1498.8*20 | 22 |
| 68″H x 94″ L Flattened square tube | 1727.2 * 2387.6 | 38*38*1.3*2387.6*2 | 16*16*1.02*1651.2*20 | 23.5 |
| 62″H x 94″ L Standard round tube | 1574.8 * 2387.6 | Φ35*1.6*2387.6*2 | Φ19*1.02*1504.8*20 | 20.3 |
| 68″H x 94″ L Standard round tube | 1727.2 * 2387.6 | Φ35*1.6*2387.6*2 | Φ19*1.02*1657.2*20 | 22 |
| 62″H x 94″ L Flattened round tube | 1574.8 * 2387.6 | Φ35*1.6*2387.6*2 | Φ19*1.02*1504.8*20 | 20.3 |
| 68″H x 94″ L Flattened round tube | 1727.2 * 2387.6 | Φ35*1.6*2387.6*2 | Φ19*1.02*1657.2*20 | 22 |
| Finish | Powder-coated | |||

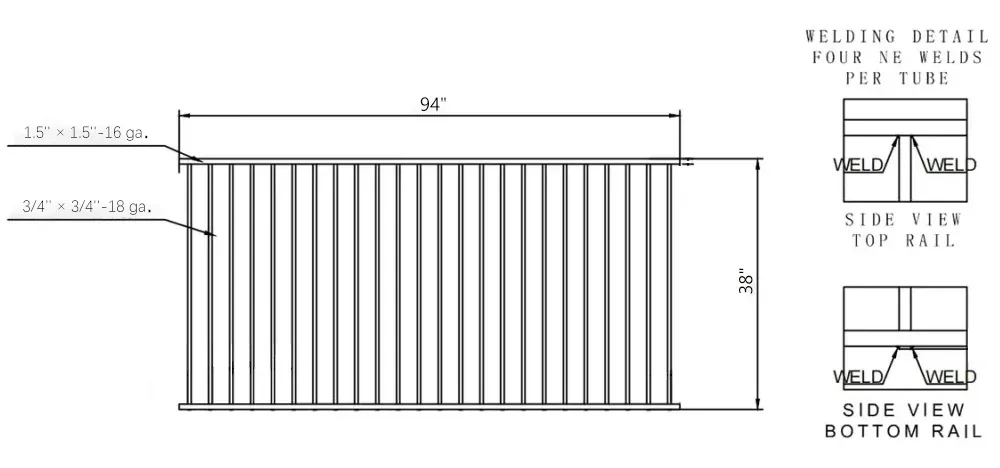

The Flat Top Steel Fence features 100% welding at all connections and joints, ensuring strong weld points while minimising the size of the weld spots. This design guarantees that there are no split welds, even after prolonged use.

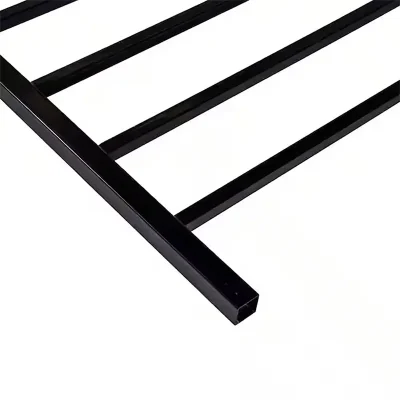

The vertical picket design is both aesthetically pleasing and functional, offering a range of options to meet diverse aesthetic preferences. Choices include standard square tubes, standard round tubes, flattened square tubes, and flattened round tubes.
The flat top fence steel tube is coated with G90 or G60 galvanisation on both the inside and outside, providing comprehensive protection against corrosion. The service life can exceed 25 years.

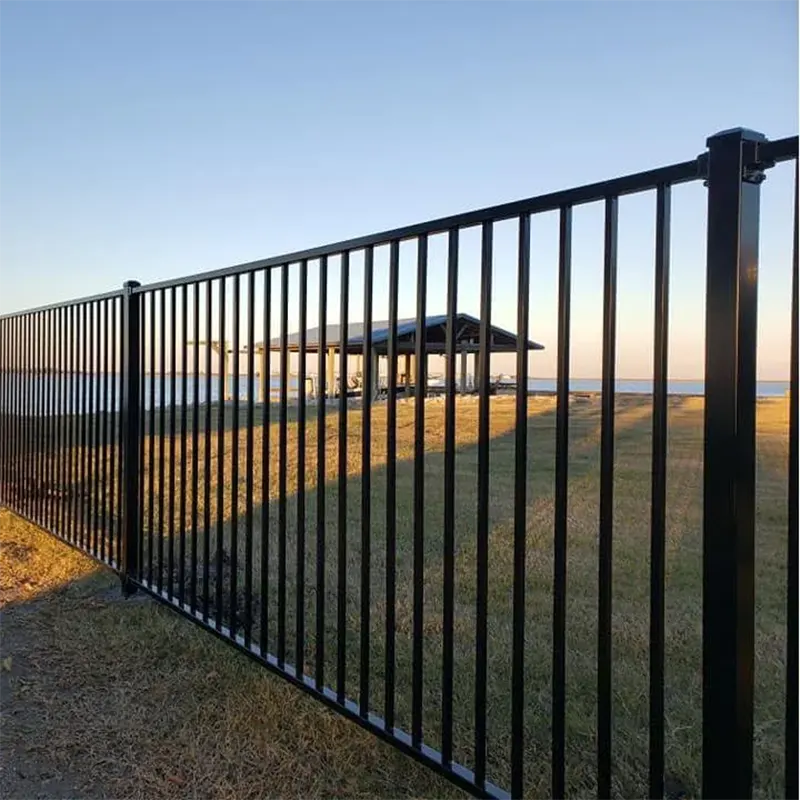

The corrosion-resistant galvanised coating, combined with a colourful powder coating, ensures that the steel fencing is both durable and visually appealing.
The Flat Top Steel Fence can be tailored to your specific size and colour preferences, and can be designed and produced to meet your exact specifications.
Check the outer diameter and wall thickness of the pipe to ensure compliance with the fence design specifications, ensuring quality.
Unload the product and cut the profile according to design requirements to achieve the desired length.
Create holes in the cut pipe.
Pre-galvanised steel pipes are welded into the panel frame using advanced welding techniques.
Clean and roughen the surface by spraying high-speed abrasive particles to remove impurities such as rust, oil, and scale.
Apply a phosphating film that provides anti-corrosion properties and excellent adhesion for paint, powder coating, or other organic coatings.
Spray epoxy-polyester powder onto the surface and cure it at high temperature, enhancing rust and corrosion resistance.
Each product undergoes a quality inspection to verify strength, wall thickness, and powder coating thickness, ensuring high standards.
Professional transportation methods are employed to ensure the safe delivery of products.
 |
 |
 |
 |
A: The product is made from high-strength galvanised steel, ensuring superior strength and durability for long-lasting use.
A: Yes, the products can be designed and produced according to your specific size and color preferences, providing you with a customizable solution to meet your fencing needs.
A: Yes, the flat top metal fence panels are factory-assembled and designed for easy installation, allowing for a quick and efficient setup to provide you with the security and protection you need for your property.
A: The 3 rail flat top steel fence features factory-assembled stainless-steel fasteners, ensuring structural integrity and strength you can count on.
A: Yes, the product is a versatile solution that is suitable for both residential and commercial properties, providing you with the perfect solution for your fencing needs.
