Flat Top Fence, Metal Steel Fence Panels

Our flat top metal steel fence panels, featuring vertical pickets seamlessly terminating at robust rails, offer an ideal solution for any square metal fence application. The ornamental square tube fence panels stand out for their remarkably low maintenance, eliminating the frequent repainting required by traditional wrought iron, while remaining visually attractive and exceptionally strong to secure your property.

Compared to aluminum fences, our steel fences guarantee superior longevity, resisting sag under weight or stress. We offer versatile options, including 2-rail, 3-rail, and 4-rail flat-top steel fences, ensuring a perfect fit for diverse aesthetic and security needs. If the terrain is uneven and has slopes, then you can choose a product similar to the flat-top fence – that would be the flat top rackable fence. This product can be adjusted to a certain angle, and it can effectively match uneven surfaces.

To complete your robust enclosure, our square tube fence panels perfectly complement our range of durable fence posts, sturdy brackets, and matching flat top gates, ensuring a cohesive, aesthetically pleasing, and solid installation. Each panel is engineered for maximum resilience, undergoing both hot-dip galvanization and a premium powder coating. This dual-layer protection guarantees enhanced durability and superior resistance to corrosion and wear.

As experienced manufacturers of high-quality square tube fence panels and other steel fencing solutions, we prioritize 360° manual welding over automated processes. This meticulous craftsmanship ensures every joint is solid, with no welding leakage, guaranteeing optimal strength and longevity for every fence panel. This dedication allows us to competently produce steel fences in a wide array of standard and custom styles and sizes.

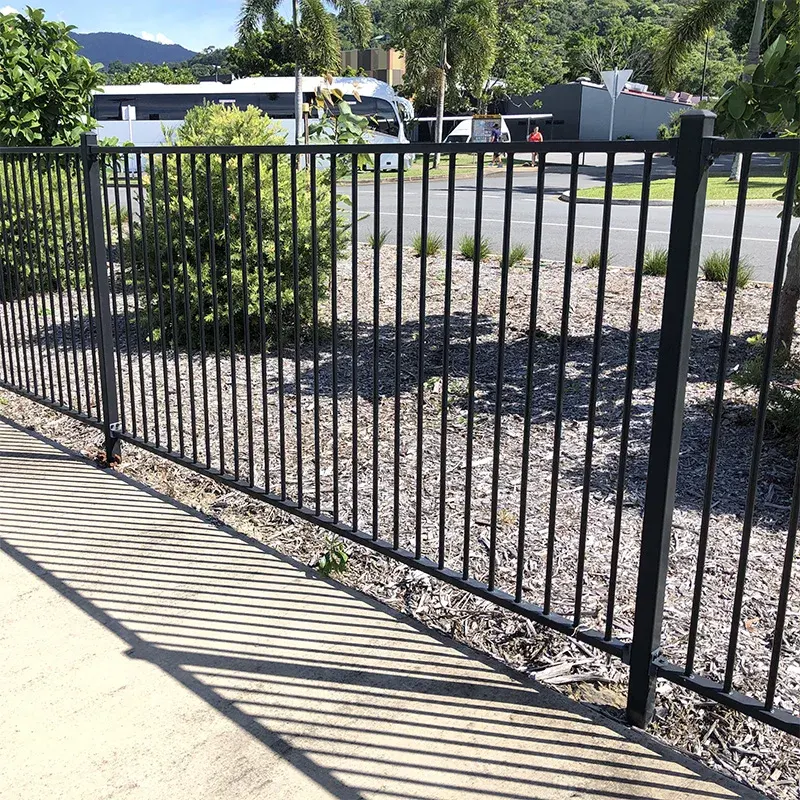

Our versatile square metal fence products are ideal for securing and enhancing various environments, including courtyards, pool sides, roadsides, airports, stations, factories, schools, estates, gardens & lawns, and countless other sites requiring reliable security and attractive demarcation.

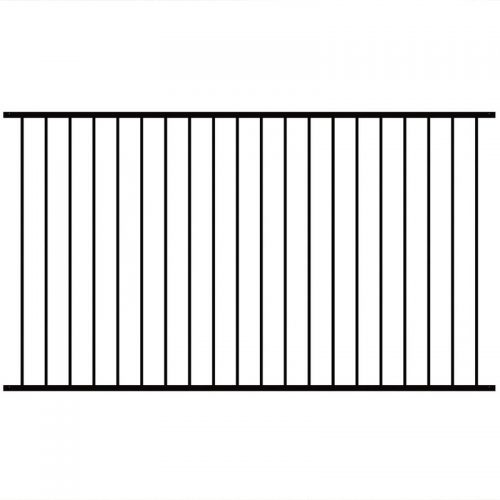

Steel Flat Top Fence Details

• Material: Made of high-quality steel, with a solid structure.
• Surface treatment: Hot-dip galvanizing and powder coating to ensure rust and corrosion resistance, smooth and wear-resistant surface.
• Structure: The fence is designed as a modular structure for easy installation and maintenance.

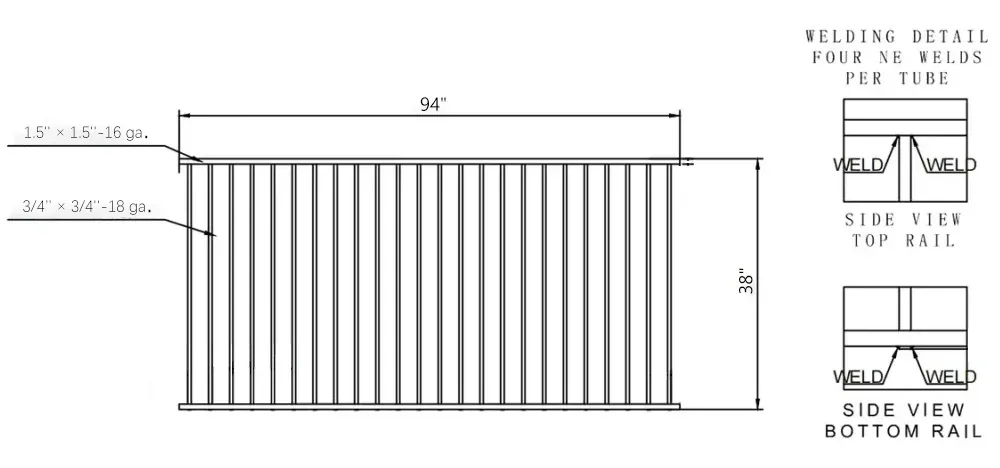

• Size: standard size:1016mm/1219.2mm/1574.8mm/1727.2mm H, 2387.6mm L, railing 1.5”×1.5”-16 ga.  Also provides customized height and width.
• Accessories: Equipped with high-quality posts, brackets, and other accessories.

Square Tube Fence Panels Specifications

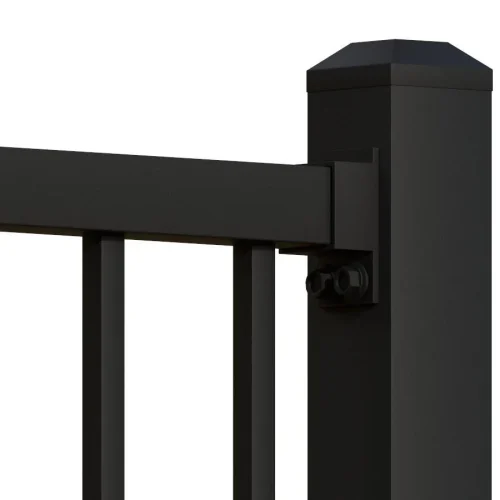

Square Metal Fence Related Accessories

Fence Brackets	Fence Post	Post Caps	Screws

Flat Top Steel Fence Advantages

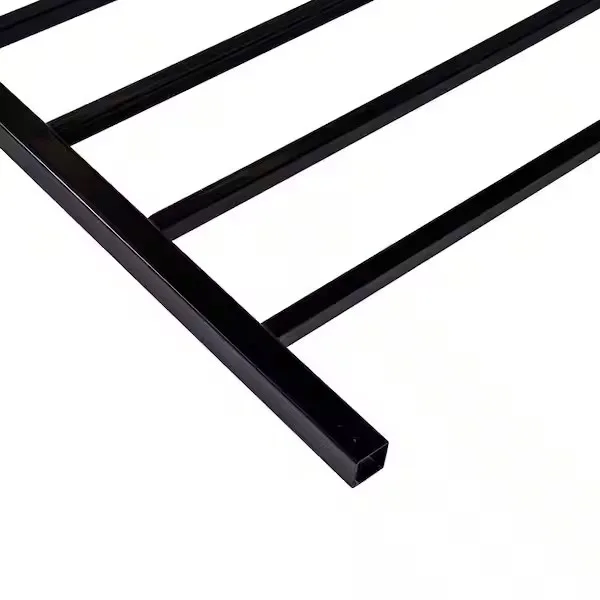

Full Welded By Hand

The Flat Top Steel Fence undergoes 100% welding at all connections and joints, ensuring a strong welding point while minimizing the size of the welding spot. This design guarantees that there are no split welds even during long-time service.

Various Styles Are Optional

Vertical Picket is a defensive fencing option that combines aesthetics. Moreover, it offers a range of choices to meet different aesthetic requirements. These options include Standard square tubes, Standard round tubes, Flattened square tubes, and Flattened round tubes.

Full Hot-dipped Galvanized

G90 or G60 galvanized coating on both inside and outside of the flat top fence steel tube. Thus, the whole steel tube surface is protected by anticorrosive coating. Service life can reach more than 25 years.

Pre-galvanized & Powder-coated

Corrosion-resistant galvanized coating plus colorful powder coating make the steel fencing both durable and attractive.

Customizable to Meet Your Needs

Featuring a customizable design, the Flat Top Steel Fence can be tailored to your specific size and color preferences. Additionally, it can be designed and produced to meet your exact specifications.

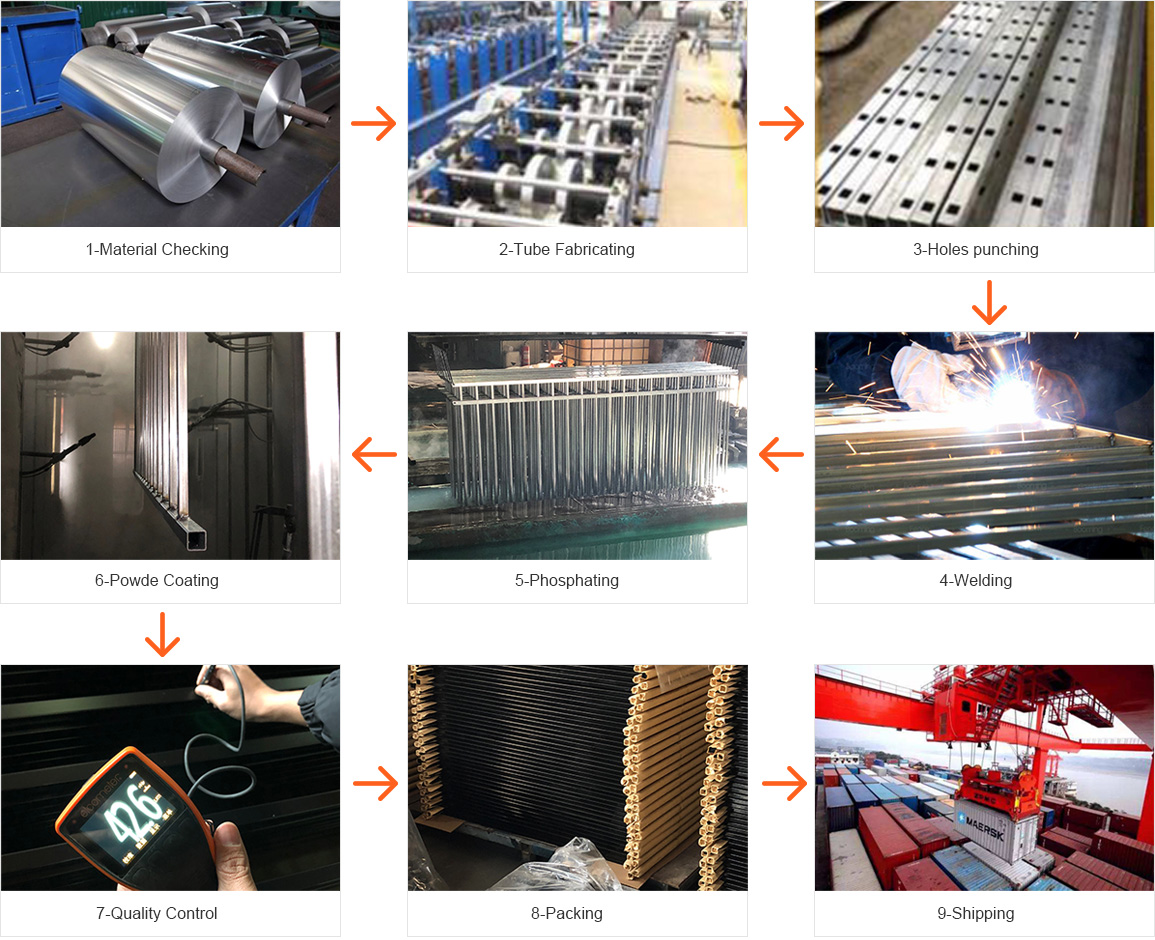

Square Tube Fence Panels Production Process

Material

Inspect incoming pre-galvanized steel pipes for outer diameter (OD) and wall thickness per fence design specifications (e.g., OD: 25-50 mm ±0.5 mm; wall thickness: 1.5-2.5 mm ±0.1 mm). Verify zinc layer integrity using a magnetic thickness gauge. Reject non-compliant materials to ensure structural integrity (yield strength ≥235 MPa).

Cutting

Unload pipes via automated conveyor and cut to precise lengths using CNC plasma or laser cutters based on design requirements. Employ dust extraction systems to minimize hazards. This ensures minimal material waste (<5%) and fits components for efficient assembly, reducing production time by 10%.

Punching

Use hydraulic or CNC punching machines to create holes in cut pipes. Apply anti-burr tooling to maintain edge quality. Inspect for hole alignment (permissibility <1 mm deviation) to facilitate welding.

Welding

Assemble punched pipes into panel frames using MIG/TIG welding on pre-galvanized steel. Zinc coating preserved via low-heat techniques to avoid burn-off >10%. Weld seams achieve full penetration with strength ≥70% of base metal. Post-weld, grind excess to <0.5 mm smoothness.

Perform Sandblasting

Blast the welded frame with garnet or steel grit abrasives at 100-110 psi, removing rust, scale, oil, and residual zinc (achieving surface profile 50-75 μm). This enhances adhesion for subsequent coatings, extending service life to 20+ years in C3-C4 environments.

Phosphating

Immerse or spray with zinc phosphate solution (5-10 μm film thickness, pH 3-4) at 40-60°C for 5-10 minutes. The phosphate layer provides corrosion resistance and boosts coating adhesion. Rinse and dry immediately to avoid contamination, ensuring compatibility with powder coatings.

Powder Coating

Apply epoxy-polyester hybrid powder (60-80 μm dry film thickness) via electrostatic spray gun, followed by curing in a 180-200°C oven for 15-20 minutes. This achieves a durable finish with ≥1000 hours salt spray resistance and UV stability.

Quality Control

We will conduct a quality inspection on each product to check the strength, wall thickness, and powder coating thickness to ensure each product’s quality.

Packaging

Bundle panels with foam separators and shrink-wrap for protection against transit damage. Use steel-strapped wooden pallets compliant with ISPM 15 for international shipping. Include labeling with batch ID, specs, and QR codes for traceability.

How to Install a Flat Top Fence?

• Planning and Measurement: Define the boundaries and placement of the fence; use measuring tools to determine the total length and height of the fencing run. Plan the specific locations for the flanged posts, ensuring they are evenly spaced and comply with local building codes.
• Preparing the Flanged Posts: Flanged posts typically do not require the excavation of deep holes; however, they do require a flat and stable mounting surface.
• Installing the Flanged Posts: Position the flanged posts at their planned locations and use a spirit level to ensure they are plumb (perfectly vertical). Secure the flanged posts to the ground using specialized anchor bolts.
• Installing the Fence Panels: Attach the flat top fence panels to the flanged posts using the designated connectors. Following the manufacturer’s instructions, fasten the fence panels to the posts using screws or other appropriate fasteners.
• Adjustment and Tightening: Verify the horizontal and vertical alignment of each fence panel, making adjustments as necessary. Ensure that all screws and fasteners are securely tightened to guarantee the stability and safety of the fence.
• Inspection and Maintenance: Upon completion of the installation, conduct a comprehensive inspection to confirm that all components have been correctly installed and securely fastened. Periodically inspect the fence to check for stability and structural integrity, particularly following periods of severe weather.

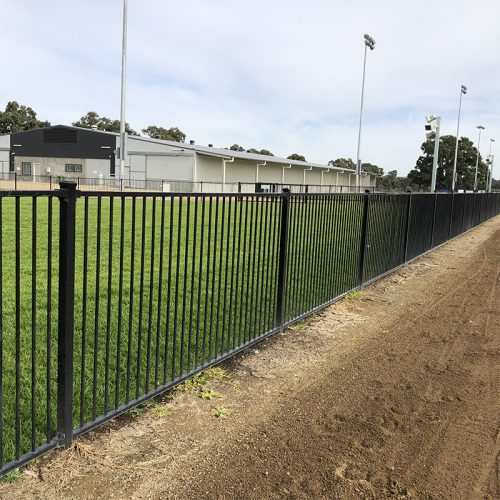

Flat Top Square Metal Fence Applications

• Commercial properties: used in stores, warehouses, and other places to protect property safety and enhance corporate image.
• Industrial parks: Set up steel flat top fencing around factories and warehouses to ensure production safety and prevent theft.
• Public facilities: Such as parks, schools, and other places, provide safe activity spaces to prevent outsiders from entering.
• Residential areas: Flat top steel fence in garden, and pool, provides security and privacy for families.

Metal Flat Top Fence FAQ

Q: Is the fence easy to install?

A: Yes, the flat top metal fence panels are factory-assembled and designed for easy installation, allowing for a quick and efficient setup to provide you with the security and protection you need for your property.

Q: What type of fasteners are used in the fence?

A: The 3 rail flat top steel fence features factory-assembled stainless-steel fasteners, ensuring structural integrity and strength you can count on.

Q: Is the fence suitable for residential and commercial properties?

A: Yes, the product is a versatile solution that is suitable for both residential and commercial properties, providing you with the perfect solution for your fencing needs.

Q: Can I customize the size and color of the fence?

A: Yes, the products can be designed and produced according to your specific size and color preferences, providing you with a customizable solution to meet your fencing needs.

Q: Are the maintenance costs for Flat Top Fence high?

A: Maintenance costs are relatively low; periodic cleaning and coating maintenance are sufficient to preserve their excellent appearance and performance, eliminating the need for frequent replacements.

Q: Can you provide samples?

A: Absolutely. We welcome you to contact us to request samples, allowing you to evaluate the product’s quality and suitability firsthand.
