– The wide range of applications can suit various usage scenarios.
– With a full range of welding processes, the entire frame structure is very solid and stable.
– Professional powder coating process delivers excellent performance.
– Advanced production equipment, rich experience, and short delivery time.
– Styles, sizes, and craftsmanship can be customized according to needs.
– Special pricing is available for bulk orders.

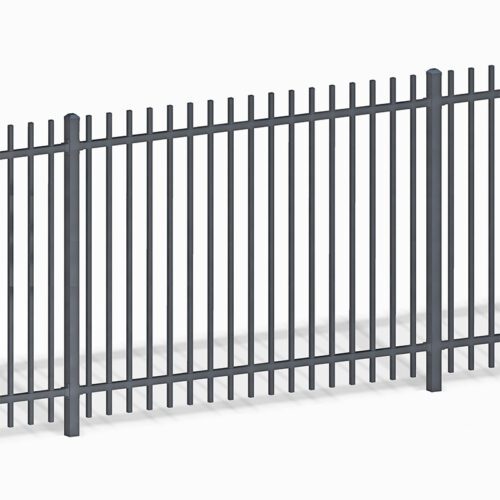

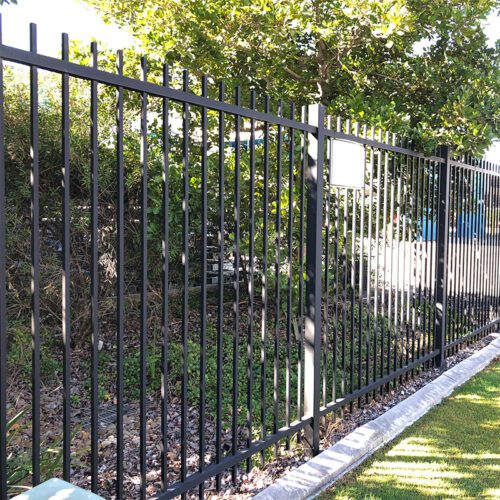

Rod top steel fence is not only a protective fence panel but also an ornamental fence. It is formed by inserting piles into 2 or 3 horizontal guide rails and has a pile structure. The steel rod fence remains visually appealing while being sturdy enough to keep you and your property safe.
Our rod top steel fence panel is made of galvanized steel, and the frame is reinforced. The quality of the product is stable, sturdy, and durable. When treated with a multi-layer protective powder coating process, it has higher rust and corrosion resistance. It increases the service life of the product and reduces maintenance costs.

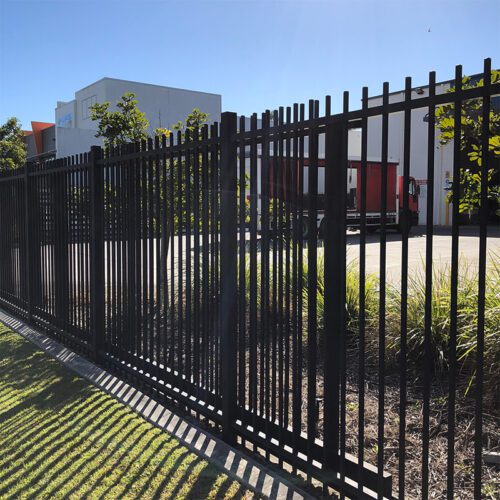

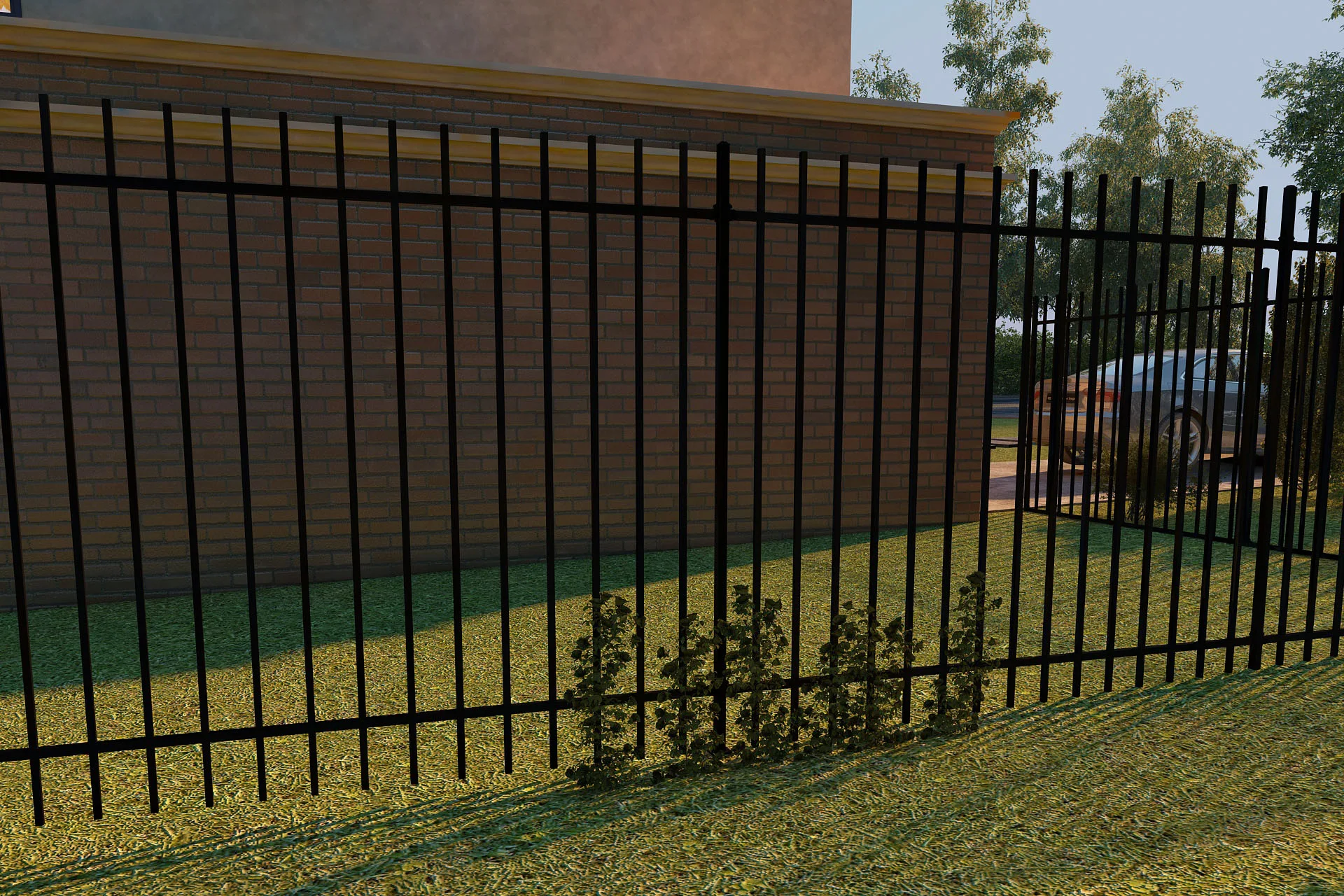

The exquisite design of the product shows practicality and modern style, so it can be suitable for a variety of occasions. It can be used not only in residential areas and commercial areas but also in places that require safety protection, such as factories, hospitals, schools, courtyards, and gardens.
As a professional steel fence supplier, we produce steel rod fence panels in heights of 1.8m, 2.1m, and 2.4m and widths of 2.4m. These panels come with fence brackets and fence posts to keep your premises secure while maintaining an elegant and attractive appearance. We can also customize special styles and sizes for you to meet the regulations and requirements of different places.
 |
 |
 |
|
Model NO |
FDCI110001 | FDCI110002 | FDCI110003 |
| Panel Size (mm) | 2400W*1800H | 2400W*2100H | 2400W*2400H |
| Rail (mm) | 40*40*1.6 | 40*40*1.6 | 40*40*1.6 |
| Picket (mm) | 25*25*1.2 | 25*25*1.2 | 25*25*1.2 |
| Material | Galvanized Steel | ||
| Horizontal rail wall thickness | 0.05″–0.08″ | ||
| Vertical picket wall thickness | 0.03″–0.48″ | ||
| Yield strength | 350Mpa. | ||
| Finish |
Hot Dipped Galvanized, Pre-galvanized, E-Coating, Powder Coating |
||
| Material, size, and color can be customized as needed. | |||
 |
 |
 |
 |

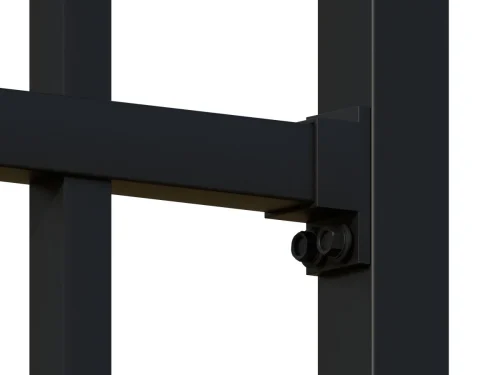

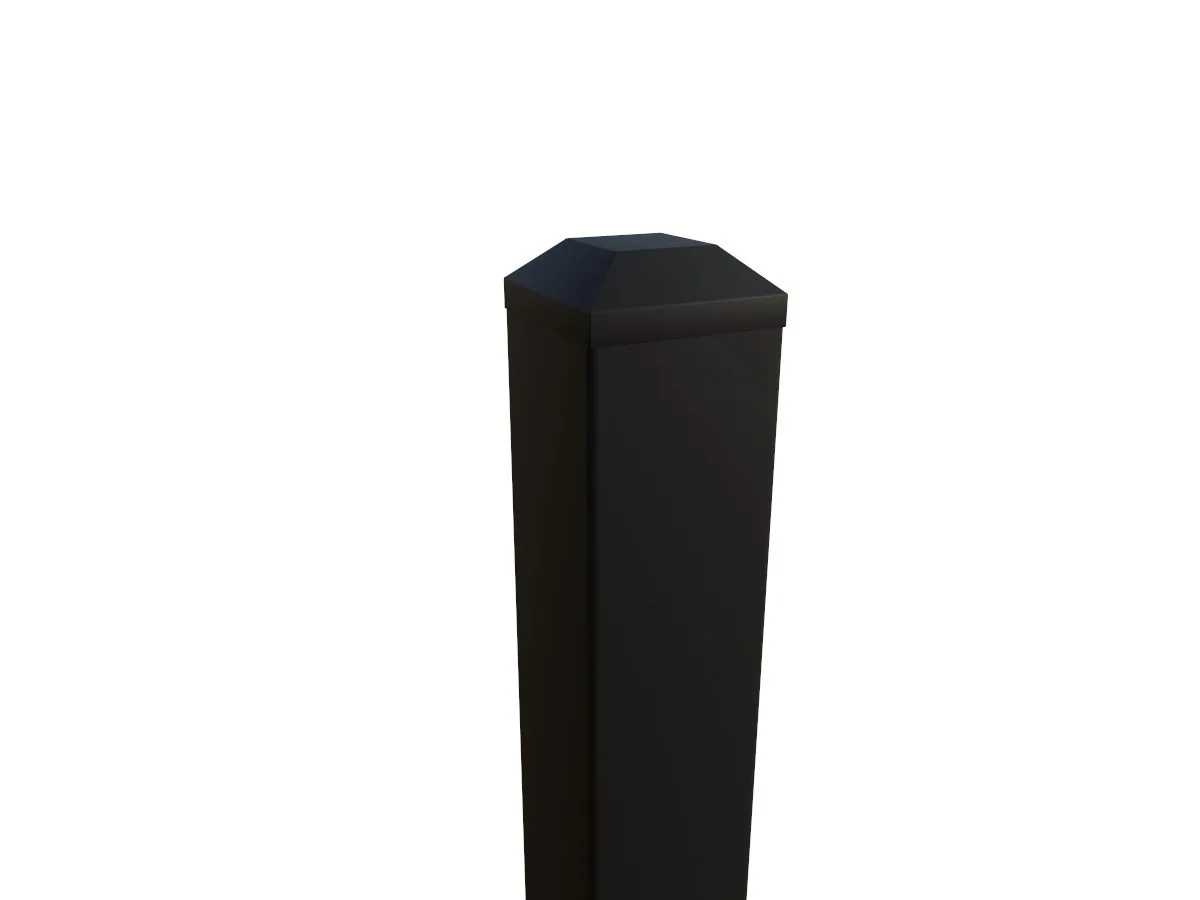

| Fence Brackets | Fence Post | Post Caps | Screws |
The horizontal rails, with evenly punched holes, and upright pailings are fully welded in a 360° manner, ensuring strong welding points and minimal split welds even after extended use.

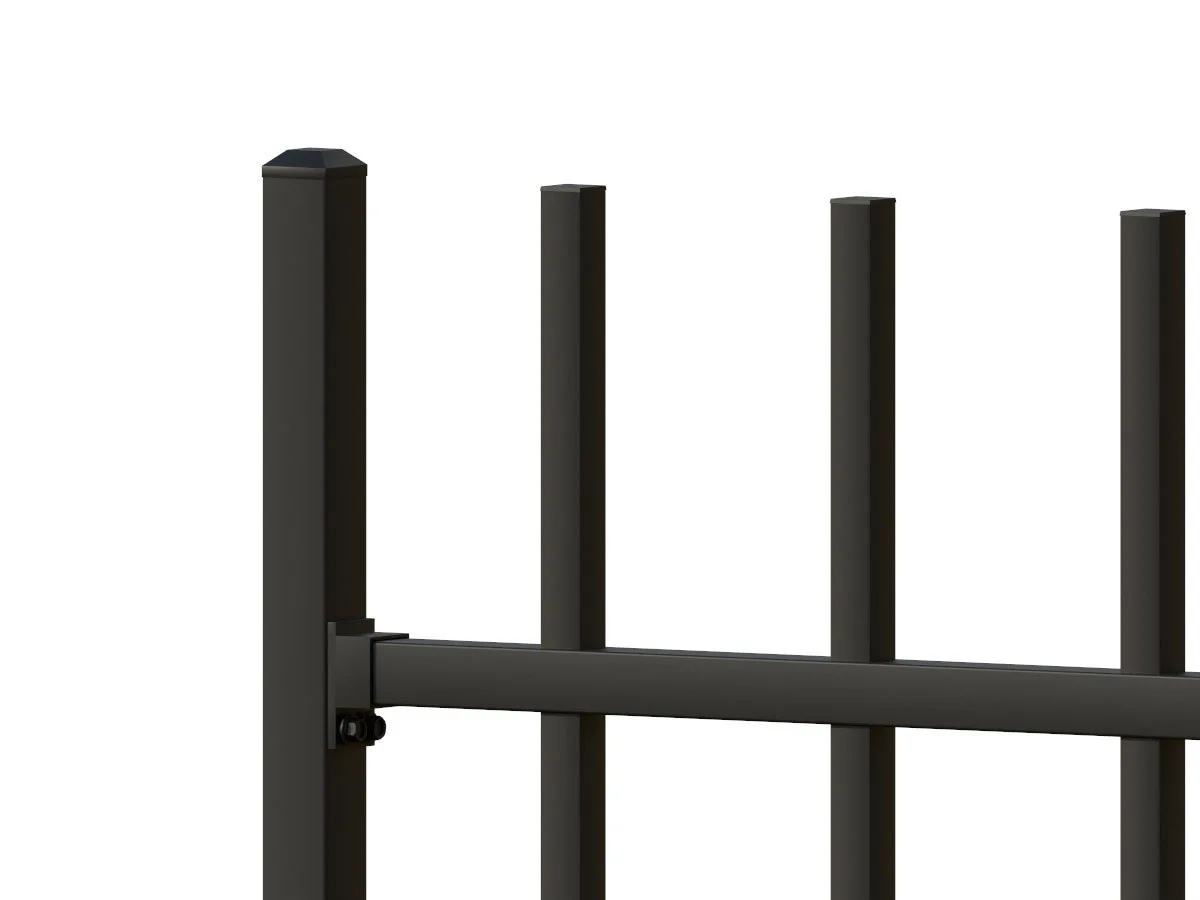

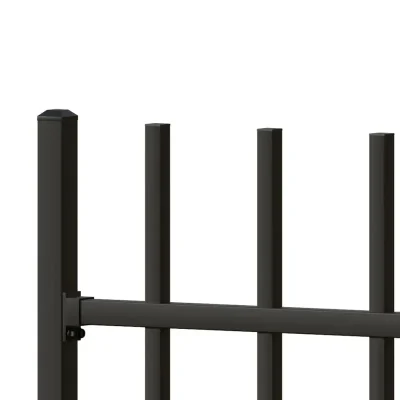

The rod top design acts as a deterrent for any unauthorized entry. Additionally, the narrow spacing between horizontal rails prevents the creation of footholds for climbing over.
We offer different aesthetic options for our rod top steel fence panel, including 2-rail, 3-rail, and 4-rail steel fences, catering to your specific preferences.
Our rod top steel fence panel steel tubes undergo full hot-dipped galvanization, with a G90 or G60 galvanized coating applied both inside and outside. This comprehensive anticorrosive protection ensures a service life of over 25 years.

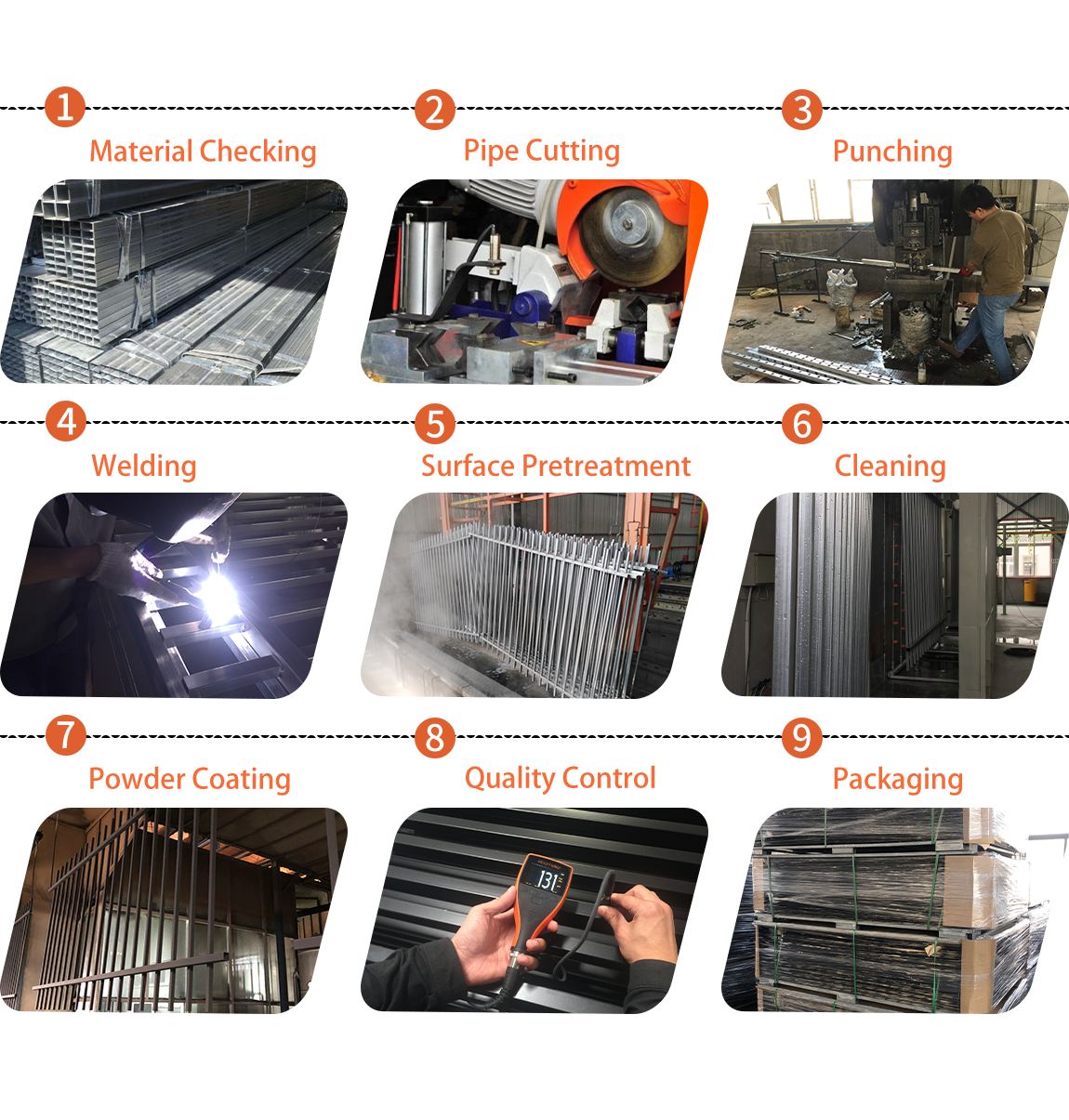

All incoming pipes are sampled piece by piece to check outer diameter and wall thickness. We control the outer diameter tolerance within ±0.2mm and wall thickness deviation within ±5% of the design value to ensure all parameters fully comply with the requirements of the fence construction drawing, and control quality from the source.
After raw material unloading and preparation, profiles are cut by a CNC cutting machine according to design requirements, with cutting length error controlled within ±1mm, to obtain pipe blanks of the required specified size.
Punching is processed on cut pipes with customized positioning jigs. We control aperture tolerance within ±0.1mm and hole position deviation within 0.5mm to meet the accuracy requirements of subsequent assembly.
Pre-galvanized steel pipes are precision-welded into the panel frame structure using advanced techniques such as MIG (Metal Inert Gas) or TIG (Tungsten Inert Gas) welding.
After sandblasting, phosphating treatment is performed to form a uniform phosphating film on the workpiece surface, with film thickness controlled at 1-3μm. The phosphating film itself has certain anti-corrosion capability, and can provide excellent adhesion for paint, powder coating and other organic coatings, effectively extending the service life of the final coating.
The workpiece goes through rinsing with water to remove residual phosphating solution, floating dust, and other surface impurities, controlling surface impurity residue within 10mg/㎡ to obtain a clean, smooth base for subsequent coating.
Electrostatically spray epoxy-polyester hybrid powder on the pretreated workpiece surface, then transfer it to a curing oven and cure at 180-200℃ for 15-20 minutes. This process endows the finished product with outstanding rust resistance and corrosion resistance, and delivers a uniform, aesthetic coating.
We carry out inspection for each finished product, testing pipe wall thickness, structural connection strength and powder coating thickness. The coating thickness is controlled within 60-120μm to ensure all products meet delivery standards, and unqualified products are blocked before leaving the factory.

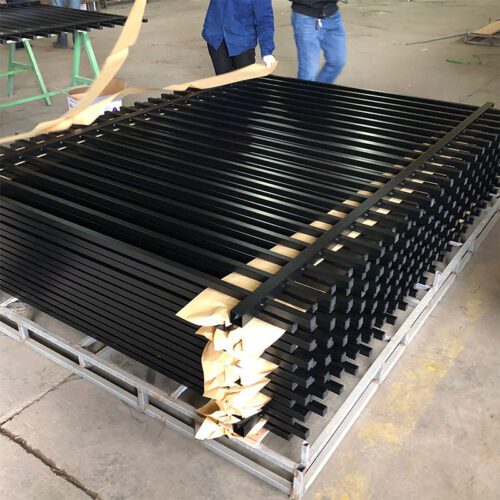

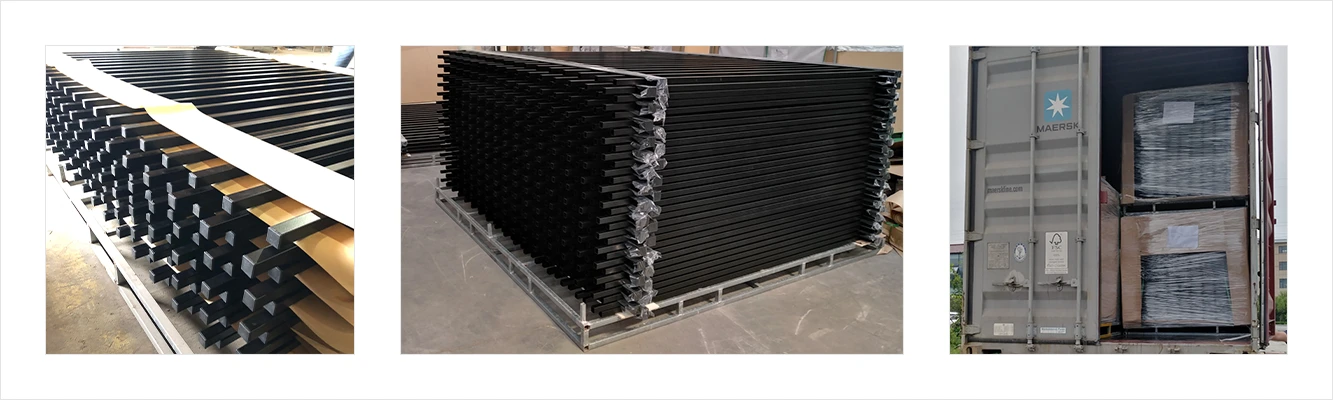

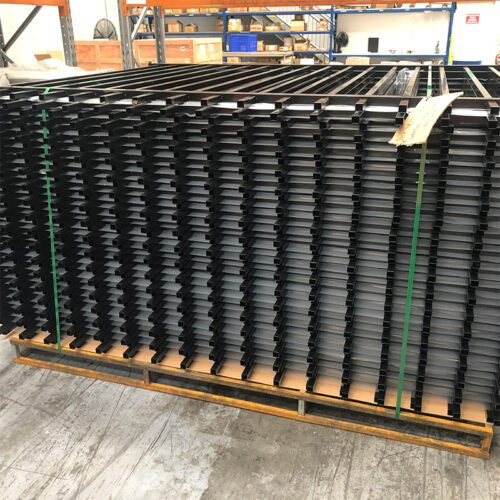

We adopt a professional packaging scheme (custom pearl cotton + winding stretch film + reinforced wooden pallets) to avoid coating scratches and collision deformation during transportation, ensuring products arrive at customer sites intact.
 |
 |
 |
 |
A: The rod top design offers a more decorative look, enhancing the overall appearance of your property. The rounded top minimizes sharp edges, reducing the risk of injury.
A: Yes, Rod Top Steel Fences are versatile and suitable for both residential and commercial applications, providing security and aesthetic value in various settings.
A: We operate a large-scale, in-house manufacturing facility and maintain an inventory of standard sizes and styles, enabling us to offer rapid shipping. The lead time for custom orders may be slightly longer; please contact us directly for specific details.
A: If you need samples, we will be happy to provide them for you. It will be free. But you need to bear the shipping cost.
A: For standard specifications, we have standard products in stock, which means we have them in stock. If you need such a product, it can be shipped to you as soon as possible.
