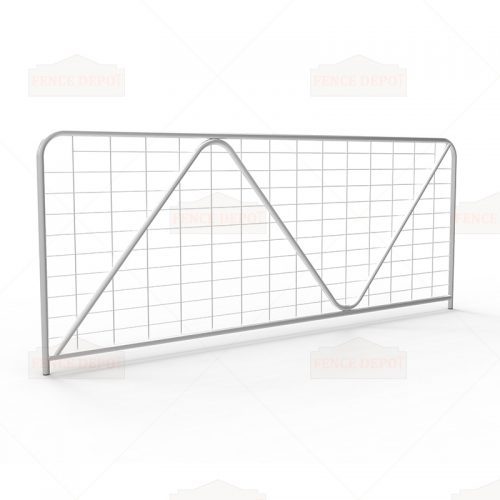

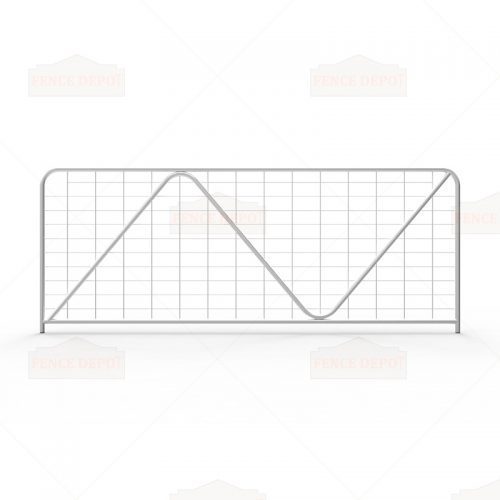

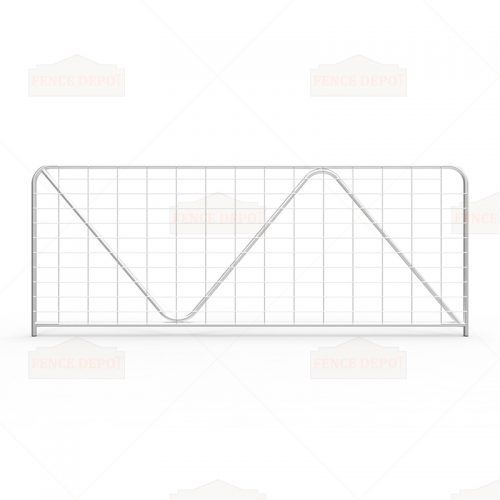

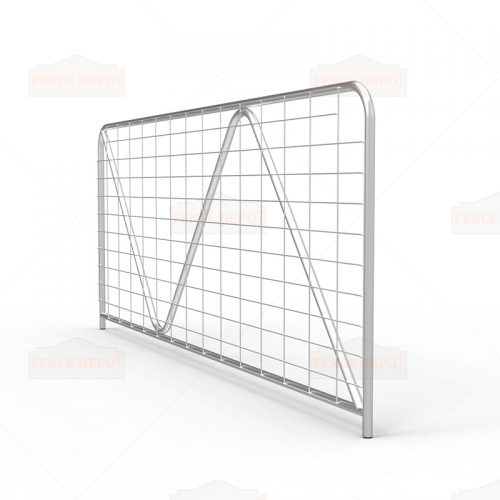

10ft N-Stay Metal Galvanized Mesh Farm Gate 2980mm(9.7ft) x 1170mm(3.8ft)
– No sharp edges keep your hands and animals safe preventing injuries.
– Infill mesh ensures strength and durability.
– Hot dip galvanized inside and out ensures corrosion resistance.
– The N-stay design makes the farm gate more stable overall.
– Size and workmanship can be customized.
– Special pricing is available for bulk orders.
In farm operations, a sturdy gate is not only a boundary marker, but also the key to ensuring livestock safety and daily efficiency. As a professional fence manufacturer, FENCE DEPOT’s 10ft N-Stay metal mesh farm gate, which has become a trusted choice in the market with its excellent structural design and durable materials.
The core advantage of our 10ft N-Stay metal mesh farm gate lies in its unique N-Stay reinforcement structure. This innovative design greatly improves the overall stability and deformation resistance of the door frame. Even in the face of collisions with large livestock, the gate can remain stable.
The 10ft n-stay farm gate uses high-quality metal mesh as filling, which is closely combined with the sturdy door frame to form a complete and seamless barrier. This design not only provides a strong physical barrier to ensure that livestock cannot easily pass through, but also retains good permeability, so that you can observe the condition of livestock at any time and manage them effectively.
We use high-quality heavy-duty galvanized steel. The galvanizing process forms a solid protective layer on the surface of the steel, which makes it have excellent corrosion resistance and can effectively resist the erosion of various harsh weather and environments, greatly reducing your future replacement costs.
The size of the 10ft N-Stay metal mesh farm gate is 2980mm (9.7ft) long x 1170mm (3.8ft) wide, while we have other N-Stay farm gate specifications to choose from. Of course, the size and workmanship of our products can be customized according to customer needs.
Product Specification:
Width | 2980mm (9.7ft) |
Height | 1170mm (3.8ft) |
Mesh Infill | 5mm Wire Diameter |
Brace | N Brace |
Weight | 27kg |
Frame | Pipe and Mesh |
Finish | Galvanized & Spraying (optional) |

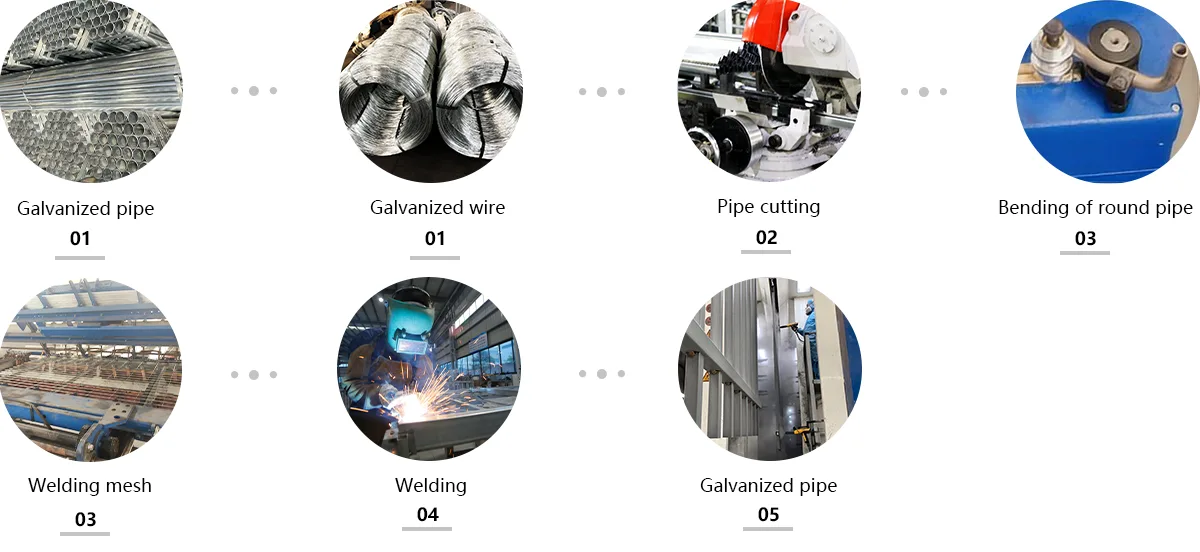

10ft N-Stay Farm Gate Production Process:
- Galvanized Pipe & Galvanized Wire(Raw Material Preparation): galvanized steel pipes and galvanized steel wire. The galvanized pipes will use for the frame or structural components, while the galvanized wire will use for the mesh infill.
- Pipe Cutting: Cut the galvanized steel pipes to the required lengths using a specialized pipe cutting machine. The precision of this step is crucial for the overall dimensions and structural integrity of the final product.
- Bending of Round Pipe: Bent the cut galvanized pipes into specific shapes or curves using a pipe bending machine. This process is essential for creating curved elements in the final product, such as arched tops or decorative features.
- Welding Mesh: Using welding machine that precisely joins the wires at their intersections, forming a strong and uniform mesh. The mesh provides infill for the structure, adding security and preventing passage through the fence or gate.
- Welding: The various components – cut pipes, bent pipes, and the wire mesh – are assembled and joined together using welding.
- Galvanized Pipe: After welding, the completed structure undergoes a final galvanization process, further enhancing its corrosion resistance and extending its lifespan.
Product Details:
- Our 2980mm(9.7ft) x 1170mm(3.8ft) N-stay farm gate meets high standards and is very popular in the market.
- The pipe used in the gate frame and stay is hot-dipped. Galvanized inside and outside, providing corrosion resistance.

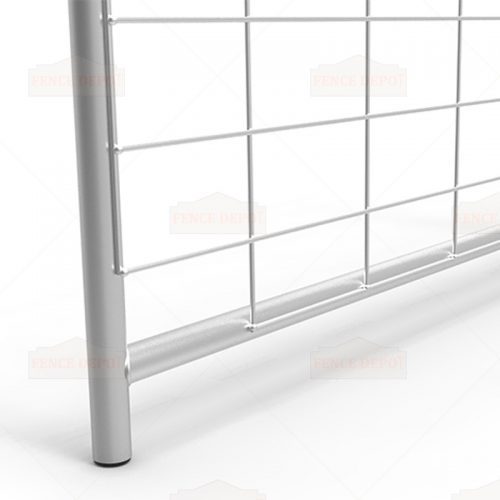

- 200mm horizontal x 100mm vertical aperture hot dip galvanized wire mesh.
- Both primer and surface bright zinc paint cover all welds.
- We prepared the pipe. Then put it on the welded shaping machine (the pipes are hot dipped galvanized if needed), and welded the pipe together.
- After the production, we will conduct the quality inspection. Ensure that the quality of each N-stay farm gate meets standards.
Advantages of 10ft N-Stay Metal Galvanized Mesh Farm Gate:
- Variety Sizes: Available in 2980mm(9.7ft) x 1170mm(3.8ft) N-stay farm gate, and a wide range of other sizes.
- Universal Design: Specially designed for versatile use on farms, ranches, and other scenarios.
- Premium Quality: Made from high-quality, sturdy materials for excellent stability and durability, with quality assurance.
- Enhanced Strength: Features professional, reinforced welding for increased structural integrity.
- Quality Checked: Each gate undergoes rigorous quality inspections to ensure standards are met.
- Packaging is very important for the safe transportation of the 10ft n-stay metal mesh farm gate.
- We use strapping + steel frame + pallet packaging, so it can ensure the stability of the product to the greatest extent.
- At the same time, our customers can unload the goods easily.
- If you have other requirements, we will strictly follow your requirements for packaging.
- We use sea transportation, which is convenient, fast, and stable.
