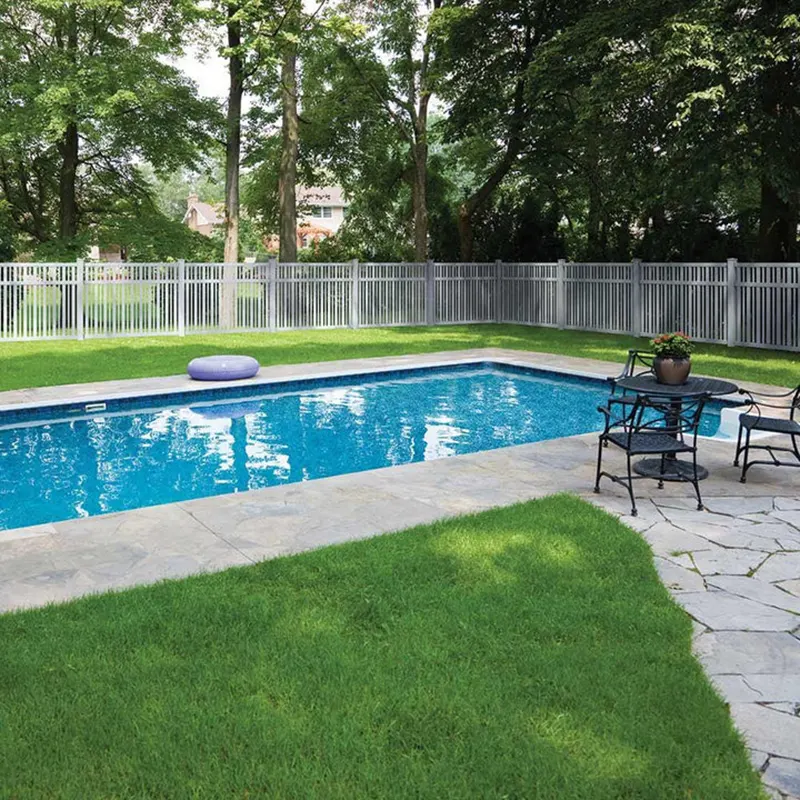

Our 5ft 3 Rails Semi Privacy Vinyl Fence offer a perfect balance of privacy, ventilation, natural light, and durability, making them an ideal solution for residential settings such as gardens and patios. Compared to 3 Rails Vinyl Privacy Fence Full Privacy PVC Fence Panels, our semi-privacy fence panels feature a more ingenious design. While maintaining a similar height to a full privacy fence, the panels are spaced appropriately to ensure ample airflow and an unobstructed view.
The 5ft 3 rails Semi Privacy Vinyl Fence is made from premium vinyl (PVC) material. This high-performance polymer is renowned for its exceptional stability and durability. Unlike traditional wooden or iron fences, vinyl fences will not rust or rot, eliminating concerns about damage from moisture or rain. No painting, staining, or sealing is required; occasional washing is all that’s needed to maintain its appearance. Furthermore, PVC material boasts excellent weather resistance, resisting the erosion of UV rays, wind, rain, and other harsh weather conditions, and is resistant to fading or deformation.
We utilize advanced extrusion molding technology, resulting in a dense and uniform internal structure for the fence. Compared to 2 Rails Flat Top vinyl privacy fences, our unique 3 rails structure significantly enhances the overall strength and stability of the fence, making it more robust and durable, capable of withstanding greater wind and other external forces.
With its clean white finish, this classic and versatile fence blends seamlessly with architectural styles and landscape designs. As a professional fencing supplier, we offer a wide range of privacy fencing panels and accessories. In addition to standard sizes, we provide various heights, widths, styles, and custom colors to meet your individual needs. You can choose the most suitable fencing product based on your preferences and specific requirements.
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×22.3×1330 | 2.0 | 24 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 76.2×22.3×1330 | 2.0 | 22 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 76.2×22.3×1330 | 2.0 | 22 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
|
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket A | 76.2×22.3×1330 | 2.0 | 14 |
| Picket B | 38.1×22.3×1330 | 2.0 | 13 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×38.1×1330 | 2.0 | 24 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.
The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.
Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.
According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.
Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.
Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.
Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.
Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.
 |
 |
 |
