5ft Tall White 5 Top Semi Privacy Vinyl Fence PVC Panels

This product is a 5ft Semi Privacy Vinyl Fence. Its core advantage lies in its semi-privacy design, which, while ensuring enclosure, achieves visual transparency through the gaps between the panels. Compared to a 5ft Tall White 5 Top Vinyl Picket Privacy Fence PVC Fence Panels, this design offers users a more flexible sense of space.

The fence’s unique structural design: a uniform 5 ft height combined with high-quality vinyl panels effectively defines a courtyard space, creating a private and tranquil resting environment. Its name, “privacy fence,” aptly reflects its functionality. The lower half of the fence features a finely slit design, combined with five symmetrically distributed pipes in the upper half, providing a solid sense of enclosure while avoiding the oppressive feeling of complete enclosure. Viewed from the side, its continuous structure forms an effective visual barrier, while the wide fence panels enhance overall security.

Compared to traditional wooden fences, this product offers significant advantages in durability and maintenance costs. We use high-quality PVC (polyvinyl chloride) raw materials to ensure the fence’s long service life. The low-maintenance properties of vinyl materials allow them to maintain their appearance for a long time, significantly reducing maintenance costs for homeowners.

As a professional fence system manufacturer, we offer highly customized vinyl semi-privacy fence solutions. Our product range covers a variety of colors and styles, and supports flexible adjustments to fence spacing. Whether it’s size, color, or specific height requirements, we can provide professional, high-quality customization services based on our clients’ individual preferences.

5ft Semi Privacy Vinyl Fence Specification

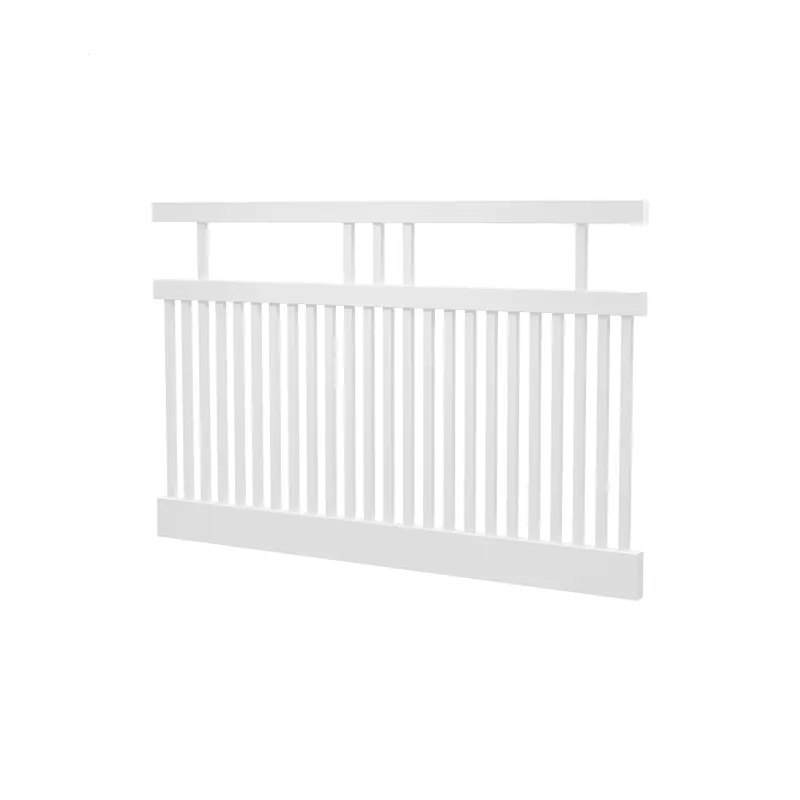

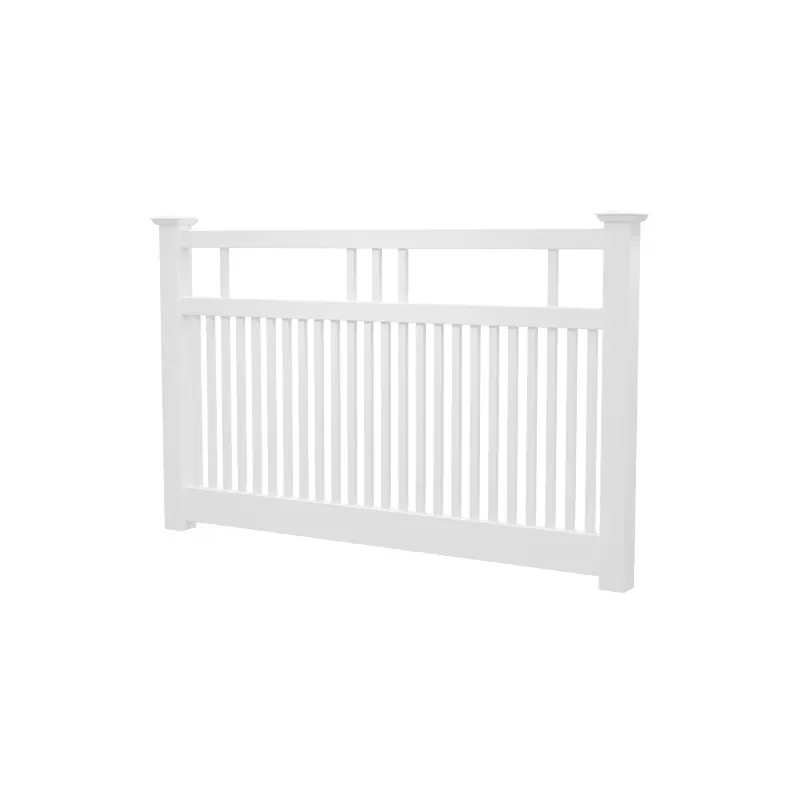

Semi Pricay 3824-1.5m

Item	Dimension	Thickness	Qty
Top Rail	50.8×88.9×2388	2.8	1
Middle Rail	50.8×88.9×2388	2.8	1
Bottom Rail	50.8×152.4×2388	2.8	1
Top Picket	38.1×22.3×375	2.0	5
Picket	38.1×22.3×985	2.0	24
Alum	2388		1
Post	127×127×2200	3.8	1
PVC Posts and Post Caps are not included in each section. Please order separately.

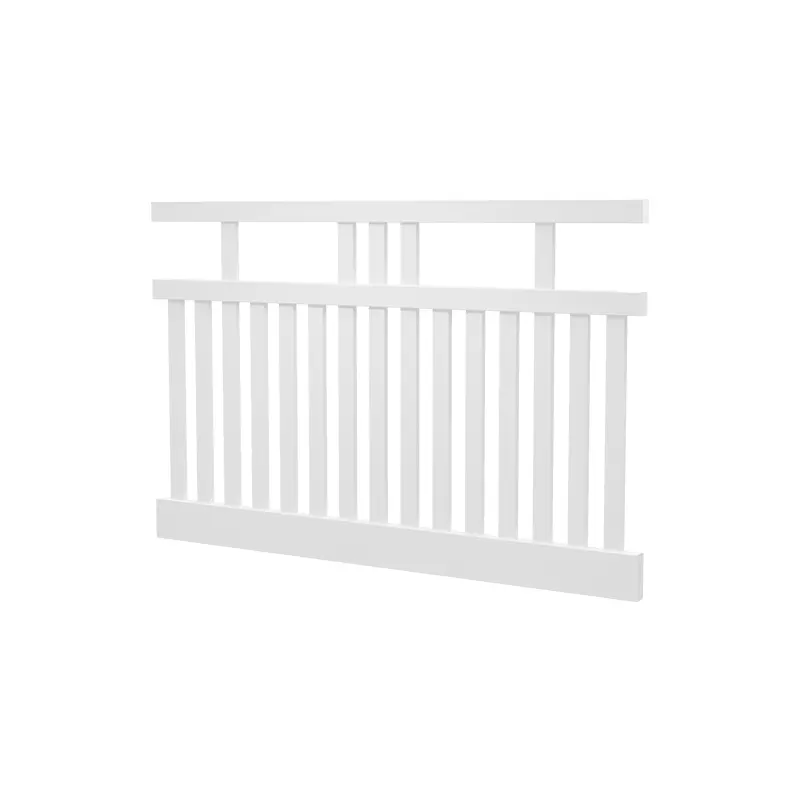

Semi Privacy 5-7615-1.5m

Item	Dimension	Thickness	Qty
Top Rail	50.8×88.9×2388	2.8	1
Middle Rail	50.8×88.9×2388	2.8	1
Bottom Rail	50.8×152.4×2388	2.8	1
Top Picket	76.2×22.3×375	2.0	5
Picket	76.2×22.3×985	2.0	15
Alum	2388		1
Post	127×127×2200	3.8	1
PVC Posts and Post Caps are not included in each section. Please order separately.

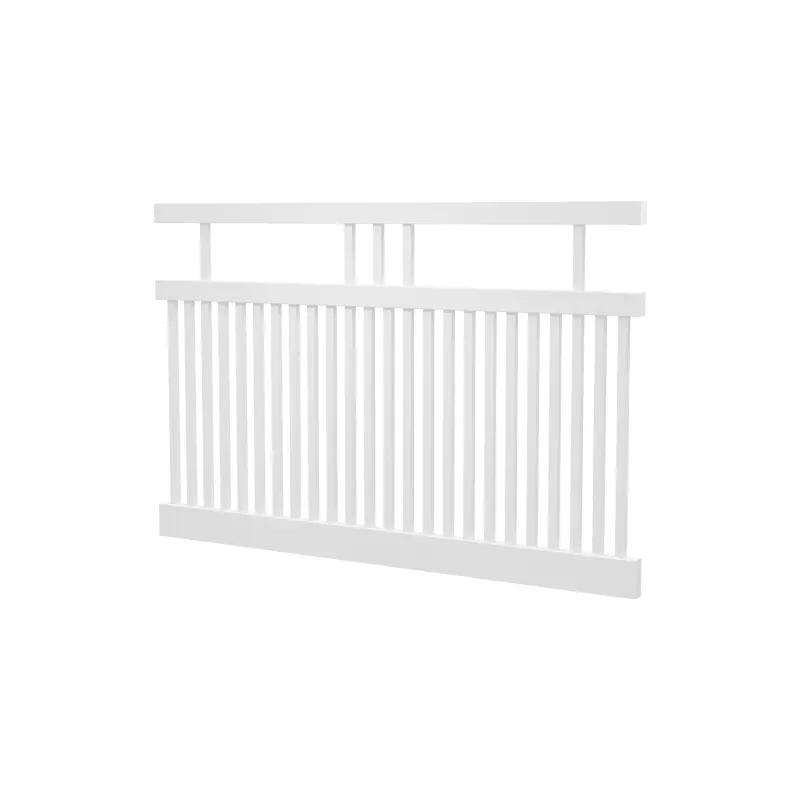

Semi Privacy S5-3824-1.5m

Item	Dimension	Thickness	Qty
Top Rail	50.8×88.9×2388	2.8	1
Middle Rail	50.8×88.9×2388	2.8	1
Bottom Rail	50.8×152.4×2388	2.8	1
Top Picket	38.1×38.1×375	2.0	5
Picket	38.1×38.1×985	2.0	24
Alum	2388		1
Post	127×127×2200	3.8	1
PVC Posts and Post Caps are not included in each section. Please order separately.

5ft Semi Privacy Vinyl Fence Detail

• This product features a pre-punched design, which, when used with a complete set of installation accessories, simplifies the installation process to the greatest extent, providing an efficient and convenient assembly experience.
• The main body of the fence is made of premium white UV-resistant PVC material. Its excellent UV resistance and weather resistance ensure color stability and material integrity over long-term use.
• The grooves not only enhance the visual appeal but also work in conjunction with the connecting structure to achieve seamless connections between components, ensuring the overall structural stability.
• The bottom rail is reinforced with aluminum alloy, significantly improving the overall strength and stability of the fence.

Semi PVC Privacy Fence Color Options

5ft Semi Privacy Vinyl Fence Post Cap Options

Arbor Caps	External Flat Cap	Flat Cap
Gothic Cap	Sharp Point Cap	New England Cap

Semi Privacy Vinyl Fence Production Process

Raw Material Mixing

PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.

Extrusion

The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.

Cutting

Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.

Milling

According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.

Surface Treatment

Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.

Assembly

Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.

Quality Control

Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.

Packaging

Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.

5ft Semi Privacy PVC Fence Advantages

• Balancing Privacy and Openness: The panels, through specific spacing or design, allow air and light to circulate while effectively blocking direct views.
• Innovative Design, Rejecting Monotony: Privacy protection is achieved through the distribution of pickets and the spacing of the slats, while avoiding complete enclosure of the outdoor space.
• High-Quality Materials: High-grade vinyl panels are used, ensuring material quality and durability.
• Quick Installation: The fence panels come in a variety of styles and are lightweight, allowing ordinary households to quickly install them without professional skills.
• Low-Cost Maintenance: Durable materials and low maintenance costs mean minimal daily upkeep, saving time and effort, and ensuring long-term durability.
• Personalized Customization: Sizes and colors can be customized to your needs, creating a unique fence landscape.

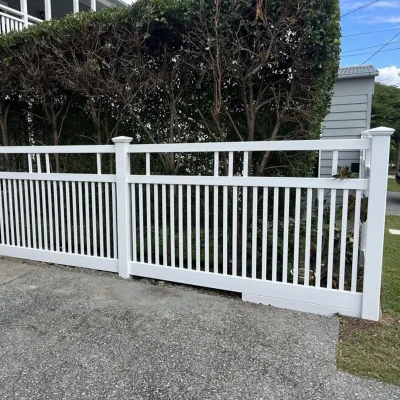

5ft Semi Privacy Vinyl Fence Application

• Residential Boundaries: Clearly delineates your property from your neighbors’ without completely blocking views or airflow.
• Child Safety: Offers a degree of containment for young children playing in the yard, preventing them from wandering too far.
• Aesthetic Appeal: Enhances the curb appeal of your home and yard, creating a more polished and finished look.
• Sectioning Large Yards: Create distinct zones within your yard, such as separating a play area from a garden or a pet run from a patio.
• Visual Screening: Can be used to block unsightly views of utility boxes, compost bins, or neighboring structures without creating a solid wall.
