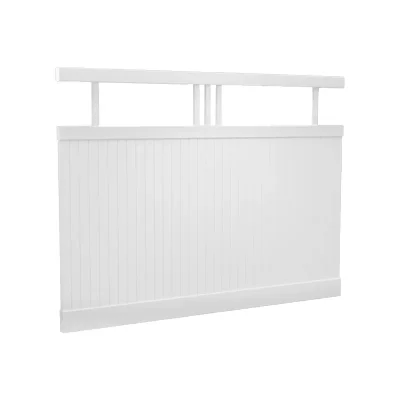

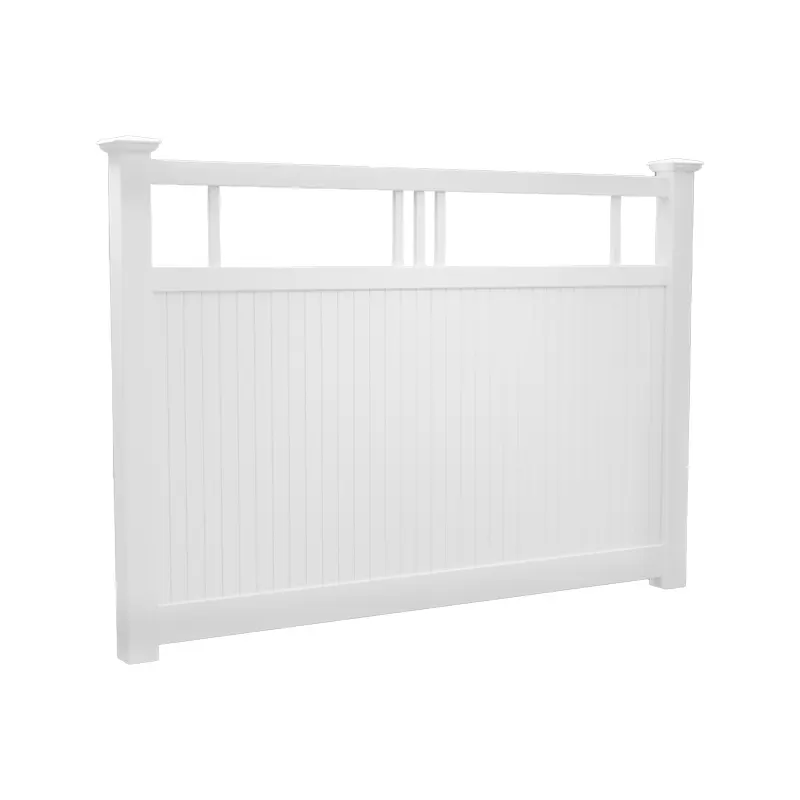

This 6ft 5 top vinyl picket privacy fence, designed in harmony with our 5ft Tall White 5 Top Vinyl Picket Privacy Fence PVC Fence Panels, is designed to create a highly private, secure, and visually appealing outdoor environment. Its fully enclosed lower section effectively blocks the view, ensuring your privacy. Five symmetrically distributed pickets at the top significantly enhance the overall aesthetics of the area. Easy to install and maintain, this product is suitable for various settings, including residential, garden, and commercial projects.
It boasts excellent weather resistance, corrosion resistance, and UV resistance, ensuring long-lasting color and resistance to deformation, guaranteeing a long service life for the fence. Scientific 3 rails structure-Top Rail: 50.8 × 88.9 × 2388mm (wall thickness 2.8mm); Bottom & Middle Rail: 50.8 × 152.4 × 2388mm (wall thickness 2.8mm); Precision Panels: each set includes 8 panels (287 x 22.3 x 1175mm, wall thickness 1.3mm), employing an interlocking groove design and mortise and tenon joints to ensure tight installation and overall structural stability.
The bottom crossbeams feature an integrated aluminum alloy reinforcement structure, significantly enhancing the overall strength and structural stability of the fence. The fence panels are manufactured using a precision extrusion molding process, ensuring high dimensional accuracy, a smooth surface finish, and superior product quality. The refined top decoration design, with symmetrically arranged 38.1 x 38.1 x 370 mm (2 mm wall thickness) bars, boasts a simple and elegant style, effectively enhancing the overall visual appeal.
As a professional fence manufacturer, we offer a wide variety of standard products and provide highly flexible customization services. Whether it’s site length, fence panel height, or specific color requirements, we can provide comprehensive solutions, including size, color, and installation methods to meet your needs.

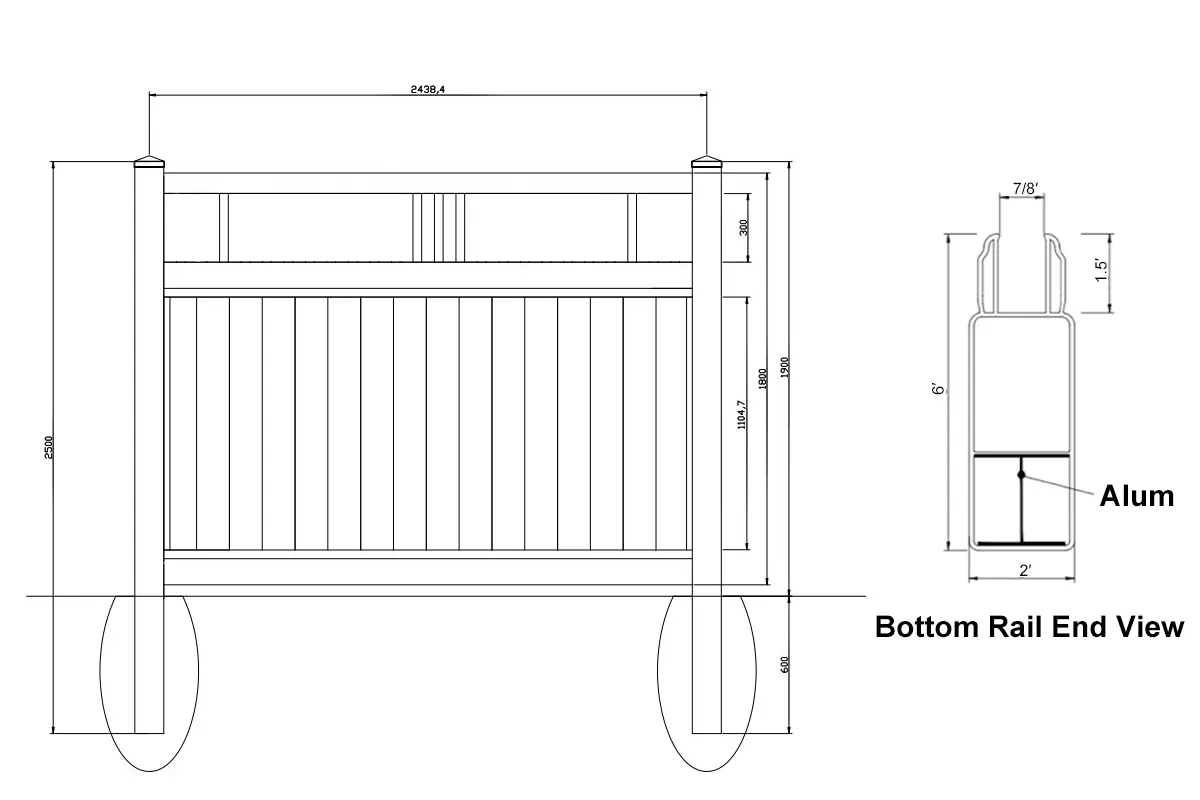

| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×38.1×370 | 2 | 5 |
| U-Channel | 1004 | 1.2 | 2 |
| Panel | 287×22.3×1175 | 1.3 | 8 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.
The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.
Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.
According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.
Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.
Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.
Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.
Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.
