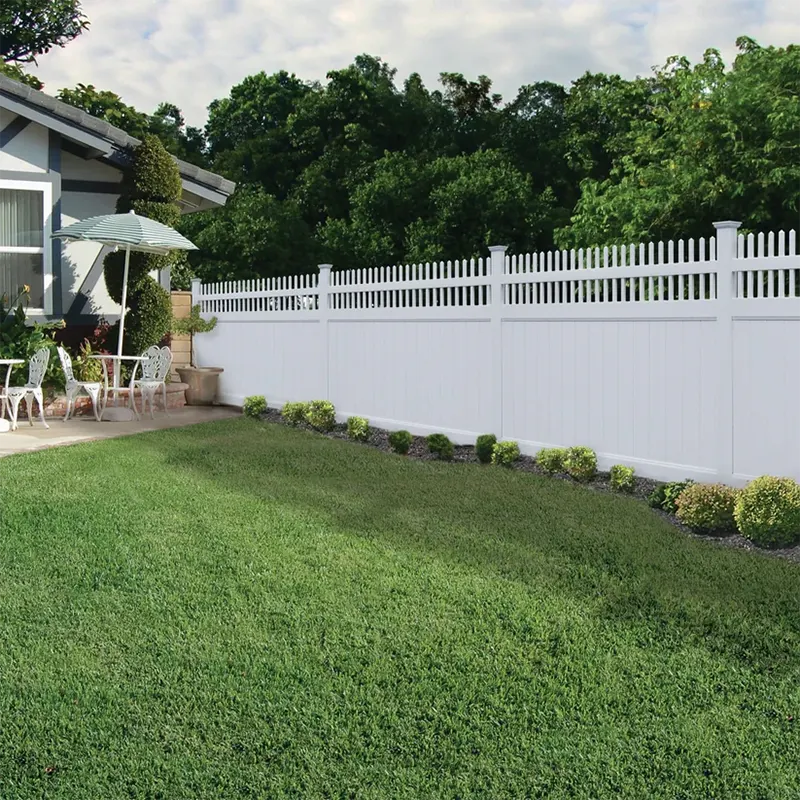

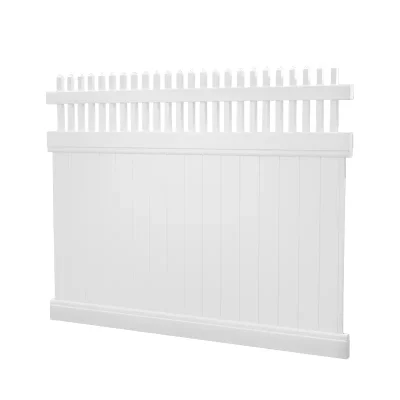

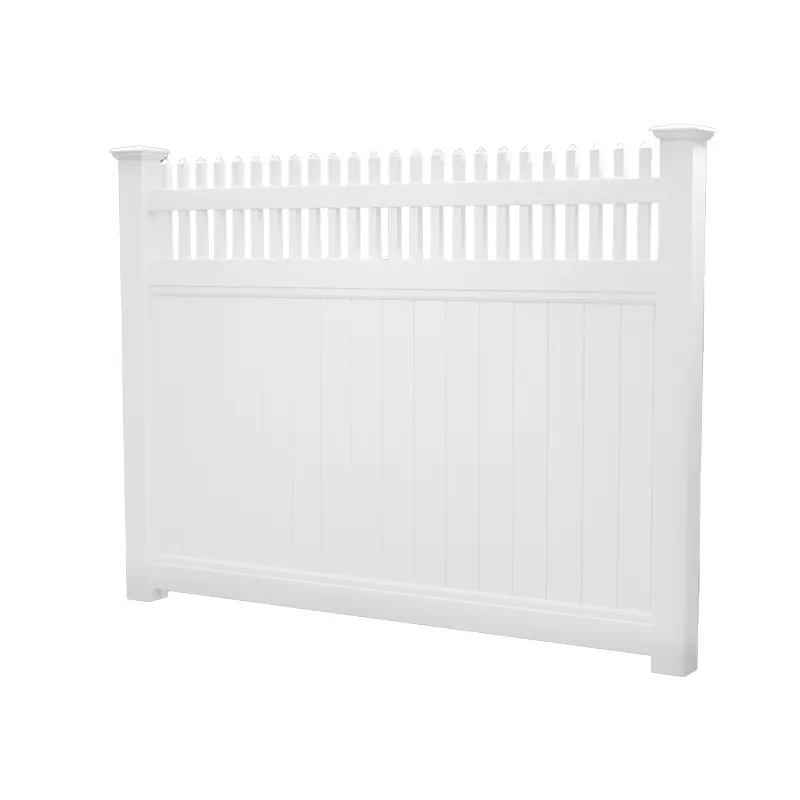

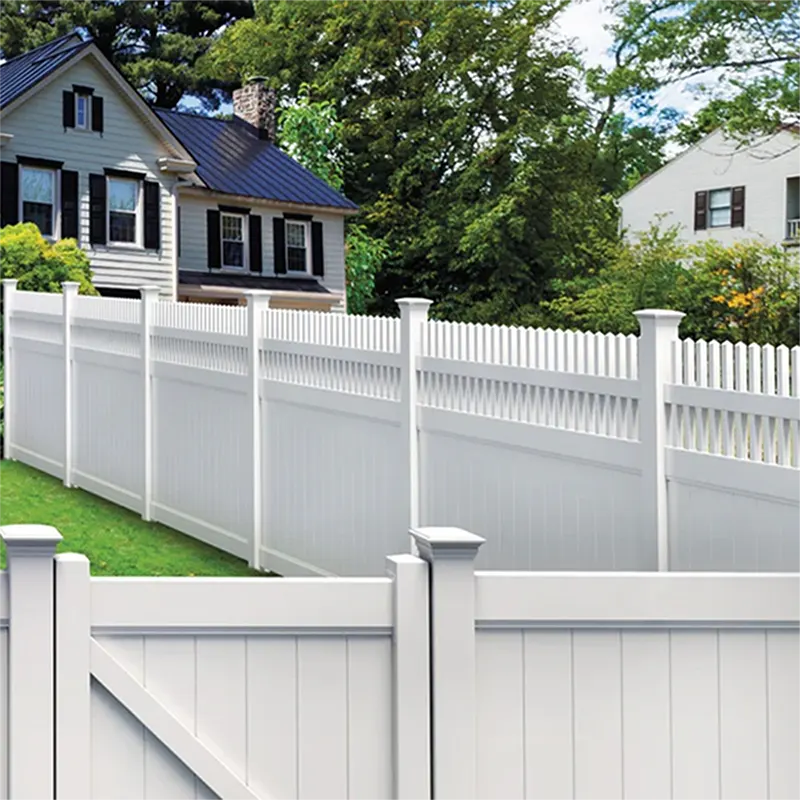

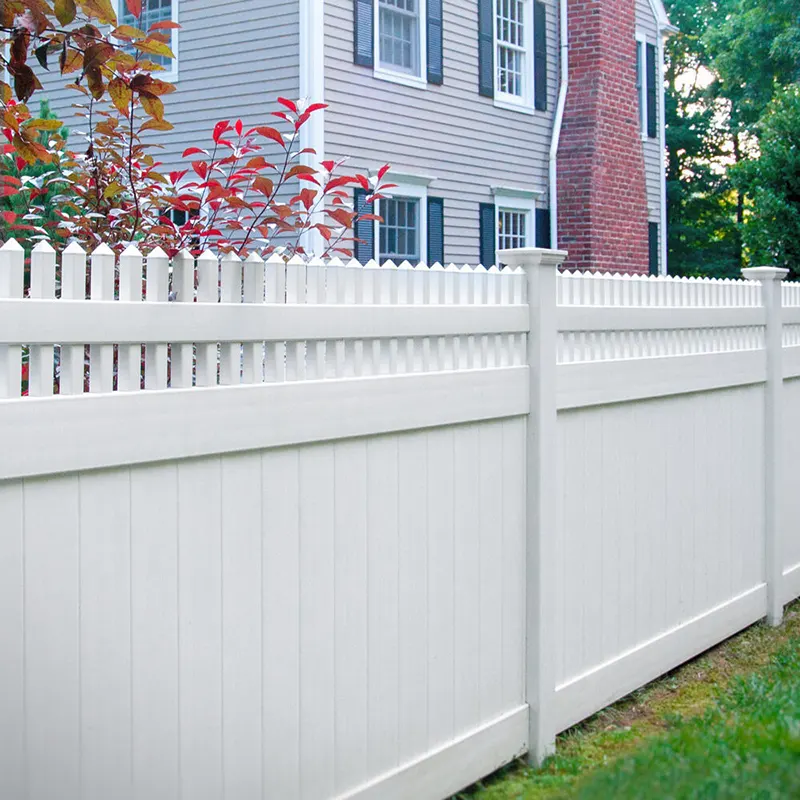

This 6ft Tall White Vinyl Privacy Fence Panel with Straight Picket Top, similar to our 5ft Tall White Vinyl Privacy Fence Panel with Straight Picket Top, is designed to create a safe, private, and aesthetically pleasing outdoor space. This fence is easy to install and maintain, making it ideal for residential, garden, and commercial spaces.
The picket top details are elegant and sophisticated, while the solid bottom panel effectively blocks the view, creating a private space. Made of high-quality PVC material, it boasts excellent weather resistance, corrosion resistance, and UV resistance, resisting fading and deformation, ensuring durability. The three-bar design, with the bottom bar reinforced with aluminum alloy, ensures the overall strength and stability of the fence, resisting various weather conditions.
The fence panel is ingeniously designed with a stylish overlapping groove and a mortise – and – tenon structure. These features not only ensure a perfect fit but also boost the overall stability of the fence. Additionally, the bottom crossbeams are reinforced with aluminum alloy, further fortifying the fence’s strength and stability. The PVC profiles are produced through an extrusion molding process, resulting in precise dimensions and a smooth surface.

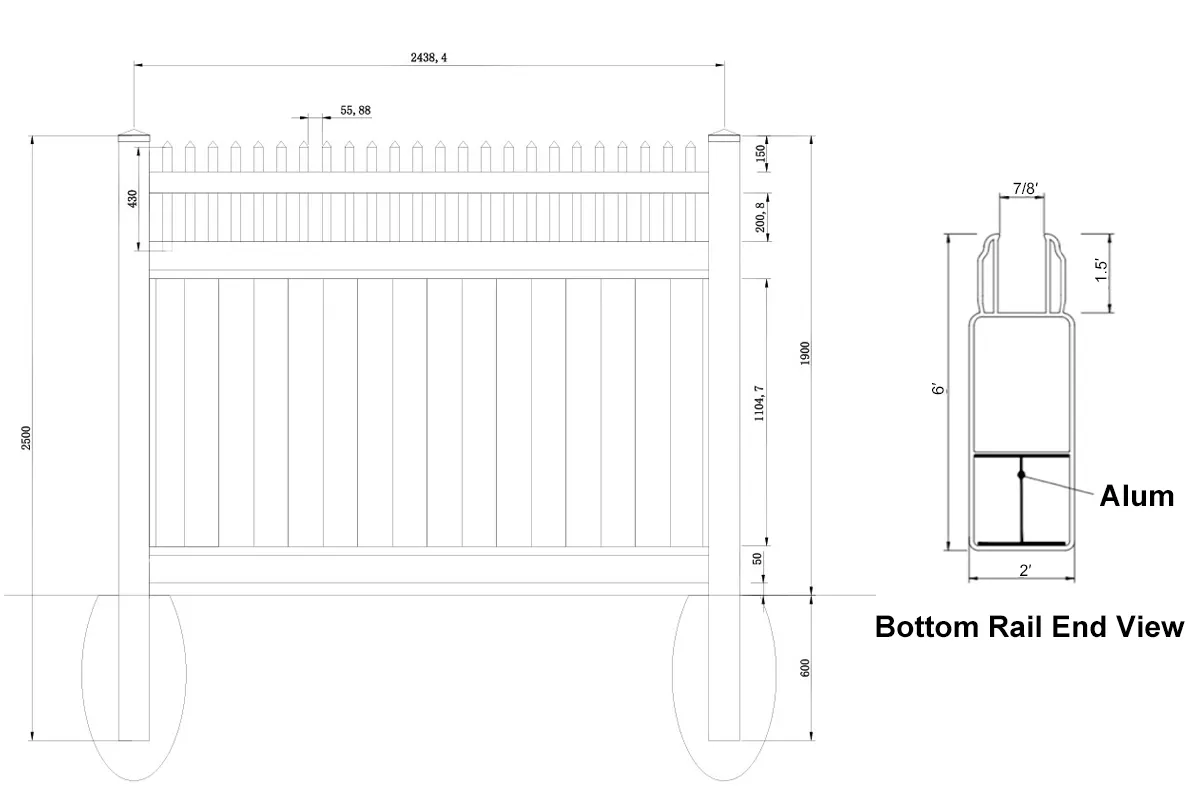

It adopts a 3 rails design. The top rail has dimensions of 50.8 × 88.9 × 2388 mm and a wall thickness of 2.8 mm. The bottom and middle rails measure 50.8 × 152.4 × 2388 mm, also with a wall thickness of 2.8 mm. The fence panel is sized at 287 x 22.3 x 1175 mm, and each set comes with 8 panels having a wall thickness of 1.3 mm. The top picket has dimensions of 38.1 x 38.1 x 430 mm and a wall thickness of 2 mm. There are 24 Picket Top evenly spaced between the top crossbeams, presenting a simple yet aesthetically appealing look.
As a professional fence manufacturer, we go beyond offering standard products. We are dedicated to providing customized services, including adjustments in size, color, and installation method. No matter your specific requirements regarding site length, panel height, or color, we can tailor the fence to meet your exact needs.
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×38.1×430 | 2 | 24 |
| U-Channel | 1104 | 1.2 | 2 |
| Panel | 287×22.3×1175 | 1.3 | 8 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin and various additives are uniformly mixed in a high-efficiency mixer according to precise formula ratios. This process is crucial and directly affects the quality of the final product.
The mixed PVC granules or powder are fed into an extruder. Under heating and rotation, the molten PVC material is extruded through a die and immediately cooled. The cooled PVC profile is then pulled out at a constant speed by a traction machine, thus controlling the size and thickness of the profile.
Once the continuously extruded PVC profile reaches the set length, an automatic cutting machine automatically cuts the profile into the required fence components, such as posts, crossbars, and slats. The cut components undergo quality inspection to check for smooth cut surfaces, burrs, cracks, and other defects.
According to the drawings, milling equipment is used to pre-drill holes in the components to be connected, and necessary milling operations, such as milling grooves and edges, are performed. The position, diameter, and depth of the drilled holes must be strictly controlled according to the drawing requirements.
Clean all parts of the cut and milled PVC fence to remove dust, oil, debris, and other impurities. Cleaning can be done by water washing, solvent cleaning, or ultrasonic cleaning to ensure a clean surface.
Prepare all materials needed for assembling the PVC fence, including cut and milled PVC parts, connectors, and any other hardware. Assemble the components using specialized assembly tools according to design requirements and assembly drawings. During assembly, ensure that all connections are secure, tight, and dimensionally accurate.
Conduct a thorough quality inspection on each product to ensure customers receive only the highest quality products. This step includes checking each assembled fence for defects and ensuring all components are securely connected and meet established standards.
Pack the qualified PVC fence components according to customer requirements, typically using packing straps, plastic film, or wooden pallets for securing and protection to prevent damage during transportation.
 |
 |
 |
