– No sharp edges ensuring operator and livestock safety.
– Exquisite welding process ensures strength and durability.
– Hot dip galvanized to maintain quality and ensure corrosion resistance.
– Years of supply experience to serve all types of customers.
– Size, workmanship, material, and style can be customized.
– Special pricing is available for bulk orders.

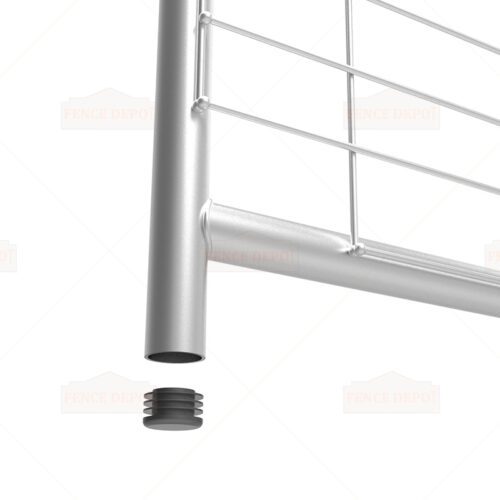

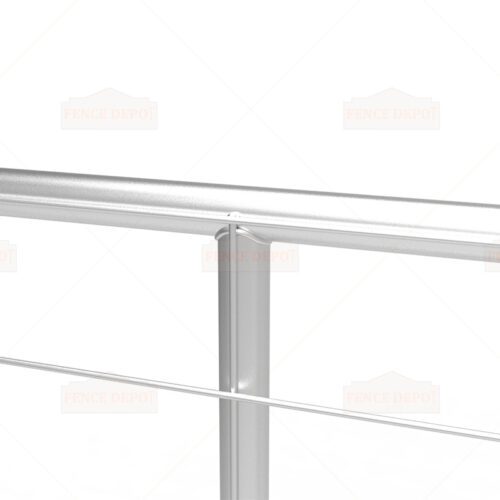

The 4ft i-stay metal gate offered by FENCE DEPOT is different from ordinary farm gates. Our farm gates are stronger, and all joints are scalloped and welded rather than crimped or flattened. That makes our products easy to install, maintain, and repair, designed to provide you with long-lasting and safe solutions.

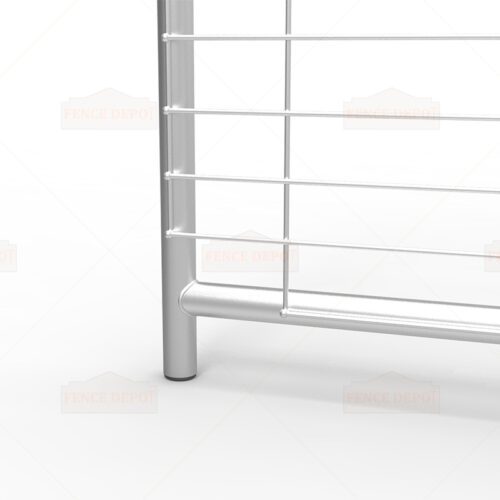

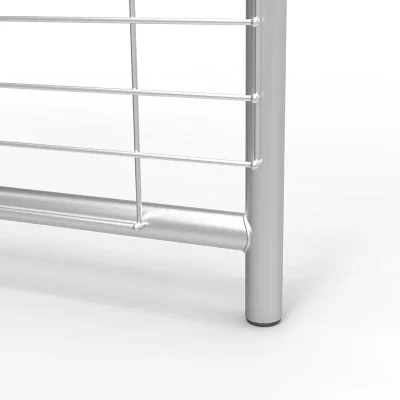

The 4ft metal mesh i-stay mesh farm gate Farm’s welded mesh insert features graded horizontal wires that increase the density of the wires on the lower portion of the door to create a good barrier to animals and small livestock, effectively preventing breaches. At the same time, the weld is smooth and flush with the pipe, with no sharp edges. This makes the gate safer and stronger.

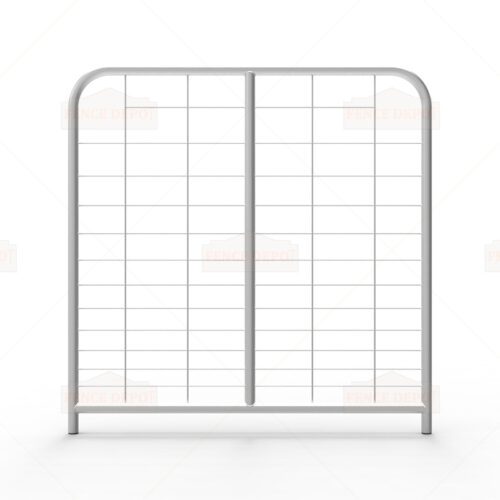

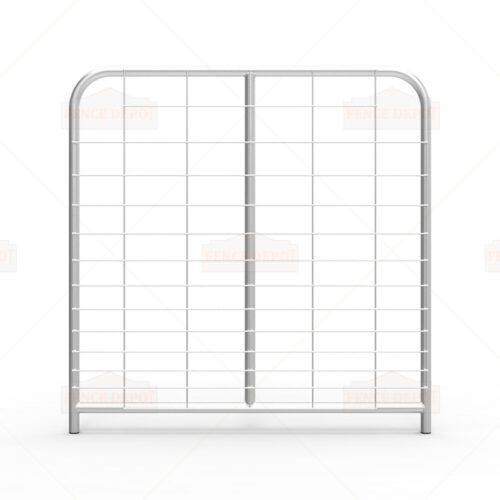

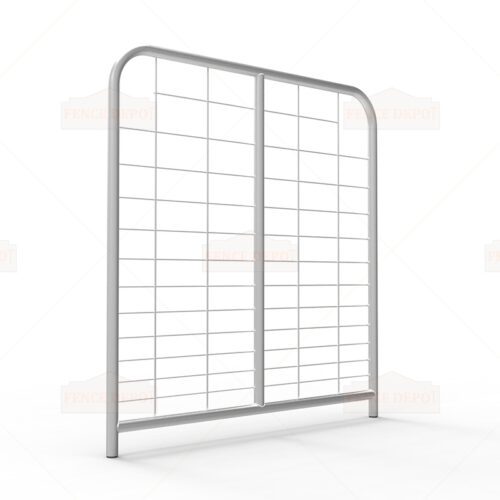

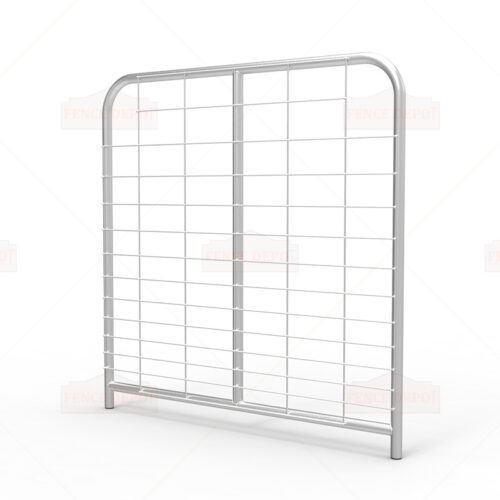

FENCE DEPOT is a well-known manufacturer of Farm Gate. Our 4ft mesh i-stay mesh farm gates are 1160mm long and 1170mm high. Made from high-quality 25Nb hot-dipped galvanized pipe with a sturdy 2.0mm wall thickness. Making it more durable and stronger. In order to meet your specific needs, farm gates can also be customized for you.
| Stay Type | I-Stay |
| Height | 1170mm |
| Length | 1160mm |
| Graduated Mesh Infill | 200mm x 100mm / 200mm x32mm x 5.0mm |
| Brace | No Brace |
| Weight | 10kg |
| Finish | Pipe and Mesh |
| Surface Treatment | galvanized pipe & spraying (optional) |
1. Our 4ft i-stay metal mesh farm gate meets a high standard and is very popular in the market.
2. The pipe used in the gate frame and stay is hot-dipped galvanized both inside and outside providing corrosion resistance.
3. Weldmesh: Gradient horizontal mesh spacings aperture hot-dip galvanized wire mesh.
4. All pipes are galvanized both outside and inside with full welding. Paint rust protection within 4 hours after welding and then paint until rust bright spray after the premier paint dried.
5. We prepared the pipe, then put the pipe on the welded shaping machine(the pipes are hot-dipped galvanized if you need them), and welded the pipe together.
1. Our 1160mm x 1170mm i-stay mesh farm gate meets high standards and is very popular in the market.
2. The pipe used in the gate frame and stay is hot-dipped galvanized both inside and outside, providing corrosion resistance.
3. Graduated Mesh Infill 200mm x 100mm / 200mm x 32mm x 5.0mm
4. Both primer and surface bright zinc paint cover all welds.
5. After the production, we will conduct the quality inspection. Ensure that the quality of each 4ft i-stay metal mesh farm gate meets standards.
Select high-quality galvanized pipes and galvanized steel wire as the primary materials to ensure corrosion resistance and strength. Galvanized pipes and galvanized steel wire are inspected to ensure they meet production standards, including thickness, diameter, and uniformity of the galvanized coating.
Determine the length and quantity of each component according to the design drawings. Use a cutting machine to cut the galvanised pipe to the required length, ensuring a smooth cut surface and avoiding burrs.

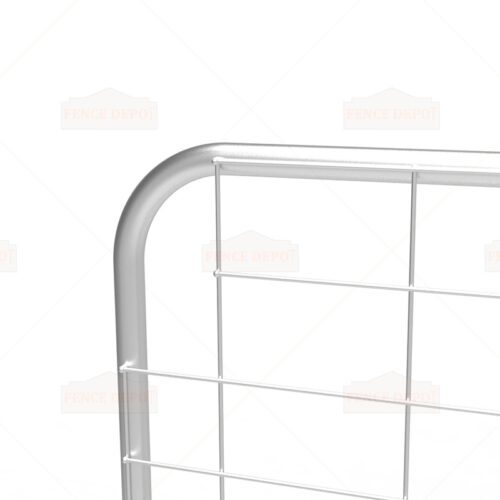

Determine the location and angle of the pipe to be bent according to the design requirements. Use a pipe bending machine to bend the galvanized pipe to the desired shape, ensuring accurate bend angles and no cracks.
Use a stamping machine to stamp the pipe into the desired shape for subsequent assembly and connection.
Cut the galvanized steel wire and weave it into a mesh. Use a welding machine to weld the wire mesh together, ensuring a secure and uniform connection.
Assemble the welded mesh panels to the gate frame to form the farm gate panel. Weld the panels to ensure each joint is secure and prevent loosening during use.
Clean the welded farm gate to remove any dirt and oxides from the welding process. Apply zinc to the welded areas to create a uniform zinc coating for enhanced corrosion resistance.
The finished product undergoes a thorough inspection, including dimensions, welding quality, and coating uniformity, to ensure compliance with standards.
Select appropriate packaging materials based on shipping requirements. Qualified farm gates are packaged using cable ties and pallets to ensure they are not damaged during transportation.
A: The products are high-quality metal gates designed for use in rural and farming environments. They are sturdy, durable, and designed to withstand harsh weather conditions.
A: Our products are made of heavy-duty steel, which is rust-resistant, weather-resistant, and long-lasting. The gates are also coated with a protective layer to prevent corrosion and wear.
A: Our product comes in a standard size of 1160mm(3.8ft) long and 1170mm(3.8ft) high. We can also custom-make gates to fit your specific requirements.
A: Our i-stay metal mesh farm gates come in a range of powder-coated finishes, including black, green, and brown. We can also provide custom colors on request.
A: To order our product as a wholesale or bulk buyer, please contact us directly to discuss your requirements and pricing.
A: We provide comprehensive technical support and customer service for all our products. You can contact us by phone, email, or through our website to get assistance.
