– Easy to install and remove, easy to move.
– The exquisite welding process makes the overall strength higher and more stable.
– High-quality galvanized steel material is very durable and strong.
– Advanced production technology is more efficient and leads to shorter delivery times.
– Product specifications such as size, material, and craftsmanship can be customized.
– Special pricing is available for bulk orders.

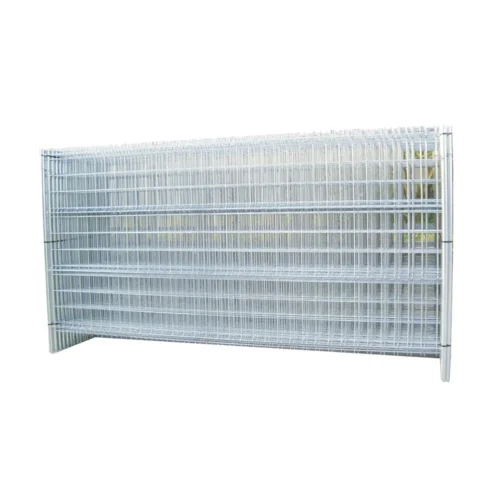

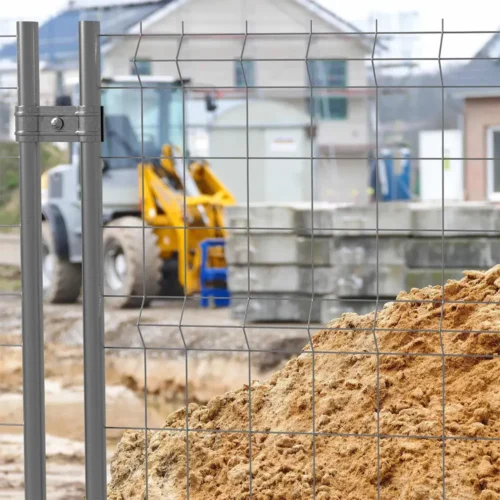

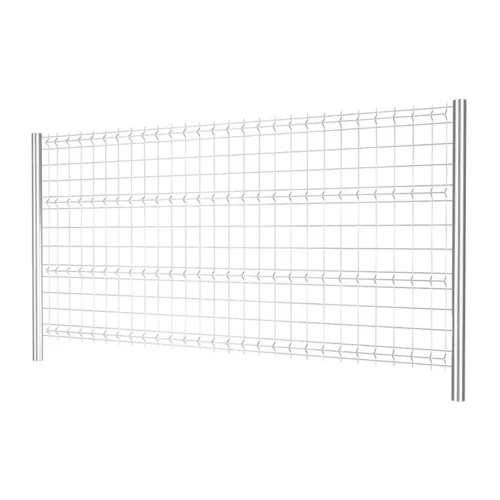

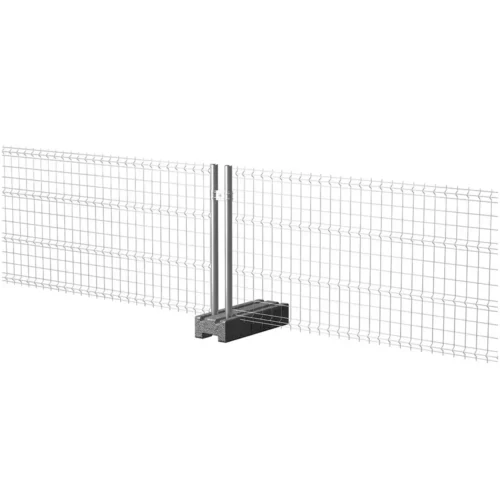

The mobile construction fence we produce is a versatile fencing solution. The product is similar to our Rigid Mesh Panels, 3D Fence, and Welded Mesh Temporary Fence. The overall design is easier to install and disassemble, without requiring professional skills or special tools. This product can play an important role in places where fences need to be moved frequently, such as construction sites and factories.
In terms of materials for manufacturing mobile construction fences, we use high-strength low-carbon steel, so it is very strong and durable. In terms of welding, a fully automatic machine is used to weld the internal mesh and the entire frame is circumferentially welded, making it very solid and stable. At the same time, you can choose galvanizing or powder coating, so it is very rust-proof and corrosion-resistant and has a longer service life.
Products have a variety of standard specifications to choose from to suit different needs. We can customize product size, material, craftsmanship, and other specifications according to needs or usage scenarios.
| Wire Diameter (mm) | Mesh Size (mm) | Height x Width (mm) | Frame Pipe (mm) | Middle Pipe (mm) |
| 3.0-5.0 | 60*150 | 1800*2900 1800*2930 1800*3000 |
30*30*2.0 25*25*1.5 |
25*25*1.5 20*20*1.2 |
| Base Size | 600*100*6m760*120*6mm | |||
| Surface Treatment | Powder-coated, hot dipped galvanized | |||
| All specifications, surface treatments, and colors can be customized as needed | ||||
Select high-quality steel wire that meets strength, toughness, and corrosion resistance requirements, such as galvanized steel wire. Stringent quality inspections are performed on the wire diameter, surface quality, and coating thickness.
The coiled galvanized steel wire, when passed through a high-precision automatic straightening machine, effectively removes its inherent curvature, achieving a straightness error of < 1 mm/m. Subsequently, it is cut to a specific length with high precision using a CNC length-cutting device, with the cutting length tolerance typically controlled within ±1 mm.
Using CNC bending equipment, galvanized steel wire is bent into the desired arc shape. The bending process requires extremely high precision from the bending machine, demanding precise control of the bending angle, radius, and material deformation. The bending angle error is controlled within ±0.5°, and the bending radius error is controlled within ±1mm, to ensure the accuracy and consistency of the arc shape.
Automated welding equipment is used to place the cut wire on the welding machine’s feed rack. The machine welds the intersections of the wires, forming strong welds. Full automation ensures uniform mesh size and weld strength.
After welding, the edges and welds are ground to remove burrs, oil, slag, and other impurities, preparing for subsequent coating.
Based on hot-dip galvanizing, a dense and robust powder coating with a thickness of approximately 80-120 micrometers is formed through a precise spraying process. This coating significantly enhances the fence’s corrosion resistance, UV resistance, and mechanical strength.
Check whether the dimensions of the fence panels meet the design requirements, including length, width, height, and bending angle. Check whether the welding points are firm and free from defects such as incomplete or missing welds. Check if the coating is uniform and smooth, and free from bubbles, scratches, or peeling.
Wrap the fence panels with plastic film or bubble wrap to prevent scratching or damage during transportation. Stack the fence panels on wooden or steel pallets and secure them with strapping for easy loading and unloading.
A. Yes. We can customize dimensions, materials, colors, and processes according to project requirements.
A. We provide free samples, which will be shipped within 7-10 days. You only need to cover the shipping costs.
A. It depends on the order quantity. We have large-scale production capabilities to ensure fast delivery according to project schedules.
A. The standard MOQ is one full 1×20′ container to ensure safe transportation. We can also accommodate smaller quantities if needed.
A. We will develop the most efficient production plan based on your order quantity and type. Communicating your needs as early as possible will help expedite the process.
