Ring Through Post Gudgeon

Model NO:
FDF308

– Easy to install and use.

– The long thread structure provides greater stability.

– Free tooling cost.

– Supply experience in supermarkets.

– Thickened packaging transportation.

– Special pricing is available for bulk orders.

Print Friendly and PDF

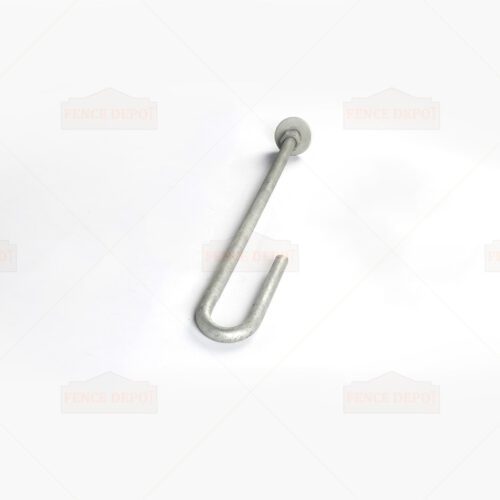

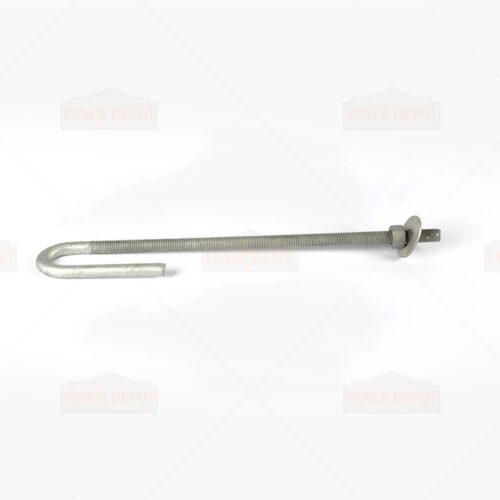

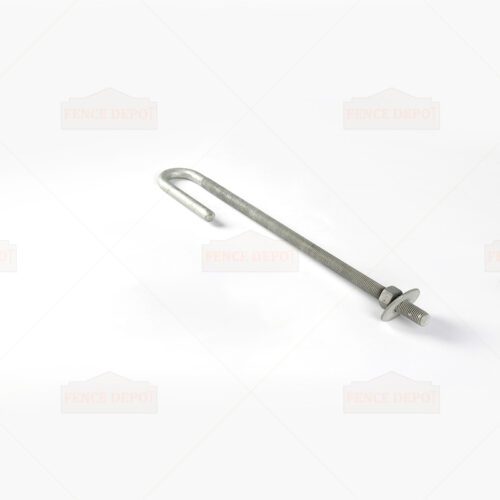

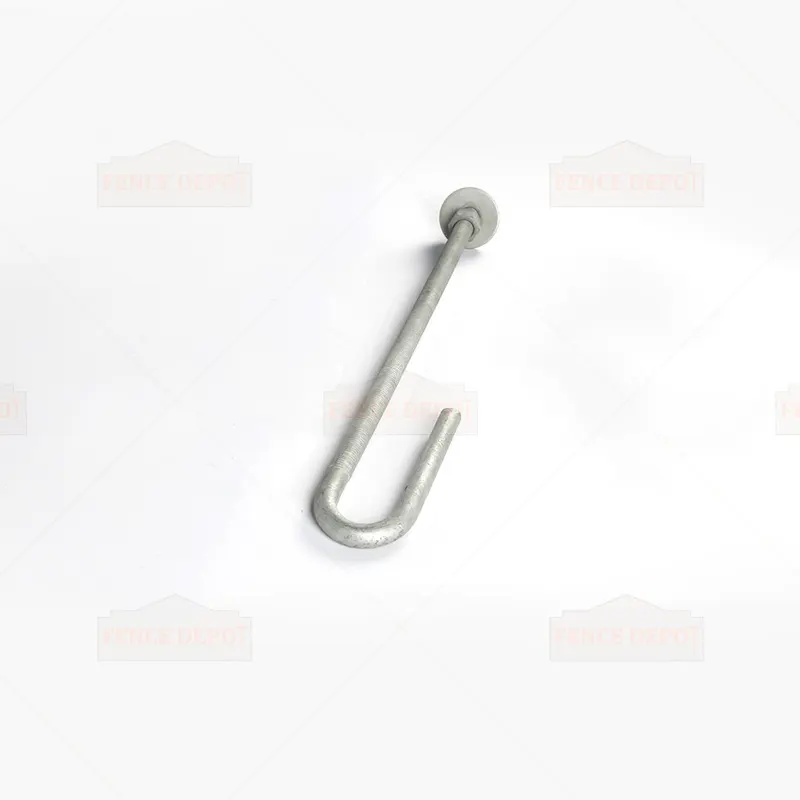

We manufacture a ring through post gudgeon that suits large timber posts. It is fully adjustable to lower or raise the height/angle of your gate, as your post moves over time. The return pin sits alongside the gate pin, allowing the hinge to be as close to the ground as possible.

We construct the ring through post gudgeon from galvanized steel for superior rust resistance and also include nuts and washers. With a 130mm length, the ring can firmly fix the gate. We have designed it to be taller than most other gudgeons for extra security. The longer length makes it more difficult to pull the bottom of the gate off.

Our ring through post gudgeon comes in a variety of specifications and sizes, making it suitable for most door installations. We can also customize production and design for you, including size and surface treatment, based on your requirements.

FENCE DEPOT is your trusted manufacturer of farm accessories. In addition, we have many years of experience in supermarket supply, with free mold costs, and all farm door accessories are shipped in thickened packaging.

For more information about our ring through post gudgeon and also including stock availability, please feel free to contact us at +86 16678596616 or email at [email protected]. We’re here to help.



Product Specifications:

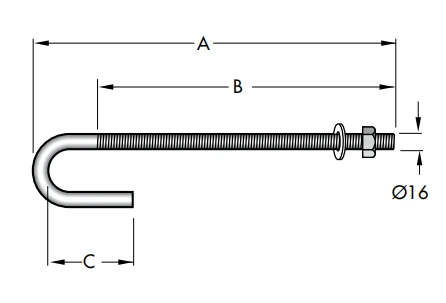

Ring Through Post Gudgeon Specification

Model No PIPE (NB) A B
FDF308001 25 390 200
FDF308002 25 320 250
FDF308003 25 160 200
FDF308004 32 450 200

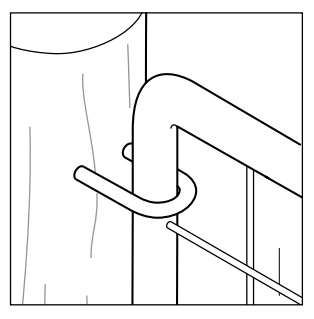

Ring Through Post Gudgeon Usage Scenarios Usage Scenarios

Ring Through Post Gudgeon Usage Scenarios

As shown in the picture above, the long axis of the product needs to be inserted into the door post and then passed through the door to be firmly fixed.



Advantage of Ring Through Post Gudgeon:

1. Strong Through Post Design:
Ideal for supporting various gate types that require robust through post design for strength and stability.

2. Long Pin Security Option:
Enhances gate security when longer pins are needed, ensuring added protection and peace of mind.

3. Adjustable Back Nuts:
Back nuts enable easy gate adjustment allowing for precise alignment and positioning as needed.

4. Secure Ring Design:
The ring through post gudgeon of ring design enhances gate fixing, thus providing a secure and reliable attachment for long-term use.

5. Superior Rust Resistance:
Double Zinc plating offers exceptional protection against rust, ensuring longevity and durability even in challenging environments.

6. Adjustable Thread for Gate Sag:
The threaded feature allows for easy adjustment to correct gate sag, maintaining proper alignment and functionality.

7. Inclusive Nuts and Washers:
Each ring through post gudgeon set includes nuts and washers for added convenience and ease of installation, thus providing all necessary components for assembly.



Packing and Shipping

We package our ring through post gudgeon products in thickened bags and overall in cartons or wooden crates, and we can customize them to meet specific customer requirements, including the option to add a printed logo or barcode.

Moreover, we have extensive experience in meeting the stringent packaging requirements for farm parts sold in local supermarkets, as some of our customers specialize in importing and retailing such products. We are well-equipped to handle supermarket packaging and are eager to explore opportunities for collaboration with you!

FAQ

1. Q: Can you design for us?
A: Yes, our professional technical department can design for you. Just send us your requirements in text or verbal form and we will do the rest for you.

2. Q: We would like to get our ring through post gudgeon products faster. What should we do?
A: We will develop the most effective production plan for you based on the quantity and category of your products. Therefore, if you need anything, please contact us as soon as possible.

3. Q: How about the sample time and cost?
A: If you want to customize your product without making a mold, it will take 7-10 days. It will be free, but you will need to provide shipping costs.

4. Q: What is the delivery time of our ring through post gudgeon?
A: As a professional manufacturer, our factory is large in scale, so the production speed is fast. The specific delivery time depends on the quantity of products you require.

5. Q: Can your ring through post gudgeon products be customized?
A: Of course, our professional design and production departments can customize products including size, material, color, and workmanship according to your needs or usage scenarios.

6. Q: What is your MOQ for a trial order?
A: Normally, a full 1*20′ container is required for shipping to protect the product during transportation. But we are very flexible and can produce and ship according to your needs.
