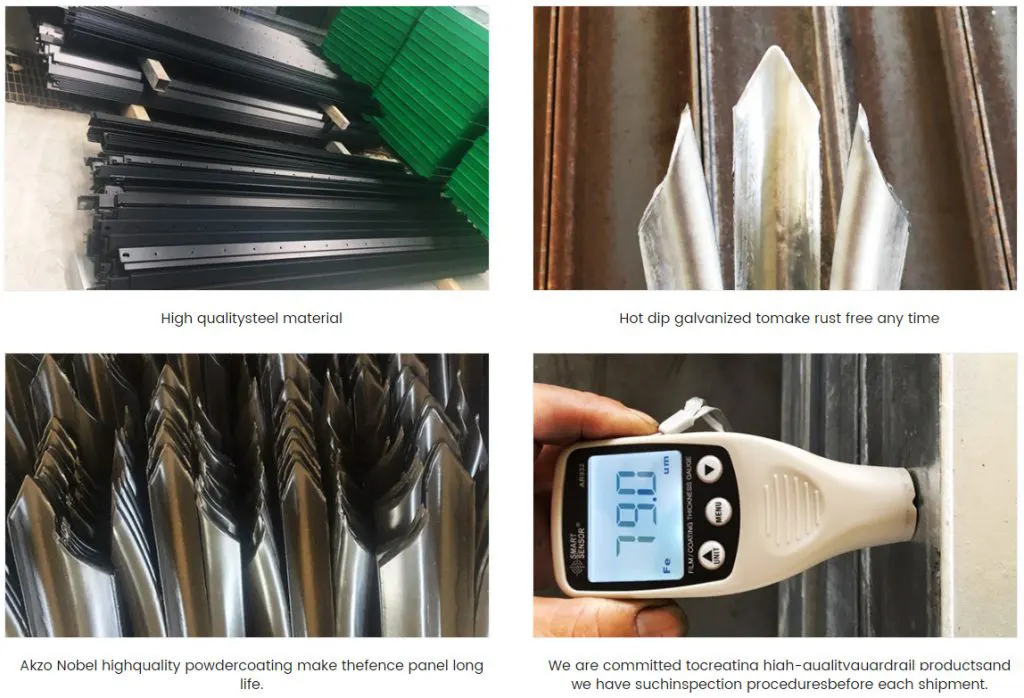

– Made of high-quality steel, it offers the perfect combination of durability and stability.
– Powder-coated surface is rust and corrosion-resistant.
– Fence panels are designed for quick and flexible installation.
– Safe and effective, it has a very wide range of applications.
– Professional production equipment and higher efficiency, short delivery time.
– Special pricing is available for bulk orders.

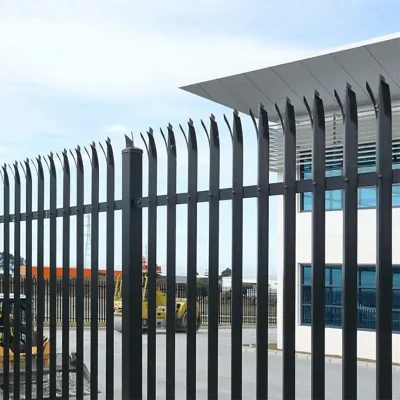

Palisade fencing offers a robust, high-security solution that surpasses traditional Spear Top Fencing and Garrison Fencing. Its formidable construction makes it an ideal perimeter security measure for a diverse range of Australian properties, including commercial, industrial, and residential sites. FENCE DEPOT is a leading supplier of high-security steel palisade fencing, designed for exceptional durability and effective protection against forced entry and environmental factors.
Our steel palisade fence is crafted from galvanised steel and reinforced for unparalleled strength and longevity. This makes it a versatile choice for critical facilities, construction sites, and public infrastructure projects across Australia. Beyond its formidable security capabilities, our palisade fencing significantly enhances the aesthetic appeal of any property, creating a sense of openness while maintaining a safe and relaxing environment.
The innovative design features panels mounted on guide rails within the columns. This configuration ensures quick and flexible installation, eliminating the need for precise column spacing and making the process significantly easier and more convenient. The result is a highly effective security fence with a broad spectrum of applications throughout Australia.
Constructed from hot-dip galvanised steel (with a zinc coating of ≥100g/m²), our steel palisade fencing provides superior resistance to rust and corrosion, even in Australia’s often challenging climatic conditions. Critical joints are further strengthened with full perimeter welding for enhanced structural integrity. For an additional layer of protection against UV exposure and chemical erosion, optional powder-coated finishes are available in a range of RAL colours.
To further bolster security, our decorative palisade fencing can be seamlessly integrated with our Palisade Fence Gates. To cater to diverse requirements, our security fences are available in a variety of standard sizes. Furthermore, we offer extensive customisation options, including panel dimensions, vertical picket spacing, and overall workmanship, to perfectly suit your specific needs.

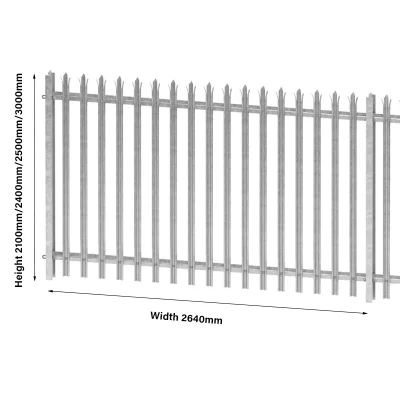

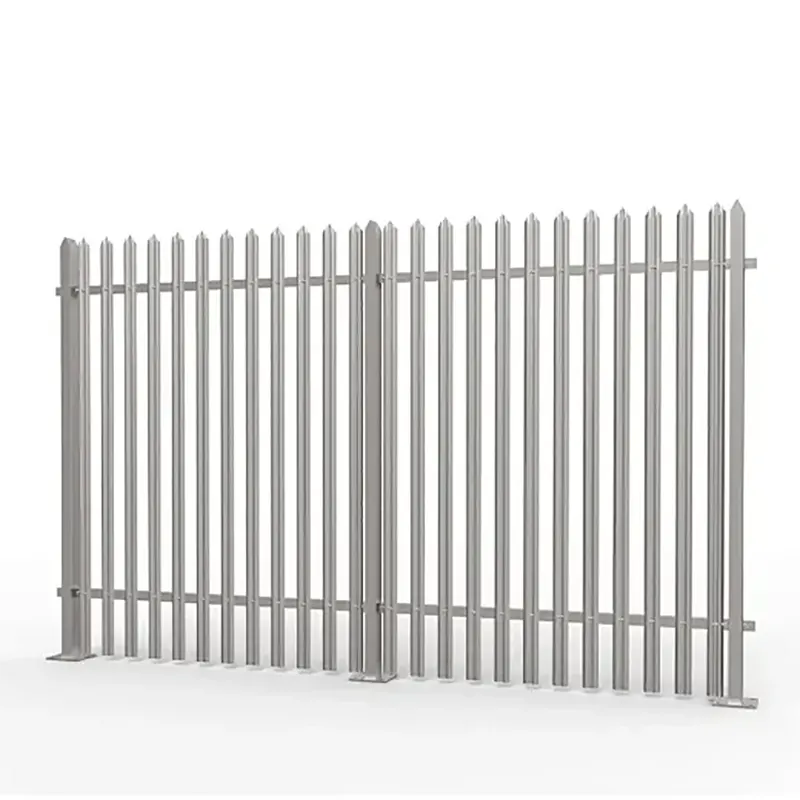

| Size(mm) | 3000H X 2640W | 2500H X 2640W |
| 2400H X 2640W | 2100H X 2640W | |
| Material | Galvanised Steel | |
| Finish | Overall Hot Dip Galvanising + Spraying | |
| Size(mm) | 2640*50*50*6.0 |
| Material and Quantity | Galvanised Angle Steel-2 Pieces |
| Finish | The amount of zinc applied is not less than 100g/m²+ spraying |
| Size(mm) | L X 70 X 30 X 17（roots） |
| L=Panel Height | |
| Material | Hot-dip galvanised strip |
| Finish | The amount of zinc applied is not less than 40g/m²+ spraying. |
| Post | |
| Size(mm) | L*100*55(7.5kg/m) |
| L=Panel Height+750mm | |
| Finish | Overall hot dip galvanising + spraying |
| Connection Plate | |
| Size(mm) | 130*40*6 |
| Finish | Overall hot dip galvanising + spraying |
| Fish plate, Thread Tod, and Nuts are available | |
 |
 |
| Palisade Fence Post | Connection Plate |

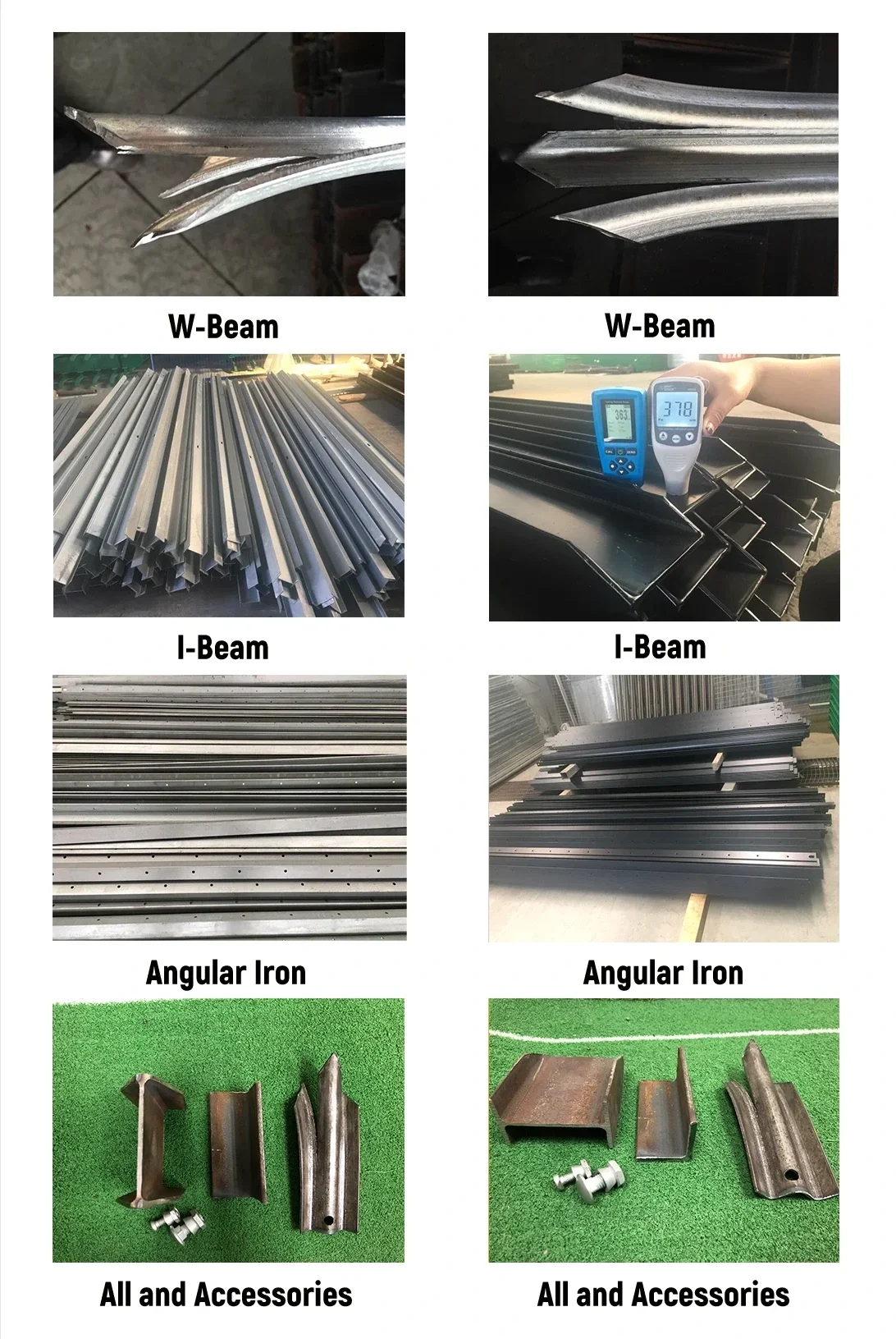

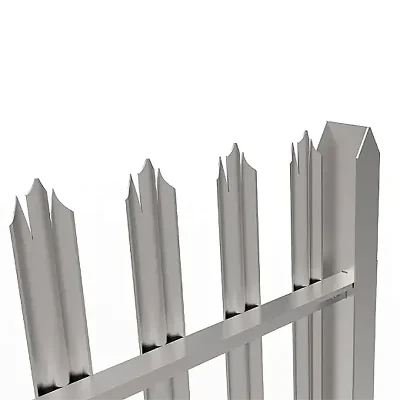

The above are the standard drawings of our palisade fence panels. Additionally, these details include the components of steel palisade fencing, such as posts, rails, etc. As professional palisade fencing suppliers, we use advanced production equipment. Moreover, we can customize the specifications of each component.
A steel billet or strip is continuously shaped into the required W-section profile using a series of rollers. This roll forming process progressively deforms the material to achieve the desired geometry.
Crossbeams, typically constructed from H-steel or U-shaped steel, are prepared to bear bending loads and shear forces. These beams provide structural support and connect columns or other structural elements.
Columns are fabricated based on project requirements. H-steel columns can be directly used, or columns can be formed by welding U-shaped steel sections together to achieve the necessary strength and dimensions.
Connecting plates serve as the interface between the crossbeams and columns, as well as other structural components. These plates are crucial for load transfer and structural integrity. They are attached to the columns and prepared for crossbeam connection.
The W-plates are directly attached to the crossbeams using tamper-resistant (anti-theft) bolts. This connection method ensures a secure and robust assembly, deterring unauthorized removal.
Precautions:
Ensure that the dimensions and depth of the excavation pit meet the installation requirements to guarantee the stability of the posts. Use high-quality concrete or other fixing materials to enhance the durability of the fence. During installation, ensure that all components are precisely aligned; this directly impacts the overall safety and durability of the fence.
Precautions:
Ensure that the dimensions and depth of the drilled holes meet the bolt specifications to guarantee the stability of the posts. Use high-quality bolts and fixing materials to enhance the durability of the fence. During installation, ensure that all components are precisely aligned; this directly impacts the overall safety and durability of the fence.
 |
 |
 |
|||
 |
 |
||||

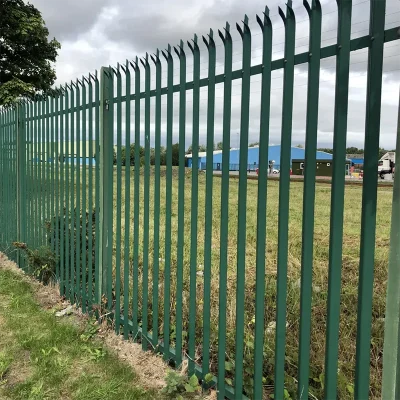

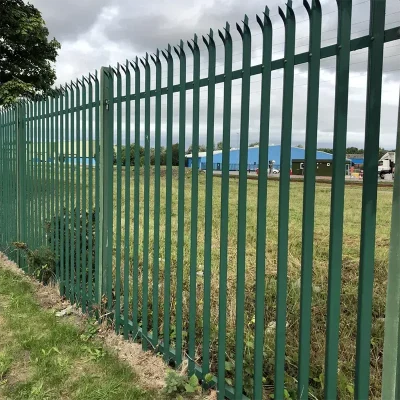

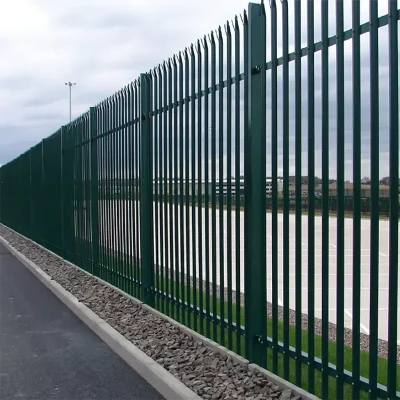

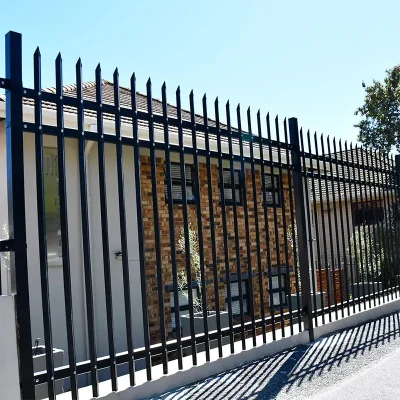

A robust palisade security fencing system has been created to meet the high-security requirements of:
A: No, they are highly resistant to rust. Our fences utilize hot-dip galvanised steel—featuring a zinc coating of ≥100g/m²—as their base material. This is complemented by an optional powder coating, creating a dual-layer anti-corrosion defense system. Specifically engineered to withstand harsh climates (such as the high-salt, high-humidity environments found in coastal areas), our fences ensure exceptional long-term durability.
A: Installation is both convenient and efficient. Our unique rail-guided mounting system allows for flexible adjustment of the fence panels within a certain range. This eliminates the need for precise measurements and rigid post spacing, significantly simplifying the installation process and reducing strict site requirements—making it an ideal solution for commercial and industrial projects that demand rapid deployment.
A: Not at all. While prioritizing high security, we also place a strong emphasis on aesthetic design. We offer a wide selection of powder coating options in various standard RAL colors. Our decorative fencing series blends seamlessly with its surroundings, providing robust protection while simultaneously enhancing the overall visual appeal of your property.
A: Absolutely. Customisation is one of our core services. We can flexibly adjust panel dimensions, post spacing, design details, and colors to align with your specific security needs, site conditions, and aesthetic preferences. Whether you require a bulk order or fences with specialized specifications, we are fully equipped to provide a tailored solution. We invite you to contact us to discuss your project requirements in detail.
A: If you need samples, we will be happy to provide them to you. It’s free, but you need to bear the shipping cost.
A: It depends on the order quantity, usually 20-30 days. We will try our best to deliver products to you on time.
A: Palisade fencing comes in a loose kit, and the installer attaches the spears to the rails on site. This differs from garrison fencing, where the whole panel is already pre-made, so palisade fencing is more time-consuming to install in comparison to garrison fencing.
