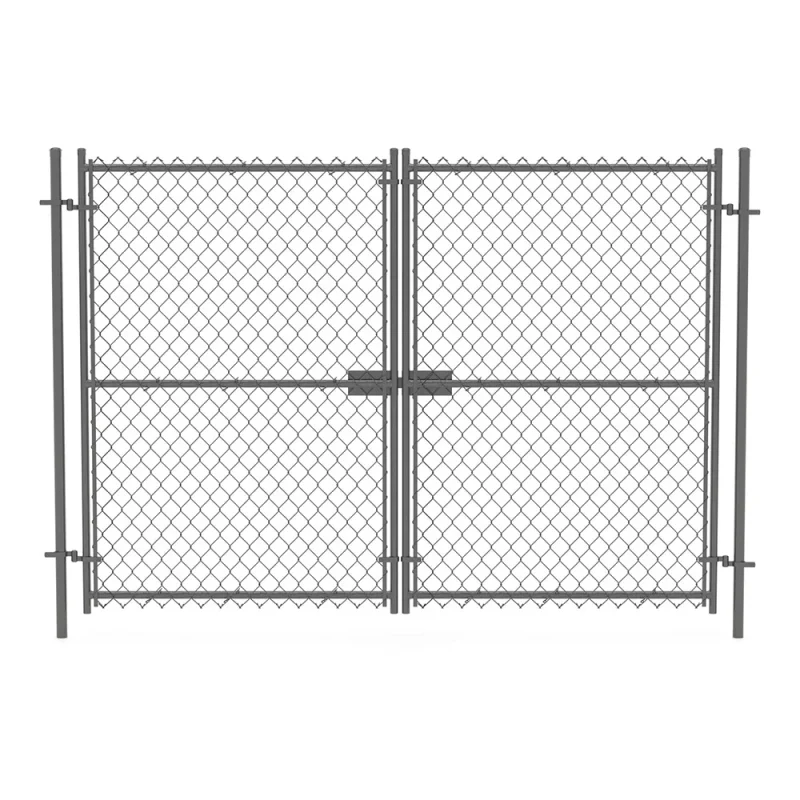

Chain Link Gate,Chain Wire Security Fence Gate

Model NO:

– Include posts, easy installation, and adaptation to different spaces.

– Economical option for both residential and commercial use.

– Requires minimal maintenance and is resistant to rust and wear.

– Production efficiency is higher and delivery time is short.

– Special pricing is available for bulk orders.

Print Friendly and PDF

Chain Link Fence Gate provides durable, cost-effective access control for industrial and commercial sites, designed to pair seamlessly with standard chain link fencing systems. Crafted from high-grade steel, these single or double-swing gates balance lightweight construction with structural integrity, ensuring long-term performance in high-traffic environments.

The gate frame utilizes 1.315″round tubing or 1.25″×1.25″ square tubing (0.065″wall thickness) for optimal strength-to-weight ratios, supporting leaf widths starting at ​​48″​​. For wider spans exceeding 48″, reinforced ​​2.375″round posts​​ or ​​2.5″×2.5″ square posts​​ (0.083″–0.095″walls) anchor the structure, preventing sagging under repeated use. All steel components are hot-dip galvanized to resist corrosion, while modular designs simplify installation and future maintenance.

FENCE DEPOT tailors solutions to project scales, offering customizable fence post configurations. Gates can also be paired with our Chain Link Fence, which uses galvanized steel Chain Link Mesh to enhance overall security. Ideal for warehouses, logistics parks, or utility facilities, these gates deliver unmatched adaptability—whether securing vehicle access points, perimeter boundaries, or restricted zones. Backed by decades of manufacturing expertise, we ensure every component aligns with your site’s functional and aesthetic requirements.

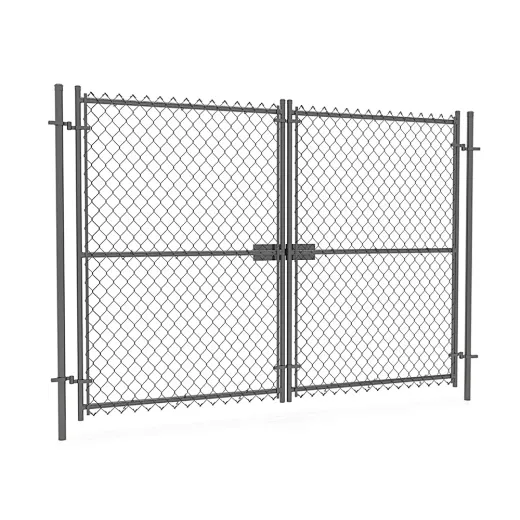

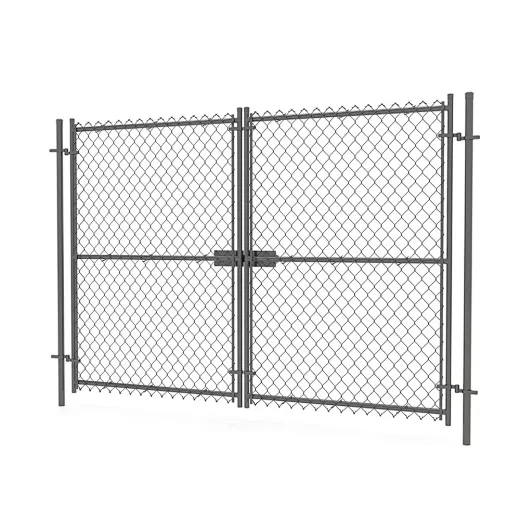

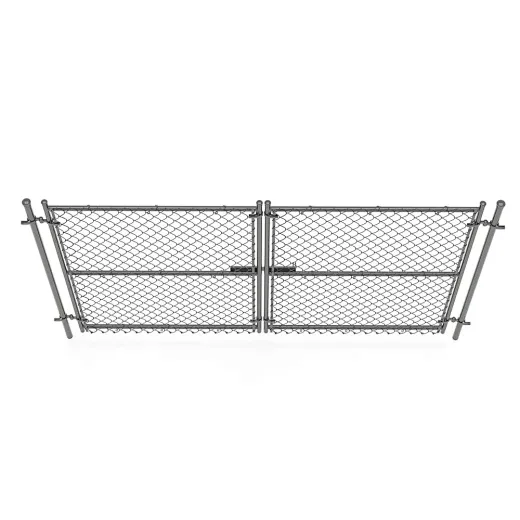

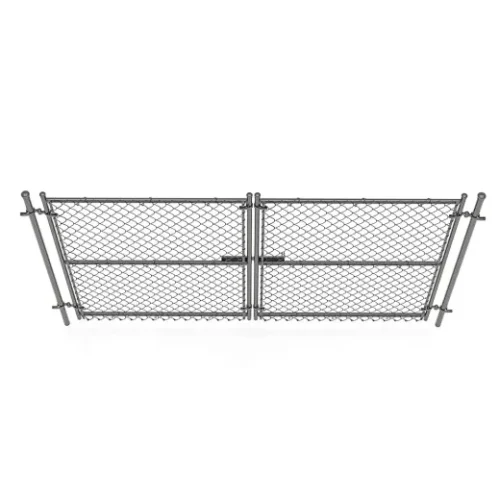

Chain Link Gate Details

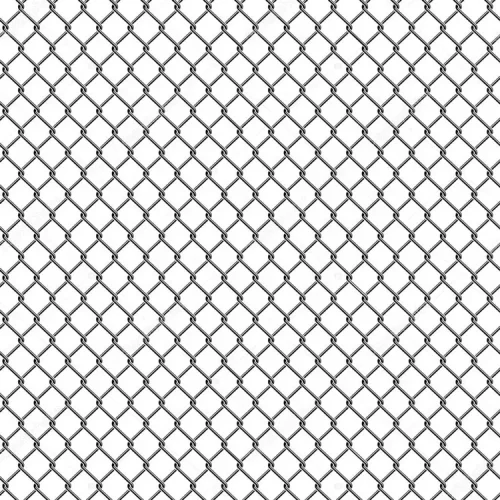

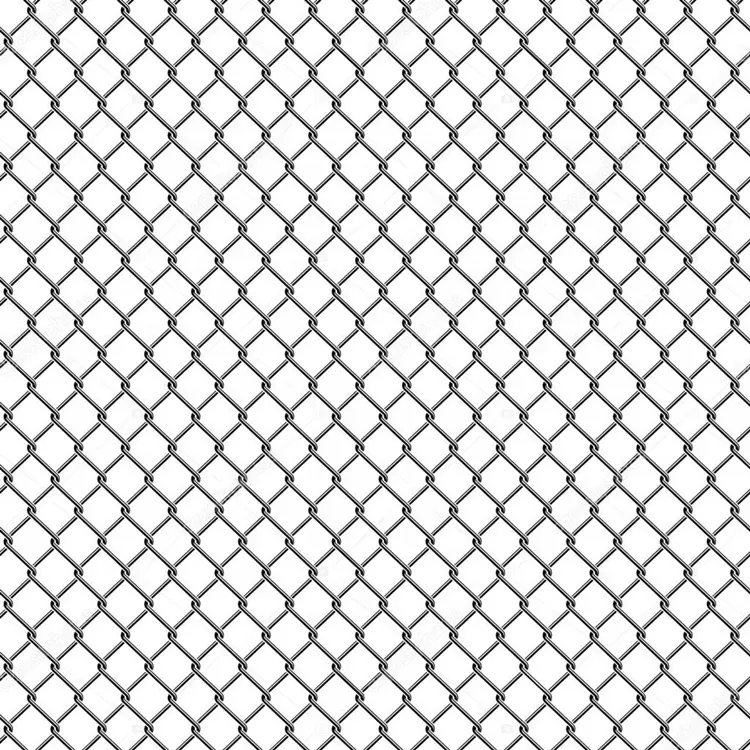

chain link fence gate detail

  • Round: 1.315″O.D. / square: 1.25″×1.25″, wall thicknesses up to 0.095″, the gate frame resists deformation under heavy use.
  • Reinforced posts, round: 2.375″/ square: 2.5″×2.5″, ensure stability for wider leaf widths.
  • Round tubes 0.868 lb/ft, and square tubes 1.05 lb/ft, reduce bulk without compromising strength.
  • Pre-fabricated frames and standardized hardware such as hinges, and latches, enable quick on-site assembly.
  • The top wire has been carefully processed to avoid scratching pedestrians

Chain Link Fence Gate Specifications

 Minimum Dimension of Gate Frame
 Material: Steel Outside Dimension Pipe (in) Wall Thickness (in) Nominal Weight (lb/ft)
Round tube  1.315 0.065  0.8681
Square tube  1.25 by 1.25 0.065 1.05
 Gate Posts Gate Leaf Width
for gate leaf width of 48 in
Material: steel Outside Dimension Pipe Wall Thickness (in) Nominal Weight (lb/ft)
Round post  1.90 0.065  1.274
Square post  2 by 2 0.08 2.09
for gate leaf width over 48 in
Material: steel Outside Dimension Pipe Wall Thickness (in) Nominal weight (lb/ft)
Round post 2.375 0.095  2.31
Square post  2.5 by 2.5 0.083 2.73

Product Advantages

  • Robust Structural Integrity: Constructed from high-tensile steel tubing, preventing sagging even with frequent operation.
  • Corrosion-Resistant Durability: Hot-dip galvanized surfaces protect against rust and environmental wear, ideal for outdoor applications in coastal, humid, or industrial zones. Optional powder coatings add extra layers of defense while enhancing aesthetic appeal.
  • Adaptable Configurations: Single/Double Swing Options: Customize access points for pedestrian or vehicle traffic, with leaf widths ranging from 48″to heavy-duty spans exceeding 48″.
  • Reinforced Post Anchoring: Gate posts (up to 2.73 lb/ft for 2.5″×2.5″ square) provide unmatched load-bearing capacity for high-traffic areas.
  • Ease of Installation & Maintenance: Galvanized finishes require minimal upkeep.
  • Scalable Security Solutions: Tailored for diverse applications—warehouses, logistics parks, utility facilities, or commercial complexes—the gates balance visibility, access control, and intrusion deterrence.
  • Manufacturer Expertise: Every component undergoes rigorous quality checks, ensuring compliance with international safety standards.

Chain Link Fence Gate Application

Chain Link Fence Gate is a versatile solution for securing critical access points across industries. Designed to meet the demands of high-traffic, harsh environments, and aesthetic-sensitive sites, it ensures reliable perimeter control while enabling seamless operational flow.

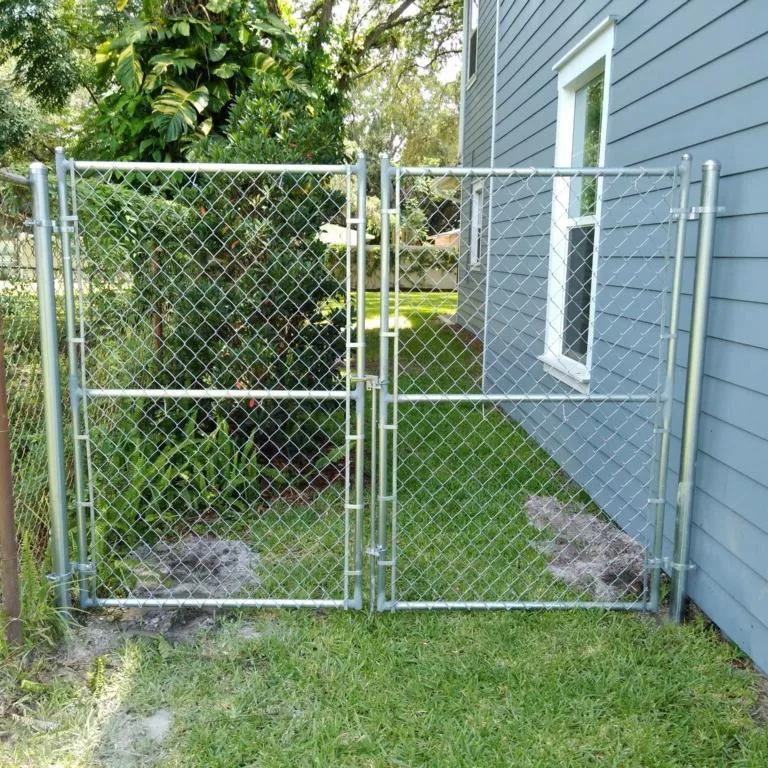

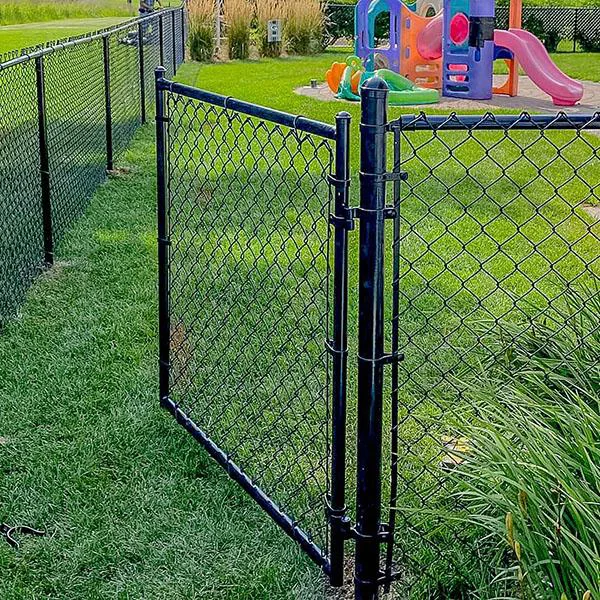

Chain Link Fence Gate Chain Link Fence Gate Chain Link Fence Gate
Chain Link Fence Gate Chain Link Fence Gate Chain Link Fence Gate
  • Airports & Transportation Hubs​​ – Secure restricted vehicle entry points like tarmacs and cargo zones.
  • ​​Prisons & Detention Facilities​​ – Tamper-resistant gates for high-security perimeters with emergency access.
  • ​​Industrial Plants​​ – Streamline logistics with durable gates for forklift-heavy environments.
  • ​​Data Centers & Utilities​​ – Balance visibility and intrusion prevention for critical infrastructure.
  • ​​Commercial Complexes​​ – Blend security with architectural aesthetics in retail or office spaces.
  • ​​Construction Sites​​ – Adaptable gates for temporary perimeters on unstable terrain.
  • ​​Border Checkpoints​​ – Reinforced barriers to withstand forced entry attempts.
  • ​​Energy Facilities​​ – Protect gates in corrosive or high-risk industrial environments.
  • ​​Logistics Parks​​ – Control truck access in high-traffic distribution hubs.
  • ​​Educational Campuses​​ – Safeguard playgrounds and parking areas from unauthorized entry.
  • ​​Municipal Projects​​ – Secure public event spaces or roadwork zones efficiently.

Euro Fence Gate packaging

  • To ensure your order arrives in perfect condition, we employ a robust packaging process.
  • Each product is carefully wrapped in medium-thick stretch film, and secured to an iron pallet.
  • Moreover, four-corner cardboard protection is added to prevent damage during transit.
  • For added security, packing tape is used to tightly bind the entire package.
  • In cases where multiple pallets are shipped, we utilize plywood or iron racks to separate them, preventing shifting and potential damage.
