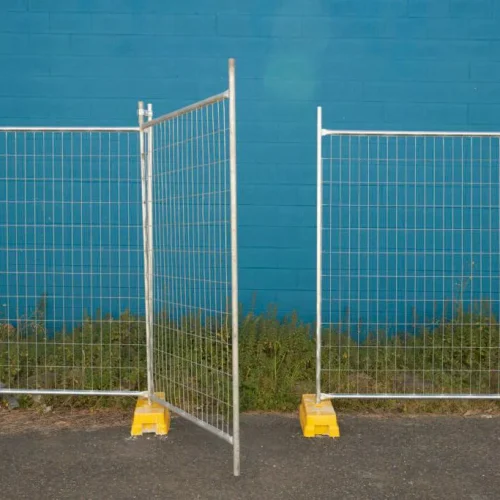

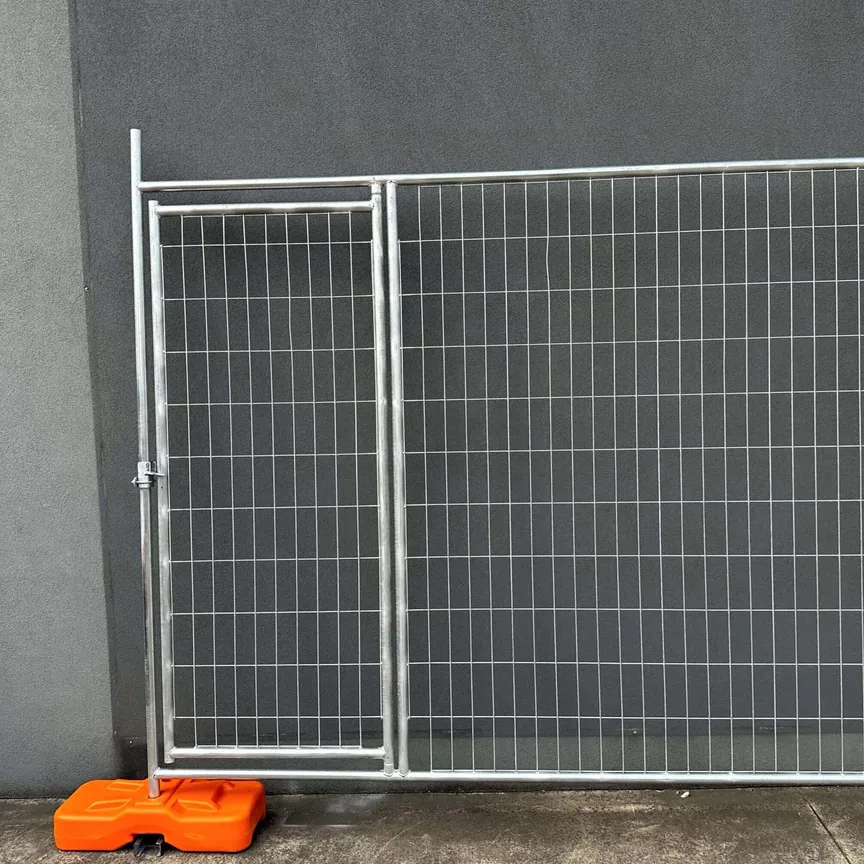

Weld Mesh Temporary Fence Gate

Model NO:

– The welded mesh provides a reliable barrier against objects and unauthorized entry.

– Includes fence feet and connectors.

– On-site assembly, low maintenance.

– Reliable and professional advice for your effective purchase.

– Special pricing is available for bulk orders.

Print Friendly and PDF

The Weld Mesh Temporary Fence Gate provides secure, customized access points for both pedestrian and vehicle traffic within temporary barrier systems. Designed to integrate seamlessly with perimeter fencing, it combines heavy-duty steel construction with adaptable configurations to meet dynamic site requirements. As a trusted fence gate manufacturer, we ensure every gate is hot-dip galvanized (42 microns) for superior corrosion resistance, extending longevity even in harsh environments.

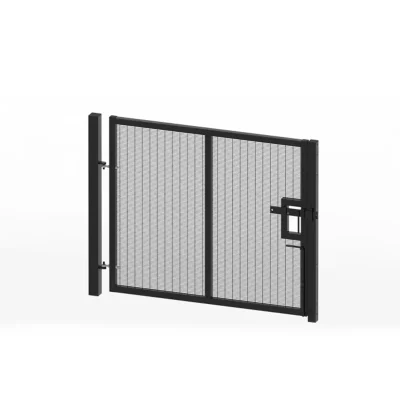

The weld mesh temporary fence gate is available in single- or double-swing leaf designs, these gates accommodate widths from 3.28′ to 4.27′ and a standard height of 6.9′, with vehicle-specific models sized at 6.9’×4.9′. ​We reinforce durability through fully hand-welded joints and optional wire diameters (0.16″or 0.24″), paired with mesh openings ranging from 2″×4″ to 2.95″×6″. The weld mesh temporary fence gate modular frame (1.18″×1.18 “to 1.58″×1.58”) supports quick on-site assembly, while pre-galvanized steel enhances both functionality and visual appeal.

Our team delivers reliable solutions tailored to project needs. You can choose different colors, and corrosion-resistant finishes, customize dimensions, or advise on optimal hardware such as hinges, latches, and rubber wheels.

Product Specifications

Material

Steel pipe, steel wire.
Gate width 3.28′ – 4.27′
Gate height 6.9′
Vehicle Gate Dimensions (H × W) 6.9′ × 4.9′
Wire diameter 0.16″, 0.24″optional
Mesh opening 2″×4″, 2.36″×6″, 2.95″×6″optional.
Frame O.D. 1.18″×1.18″×0.08″, 1.58″×1.58″×0.08″optional.
Frame TH 0.08″– 1″
Middle horizontal pipe O.D. 1″×1″×0.08″
Welded Points Fully Hand Welded
Finish Hot Dipped Galvanised 42 Microns

Product Advantage

  • Flexible Secure Boundaries: This temporary fence gate width:3.28′ – 4.27′, a height:6.9′, offers a flexible access solution within secure boundaries.
  • Durable Design: High-quality materials, Manual 360° full welding. Hot dipped galvanized surface treatment ensures anti-corrosion.
  • Customized sizes: Its variety of sizes provides a versatile solution to site access needs. Colors and sizes also can be customized.
  • Quickly Installation: Easy installation and operation, facilitating efficient site management and enhancing the overall functionality of your temporary fencing setup.
  • Fully Accessories: All hardware including the temporary fence hinge, and temporary fence clamps.

Product Accessories

Temporary-Fence-Base   Temporary-Fence-Base Temporary-Fence-Base

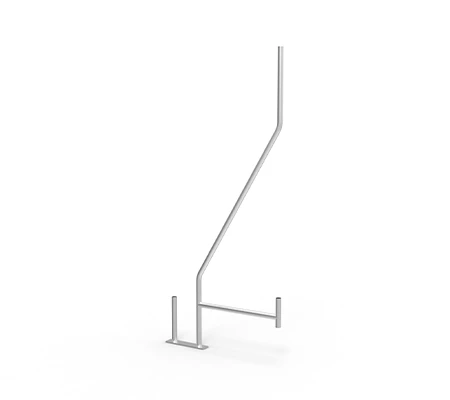

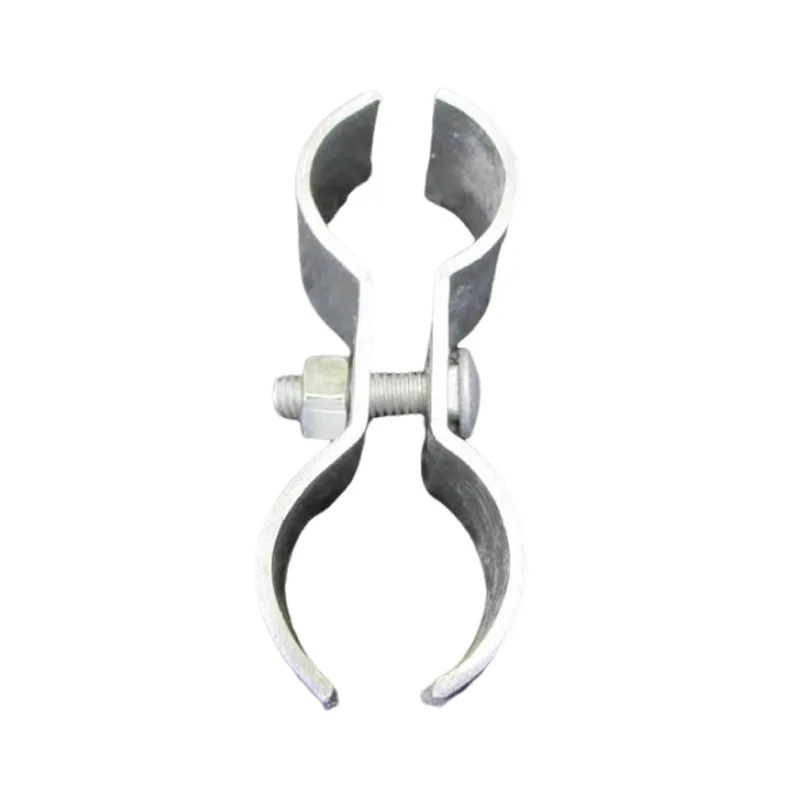

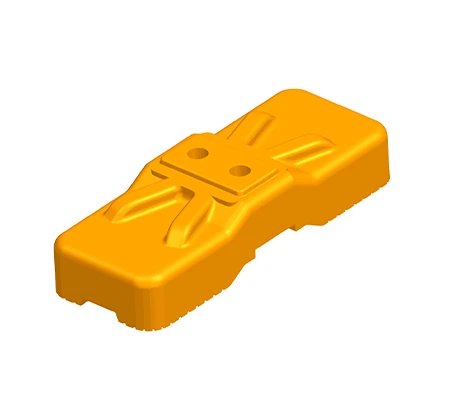

Fence Base Temporary Fence Clamps Fence Panel Stay

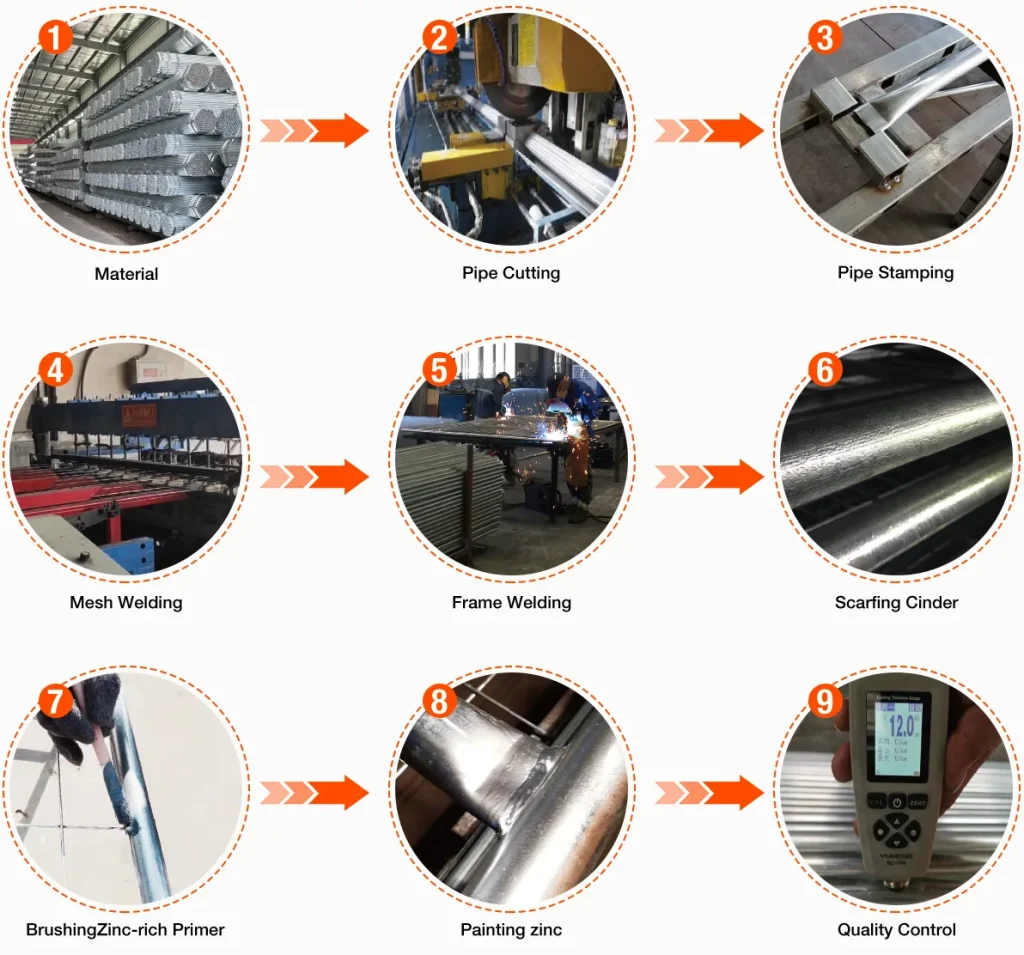

Production Process

Temporary-fence-gate-manufacturing-process

  • Material: Inspect galvanized steel pipes and wires for compliance with specifications.
  • Pipe Cutting: Cut the galvanized pipe to the length of the drawing.
  • Pipe Stamping: Flatten both ends of the pipes using hydraulic presses.
  • Mesh Welding: Straighten galvanized wires and weld them into mesh panels using automated machinery.
  • Frame Welding: Assemble and weld the fence frame structure (uprights and crossbars).
  • Scarfing Cinder: Clean the surface, remove welding slag, and supplement with zinc to ensure that the details are in place.
  • Brushing Zinc-rich Primer: Brush or spray zinc-rich epoxy primer to enhance corrosion resistance.
  • Painting zinc: Brush or spray zinc-rich epoxy primer to enhance corrosion resistance.
  • Quality Control: Conduct quality inspections to ensure each product meets quality standards.

Product Application

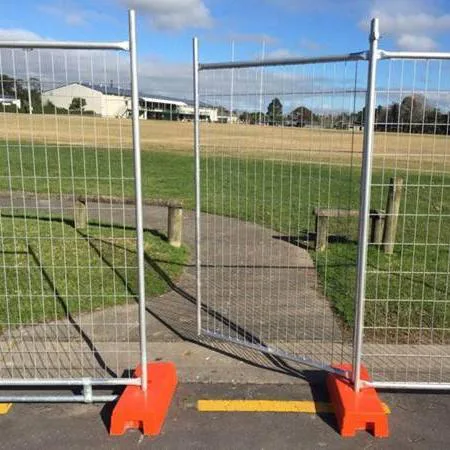

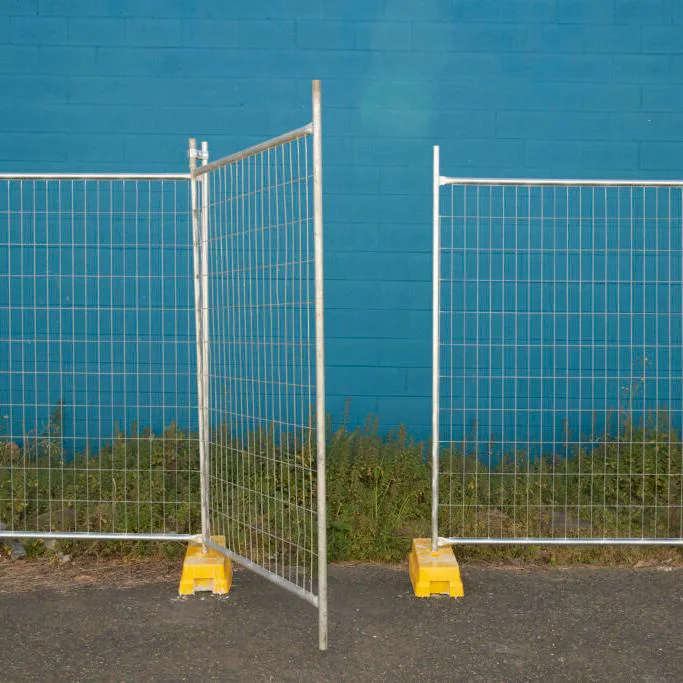

Weld Mesh Temporary Fence Gate application Weld Mesh Temporary Fence Gate Weld Mesh Temporary Fence Gate
  • Construction sites: Control the access of workers, materials, and vehicles to ensure site safety.
  • Public events and gatherings: Such as music festivals, sports events, exhibitions, etc., for personnel diversion, and safety isolation.
  • Road construction and maintenance: Guide traffic, isolate construction areas, and facilitate staff access.
  • Temporary containment of industrial facilities: Such as temporary isolation of warehouses and factory areas.
  • Temporary parking lots or transportation hubs: Control vehicle access and area division.

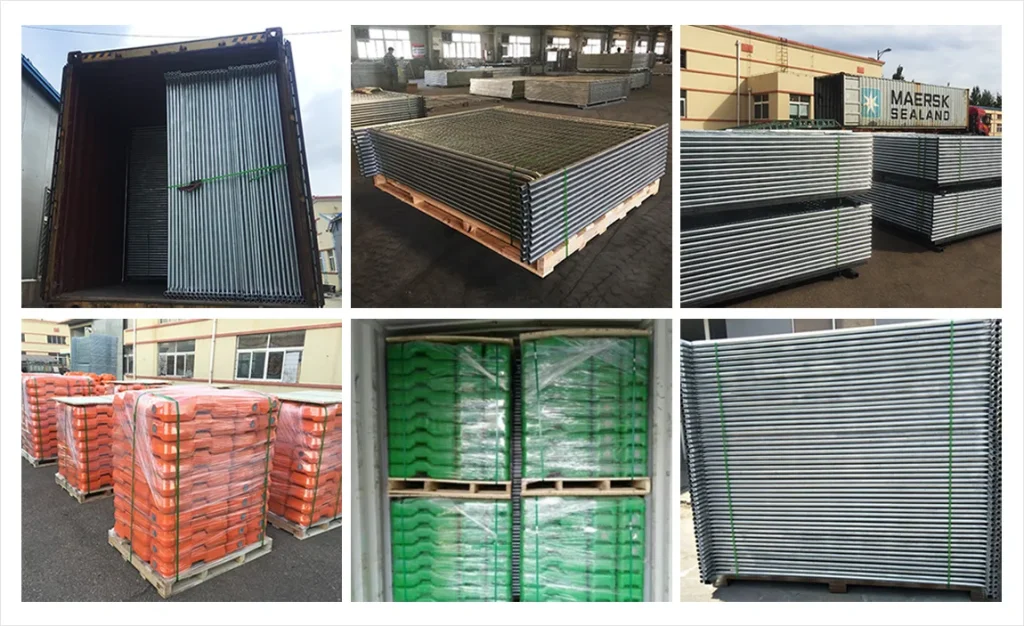

temporary fence gate package

  • Packaging is very important for the safe shipping of weld mesh temporary fence gates.
  • We use the packaging method of cardboard + strapping tape + stretch film + steel frame + pallet to ensure safe transportation.
  • If you have other needs, we will pack them strictly according to your requirements.
  • We use sea shipping, which is convenient, fast, and stable.
