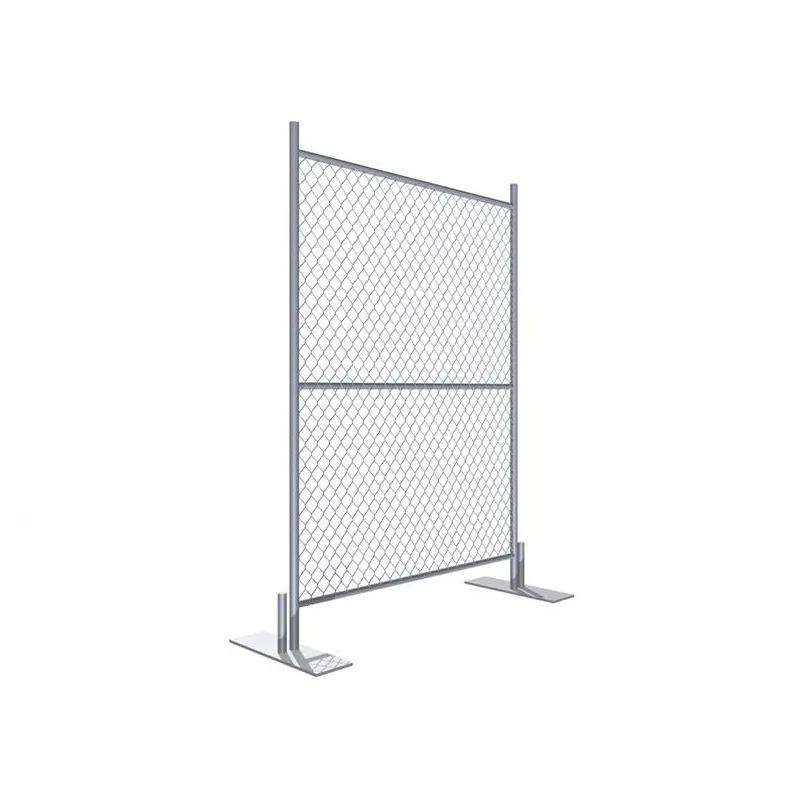

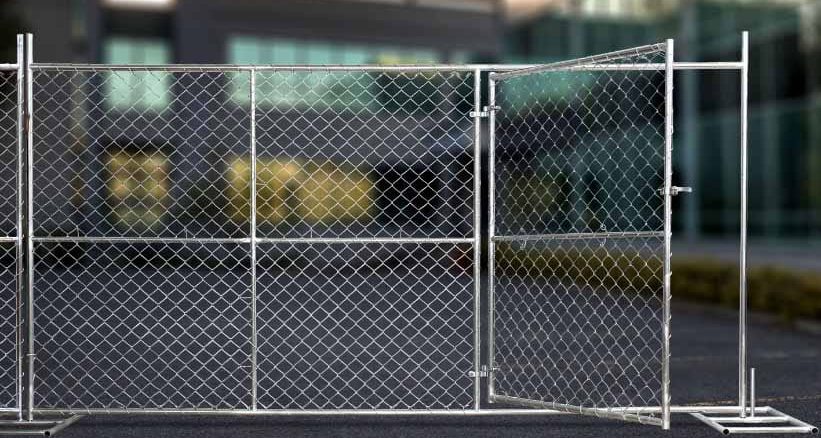

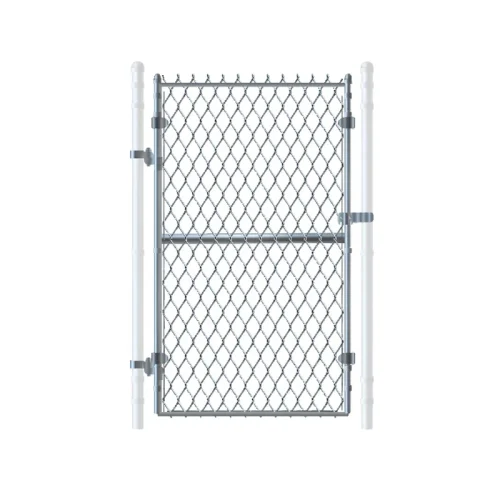

Temporary Chain Link Fence Gate
– The chain-link design allows for some flexibility in installation on uneven ground.
– Easy to install and cost-efficient for temporary fencing.
– Provides security while allowing for visibility and air circulation.
– Product size, color, craftsmanship, and other specifications can be customized.
– Manufactured with high-quality materials and exquisite craftsmanship.
– Special pricing is available for bulk orders.

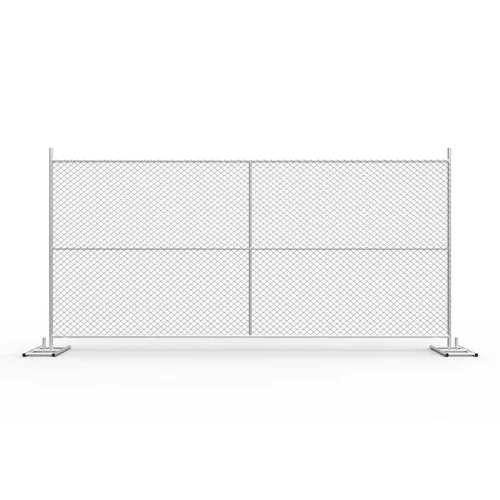

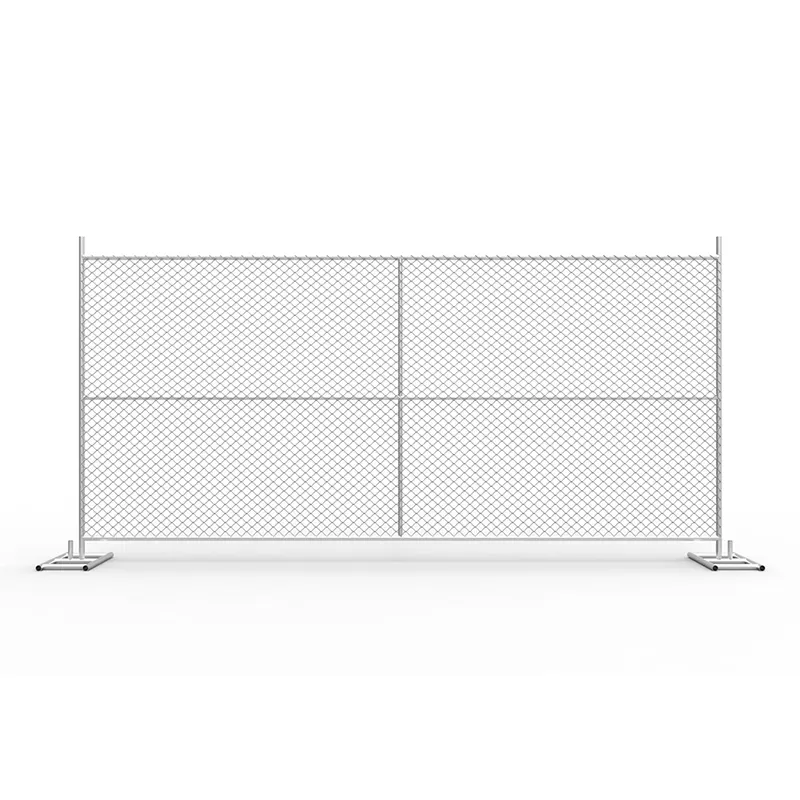

A temporary Chain Link Fence Gate often used to match with a temporary chain link fence, which is designed with a width smaller than the opening to allow for gate hardware installation. Our Temporary Chain Link Fence Gates infilled with cyclone mesh all implement the same strict testing and quality control process as our temporary Chain Link fence panels, fence bases, and fence clamps.
Available in single- or double-swing leaf designs, these gates fit openings from 4″to 144″, with standard heights up to 6’ and vehicle-specific models like 6’×12’ (actual 5.79’×9.58′). We enhance structural integrity through fully welded frames and customized wire diameters, paired with mesh openings ranging from 2″to 2.75″. The modular steel frame and pre-galvanized finishes ensure quick on-site assembly while maintaining a balance of strength and portability.
We use corrosion-resistant coatings such as Hot-Dip Galvanized or Pre-Galvanized, to site-specific dimensions and tensioned mesh attachments. Whether securing construction zones, open-air storage, or event perimeters, this gate provides a low-maintenance, high-security barrier designed for rapid deployment and long-term reliability.

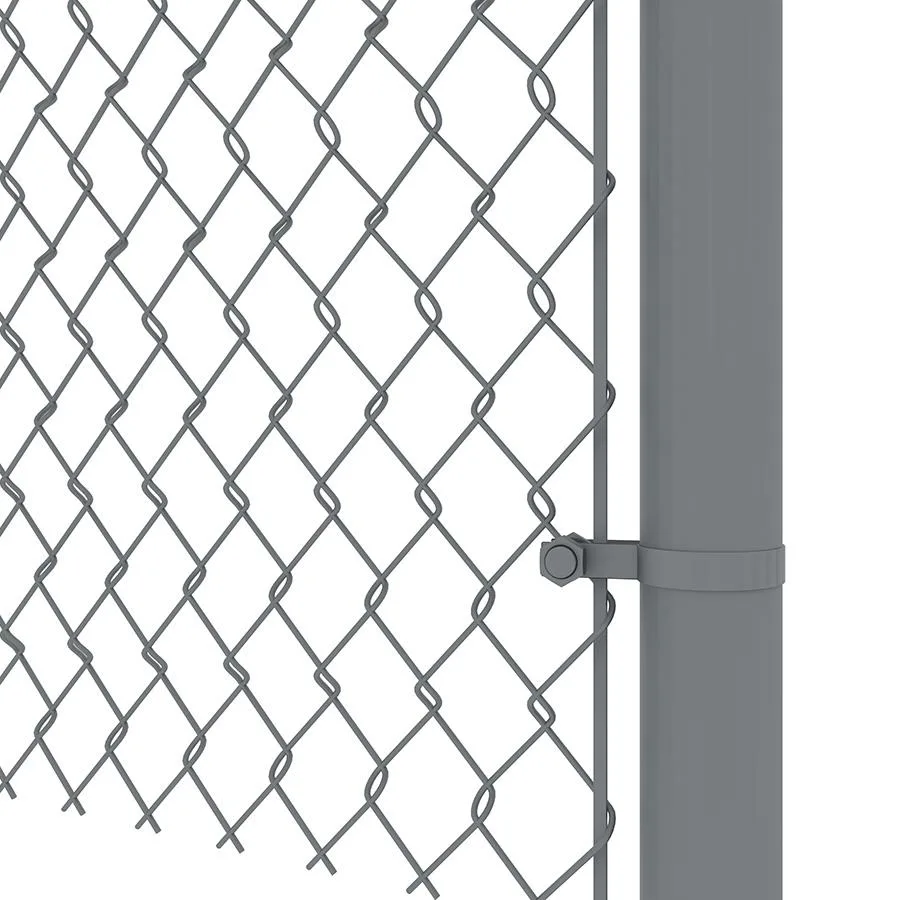

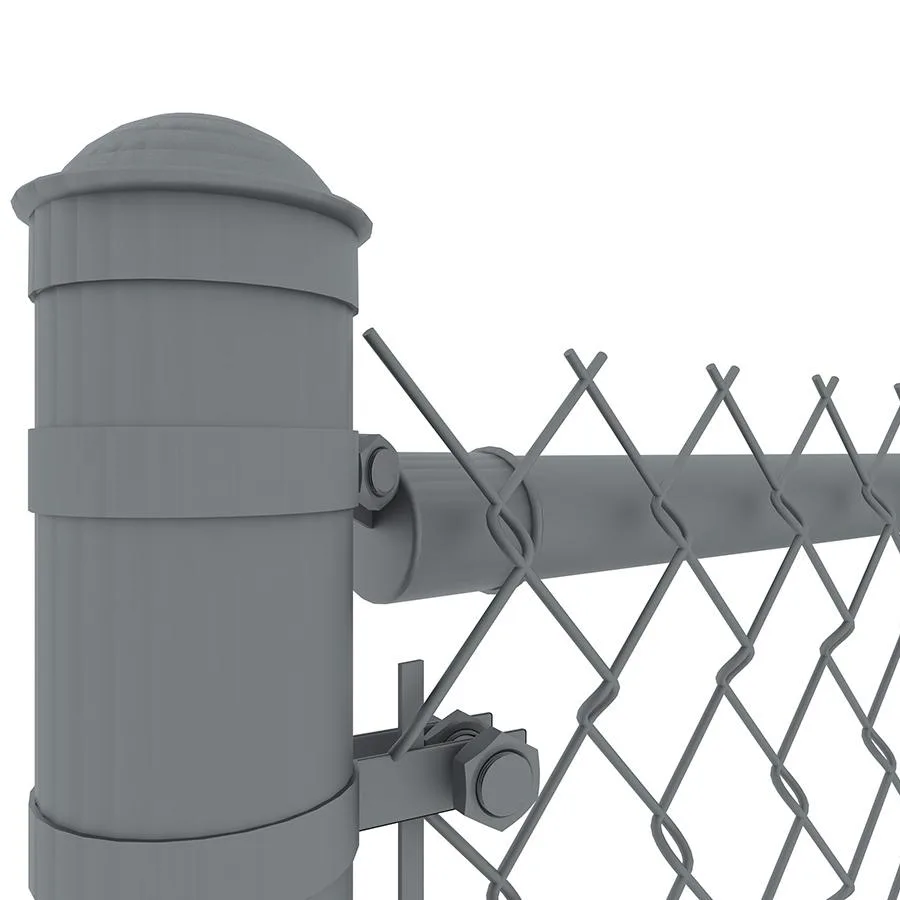

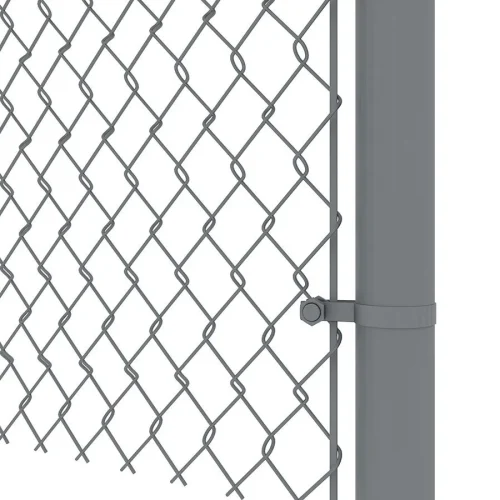

Temporary Chain Link Fence Gate Detail
- We enhance structural integrity through fully welded frames and tubular or bent-corner options.
- All joints are welded using advanced welding techniques, with zinc applied to cover any exposed metal.
- customizable wire diameters, usually 9–12 ga.
- paired with mesh openings ranging from 2″to 2.75″.
- Made of hot-dip galvanized steel, providing maximum durability.
Product Specifications
Material | Steel | |||||
Finish |
Electro-galvanized / Hot-Dip Galvanized / Powder Coating |
|||||
Color | Black, or Customized | |||||
Double Swing Leaf Gate Dimensions |
||||||
Common dimensions (H × W) |
3.5′ × 12′ |
4′ × 10′ |
4′ × 12′ |
5′ × 10′ |
6′ × 10′ |
6′ × 12′ |
Actual dimensions (H × W) |
3.5′ × 11.5′ |
4′ × 9.5′ |
4′ × 11.5 |
5′ × 9.5′ |
5.79′ × 9.58′ |
6′ × 11.5′ |
Fits Min Opening |
12” | 10” | 12” | 10” | 10” | 12” |
Fits Max Opening |
144” |
120” |
144” |
120” | 120” | 144” |
Single Swing Leaf Gate Dimensions |
||||||
Common dimensions ( W × H) |
4′ × 4′ |
3.5′ × 5′ |
4′ × 5′ |
6′ × 5′ |
4′ × 6′ |
6′ × 6′ |
Actual dimensions (W× H) |
3.66′× 4′ |
3.16′ × 5′ |
3.66′× 5′ |
6′×5′ |
3.66′× 6′ |
6′ × 6′ |
Fits Min Opening |
4” | 3.5” | 4” | 24” | 4” | 24” |
Fits Max Opening |
48” | 42” | 48” | 72” | 48” | 72” |
Wire diameter |
9 ga, 10.5 ga, 11 ga, 11.5 ga, 12 ga optional. |
|||||
Mesh opening |
2″, 2.25″, 2.375″, 2.4″, 2.75″optional. |
|||||
Frame O.D. |
1.25″, 1.315″, 1.5″, 1.6″, 1.66″optional. |
|||||
Frame wall thickness |
0.06″ |
|||||
Gate post (O.D. × H) |
2.36″× 2.36″‘ × 0.06″ |
|||||
Post heigh |
9.2′ |
|||||
Gate construction |
360° full welded tubular frame and bent frame. |
|||||
Fixed or adjustable |
Fixed |
|||||
Attached way |
Mesh wrapped around the flat bar and then connected with clamps. Galvanized wire wrapped with steel frame in a rather tense way. |
Temporary Chain Link Fence Gate Product Advantages
- 360° full welded tubular frame: 360° full manual welding to ensure a firm gate structure. This will create 4 square corners there.
- Bent frame: Constructed from a single piece of steel tube with a diameter of 1.375″, which creates 4 bent corners.
- Handcraft techniques manufacture: Gate panels are filled with galvanized chain link mesh, and wrapped around the frame tube with tension bars. The tension bands by hand in a rather tense way.
- Sturdy attached way: Available flat bar then use clamps to connect the infill panel and the frame.
- Anti-corrosion: Strong corrosion surface treatment.
- Hot dipped galvanized: To ensure at least 42 microns thickness of zinc coating. Service life can reach more than ten years.
- Pre-galvanized: 28 microns or at least 14 microns thickness of zinc coating is anti-corrosion can satisfy the normal applications.

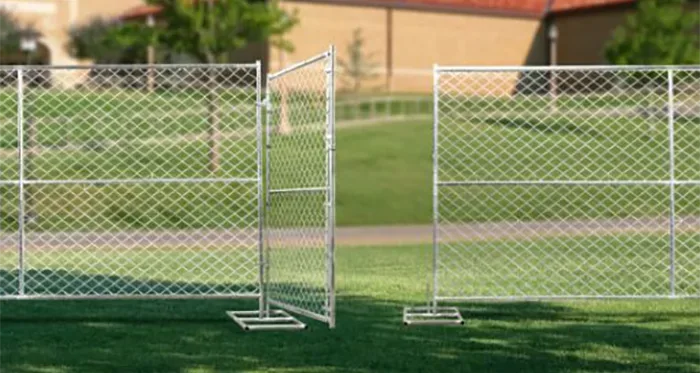

Product Application

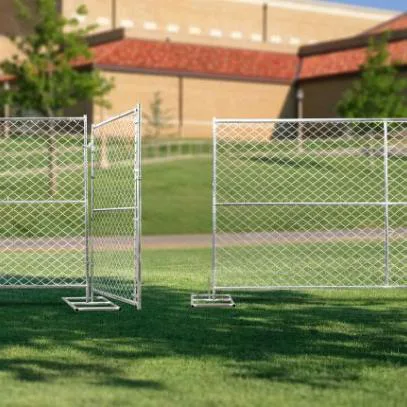

- Construction site: At the construction site, it is used to fence off the construction area to ensure construction safety and facilitate temporary access management of the construction site.
- Activity venue: In large-scale activities such as sports events, exhibitions, temporary gatherings, etc., it is used as a separation line or enclosure to facilitate management and maintain order.
- Safety isolation: It is used for temporary safety isolation in warehouses, industrial plants, chemical plants, and other places to prevent non-staff from contacting dangerous areas.
- Temporary market or fair: In temporary markets and trade fairs, it is used to divide areas to avoid chaos and improve site management efficiency.
- Road construction or maintenance: Temporary barriers are set up in areas such as road maintenance and bridge construction to ensurethe safe passage of personnel.

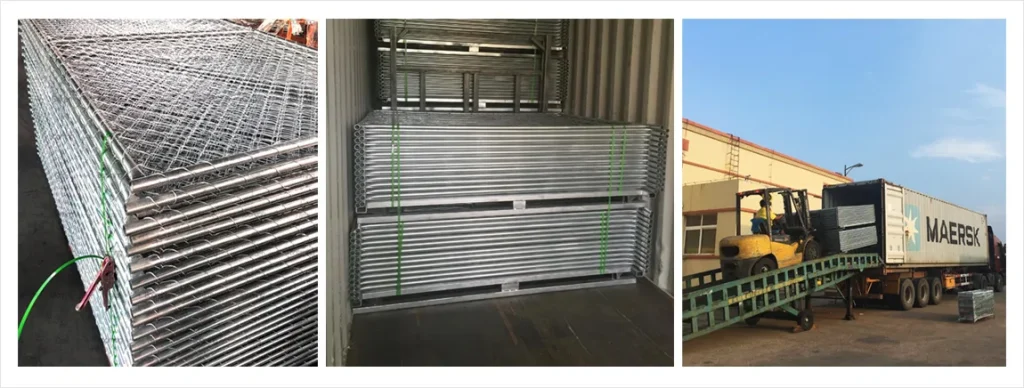

- Packaging is very important for temporary chain link fence gates.
- We use strapping + pallet packaging, which is very strong and ensures safe transportation in logistics.
- At the same time, our customers can easily unload the products with a forklift.
- If you have other needs, we will pack them strictly according to your requirements.
- We use sea transportation, which is convenient, fast, and stable.
