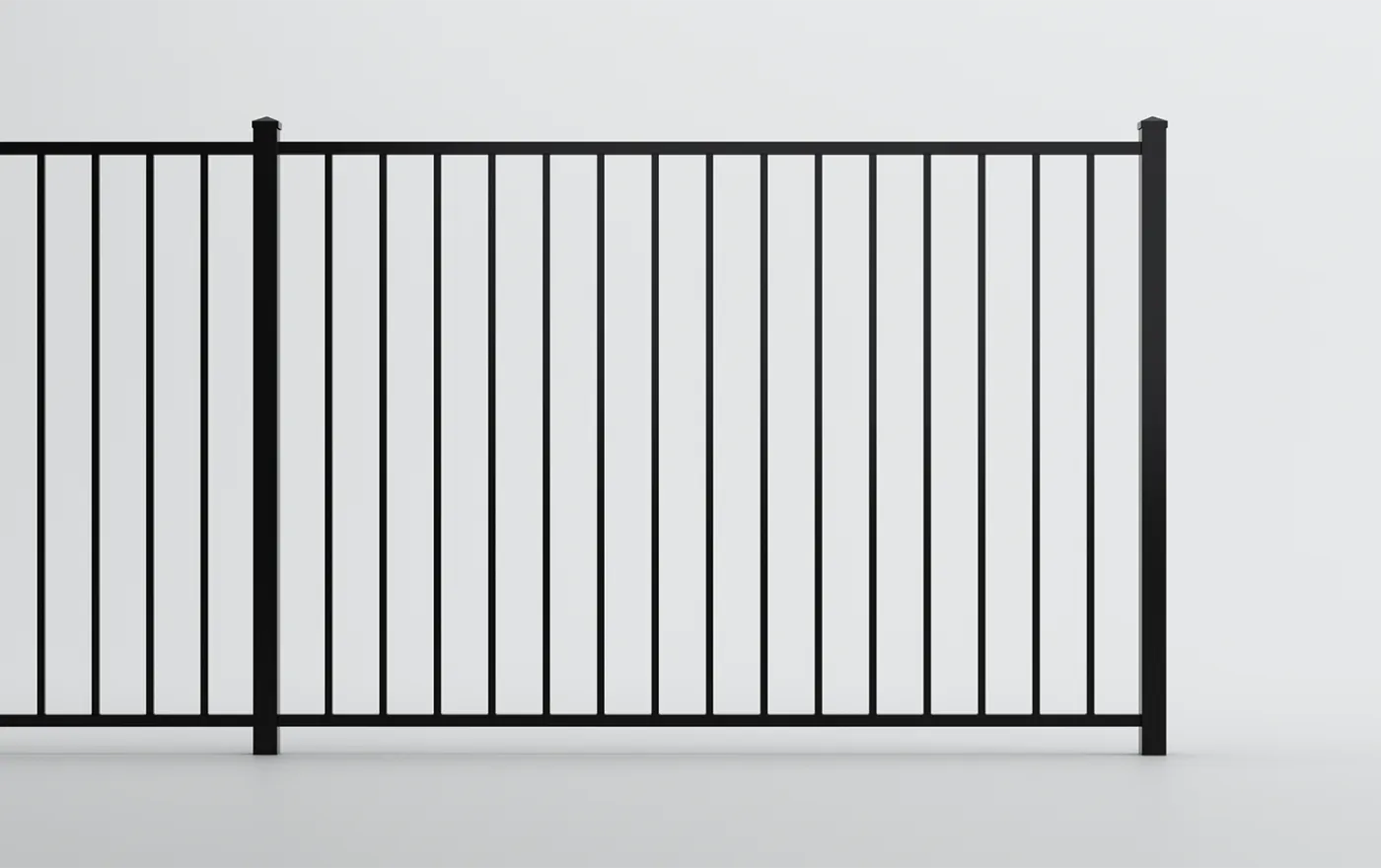

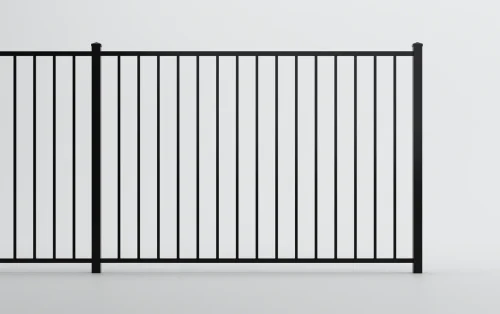

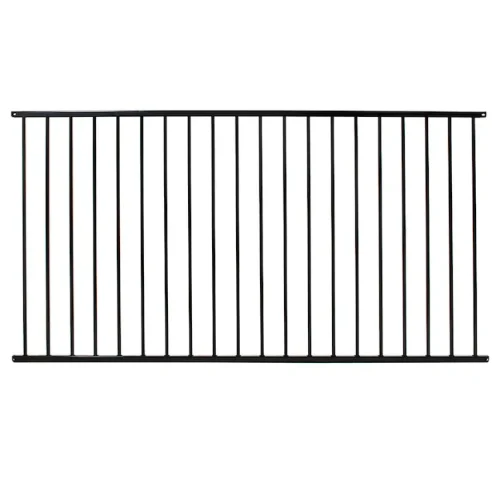

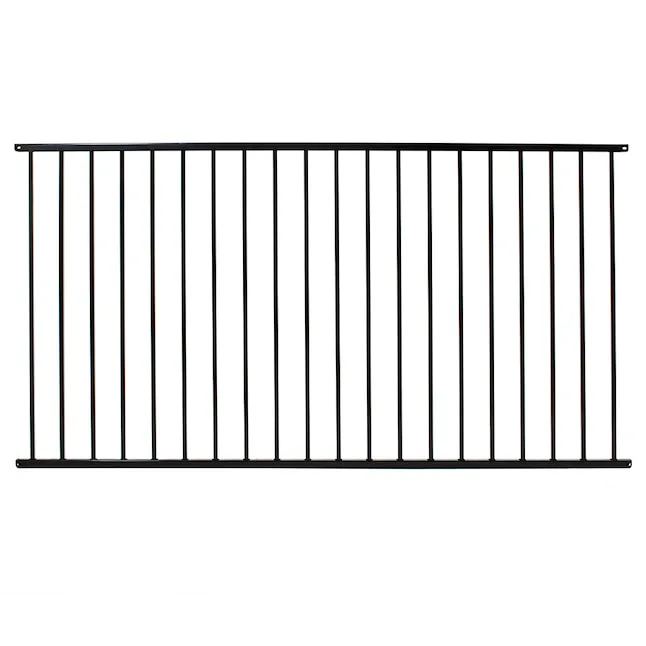

Flat Top Rackable Fence Panels

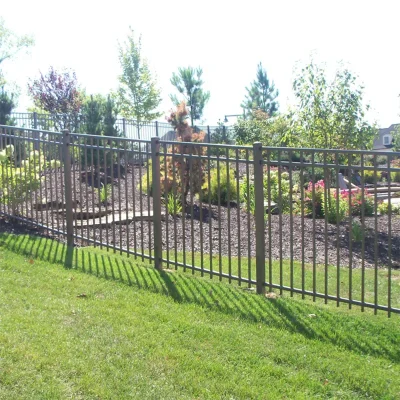

– The rackable design allows the fence to follow the natural curve of the landscape.
– Special powder-coated surface resists corrosion and rust.

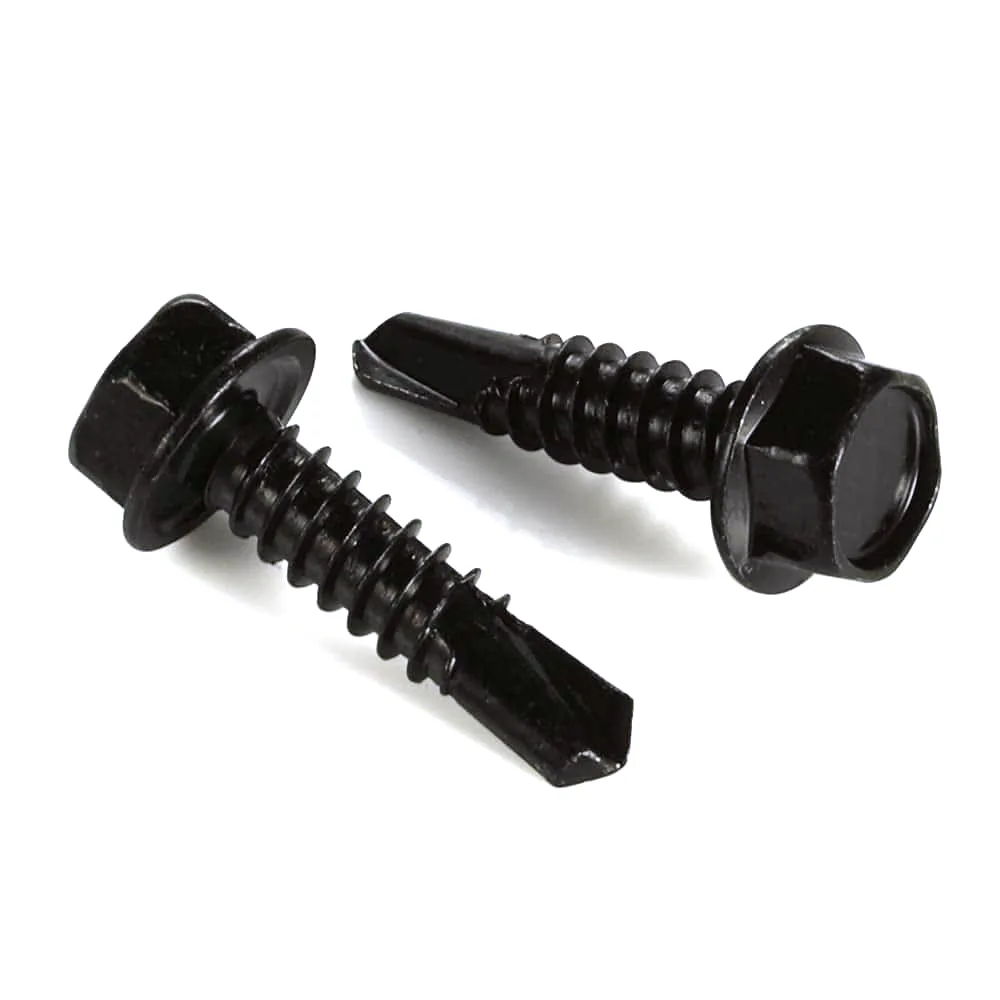

– Hidden fastener system improves surface appearance by hiding panel screws.
– The flat-top design is modern, easy to clean, and resists dust and debris.

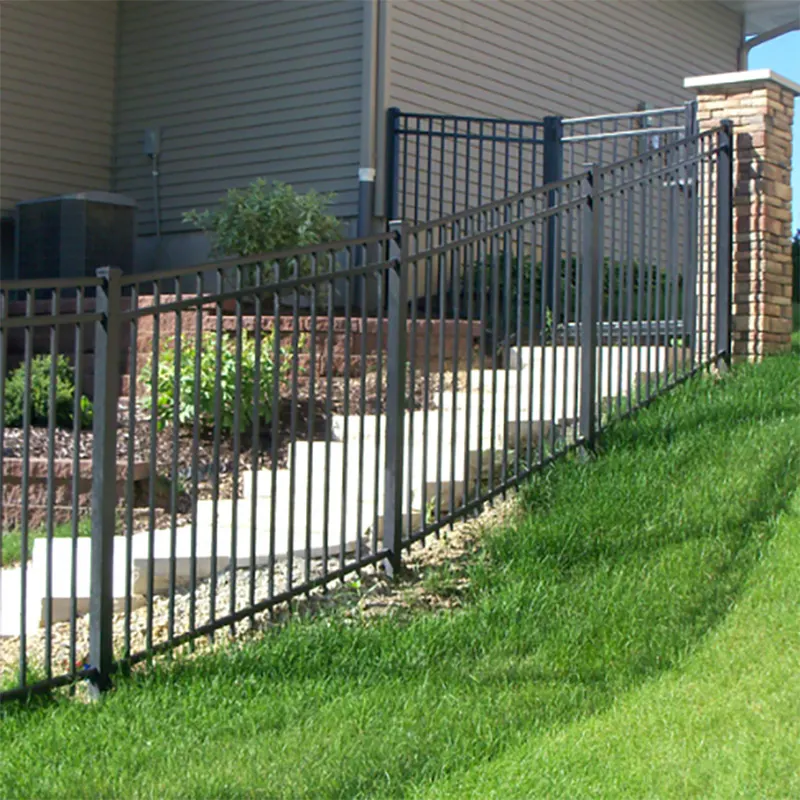

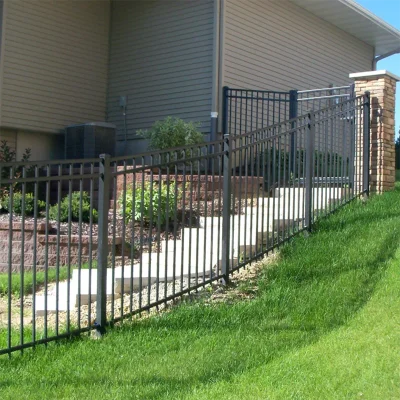

– Allows for installation on uneven ground, ensuring a level and stable fence.
– Through-welding enhances the panel’s structural strength and durability.
– Pre-assembled structures are easy to install.
– Can be customized to meet individual needs and local regulations.
Are you searching for a rackable fencing solution that seamlessly blends modern aesthetics, robust functionality, and long-lasting durability? Our Flat Top Rackable Fence Panel is engineered to exceed expectations.
Why Choose Our Rackable Fence Over Similar Designs?
This flat top rackable fence looks similar to our popular Flat Top Fence but goes a step further. Featuring a streamlined flat-top profile and an extended adjustable base, the rackable design not only delivers contemporary elegance but also ensures effortless adaptability to uneven terrain for a rock-solid installation. Beyond defining property boundaries, its reinforced structure creates reliable security barriers while elevating curb appeal with timeless sophistication.
Crafted from high-grade galvanized steel, every panel undergoes rigorous manufacturing processes to guarantee exceptional weather resistance and structural integrity. The dual-layer defense of galvanization and powder coating ensures ultimate corrosion resistance for harsh climates, no repainting or rust treatment, and enhanced load-bearing capacity for decades of stability.

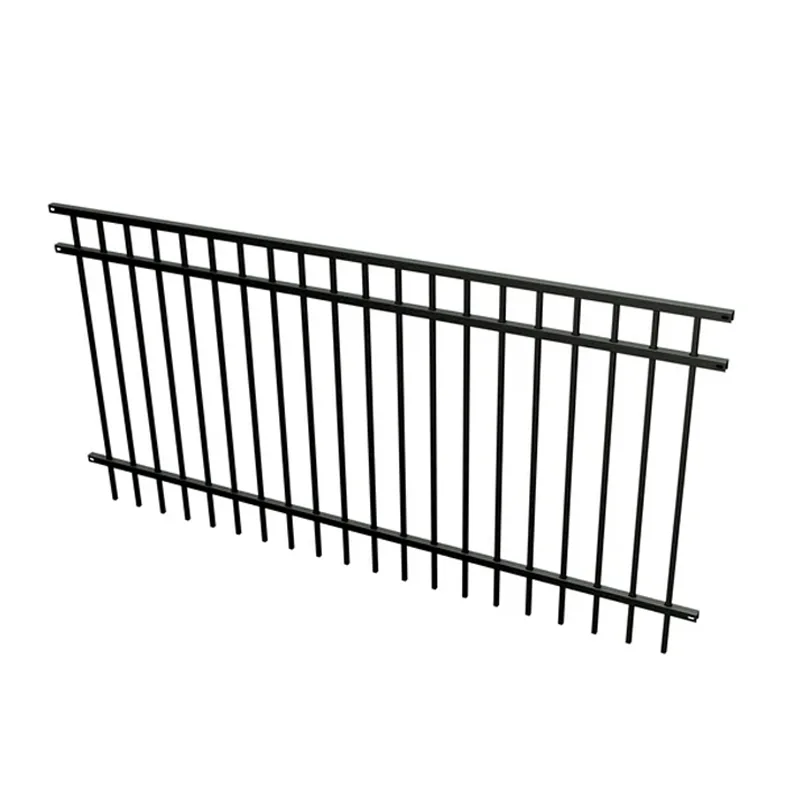

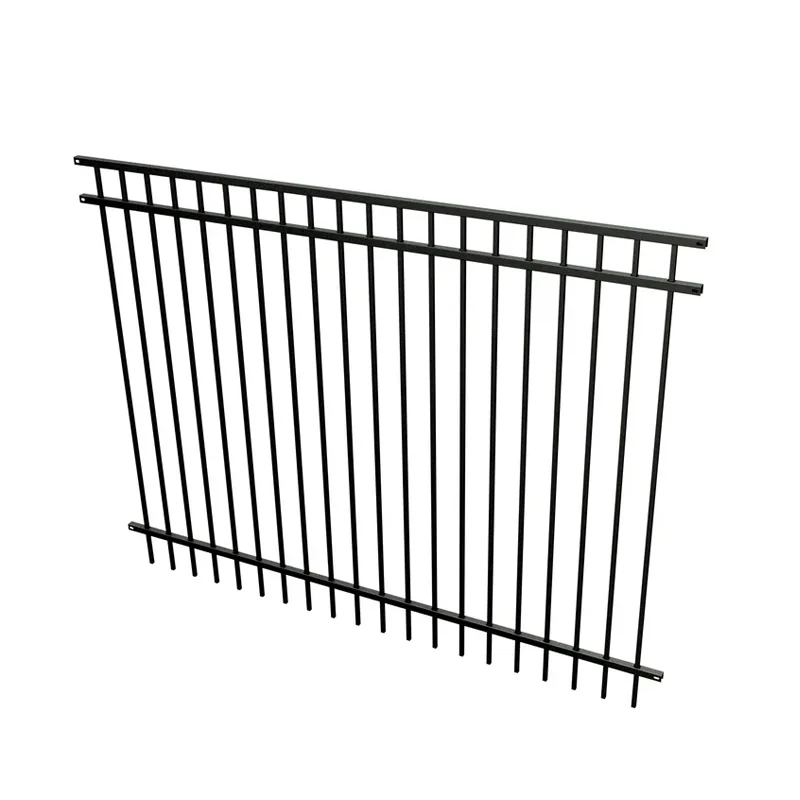

Pre-assembled modular units streamline setup, allowing you to complete projects faster with reduced labor costs. Choose between 2-rail or 3-rail configurations to match your safety requirements.
Available in standard sizes for quick deployment, our fences also support full customization. Whether adjusting dimensions to fit sloping landscapes or modifying designs to comply with local building codes, we work closely with you to deliver a perfect fit.

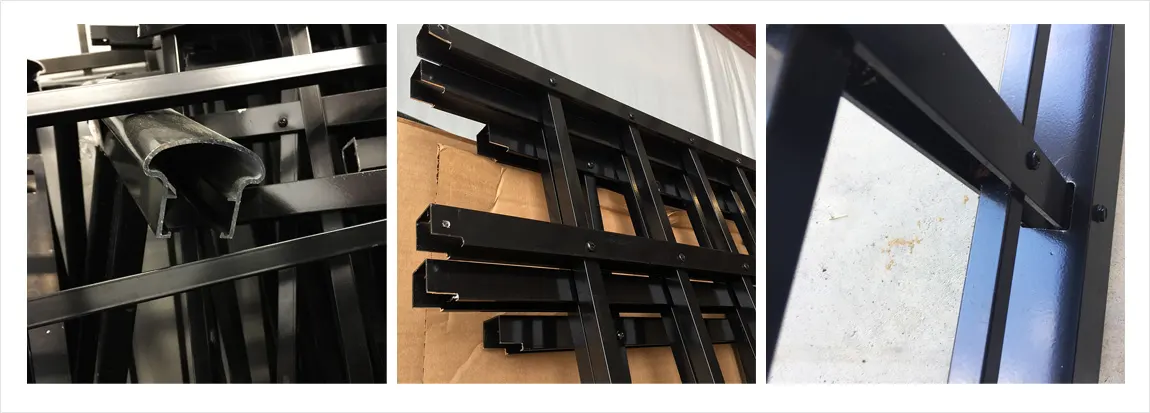

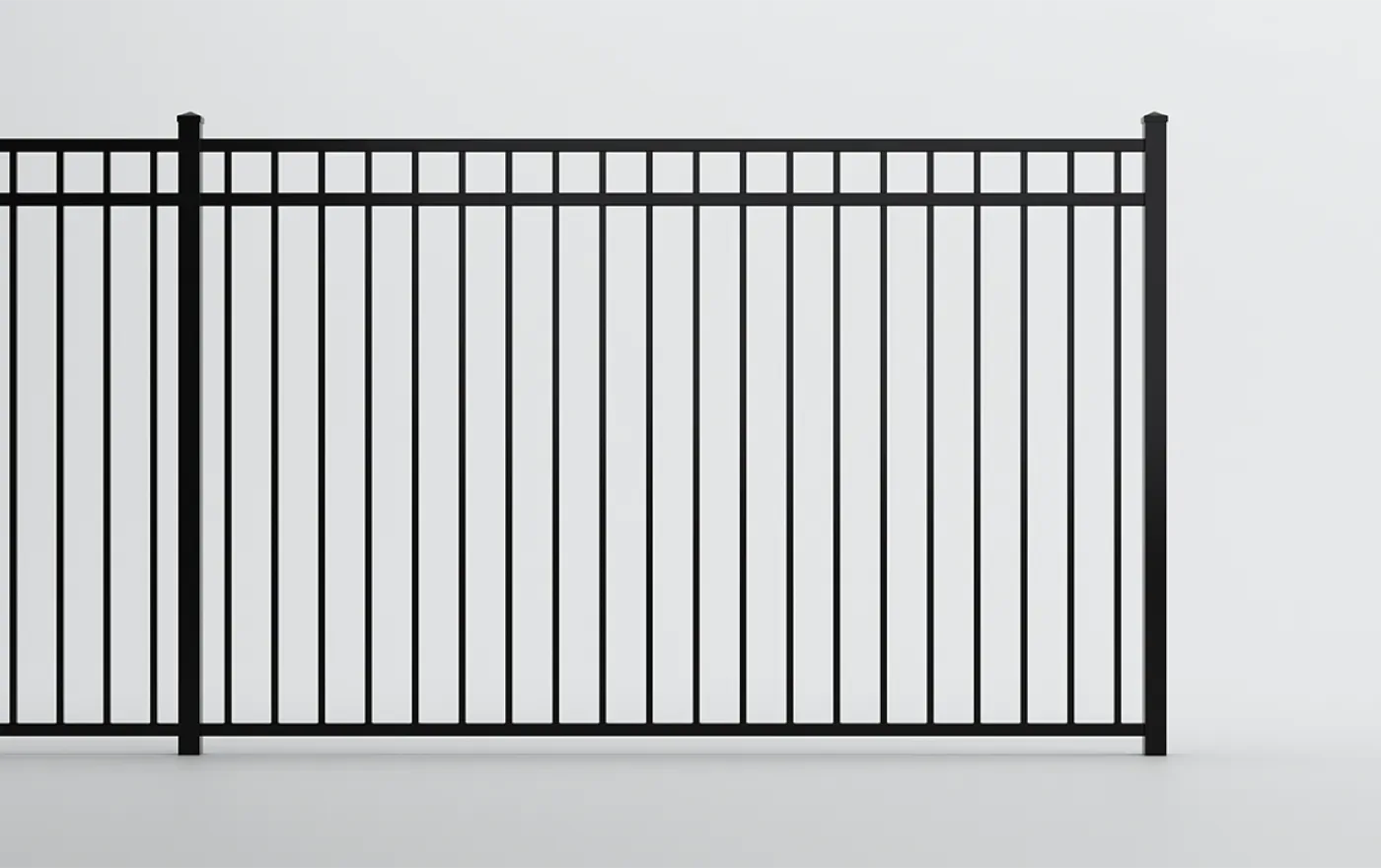

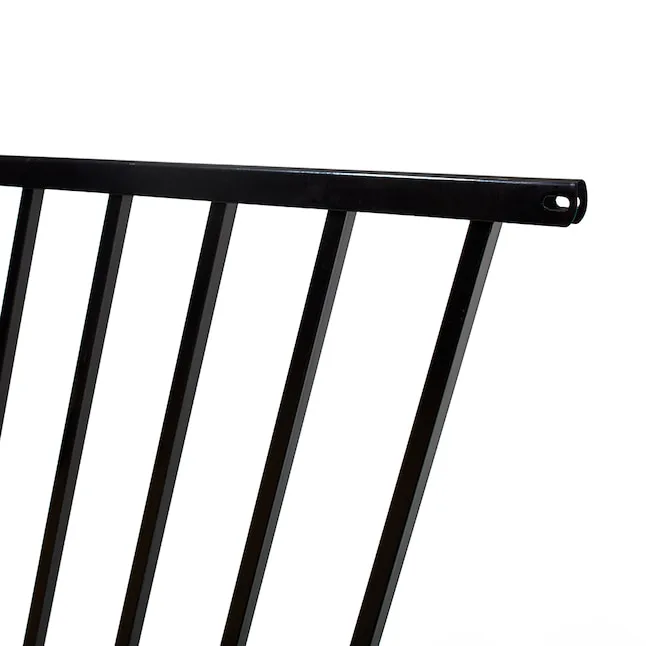

Flat Top Rackable Fence Panels Details

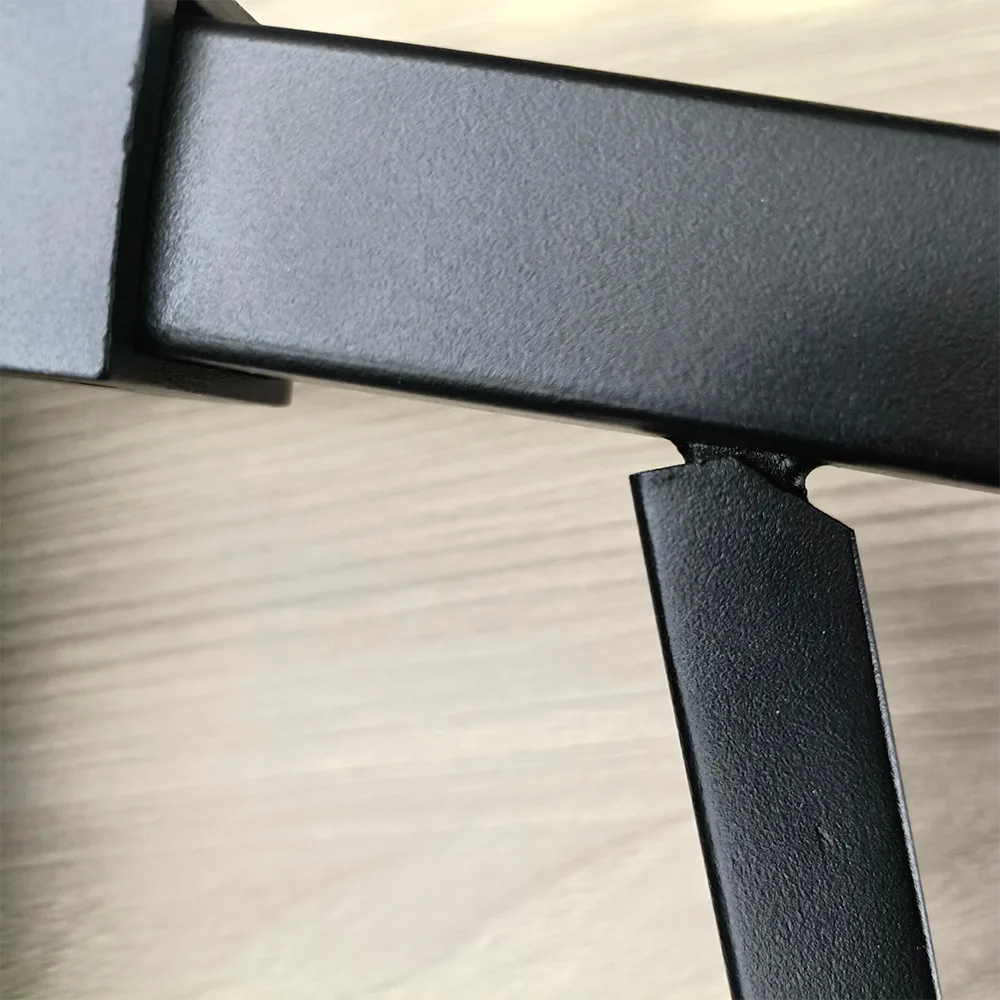

- Our Flat Top Rackable Fencing Panels are crafted from high-strength steel with thicker wall ends, resulting in a lightweight yet incredibly solid and durable product.

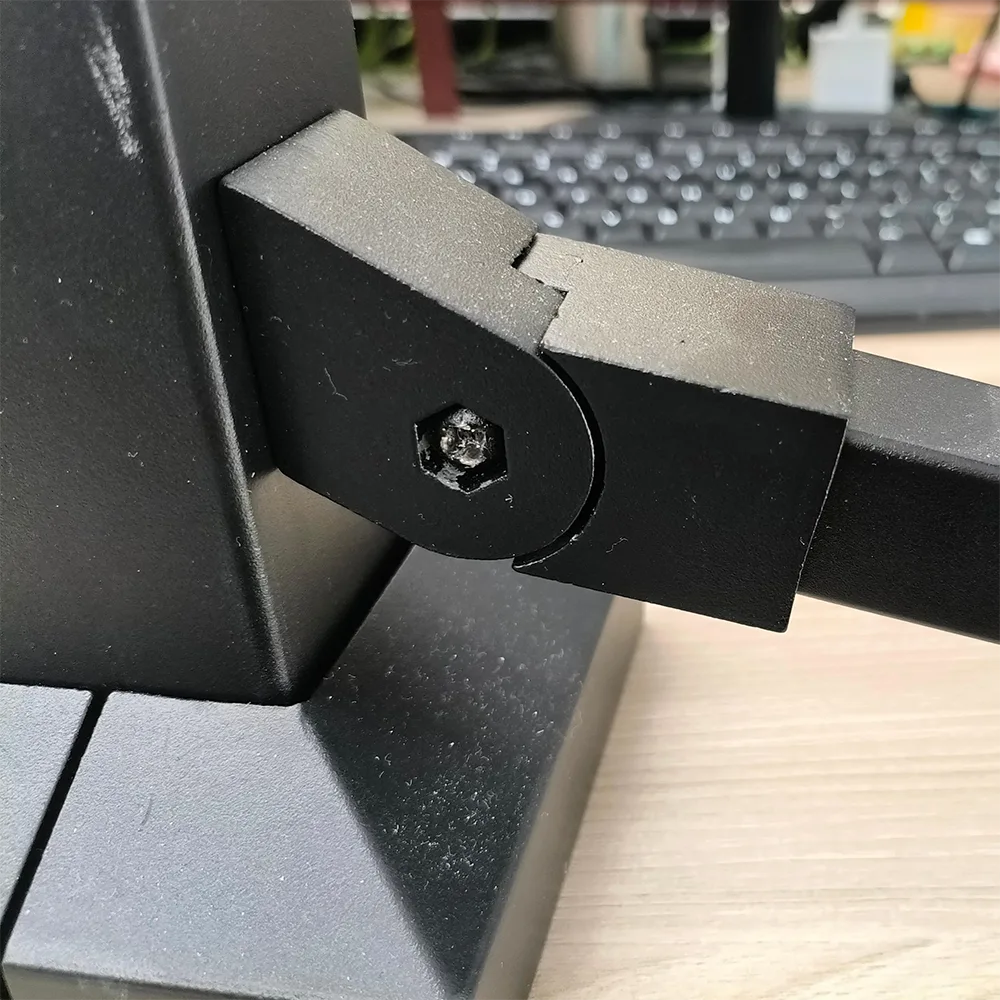

- The innovative frame connection structure eliminates the need for welding, simplifying installation and ensuring superior structural stability.
- Premium powder coating provides exceptional rust-proof, weather-resistant, and corrosion-resistant protection, making our fences ideal for any environment.

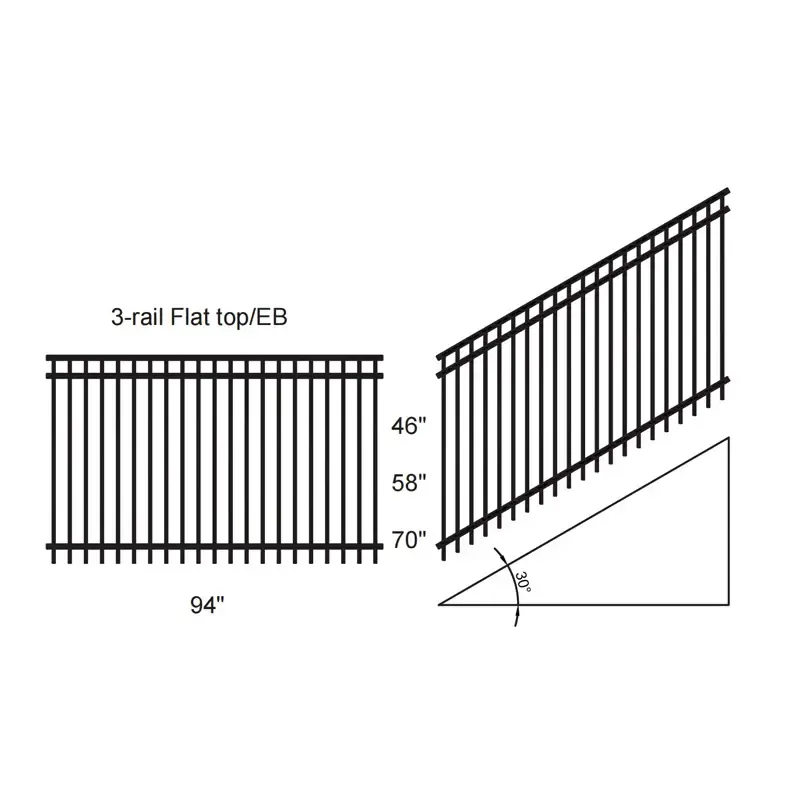

Flat Top Rackable Fence Specifications
1. Residential Rackable Fencing
| size (H) inches | size (H) mm | size (W) inches | size (W) mm | Number of Horizontal Rails | Number of Vertical Pickets | Weight (kg.) |
| 34 | 863.6 | 94 | 2387.6 | 2 | 20 | 17.46 |
| 46 | 1168.4 | 94 | 2387.6 | 2 | 20 | 21.05 |
| 58 | 1473.2 | 94 | 2387.6 | 2 | 20 | 24.63 |
| 70 | 1778 | 94 | 2387.6 | 2 | 20 | 28.22 |
| 34 | 863.6 | 94 | 2387.6 | 3 | 20 | 21.12 |
| 46 | 1168.4 | 94 | 2387.6 | 3 | 20 | 24.70 |
| 58 | 1473.2 | 94 | 2387.6 | 3 | 20 | 28.28 |
| 70 | 1778 | 94 | 2387.6 | 3 | 20 | 31.87 |
| Material | Steel or Aluminum | |||||
| Finish | Powder Coating | |||||
| Color | Black, Customized Colors | |||||
| 5/8″picket-18 ga.-15*15*1.2mm | ||||||
| 1-3/16″x 1-5/64″x 1-3/16″rail-14 ga.-30*27.4*30*2.0mm | ||||||
| 94″Panel | ||||||
| Center Distance of Vertical Pickets 116mm | ||||||
2. Commercial Rackable Fencing
|
size (H) inches |
size (H) mm | size (W) inches | size (W) mm | Number of Horizontal Rails | Number of Vertical Pickets | Weight (kg.) |
| 46 | 1168.4 | 94 | 2387.6 | 2 | 20 | 31.09 |
| 58 | 1473.2 | 94 | 2387.6 | 2 | 20 | 36.39 |
| 70 | 1778 | 94 | 2387.6 | 2 | 20 | 41.70 |
| 82 | 2082.8 | 94 | 2387.6 | 2 | 20 | 47.00 |
| 94 | 2387.6 | 94 | 2387.6 | 2 | 20 | 52.30 |
| 46 | 1168.4 | 94 | 2387.6 | 2 | 20 | 36.08 |
| 58 | 1473.2 | 94 | 2387.6 | 3 | 20 | 41.38 |
| 70 | 1778 | 94 | 2387.6 | 3 | 20 | 46.69 |
| 82 | 2082.8 | 94 | 2387.6 | 3 | 20 | 51.99 |
| 94 | 2387.6 | 94 | 2387.6 | 3 | 20 | 57.29 |
| Material | Steel or Aluminum | |||||
| Finish | Powder Coating | |||||
| Color | Black, Customized Colors | |||||
| 3/4″picket-18 ga.-18*18*1.2mm | ||||||
| 1-9/16″x 1-3/16″x 1-9/16″rail-14 ga.40*30*40*2.0mm | ||||||
| 94″Panel | ||||||
| Center Distance of Vertical Pickets 120mm | ||||||
Production Process
- Extrusion: heat the aluminum rod, pass it through the extruder through the mold plasticity, and obtain the required shape.
- Cutting: product unloading, cutting the profile according to the design requirements to obtain the required length.
- Beam Punching: use the equipment to pre-punch holes in the beam to facilitate subsequent operations
- Product Assembly: assemble the various parts of the product to facilitate the subsequent installation process
- Chromium-free Passivation: forms a dense oxide film on the surface of the aluminum product, thereby increasing the adhesion of the powder spraying.
- Powder Coating: spray epoxy-polyester powder on the surface, and cure it at high temperature. This process makes the product more rust-proof and corrosion-resistant.
- Packaging: Professional transportation methods ensure the safe transportation of products.

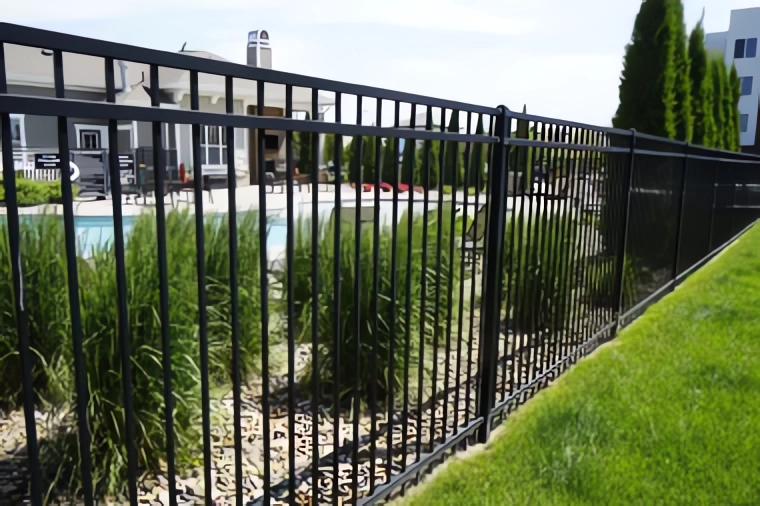

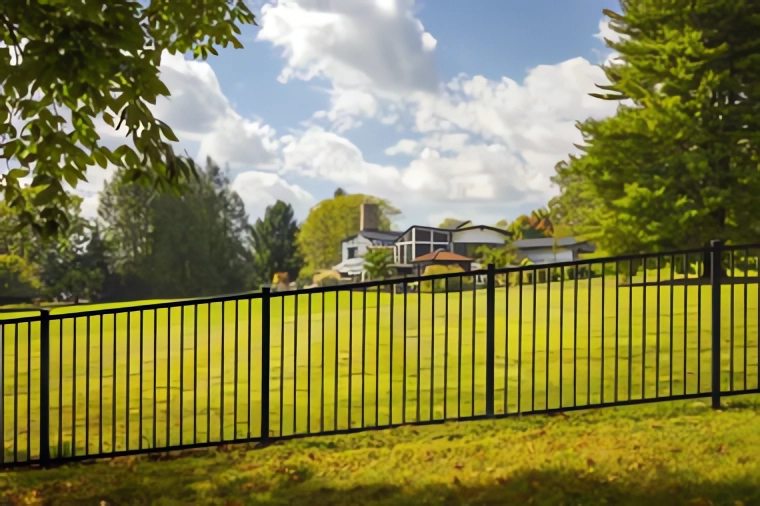

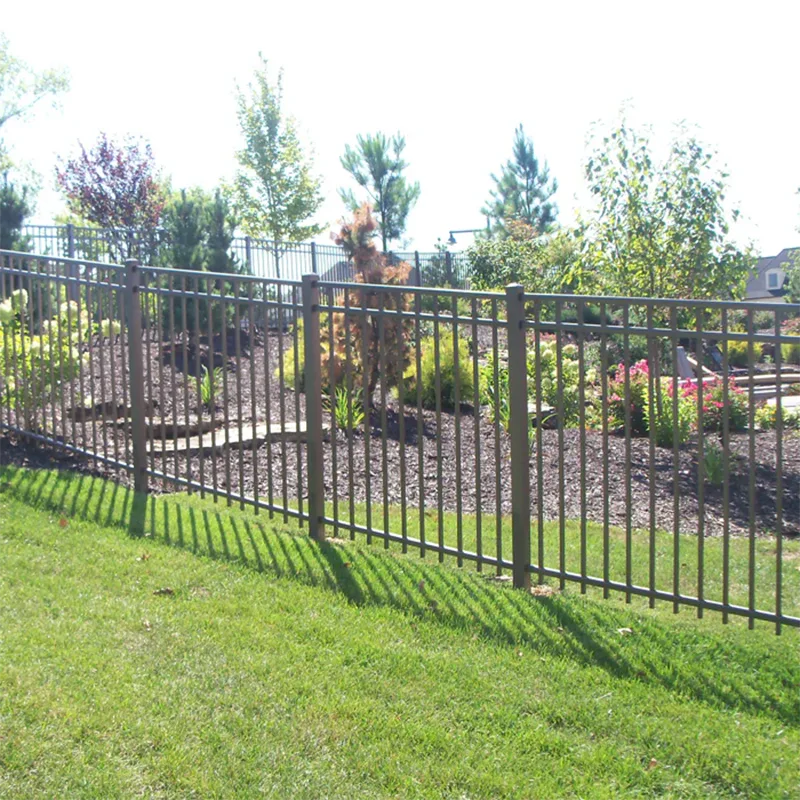

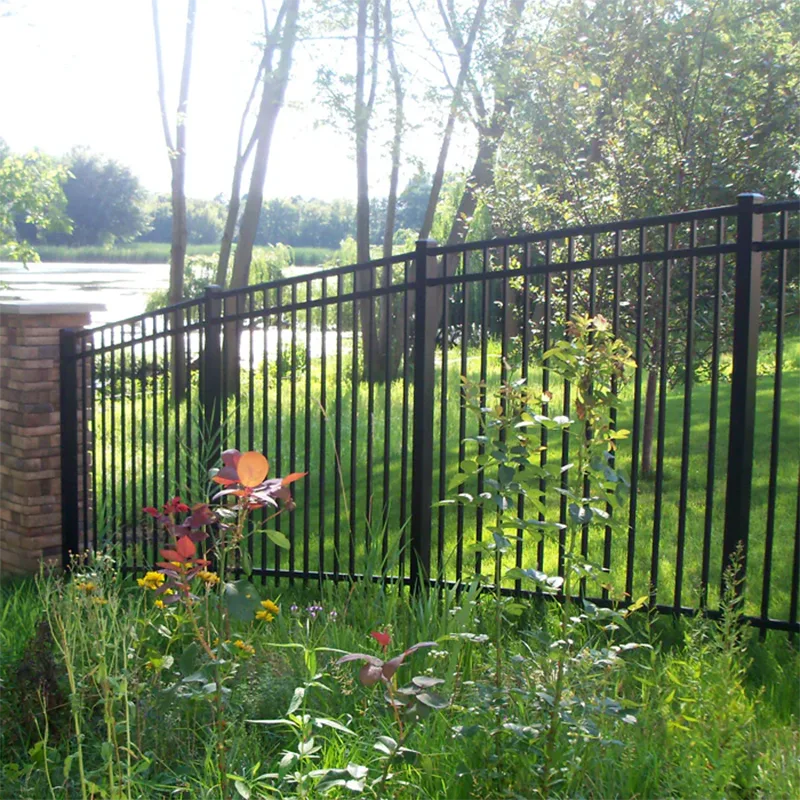

Flat Top Rackable Fence Applications
 |
 |
 |
 |

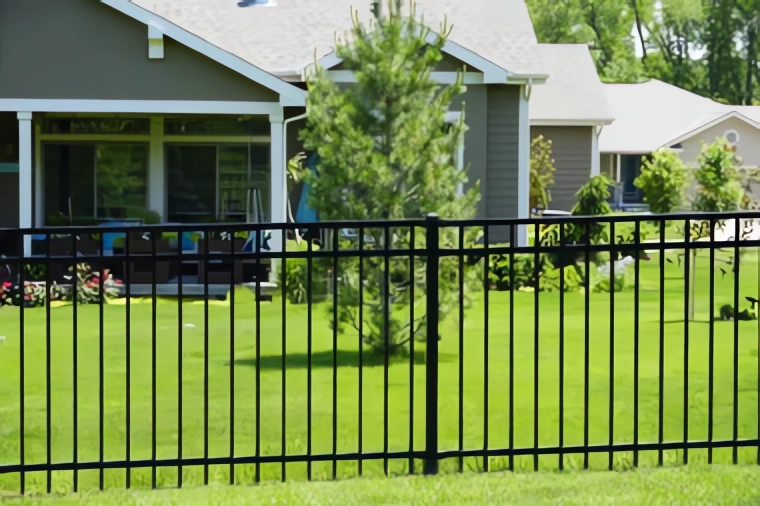

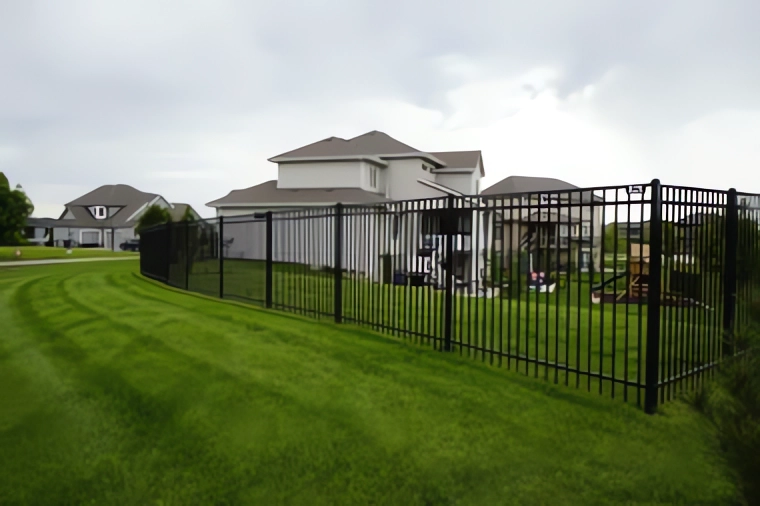

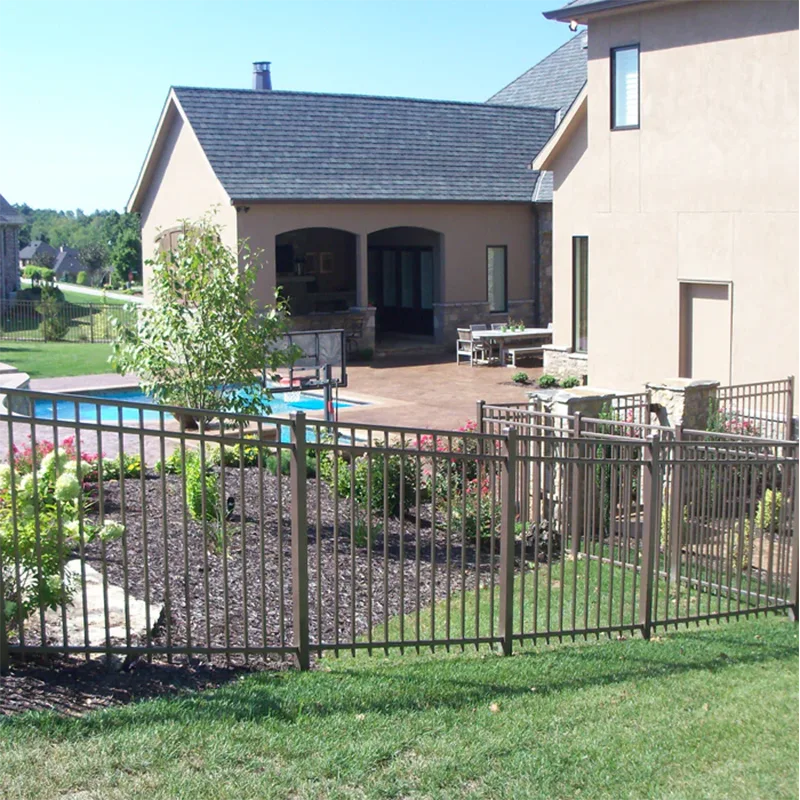

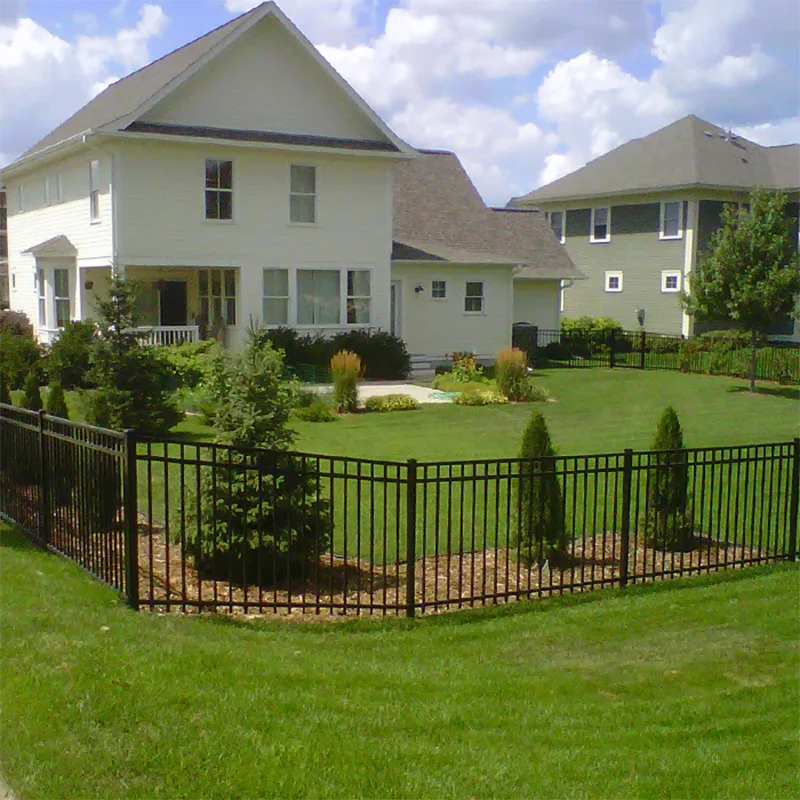

- Integration of high-end residential security and landscape: Villas and manors need flat top rackable fencing, to resist climbing intrusion.
- Low-maintenance and long-term protection of public facilities: Schools, parks, and municipal roads need rackable flat top fence systems with strong weather resistance and low maintenance costs.
- Zoning management of commercial warehousing and logistics centers: Warehouses and logistics parks need to quickly divide cargo storage areas to ensure equipment safety and optimize space utilization.
- To ensure your order arrives in perfect condition, we employ a robust packaging process. Each product is carefully wrapped in medium-thick stretch film, and secured to an iron pallet. Moreover, four-corner cardboard protection is added to prevent damage during transit.
- For added security, packing tape is used to tightly bind the entire package. In cases where multiple pallets are shipped, we utilize plywood or iron racks to separate them, preventing shifting and potential damage. (Packaging may be adjusted based on specific product requirements or customer requests.)
- We understand the importance of efficient unloading. That’s why our products are palletized, allowing your team to easily unload them using a forklift. In addition, all bulk products are individually packed in cardboard to prevent scratching and maintain their pristine condition.
- We utilize reliable sea shipping for fast and stable transportation. This ensures that your order arrives promptly and safely, minimizing any potential delays.
