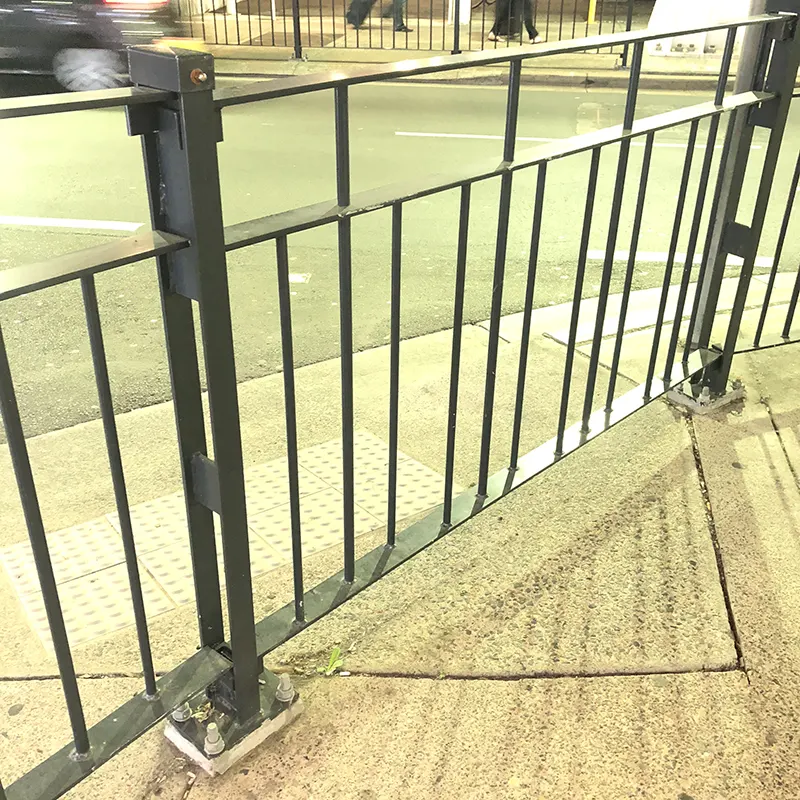

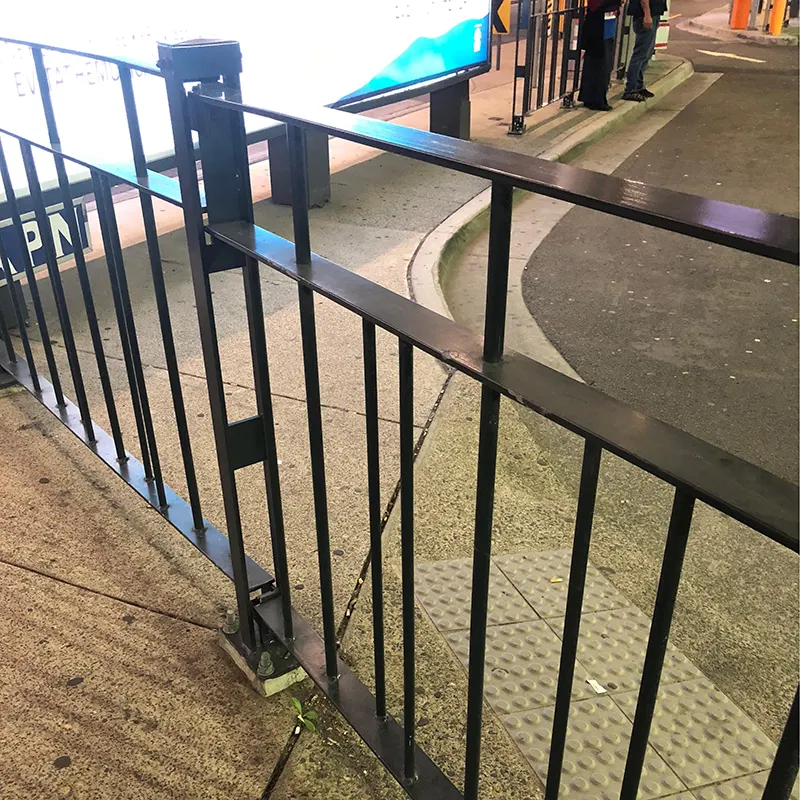

Pedestrian fencing is widely used in commercial and public environments to guide foot traffic, improve safety, and control access in walkways, transport hubs, and industrial facilities. We offer top-quality RMS Pedestrian Fencing, perfect for public areas, schools, and parks.
Galvanized Steel, Durable and Robust: RMS Pedestrian Fencing is meticulously crafted from high-strength steel, ensuring exceptional stability and impact resistance.
Complete Accessories: The robust steel structure, combined with reliable bolted connections, allows it to easily withstand daily use and potential vehicle impacts, providing solid protection for pedestrians.
Surface Treatment: Powder coating or PVC coating for corrosion resistance.

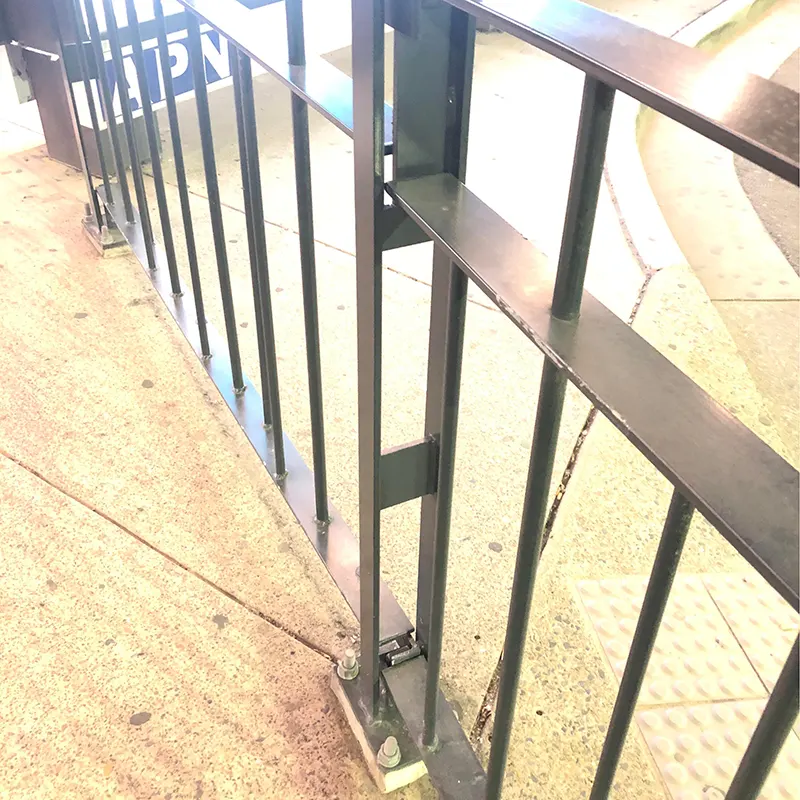

The unique staggered vertical railing design not only enhances the overall strength of the fence but, more importantly, significantly improves driver visibility. This allows drivers to notice pedestrians approaching the road earlier, giving them ample time to adjust their driving behavior and effectively prevent accidents
As a professional fence manufacturer, our RMS Pedestrian Fencing strictly adheres to various standards, providing your project with reliable, safe, and compliant solutions:
Welding by AS/NZS 1554.1:2014.
Galvanized coating thickness by AS/NZS 4680 -2006.
Powder coating thickness by AS 4506-2005.
Applications of Pedestrian Fencing
Our RMS Pedestrian Fencing ensures a range of functional benefits.

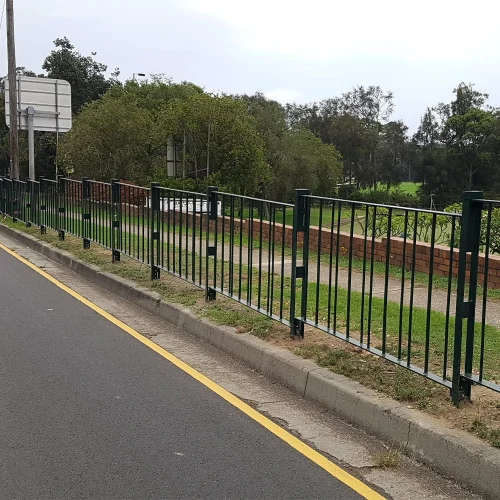

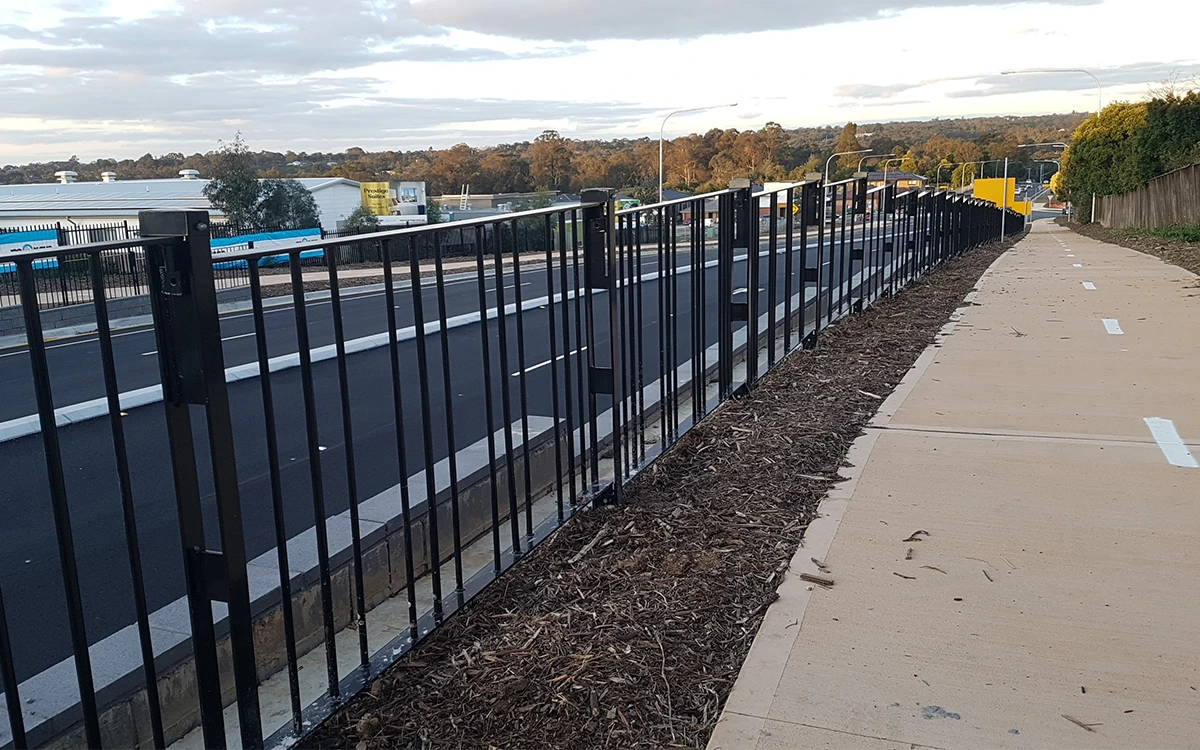

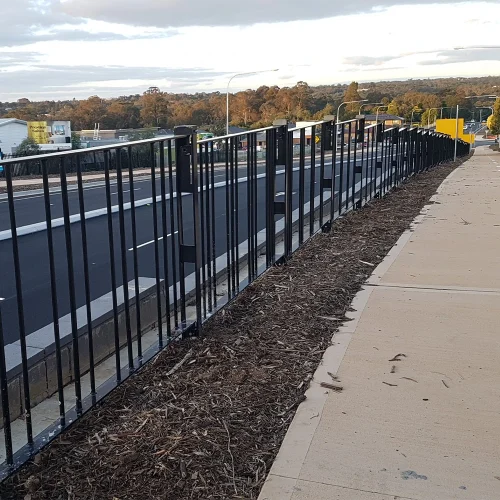

Public areas and pedestrian walkways.

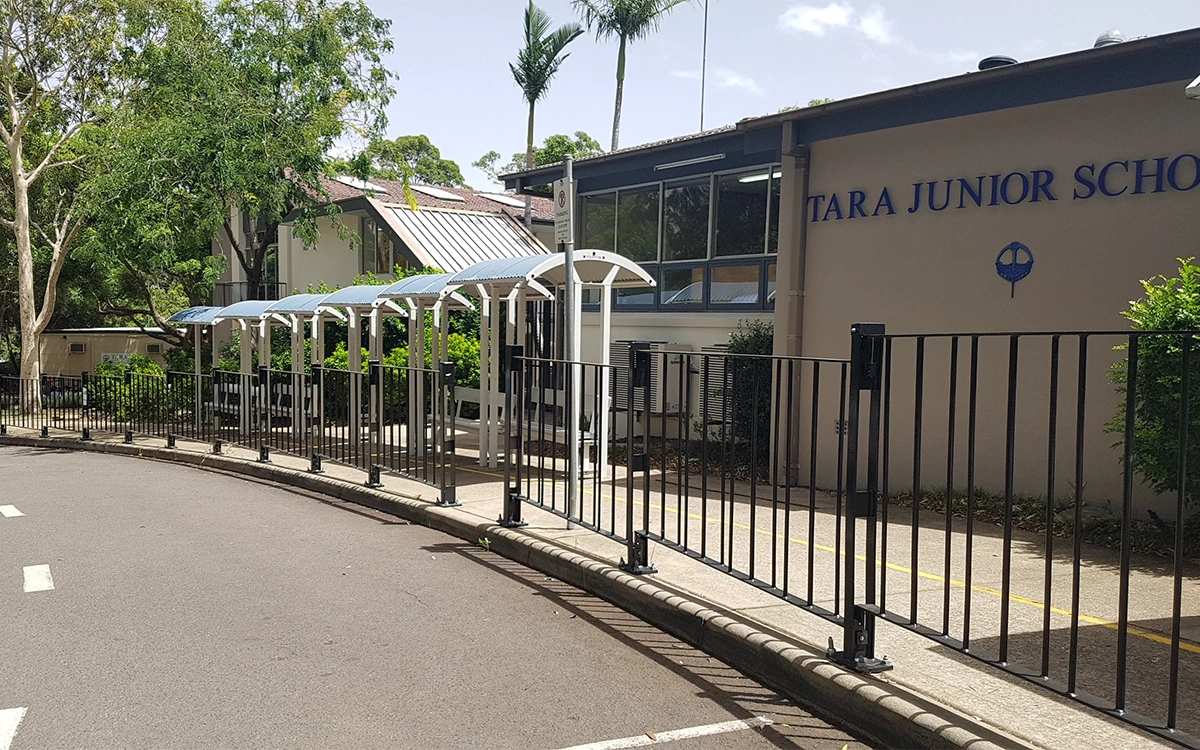

School zones and campuses.
Parks and recreational areas.

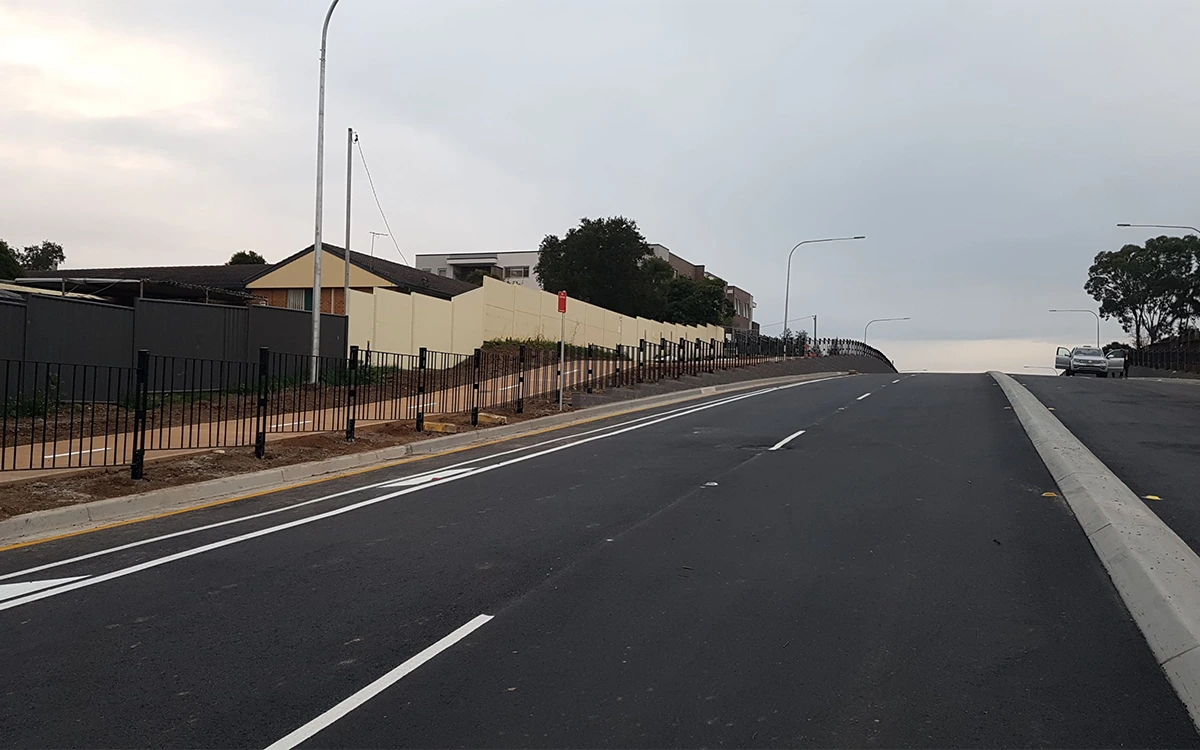

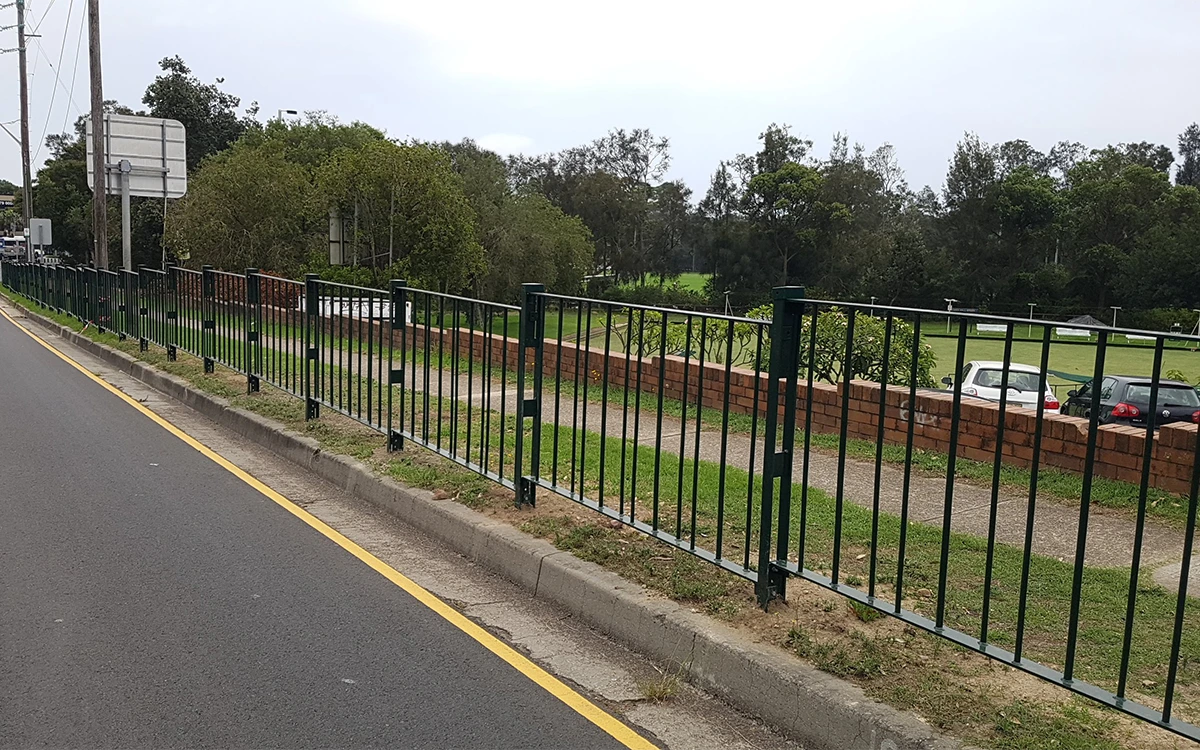

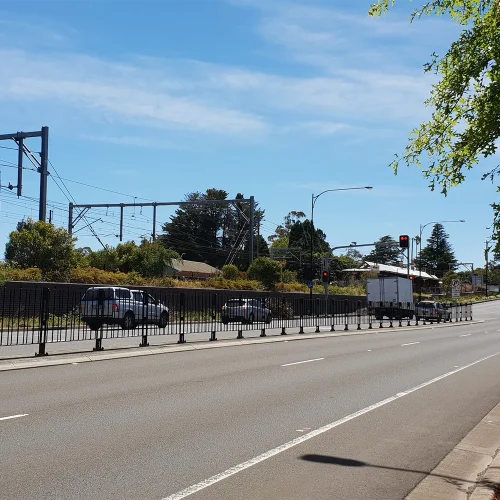

Road crossings and main roads.
High-density public hubs and commercial zones.

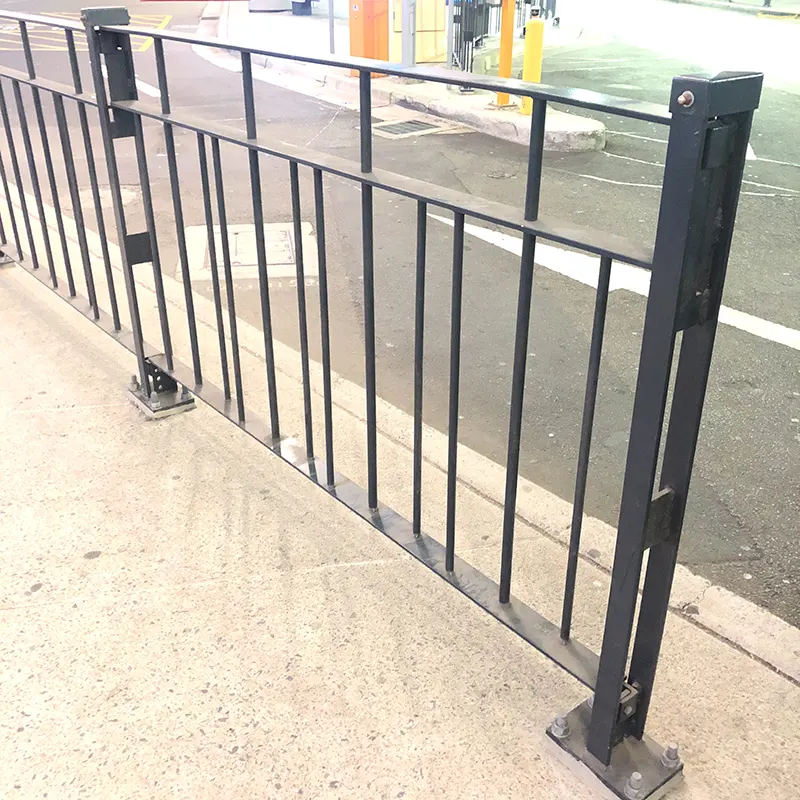

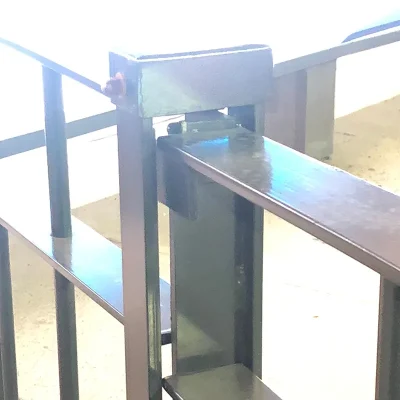

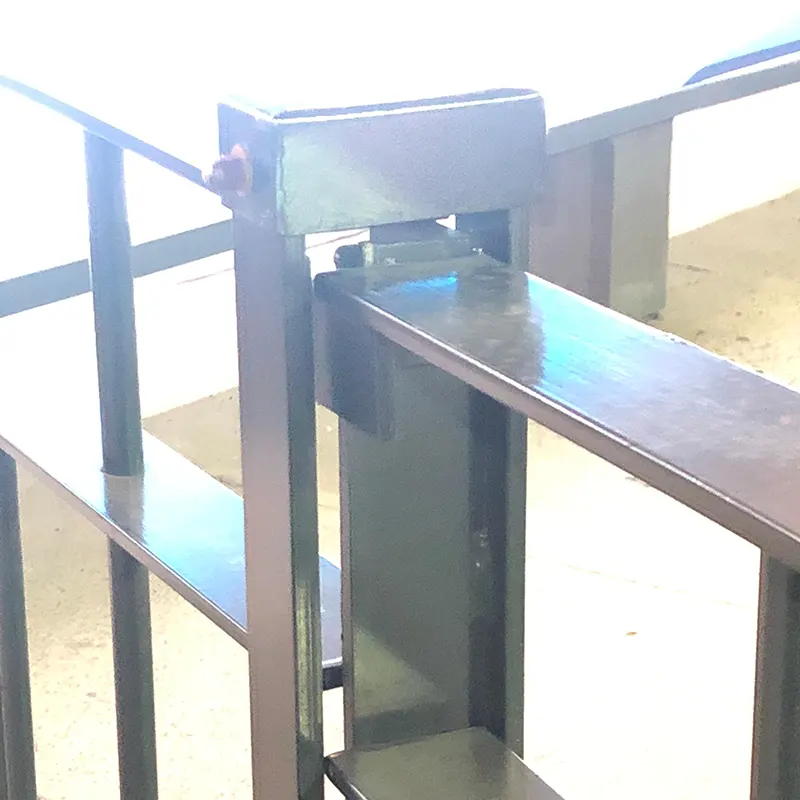

RMS Pedestrian Fencing Detail
High-quality galvanized steel.
Welded construction for overall strength and stability.

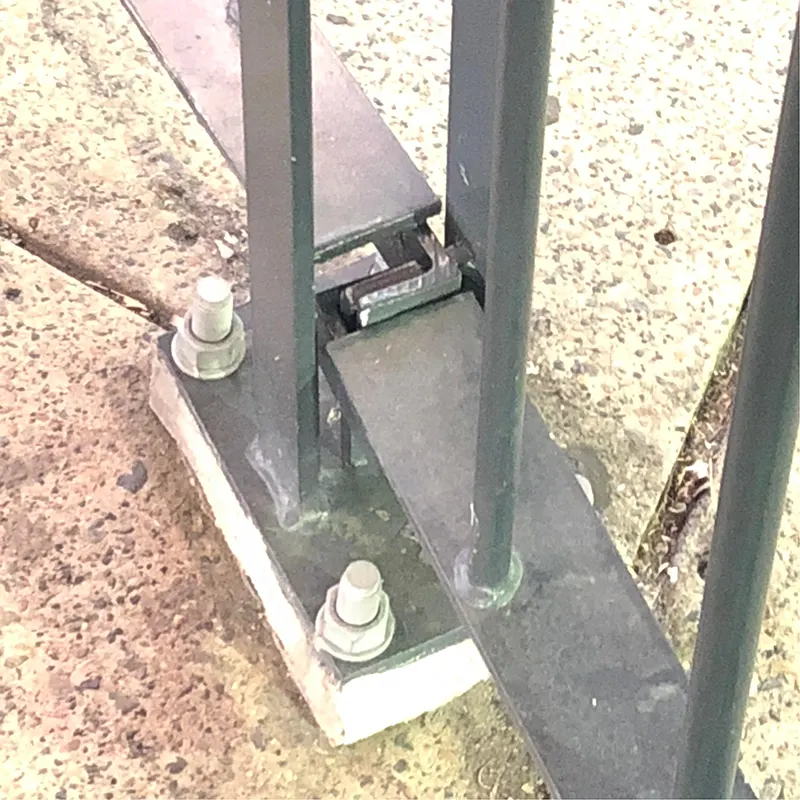

The base of the column is welded to the plate and secured with screws and other accessories.
Black powder coating for corrosion and rust resistance.
Product Specification:
Panel Size(mm):
2000*1050
Frame(mm):
75*10flat*2pieces with 75*50*8 unequal angle brackets
Infilled(mm):
1650*90*50mm

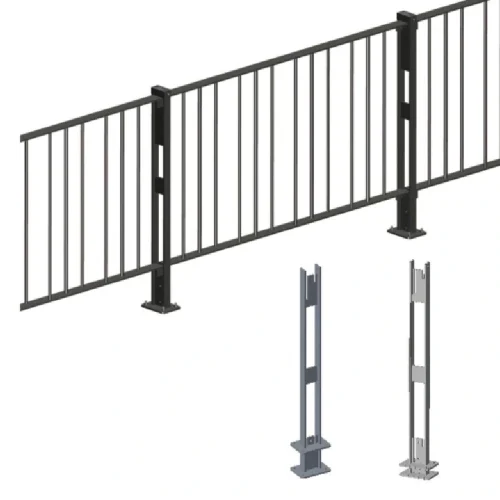

Intermediate Post:
3 post designs available meet different needs.
Surface Treatment:
Hot Dip Galvanized after welding
Powder Coated
Powder Coated after Hot dip Galvanized
Pedestrian Fence Production Process
Material: Check the outer diameter and wall thickness of the pipe, to ensure that meets the requirements of the fence drawing, thus ensuring quality.
Cutting: product unloading, cutting the profile according to the design requirements to obtain the required length.
Punching: Punch holes in the cut pipe.
Welding: Pre-galvanized steel pipes are welded into the panel frame using sophisticated welding techniques.
Perform sandblasting: cleaning and roughening the surface by spraying high-speed abrasive particles. It can remove impurities such as rust, oil, and scale.
Phosphating: The phosphating film itself has a certain anti-corrosion ability and can provide excellent adhesion to paint, powder coating, or other organic coatings.
Powder Coating: Spray epoxy-polyester powder on the surface, and cure it at high temperature. This process makes the product more rust-proof and corrosion-resistant.
Quality Control: We will conduct a quality inspection on each product to check the strength, wall thickness, and powder coating thickness to ensure each product’s quality.
Packaging: Professional transportation methods ensure the safe transportation of products.
Advantages of Pedestrian Fence Verge:
The use of Pedestrian Fencing is essential to protect pedestrians from potential threats and risks.
The entire pedestrian fence verge has no sharp or protruding parts, thus preventing injury to personnel.
Proper height and tight space mesh panels thus provide optimal sightlines and prevent obstruction.
The pedestrian fencing’s application range is very wide, such as intersections, schools, tourist attractions, activity areas, etc.
High-strength steel makes it very strong and durable, thus providing maximum protection and safety.
As a professional manufacturer, we can manufacture pedestrian fence verges according to the requirements of various national highway bureaus.
Professionally package the product to ensure safe transportation.
RMS Pedestrian Fencing FAQ
Q1: Do you offer customization services?
A: Yes, absolutely. We offer flexible Pedestrian Fencing customization options for size, material, color, and craftsmanship to meet the unique needs of your project.
Q2: Can you provide custom designs?
A: Of course! Please let us know your design requirements (text or verbal description), and our professional technical team will create a customized design for you.
Q3: What are the sample time and cost?
A: Samples are free! They can usually be delivered within 7-10 days. You only need to cover the shipping costs.
Q4: How long does delivery take?
A: We respond quickly to your project schedule! Delivery time depends on your order quantity. We have a large production base to ensure efficient production and on-time delivery.
Q5: What is the minimum order quantity?
A: The standard minimum order quantity is one full container (1 x 20′ container) to ensure safe transportation. We are also happy to discuss smaller orders depending on your specific needs.
Q6: How can I receive the products faster?
A: We will develop the most efficient production plan based on your order quantity and type. Communicating your specific needs as early as possible will help us significantly shorten your order delivery time.
We are well aware of the importance of packaging for the safe transportation of pedestrian fencing.
Plastic film is used to isolate each board to effectively reduce friction and scratches during transportation.
Tightly wrapped with stretch film, reinforced with cardboard, and fixed with a steel frame to ensure the stability of the product.
Overall pallet loading facilitates forklift operation and improves loading and unloading efficiency.
We provide flexible packaging solutions. According to your requirements, to ensure the safety of the product.
We choose safe and reliable sea transportation methods to provide you with convenient, fast, and stable transportation services.
