Garrison Fence, Galvanized Steel Security Fence Panels

Model NO:

– Special anti-corrosion treatment has excellent antioxidant and weather resistance.

– High-quality steel material with good impact resistance.

– Dignity and elegance increase the beauty.

– Various specifications are available and customizable.

– Advanced production equipment and machines with short delivery times.

– Special pricing is available for bulk orders.

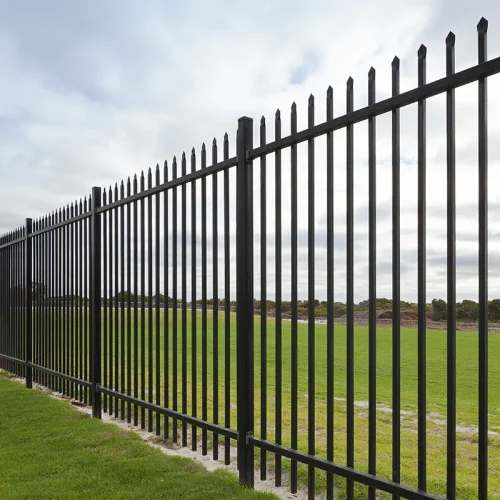

The garrison fence is a medium security fence and serves as the premium boundary solution for industrial and commercial properties. The primary material used in the construction is hot-dip galvanized steel strips, which we weld together using high-frequency welding technology. This manufacturing process addresses the vulnerability of wrought iron fences to corrosion while also offering a more cost-effective alternative to stainless steel fences.

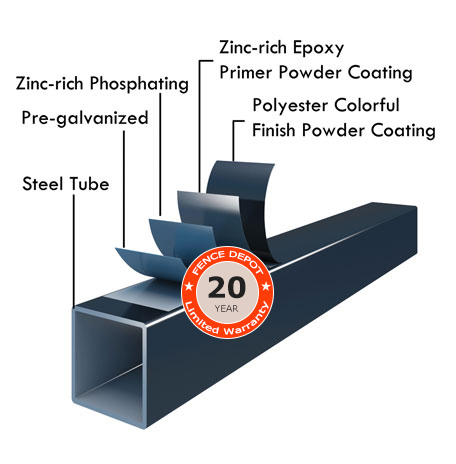

Through a complex physical and chemical reaction, the alloy layer seamlessly integrates with the pure zinc layer and the steel tube matrix. This integration ensures that the surface of a hot-dip galvanized steel tubular fence can withstand harsh environmental conditions for up to 30 years without requiring additional treatment. Additionally, we actively apply an anti-oxidizing powder coating to further enhance the durability and weather resistance of our finished products. This coating is applied through electrostatic spraying techniques.

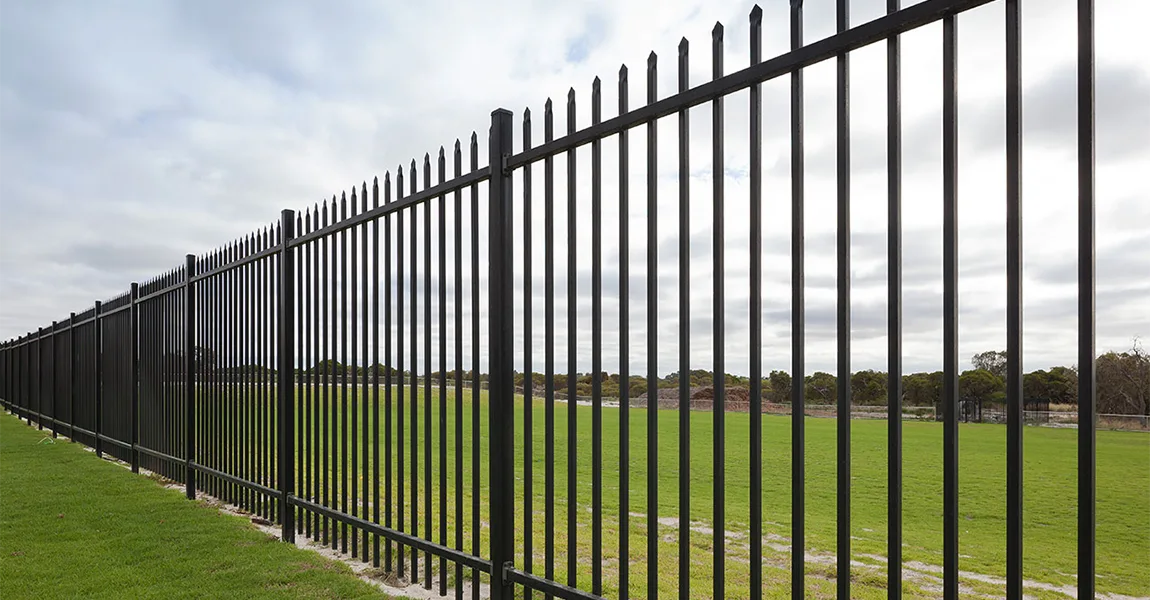

Garrison security fencing adapts exquisite all-around welding technology, which makes its frame more solid and stable, which is a significant feature. This specific feature, along with the previously mentioned advantages, has positioned it as the top choice for securing industrial, agricultural, commercial, residential, and public facilities.

To adapt to different usage scenarios, we have a variety of sizes to choose from. At the same time, as a professional manufacturer, we can customize according to customer needs or other usage scenarios.

FENCE DEPOT is your trusted Commercial and Industrial Fencing manufacturer. For more information about our garrison fence, including stock availability, please call +86 16678596616. You can also contact us via email: [email protected]. We’re here to help.

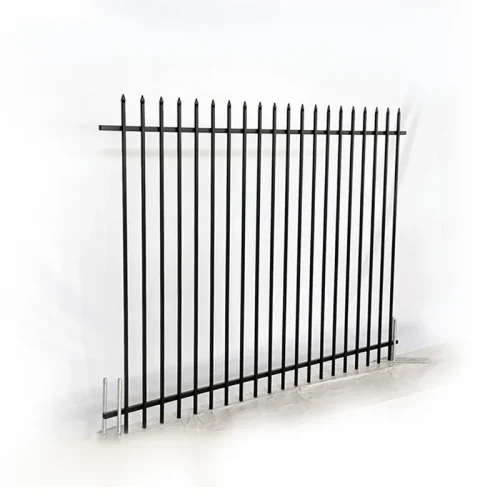

Garrison Fence Specifications:

Items Fence Post
Size(mm) 2400W X 1800H 65 X 65 X 20 X 2400
Weight(kg) 47.58 9.5
Finish Overall hot-dip galvanized, or G90 material + spraying
Welding Silicon Bronze, Stainless steel
Other 1. The size of the fence horizontal pipe is 40*40*1.6 wall thickness, and the quantity is 2 pieces.
2. Fence tube size 25*25*1.2 wall thickness, quantity 18

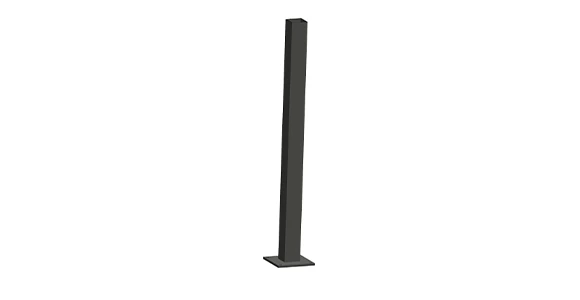

3. Column size 65*65*2.0 wall thickness.

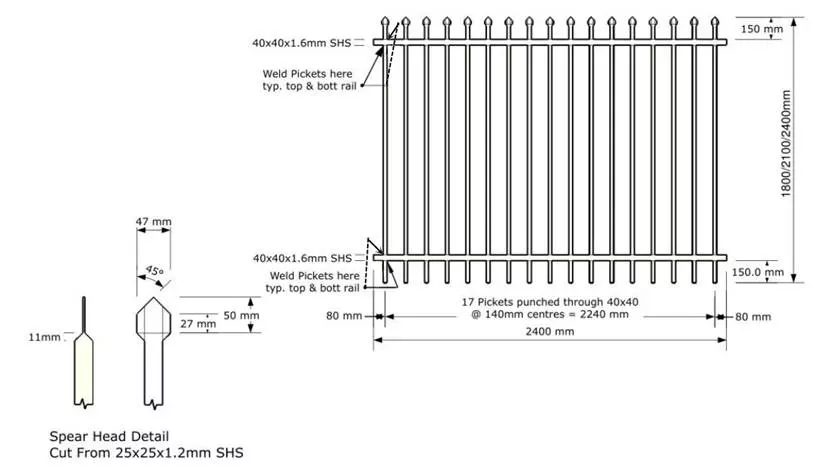

Garrison Fence Drawings Specification:

Garrison Fence Drawings and Specification


Garrison Fence Features:

1. Durability:

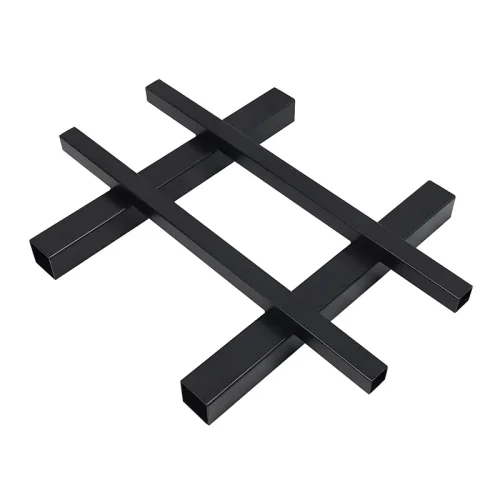

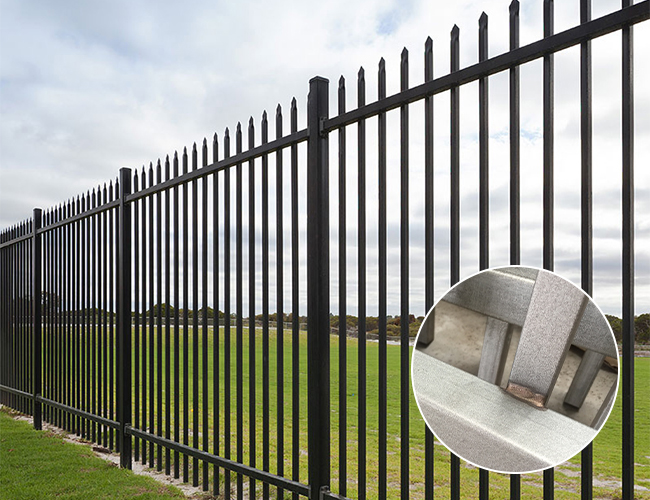

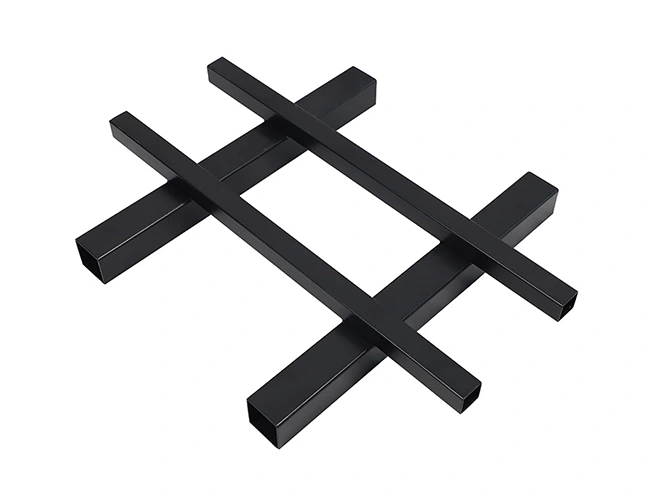

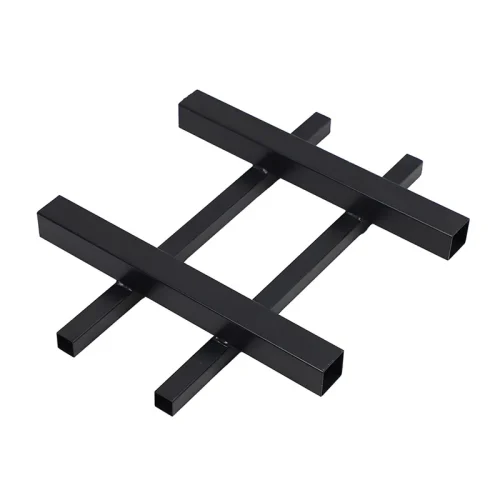

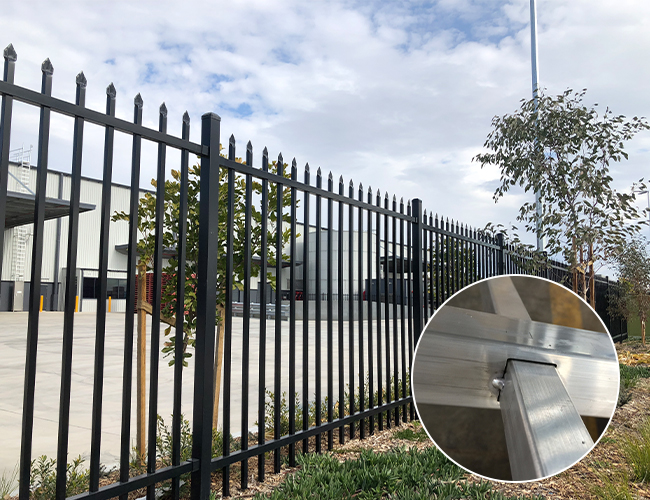

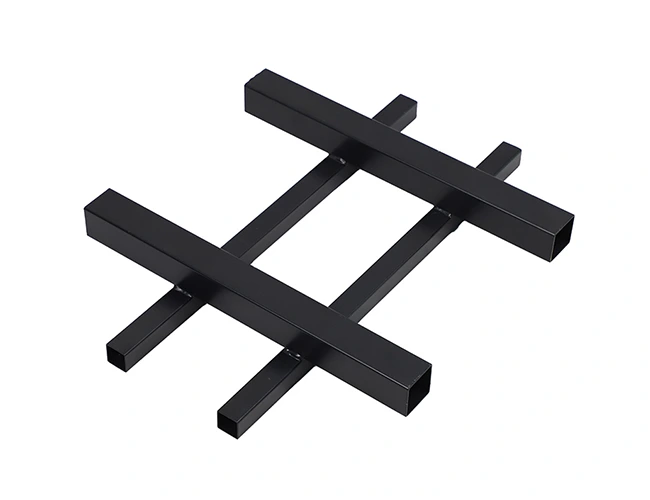

Constructed from heavy-duty robust pre-galvanized steel tubes strong pressed, we punch or face weld them to ensure strength and durability.

2. Low maintenance:
We fully galvanize all steel components, both inside and outside, to guarantee long-lasting performance with minimal maintenance required.

3. Aesthetics:

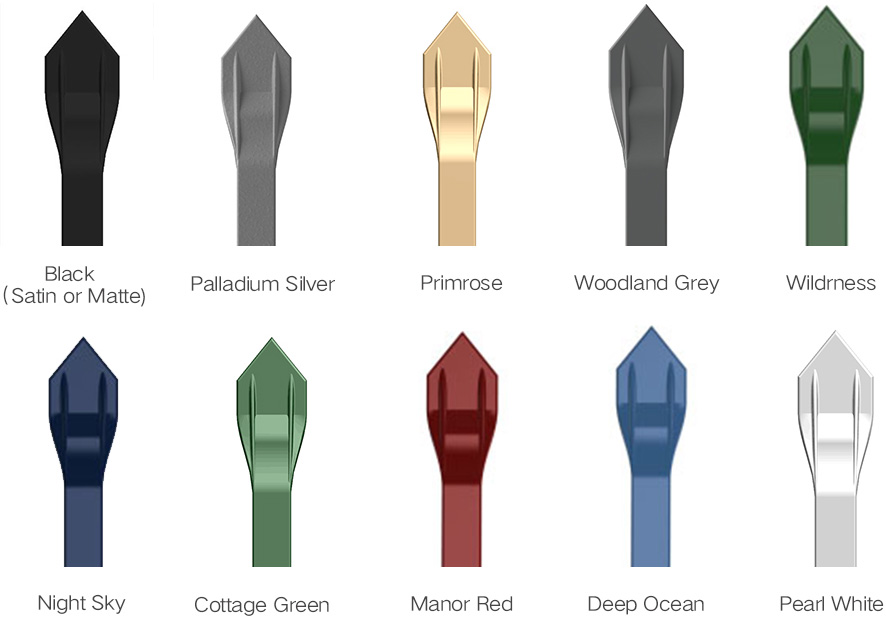

The powder-coating garrison fencing offers a stylish and modern design that can be tailored to meet your specific aesthetic preferences.

4. Versatility:

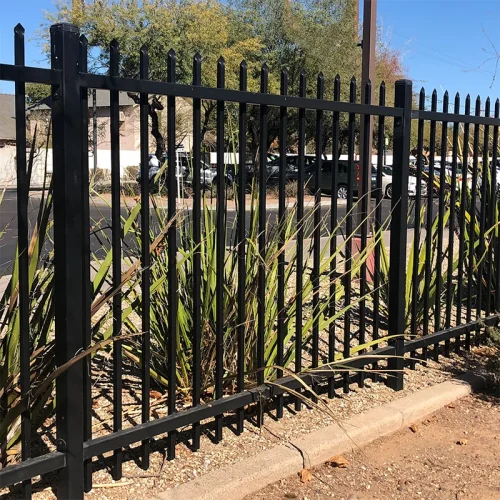

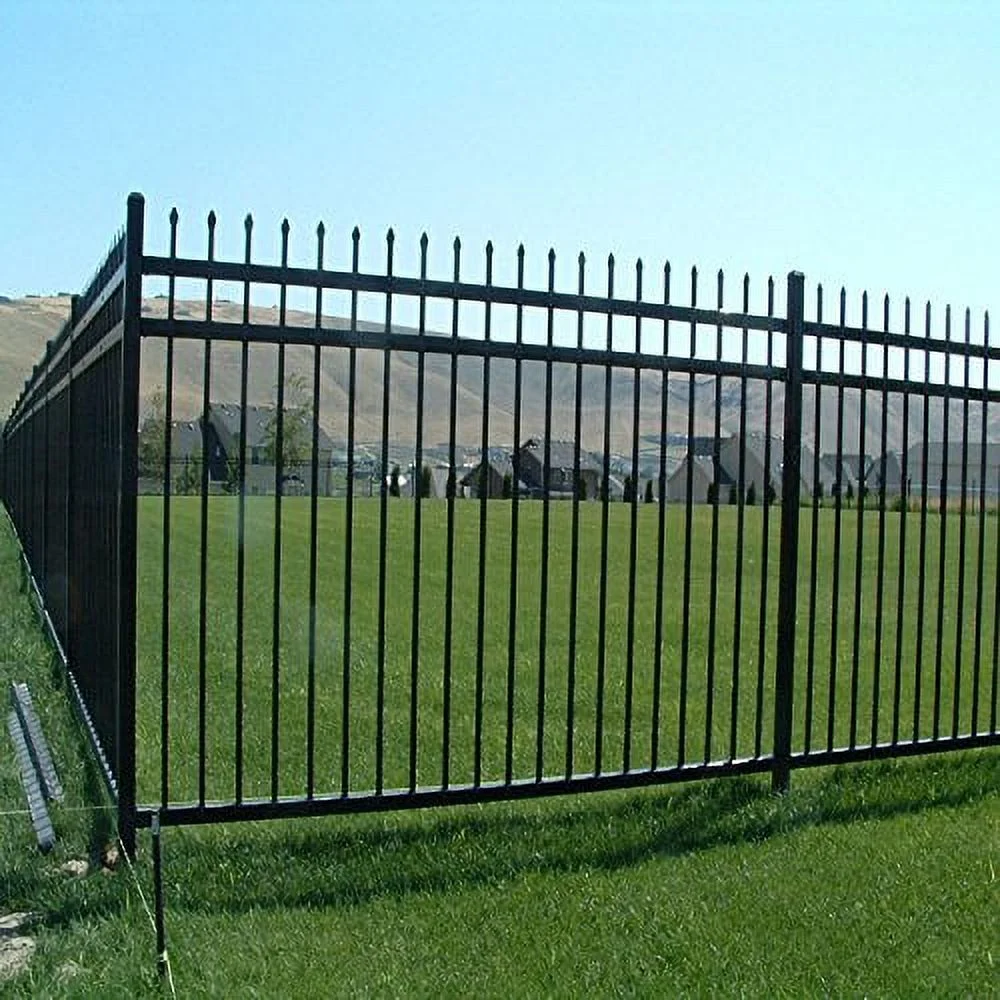

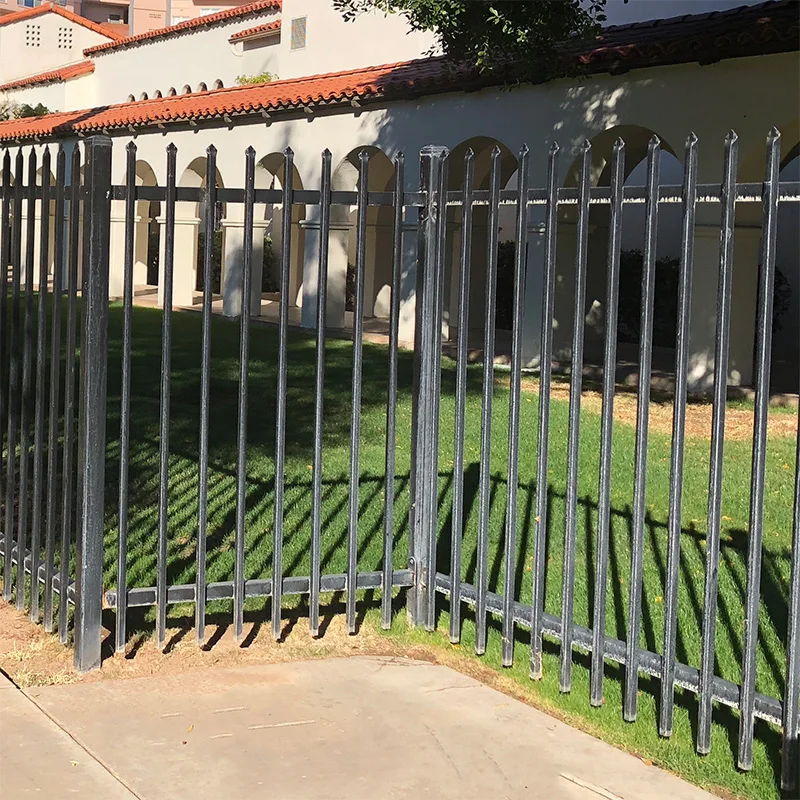

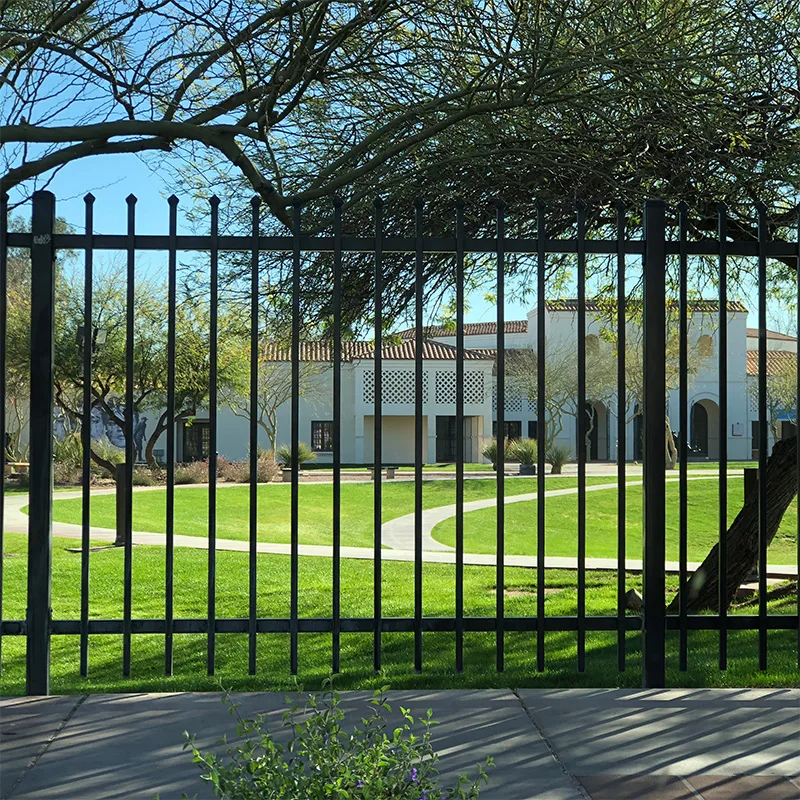

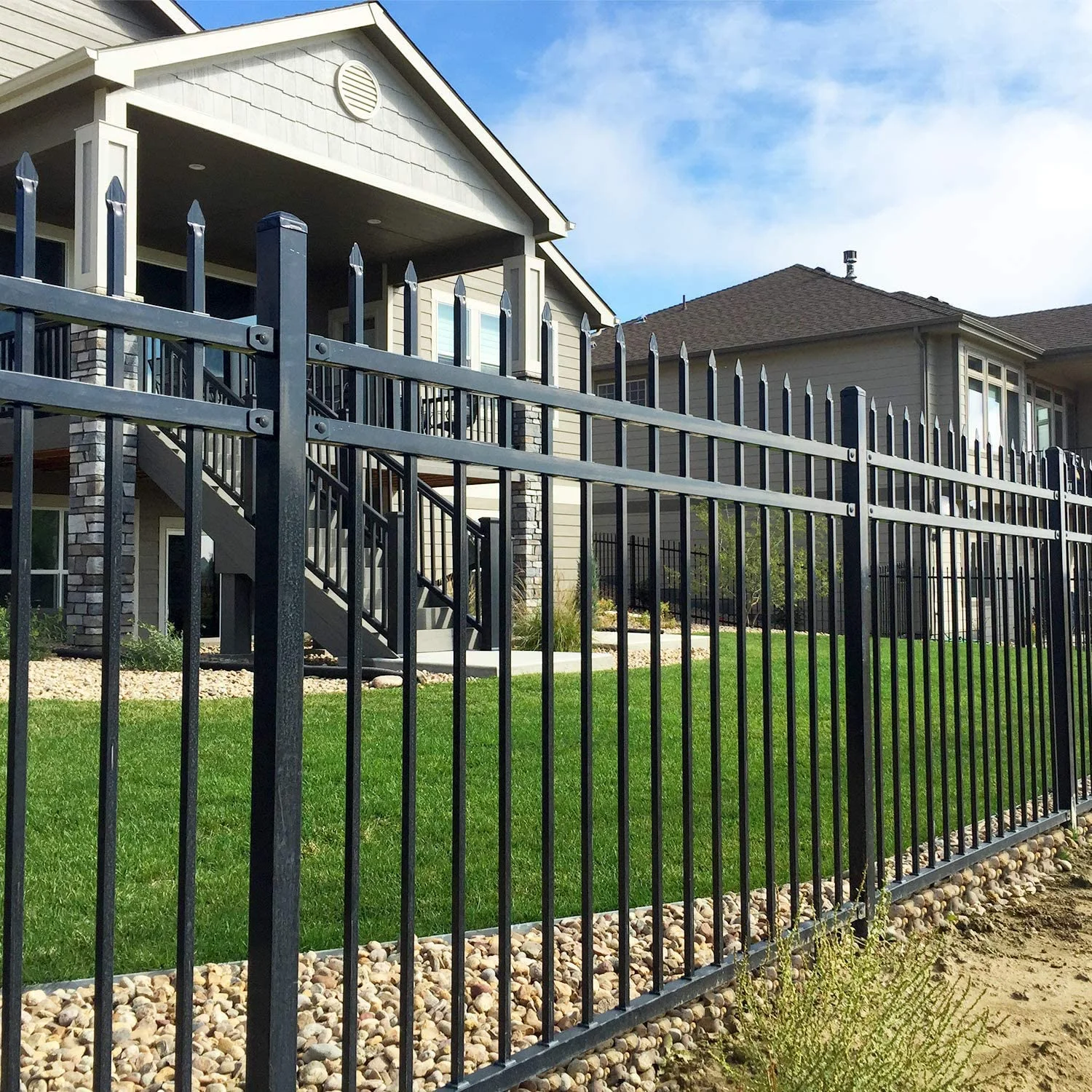

The security garrison fencing finds practical use in various settings, such as residential, commercial, and industrial environments. It comes in different heights and widths, allowing for suitability across diverse property types and terrains.

5. Cost-effectiveness:
The security fence, crafted from galvanized steel, presents a cost-effective alternative when compared to other fencing options.

6. Easy installation:
With its user-friendly design, the garrison security fence can be easily and efficiently installed on any property.

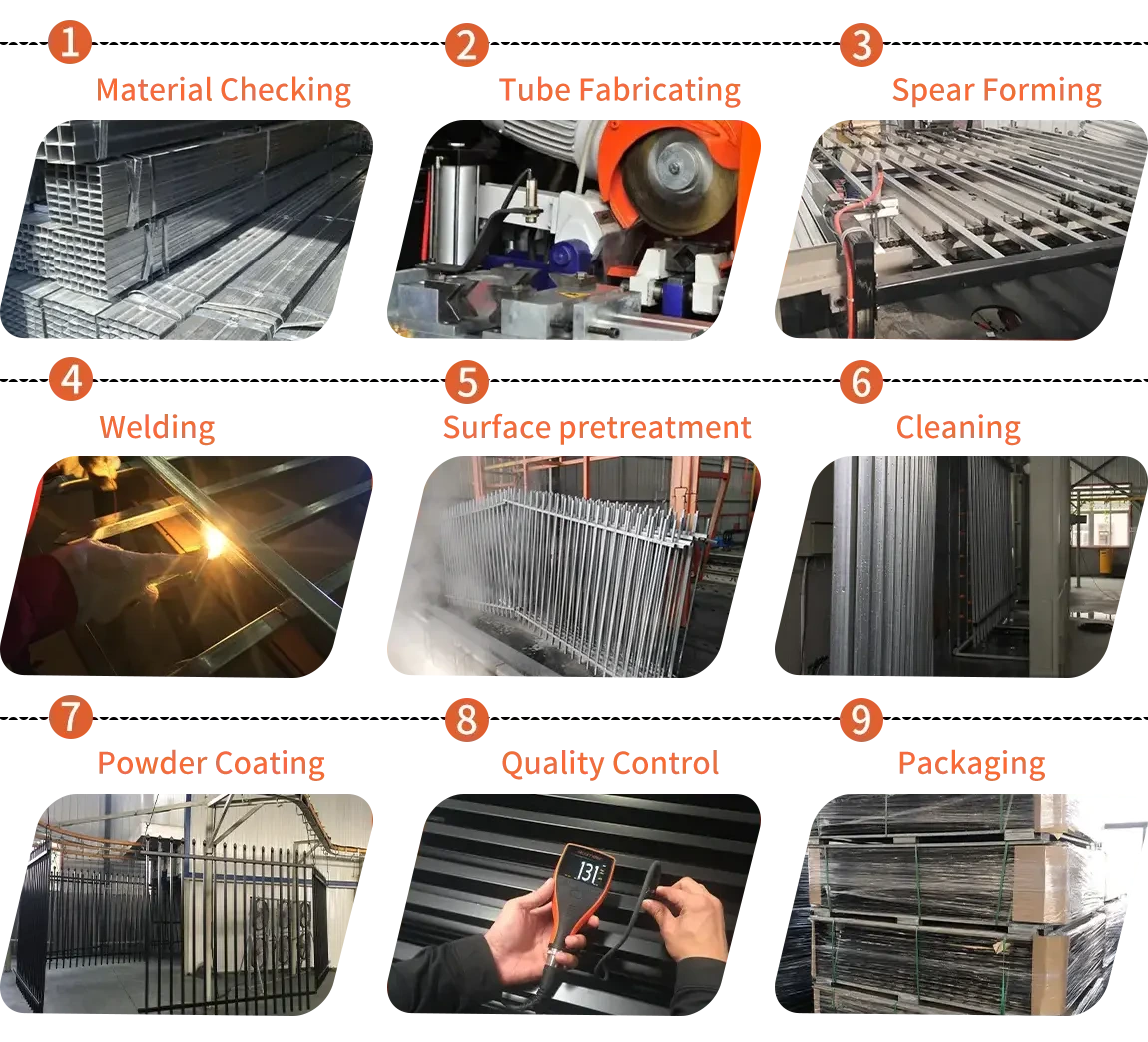

Standard Production Process:


Garrison Fence Production Process

1. Material inspection:
Check whether the outer diameter and wall thickness of the pipe meet the requirements of the product drawing, so fundamentally ensuring quality.

2. Pipe manufacturing:
Cut the pipe to meet the length requirements on the drawing.

3. Spear forming:

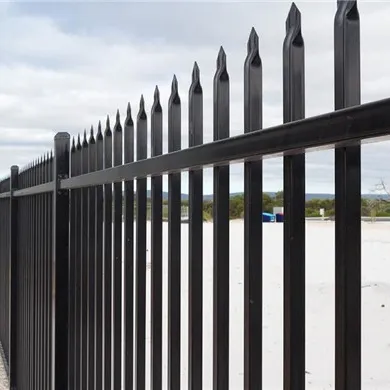

The top of the pipe is flattened and squeezed so that it achieves the spear-shaped pressed spears of the garrison fence.

4. Welding:
The pre-galvanised steel pipes are spliced into frames and welded.

5. Surface pretreatment:
The purpose of sandblasting or phosphating the surface of the product is to form a dense layer of pits on the surface of the pipe, thus increasing the adhesion of the powder.

6. Cleaning:
Treat surface residues or impurities to ensure the next step of the process.

7. Powder coating:
The surface of the product is sprayed with epoxy-polyester powder and cured at high temperatures. This process makes the product’s paint film thickness at least ≥80μm. This process can make the product more rust-proof and corrosion-resistant, so it can withstand the erosion of various harsh environments.

8. Quality control:
We will conduct a quality inspection on each piece of powder coating garrison fence to check the strength, wall thickness, and powder coating thickness to ensure the quality stability of each product. We will be responsible for every product so that customers can get the best quality products.

9. Packaging:
We use wrapping film + square cardboard + strapping tape to ensure safe transportation.


1. Q: Can you design the garrison fence for us?
A: Yes, our professional technical department can design our advanced software. Just send us your requirements in text or verbal form and we will customize the product for you including size, materials, and workmanship.

2. Q: We would like to get our garrison fence faster. What should we do?
A: We will develop the most effective production plan for you based on the quantity and category of your products. At the same time, if there is such a need before placing an order, we can achieve fast delivery after communication.

3. Q: How about the sample time and cost?
A: If you want to customize your product without making a mold, it will take 7-10 days. It’s free, but you need to provide shipping costs.

4. Q: What is the delivery time of our garrison fence?
A: For standard specifications, we have standard products in stock, which means we have them in stock. If you need such a product, we will ship it as soon as possible. At the same time, as a professional manufacturer, we will manufacture quickly to reduce your waiting time.

5. Q: What is your MOQ for a trial order?
A: Normally, a full 1*20′ container is required for shipping to protect the product during transportation. But we are very flexible and can ship according to demand.

6. Q: Are you a professional manufacturer?
A: Of course, we have been providing professional products in fences and related fields for nearly ten years.

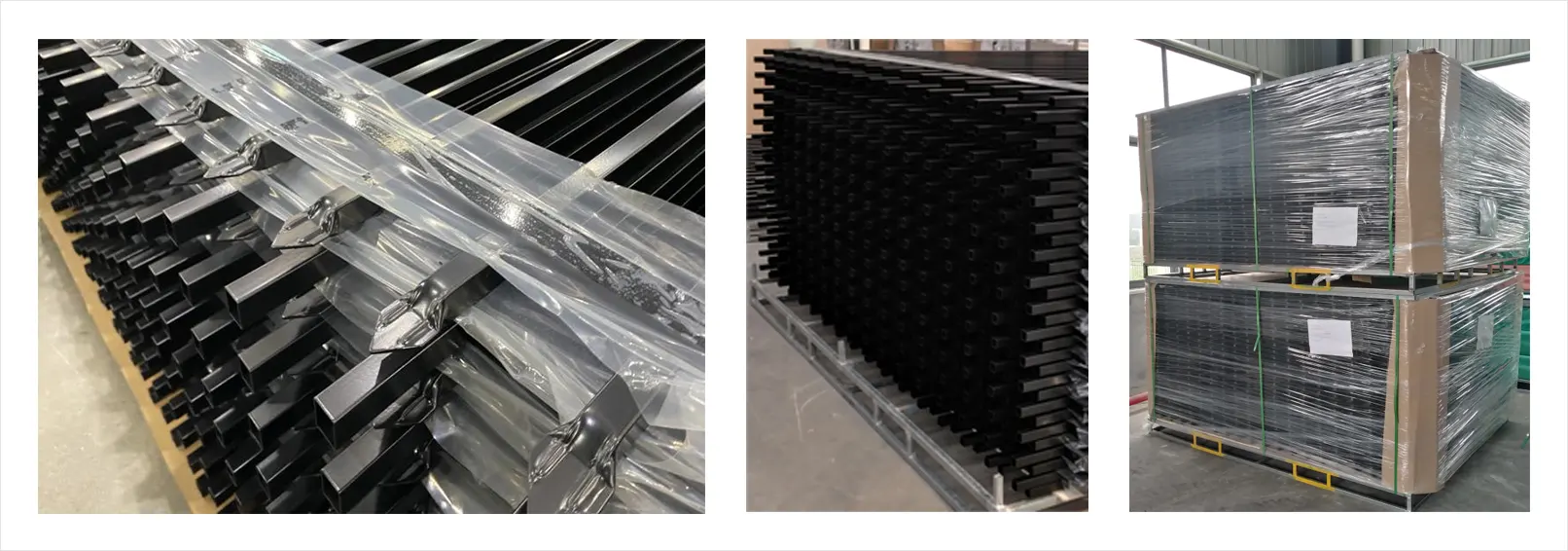

Packing and Shipping

garrison fence packing and shipping

Packaging is very important for the safe transportation of garrison fence products. We use plastic film between the two products to prevent them from rubbing against each other. We use medium-thick stretch film + four-corner cardboard protection + strapping tape + pallet for packaging. This method can well ensure the safe transportation of products during the logistics process, and at the same time, our customers can easily unload the goods. If you have other needs, please let us know and we will pack strictly according to your requirements. We use sea shipping, which is fast, stable, and convenient.
