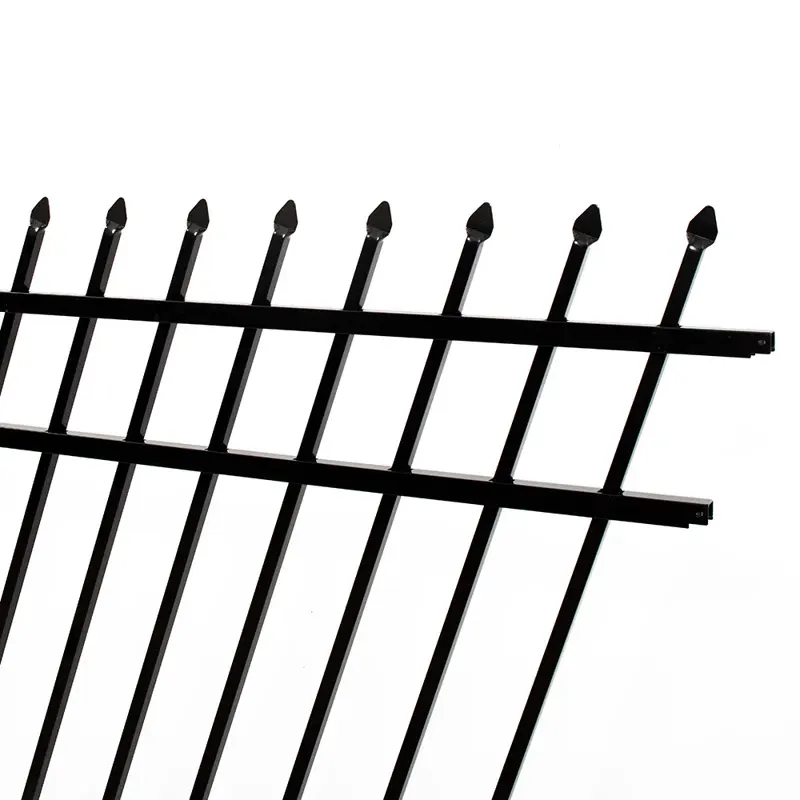

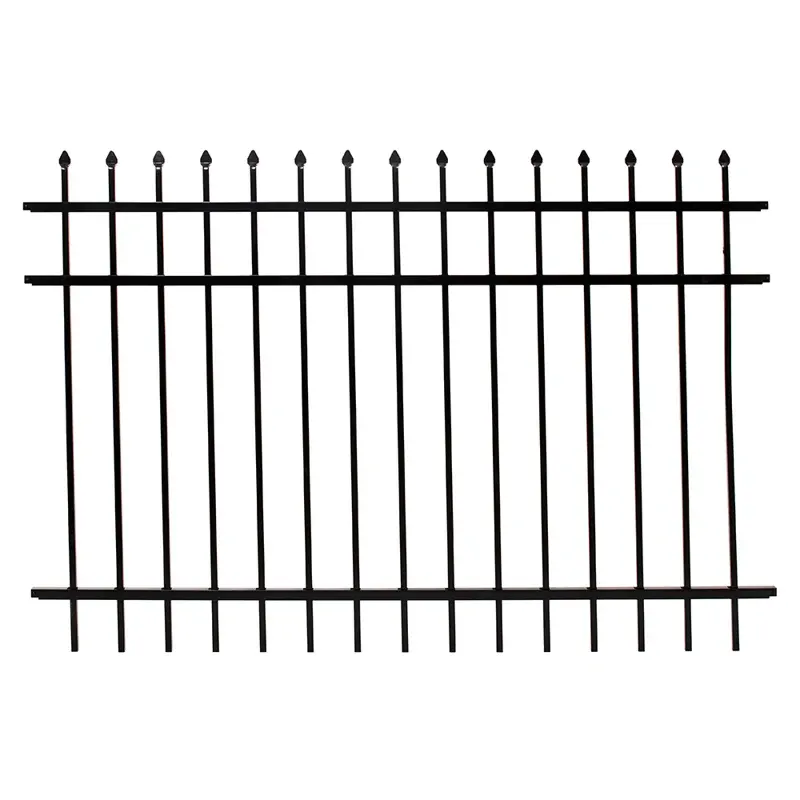

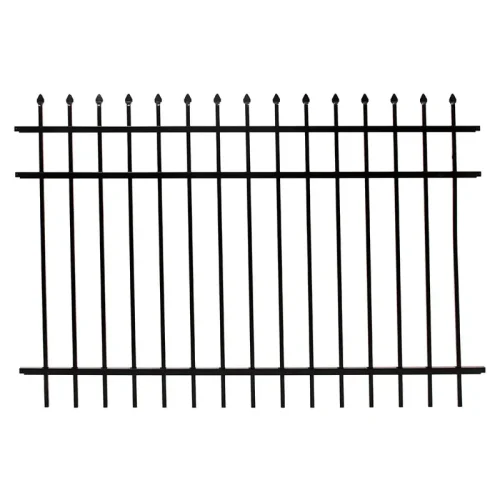

Spear Top Rackable Fence Panels
The design of the spear point stakes gives the fence a unique appearance that attracts attention.
– The fence panel is rackable and adapts to various terrains.
– Pre-assembled, hidden fastener panel.
– Stands up to saltwater and coastal areas.
– Various sizes are available and can be customized according to other needs.

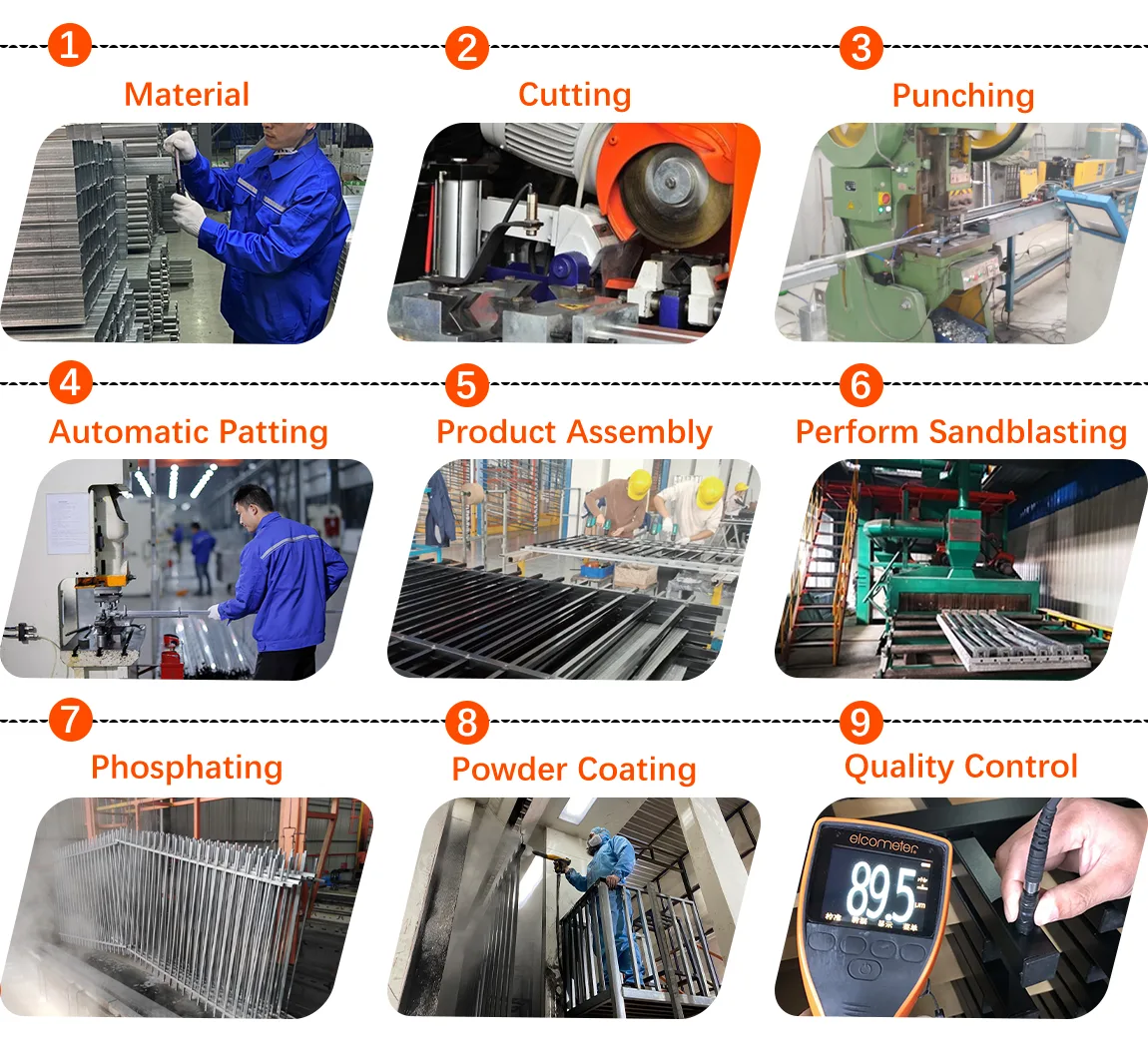

– Professional production equipment is more efficient and has a shorter delivery time.
– Special pricing is available for bulk orders.

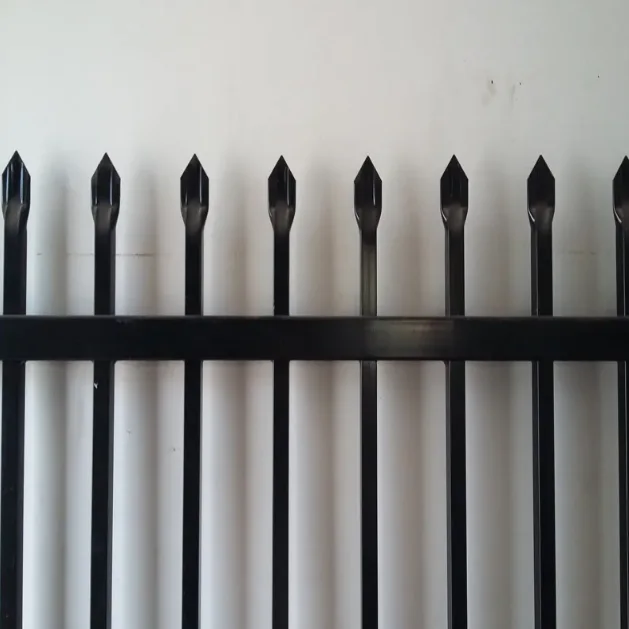

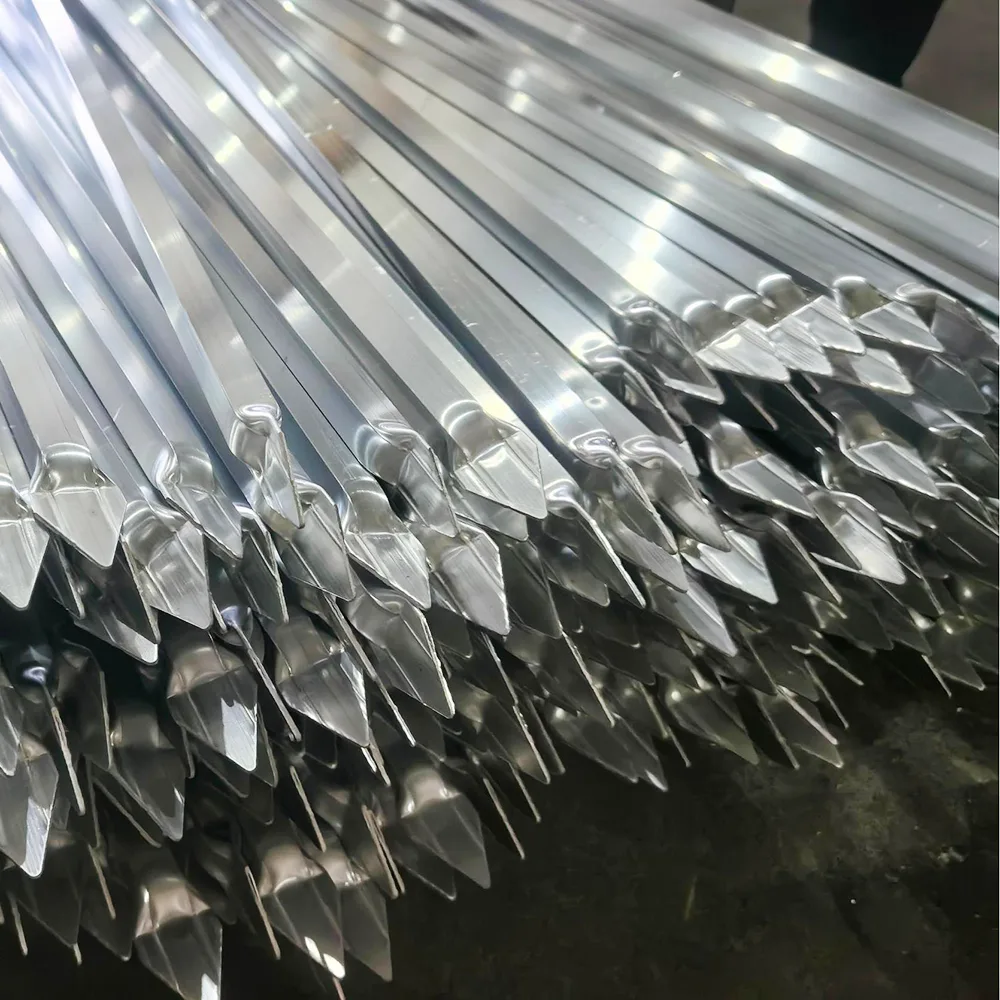

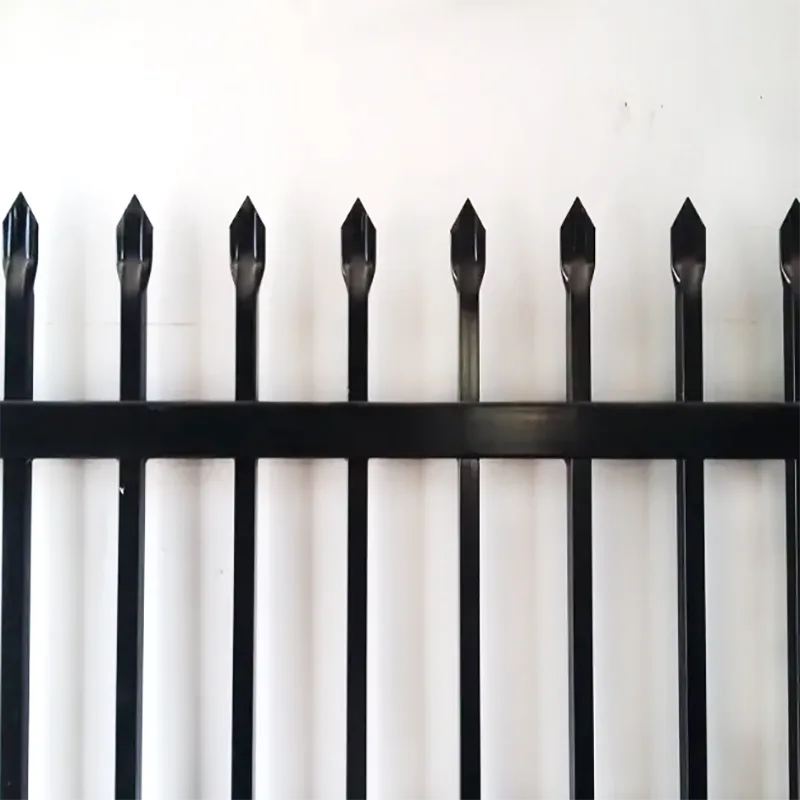

Crafted from premium steel with a rust-resistant powder-coated finish, our Spear Top Rackable Fence delivers both elegance and endurance. The pressed spear-shaped pickets emulate traditional wrought iron aesthetics while leveraging modern steel strength, creating a formal yet rugged boundary solution. Engineered to withstand coastal saltwater, chlorine exposure, and harsh UV rays, its scratch-resistant surface requires virtually no maintenance.

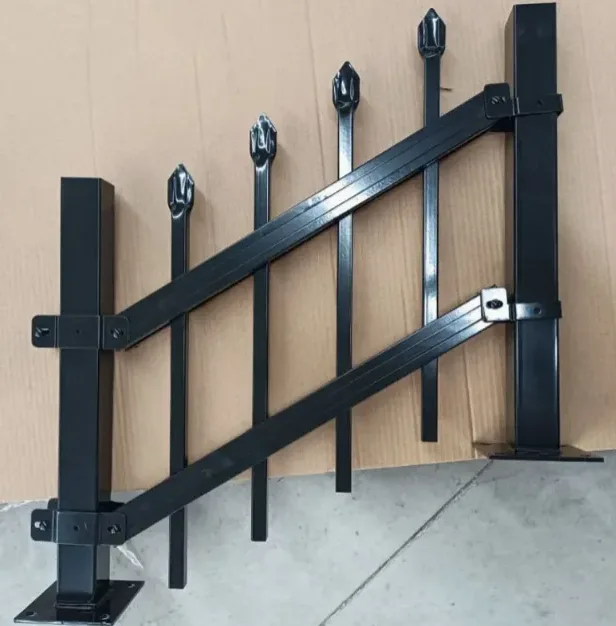

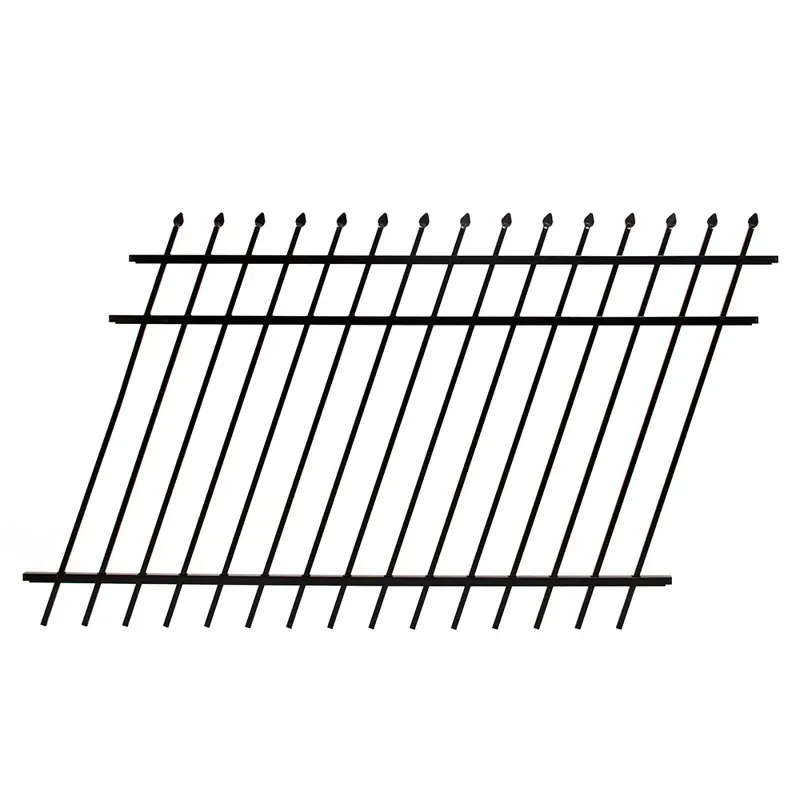

Different from spear top fence, the spear top rackable fence trestled rackable design adapts seamlessly to uneven terrain, allowing panels to follow natural landscape curves without compromising structural integrity. Each 2400mm-wide panel is available in heights from 860mm to 2400mm, with a standard 1.2mm wall thickness (customizable up to 2.0mm for high-impact zones). Anti-tamper fasteners and reinforced post brackets ensure robust security for residential, commercial, and light industrial applications, including homes, gardens, playgrounds, and pet enclosures.
As a leading fence manufacturer, FENCE DEPOT offers full customization – from material grades and panel dimensions to powder-coating colors (RAL codes or custom samples). This flexibility enables precise alignment with regional climate demands and architectural styles.
Spear Top Rackable Fence Specifications
1. Residential Rackable Fencing
| size (H) inches | size (H) mm | size (W) inches | size (W) mm | Number of Horizontal Rails | Number of Vertical Pickets | Weight (kg.) |
| 34 | 863.6 | 94 | 2387.6 | 3 | 20 | 21.12 |
| 46 | 1168.4 | 94 | 2387.6 | 3 | 20 | 24.70 |
| 58 | 1473.2 | 94 | 2387.6 | 3 | 20 | 28.28 |
| 70 | 1788 | 94 | 2387.6 | 3 | 20 | 31.87 |
| Material | Steel or Aluminum | |||||
| Finish | Powder Coating | |||||
| Color | Black, Customized Colors | |||||
| 5/8″picket-18 ga.-15*15*1.2mm | ||||||
| 1-3/16″x 1-5/64″x 1-3/16″rail-14 ga.-30*27.4*30*2.0mm | ||||||
| 94″Panel | ||||||
| Center Distance of Vertical Pickets 116mm | ||||||
2. Commercial Rackable Fencing
| size (H) inches | size (H) mm | size (W) inches | size (W) mm |
Number of Horizontal Rails |
Number of Vertical Pickets | Weight (kg.) |
| 46 | 1168.4 | 94 | 2387.6 | 3 | 20 | 36.08 |
| 58 | 1473.2 | 94 | 2387.6 | 3 | 20 | 41.38 |
| 70 | 1778 | 94 | 2387.6 | 3 | 20 | 46.69 |
| 82 | 2082.8 | 94 | 2387.6 | 3 | 20 | 51.99 |
| 94 | 2387.6 | 94 | 2387.6 | 3 | 20 | 57.29 |
| Material | Steel or Aluminum | |||||
| Finish | Powder Coating | |||||
| Color | Black, Customized Colors | |||||
| 3/4″picket-18 ga.-18*18*1.2mm | ||||||
| 1-9/16″x 1-3/16″x 1-9/16″rail-14 ga.40*30*40*2.0mm | ||||||
| 94″Panel | ||||||
| Center Distance of Vertical Pickets 120mm | ||||||
Product Advantages:
- Weather & Corrosion Resistance
High-strength steel with multi-layer powder coating resists saltwater, UV rays, and chlorine. Ideal for coastal/high-humidity environments. Scratch-resistant, maintenance-free surface. - Slope & Terrain Adaptability
Adjustable rackable design fits slopes up to 15° and uneven ground. Panels conform to natural landscapes without site modification. - Enhanced Security
Spear-shaped pickets and anti-climb structure (height: 860mm–2400mm). Wall thickness customizable up to 2.0mm for high-risk zones. - Classic Aesthetic Appeal
Textured finish mimics traditional wrought iron. Matte black coating complements residential, commercial, and public spaces. - Customizable Specifications
Tailored dimensions (width: 2400mm base), colors (RAL codes/samples), and material grades to meet regional standards. - Rapid Installation & Low Maintenance
Pre-assembled components reduce on-site labor. Powder-coated surface ensures easy cleaning and 50% lower lifecycle costs.

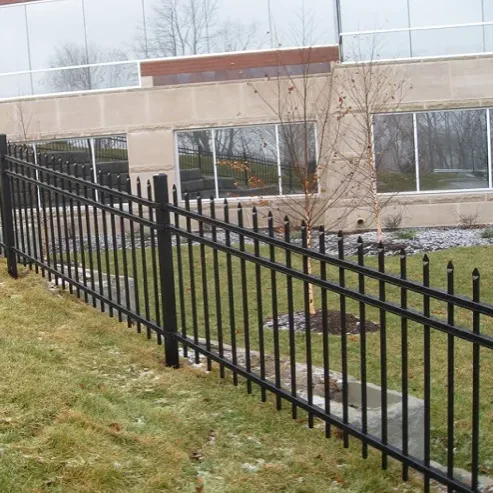

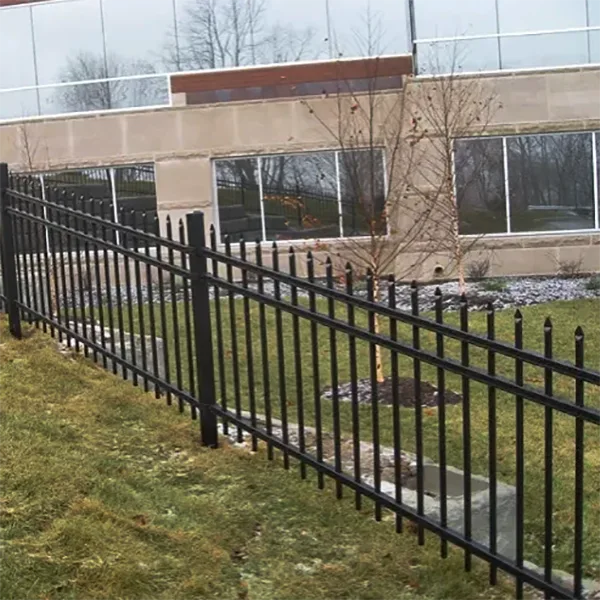

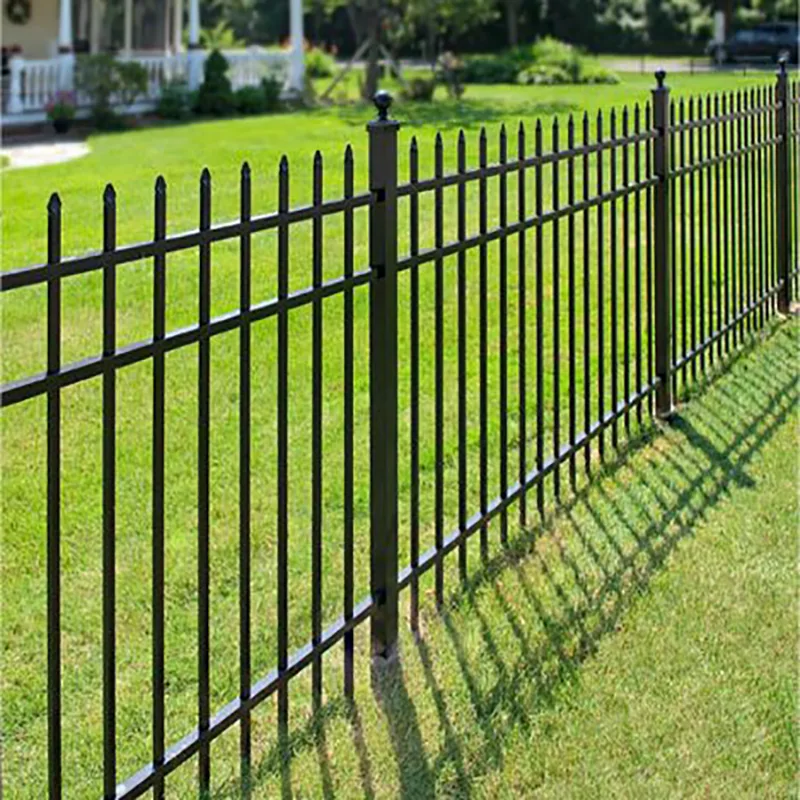

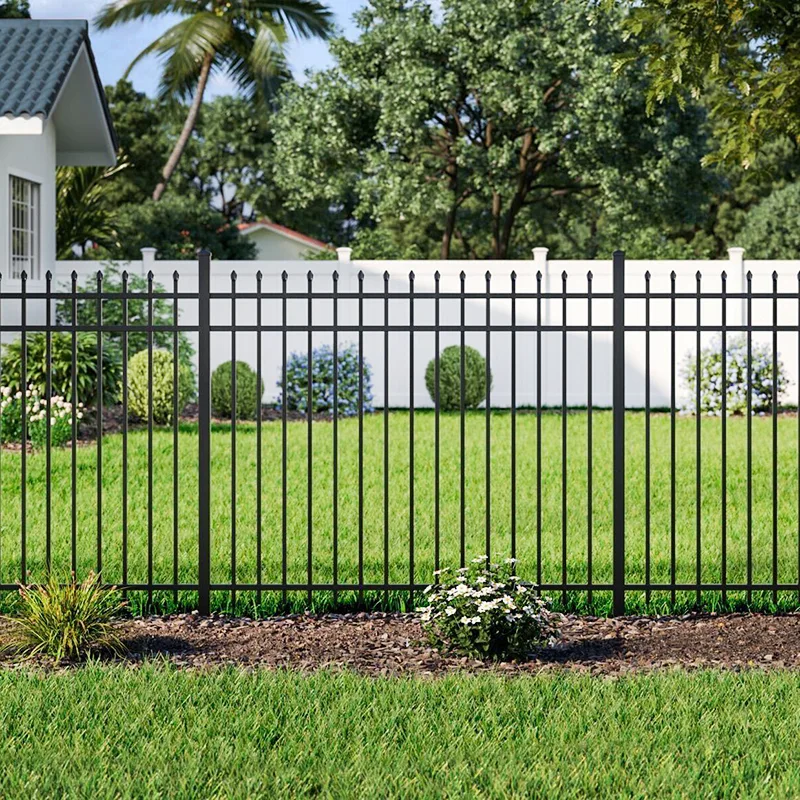

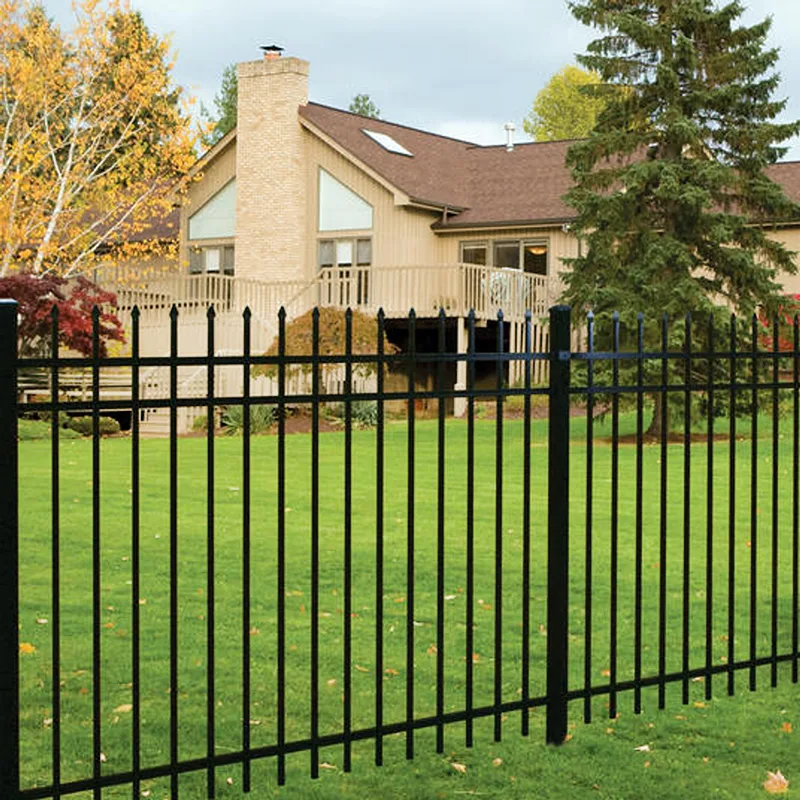

Rackable Spear Top Fence Application:
Spear Top Rackable Fence is engineered for high-security and aesthetic boundary solutions across challenging environments. Its spear-shaped design, corrosion-resistant materials, and terrain adaptability ensure reliable protection while blending seamlessly into diverse settings.
- Prisons & Detention Facilities – Anti-climb barriers for perimeter security.
- Coastal Properties– Long-term fencing in saltwater-exposed or high-humidity regions.

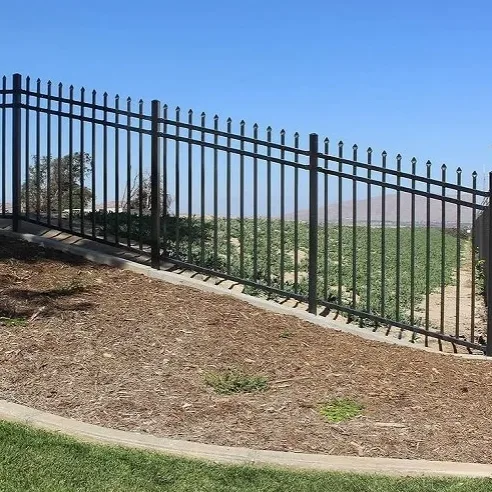

- Sloped Terrains– Stable installations on hillsides or uneven landscapes (up to 15° incline).
- Urban Residential Areas–Deterrent fencing for gated communities, villas, or private estates.
- Critical Infrastructure–Protection for power plants, data centers, or military sites.
- Transportation Networks–Safety barriers along highways, railways, or airport perimeters.
- Industrial Complexes–Secure enclosures for factories, warehouses, or hazardous material storage.
- Historical Sites–Aesthetic yet secure boundaries for heritage buildings or public monuments.

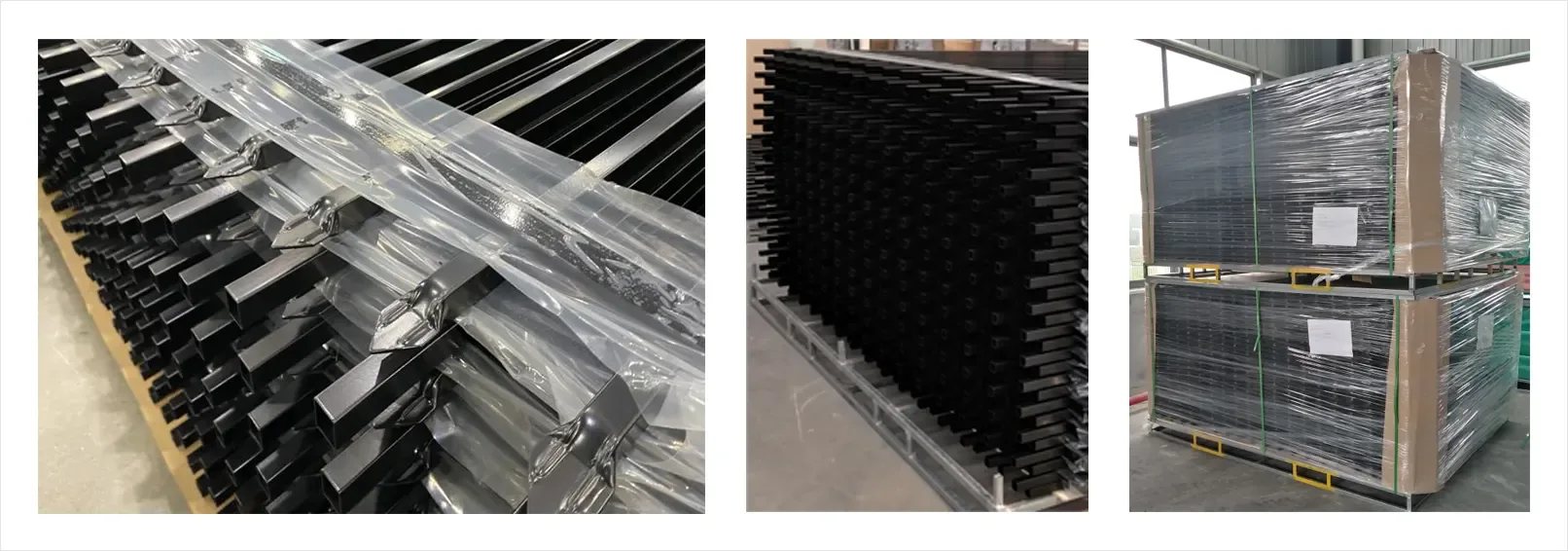

- Packaging is very important for the safe transportation of spear top aluminum fencing.
- Use non-adhesive plastic film to isolate the two panels from each other to reduce mutual friction.
- The overall method is a medium-thick stretch film + four-corner cardboard protection + sealing tape + strapping tape + pallet.
- The two layers of pallets are isolated with plywood or iron frames. This method can ensure the safe transportation of the product to the greatest extent.
- If you have other needs, we will strictly package them according to your requirements. We use sea transportation, which is convenient, fast, and stable.
