What is Hot Dip Galvanization?

As an indispensable surface treatment technology in modern industry, hot-dip galvanizing occupies an important position in the field of metal product manufacturing, especially in the fence industry. As a professional fence manufacturer, we utilize this process extensively to ensure our products are not only durable but also offer superior performance over time. This comprehensive blog post delves deeper into the nuances of hot dip galvanization, discussing its process, benefits, and widespread applications while highlighting our expertise and capabilities in this area.

Detailed Overview of Hot Dip Galvanization

Hot-dip galvanization is a metallurgical process. It reacts molten metal with an iron substrate to form a zinc-iron alloy layer that tightly bonds the substrate and coating. Under precise temperature control of 450°C ± 10°C, the zinc reacts with the surface of the base metal to form a tightly bonded alloy coating, so it can provide excellent corrosion protection. The hot-dip galvanizing layer is typically 50-150 microns thick and can provide corrosion protection for more than 20 years.

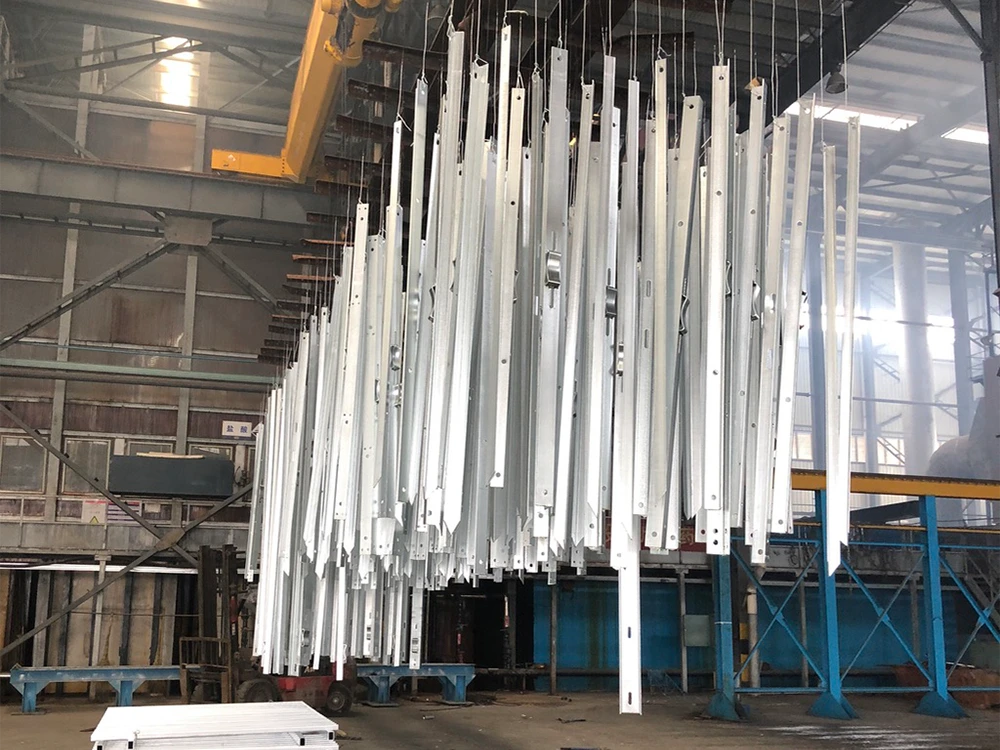

Hot Dip Galvanization



The Process of Hot Dip Galvanizing

Surface Preparation

The success of galvanizing heavily depends on the cleanliness of the metal surface. The preparation involves:

  • Degreasing: Removing organic contaminants like dirt, grease, or oil.
  • Pickling: Acidic solutions are used to remove scale and rust.
  • Fluxing: The metal is dipped in a flux solution, usually zinc ammonium chloride, to prevent oxidation before galvanizing.

Galvanizing

The core of the process, where the prepared metal is submerged in a bath of molten zinc at approximately 450°C (842°F). The metal achieves metallurgical bonding with the zinc, forming a series of zinc-iron alloy layers.

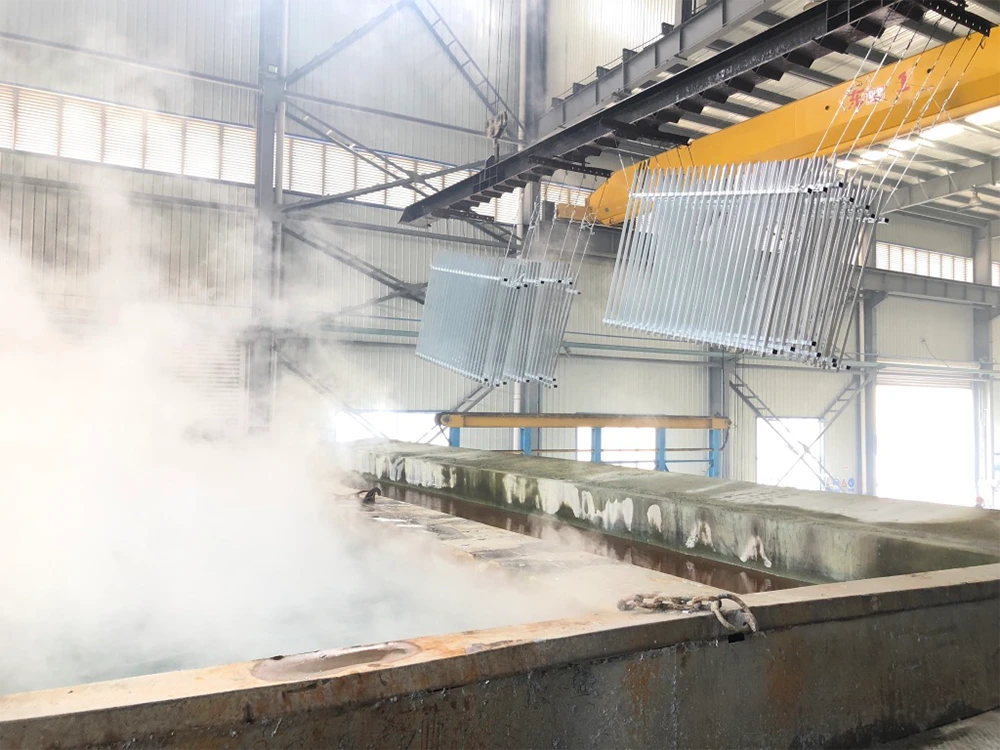

production process

Cooling

Post galvanization, the materials are either quenched in water or left to cool in air. This phase solidifies the zinc coating, enhancing its mechanical properties.

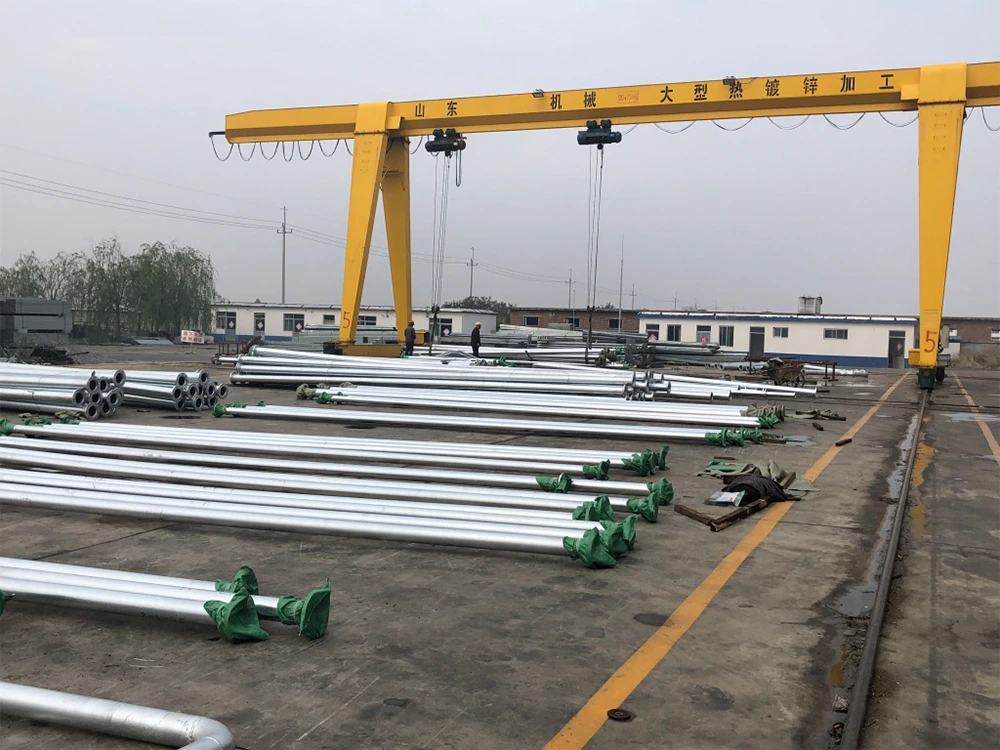

Hot Dip Galvanization



Advantages of Hot Dip Galvanization

Excellent corrosion resistance
The zinc coating provides dual protection for the base metal. First, it forms a physical barrier that effectively isolates corrosive media such as oxygen and moisture. Second, when the zinc coating is damaged, the zinc acts as a sacrificial anode and oxidizes itself first, thereby continuously protecting the base steel. Studies have shown that the corrosion resistance life of hot-dip galvanized steel can reach 20-50 years, which is 5-10 times that of untreated steel.

Enhanced Durability:

During the hot-dip galvanizing process, zinc reacts with the steel surface to form multiple zinc-iron alloy layers, which are much harder than pure zinc and the underlying steel. This super-hard surface gives galvanized products excellent impact resistance, friction resistance and wear resistance, effectively reducing mechanical damage during transportation, installation and use, thereby significantly reducing maintenance and replacement frequency.

Economic Efficiency:

Studies have shown that hot-dip galvanizing can reduce maintenance costs by 50% to 70% compared to paint coatings and provide protection for decades without the need for re-coating. Its average life cycle cost is typically 1/3 to 1/2 of that of traditional coatings, providing a significant long-term ROI for projects.

Sustainability:

Zinc is a natural and abundant element that is also 100% recyclable. The long life of hot-dip galvanized products greatly reduces the need for repeated production of new materials, thereby conserving precious natural resources and reducing waste generation.



Applications of Hot Dip Galvanizing

The versatility of hot dip galvanization makes it suitable for a wide range of applications:

Infrastructure Projects: Used in constructing bridges, roads, and public utilities, where longevity and durability are paramount.

Automotive Industry: Protects vehicle bodies and components from corrosion, significantly extending their usability.

Energy Sector: Essential for protecting wind turbines, solar panels, and supporting structures from harsh environmental conditions.

Fencing Solutions: Our galvanized fences are crafted to provide optimal security and aesthetic value, suitable for both residential and commercial properties.

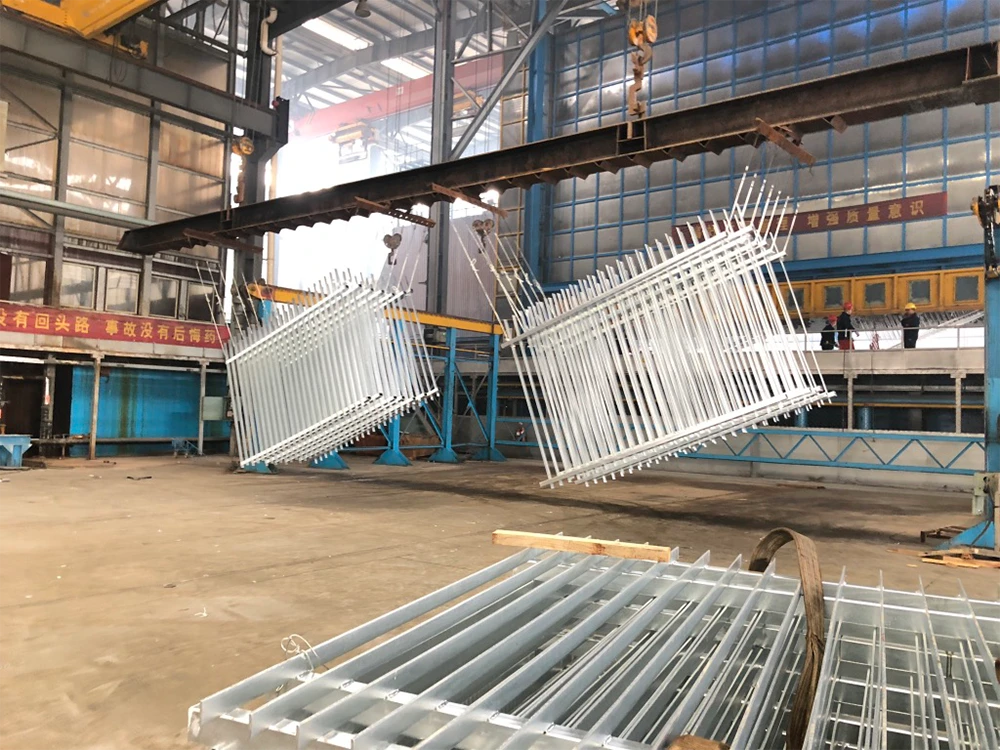

Hot Dip Galvanization



Quality Standards of Hot Dip Galvanization

In the realm of hot dip galvanization, ensuring the highest quality of the zinc coating is paramount. This section expands on the critical quality standards—adherence, uniformity, and rigidity—that define the effectiveness and durability of the galvanization process. These standards are not only crucial for maintaining structural integrity but also for ensuring that the end products meet the rigorous demands of various applications.

Adherence to the Zinc Coating

Adherence refers to the ability of the zinc coating to remain bonded to the base metal throughout its service life. This is crucial for ensuring that the protective layer does not flake or peel off under mechanical stress or environmental factors.

Testing Adherence

Bending test: Bend the galvanized metal specimen at 90 or 180 degrees to observe whether the coating cracks or peels off.
Hammer test: Use a standard hammer to impact the coating and then observe whether the coating peels off.

Factors Influencing Adherence

Key factors include the cleanliness of the metal surface before galvanizing and the chemical composition of the bath. Proper fluxing and the right zinc temperature are critical to achieving optimal adherence.

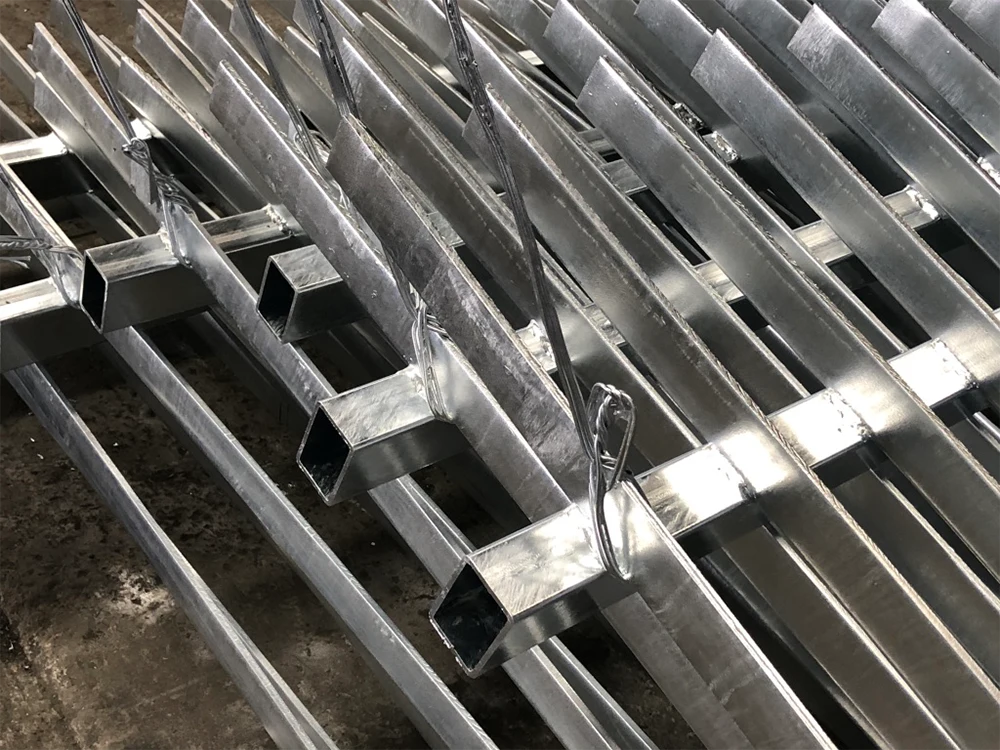

Hot Dip Galvanizing Product



Uniformity of the Zinc Coating

Uniformity ensures that the zinc coating is evenly distributed across all surfaces of the metal, thus providing consistent protection against corrosion.

Achieving Uniformity

  • Dipping angle: The dipping angle affects the flow of zinc liquid on the metal surface, and is usually controlled between 45°-60°.
  • Galvanizing speed: Too fast a galvanizing speed will result in an uneven zinc layer, while too slow a galvanizing speed will result in an overly thick zinc layer. It is generally controlled at 1-2 meters per minute.
  • Galvanizing liquid viscosity: The viscosity of the galvanizing liquid affects the fluidity of the zinc liquid. Too high a viscosity will result in an uneven zinc layer. The viscosity is usually adjusted by controlling the temperature and composition of the plating liquid.

Importance in Performance

Uniform coatings are essential not only for aesthetic reasons but also for performance, as uneven thickness can lead to differential rates of corrosion, compromising the metal’s integrity.

Uniformity of the Zinc Coating



Rigidity of the Zinc Coating

Rigidity in the context of hot dip galvanization refers to the hardness and structural integrity of the zinc coating. A rigid coating is resistant to abrasion and can withstand physical impacts without deteriorating.

Testing Rigidity:

Through hardness tests, which measure the resistance of the zinc layer to indentation. The formation of a robust zinc-iron intermetallic layer is a good indicator of a rigid, durable coating.

Factors Affecting Rigidity:

Enhancing the rigidity of the zinc coating by adjusting the alloy ratio in the galvanizing bath and controlling the cooling rate post-galvanization.



Broadening the Perspective

In addition to these technical aspects, it is essential to consider the environmental and economic implications of the galvanization process. The longevity and durability provided by a high-quality galvanized coating reduce the need for frequent replacements and maintenance, leading to significant cost savings and reduced environmental impact over the product’s lifecycle.

Sustainable Practices:

By using zinc, which is a plentiful, recyclable material, and by ensuring that our galvanization process is efficient and minimizes waste, we contribute to environmental conservation.

Economic Benefits:

The extended lifespan of galvanized products translates into lower lifecycle costs, thus making it an economically viable option for large-scale projects and everyday applications alike.

Hot Dip Galvanization



Hot Dip Galvanized Products

Our use of hot dip galvanization extends across a diverse range of products, each tailored to meet specific needs while ensuring durability and performance. Here, we explore three key products: Vertical Slat Fencing, Crowd Control Barriers, and Temporary Chain Link Fences, discussing their unique advantages and applications.

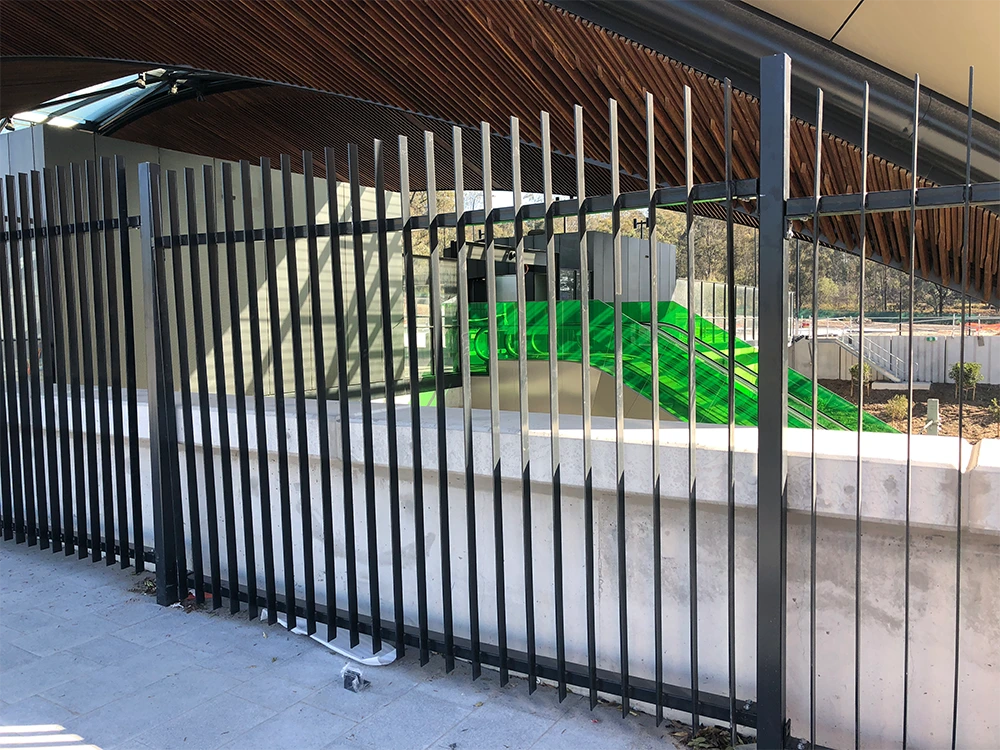

Vertical Slat Fencing

Vertical Slat Fencing is a popular choice for both residential and commercial properties, offering a blend of privacy and aesthetics.

Enhanced Privacy: The close-set nature of the vertical slats provides excellent privacy, making it ideal for homes, private estates, and secure installations.

Aesthetic Appeal: Available in various designs and finishes, you can customize vertical slat fencing to complement the architectural style of any property.

Durability: Thanks to the hot dip galvanization process, these fences are highly resistant to rust and corrosion. It is essential for maintaining their appearance and structural integrity over time.

Low Maintenance: The protective zinc coating ensures that the fence requires minimal upkeep, thus saving time and money on maintenance.

Vertical Slat Fencing

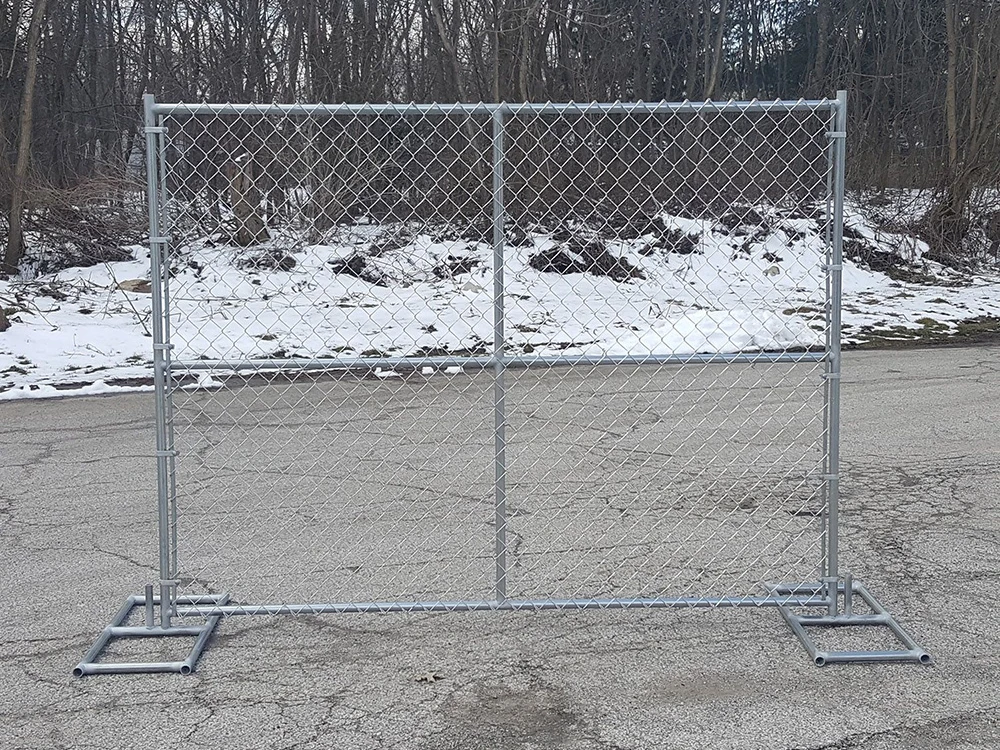

Temporary Chain Link Fence

Temporary Chain Link Fence offers a versatile solution for securing construction sites, residential projects, and public areas.

Flexible and Adaptable: This type of fencing can use in various terrains and configurations, adapting to the specific needs of the site.

Visibility: The open weave of the chain link provides visibility, ensuring that the area is secure while allowing for monitoring and transparency.

Robust Security: The strength of the galvanized wire mesh resists cutting and tampering, thus providing reliable security for temporary installations.

Cost-Effective: Given its durability and ease of installation, the temporary chain link fence is a cost-effective security solution, thus reducing the need for frequent replacements.

Temporary Chain Link Fence

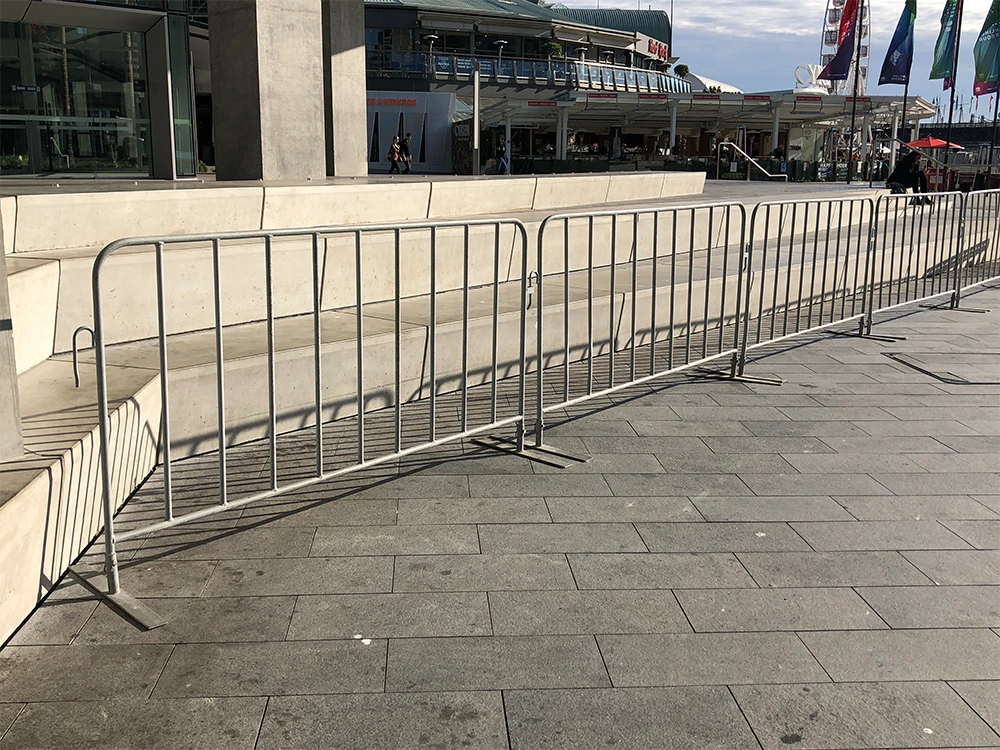

Crowd Control Barriers

Crowd Control Barriers are essential for managing large crowds at events, thus ensuring safety and order.

Management: These barriers are designed to direct crowds. Thus making them indispensable at concerts, sports events, and public gatherings.

Quick Deployment: The lightweight yet sturdy design allows for easy setup and disassembly, which is crucial for temporary events.

Enhanced Safety Features: The smooth finish and rounded edges minimize the risk of injury. The stability of the structure prevents tipping, even in crowded situations.

Longevity and Resilience: Galvanized to withstand harsh weather conditions and frequent use. These barriers remain functional and presentable even after repeated deployments.

"</p



Conclusion:

In conclusion, hot dip galvanization is more than just a protective coating process. It is a comprehensive approach to ensuring the longevity and durability of metal products. As a professional fence manufacturer, we can provide customized services, such as raw materials, sizes, colors, hot-dip galvanizing, and other processes.
