– Welded construction, including fence posts, brackets, and other accessories.
– High-quality galvanized steel is stronger and more durable.
– Durable Powder Coated Finish gives it excellent performance.
– The elegant curve spear design adds a touch of sophistication.
– Available in a variety of sizes and customizable in size, material, and workmanship.
– Special pricing is available for bulk orders.

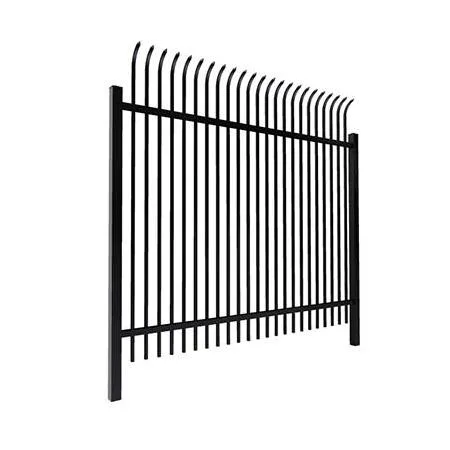

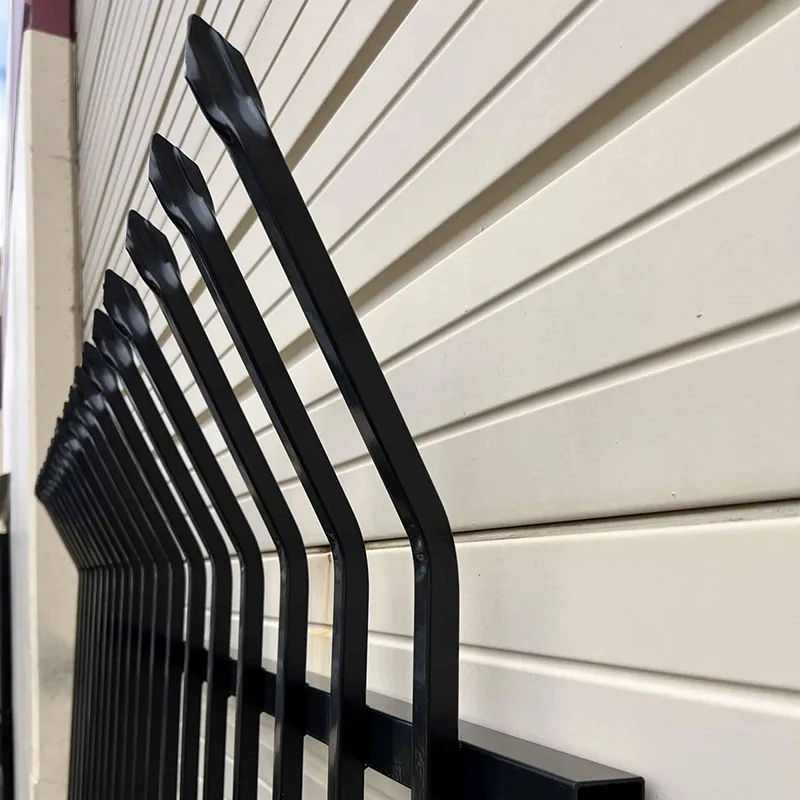

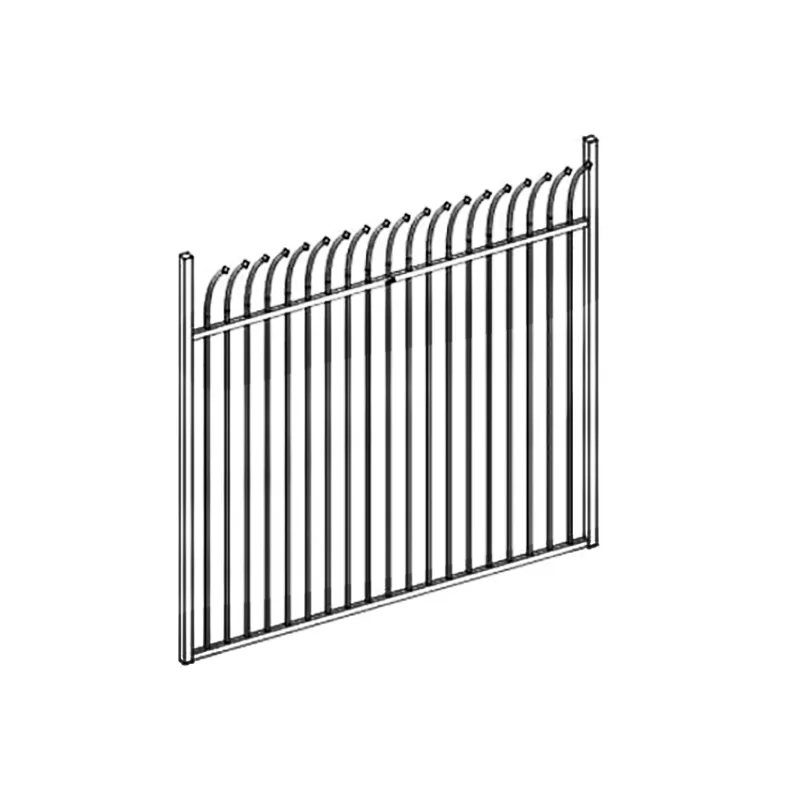

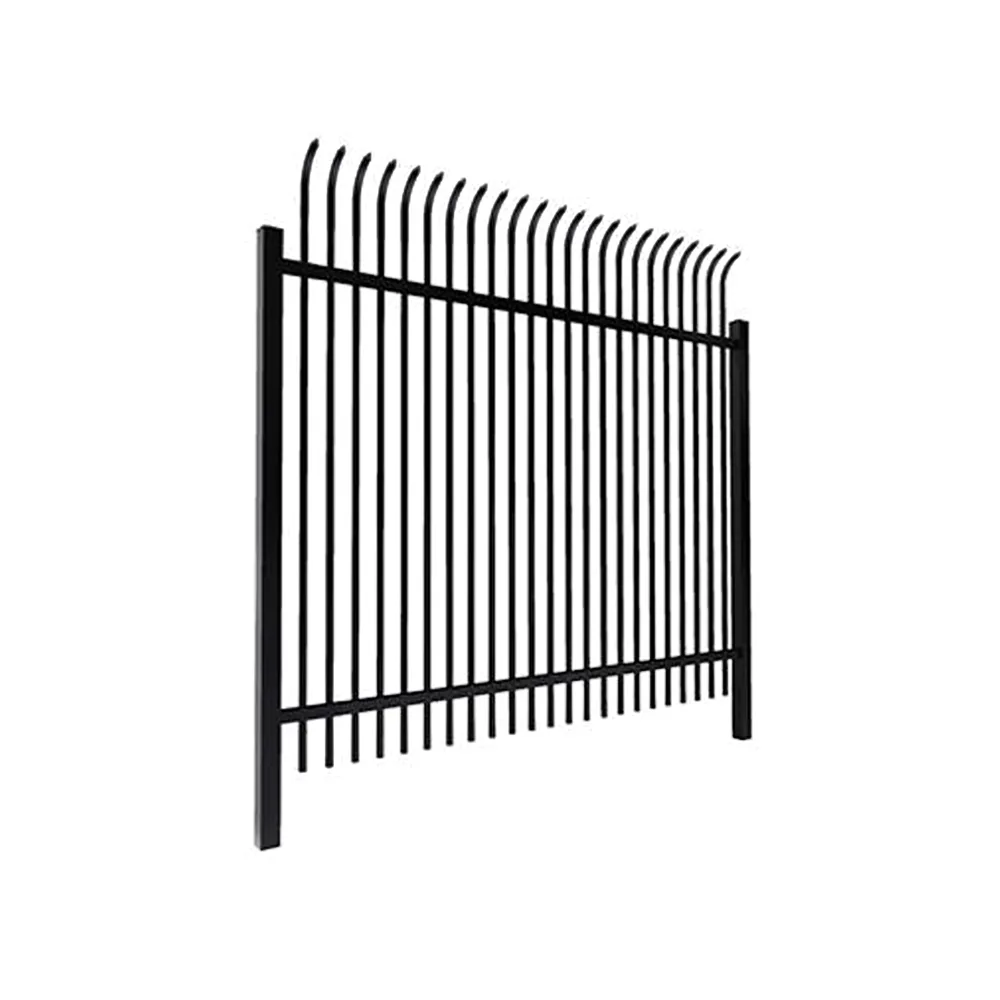

Steel Welded Commercial Curved Spear Top Fence is a security fence with curved spear-shaped vertical pickets running through the crossbars. The elegant curve spear design adds a touch of sophistication, making these fence panels a standout feature for any property. The curved top fence is low-maintenance and does not require frequent repainting like traditional wrought iron fences. It is strong enough to protect your property while maintaining its beauty.
Compared with aluminum fences, our fences are made of high-quality galvanized steel, which is durable and will not sag under heavy pressure or stress. The surface is E-Coating or Powder-Coating, which can effectively achieve corrosion and rust prevention. The fence panels are 360 degrees hand-welded to ensure optimal strength.

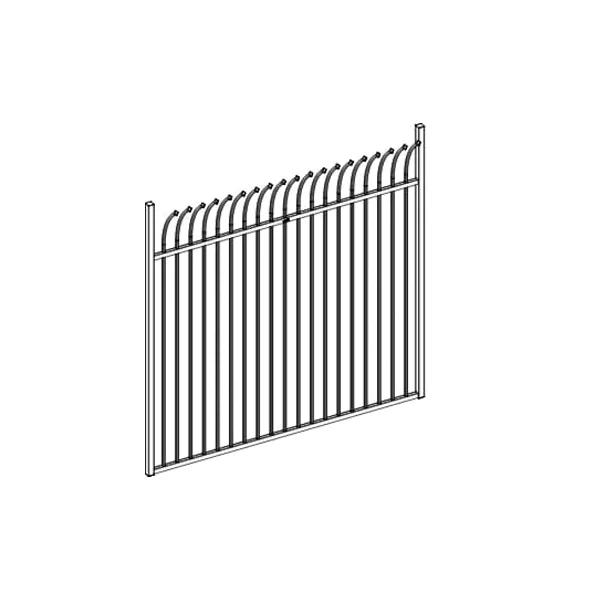

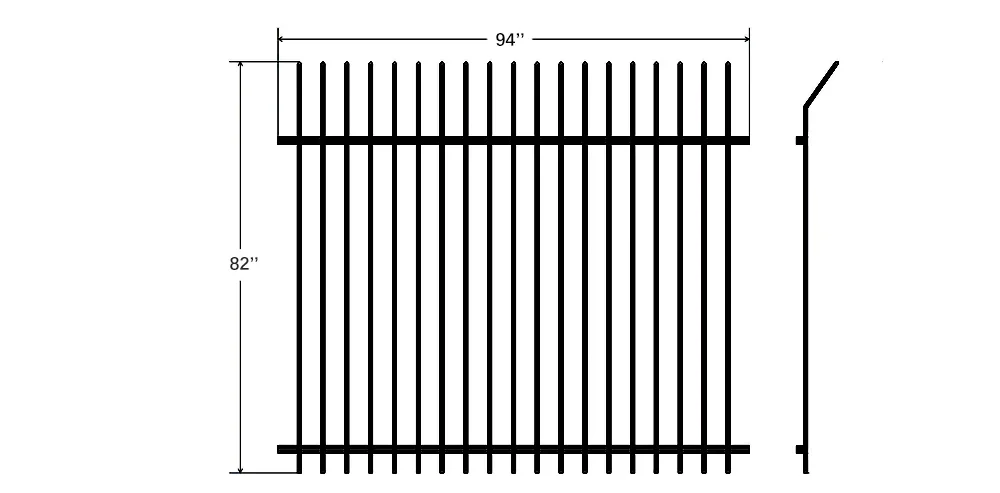

As an experienced Picket Fence manufacturer serving global B-end partners, we offer standard 2-rail curved top fences in two popular heights: 82” and 94”, with a standard panel width of 94”. All our products are strictly tested and fully comply with U.S. industry quality and safety standards, delivering reliable performance that meets the regulatory requirements of the North American market.
We supply a full set of matching components, including dedicated fence posts, mounting brackets, and matching Steel Welded Commercial Curved Spear Top Gates, forming a complete system that greatly improves overall defensive performance. We also support fully customized colors and sizes to meet the diverse needs of different commercial and residential projects.
| Rails | 2 | |
| Width | 94” | |
| Height | 82” | 94” |
| Railing | 1-37/64’’ × 1-3/16’’ × 1-37/64’’ × 12 ga | |
| Picket | 3/4”(19 mm) × 16 ga | |
| Material | Steel | |
| Color | Black, or Custom Colors | |
| Finish | E-Coating, Powder-Coating | |
| We can customize the specifications of the products according to customer needs, including size, material, craftsmanship, etc. | ||
 |
 |
 |
 |
| Fence Brackets | Fence Post | Post Caps | Screws |
In addition to this Steel Curved Top Fence Panel, we also have other products in the spear top fence series. These products differ from each other in terms of appearance, material, and size:
 |
 |
 |
| Steel Welded Curved Spear Top Gate | Steel Spear Top Fence | Aluminum Spear Top Fence |

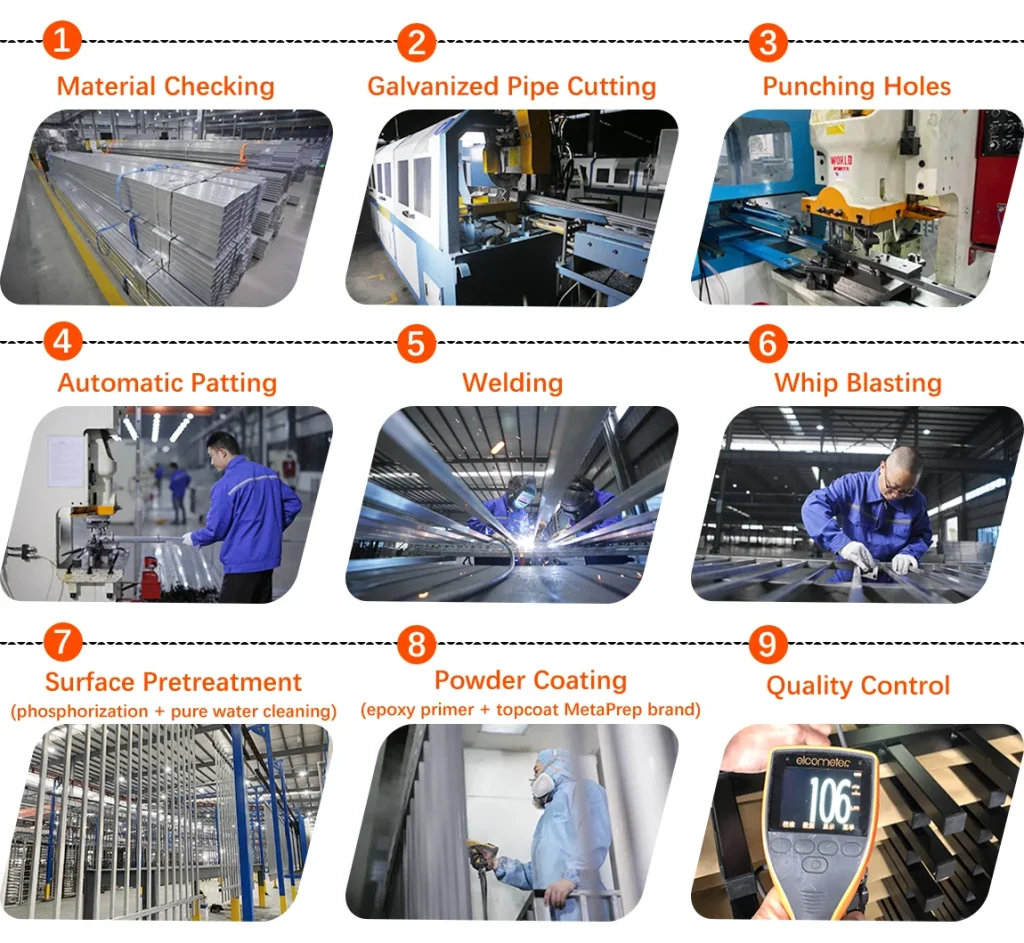

All incoming pre-galvanized steel pipes are inspected for outer diameter and wall thickness before production. We control outer diameter tolerance within ±0.2mm, to ensure all parameters fully comply with fence drawing requirements and guarantee quality from the source.
Auto-CNC pipe cutting machine is adopted for blanking. Profiles are cut per design requirements to obtain the target length, with cutting length tolerance controlled within ±1mm, ensuring burr-free and non-deforming cut ends.
Punching is processed on cut pipes with customized positioning jigs. We control aperture tolerance within ±0.1mm and hole position deviation within 0.5mm to meet the accuracy requirements of subsequent assembly.
Customized special flattening die and hydraulic equipment are used to flatten the top end of vertical pipes. The flatness tolerance after flattening is controlled within 0.3mm to ensure matching accuracy for subsequent assembly.
We use automated gas shielded welding technology to assemble pre-galvanized steel pipes into fence panel frames. Weld leg size is controlled between 3-5mm, with no weak welding, missing welding or slag inclusion; weld tensile strength reaches no less than 300MPa to ensure solid structural strength of the frame.
We use spray particles at a high speed of 60-80m/s to clean and roughen the workpiece surface. This process completely removes impurities, including rust, oil, and welding oxide scale, laying a good foundation for subsequent coating.
After sandblasting, phosphating treatment is performed to form a uniform phosphating film on the workpiece surface, with film thickness controlled at 1-3μm. The phosphating film itself has certain anti-corrosion capability, and can provide excellent adhesion for paint, powder coating, and other organic coatings, effectively extending the service life of the final coating.
Electrostatically spray epoxy-polyester hybrid powder on the pretreated workpiece surface, then transfer it to a curing oven and cure at 180-200℃ for 15-20 minutes. This process endows the finished product with outstanding rust resistance and corrosion resistance, and delivers a uniform, aesthetic coating.
We carry out full inspection for each finished product, testing pipe wall thickness, structural connection strength, and powder coating thickness. The coating thickness is controlled within 60-120μm to ensure all products meet delivery standards, and unqualified products are blocked before leaving the factory.
 |
 |
 |
 |

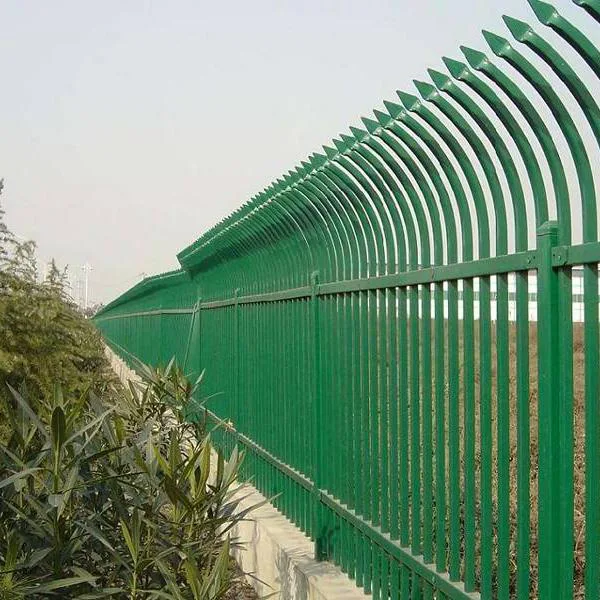

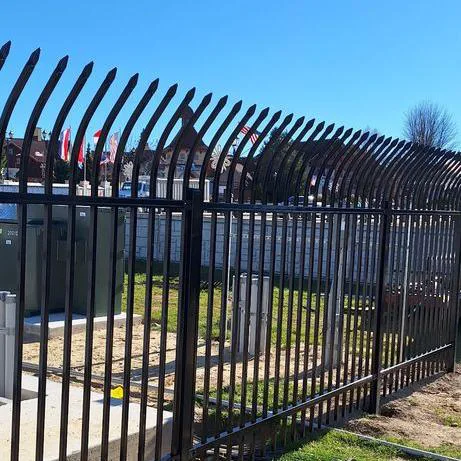

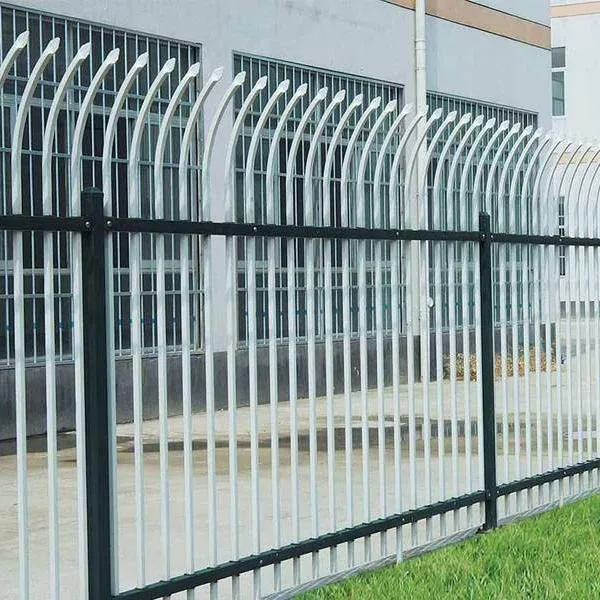

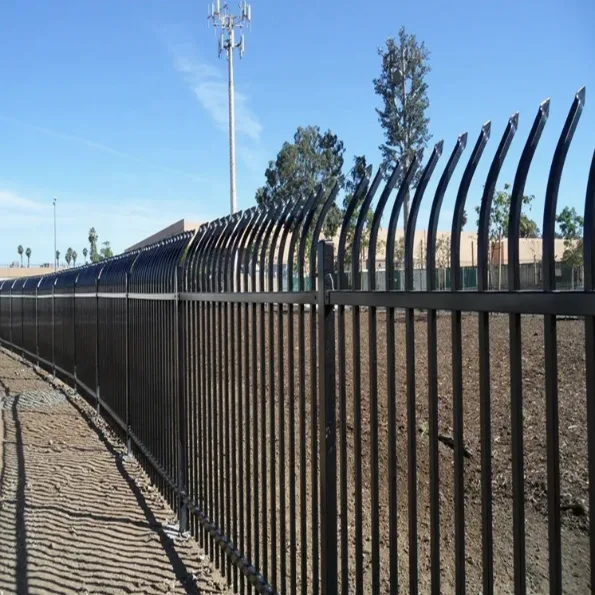

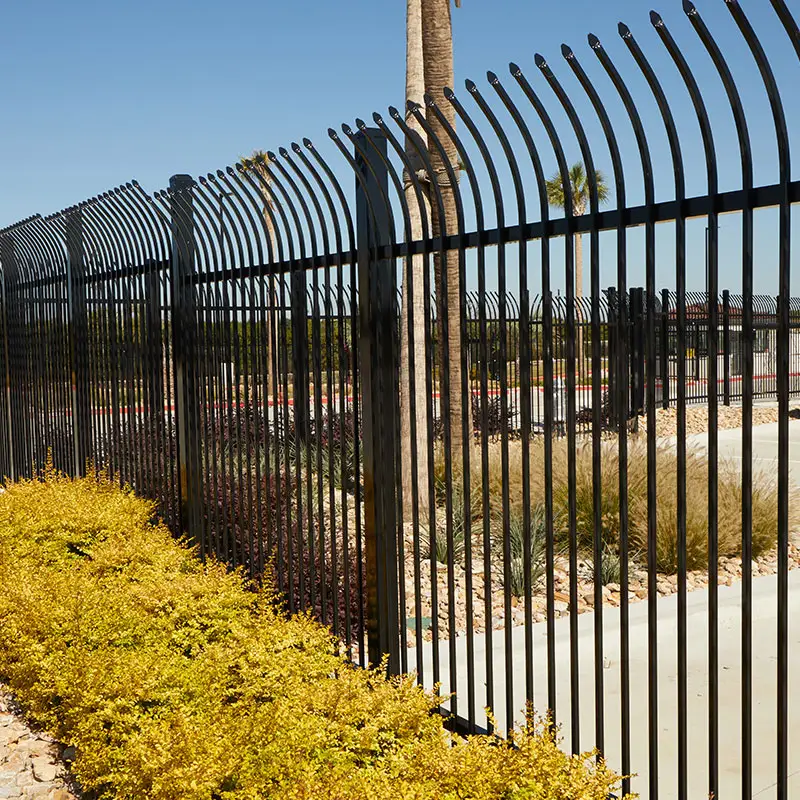

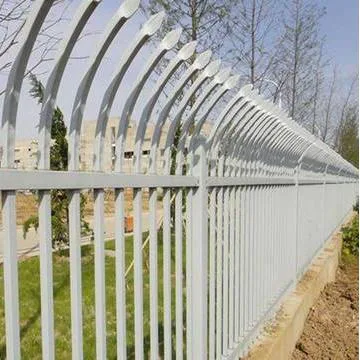

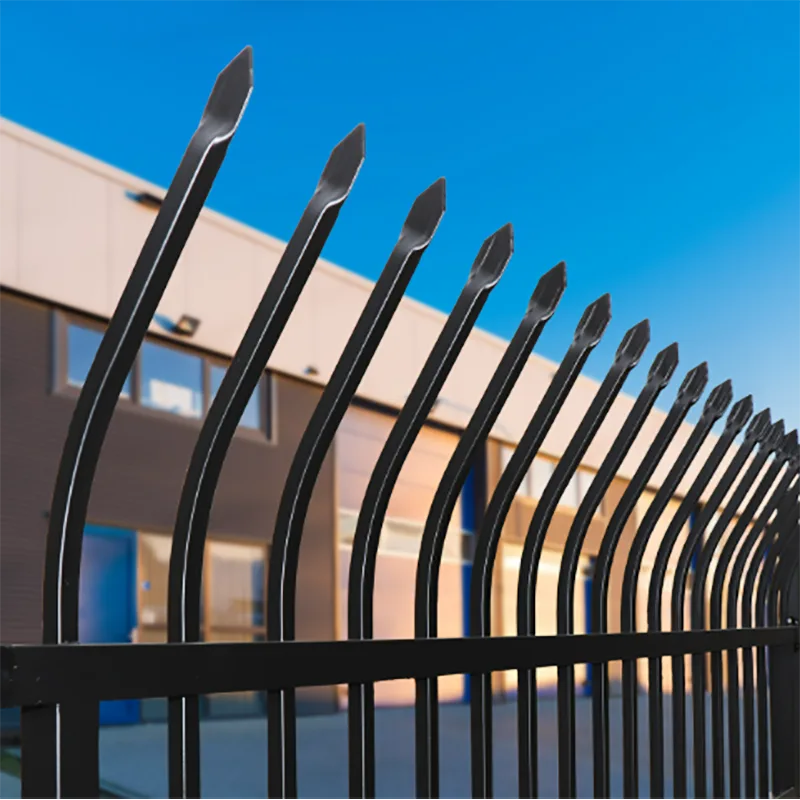

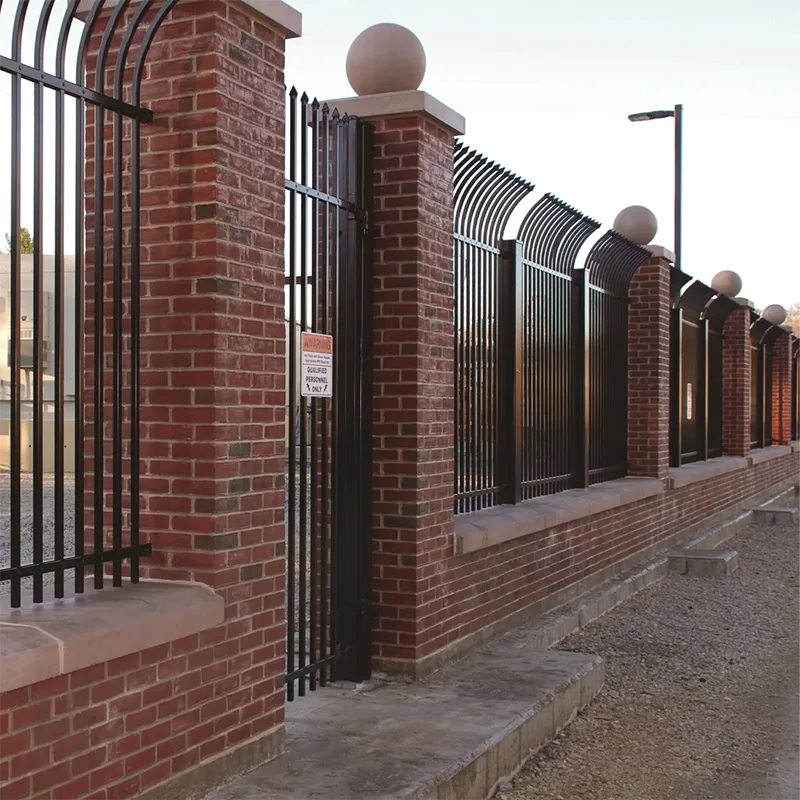

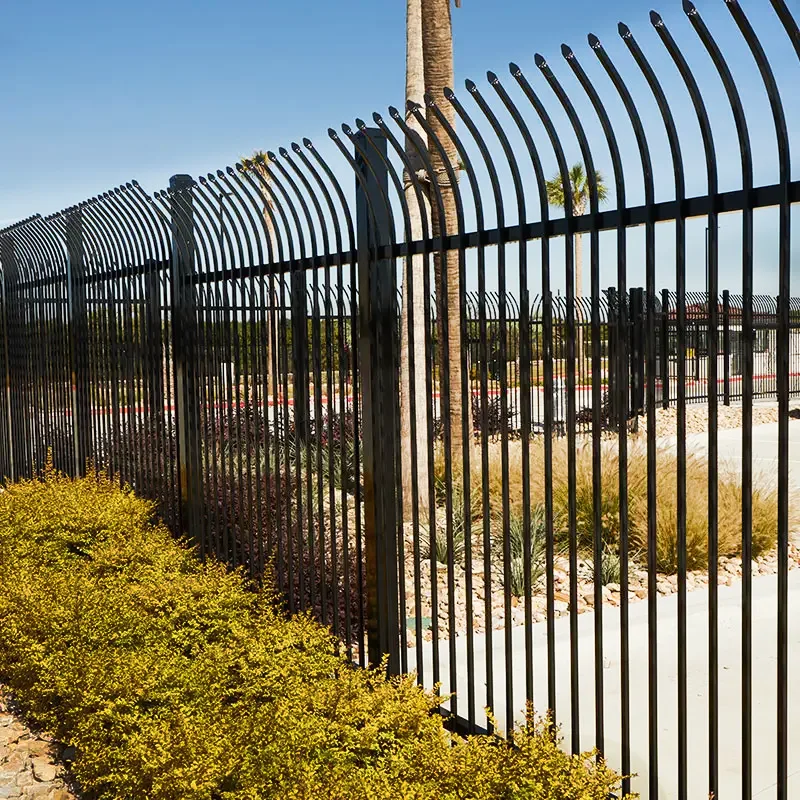

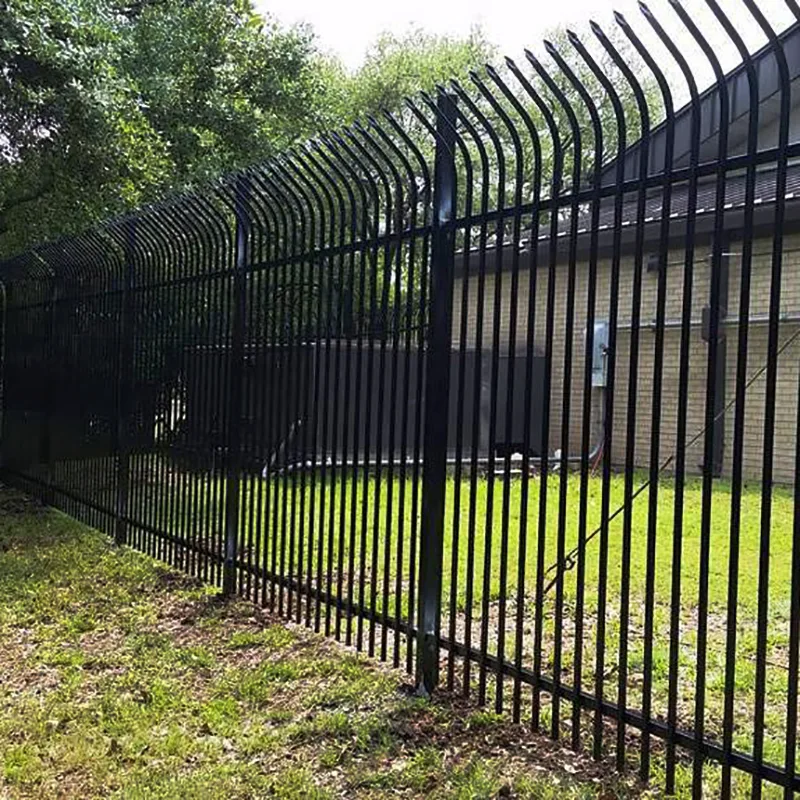

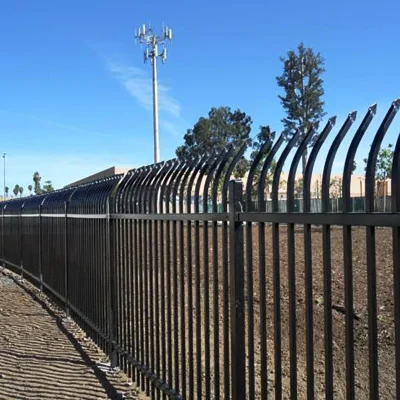

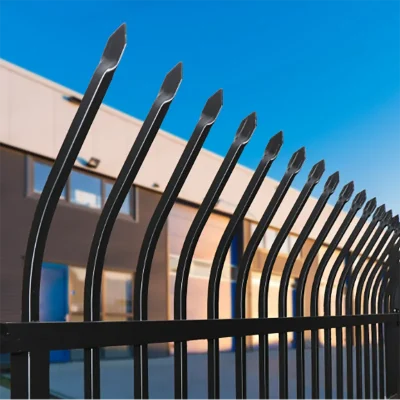

Steel Welded Commercial Curved Spear Top Fence is suitable for courtyards, poolsides, roadsides, airports, stations, factories, schools, estates, gardens and lawns, and other places that require security protection.
A: The primary difference lies in the top design. Curved top fences feature a curved top with fluid lines, giving them a more elegant appearance. spear top fences, on the other hand, have sharp tops that are more intimidating and offer a higher level of security. The choice between the two depends on individual preference and specific security requirements.
A: Yes. Most high-quality black powder-coated curved top steel fences have a galvanized steel undercoat that works with the outer powder coating to block moisture and salt corrosion. It withstands extreme heat, freezing temperatures, and high humidity without rusting or warping.
A: While black is the most popular for its sleek, modern appearance, many manufacturers offer custom powder coating in colors like bronze, green, or white. However, black provides the best heat absorption and longevity in direct sunlight.
A: We operate a large-scale, in-house manufacturing facility and maintain an inventory of standard sizes and styles, enabling us to offer rapid shipping. The lead time for custom orders may be slightly longer; please contact us directly for specific details.
A: We recommend a full container (1×20′) as the standard minimum order quantity to maximize shipping efficiency and ensure product safety. If you have specific needs, you are also welcome to inquire about the possibility of smaller orders.
